ClicOn Angled Mount - Nissan Patrol 2011-2021

This Dashmount has been custom designed to fit your vehicle's dashboard without damaging your interior. Designed for mounting ClicOn holders. ONE Part of a TWO Part Solution. Installation instructions provided.

Attention! Read all instructions before attaching the ClicOn.

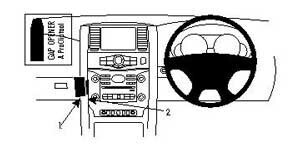

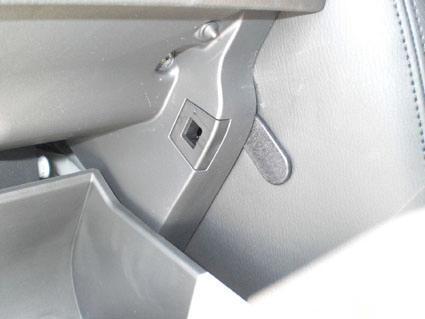

1. Open the glove compartment door. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Press the thin end of the enclosed gap opener into the gap between the dashboard and the glove compartment frame, to widen the gap. Peel off the cover of adhesive tape on the ClicOn.

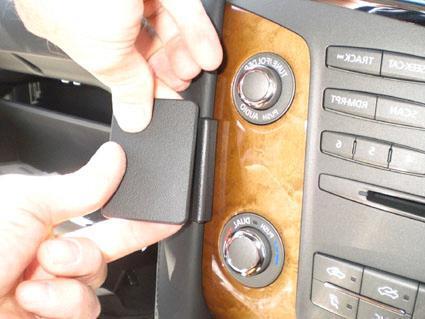

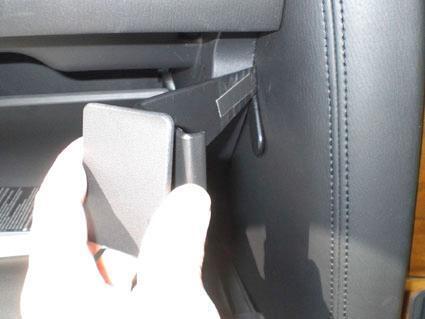

2. Hold the ClicOn in an almost 45 degree angle and press/hook the angled left edge into the gap above the gap opener. Flip/push the ClicOn to the right so the angled edge on the left side of the ClicOn hooks behind the glove compartment frame.

3. Place your fingers behind the right side of the ClicOn and pull so it flexes towards you.Then hook it over the console edge and press/slide the curved edge into the gap between the center console panel and the padded console edge. Pull out the gap opener and close the glove compartment door.

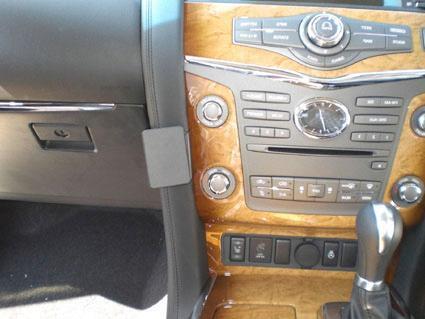

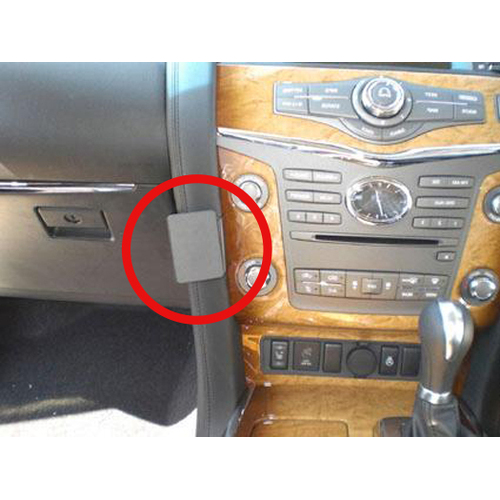

4. The ClicOn is in place.

Suits:

Nissan Patrol Year(s):11-21
