All Terrain Industries Spacer/Shackle Lift Kit - Ford Ranger

The All Terrain Industries spacer/shackle lift kit provides a cost effective way to raise your vehicle 2.5" at the front and 2" at the rear. The kit uses 32mm strut spacers and extended shackles to achieve lift while retaining factory ride characteristics.

Features:

• 2.5" front, 2" rear lift heights as specified
• 32mm strut spacers designed to mount onto the standard strut without limiting wheel travel or affecting ride quality
• Strut spacers machined from billet alloy and anodised for protection
• Extended shackle kit with greasable pins top and bottom and grease nipples fitted either side of the pins for service access
• Shackles offer two adjustable height options to provide approximately 25mm or 50mm of lift over OE units
• Shackles can be fitted with rubber or urethane bushes
• Heavy duty components
• Lifetime warranty

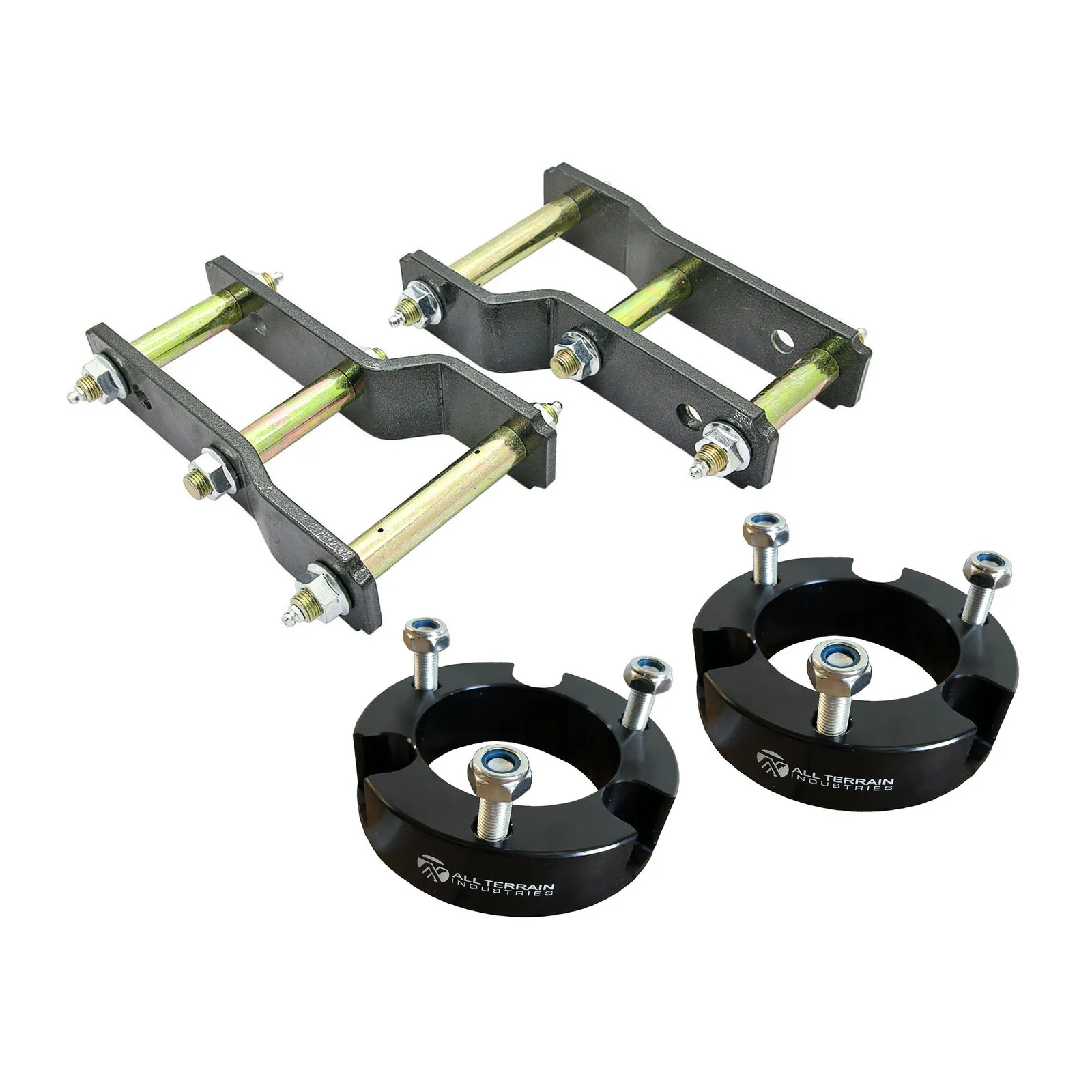

Kit Includes:

• 2 x 32mm Strut spacers
• 6 x Nyloc nuts
• 4 x Shackle plates
• 4 x Greasable shackle pins
• 2 x Centre non greasable pins
• 12 x Shackle nuts
• 8 x Grease nipples

Suits:

• FORD RANGER PXI/PXII/PXIII 2011-2022
• FORD RANGER NEXT GEN 2022-on
• MAZDA BT50 2011-2020
