All Terrain Industries Spacer/Shackle Lift Kit - GWM Cannon/UTE

The ATI spacer/shackle lift kit provides a 2 inch front and 2 inch rear lift for GWM Cannon/UTE models. It combines 25mm front strut spacers with extended rear shackles to raise the vehicle approximately 50mm over factory height while maintaining ride quality.

Features:

• 25mm strut spacers lift the front approximately 45mm over standard and mount onto the standard strut without limiting wheel travel
• Rear shackles offer two adjustable height options to give approximately 25mm or 50mm of lift over the OE units
• Strut spacers are machined from billet alloy and anodised
• Greasable shackle design with greasable pins top and bottom and grease nipples fitted to either side of the pins for servicing
• Can be fitted with rubber or urethane bushes
• Maintains factory ride quality
• Lifetime warranty

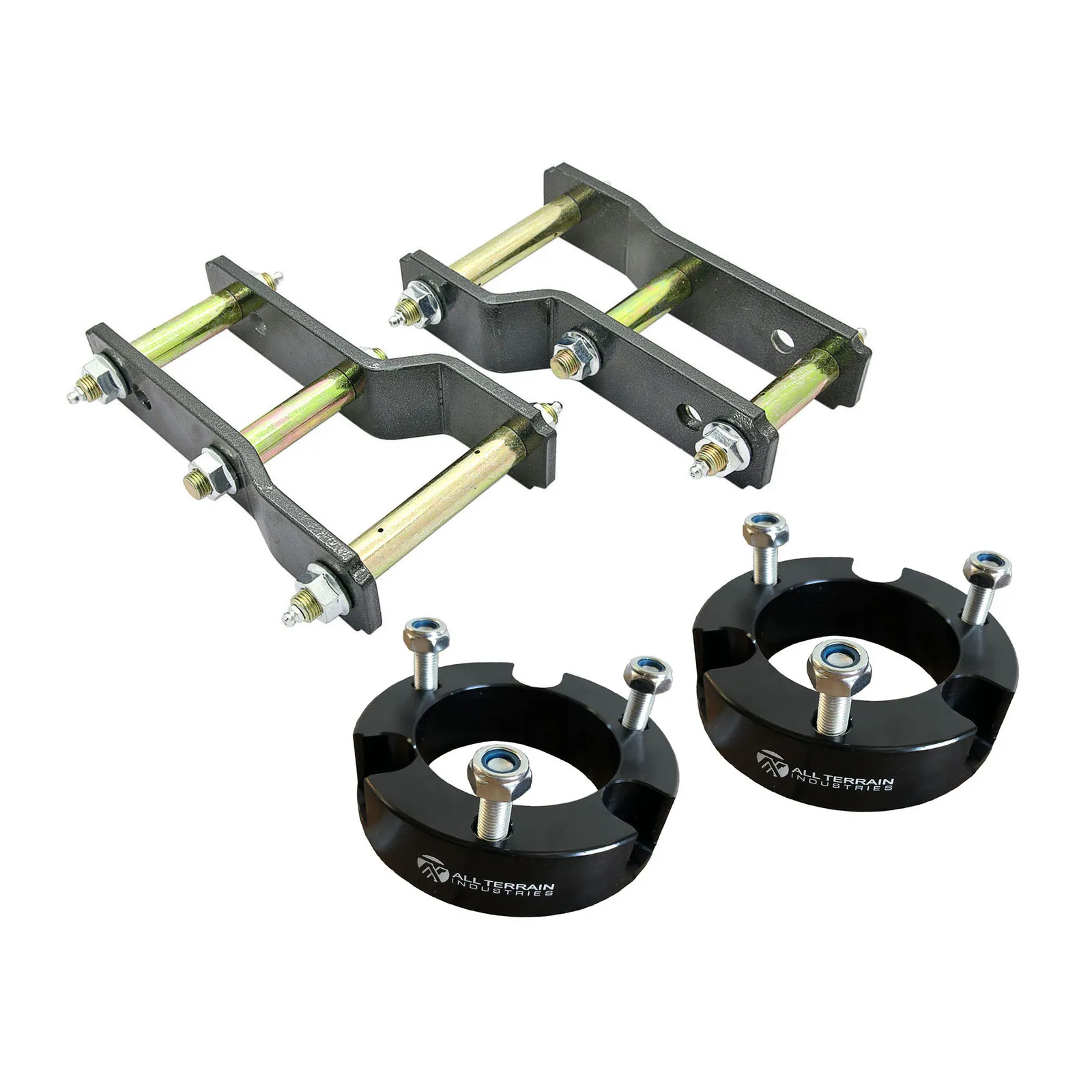

Kit Includes:

• 2 x 25mm Strut spacers
• 6 x Nyloc nuts
• 4 x Shackle plates
• 4 x Greasable shackle pins
• 2 x Centre non greasable pins
• 12 x Shackle nuts
• 8 x Grease nipples

Suits:

• GWM CANNON/UTE 2020-on
• GWM CANNON ALPHA 2024-on
