All Terrain Industries Spacer/Shackle Lift Kit - Isuzu D-Max 2021-on

The ATI spacer/shackle lift kit gives roughly a 2 inch lift front and rear using 25mm strut spacers and extended rear shackles. It is an economical option to raise vehicle height by up to approximately 50mm over factory on compatible Isuzu D-MAX and Mazda BT-50 models.

Features:

• 25mm strut spacers lift the front approximately 45mm over standard
• Strut spacers mount onto the standard strut and create lift without limiting wheel travel
• Designed not to affect factory ride quality
• Strut spacers machined from billet alloy and anodised for protection
• Extended shackle kit features greasable pins top and bottom with grease nipples fitted to either side of the pins for servicing
• Shackles offer two adjustable height options to give approximately 25mm or 50mm of lift over the OE units
• Shackles can be fitted with rubber or urethane bushes
• Lifetime warranty

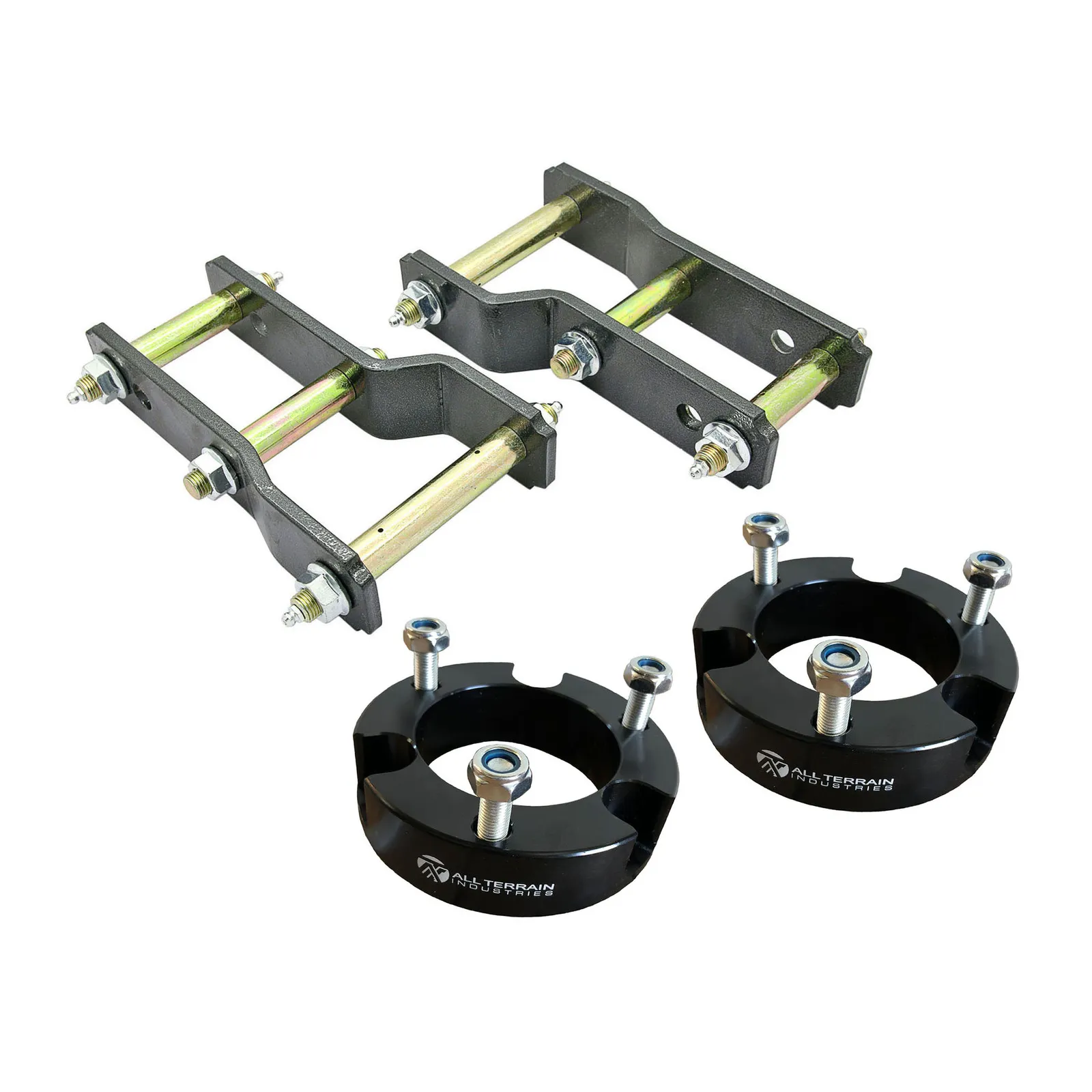

Kit Includes:

• 2 x 25mm Strut spacers
• 6 x Nyloc nuts
• 4 x Shackle plates
• 4 x Greasable shackle pins
• 2 x Centre non greasable pins
• 12 x Shackle nuts
• 8 x Grease nipples

Suits:

• ISUZU DMAX 2021-on
• MAZDA BT50 TF 2020-on
