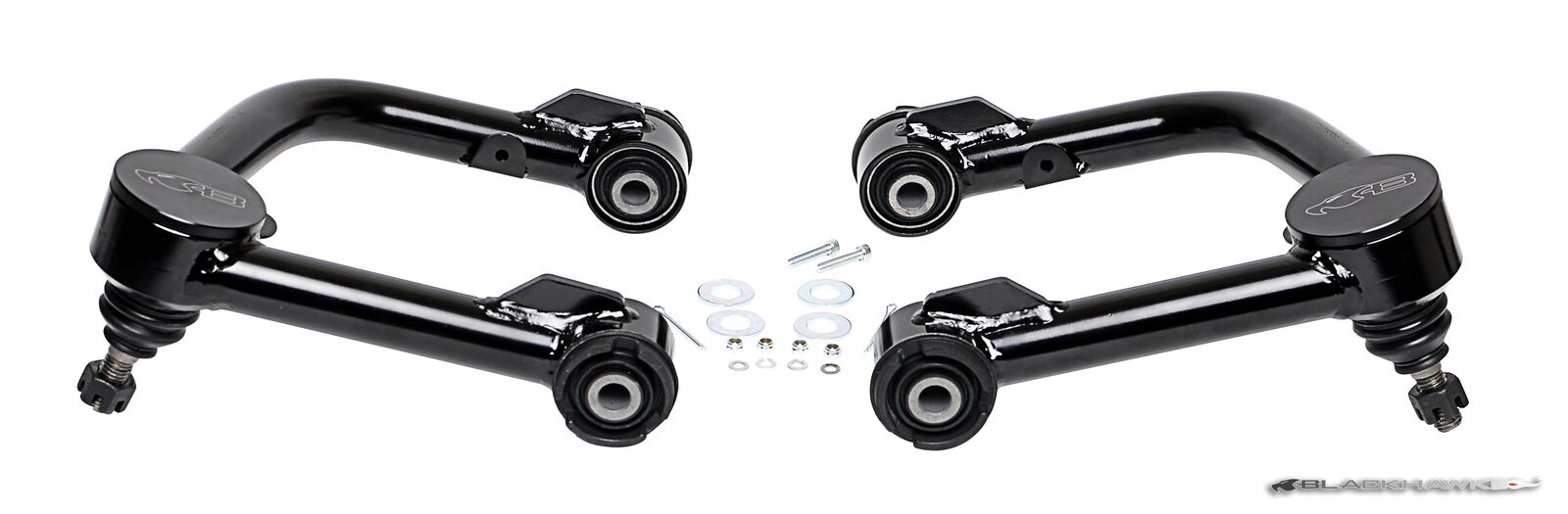

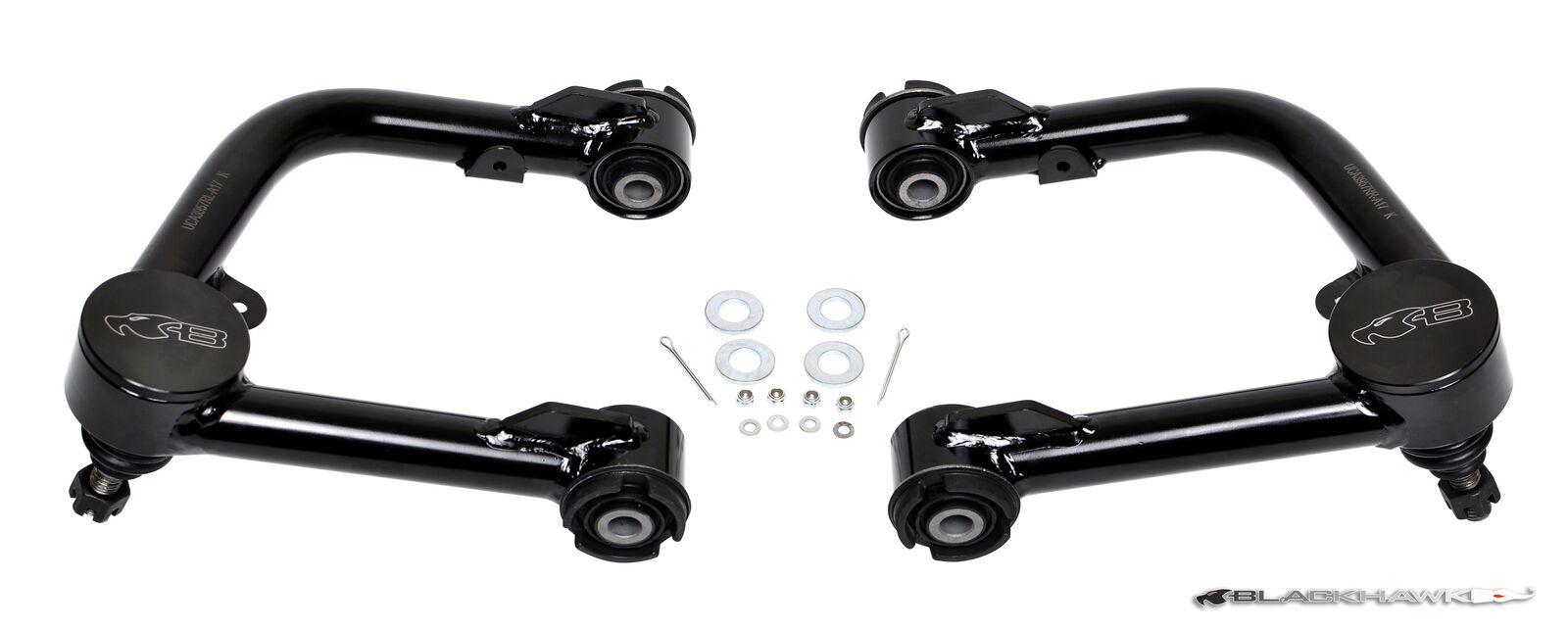

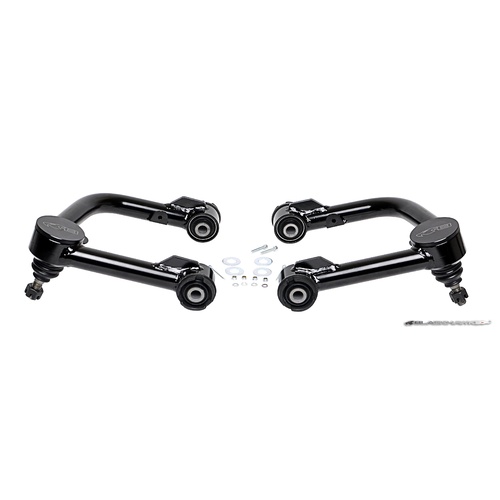

Blackhawk Upper Control Arm - Ford Ranger PX1, PX2 & PX3, Gen2 BT-50 UP, Everest UA1 & UA2
These Engineered upper control arms are designed to correct the balljoint angle with built in 3deg caster when you lift your vehicle 40mm and over
Blackhawk UCA's are designed with clearance to the coil spring during articulation, as well as strengthening the whole unit over the standard parts.
Sold as a pair kit with hardware included, These UCA's are a cost effective & simple solution to your alignment problems. Blackhawk UCA's use OE size parts (bushes and ball joints) meaning spares can be obtained from any spare parts shop, or genuine from Ford.
Kit Contains:

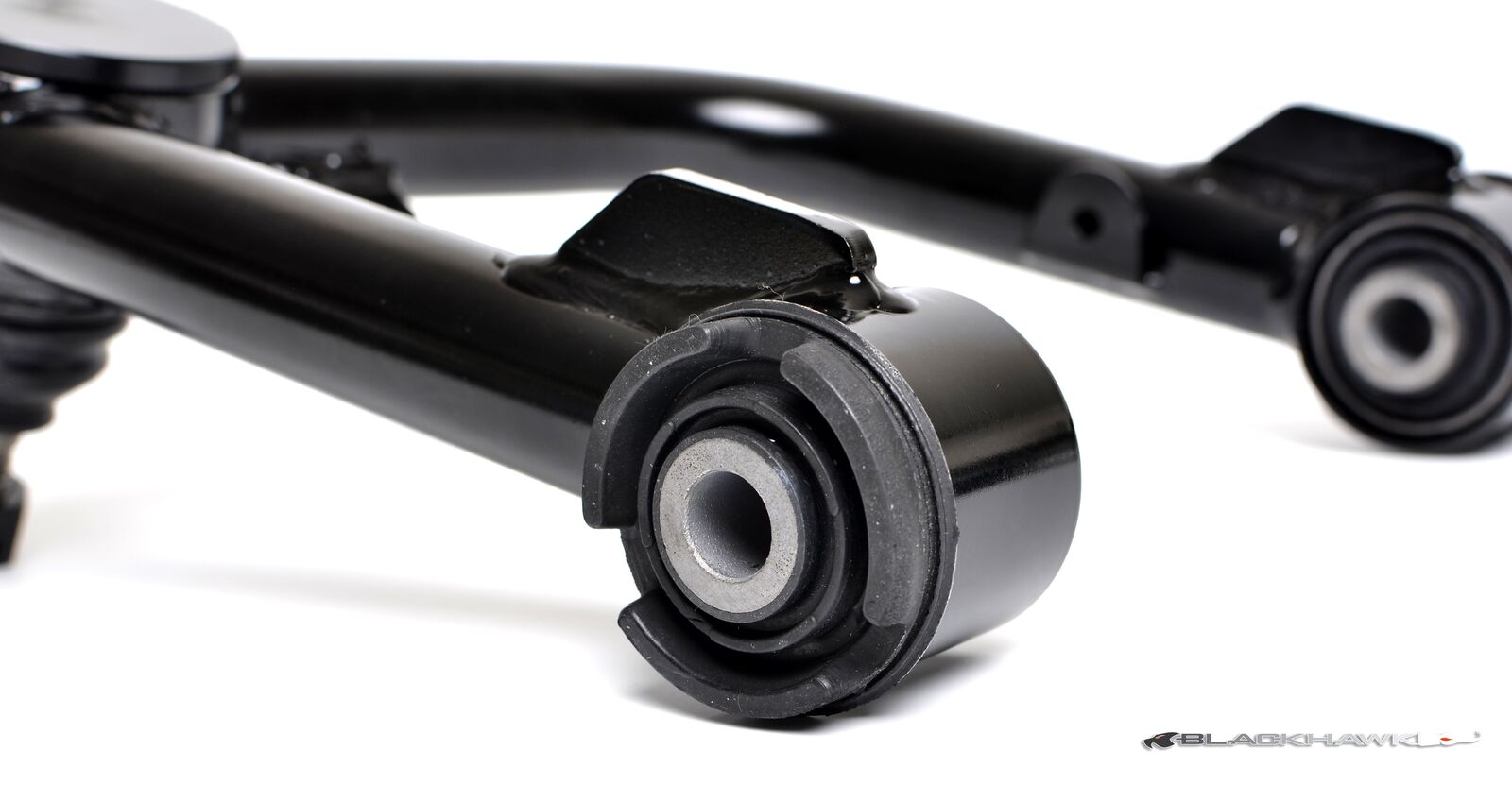

- 2 x Blackhawk UCA's pre-fitted with OE style rubber bushes

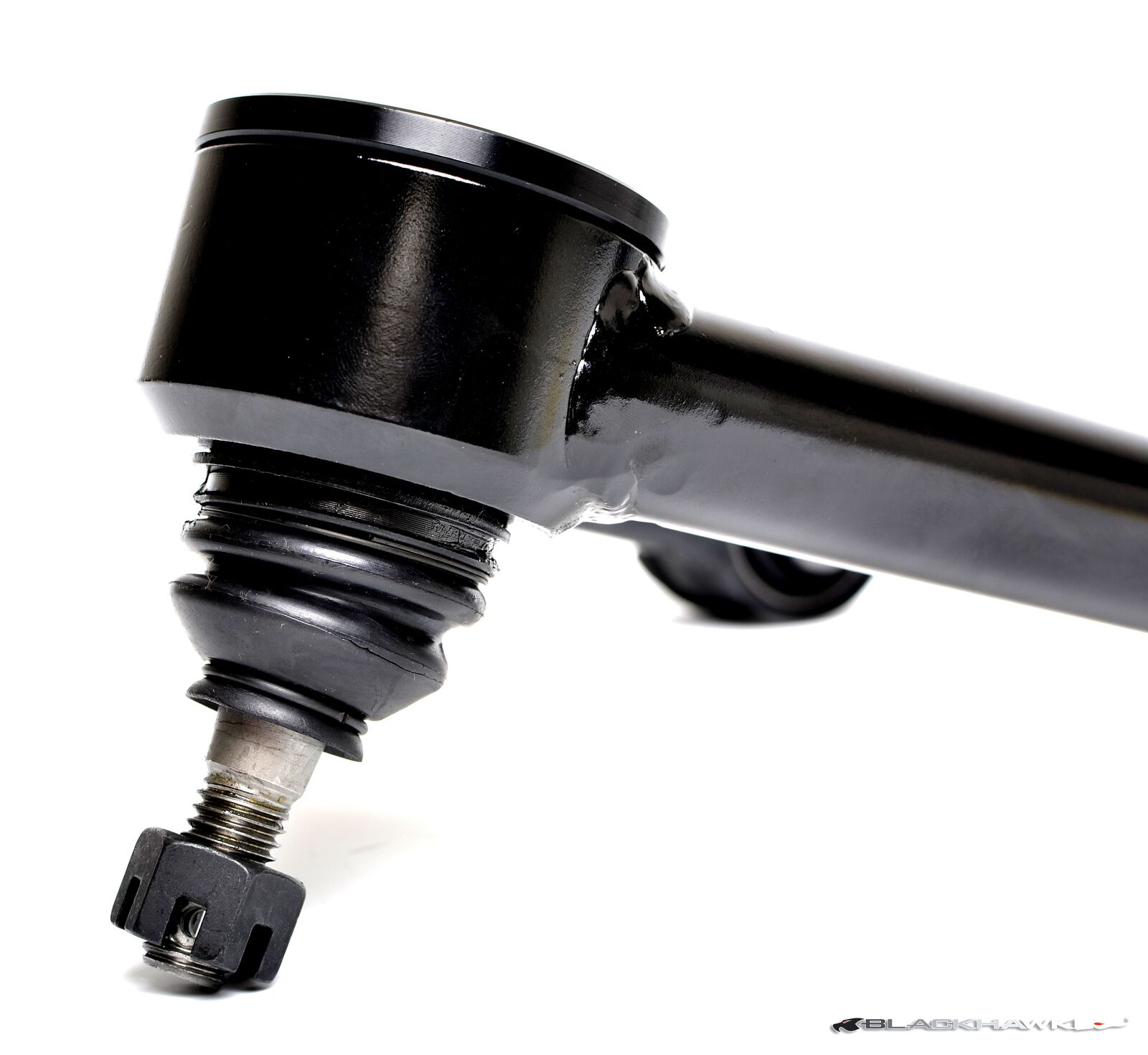

- 2x Roadsafe HD Ball Joints pre-fitted to the control arms
- 4 x Washers
- 2 x Blackhawk Ball Joint Dust Caps
- 2 x Dust Cap sealing O-Rings
These UCA's are designed to fit:
- Ford Ranger PX
- Ford Ranger PX MK2
- Ford Ranger PX MK3
- Ford Everest UA1 & UA2
- Mazda BT50 UP
(UCA3957R)
SKU | UCA3957R |
Barcode # | 9.32E+12 |
Brand | Blackhawk |
Shipping Weight | 7.4000kg |
Shipping Width | 0.340m |
Shipping Height | 0.151m |
Shipping Length | 0.410m |
Check our Warranty Page
