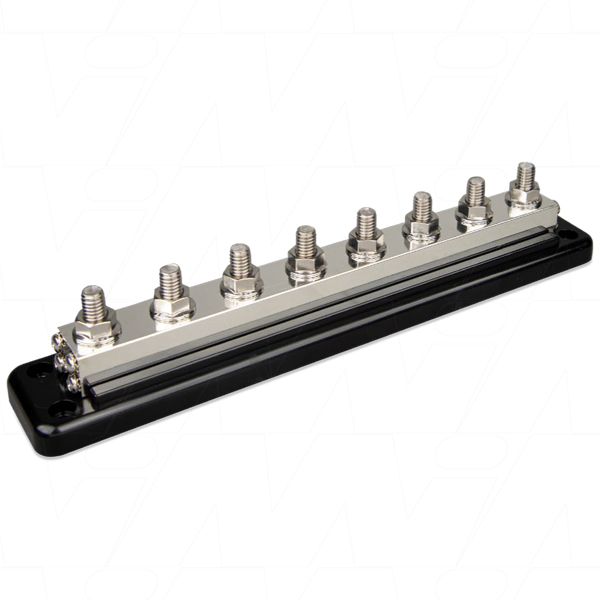

Victron Busbar 600A 8P +cover
VBB160080010
$352.45
In Stock

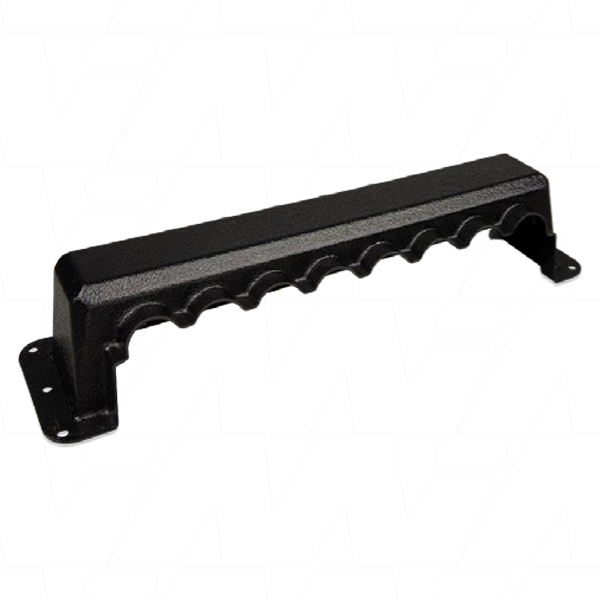

| Busbar 600 A with cover | |
| Max. current | 600A |
| Max. Voltage | 70 VDC |
| Terminal diameter | 9.53mm |
| Terminal height | 19mm |
| Terminal material | Stainless steel |
| Flange Nut material | Stainless steel |
| Recommended torque | 20 N·m / 180 lbf·inch |
| Screw Terminals diameter | 4.2mm |
| Screw Terminals | Stainless steel |
| Recommended torque | 2 N·m / 17 lbf·inch |
| Busbar strip material | Tin-plated copper (19 x 24mm) |
| Base material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight | 1300 g |
| Dimensions (hxwxd) | 65 x 327 x 86 mm |
(VBB160080010)
| SKU | VBB160080010 |
| Brand | Victron Energy |
| Shipping Weight | 1.3000kg |
| Shipping Width | 0.327m |
| Shipping Height | 0.065m |
| Shipping Length | 0.086m |
