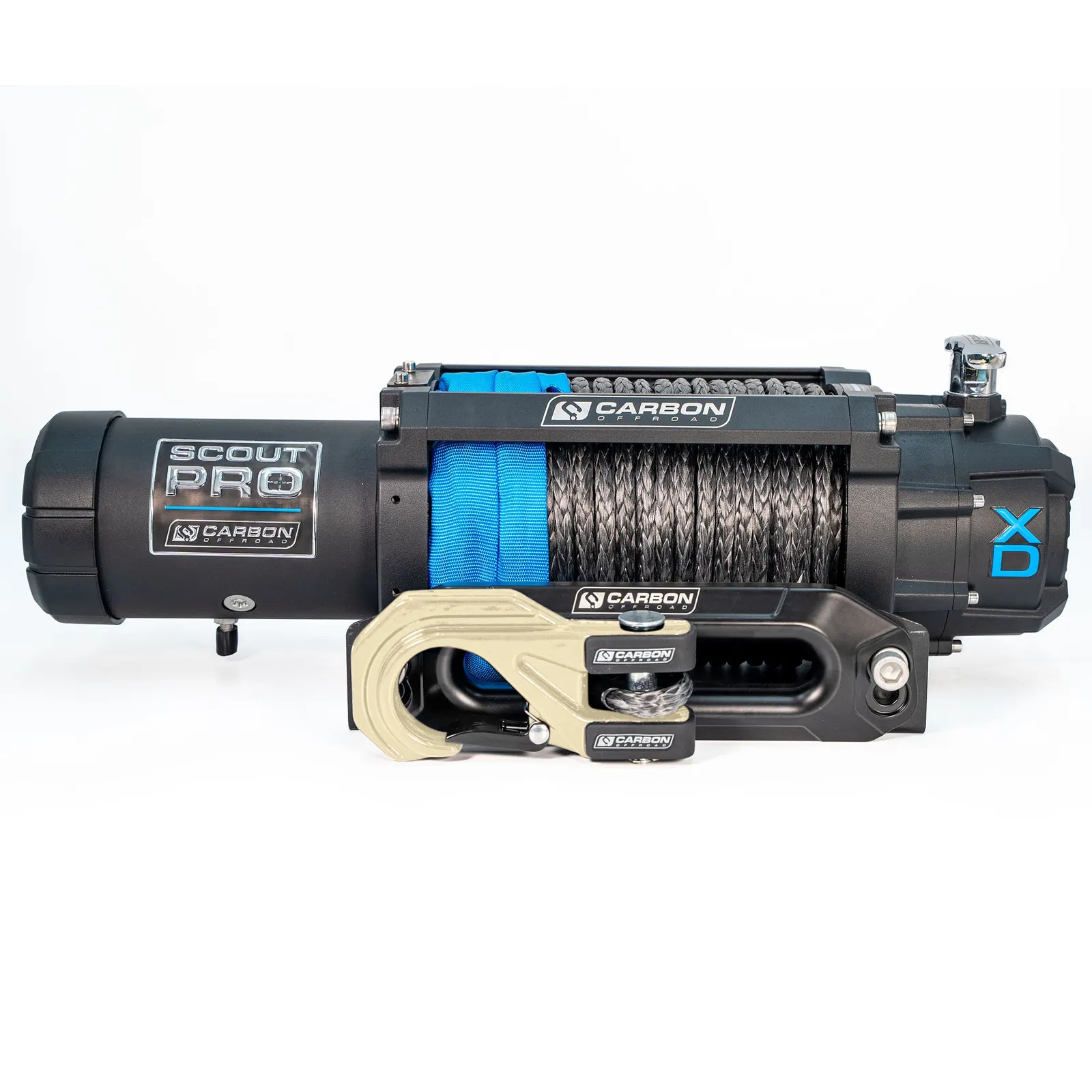

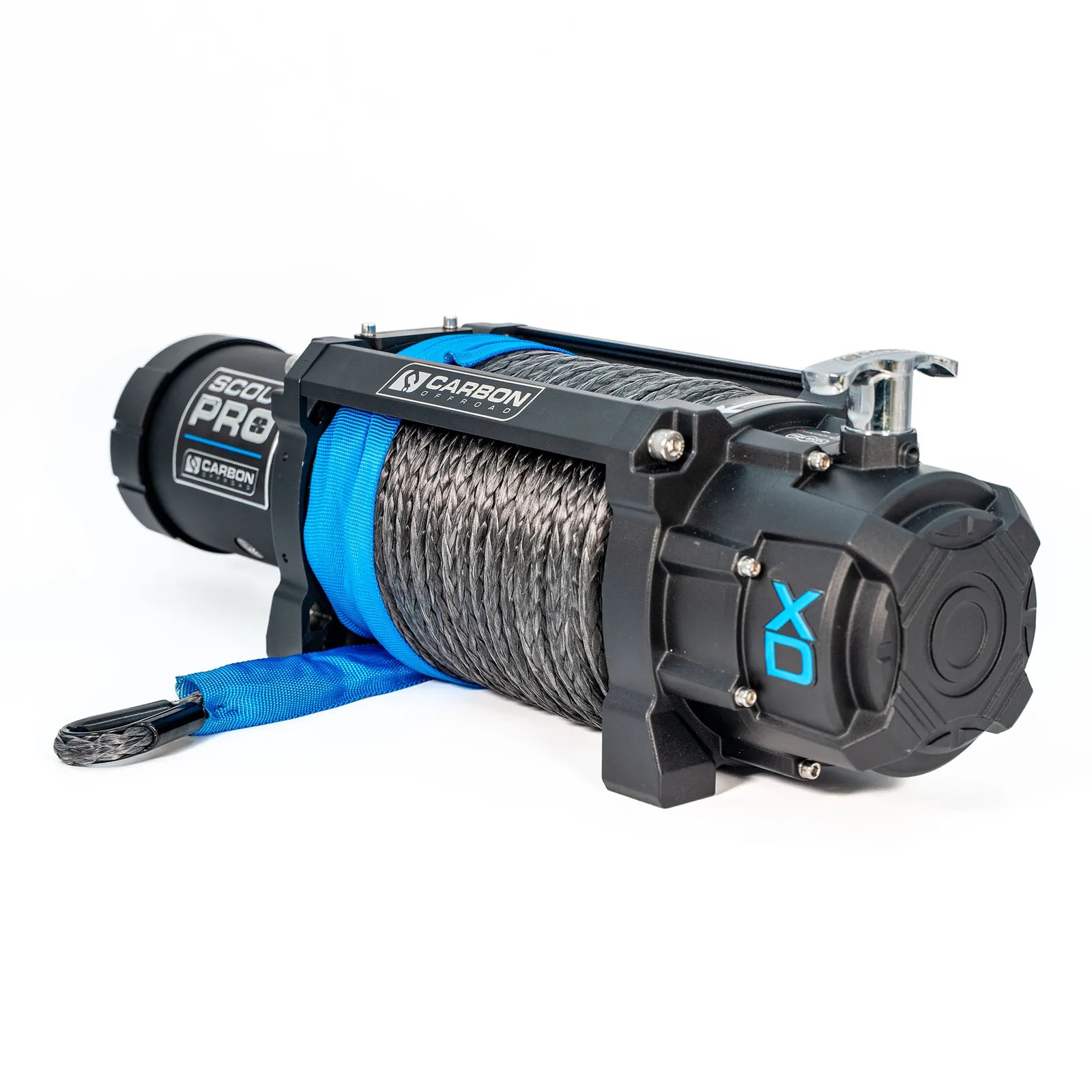

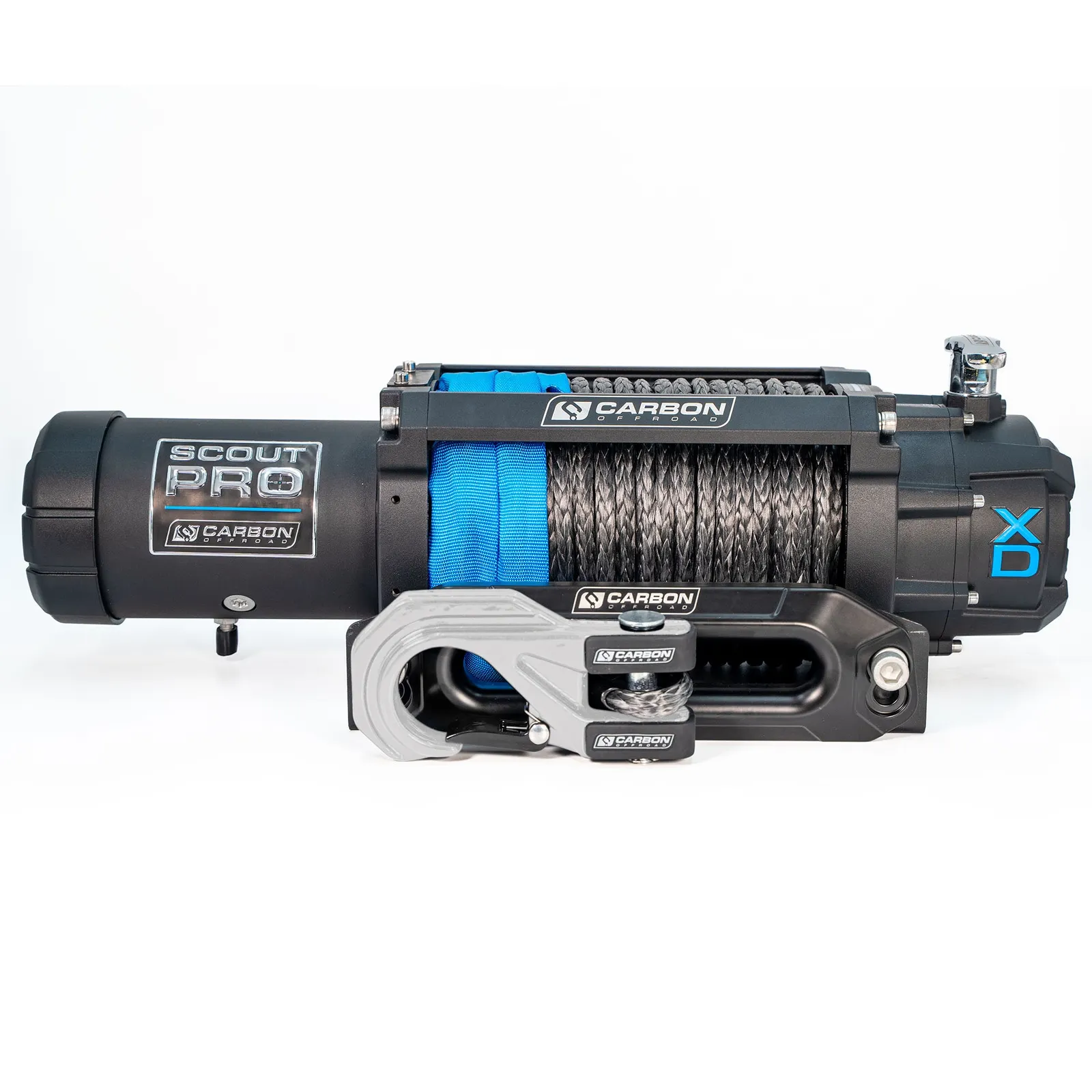

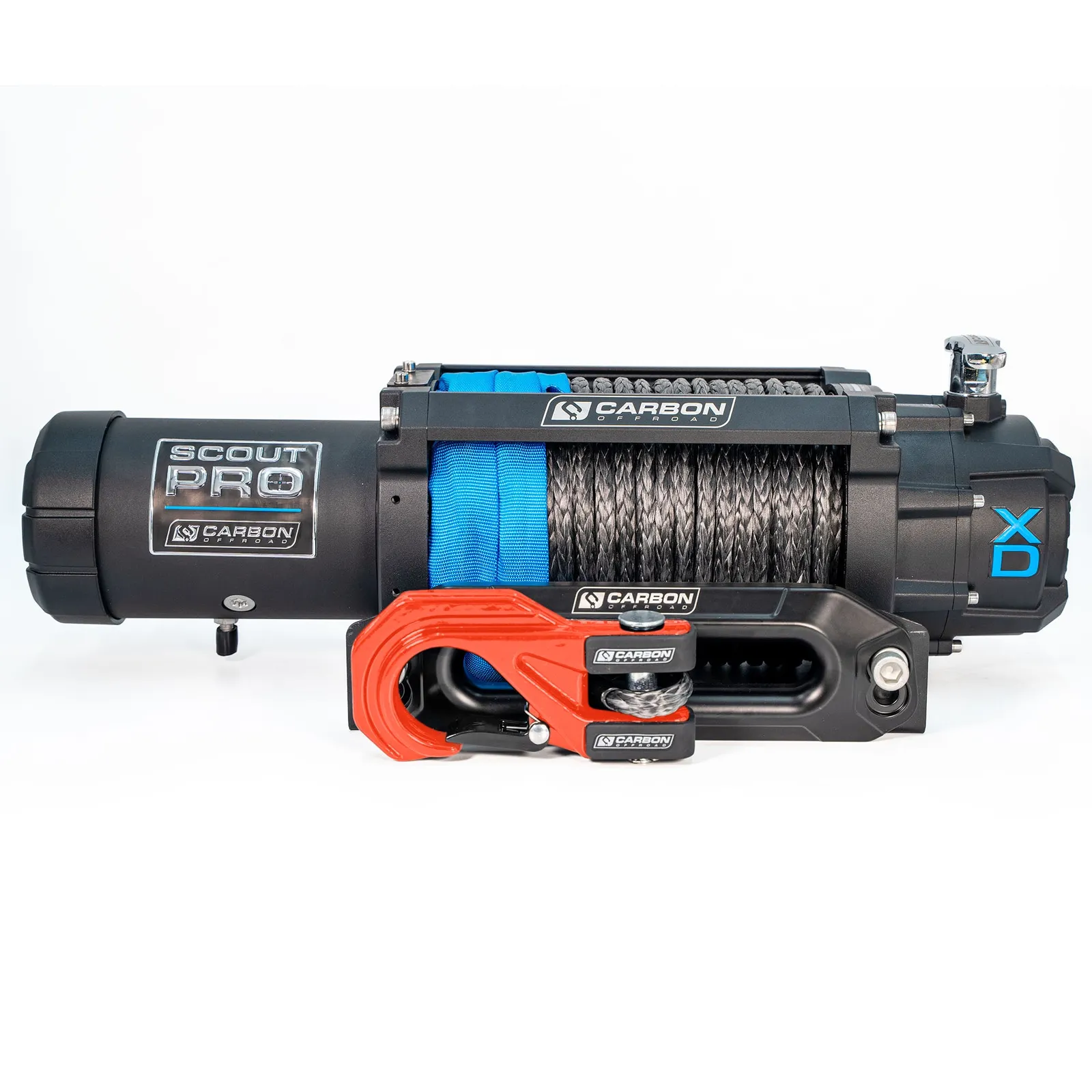

Carbon Offroad RS9 High Speed Winch Kit
$1,699.00
RRP $1,869.00
SAVE $170.00 (9%)
In Stock

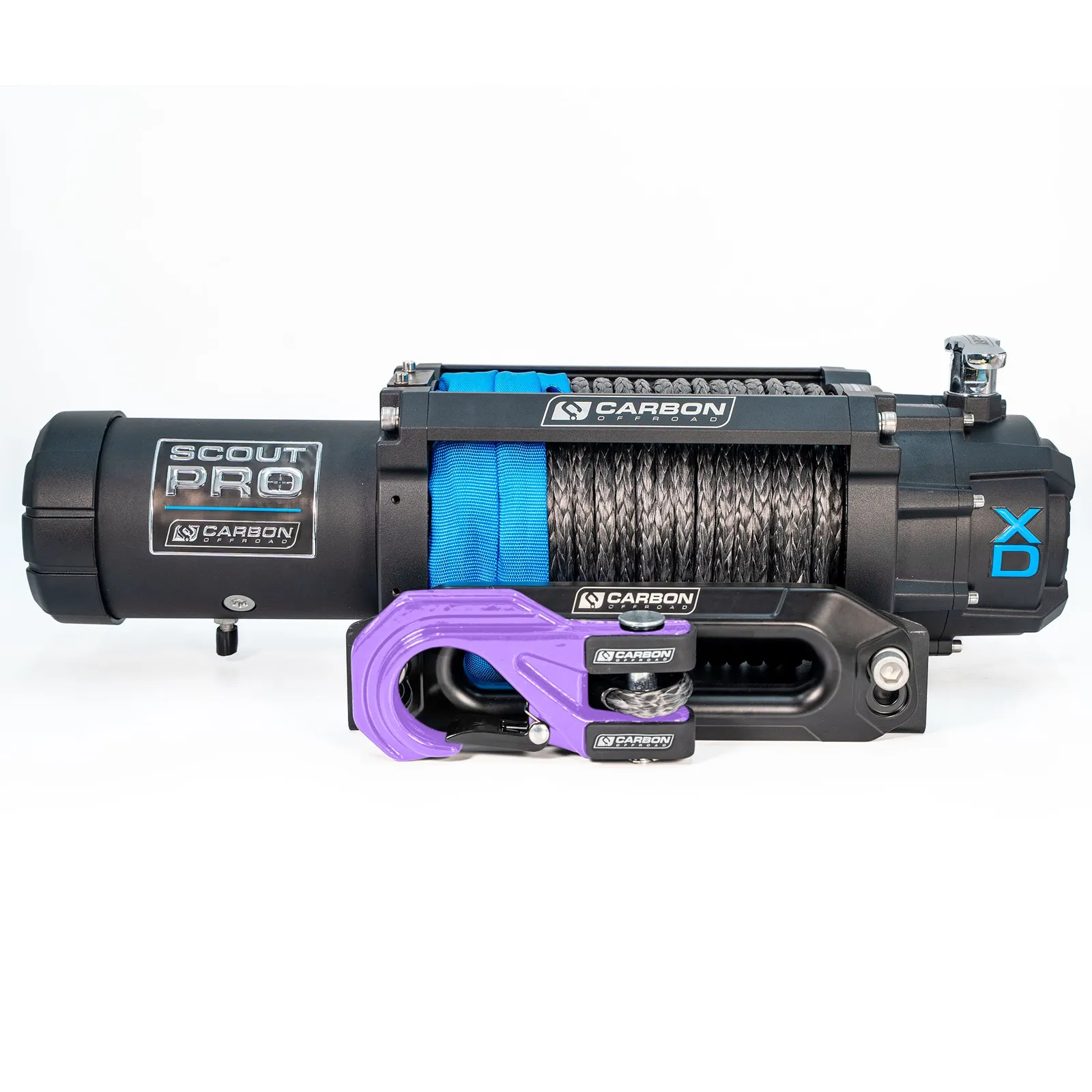

The Carbon Offroad RS9 High Speed Winch Kit is a purpose-built, race-spec winch focused on fast cycle times, extended reach and reduced front-axle weight. It pairs an 8.0HP series-wound motor with an 80:1 gear ratio and ships with 42m of 8mm Spectra Fiber Synthetic UHMWPE rope and a MegaPro hook.
Features:
- Rated line pull 4080kg (9000lbs).

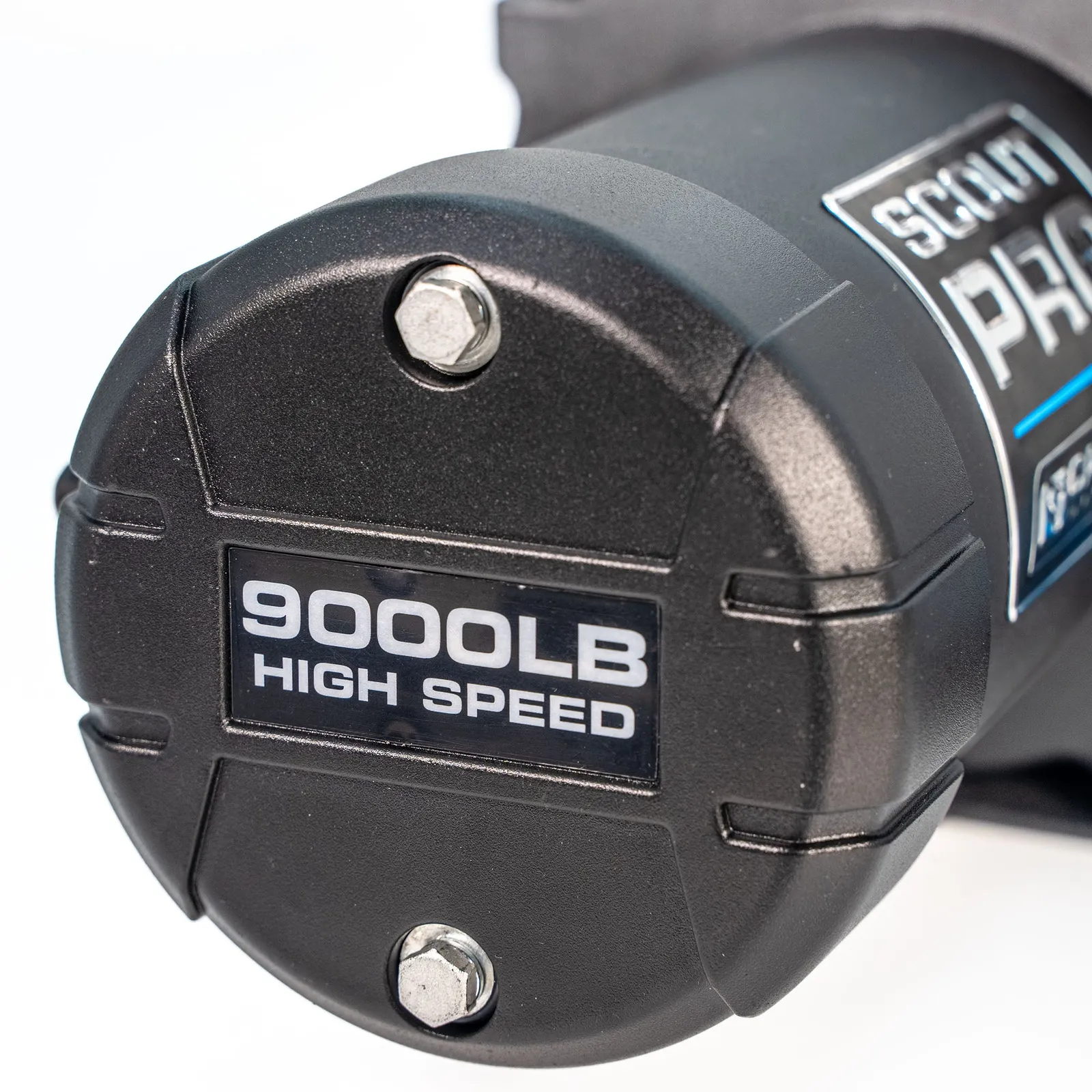

- 8.0HP 12V series-wound motor.
- 80:1 heavy-duty performance gearing tuned for fast line speeds under load.
- Peak line speed 24.2m/min (79.4fpm) at 0kg.

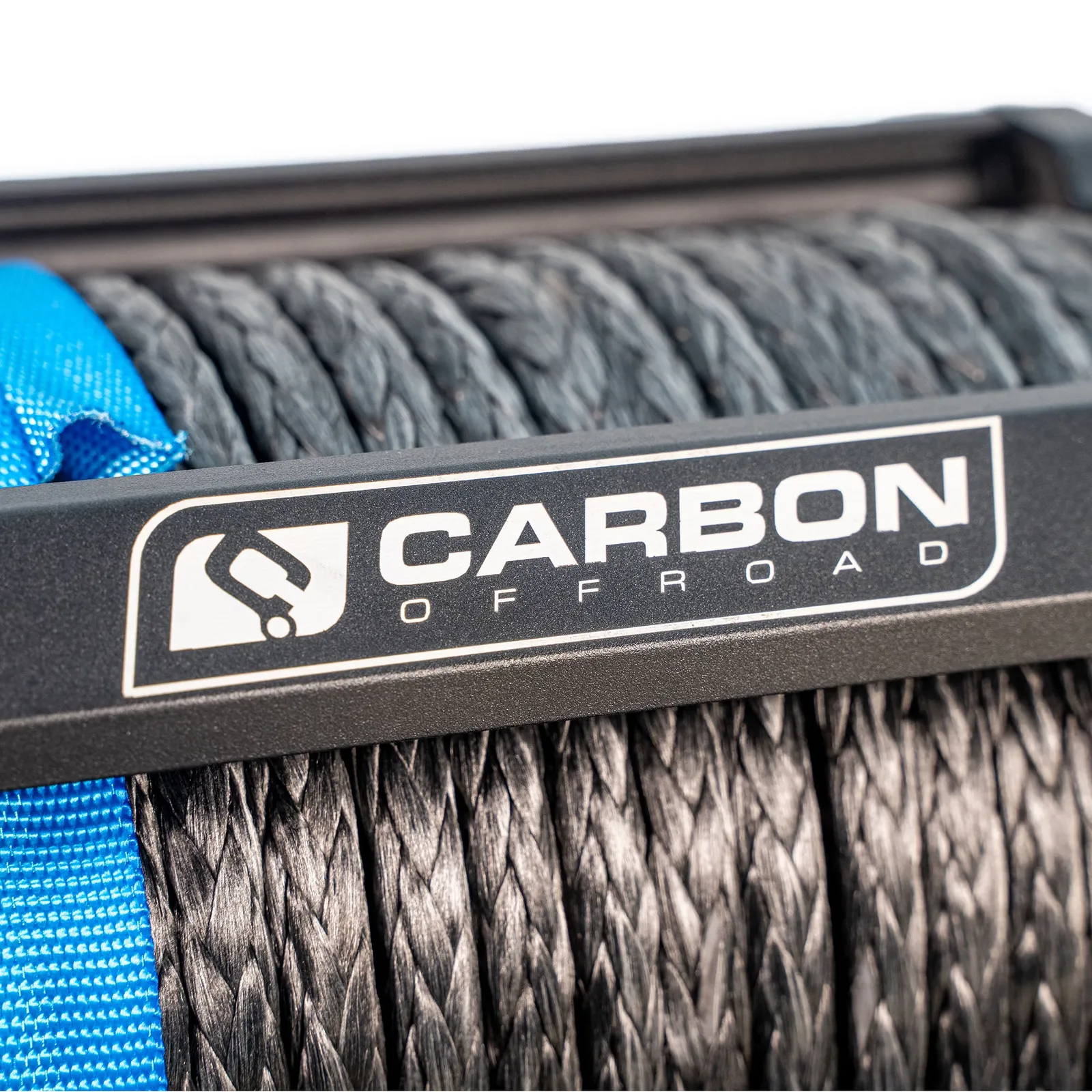

- Comes standard with 42m (137ft) of 8mm (5/16") Spectra Fiber Synthetic UHMWPE rope.
- IP68 Rated.
- Built on the Carbon Offroad Version 3 (V3) chassis.
- Air Freespool ready; compatible with the Carbon Offroad Air Freespool Clutch Upgrade.
- Standard 254mm x 114.3mm (10" x 4.5") mounting bolt pattern.
- Limited Lifetime Mechanical Warranty.
- 5-year Electrical Warranty.
- 5-year Water Ingress Protection Warranty.
Kit Includes:

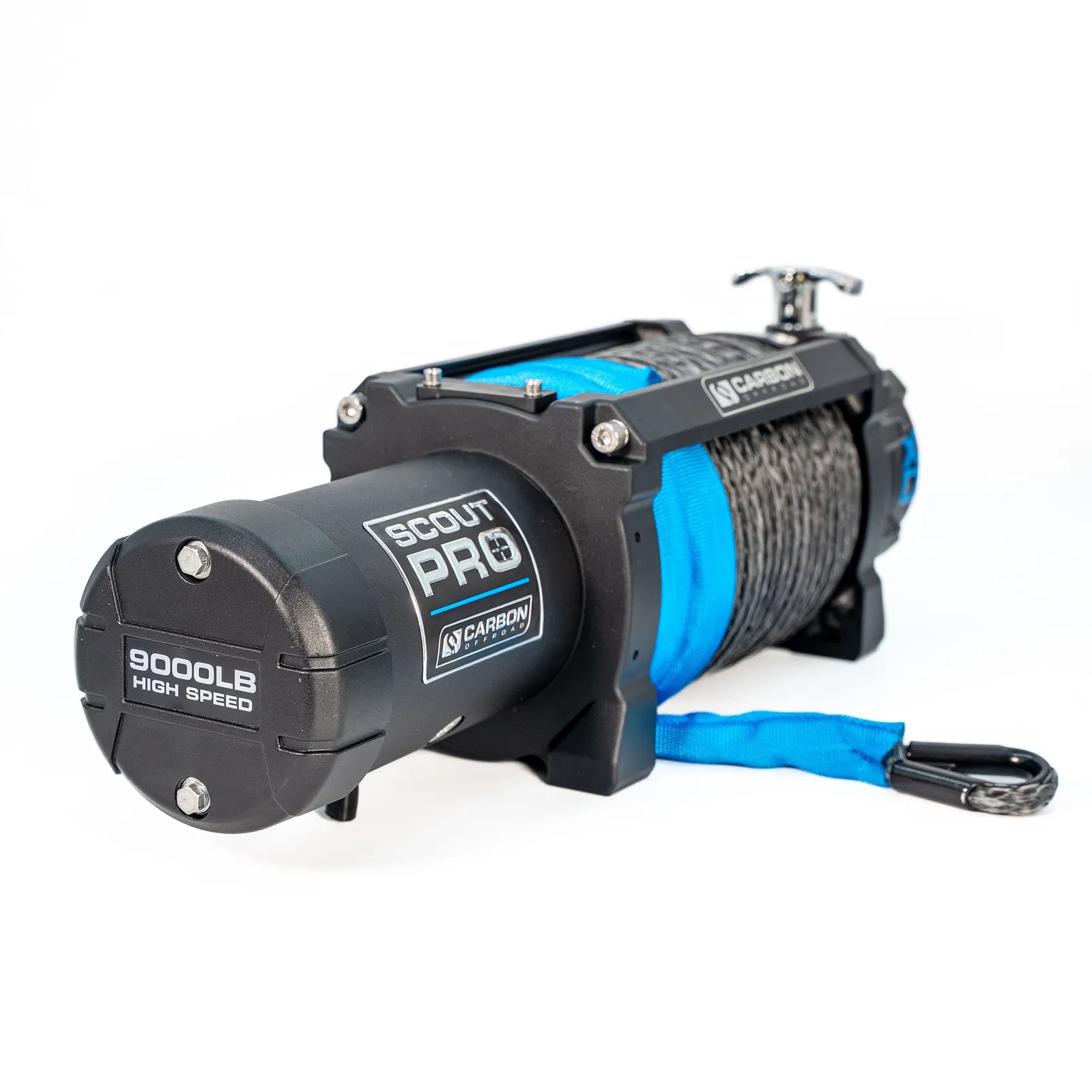

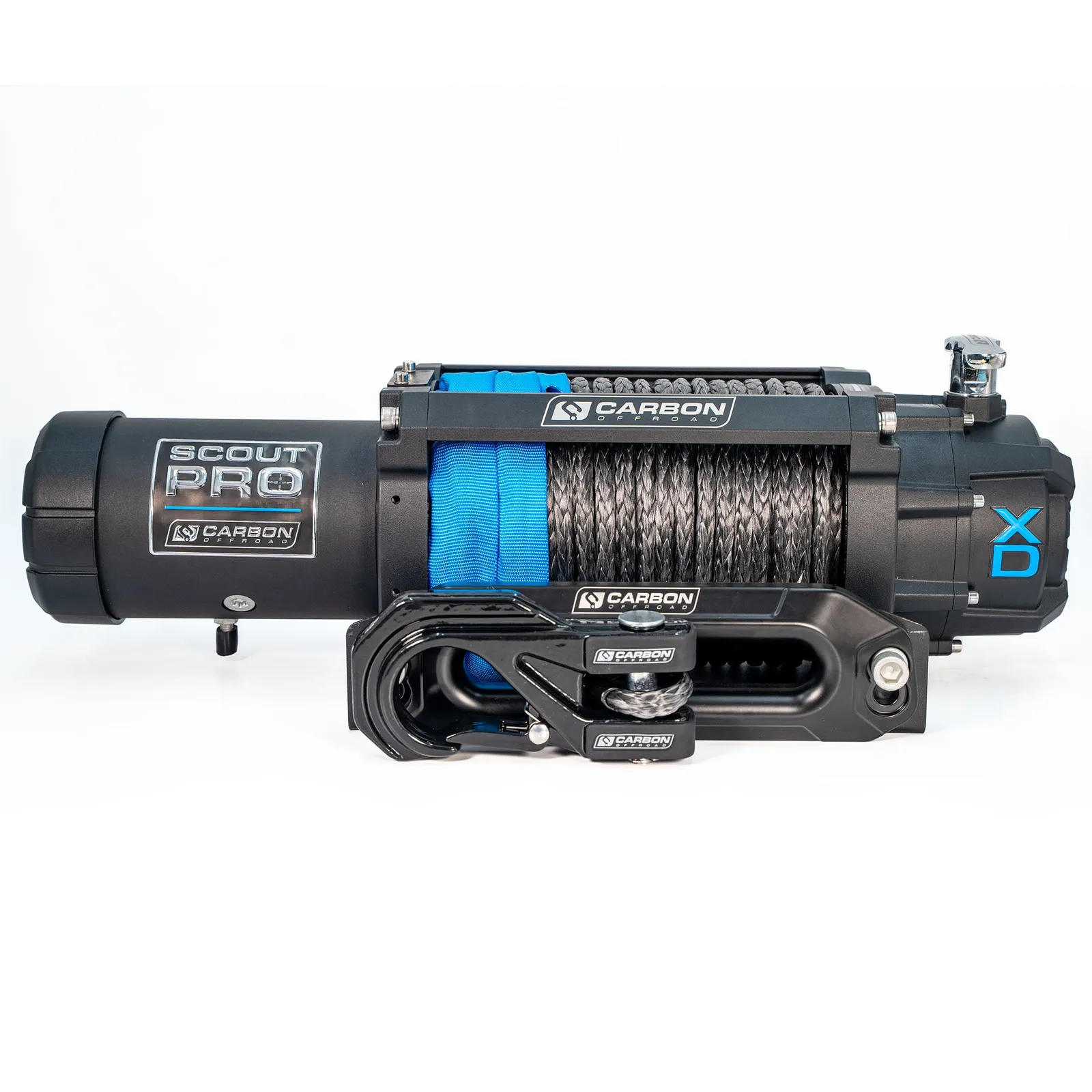

- 1 x Carbon Offroad RS9 Winch
- 1 x 42m (137ft) Spectra Fiber Synthetic Rope

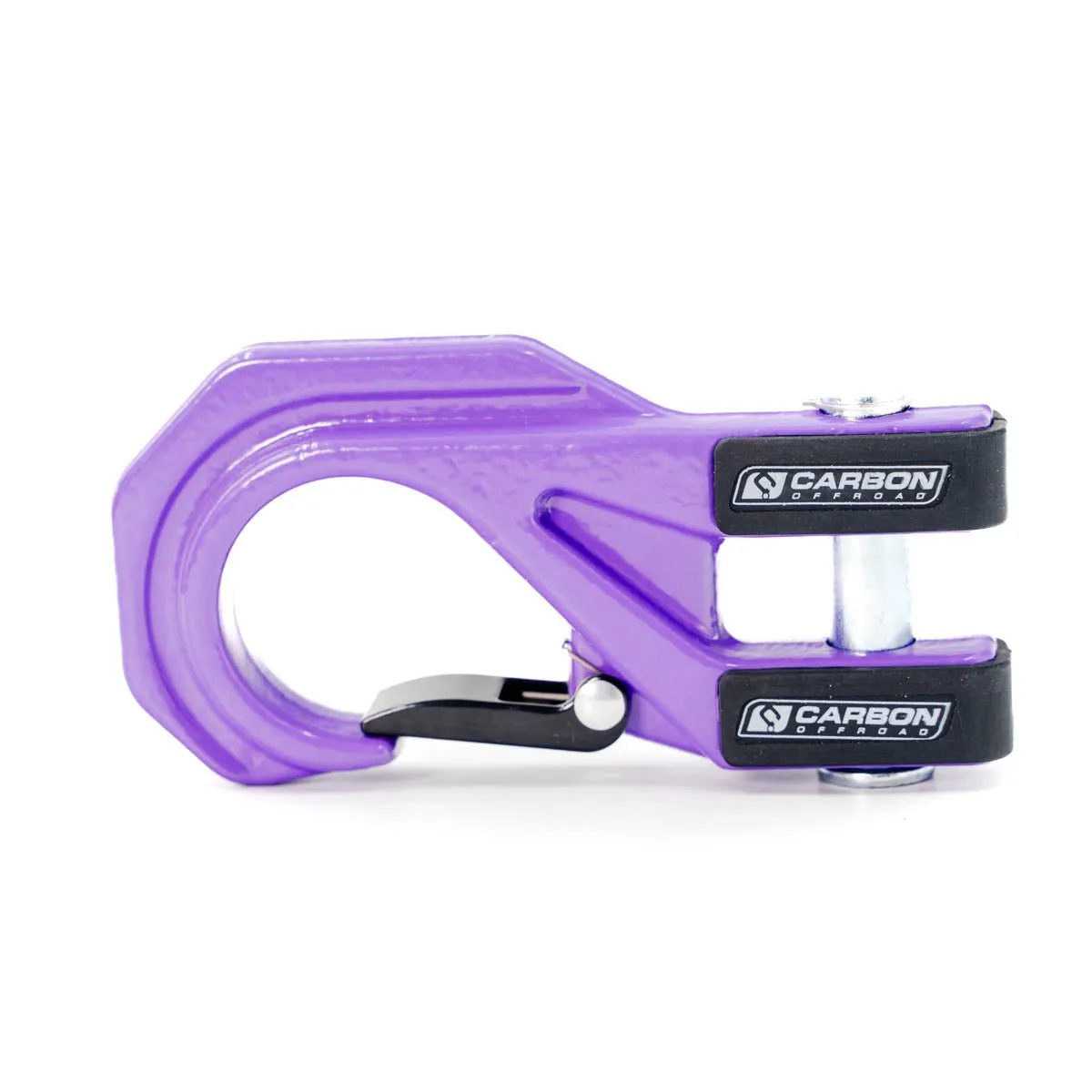

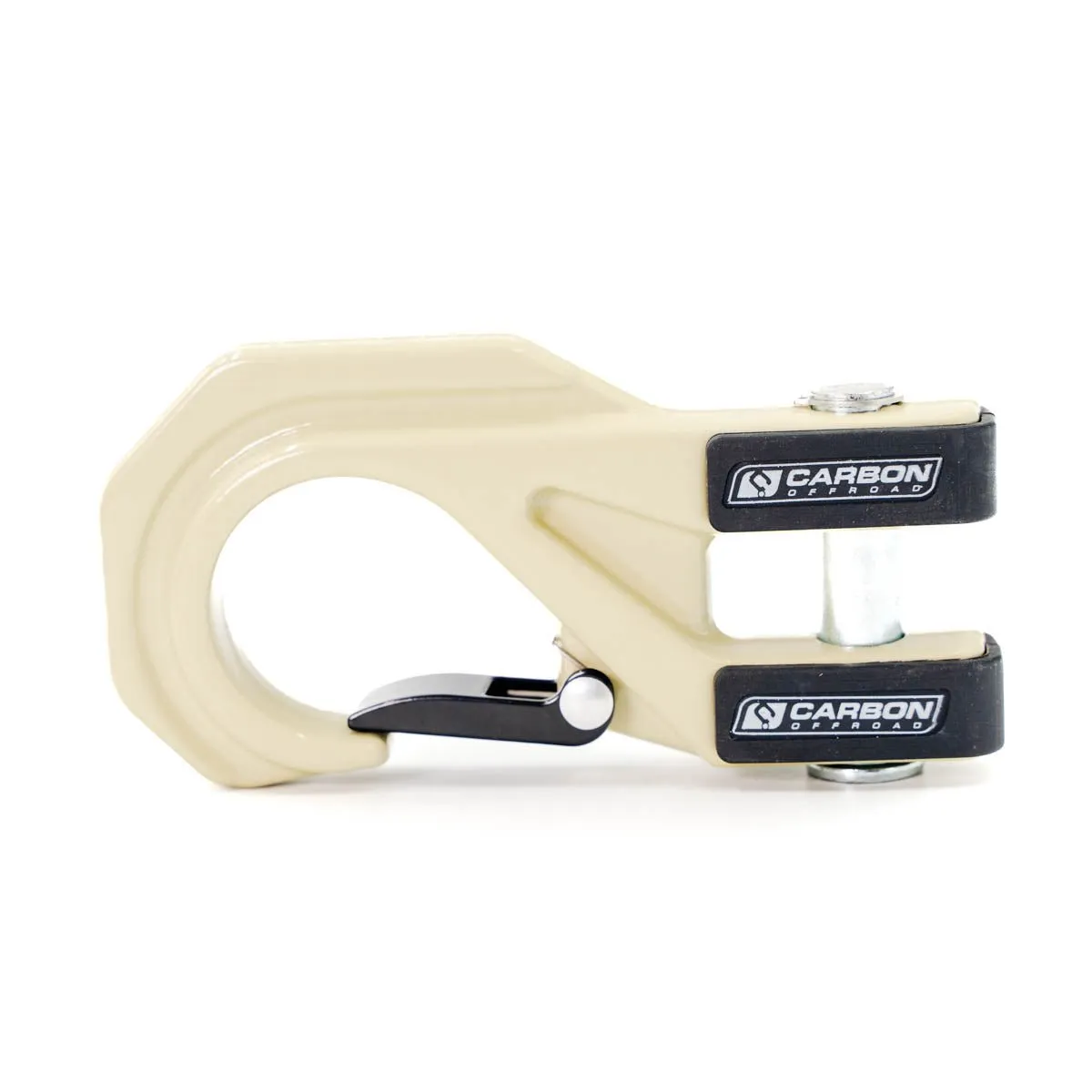

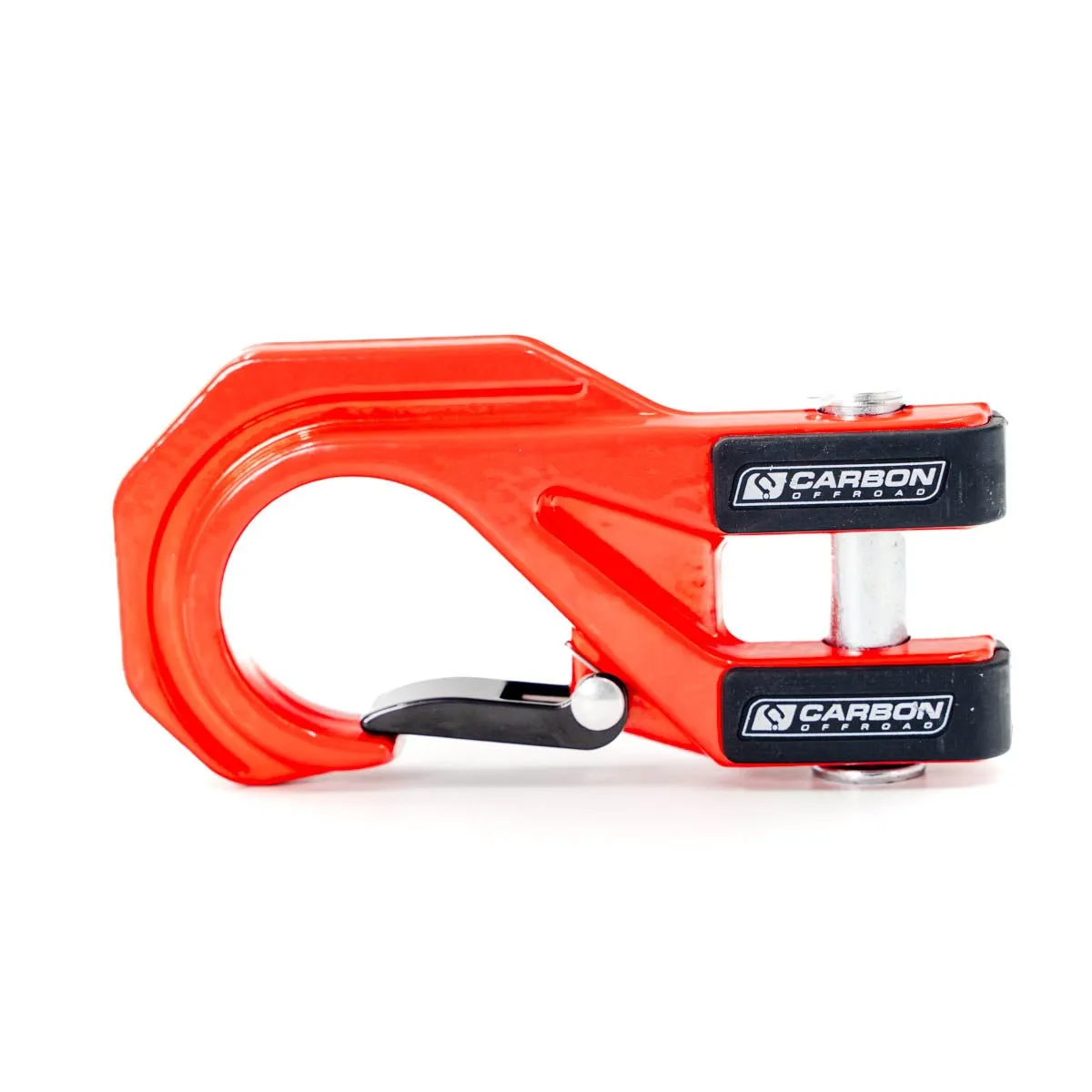

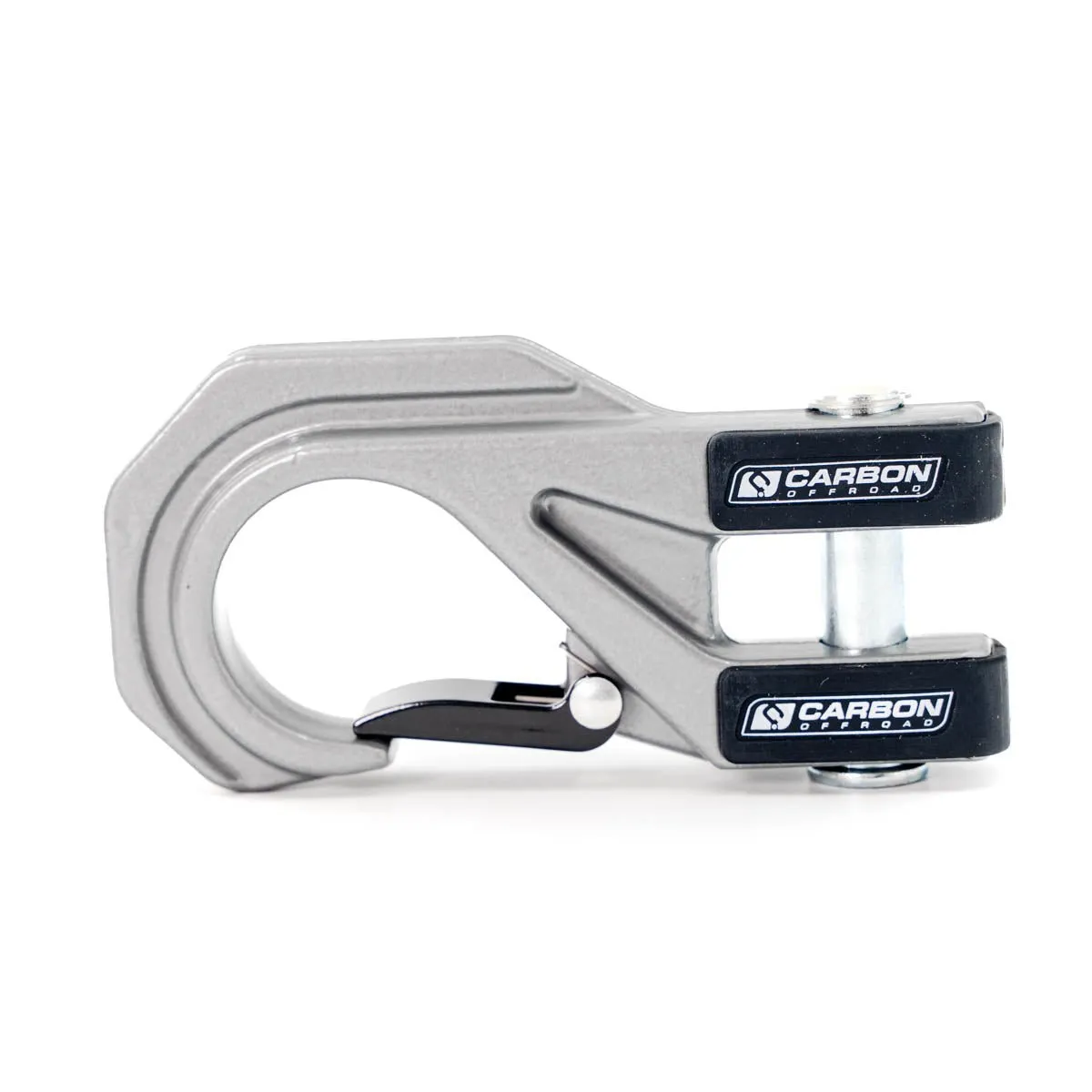

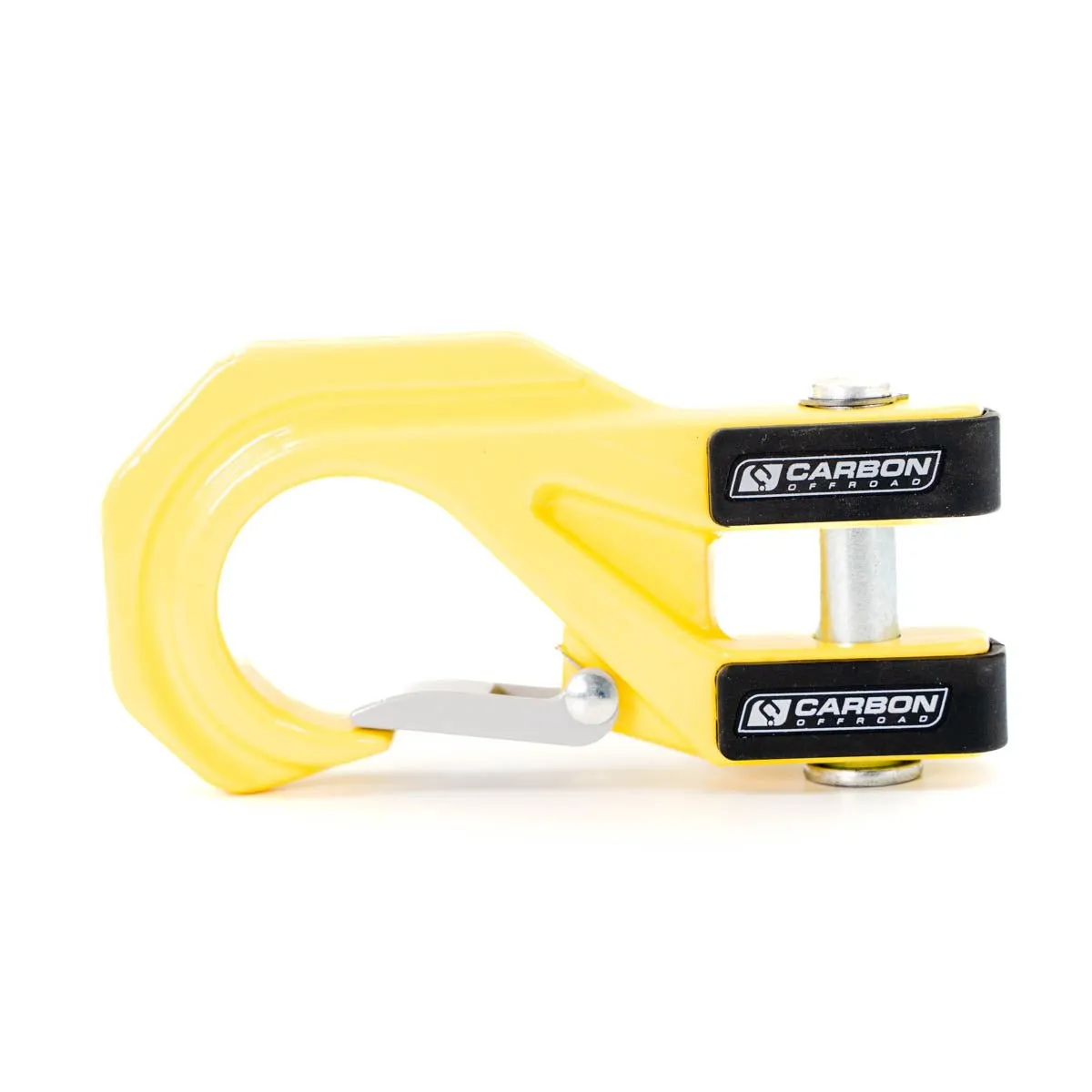

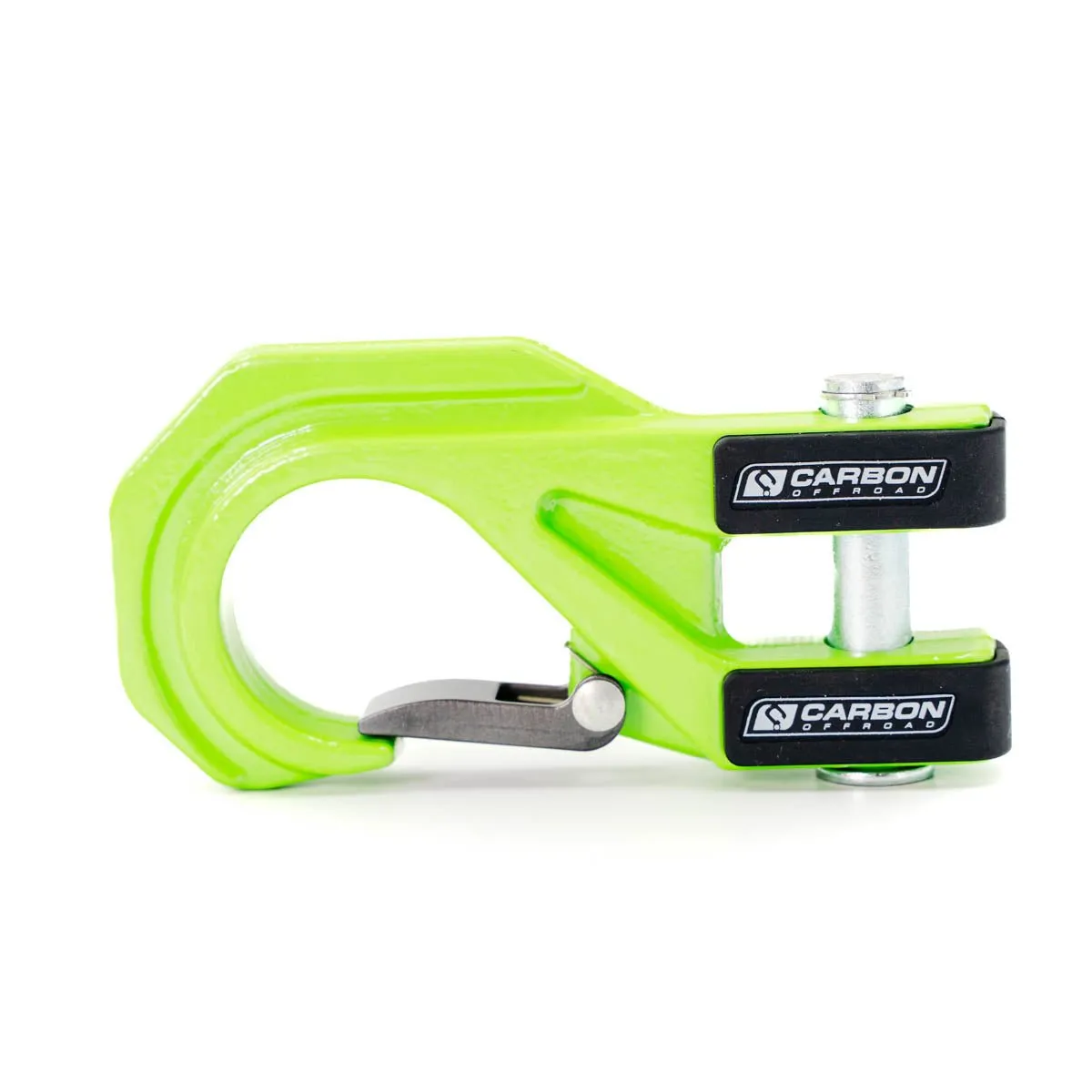

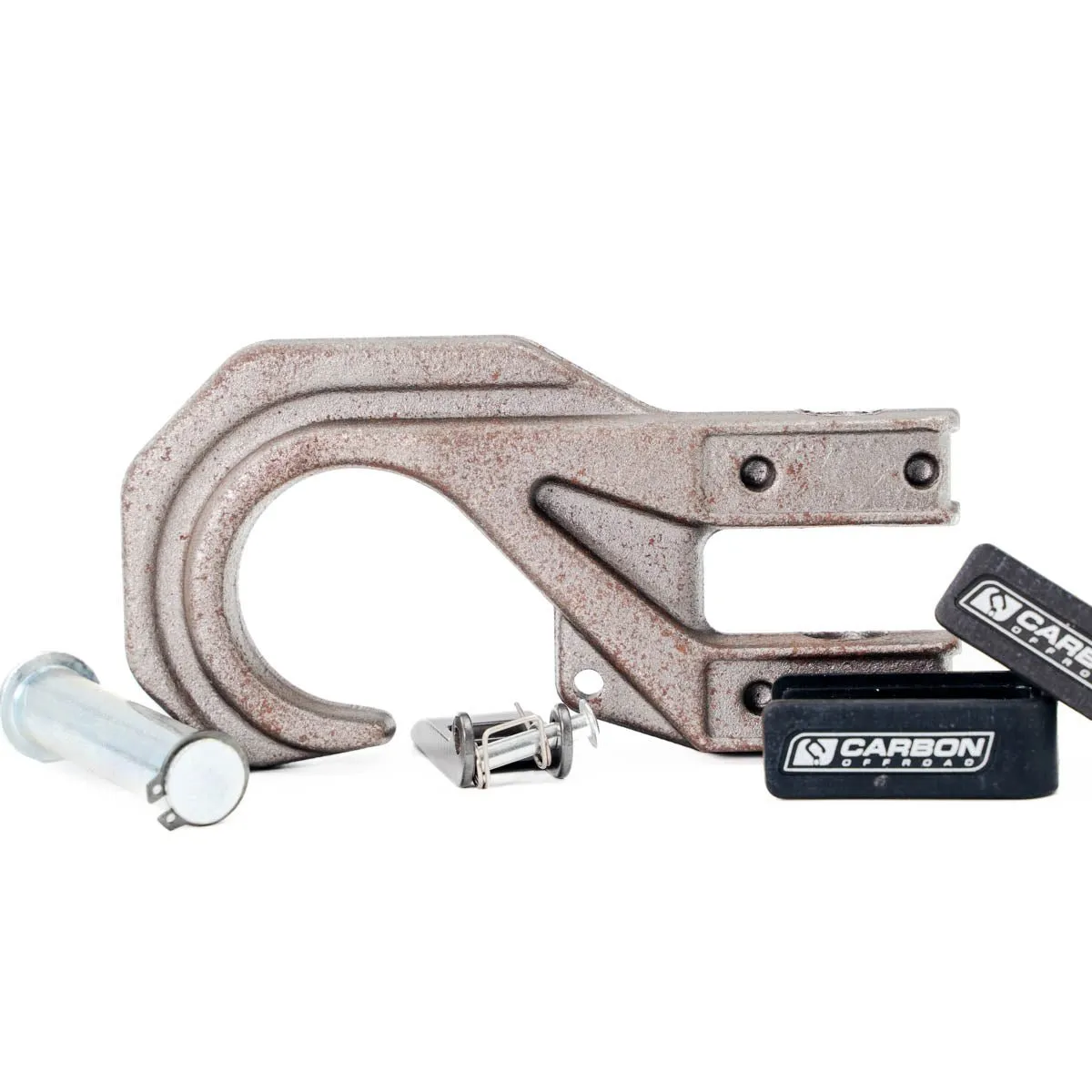

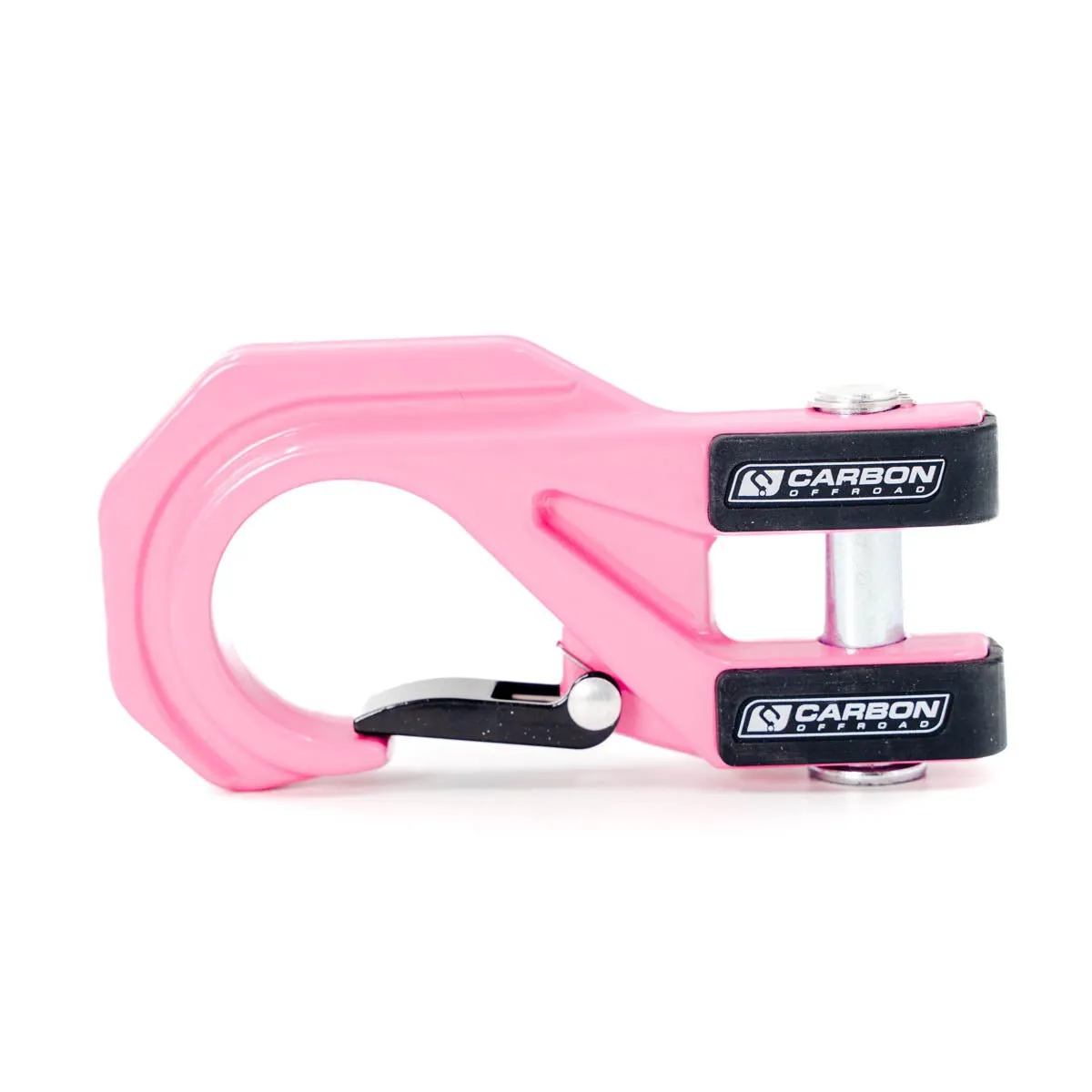

- 1 x MegaPro Hook
- 1 x Fairlead

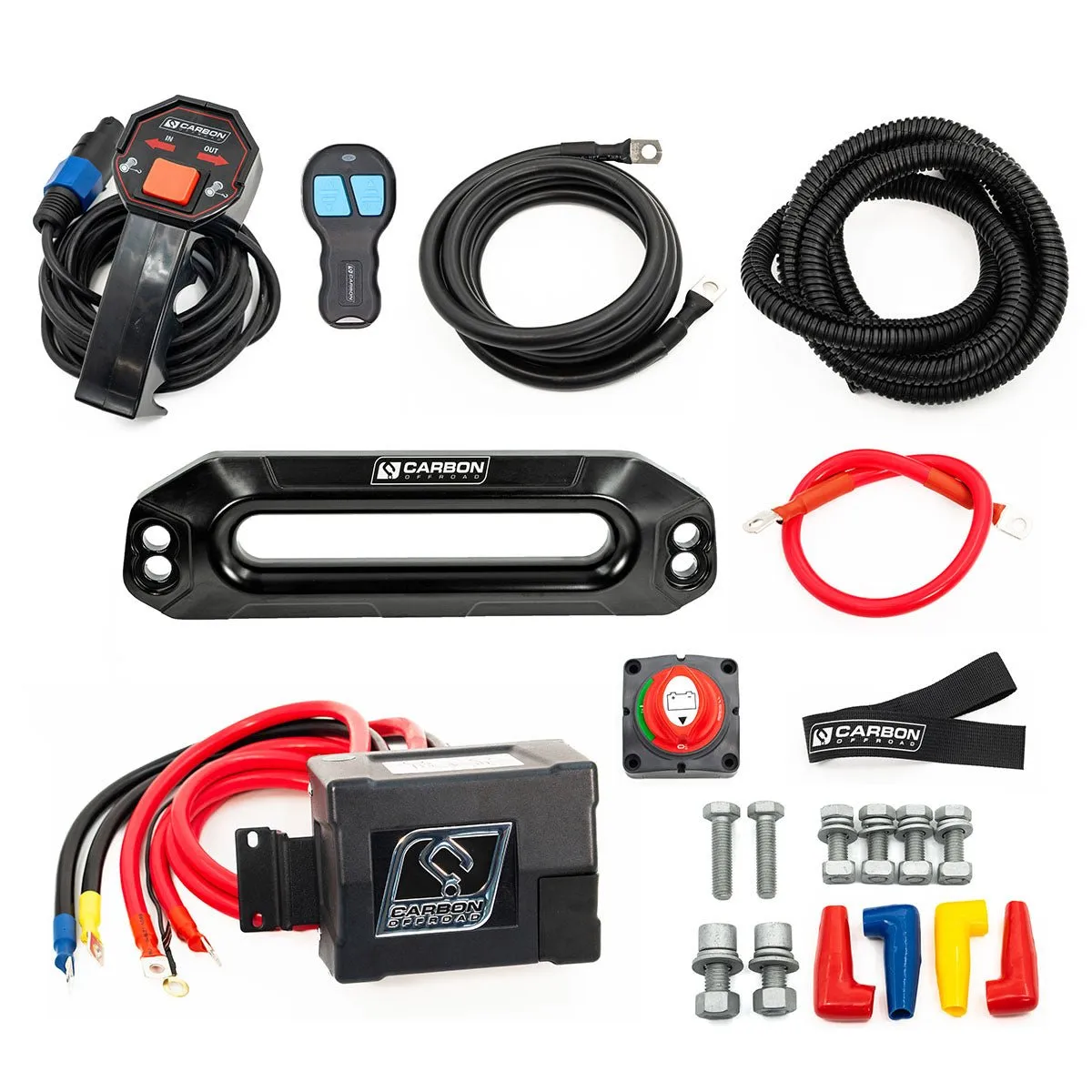

- 1 x Wiring Accessory Kit.
(CAKT470)
| Rated line pull | 4080kg (9000lbs) |
|---|---|
| Motor | 8.0HP 12V Series-Wound |
| Gear ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope dimensions | 8mm x 42m (5/16" x 137ft) |
| Rope material | Spectra Fiber Synthetic UHMWPE |
| Water/dust sealing | IP68 Rated |
| Winch dimensions (L x W x H) | 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") |
| Drum dimensions (diameter x length) | 63mm x 224mm (2.5" x 8.8") |
| Mounting bolt pattern | 254mm x 114.3mm (10" x 4.5") |
| Chassis | Carbon Offroad Version 3 (V3) |
| Line speed at 0kg | 24.2m/min (79.4fpm) - 55A |
| Line speed at 1816kg (4000lbs) | 5.6m/min (18.4fpm) - 180A |
| Line speed at 3180kg (7000lbs) | 4.2m/min (13.8fpm) - 310A |
| Line speed at 4090kg (9000lbs) | 2.6m/min (8.5fpm) - 440A |
| Layer 1 rated line pull | 4090kg (9000lbs) |
| Layer 2 rated line pull | 3524kg (7760lbs) |
| Layer 3 rated line pull | 3040kg (6690lbs) |
| Layer 4 rated line pull | 2615kg (5760lbs) |
| SKU | CAKT470 |
| Brand | Carbon Offroad |
