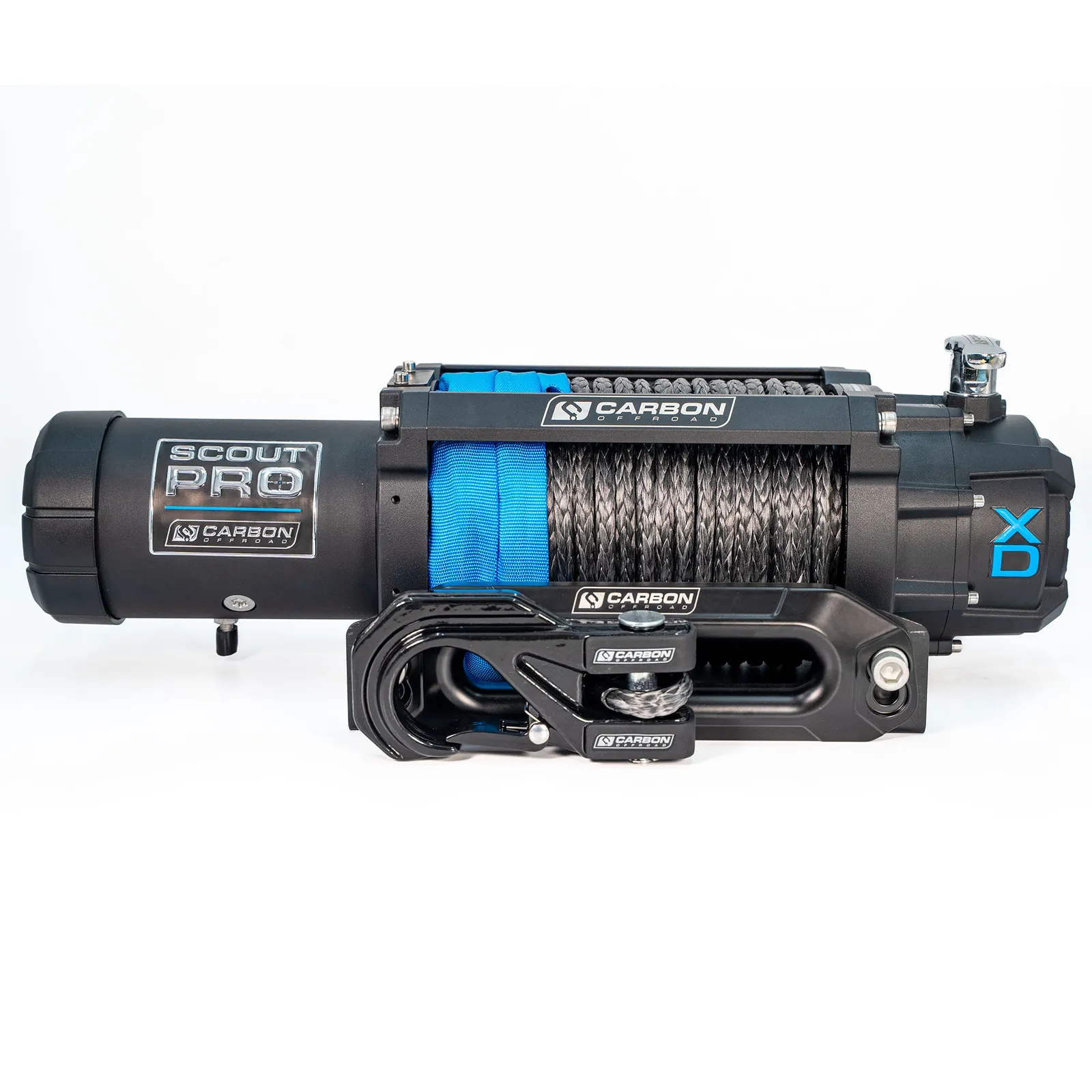

Carbon Offroad Scout Pro RS9 High-Speed Winch

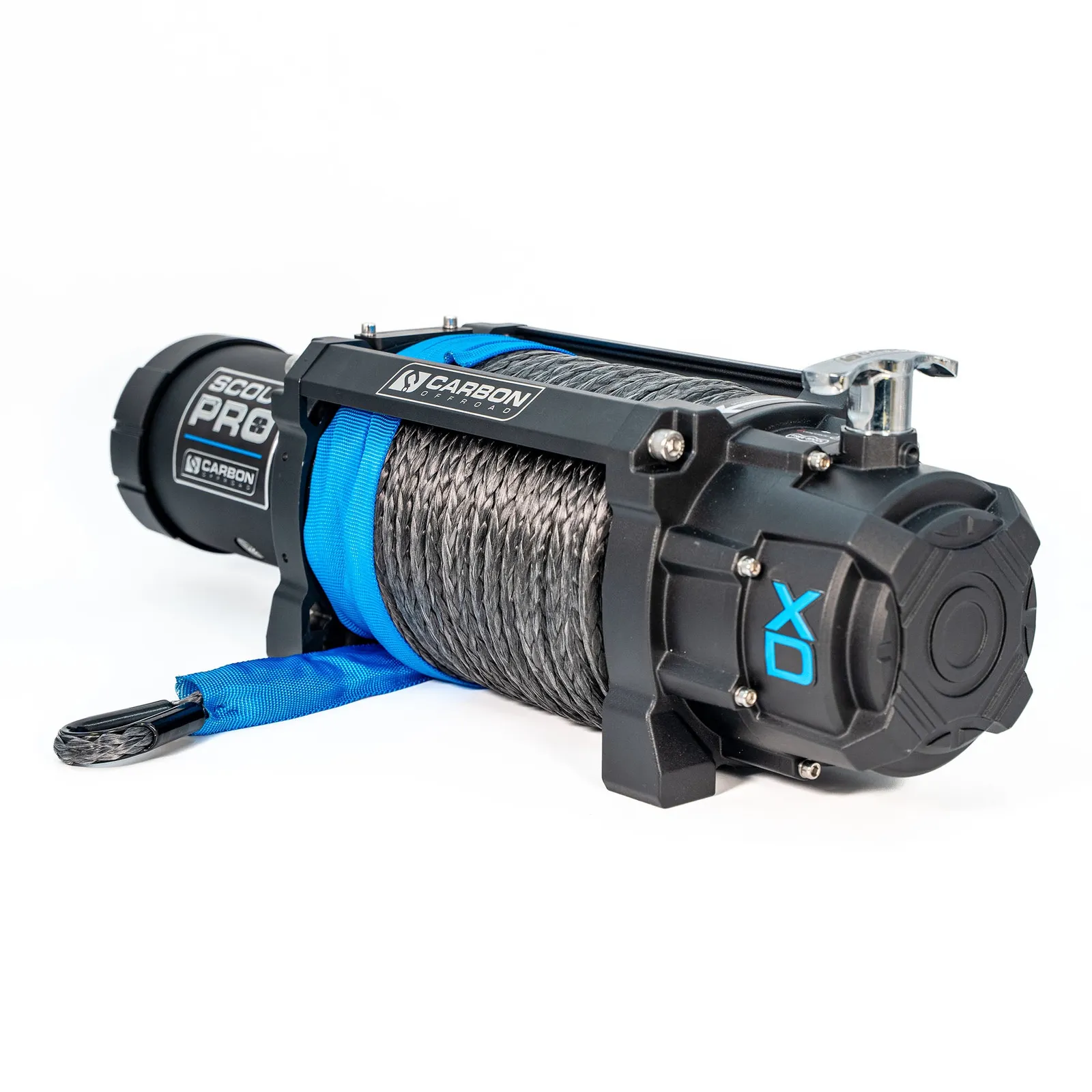

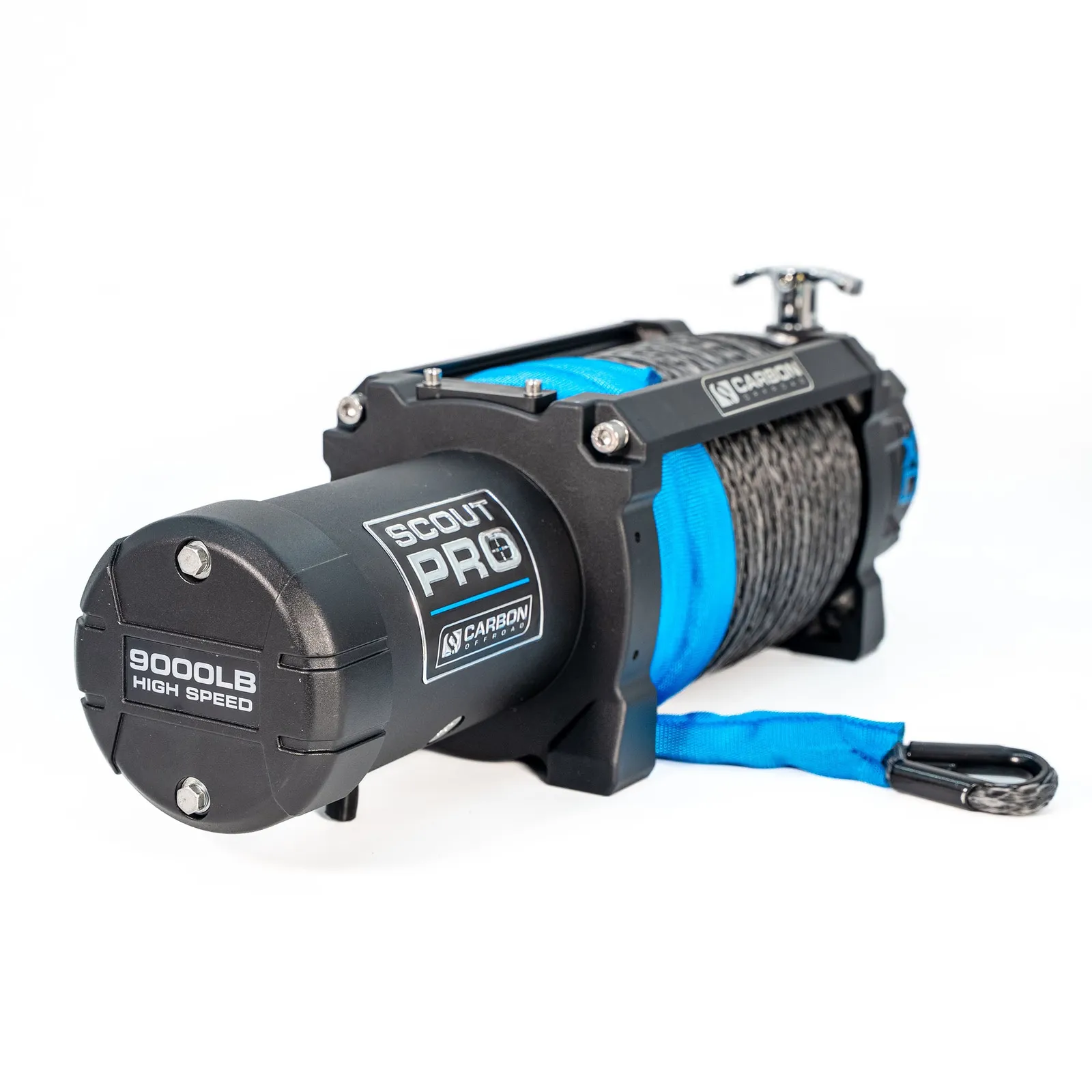

The Scout Pro RS9 is a purpose-built high-speed recovery winch from Carbon Offroad's Scout Pro RS Series. It pairs an 8.0HP 12V series-wound motor with an 80:1 gear ratio for fast line speeds under load while using the V3 chassis to reduce front-axle weight.

Features

• High-speed gearing with 8.0HP 12V series-wound motor and 80:1 gear ratio.
• Weight optimisation on the Carbon Offroad V3 chassis to help preserve vehicle handling.
• Extended line capacity: 42m of 8mm Spectra™ Fiber Synthetic UHMWPE rope.

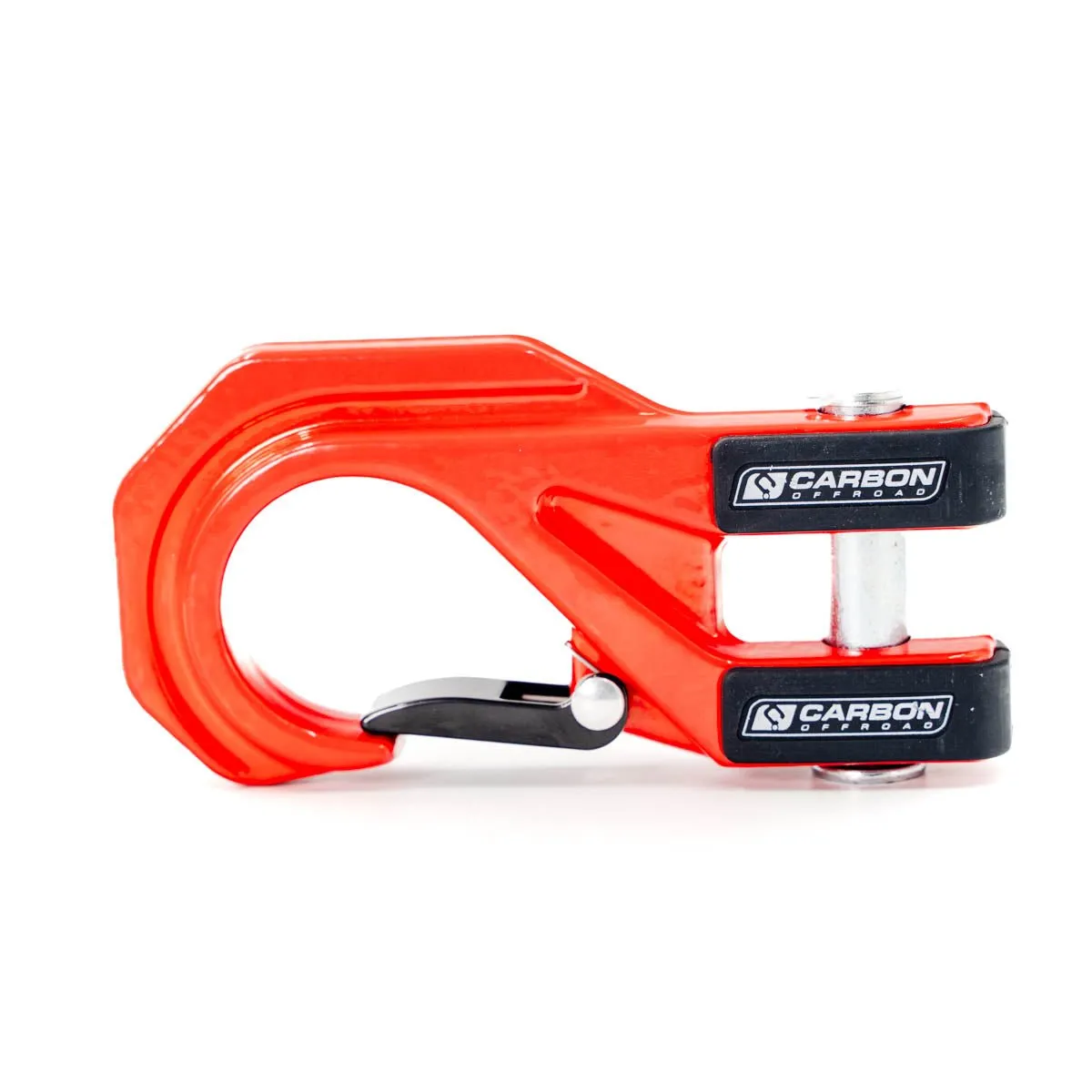

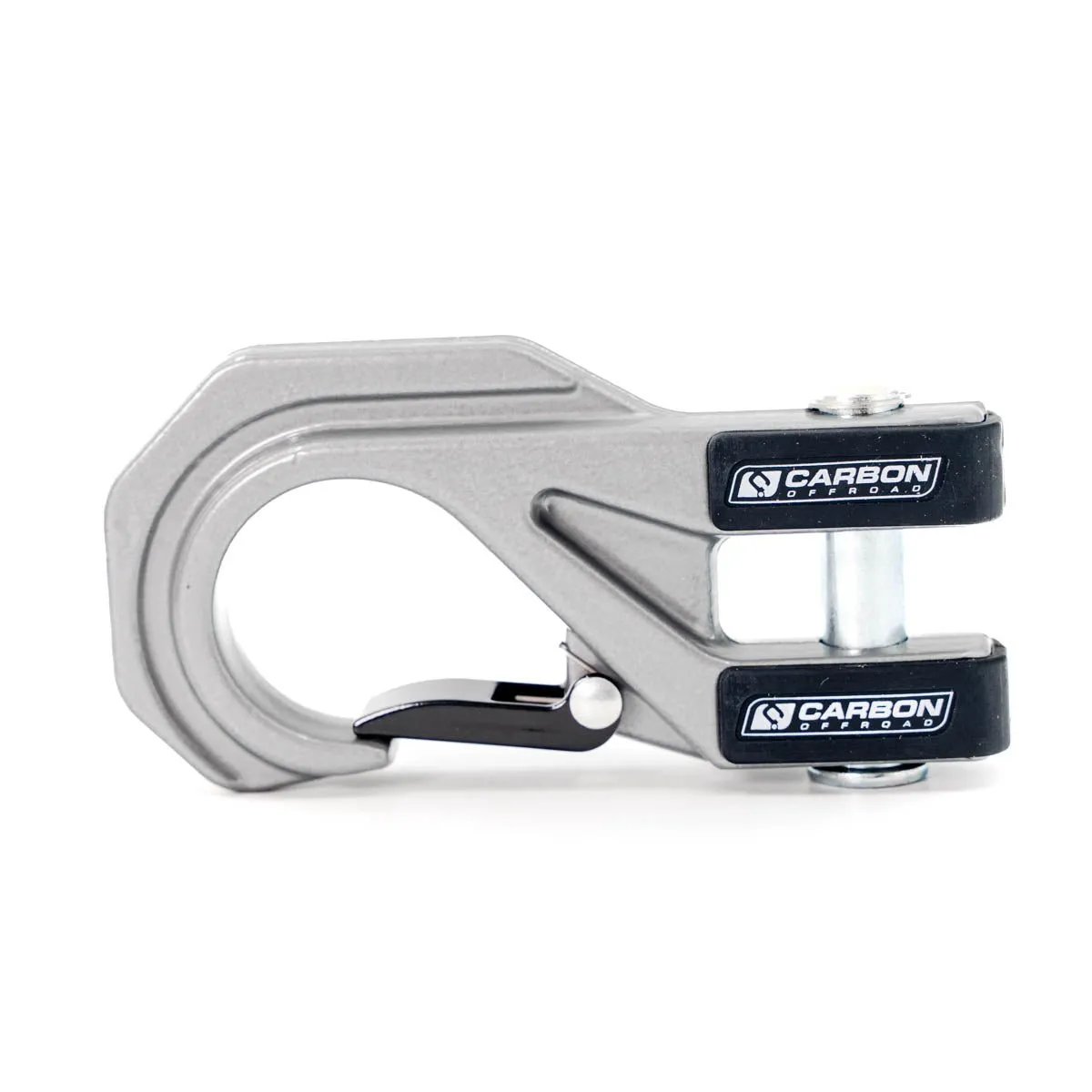

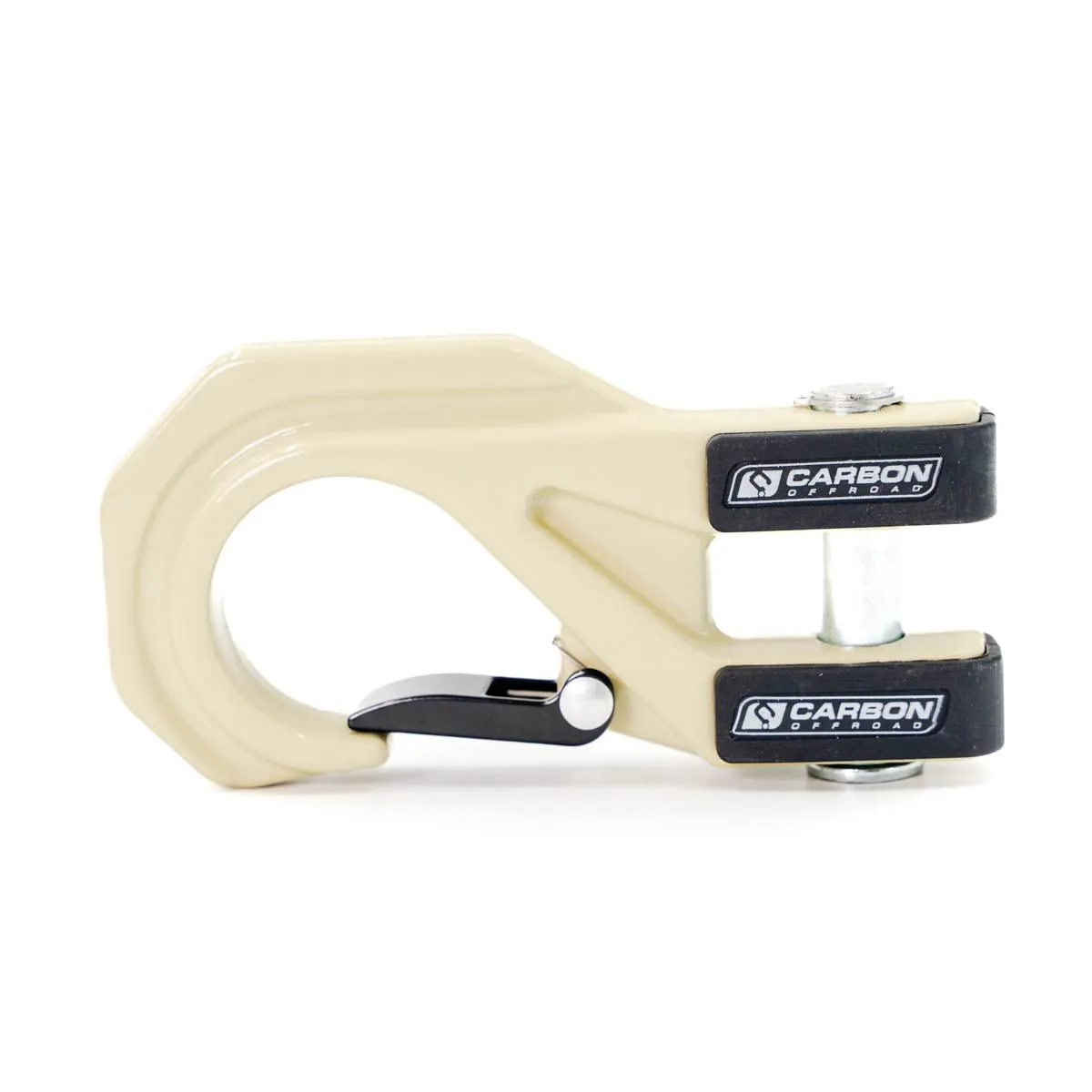

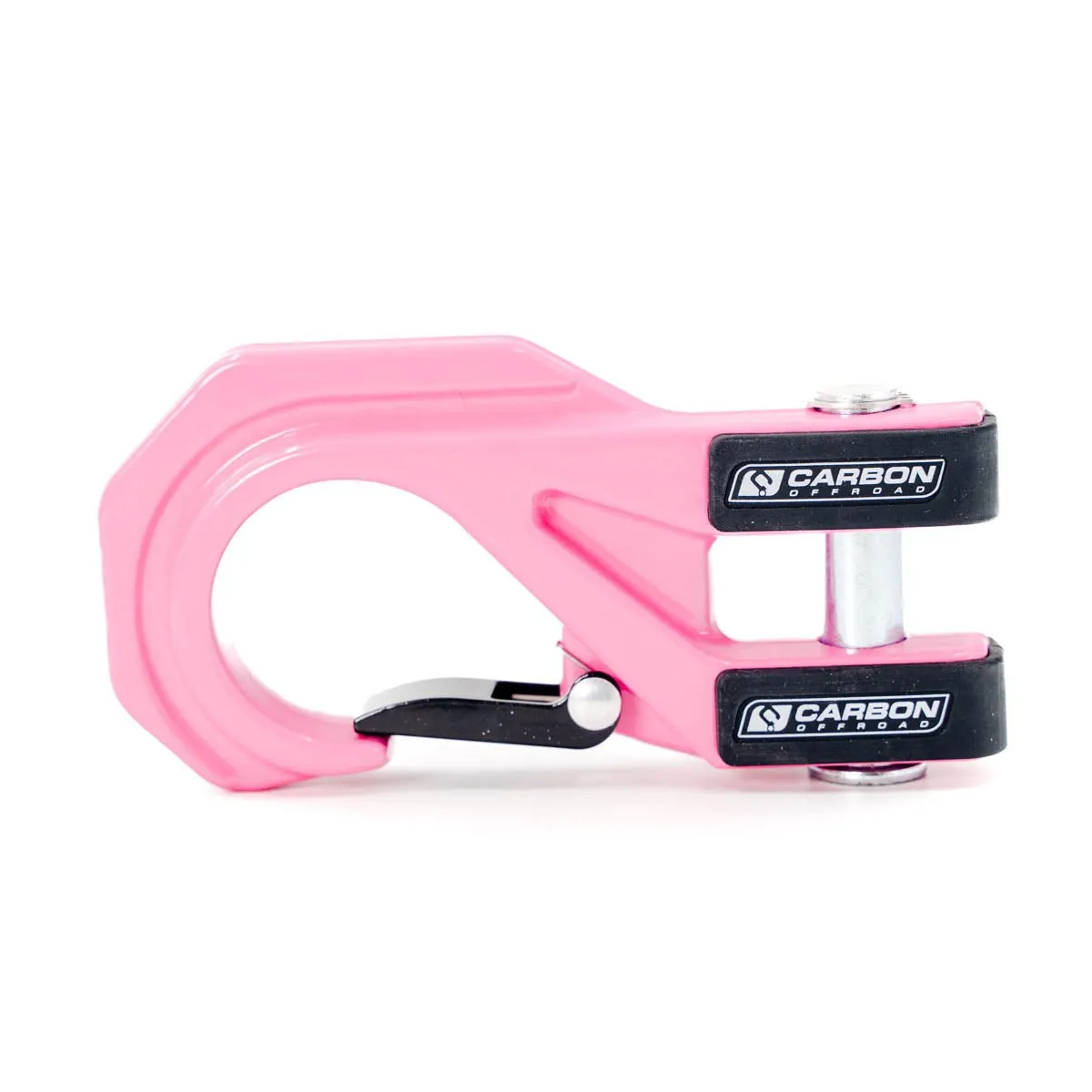

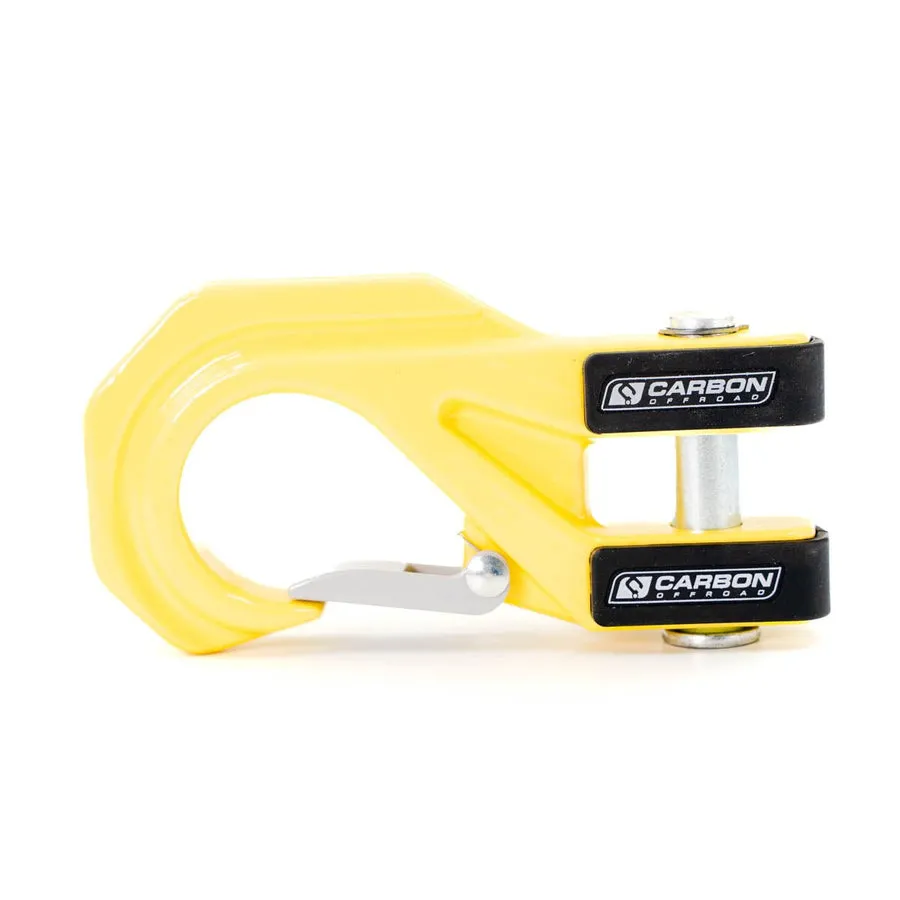

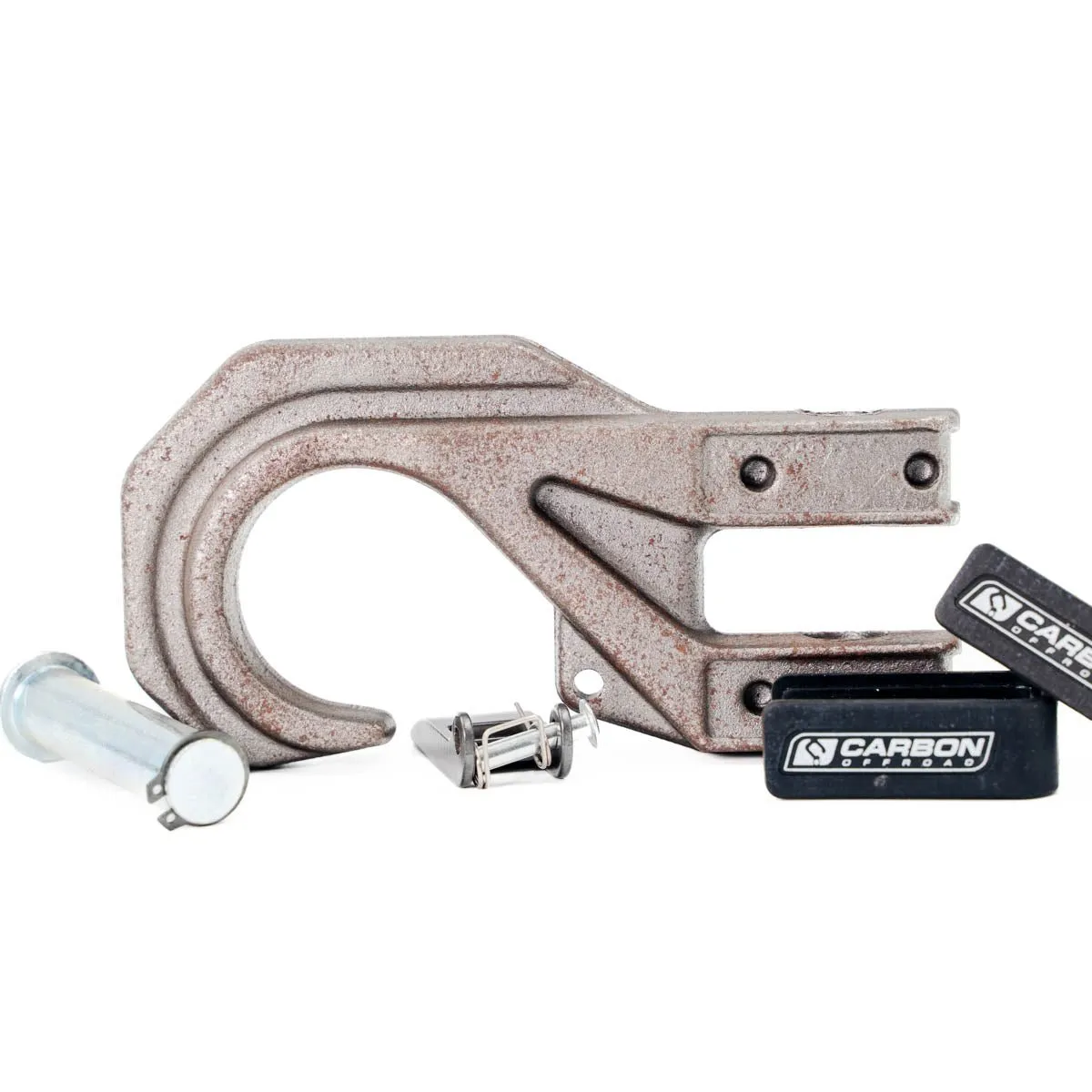

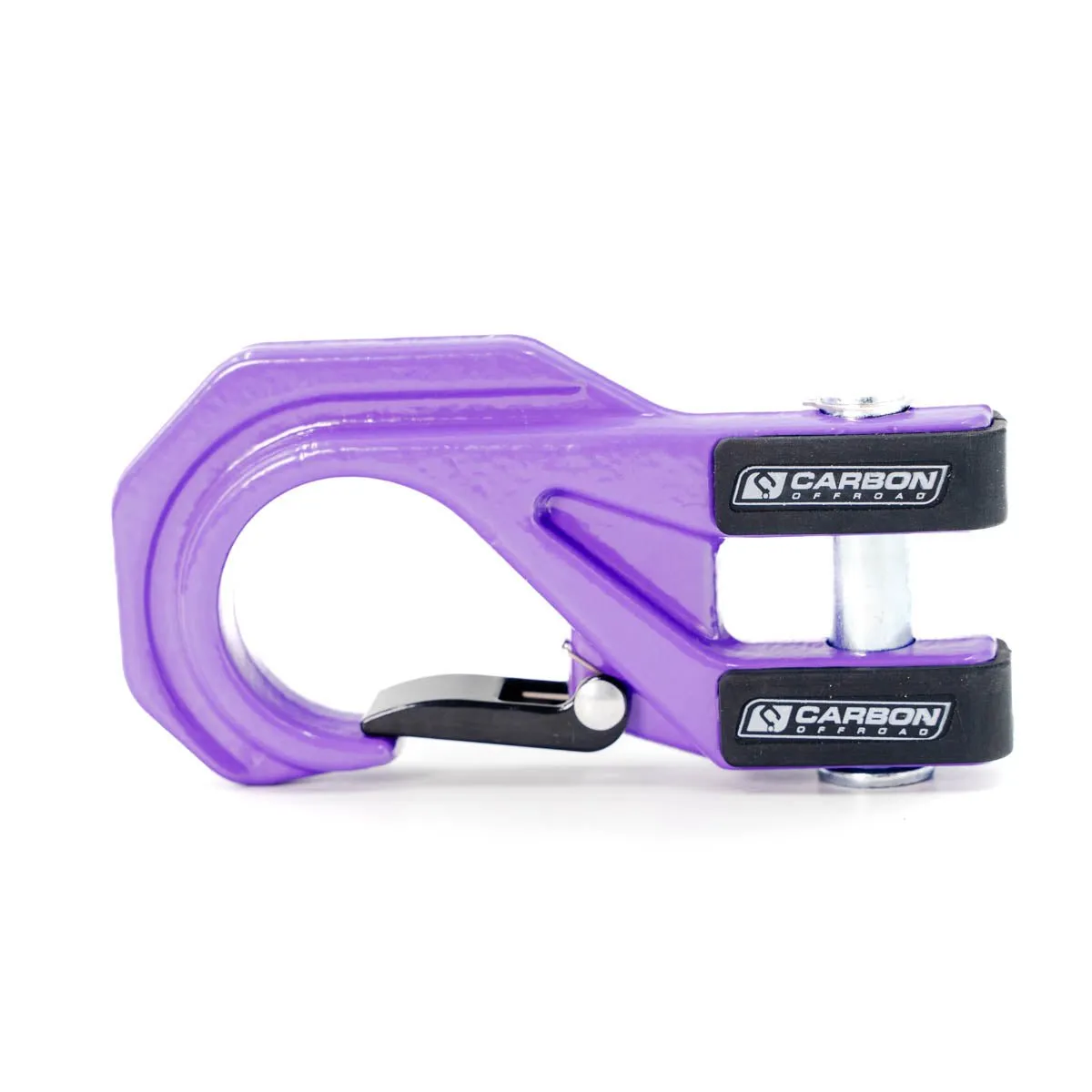

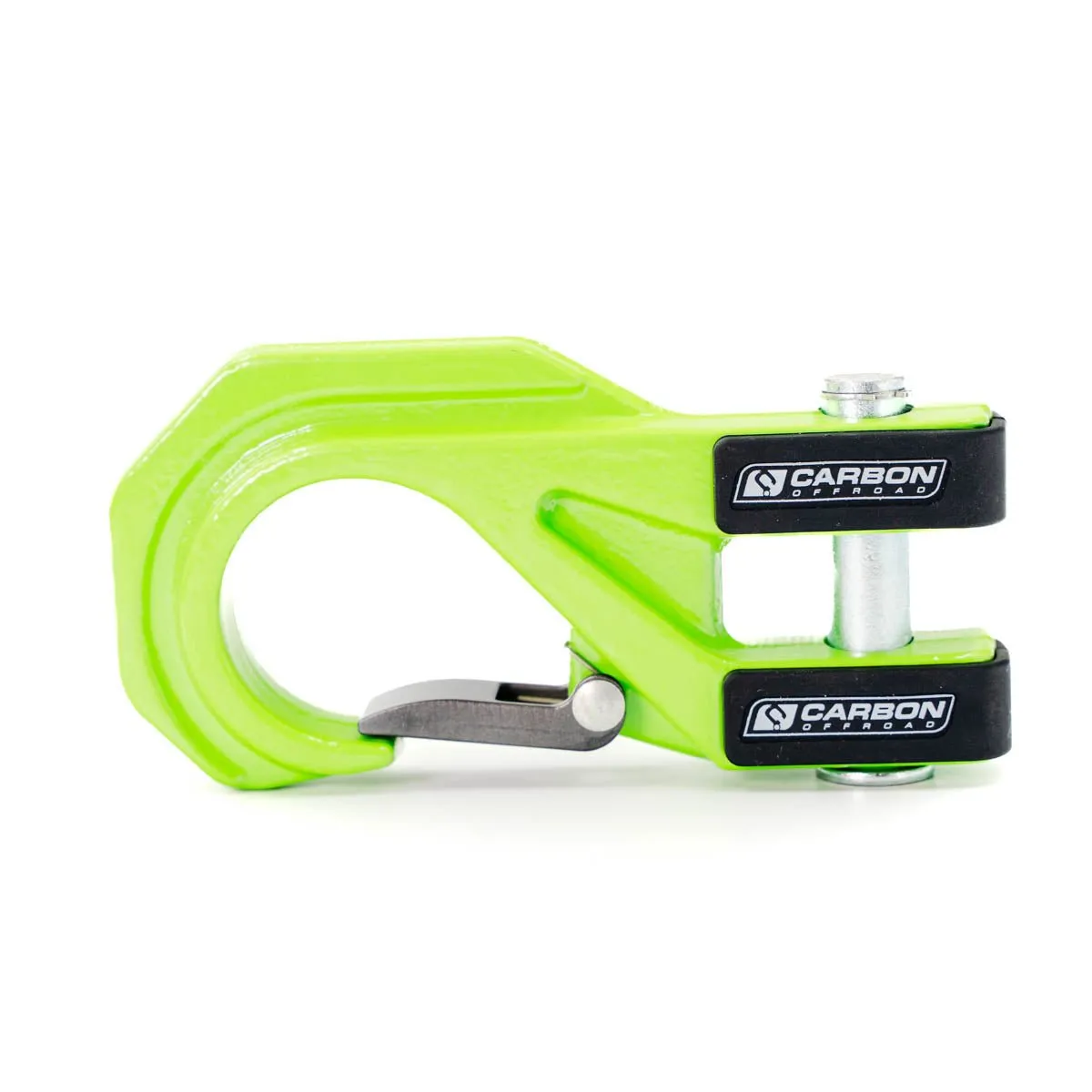

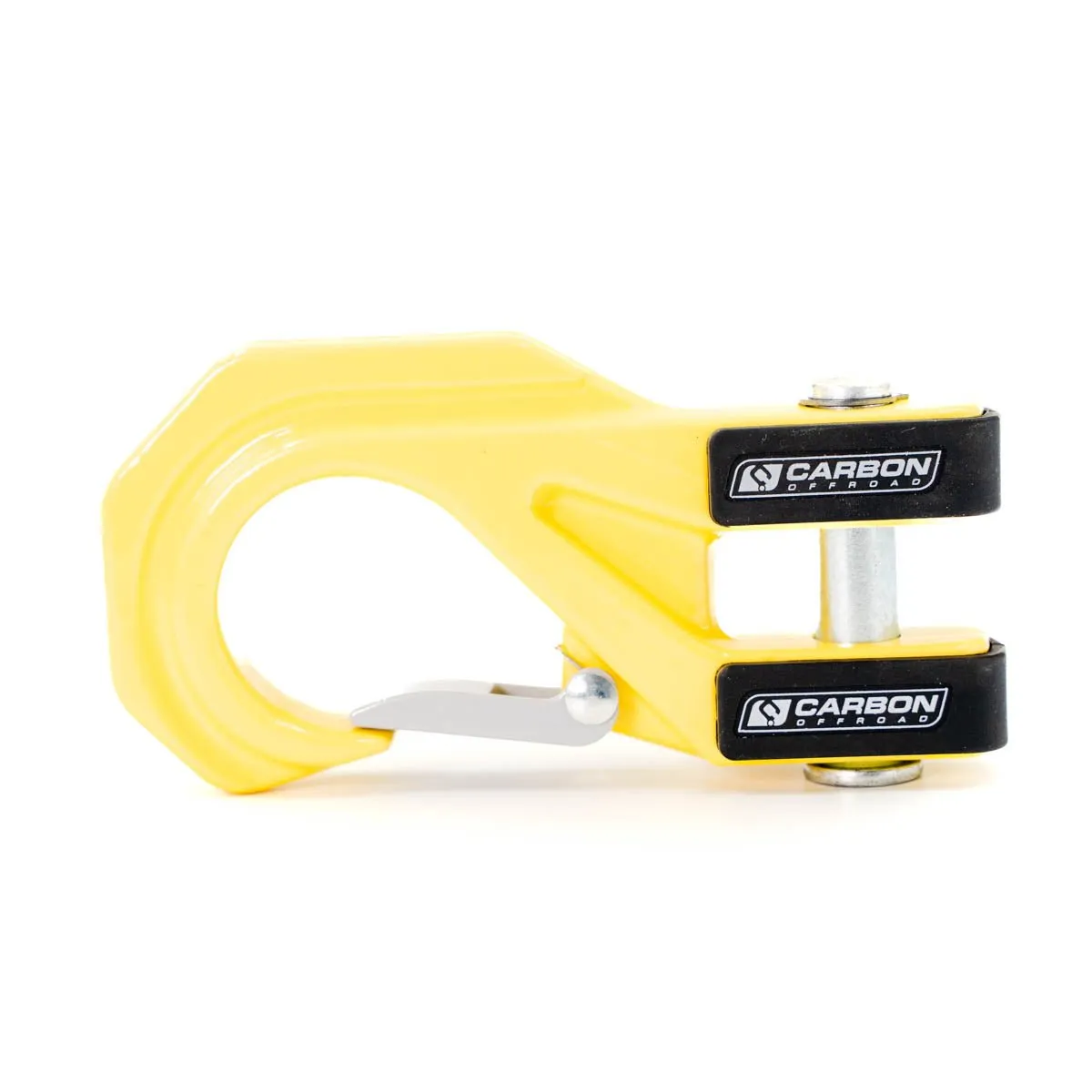

• Competition-grade hardware: Carbon Offroad MegaPro Hook included as standard.

Specifications

• Rated line pull: 4,080kg (9,000lb).

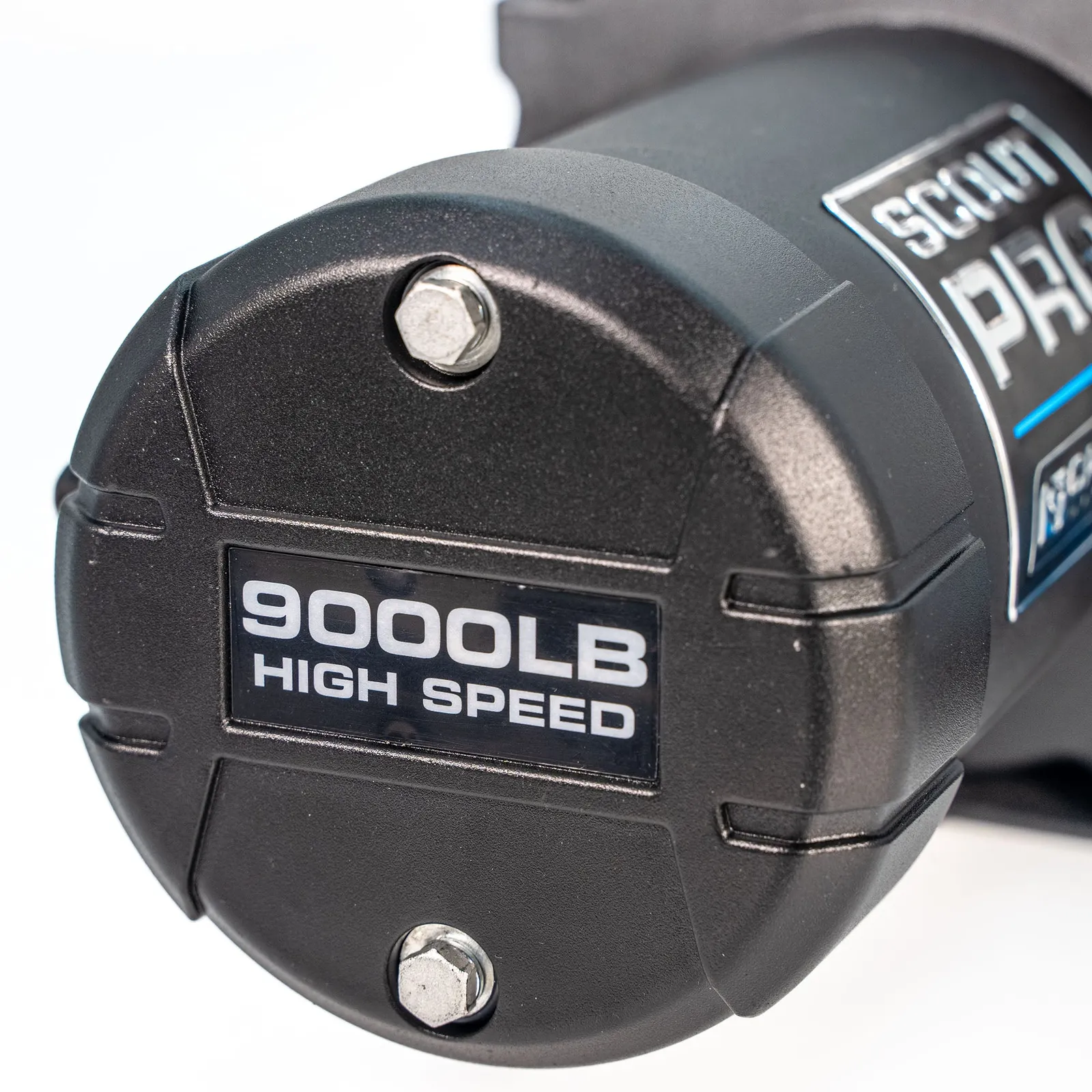

• Motor: 8.0HP 12V series-wound.
• Gear ratio: 80:1 heavy-duty performance gearing.

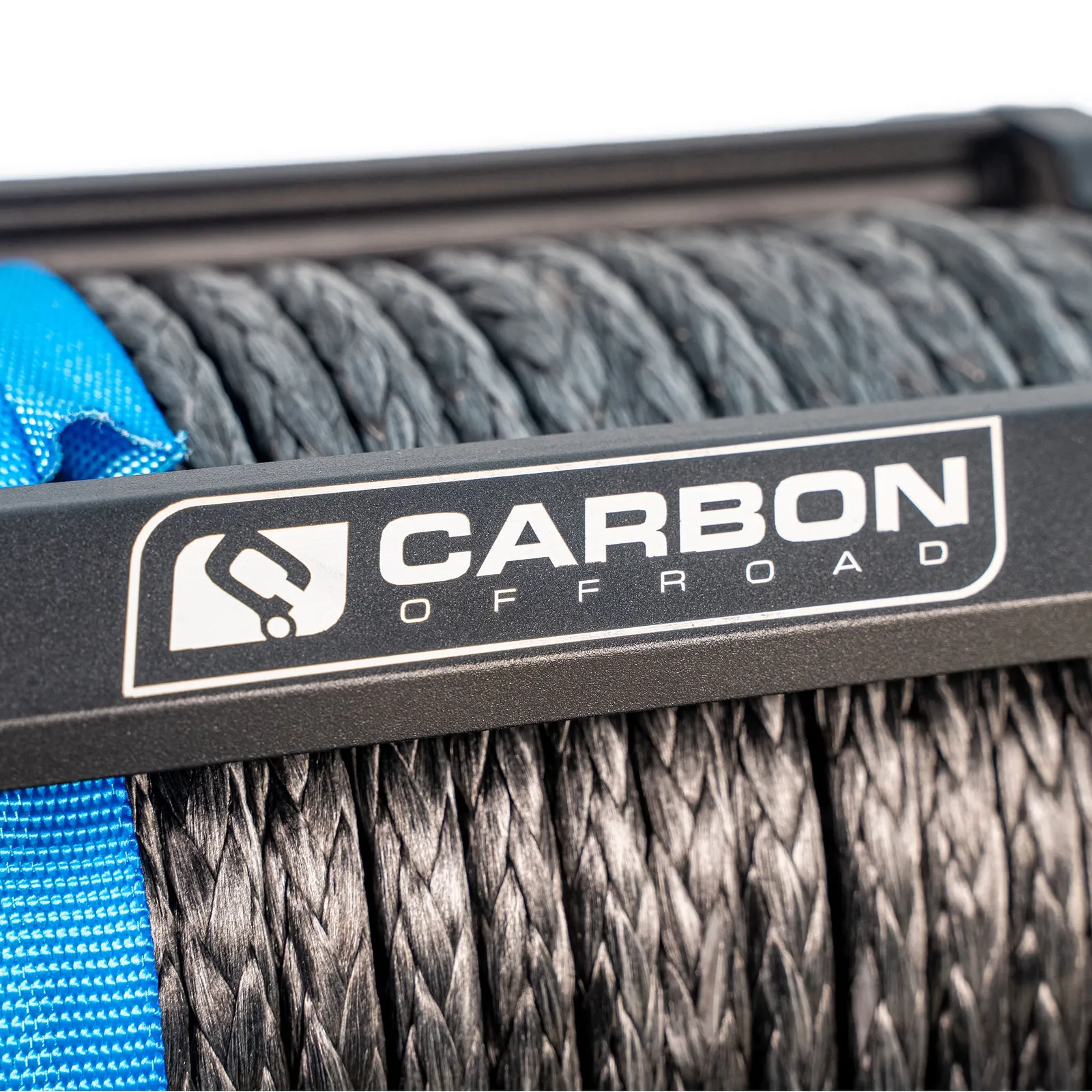

• Rope: 8mm x 42m (5/16" x 137ft) Spectra™ Fiber Synthetic UHMWPE.
• Water/dust sealing: IP68 rated.
• Winch dimensions (L x W x H): 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36").
• Drum diameter x length: 63mm x 224mm (2.5" x 8.8").
• Mounting bolt pattern: 254mm x 114.3mm (10" x 4.5").
• Chassis: Carbon Offroad Version 3 (V3).

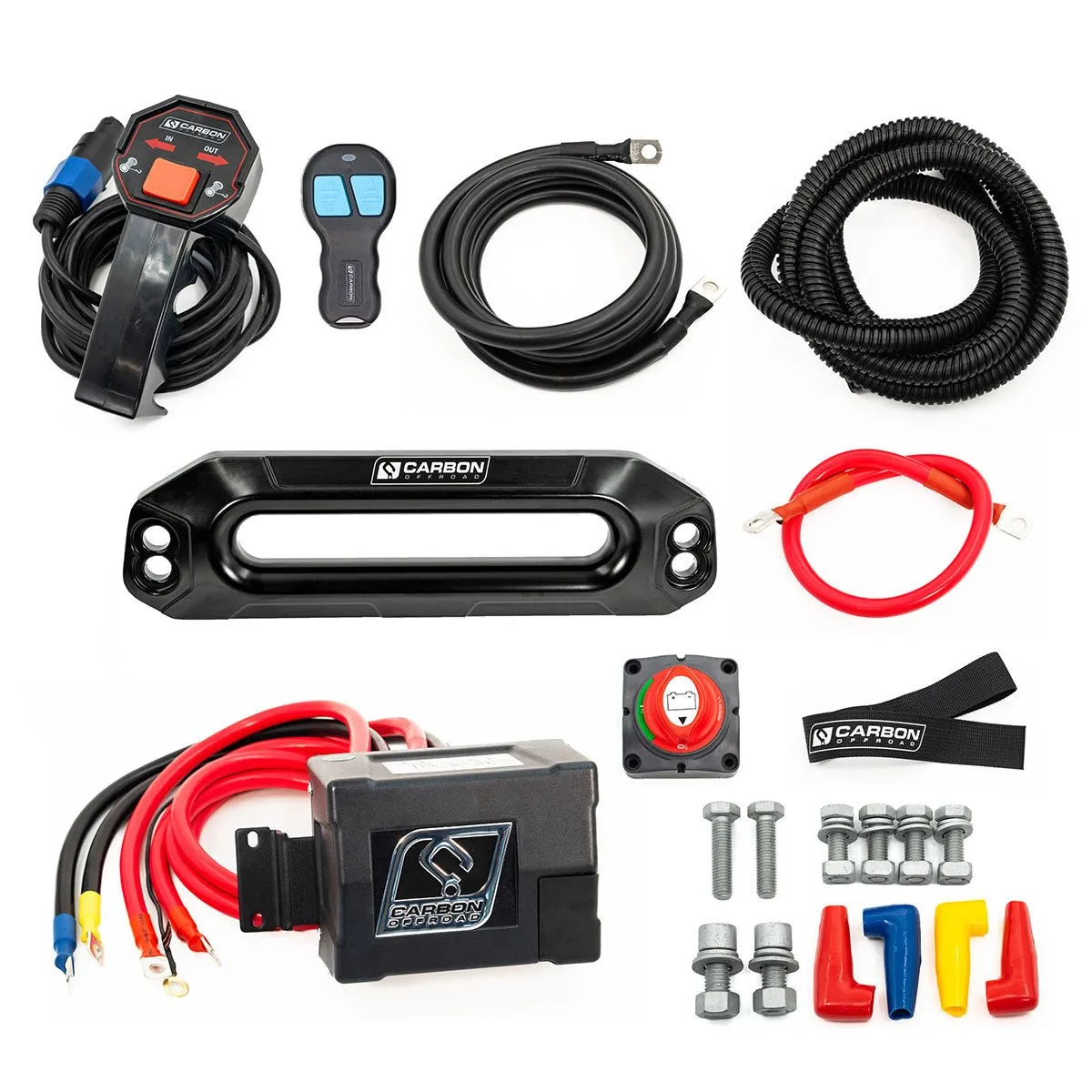

• Included hardware: MegaPro Hook, fairlead, wiring accessory kit.
• Layered rated line pull:
  • Layer 1: 9,000 lb (4,090 kg)
  • Layer 2: 7,760 lb (3,524 kg)
  • Layer 3: 6,690 lb (3,040 kg)
  • Layer 4: 5,760 lb (2,615 kg)
• Performance (line speed / motor current):
  • 0 lb: 24.2 m/min (79.4 ft/min) at 55 A
  • 4,000 lb (1,816 kg): 5.6 m/min (18.4 ft/min) at 180 A
  • 7,000 lb (3,180 kg): 4.2 m/min (13.8 ft/min) at 310 A
  • 9,000 lb (4,090 kg): 2.6 m/min (8.5 ft/min) at 440 A
