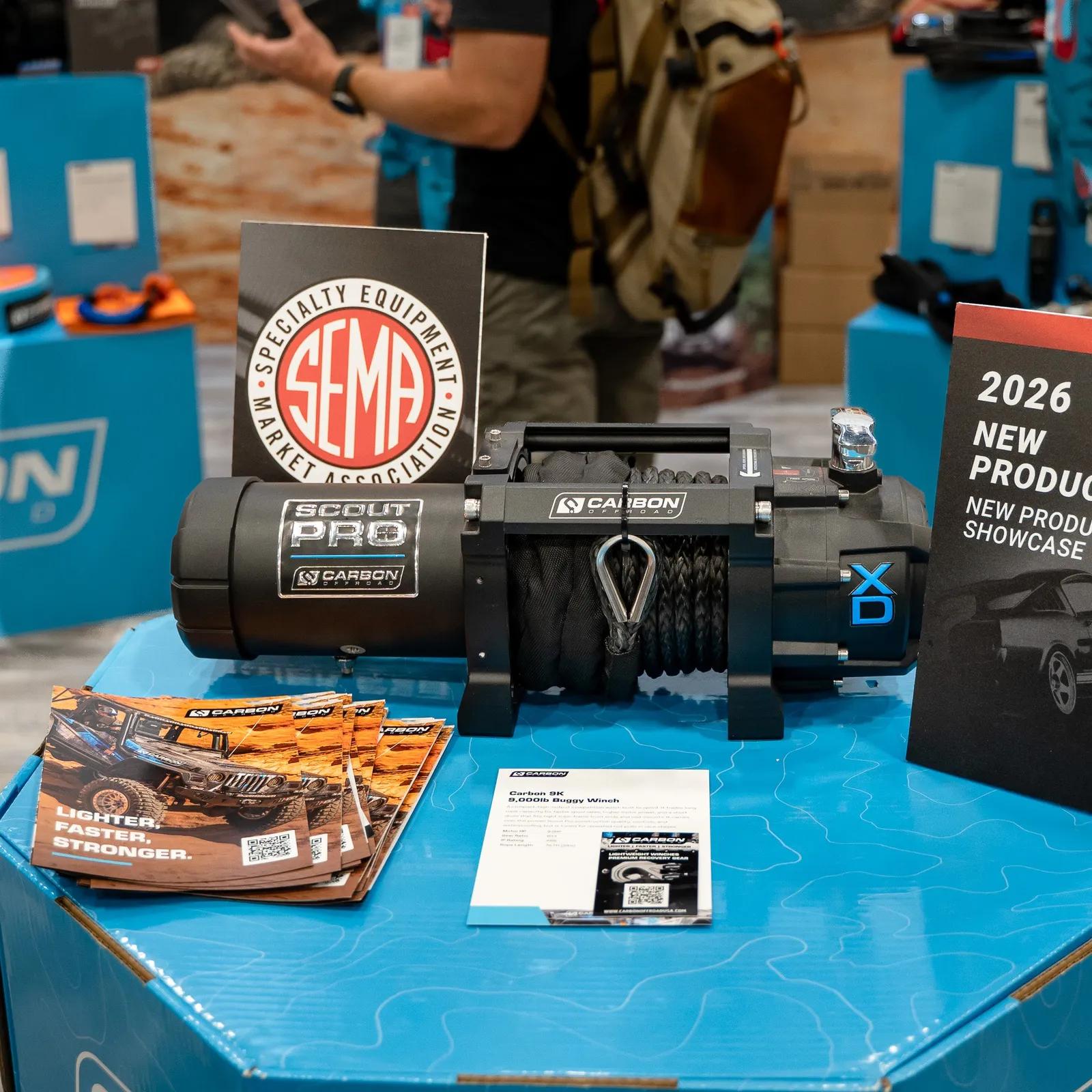

Carbon Offroad Scout Pro RS9-S Short-Drum 9000lb Winch

The Carbon Offroad Scout Pro RS9-S is the short-drum variant designed for applications where mounting space is limited but line speed is a priority. It retains the full-sized 8.0HP motor in an ultra-lightweight, shortened chassis and includes 24m of 8mm Spectra fibre rope.

Features

• Ultra-lightweight short-drum chassis for narrow mounting locations
• 8.0HP 12V series-wound motor
• 80:1 heavy-duty performance gear ratio
• 24m (80ft) of 8mm Spectra™ Fiber synthetic UHMWPE rope
• IP68 rated water and dust sealing
• Designed for high-speed recovery in weight-sensitive, space-restricted race applications

Specifications

• Rated line pull: 4,080kg (9,000lb)
• Layer rated line pull: 1st 9,000lb (4,090kg); 2nd 7,760lb (3,524kg); 3rd 6,690lb (3,040kg); 4th 5,760lb (2,615kg)
• Line speed and motor current:
  • 0 lb: 24.2 m/min (79.4 ft/min) — 55 A
  • 4,000 lb (1,816 kg): 5.6 m/min (18.4 ft/min) — 180 A
  • 7,000 lb (3,180 kg): 4.2 m/min (13.8 ft/min) — 310 A
  • 9,000 lb (4,090 kg): 2.6 m/min (8.5 ft/min) — 440 A
• Motor: 8.0HP 12V series-wound
• Gear ratio: 80:1 heavy-duty performance gearing
• Rope: 8mm x 24m (5/16" x 80ft) Spectra™ Fiber synthetic UHMWPE
• Winch dimensions (L x W x H): 385mm x 115mm x 120mm (15.16" x 4.53" x 4.7")
• Drum diameter x length: 63mm x 122mm (2.5" x 4.8")
• Mounting bolt pattern: 164mm x 114.3mm (6.46" x 4.5")

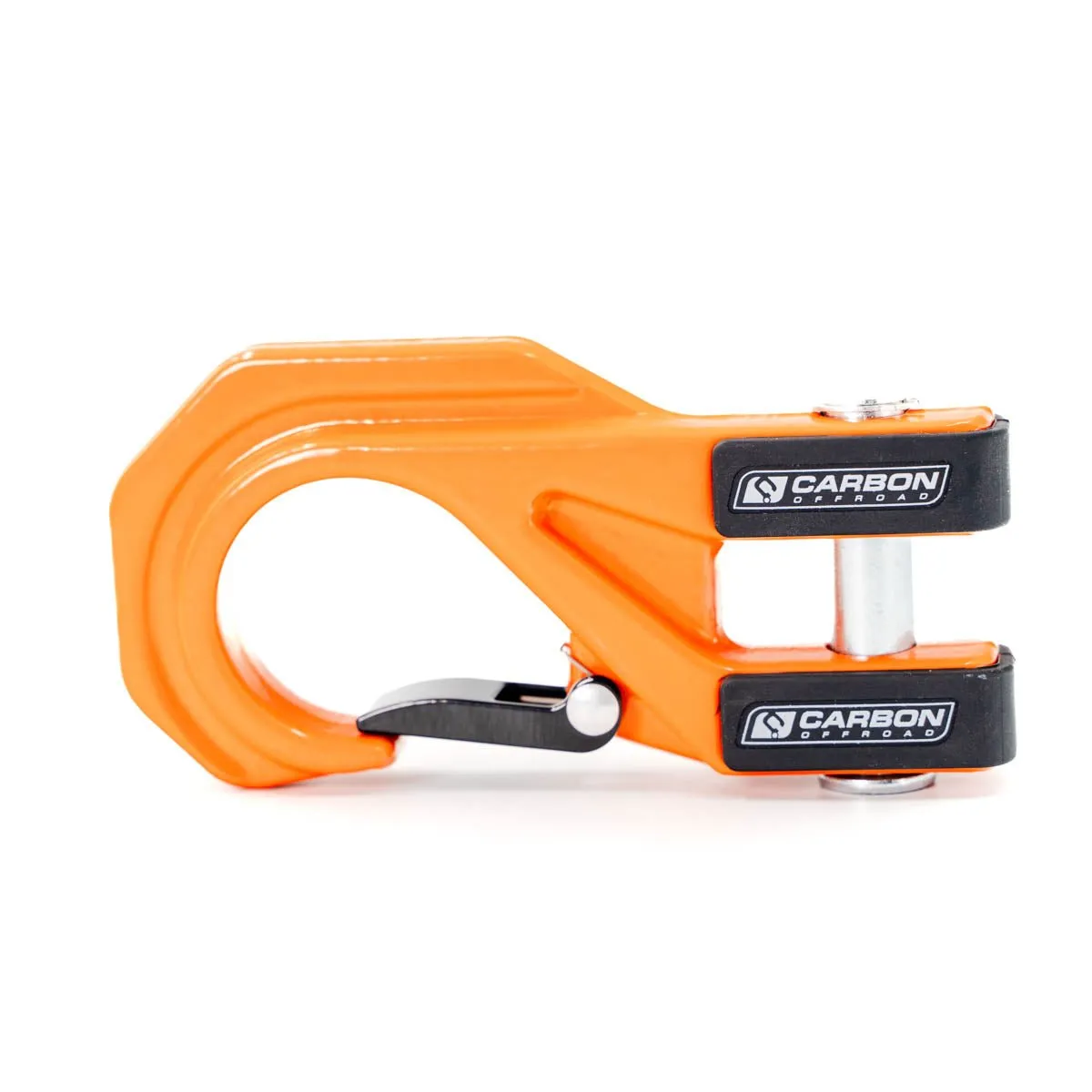

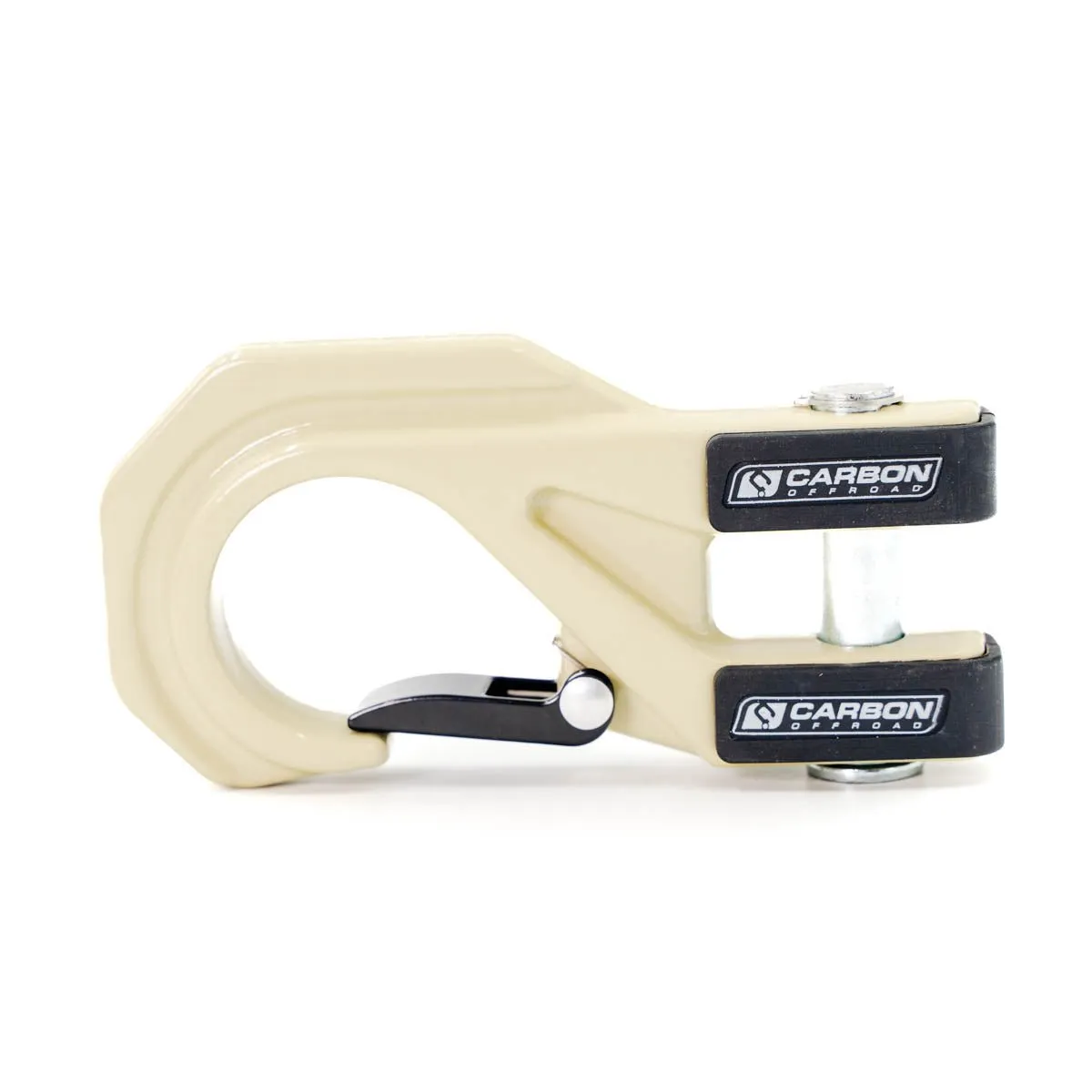

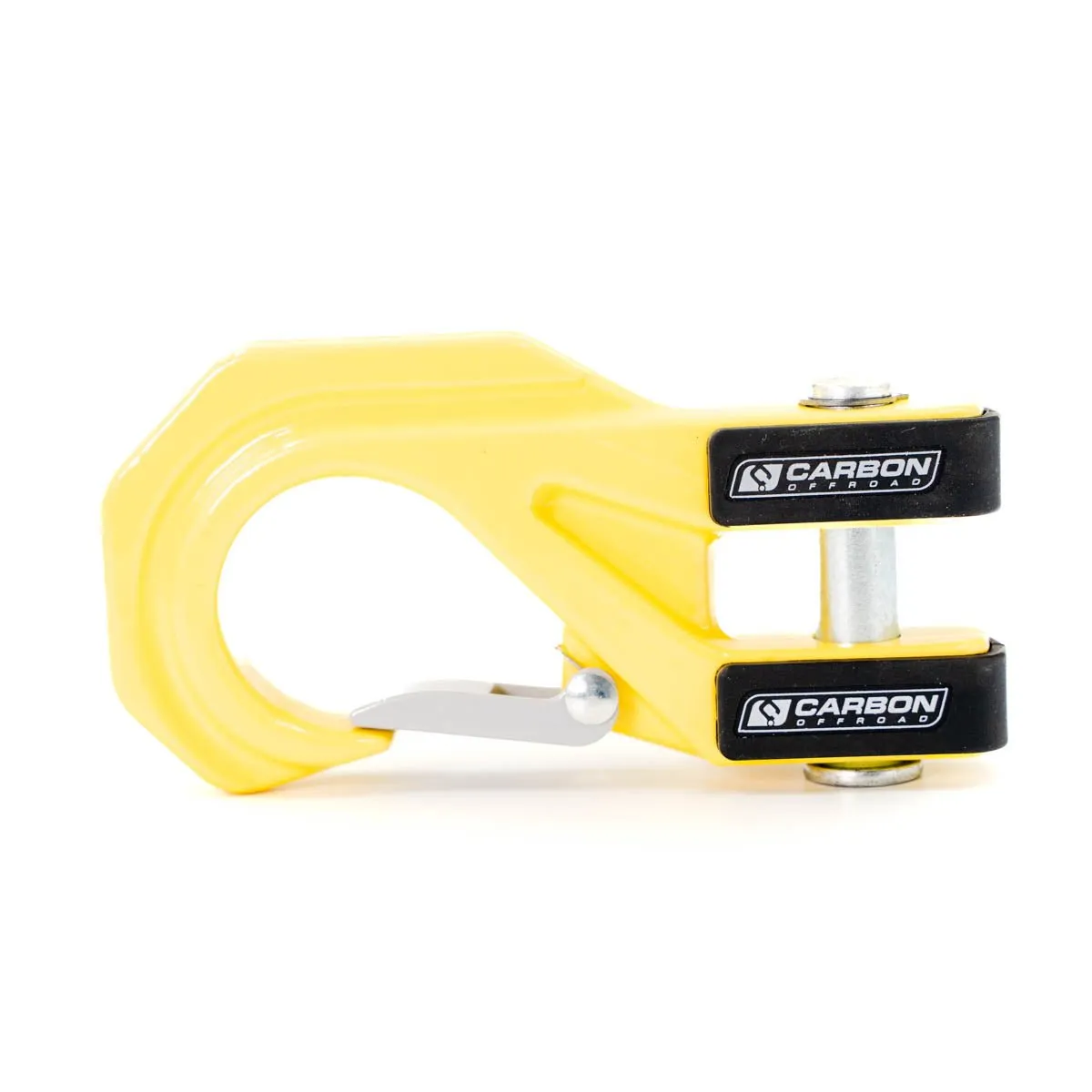

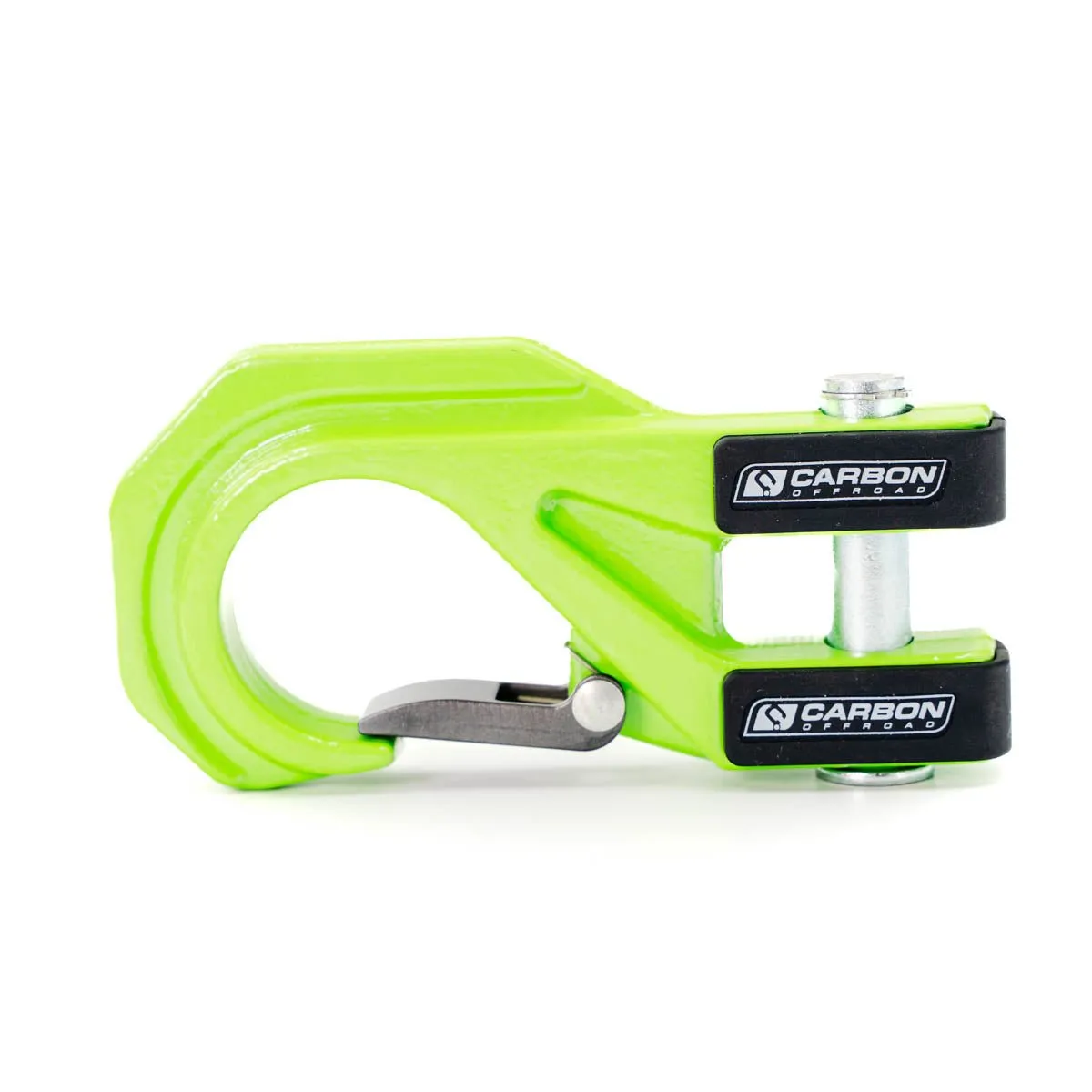

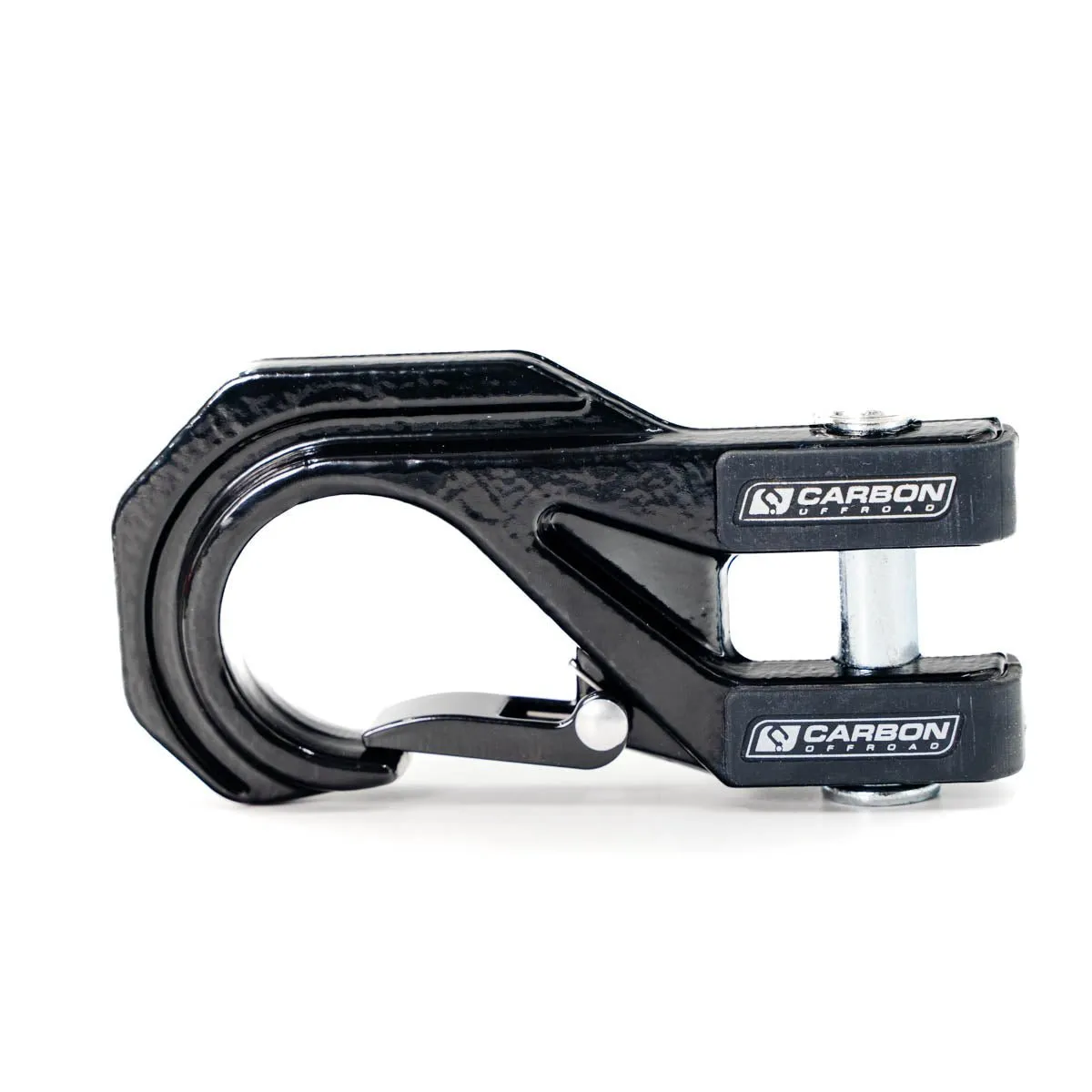

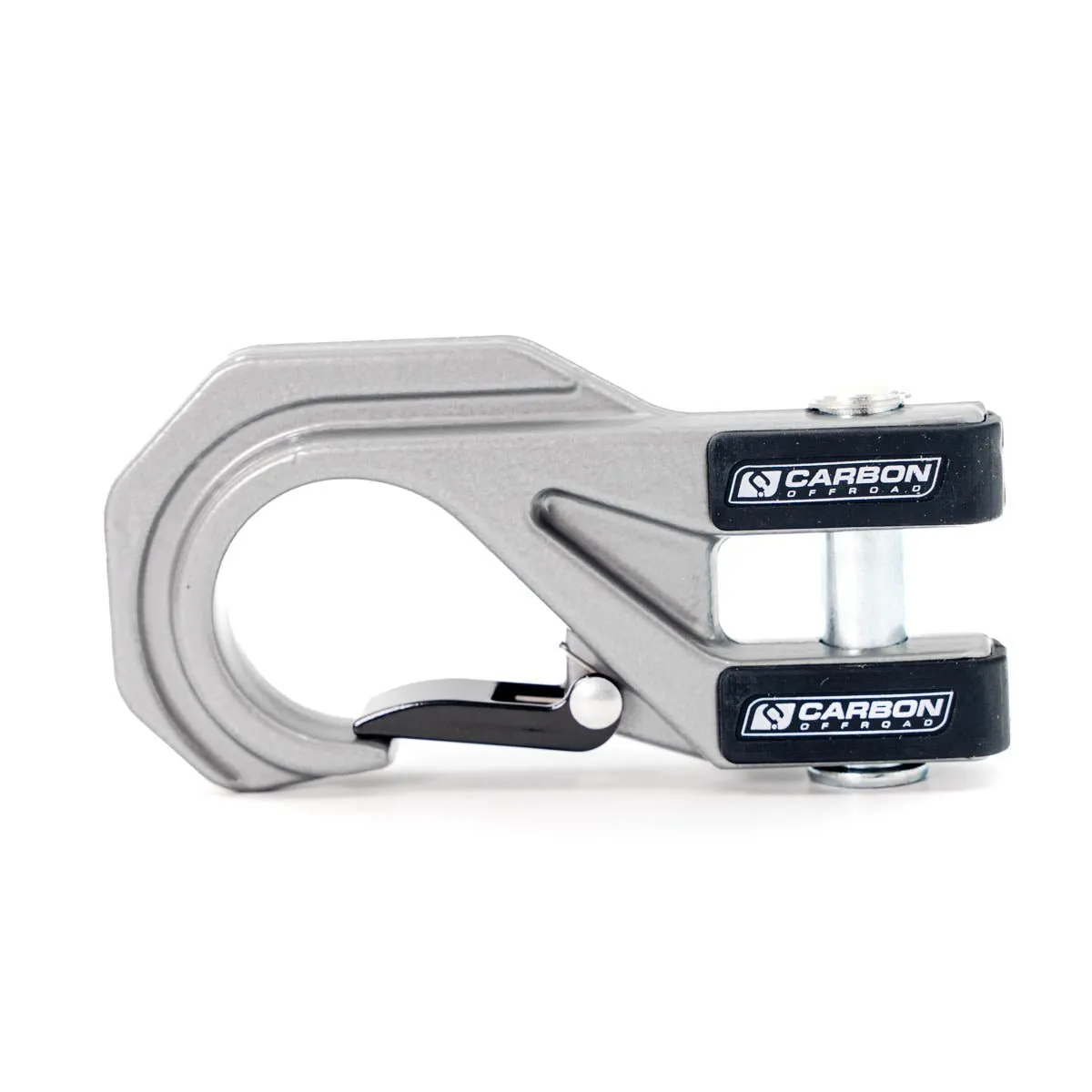

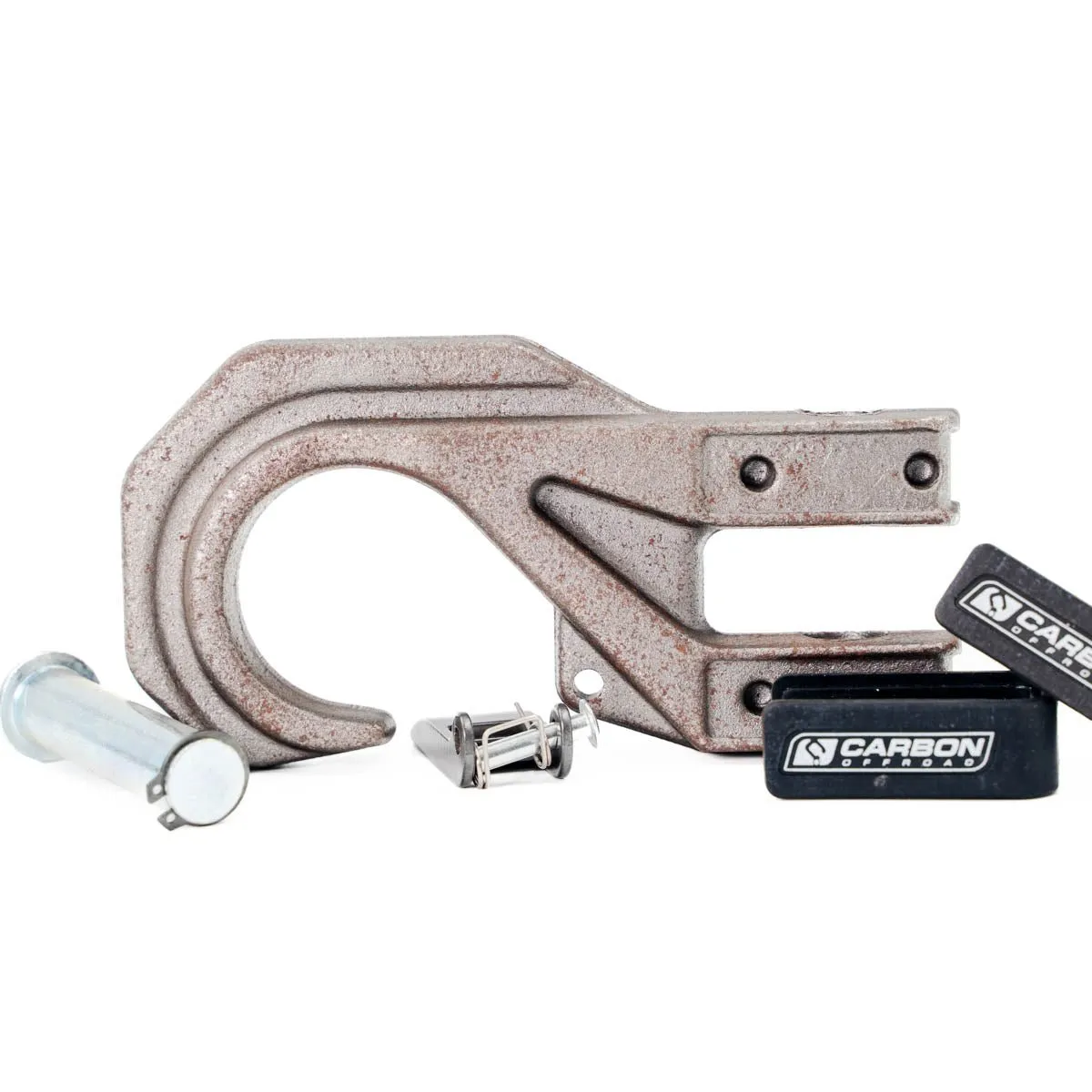

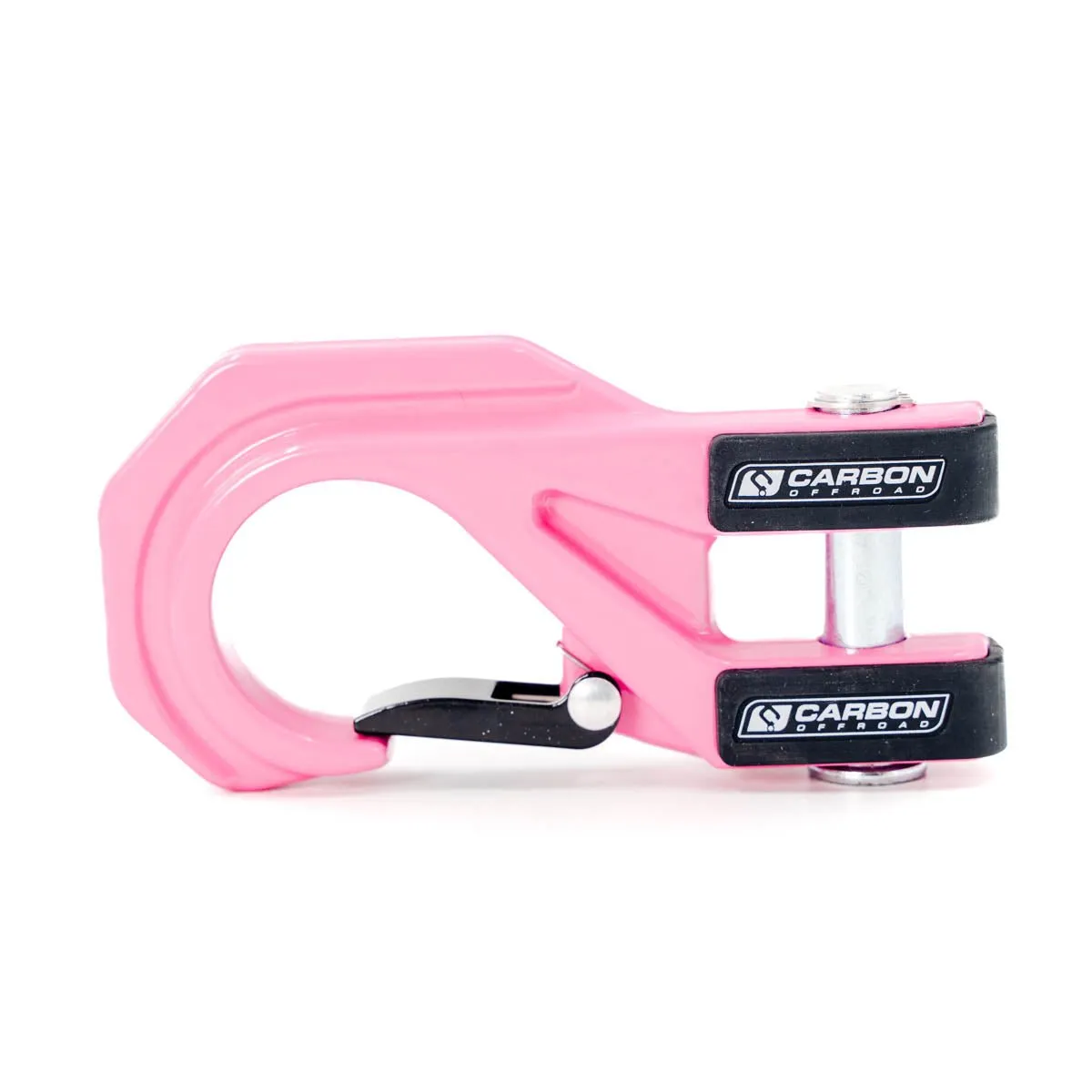

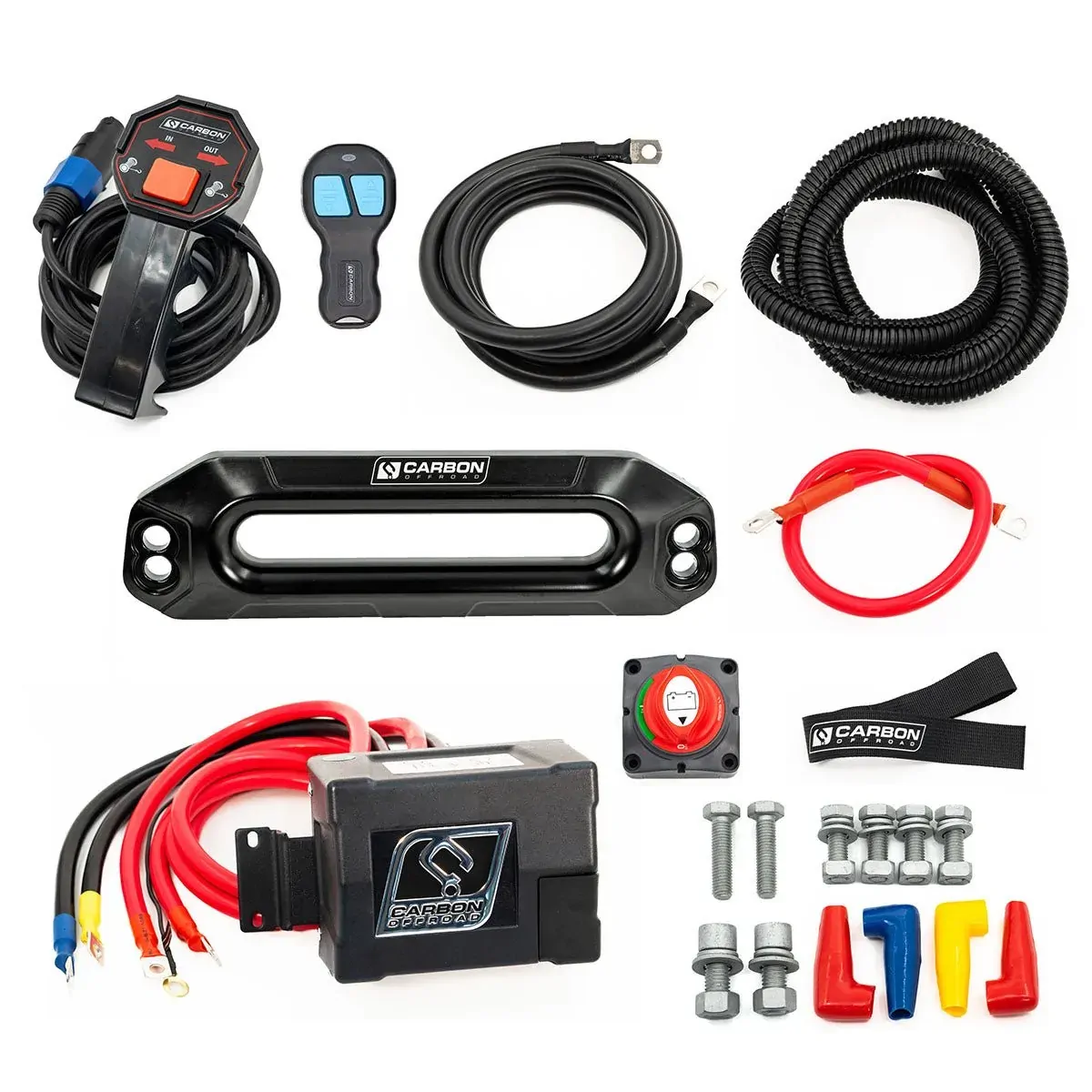

• Included hardware: MegaPro Hook, fairlead, wiring accessory kit
• Winch weight: 22kg (48.4lb)
