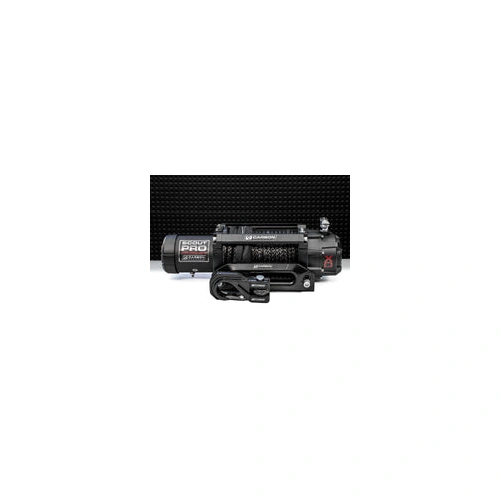

Carbon Scout Pro - 10,000lb Winch V3
Got a bar rated to 10K?
Stay within spec and retain your warranty with the compact Carbon XD10 Winch
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
Technical Features:
- Rated line pull: 10000 lbs, (4536kg) single-line
- Motor: 12V DC 6 HP series wound motor (24V option available)
- Remote Control: Wired with 3.7m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 179:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 9mm diameter
- Drum Diameter/Length: 63.5mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 535 x 158 x 187mm
- Packing Dimensions (L x W x H): 580 x 200 x 220mm
- Winch weight with synthetic rope attached: 19.0kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg
Performance Specs:
|
12V DC PERFORMANCE SPECS |
||||
|
Line Pull lbs(kgs) |
Line Speed ft/min(m/min) |
Motor Current |
Rated line pull lbs(kgs) |
Rope on the drum ft(m) |
|
0 |
31.8(10.6) |
60 |
1/10000(4540) |
15.7(4.8) |
|
4000(1814) |
10.8(3.8) |
190 |
2/8200(3720) |
33.7(11.2) |
|
6000(2722) |
8.5(3.2) |
250 |
3/6840(3103) |
60.9(18.5) |
|
8000(3630) |
6.2(2.6) |
310 |
4/5820(2640) |
78.7(24.0) |
|
10000(4540) |
4.6(2.1) |
370 |
||
Warranty:
- Lifetime Mechanical Warranty 5 Year Electrical Warranty 5 Year Water Ingress Protection Warranty
(CW-XD10BLK)
| SKU | CW-XD10BLK |
| Brand | Carbon Offroad |
