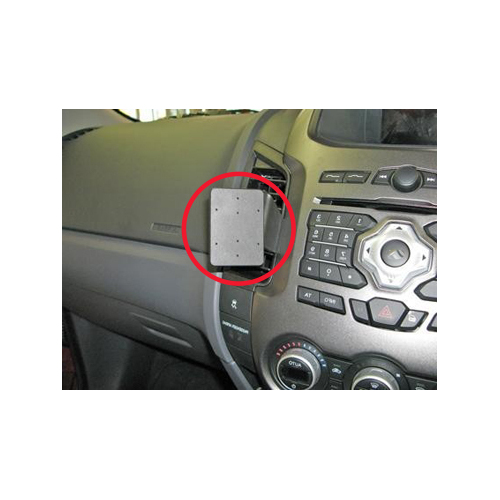

ClicOn Angled Mount - Ford Ranger 2012-2015

This Dashmount has been custom designed to fit your vehicle's dashboard without damaging your interior. Designed for mounting ClicOn holders. ONE Part of a TWO Part Solution. Installation instructions provided.

Please read all of the instructions and look at the pictures before attaching the ClicOn.

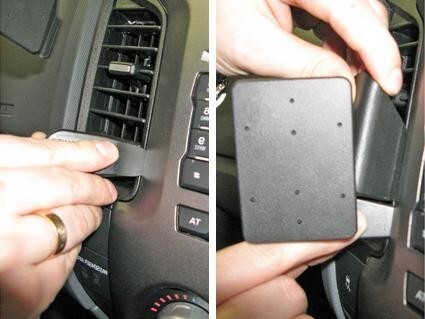

1. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Peel off the adhesive tape cover on the ClicOn. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the control panel, to widen the gap. Press the gap opener further into the gap and carefully prize the gap wider. In the same time: Press the angled edge on the right part of the ClicOn into the gap above the gap opener. Pull out the gap opener.

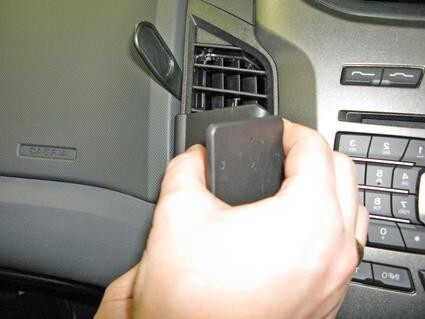

2. Press both the gap opener into the gap between the frame surrounding the air vent and the dashboard, above the ClicOn.

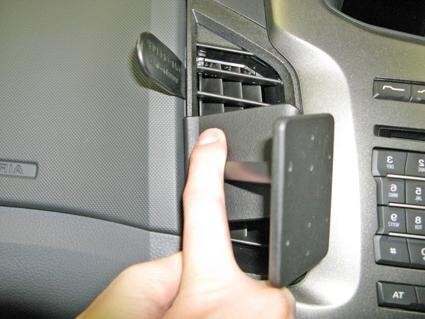

3. Press the ClicOn leftward and forward so the angled edge on the left part goes all the way into the gap below the gap opener. Pull out the gap opener.

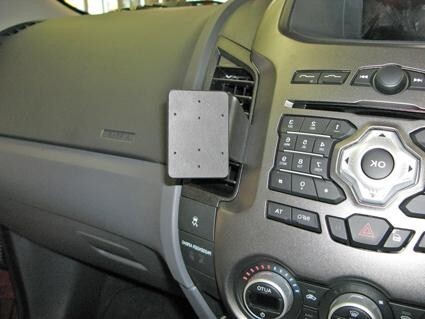

4. The ClicOn is in place.

Suits:

Ford Ranger Year(s):12-15
