ClicOn Angled Mount - Mazda BT 50 2013-2018

This Dashmount has been custom designed to fit your vehicle's dashboard without damaging your interior. Designed for mounting ClicOn holders. ONE Part of a TWO Part Solution. Installation instructions provided. Will NOT fit models with bench seat.

Please read all of the instructions and look at the pictures before attaching the ClicOn.

Will NOT fit models with bench seat.

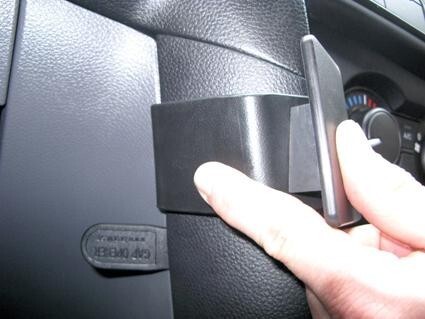

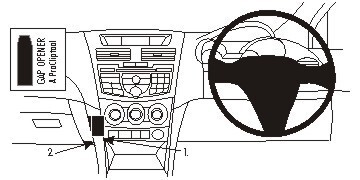

1. Press the thin end of the enclosed gap opener into the gap between the center console frame and the dash board, to widen the gap. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Peel of the adhesive tape cover on the ClicOn. Press the angled edge on the right part of the ClicOn into the gap between the climate control panel and the surrounding frame.

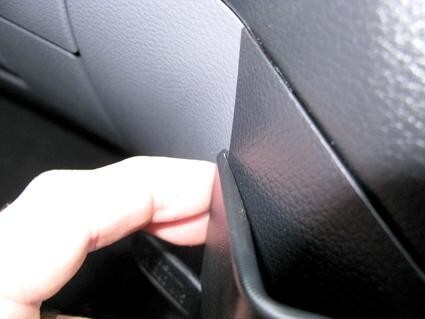

2. Press forward on the left side of the ClicOn so the angled edge hooks into the gap above the gap opener.

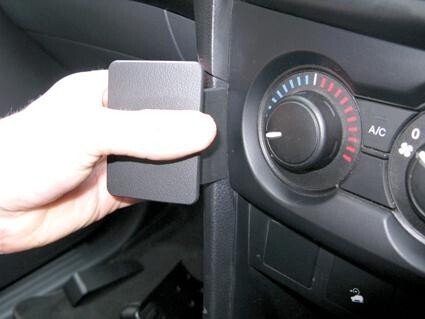

3. Press on the left part of the ClicOn so the angled edge goes all the way into the gap. Pull out the gap opener.

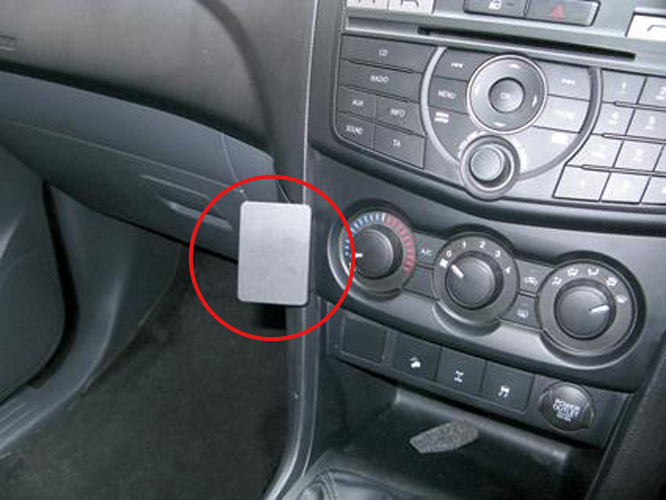

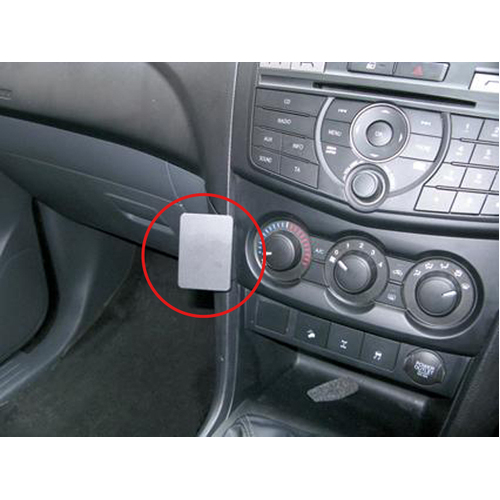

4. The ClicOn is in place.

Suits:

Mazda BT 50 Year(s):13-18
