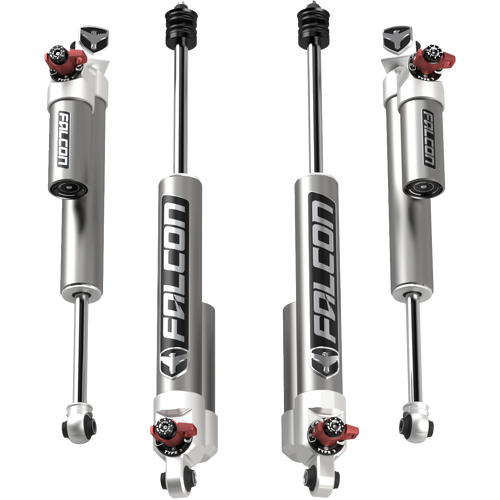

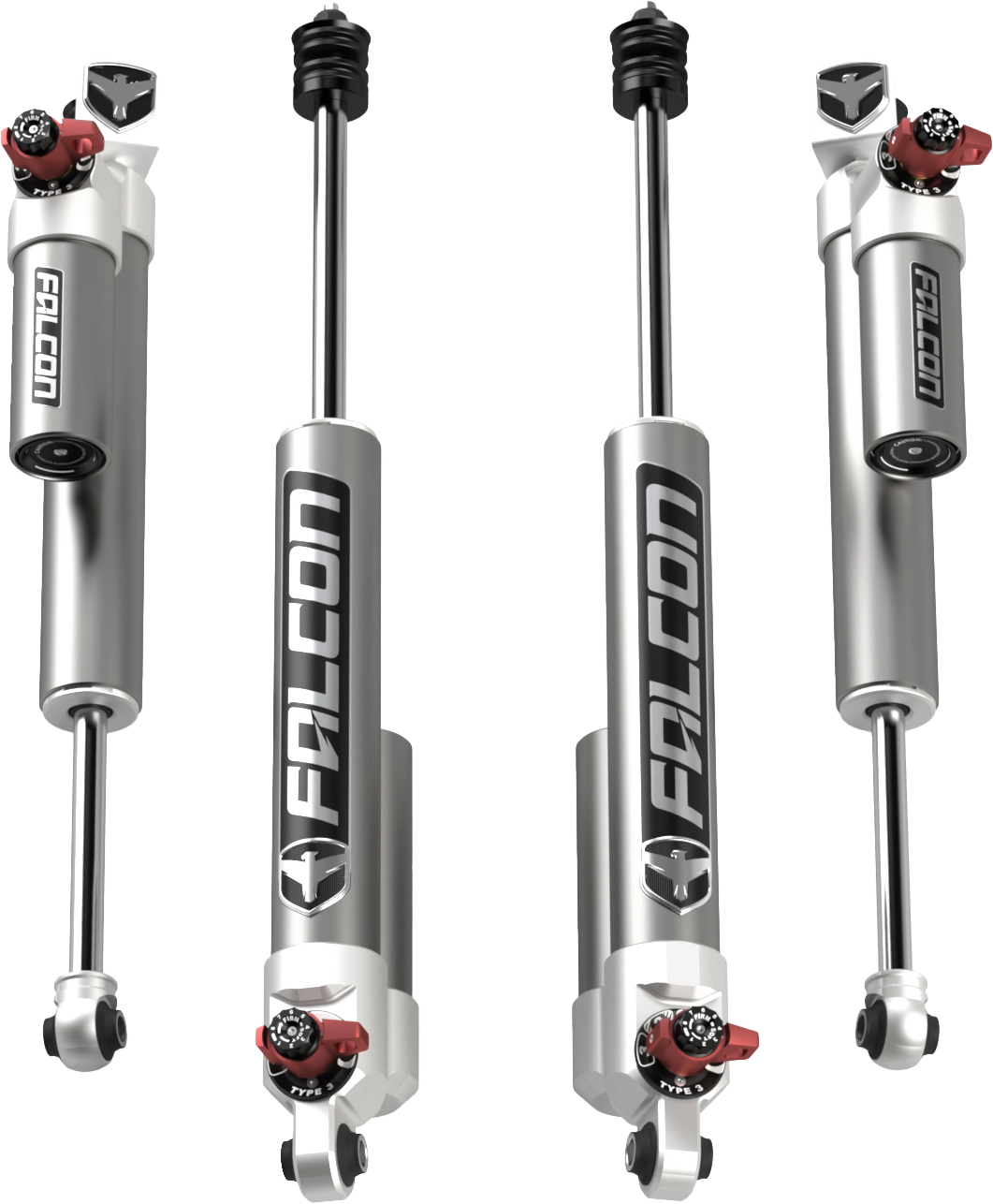

Falcon Adjustable Remote Res Shock Absorber Kit - Ram 2500 DJ, DT 2020-On

Falcon Shocks - Built for the way you use it

The RAM 2500 hauls serious weight, and its factory shocks are the first thing to give up.

This Falcon kit is built for the way 2500s actually get used in Australia: big vans, big payloads, long distances. More oil volume, better heat management, and damping that holds up hour after hour.

Designed to be used in a levelling kit.

Suitable for up to 1.5" Raised Front Coils and Standard Height Rear

About the Falcon Shocks

• 10 Position Fast Adjust Dampening

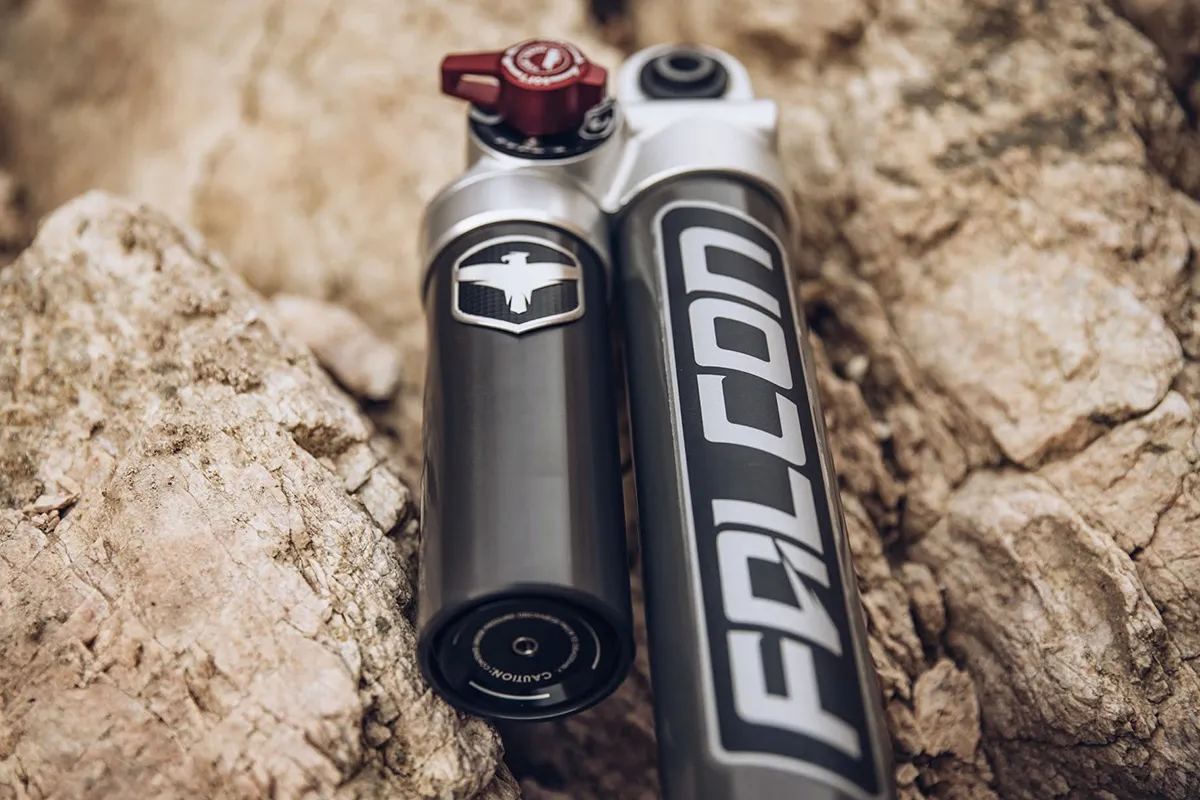

• Piggyback Remote Reservoir
• Lightweight Monotube Design
• This is not just another U.S Brand bought into Australia and put on a shelf with no support.
• The Falcon Shocks are a high end U.S Brand & are fully Supported and Serviceable here in Aus.
• Falcon gives the owner the ability to quickly change the shock from something suited to heavy loads or harder off-road use through to the daily mall crawler setup.

VOD: VOLUME OPTIMISED DAMPENING

Sharper feedback. Stability and control at every speed.

• A digressive linear valve restricts oil flow as the piston moves through compression and rebound. That restriction creates the damping effect.
• VOD ramps up faster than conventional damping, building damping volume earlier at low speed.
• Less shock bottoming at full compression when the pace lifts or the terrain turns uneven.
• Conventional velocity sensitive shocks react too quickly at low shaft speeds. The result is excessive head toss over rough ground and even over driveways.Those shocks then firm up as shaft speed rises and the ride turns jarring. VOD holds stability and control across every driving condition.

ZRT: ZONE RATE TUNING

Three performance zones. One spring curve that covers more ground.

• Reworks factory linear rate spring tuning into three distinct performance zones, producing a more exaggerated spring curve for a wider range of driving conditions.
• Extension Zone: an internal negative rate spring offsets factory spring preload. Removes top out clunk and shock stress at full extension, softens tyre landing and cuts body roll on impact under aggressive driving.
• Drive Zone: factory spring rate left untouched, so ride comfort and control stay as intended.
• Compression Zone: the included progressive microcellular foam bump stop retunes the spring rate to reduce bottoming and body roll under aggressive driving.

THE TECHNOLOGY

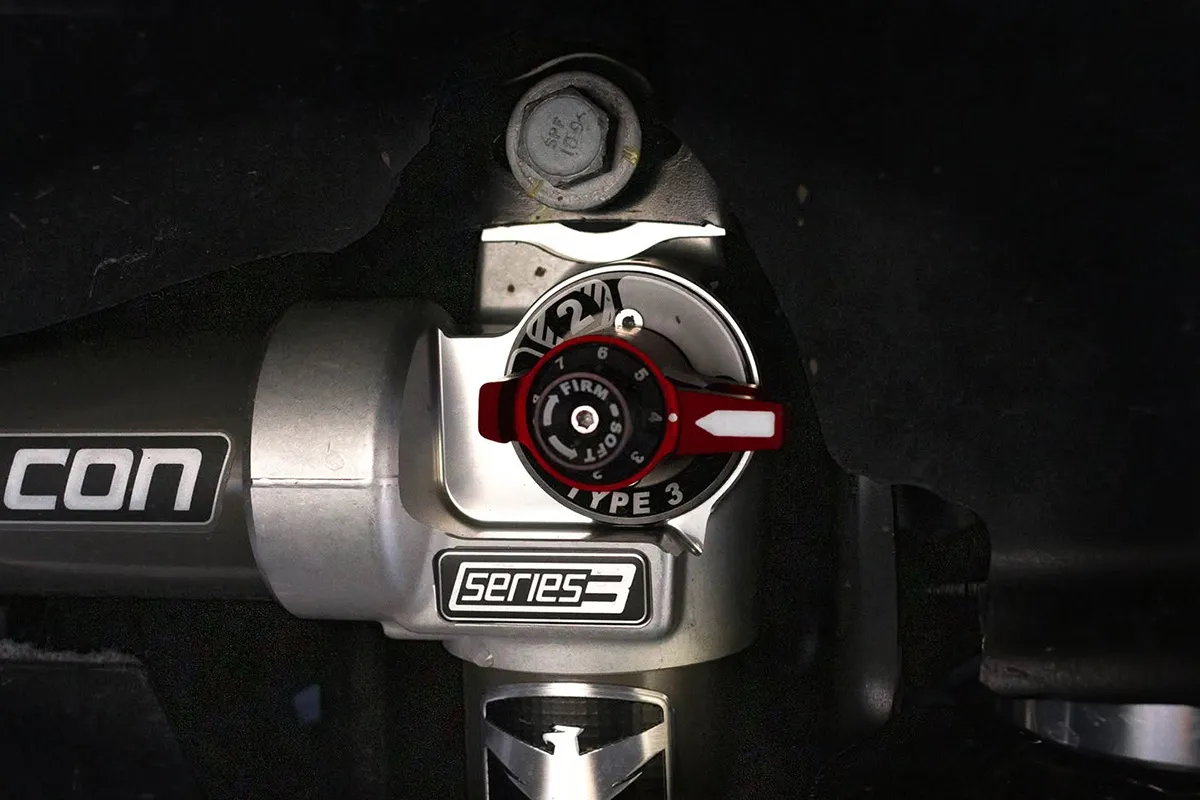

3.3 SERIES 3 POSITION DIAL

• The Falcon 3.3 Series lets you dial the dampening from Sport through to Tow/Haul in second, so the ride always matches the job at hand

3.3 FAST ADJUST 10 POSITION DIAL

• The Falcon 3.3 Fast Adjust Series does more than switch between Sport and Tow/Haul, letting you tune the dampening in steps between, so you can dial in for the exact condition in front of you.

LIGHT-WEIGHT MONOTUBE DESIGN

• Every Falcon shock uses a light-weight 6061-T6 aluminium alloy monotube body that sheds heat fast and holds its dampening when the work gets hard.
