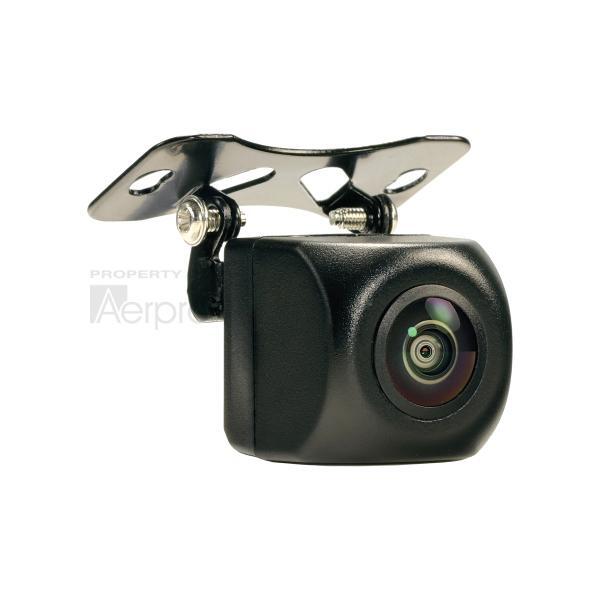

Gator G55CLHD 720P HD surface mount camera

The Gator G55CLHD 720P HD Surface Mount Camera produces high definition picture quality. Suitable for use on AHD compatible multimedia receivers and displays the camera can be used as a front, rear or reverse camera. It features a 150 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.

Key Features

• 720P High definition resolution produces crystal clear picture quality
• Suitable for use as a front, rear or reverse camera
• Universal surface mount design with adjustable bracket
• 150 Degree horizontal lens angle for a wide field of view
• Works with AHD compatible multimedia receivers and displays such as the new Aerpro head units
• Optional parking guidelines (loop setting adjustable)
• Optional mirror image (loop setting adjustable)
• Suitable for PAL and NTSC systems (loop setting adjustable)
• 12V DC Compatible, suitable for cars, utes and small commercial vehicles
• IP67 Weatherproof to withstand harsh operating environments
• Includes 6m RCA video lead with trigger cable

Key Specifications

• Mount Type: Surface Mount
• Camera Type: Front, Rear Or Reverse
• Resolution: 720P HD
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle 150 Degree
• Loop Setting Adjustments:
  • PAL/NTSC (Blue Loop): Default setting PAL, cut the loop for NTSC
  • Parking Lines (Green Loop): Default setting PARKING LINES, cut the loop to remove PARKING LINES
  • Mirror Image (White Loop): Default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE
• IP Rating: IP67
• Voltage: 12V DC
• Camera End Connection: 4 Pin Micro Din
• Monitor End Connection: RCA
• Video Cable Length: 6m
• Reverse Trigger on Video Cable: Yes
• Wired or Wireless: Wired

Note:

Initial install of reversing camera needs to be wired by a qualified auto electrician.

Not compatible with Hema HX-2 or previous generation navigators.
