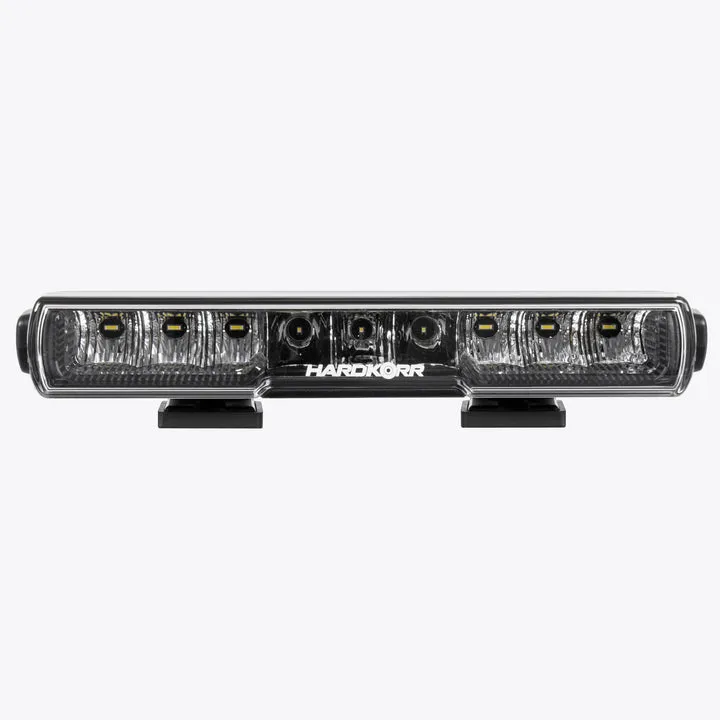

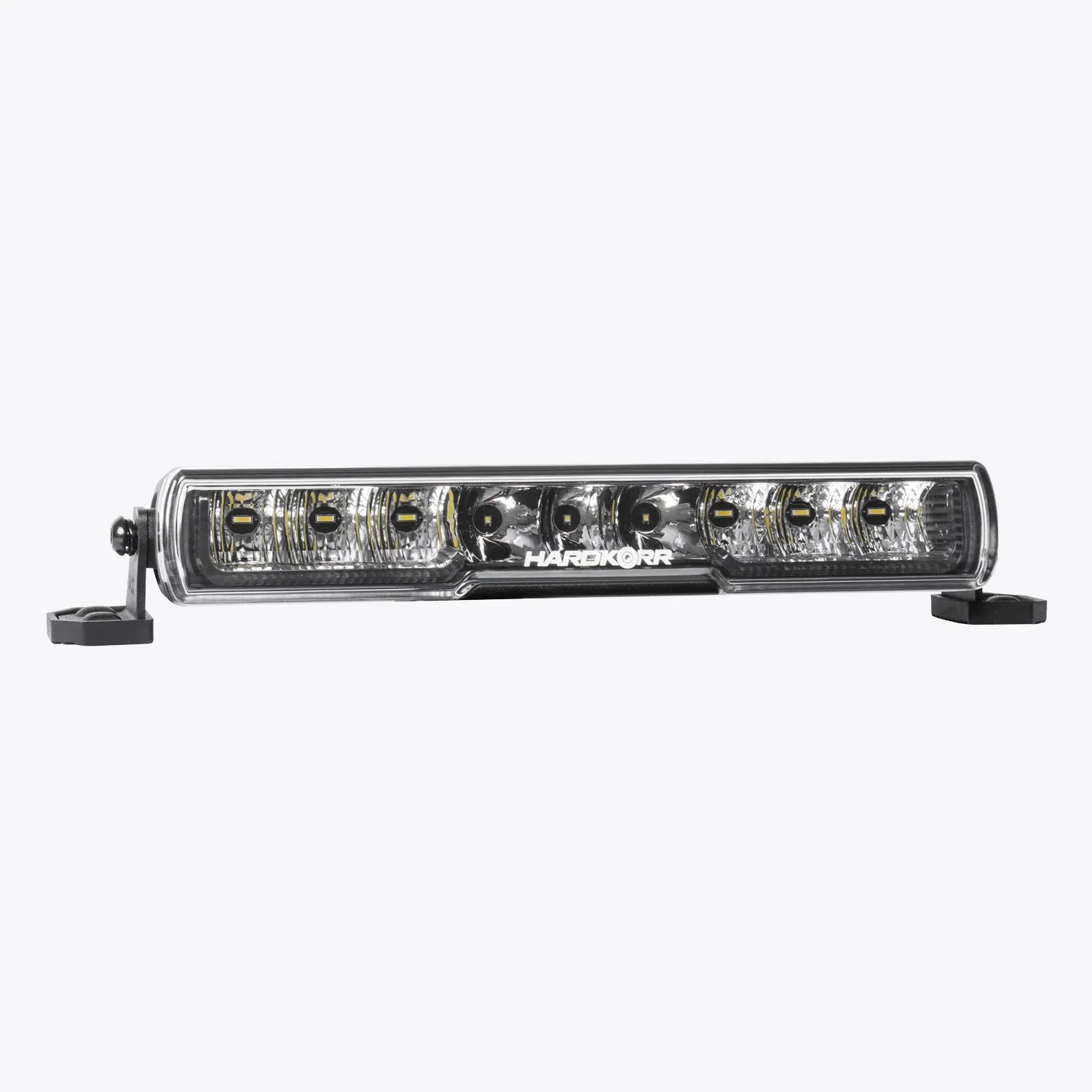

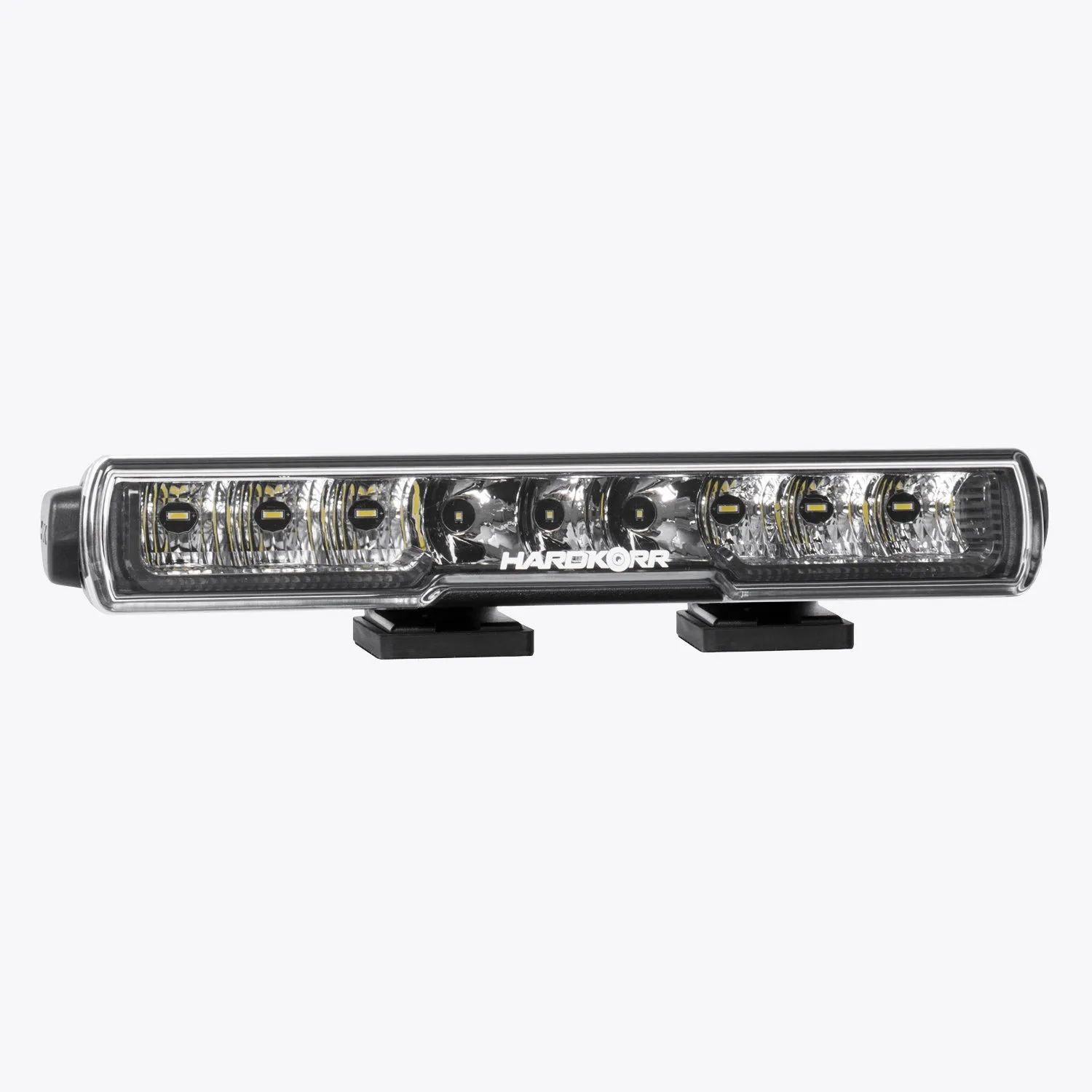

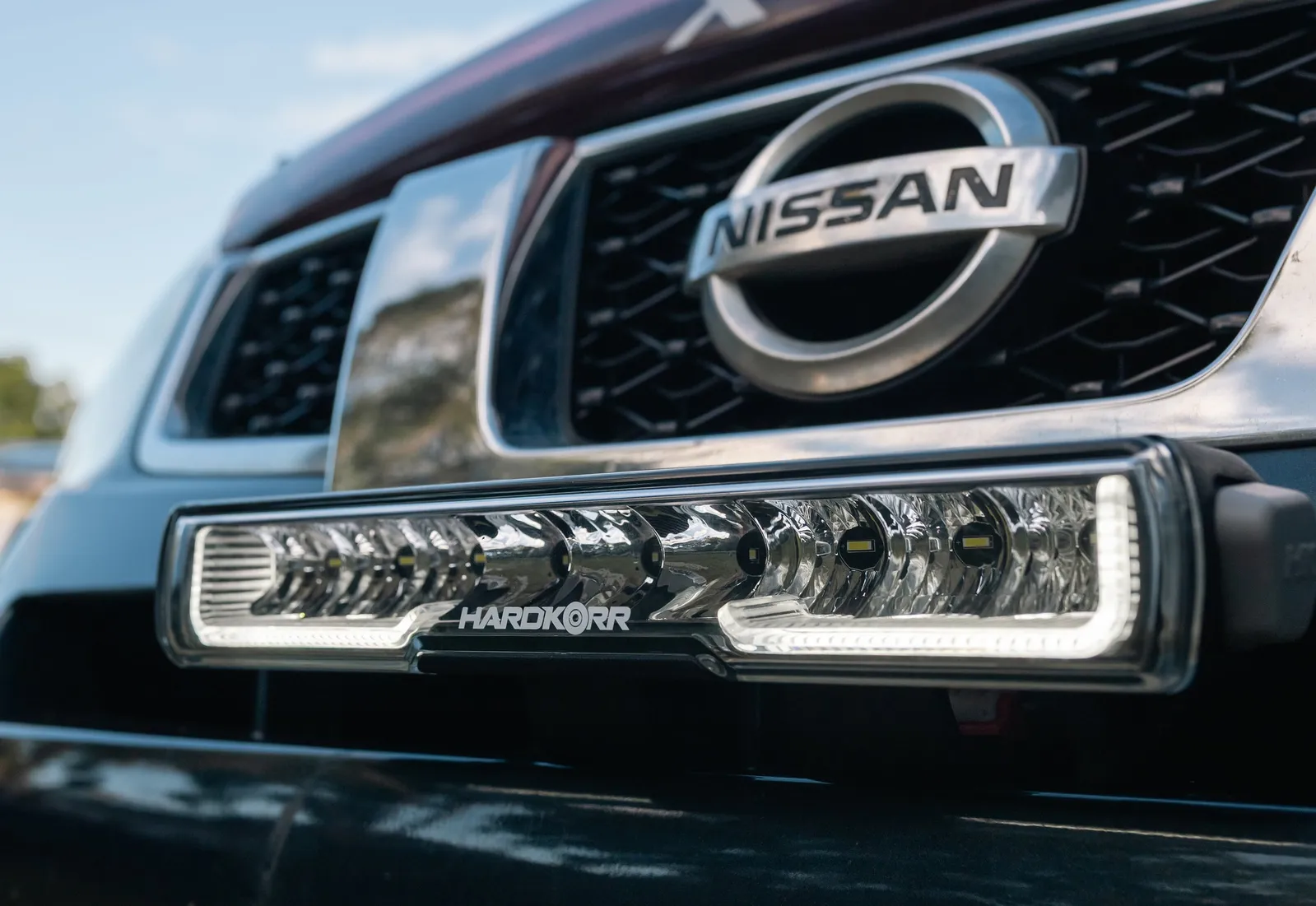

Hardkorr XD Series 10" Single Row LED Light Bar LBXD-10S

The Hardkorr XD Series 10" single row LED light bar delivers a focused 52° beam with a clear 5,500 K colour temperature. It combines high raw output with a compact, durable design using powder-coated die-cast aluminium and a UV-coated polycarbonate lens, rated IP68/9K for protection against dust, water and high-pressure wash.

The lamp provides significant light output for distance and edge illumination, with both raw and effective lumen figures and a stated 1-lux rating in the specifications below.

• Housing material: Powder-coated die-cast aluminium
• Bracket material: Powder-coated die-cast aluminium
• Lens material: UV-coated polycarbonate
• Size: 290 (L) x 46 (H) x 61 (D) mm
• Weight: 0.84 kg
• Raw lumens: 10,221 lm
• Effective lumens: 4,894 lm
• 1-lux rating: 262 m
• Beam angle: 52°
• Peak intensity (candela): 68,000 cd
• Colour temperature: 5,500 K
• LED chips: 3 × 2016 + 6 × 1860
• Operating voltage: 10-30 V DC
• Current draw: 5.87A @ 12V / 2.84A @ 24V
• DRL draw: 0.51A @ 12V / 0.25A @ 24V
• Operating temperature: -30°C – 65°C
• Ingress protection: IP68 / 9K

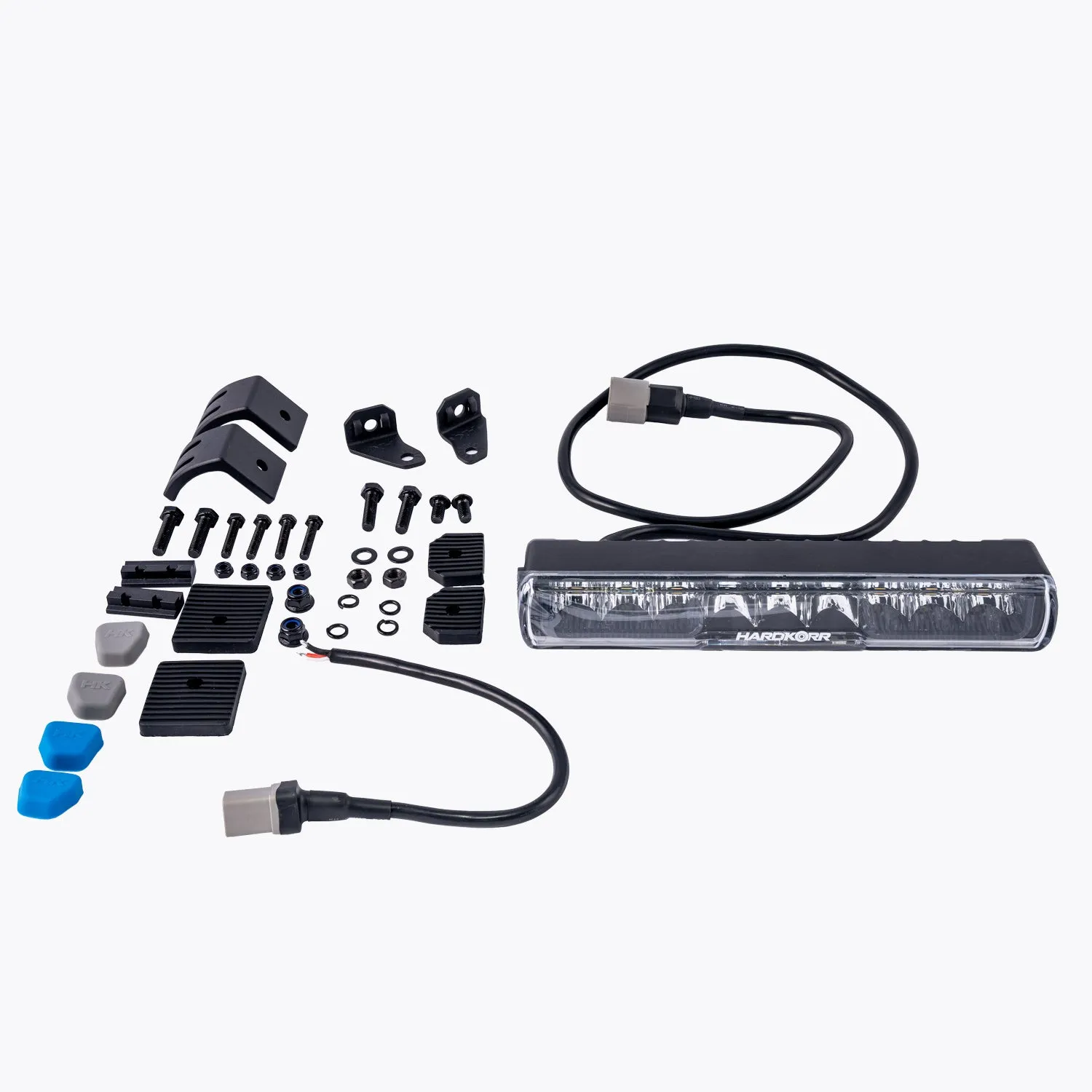

• 1x XD Series 10" Light Bar

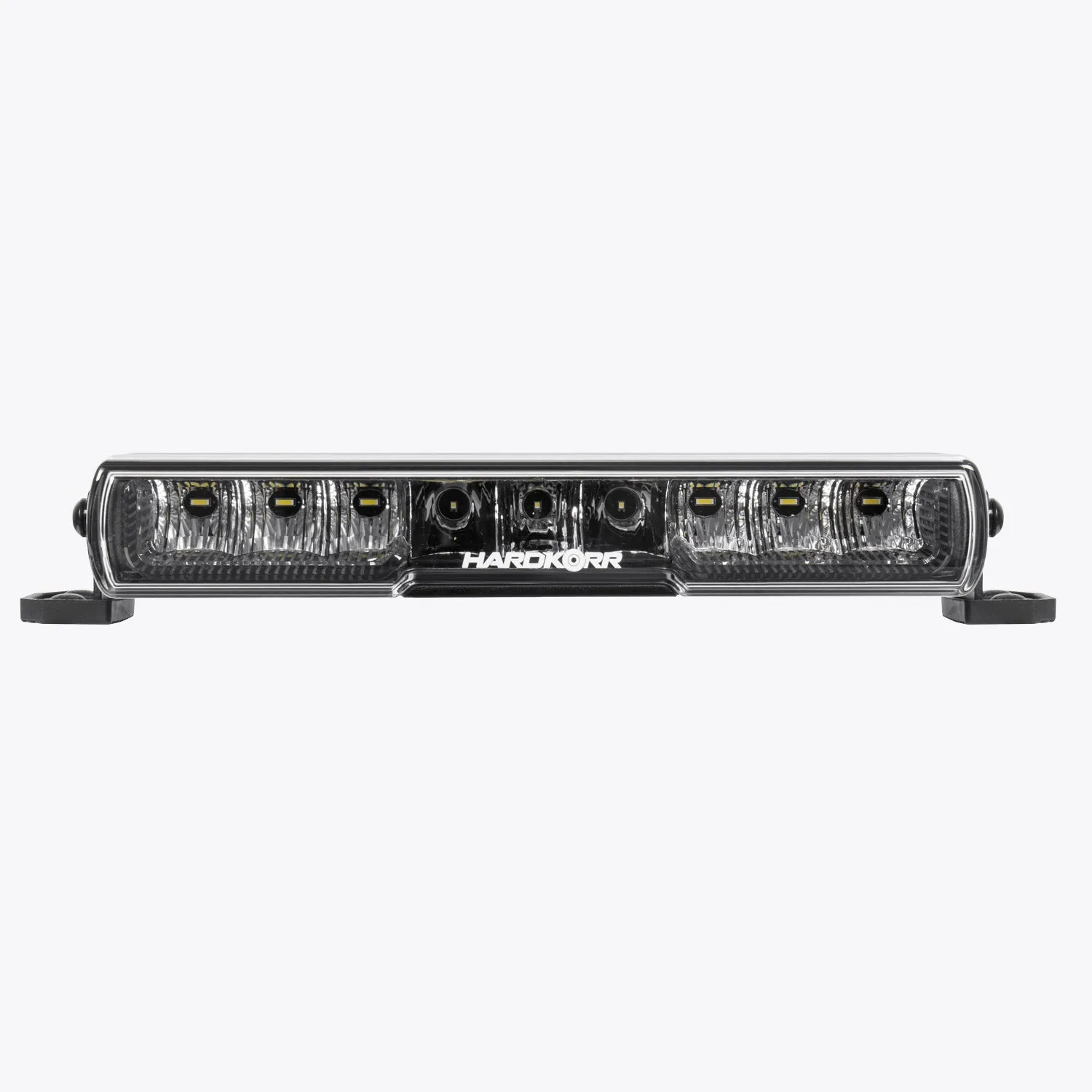

• 1x pair side legs and hardware

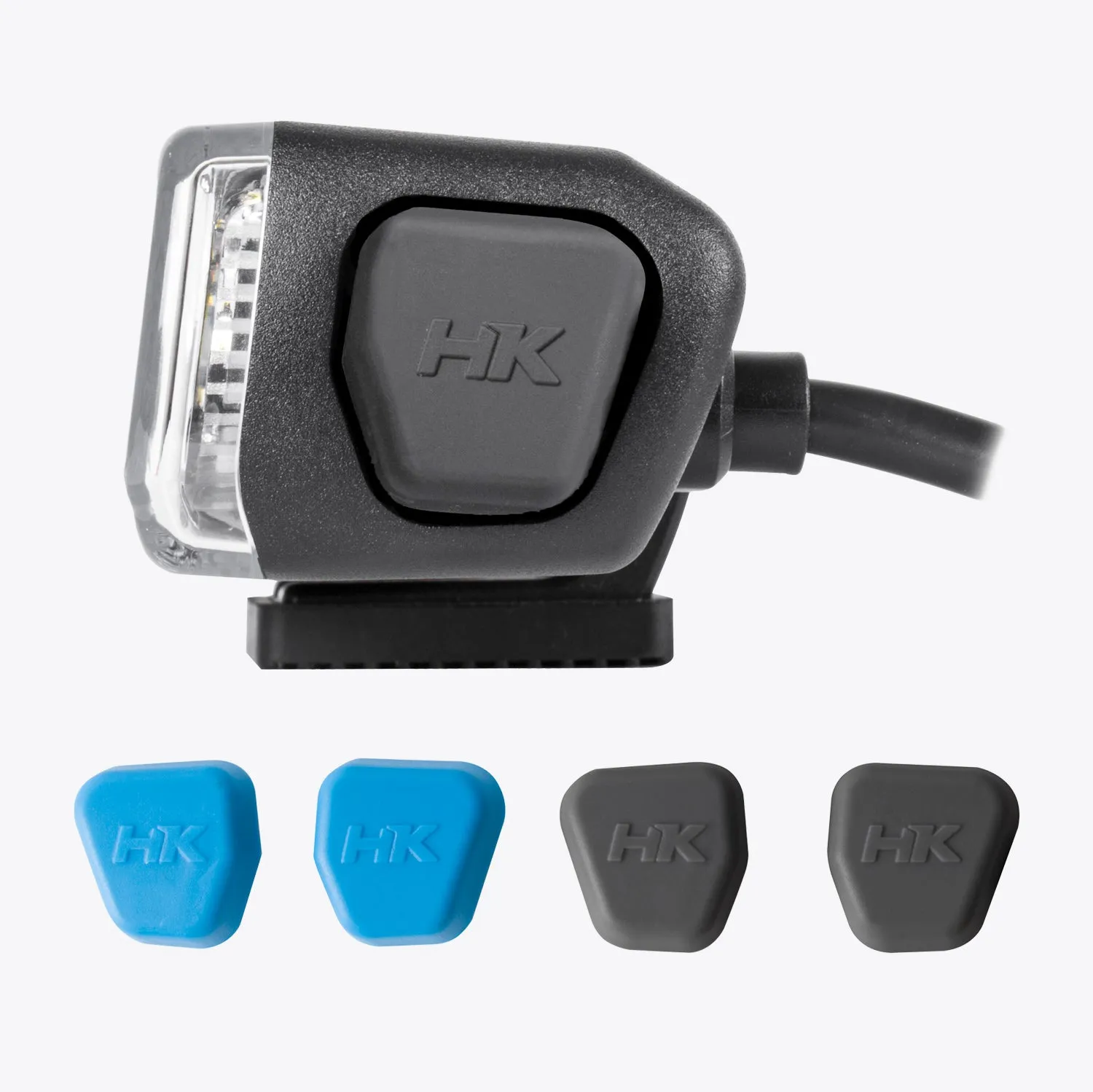

• 2x Blue end-caps
