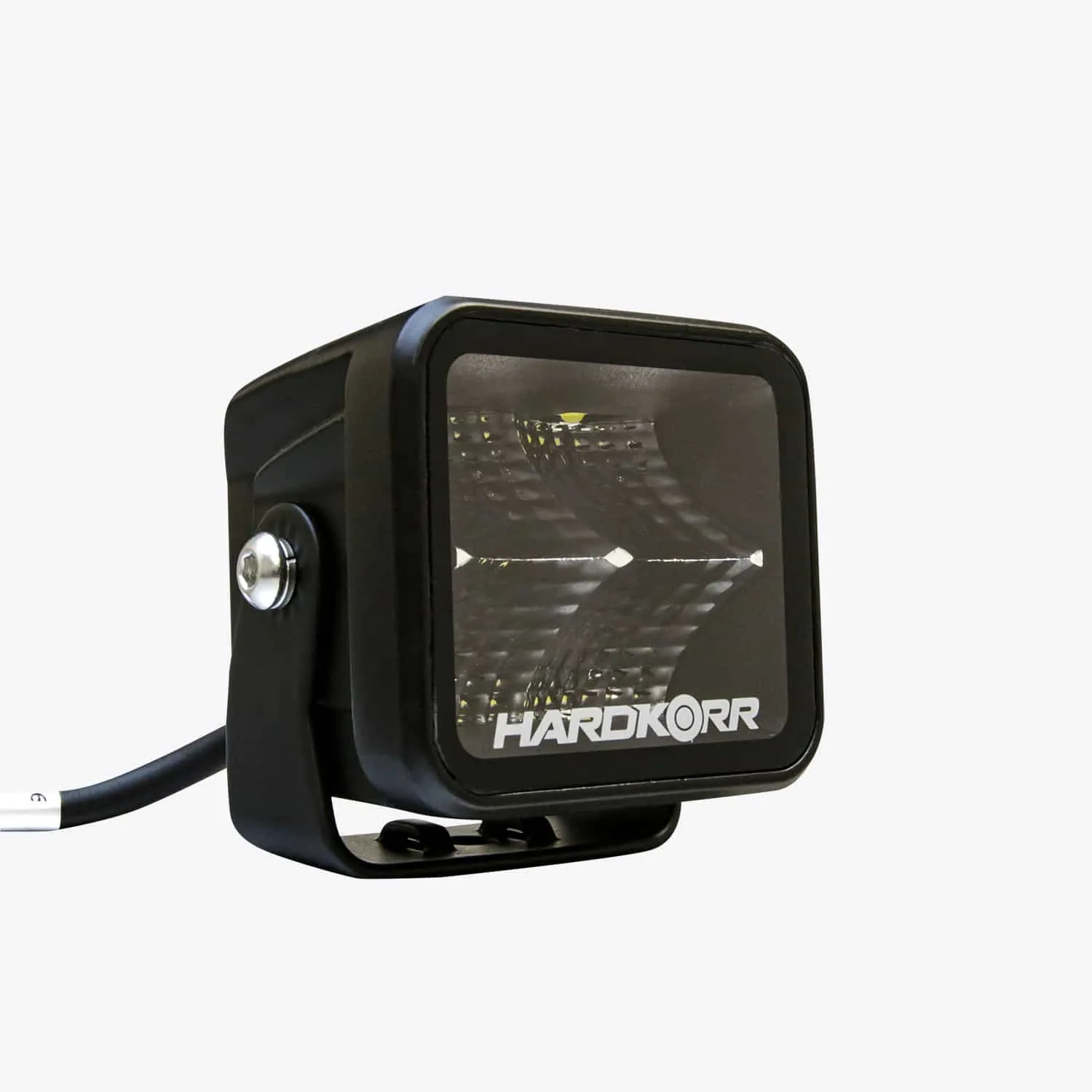

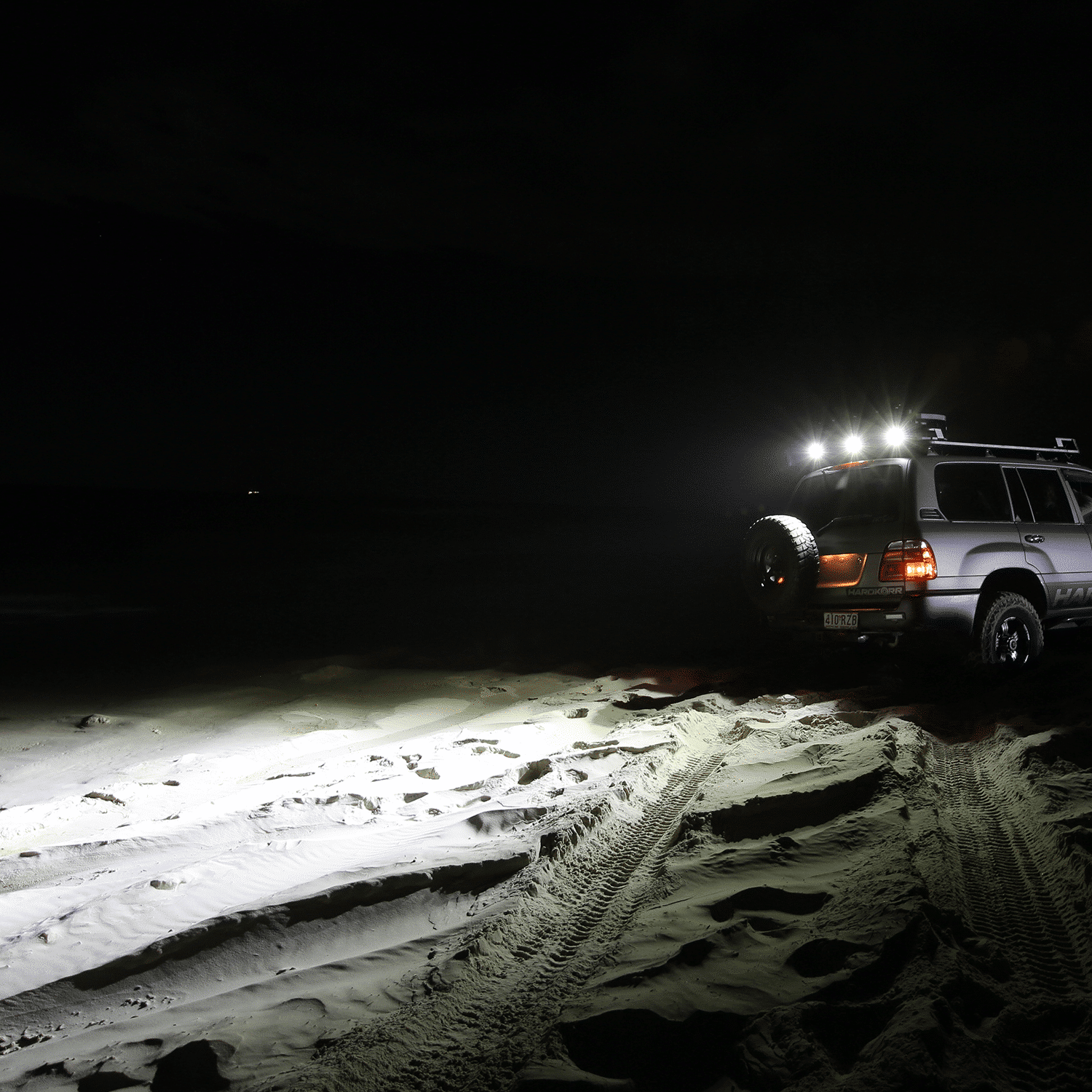

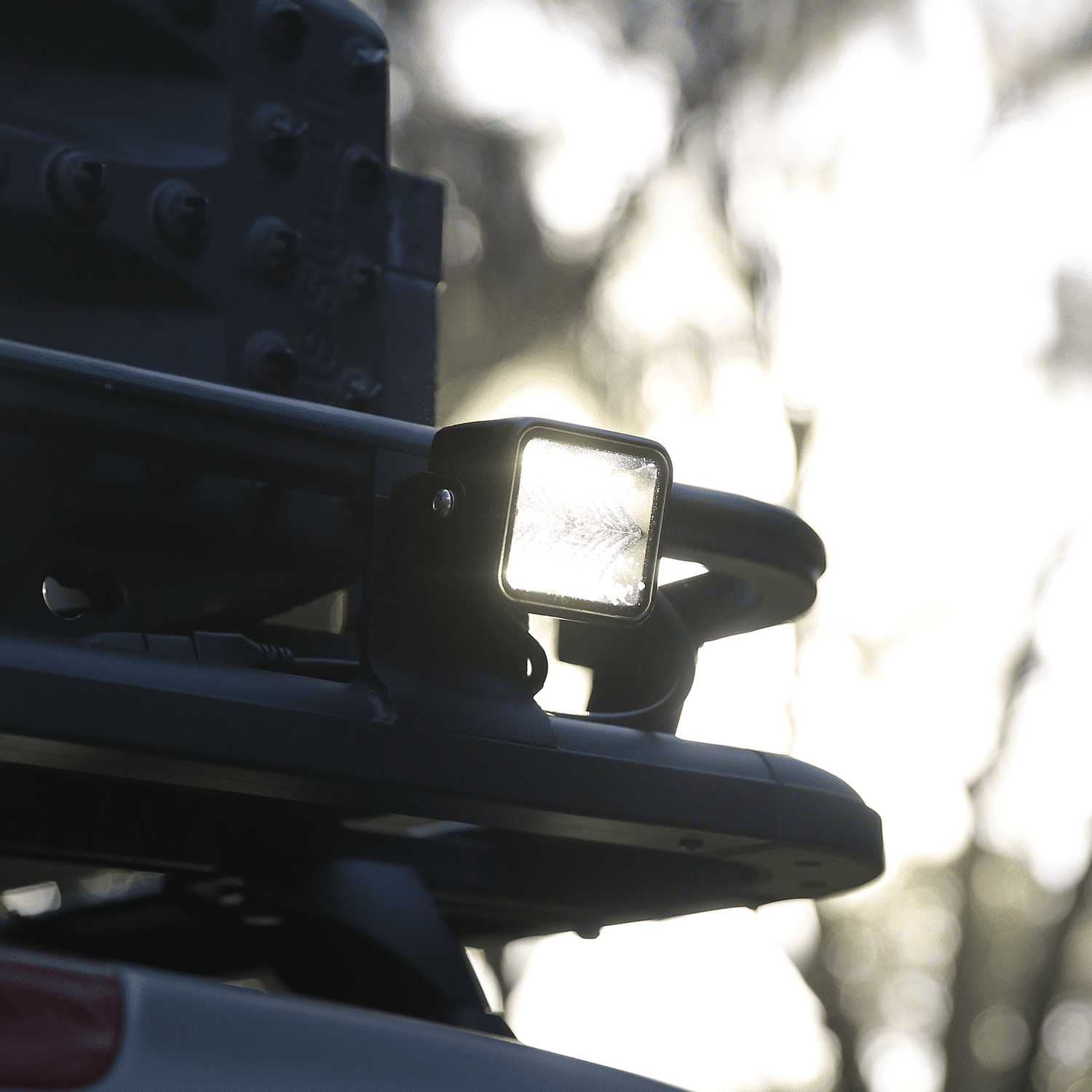

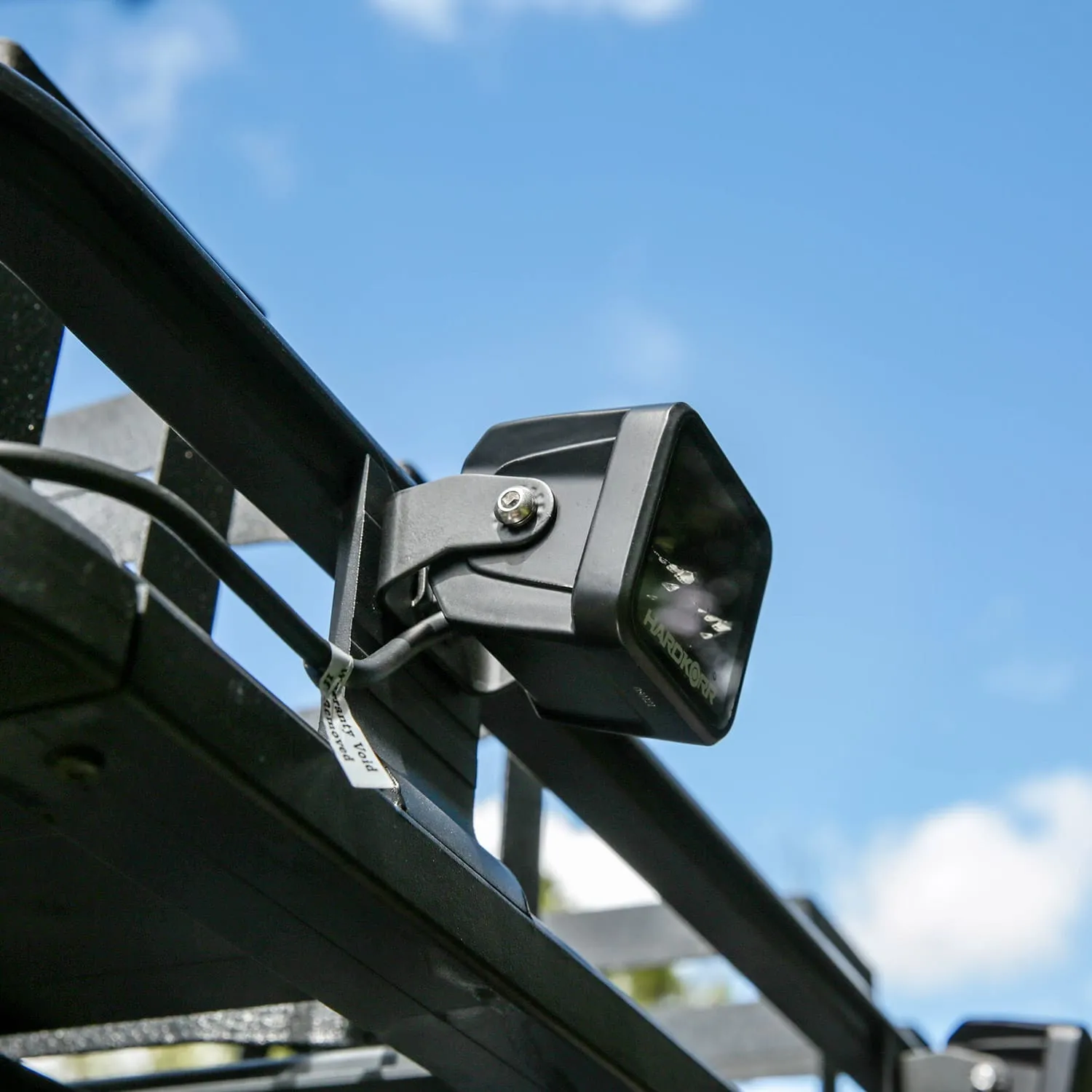

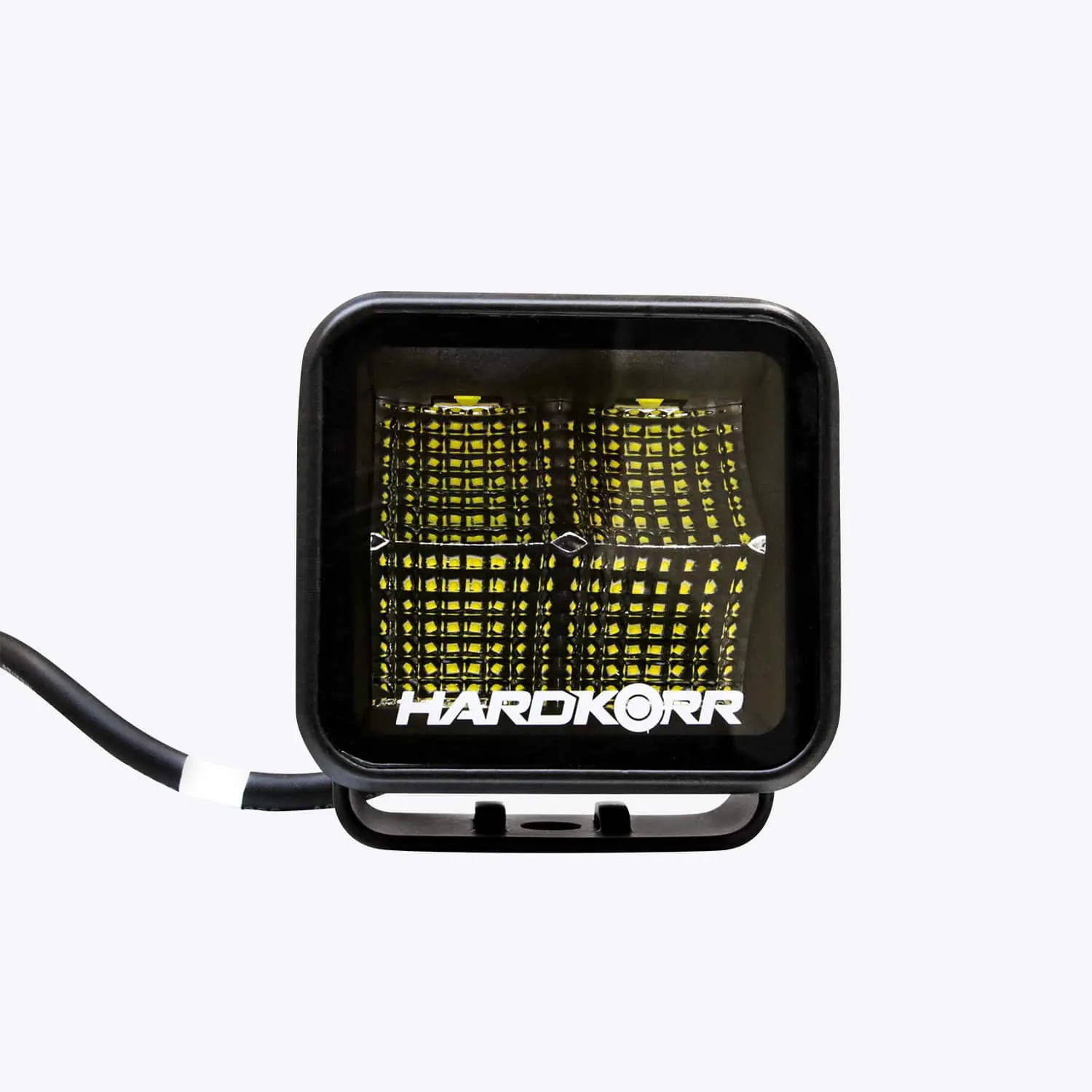

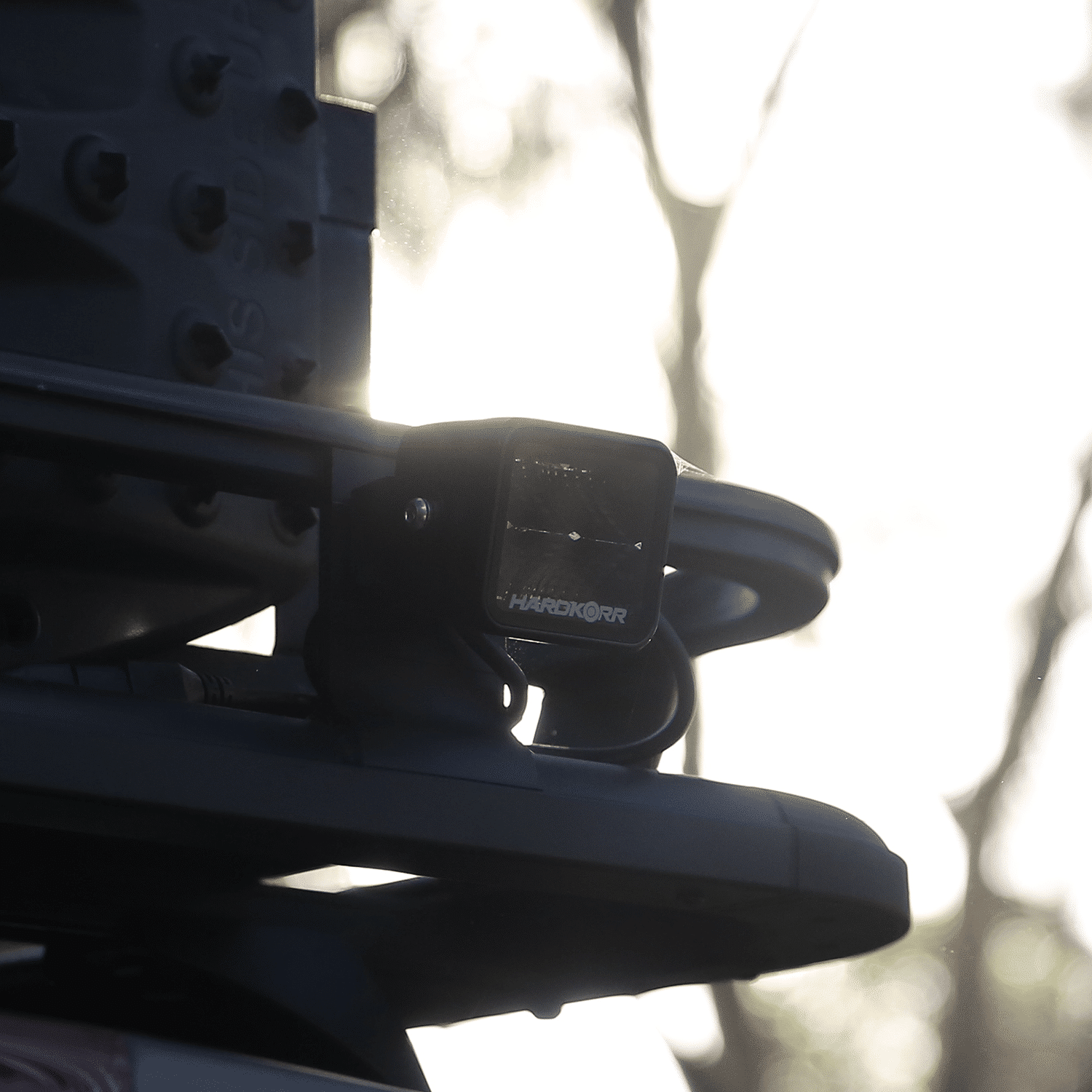

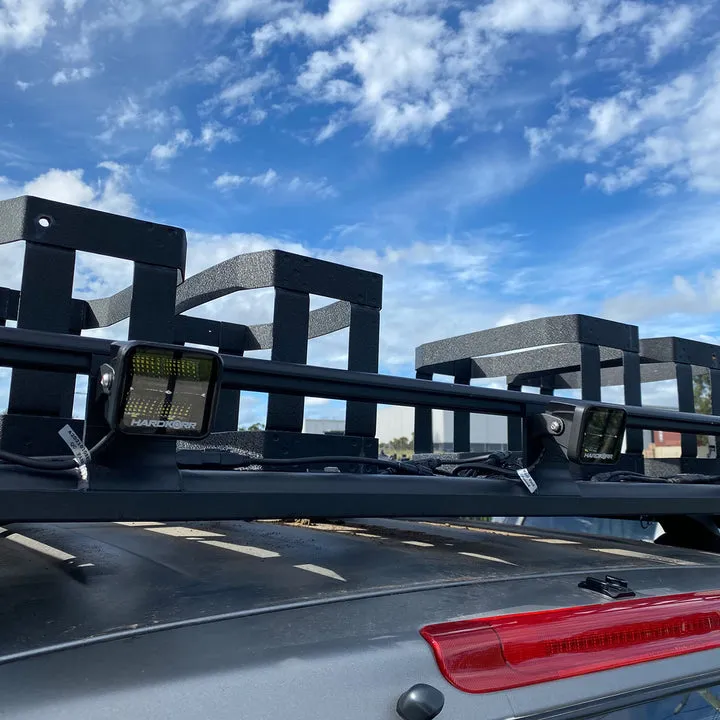

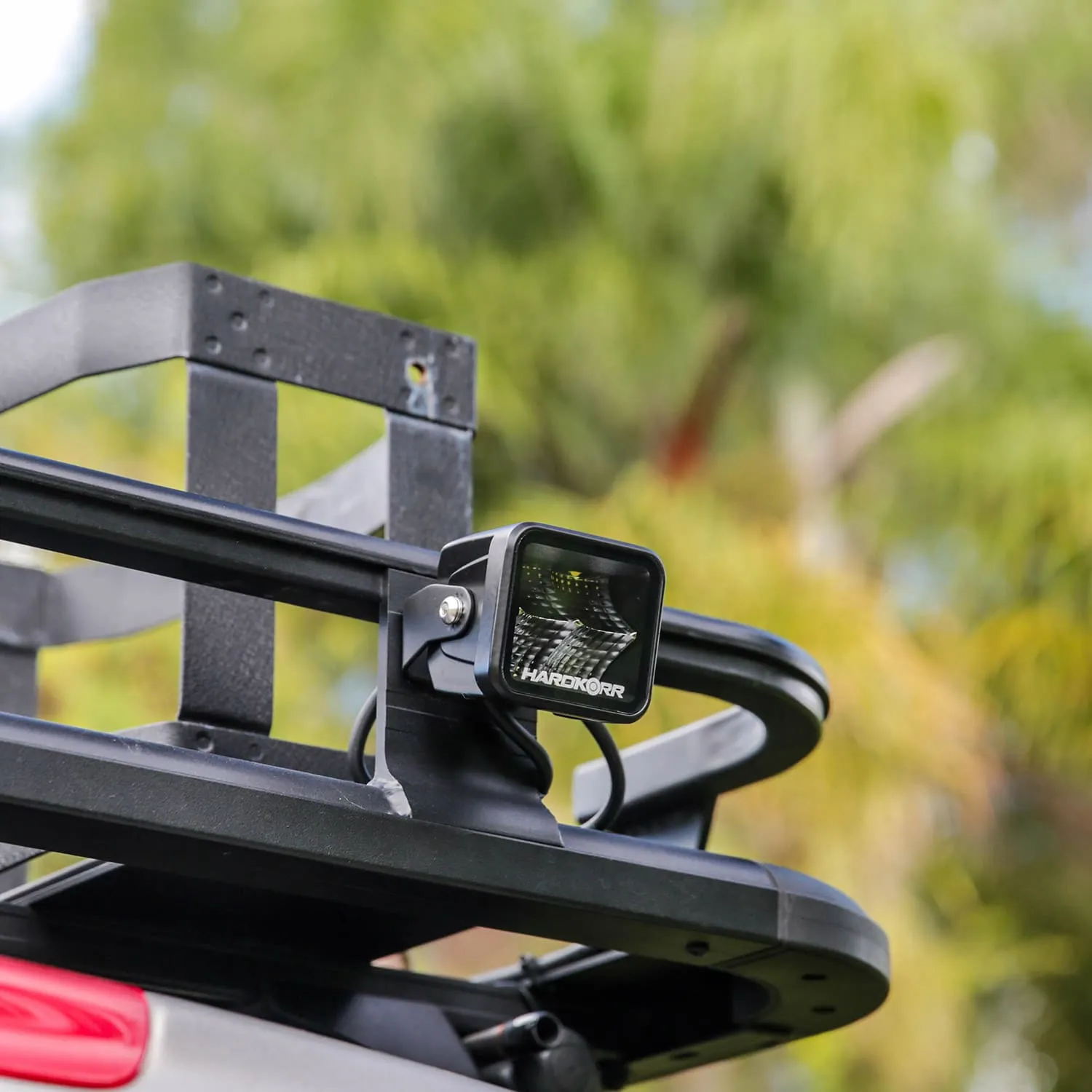

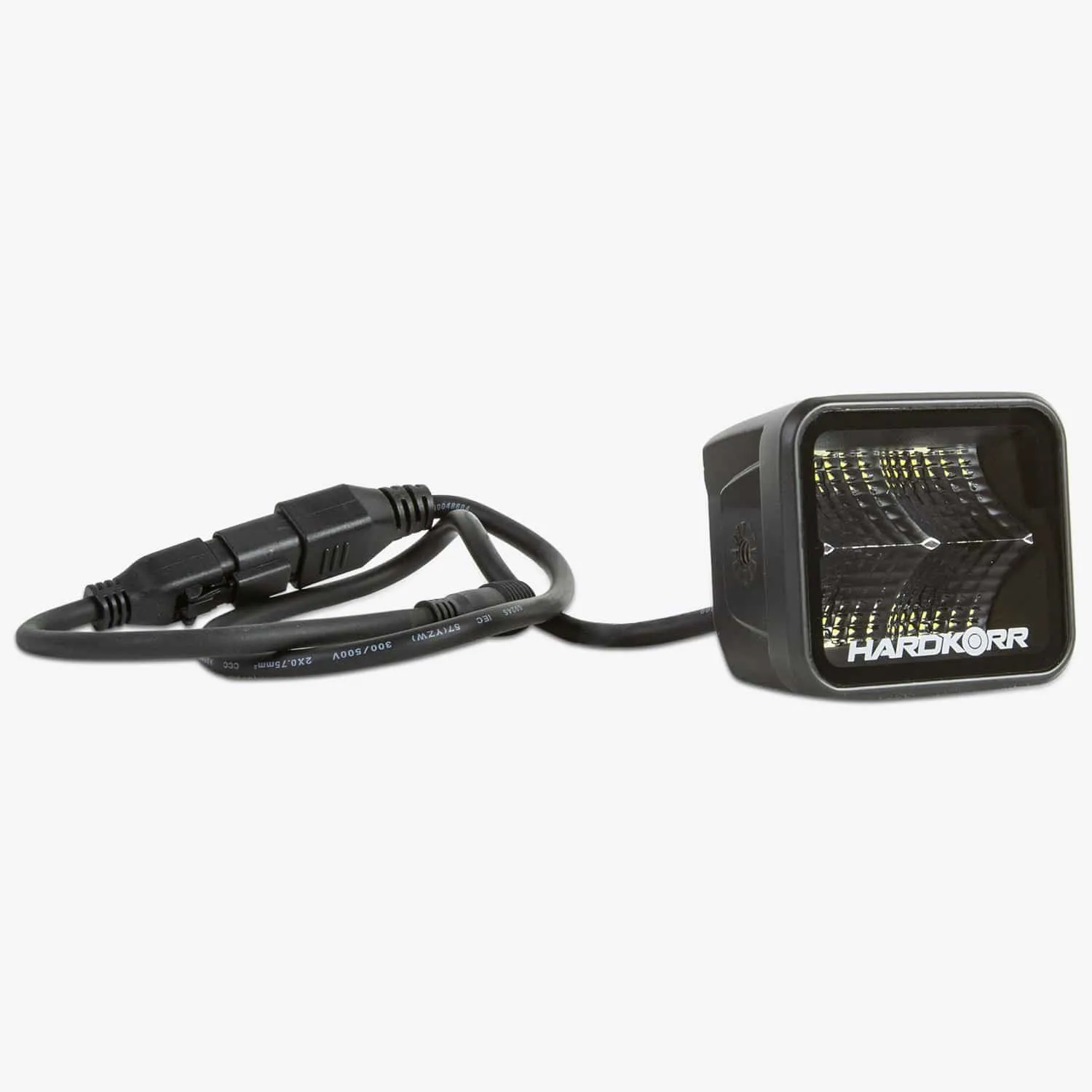

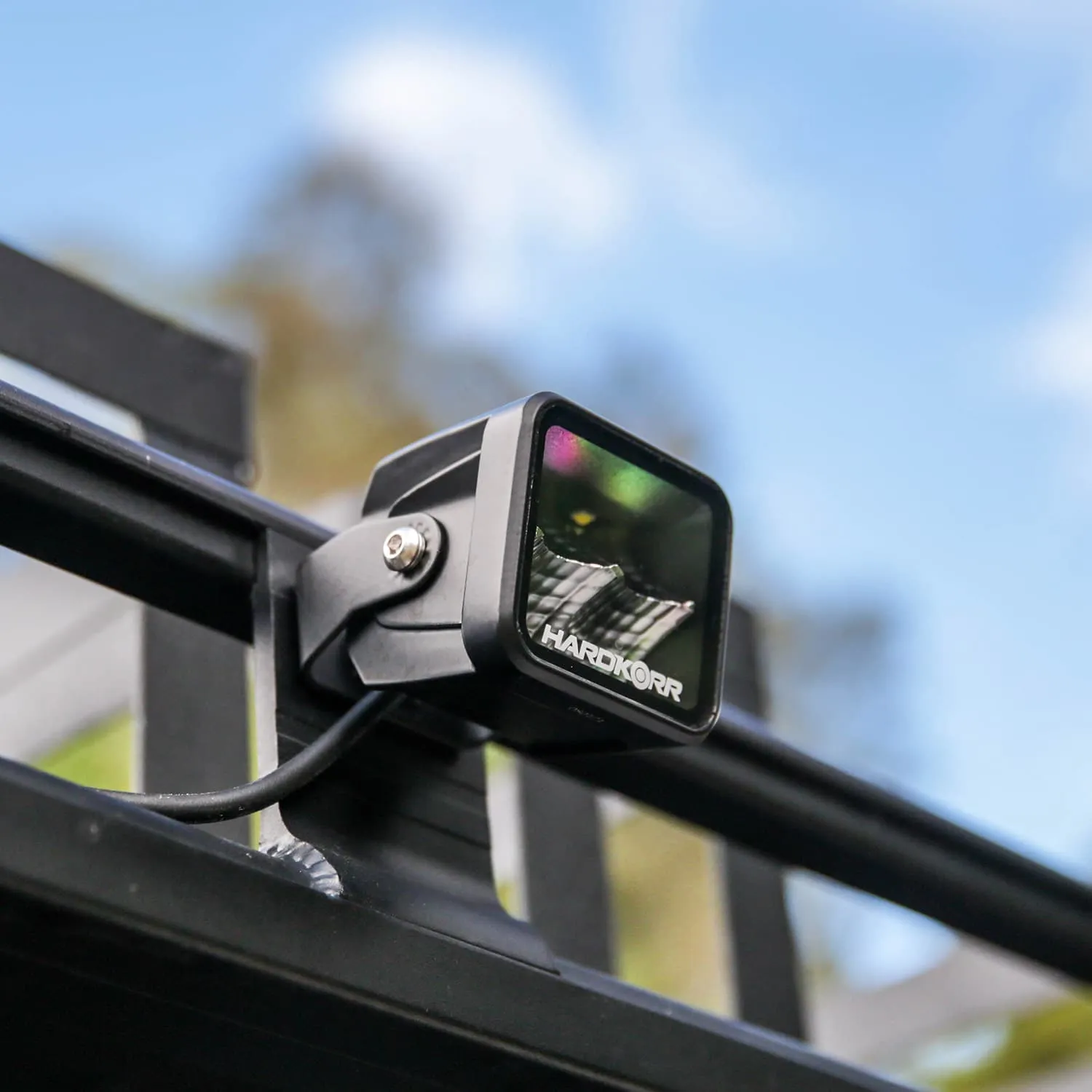

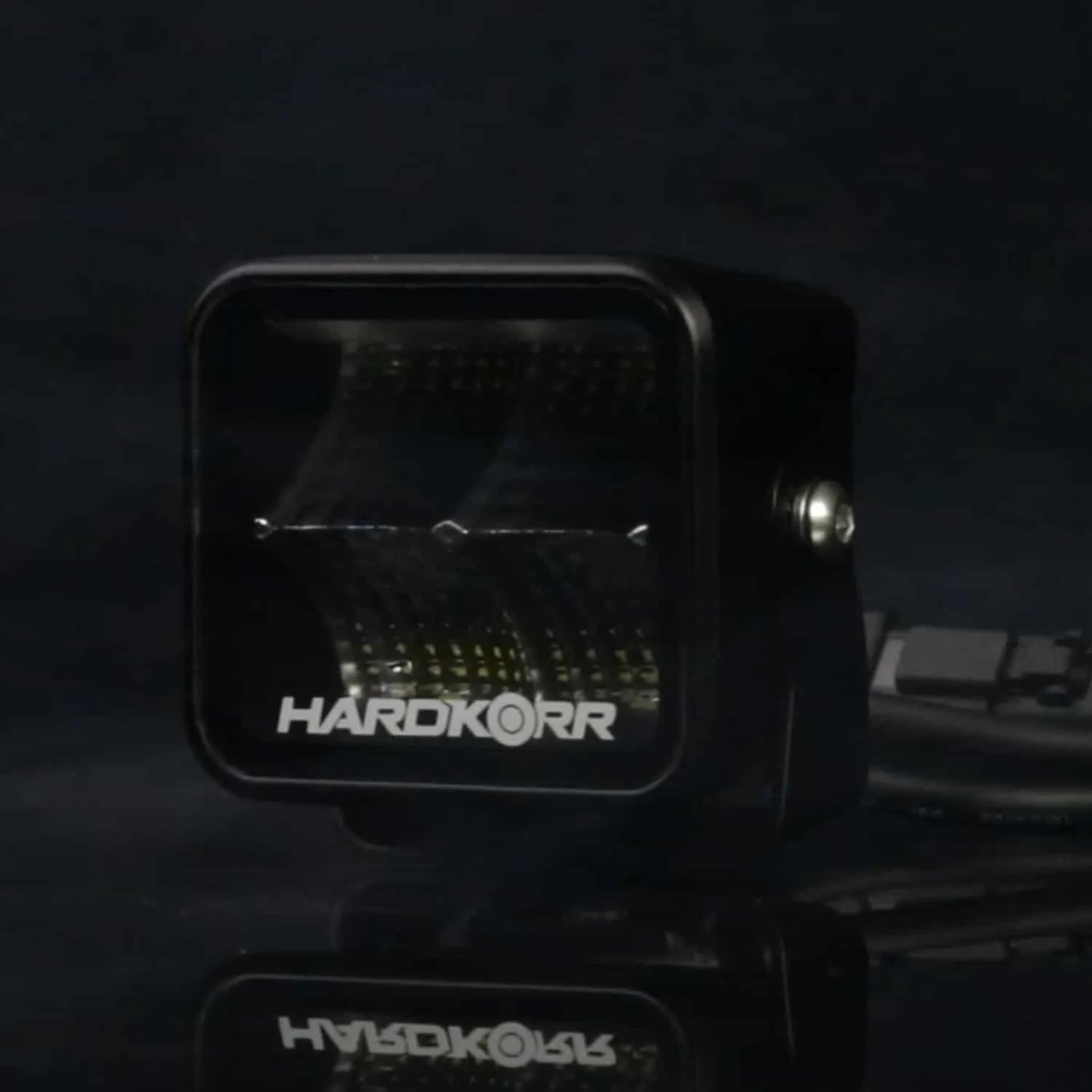

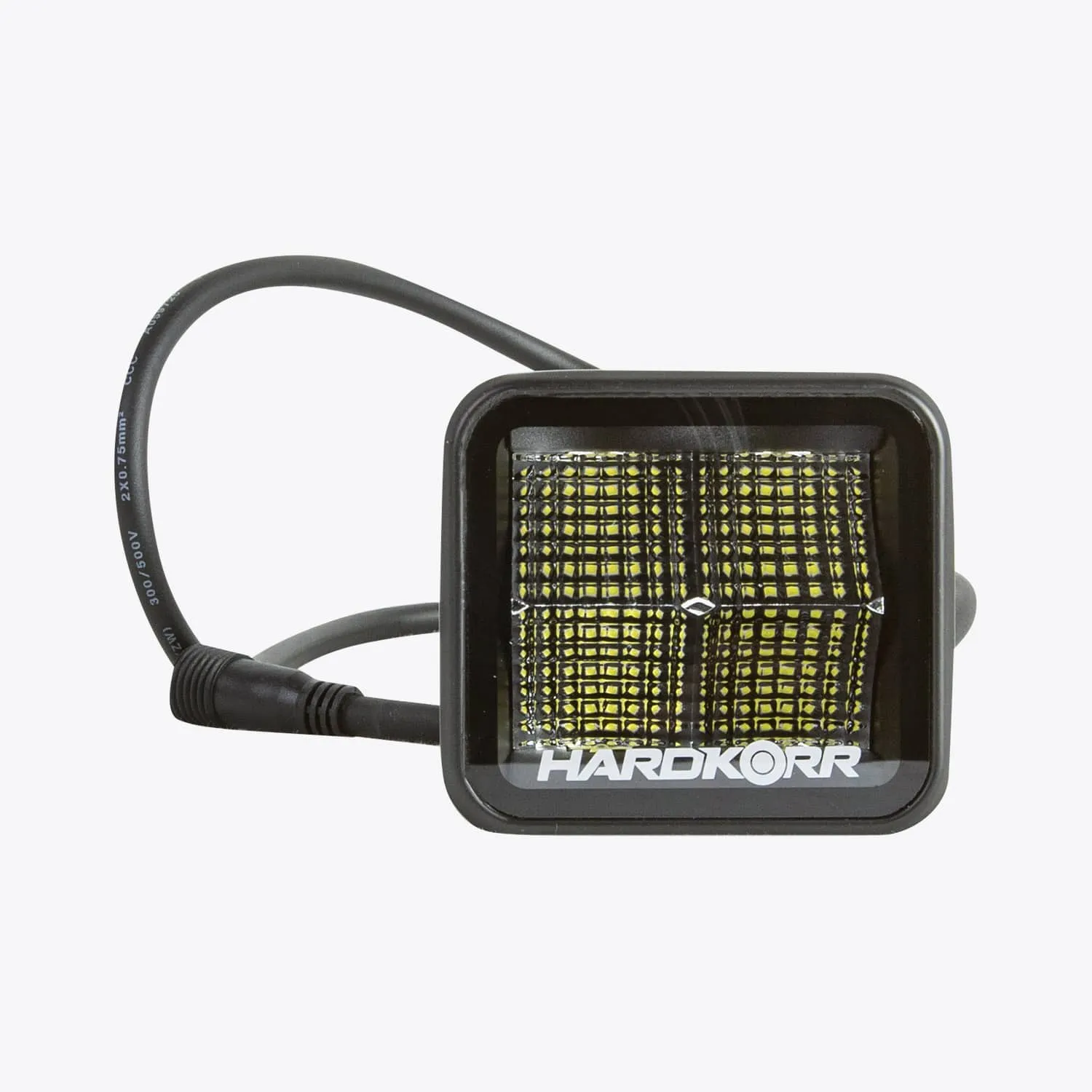

The Hard Korr XDW Series 20W square work light features Hyperflood reflector technology paired with six 5W OSRAM LED chips to produce a wide 120° beam that reaches 83m. The LEDs are downward-facing to help reduce direct glare when mounted on roof racks, rear bars or canopies.
The housing is cast ADC12 aluminium with a Lexan® polycarbonate lens and is designed for consistent light throw and effective heat dissipation.
Specifications
- LED type: 6 x 5W OSRAM LED chips
- Output: 2,631 raw lumens; 1,439 effective lumens
- Distance: 1 lux @ 83m
- Beam type: Hyperflood™ (approx. 120°)
- Materials: ADC12 cast aluminium housing; Lexan® polycarbonate lens
- Dimensions: 69.9mm (w) x 72mm (h incl. bracket) x 59.6mm (d)
- Ingress protection: IP67
- Current draw: 1.94A @ 12V / 0.98A @ 24V
- Colour temperature: 5700K
- Weight: 0.4kg
- LED lifespan: 50,000+ hours
- Supplied with Deutsch lead
(HKXDW83F)
| SKU | HKXDW83F |
| Brand | Hard Korr Pty Ltd |
