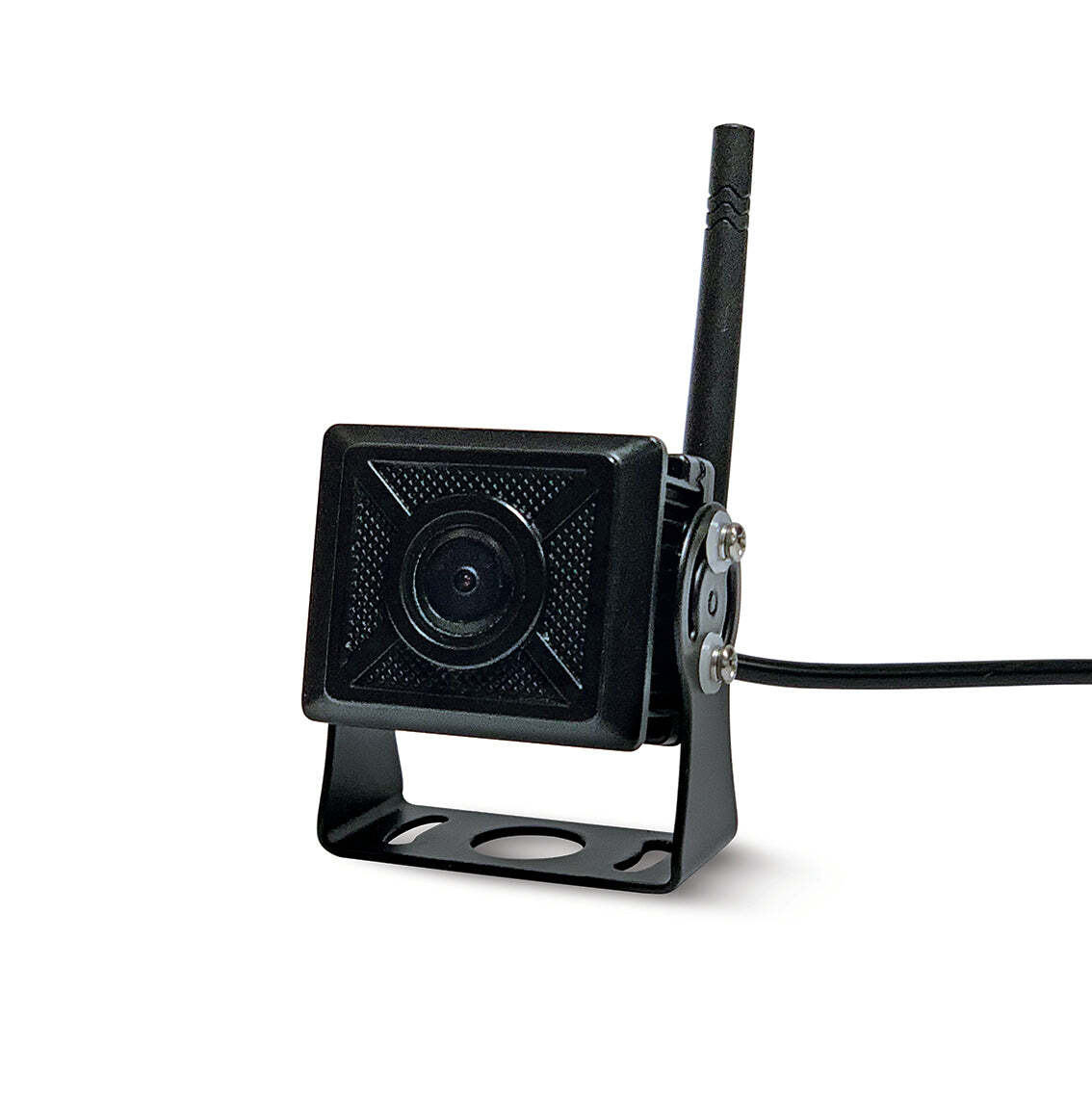

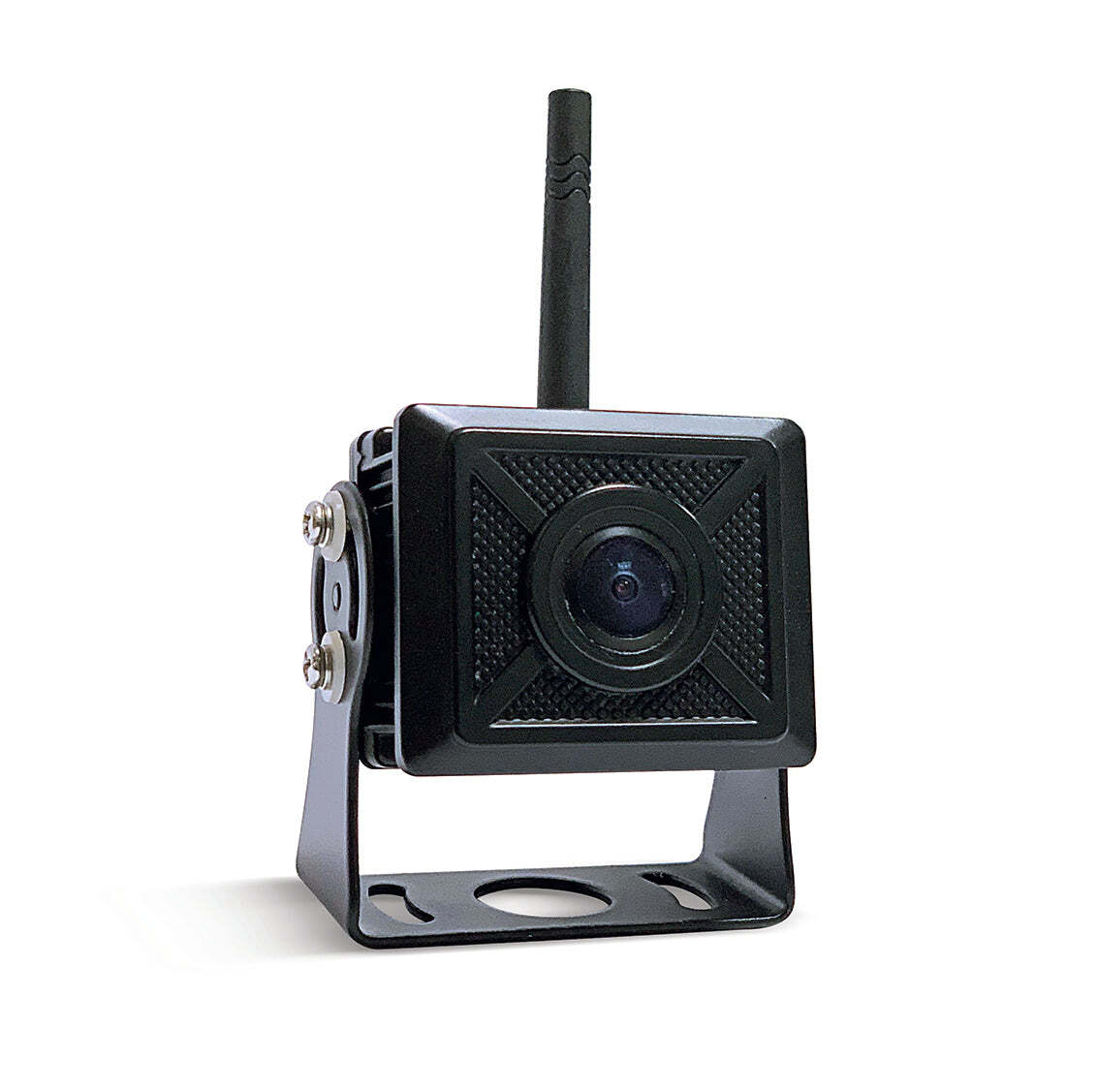

Hema Heavy Duty Wi-Fi Reversing Camera

Hema's Heavy Duty Wi-Fi Reversing Camera used in conjunction with the Hema HX-2 Navigator offers enhanced rearward visibility for drivers and, thus, helps minimise the risk of "blind zone" accidents whenever your vehicle or trailer is moving in reverse.

This heavy-duty wireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle or trailer.

The camera is IP69K rated providing protection against ingress of dust and high temperature, high-pressure water.

Key Features

- COMPATIBILITY - Works seamlessly with Hema HX-2 Navigator
- WIDE FIELD OF VIEW - 150-degree wide-angle field of view; shows what-s behind your vehicle when in reverse
- BUILT-IN WI-FI - Built-in Wi-Fi- connectivity transmits live camera view from the reversing camera directly to your HX-2 navigator-s display
- WIRELESS RANGE - Transmits camera footage up to 70M away (range varies based on installation)

Key Specifications

Compatibility	WIFI		Hema HX-2 GPS Navigator
Function	Power ON		1.0 S
	Latency		120ms
	Resolution		VGA
	Frame Rate		30f/s
	Video Codec		MPEG4
	Video in System		PAL
Video Characteristics	Diagnol Viewing Angle		150 degrees
	Video Output impedance		75ˆ, Typ
	Video Output Level		1.2 Vp-p, Typ.
	S/N		50dB, Min
RF Specification	Operation Frequency		2412 ~ 2483.5MHz (WIFI 802.11 g/n)
	RF Impedance		50ˆ, Typ.
	Receiving Sensitivity		-89dBm
	Output Power		12dBm
	RF Bit Rate		11Mbps
	Modulation		QPSK,16QAM
	Channel		CH1 to CH13
DC	Power Supply		DC 9-16V/200mA
Environmental Specification	Operating Temperature		-20?C~70?C
	Storing Temperature		-30?C~85?C
	Operating humidity		Humidity 90%
	Waterproof rating		IP69K
	Light rating		0.2 Lux
Others	Unit Dimension(mm)		48 x 40 x 36mm
	Unit Weight		Item weight: 199g

Package includes:

• Hema Heavy Duty Wi-Fi Reversing Camera

Packaging Specifications

Release Date: 01/10/22

Box size (WxH):130mm x 55mm

Box Weight: 0.106kg

Suits: Hema HX-2 Navigator

Control: Via HX-2 Camera App

Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Following install, the camera operates via Wi-Fi. Wi-fi signal performance can be impacted by obstructions.
