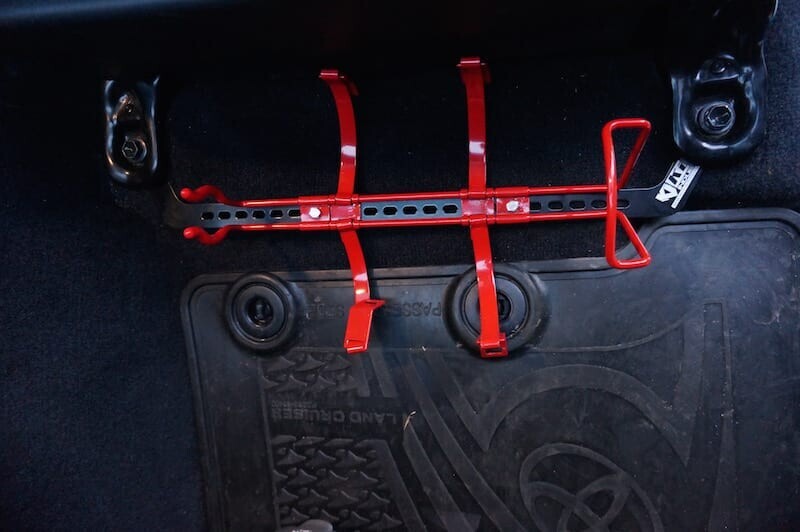

Kap Industries Fire Extinguisher Bracket - Suitable for Toyota Landcruiser 200 Series

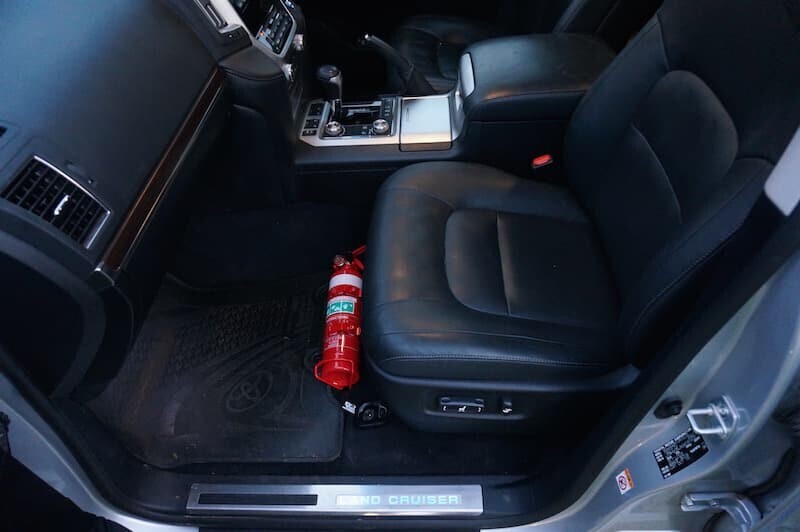

This Fire Extinguisher Bracket fits both Drivers Side and Passenger Side of the Toyota LandCruiser 200 series. Including Left Hand Drive and Right Hand Drive!

Made from 3mm Steel and Powder Coated Black. The bracket has a series of slots so no drilling is required. It's a 5 minute install!

Every Kap Industries Bracket is made specifically to each vehicle model, designed to bolt in, without having to drill into the vehicle's bodywork.

Designed in CAD, laser cut from lightweight steel and powder coated, each bracket fits perfectly, does not require any seat adjustment and is non-obtrusive to the driver or passenger.



How to Install:

1: Undo front seat bolts with 14mm socket

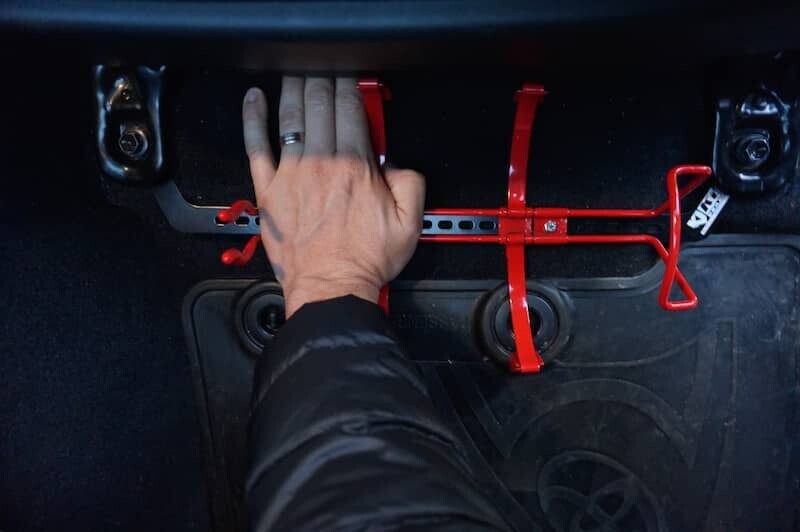

2: Lift front of seat up a bit and slide bracket under till the holes line up with the bolt holes

3: Place Extinguisher cage on bracket

4: Put bolts back in

5: Tighten up each bolt gradually

6: Give slight press down into the carpet with your hand.

Every Purchase Includes:

• 1 x Toyota 200 Series Landcruiser Fire Extinguisher Bracket
• 2 x M5 High Tensile Steel Locknuts
• 2 x M5 High Tensile Steel Hex Bolts

Please Note:

• Seat bolts are easily cross threaded.
• Kap Industries Brackets are only to be used with metal strapped extinguisher cages.
• Please be careful when installing. Kap Industries takes no responsibility for incorrect install.

Please watch install video!

Photo Credit: https://www.arb.com.au/toyota-landcruiser-200-series-2015-present/
