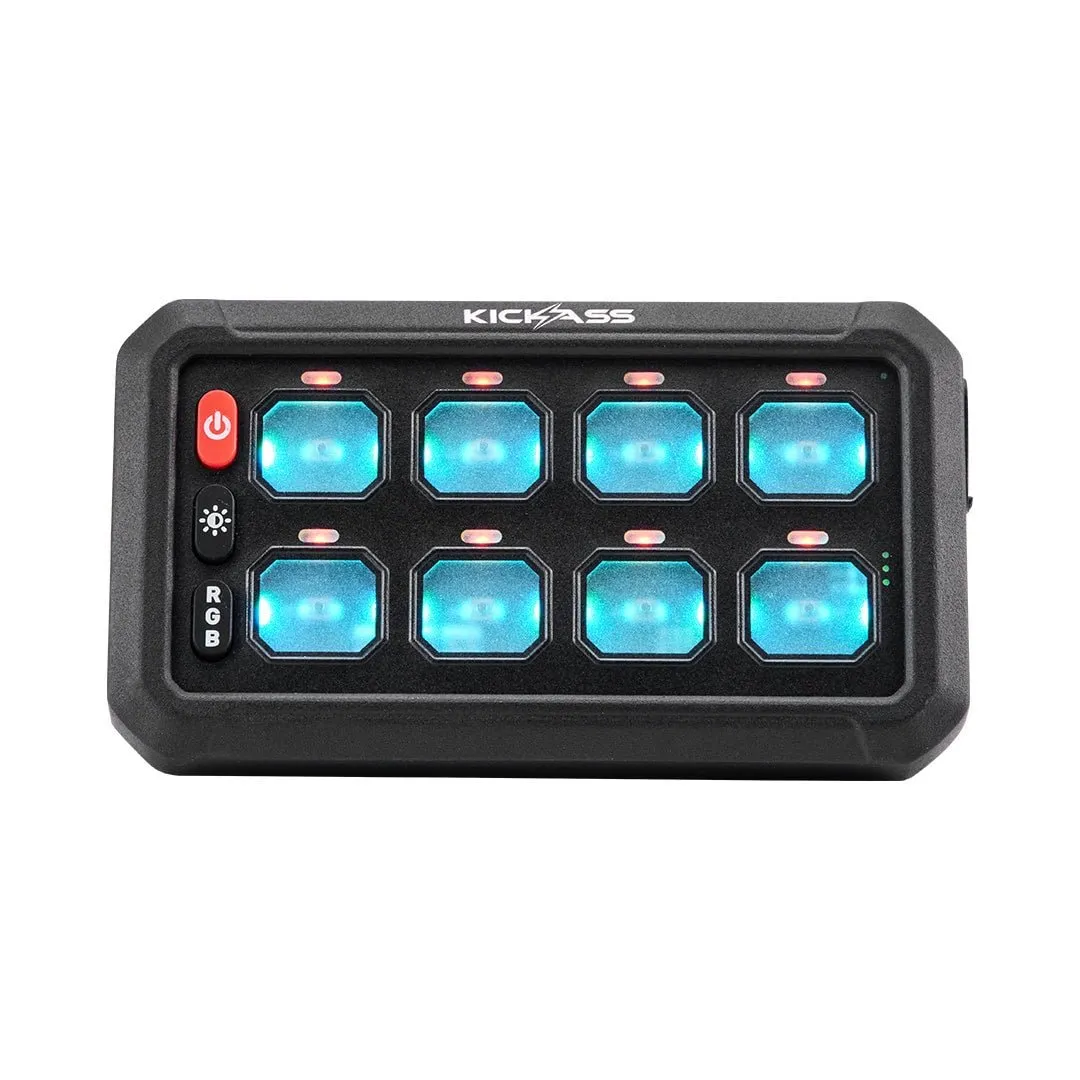

KickAss 12/24V 8 Gang Wireless Switch Panel

KickAss Features:

• Wireless control
• Rechargeable battery
• High current capability
• Multi battery capability
• IP65 Dust & Water Resistant Rating
• Double sided outlet
• Prewired ACC fuse tap
• Enhanced safety features
• Multiple mounting options
• Adjustable lighting & on/off switch
• DIY switch panel labels

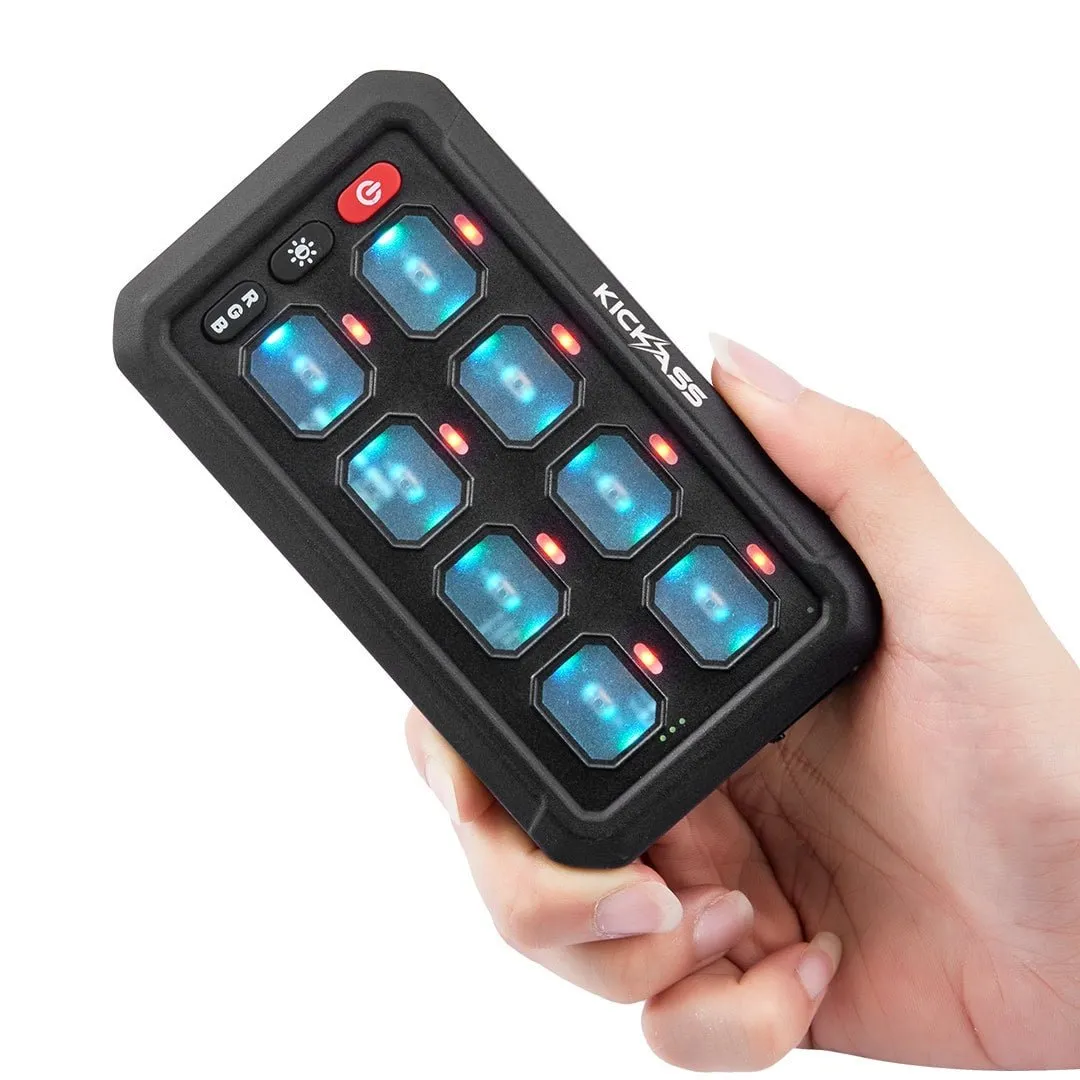

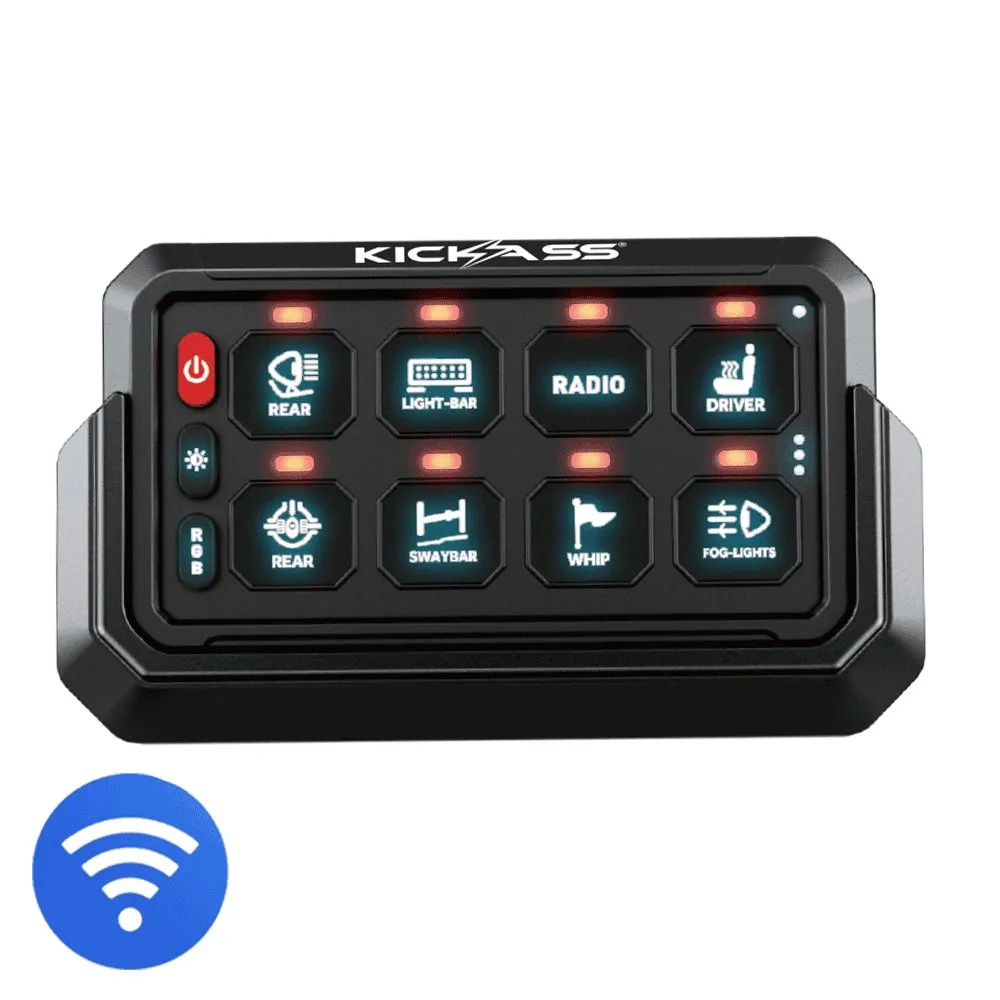

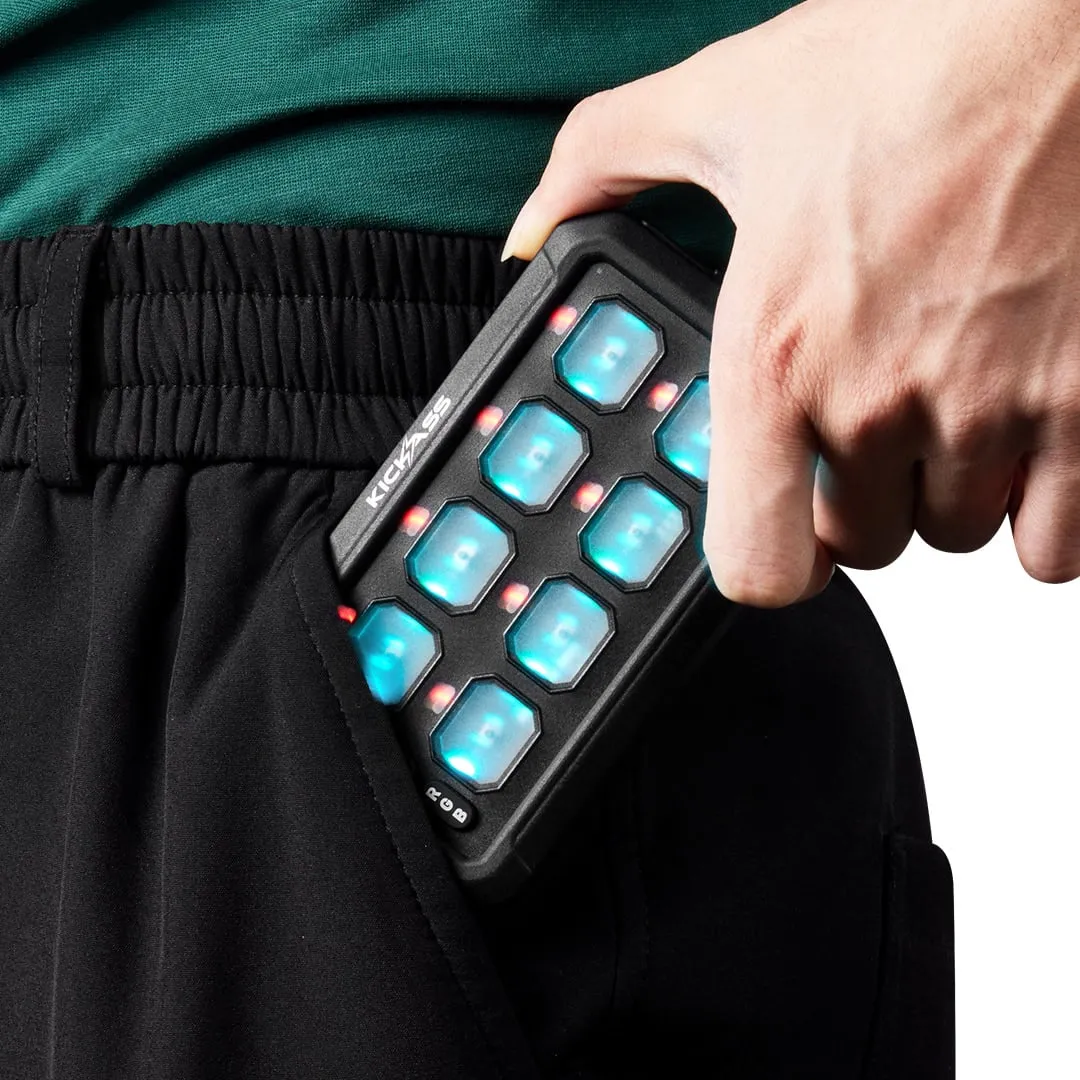

Wireless control

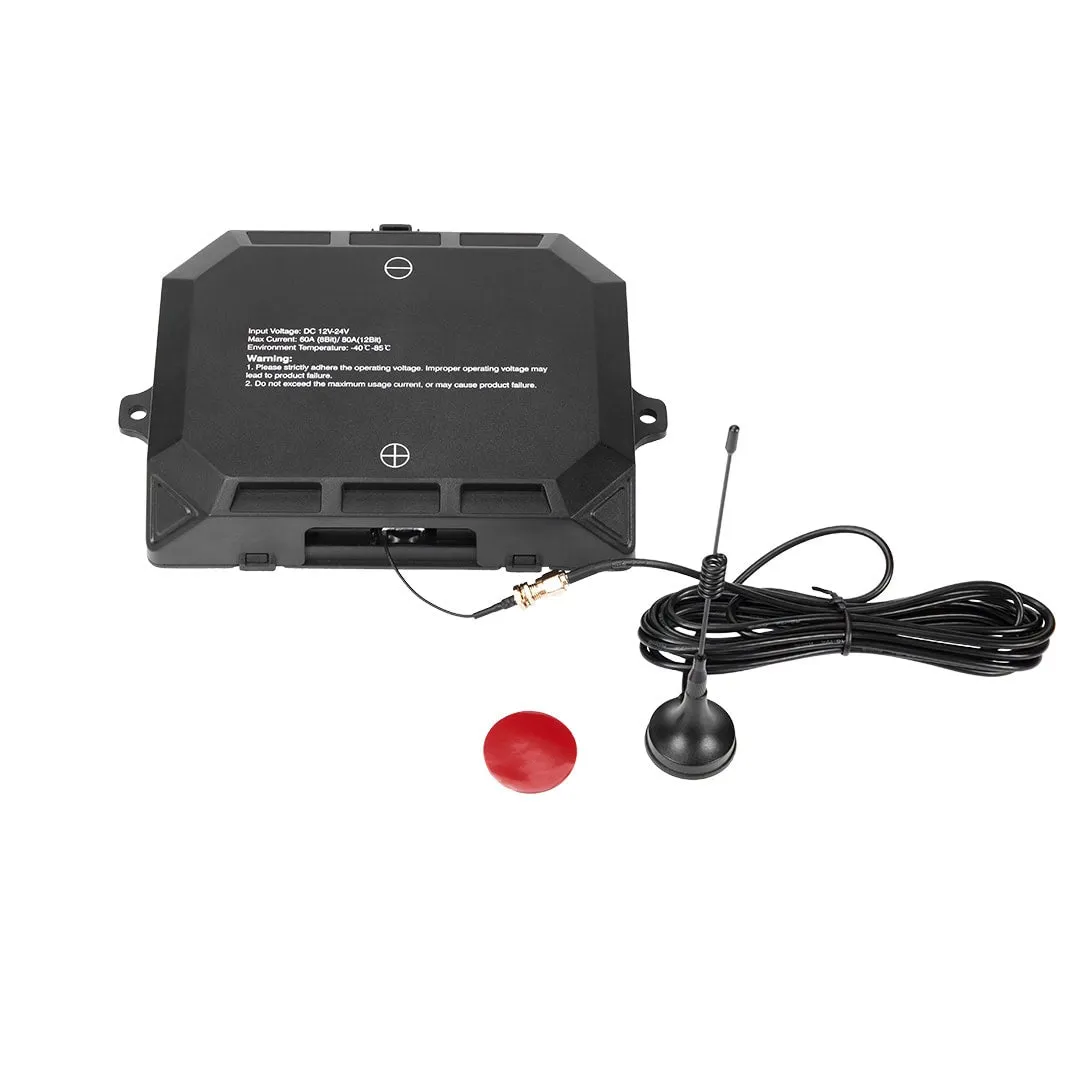

Operate your DC appliances remotely from a distance of up to 60 meters, which is a much greater range than Bluetooth offers. No need to download apps or have your phone with you, or worry about complex cable routing between the panel and your control box. Simply grab your panel and go!

Rechargeable battery

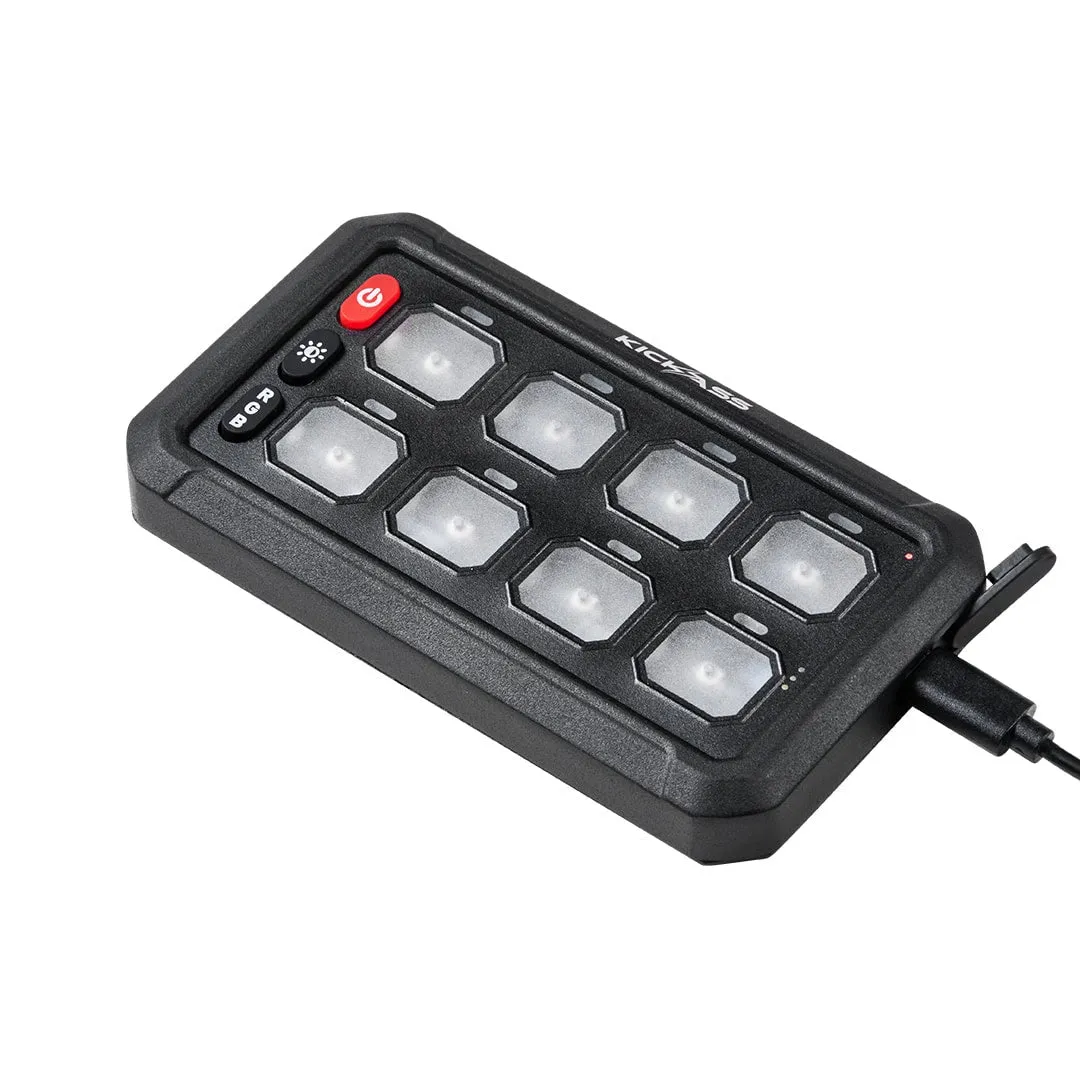

The switch panel comes with a convenient, built-in rechargeable battery, meaning you can say goodbye to the hassle and expense of replacing disposable batteries – simply plug it in via the USB cable provided.

The battery charges fully in just 2-3 hours and can last for an impressive 5-6 days. Keep track of your battery status easily with the convenient battery indicator, which displays three clear levels: low, medium, and full.

High current capability

The 8 Gang Switch Panel has a high current capability, and can handle up to 60A at either 12V or 24V. This means you can simultaneously use high and low current devices – for example a speaker, camping fridge, camping lights, winch, air compressor, etc.

Multi battery capability

The control box switch offers two options to obtain power: you can connect ACC (Accessory power) to the starter battery, or alternatively to the auxiliary battery. If you prefer to operate your electrical devices (for example your horn, lights, and radio) only in ACC mode, selecting the ACC setup allows you to do so.

IP65 Dust & Water Resistance Rating

Coated in aluminium with an IP65 rating, the 8 Gang Switch Panel is perfect for outdoor adventures. It can withstand some dust and moisture exposure and continue to function. It should not be submerged in water.

Double sided outlet

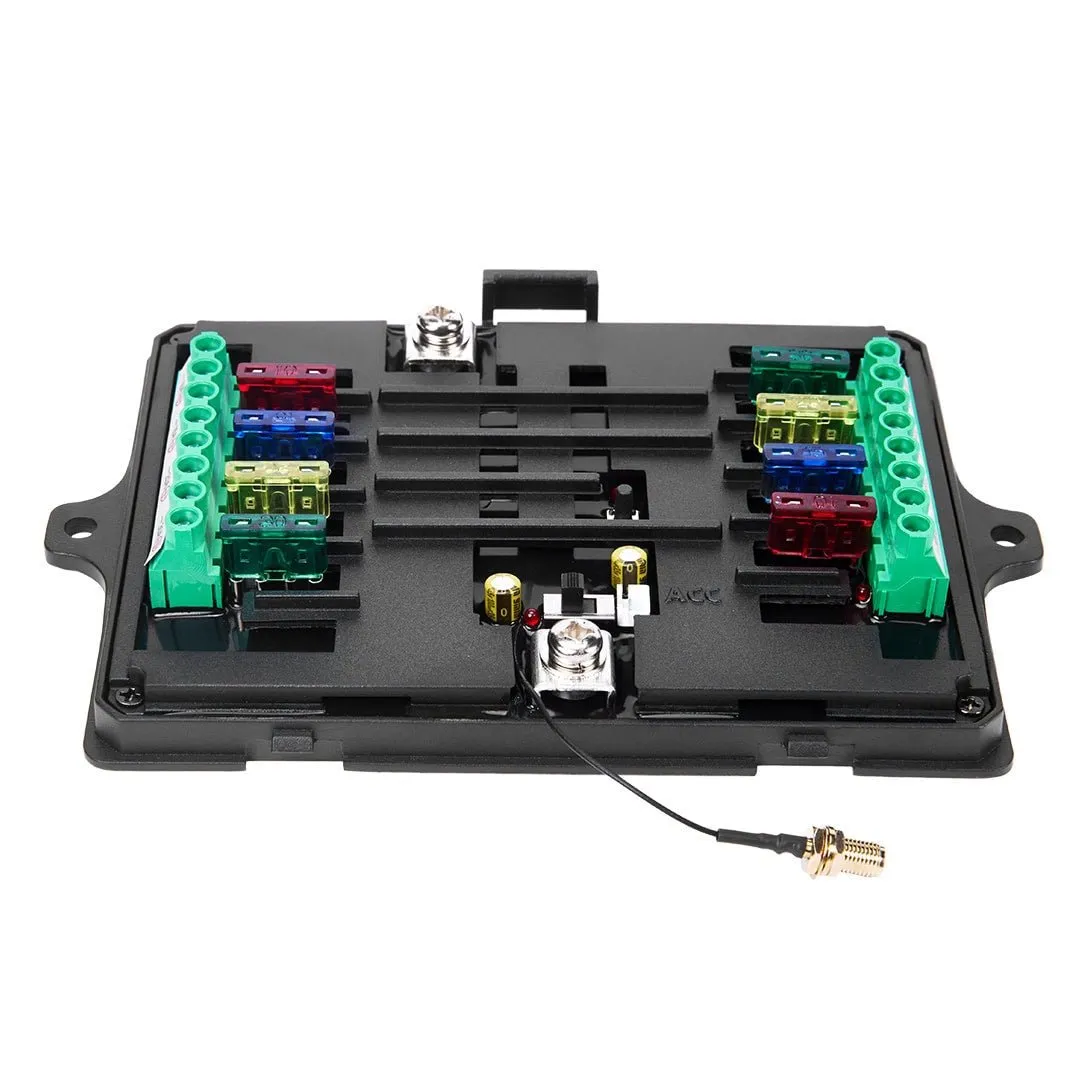

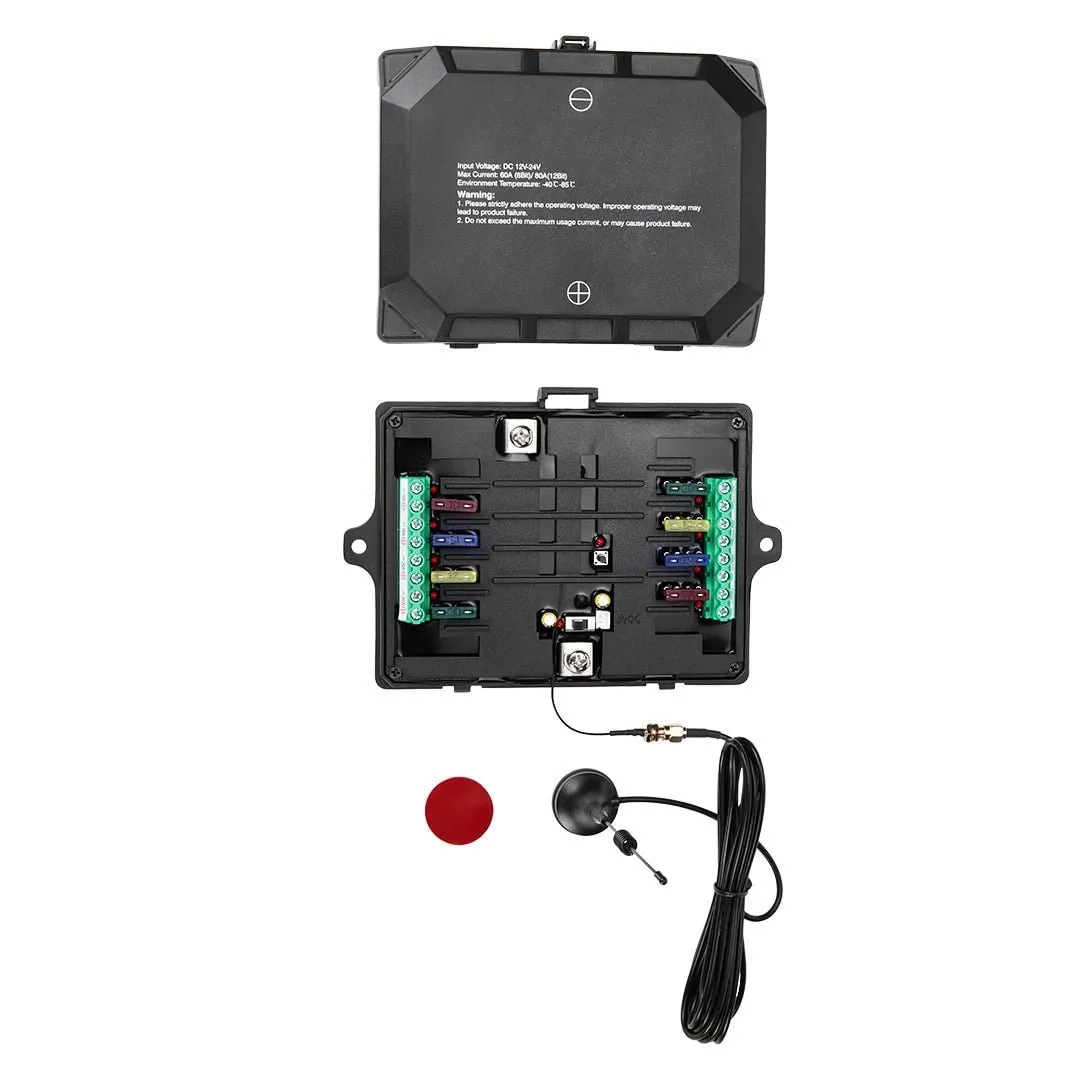

The switch panel features a current control box that splits the output into two sides, allowing for versatile wiring configurations and minimising wire clutter. It includes two 30A, two 20A, two 15A, and two 10A outlets, with one of each type on either side of the panel.

Prewired ACC fuse tap

The pre-wired ACC fuse adapter makes it easy to connect the control box to the vehicle’s fuse box, without having to cut, splice or damage the vehicle’s existing wiring. Quick, easy installation!

Enhanced safety features

The 8 Gang Switch Panel is equipped with a 60/80A circuit breaker, blade fuses (plus a spare), and compact solid-state relays. This protects the switch panel from damage caused by thermal, overload and over-currents.

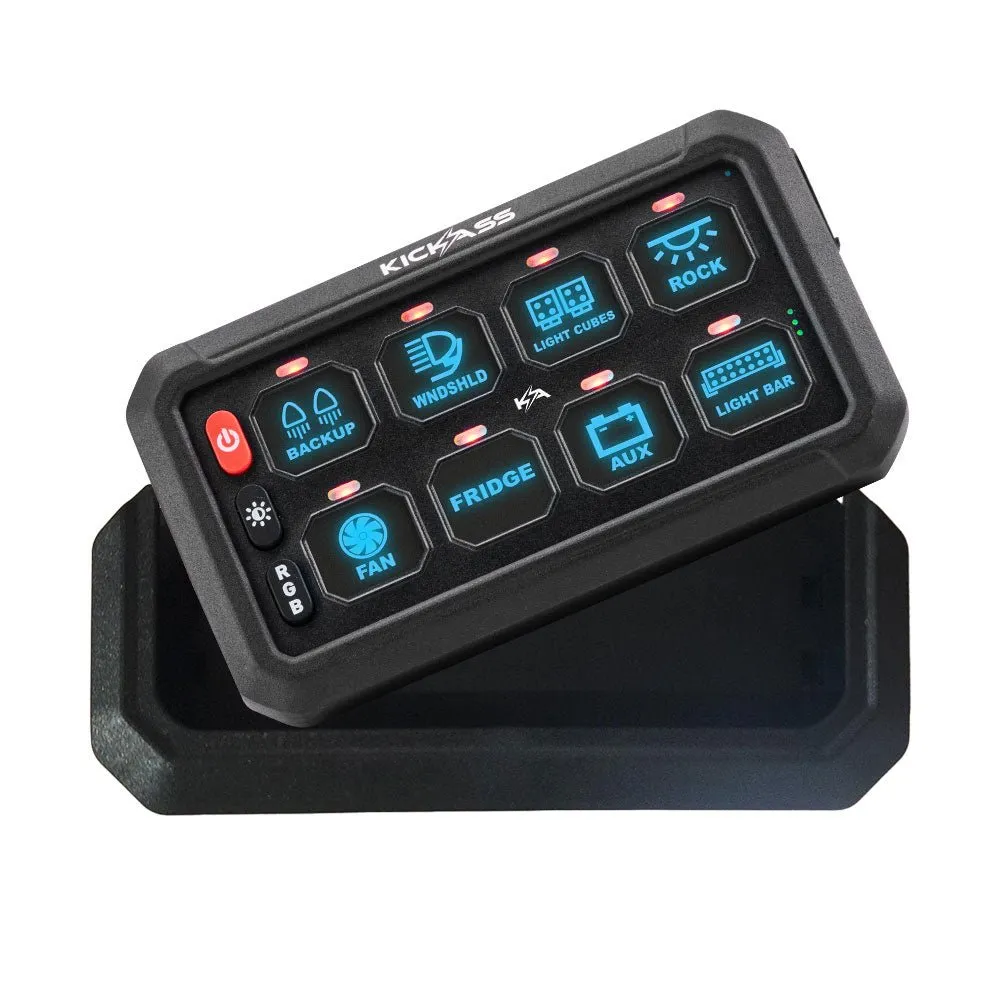

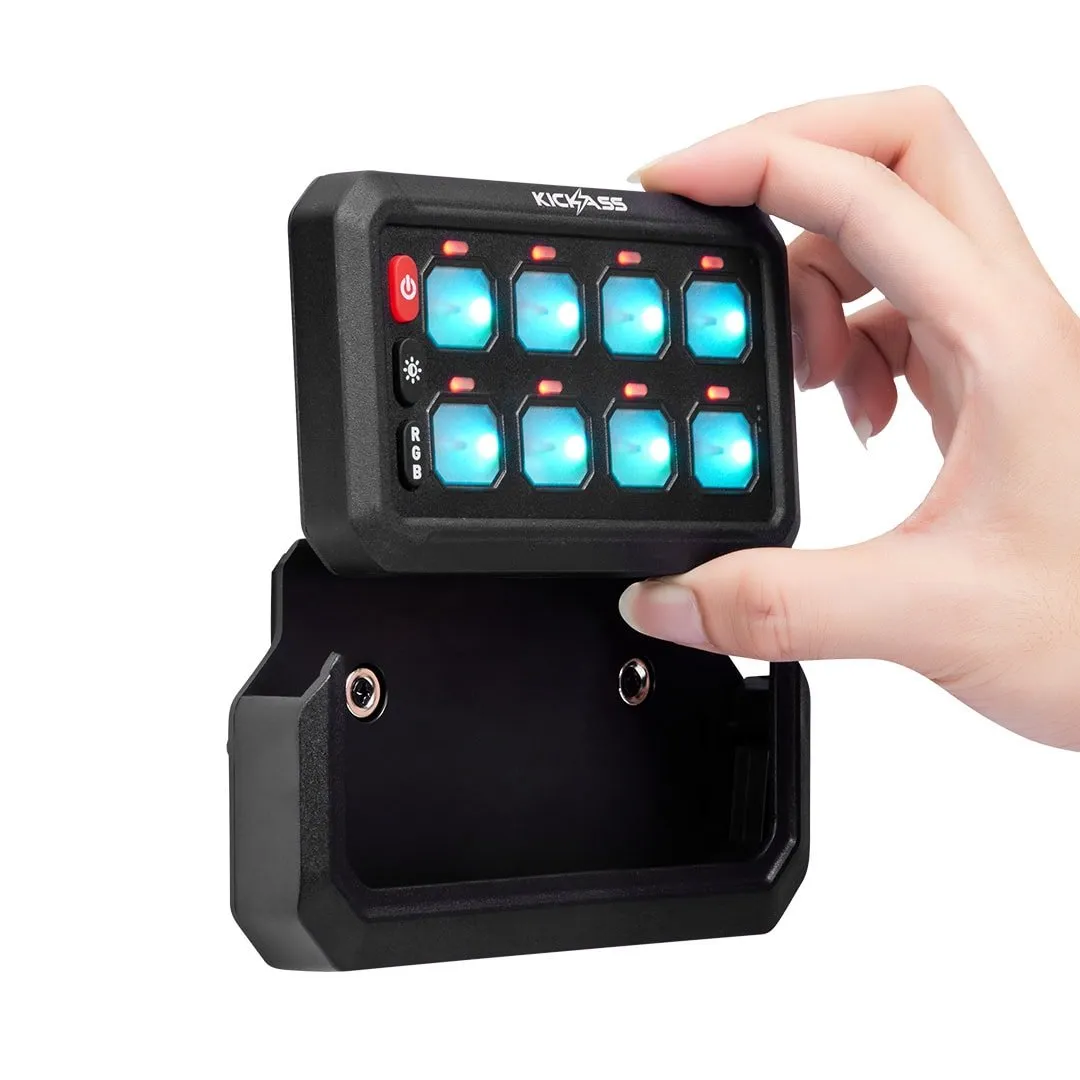

Multiple mounting options

Comes with two bracket mounting options for the switch panel and control box. All essential mounting hardware is included, as well as instructions and suggestions for optimal placement within your vehicle.

Adjustable lighting & on/off switch

There are three lighting modes: a constant light, a momentary light, and strobe modes. You can also choose between five brightness levels, as well as a number of colours and a dedicated switch to turn the backlight on and off. Enjoy total control of your setup.

DIY switch panel labels

Comes with 140 stickers to label each switch and its connection. Almost everything is covered!
