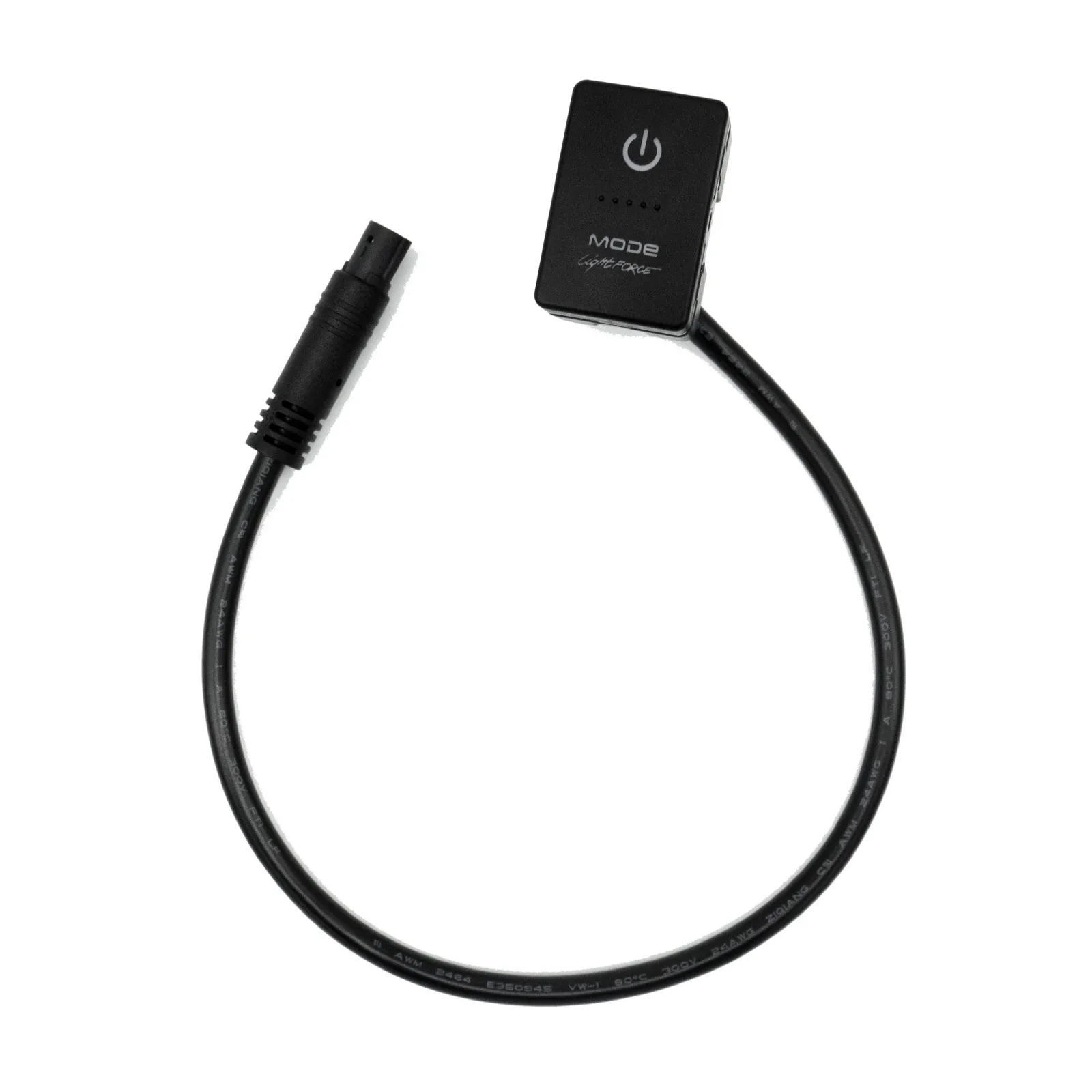

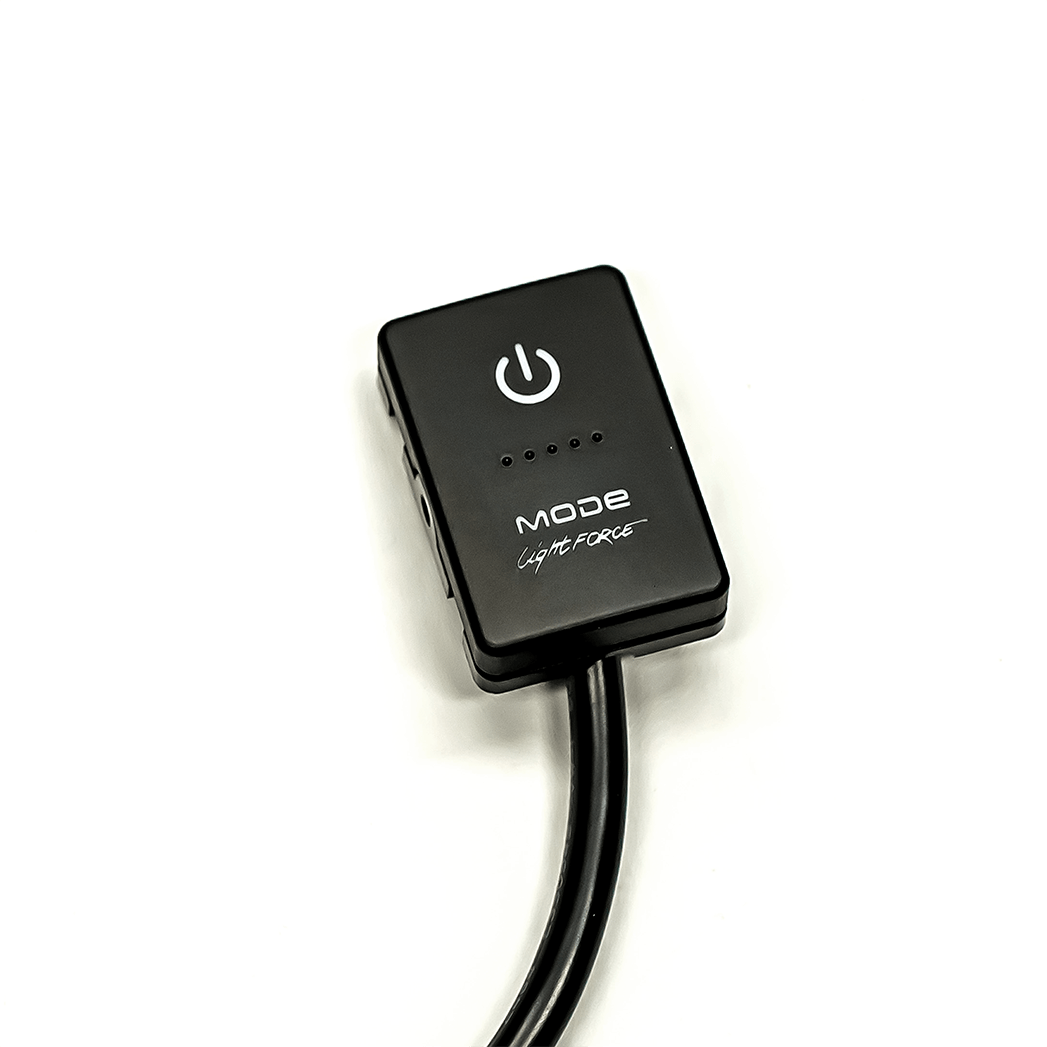

Lightforce BEAST Switch / DC3 Fitment - Suitable for 3rd GEN Mazda BT-50 & Isuzu D-Max/MUX

Ideally suited for some Mazda BT-50 & Isuzu D-Max factory switch locations.

These include:

• Isuzu D-Max 3rd GEN 9/2020 - Current
• Isuzu Mux 2nd GEN 9/2020 - Current
• Mazda BT-50 3rd GEN 2020 - Current


Wiring Instructions

10-16V input, 3A output (use with relays).

Switch Cut Out Size

18mmx 28mm

Specifications

Ideally suited for some Isuzu & Mazda factory switch locations.

Instructions:

Mode Select - Short press A quick press of the mode button will switch the BEAST lights between SPOT and FLOOD mode.

Mode Select - Long press A long press will activate BEAST mode. Note: while in BEAST mode, a short press will return you back to SPOT mode.
Resync Process – Long press For BEAST driving light installations where more than one light is installed, it is possible for lights to be out of sync / ie. different modes. To resync driving lights, long press the mode select button
