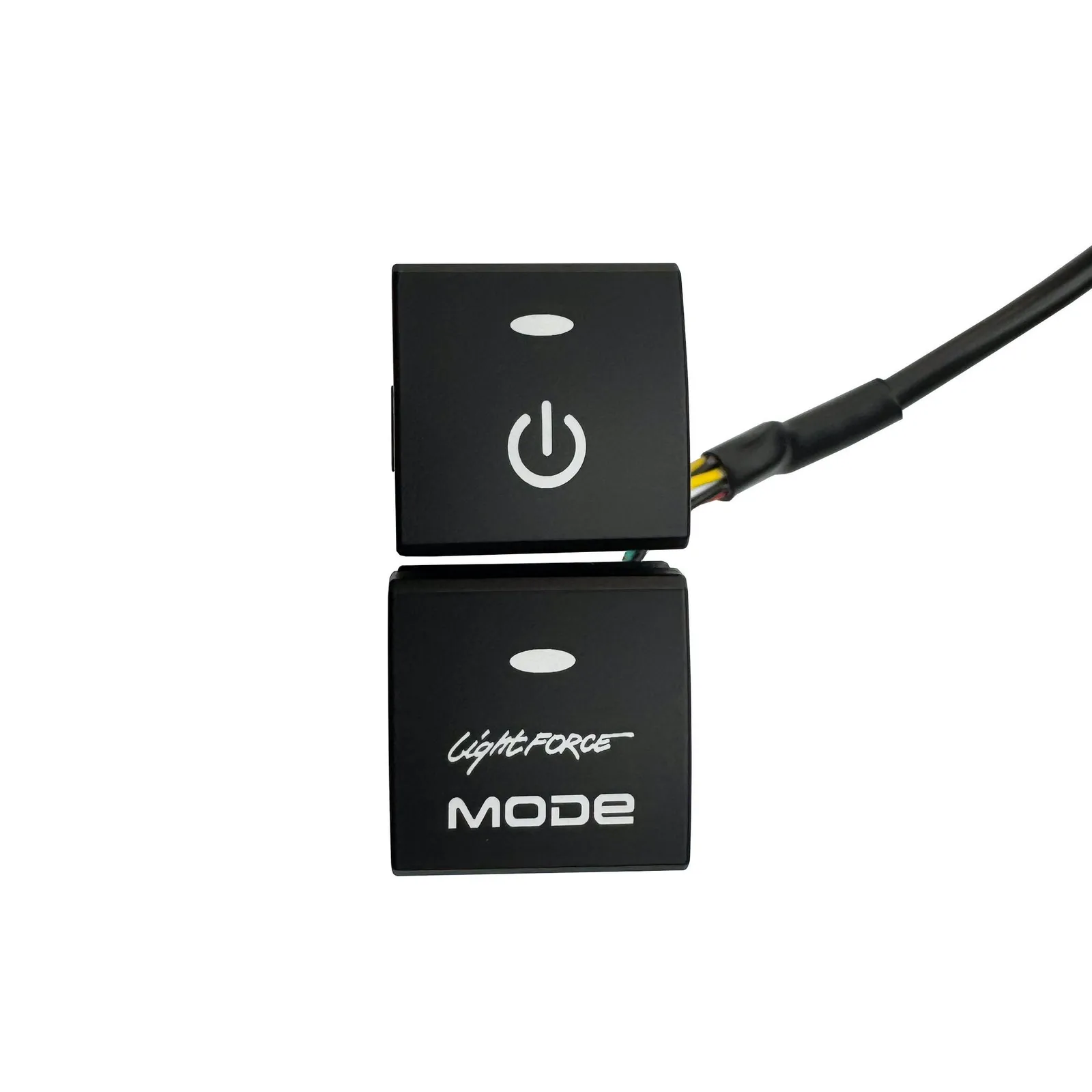

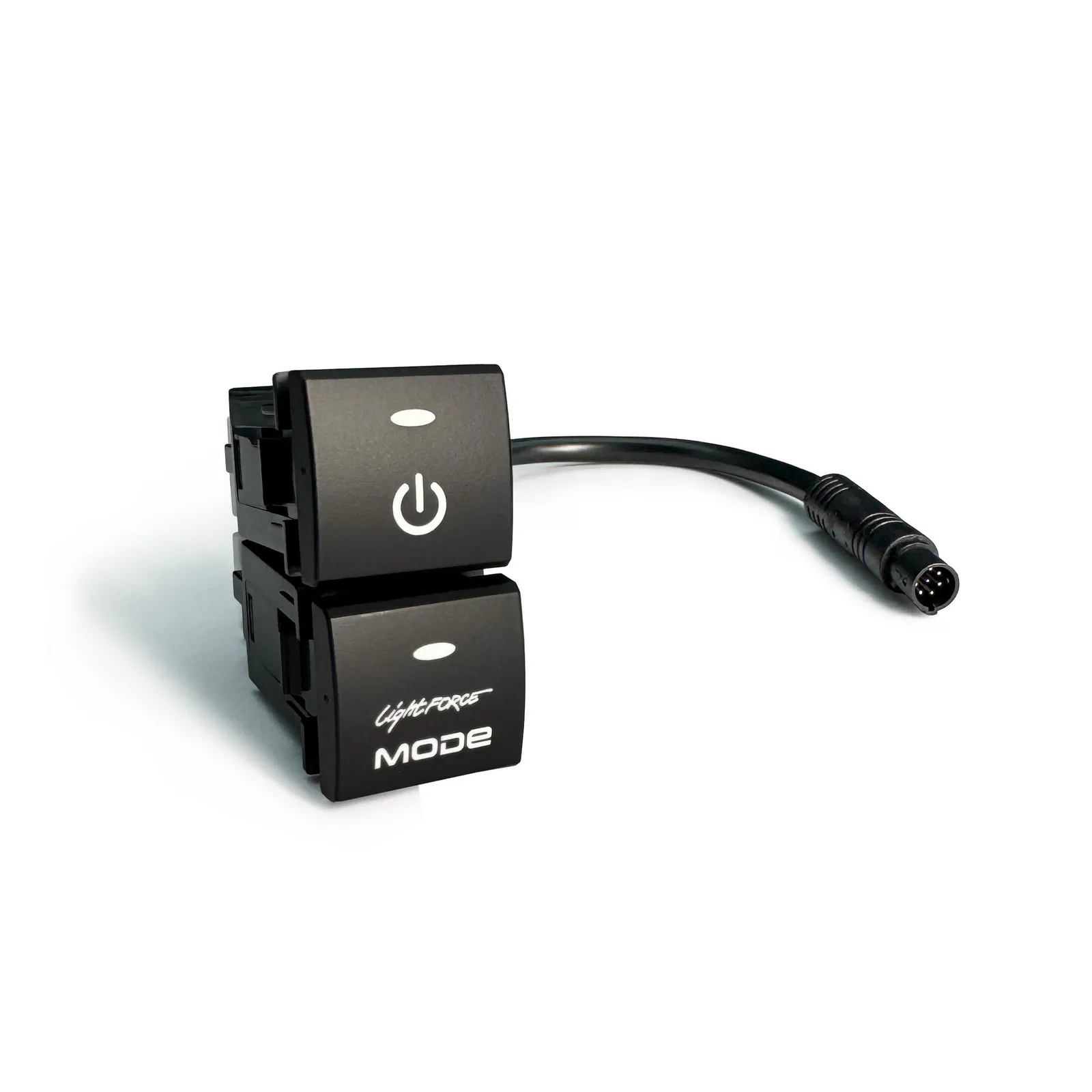

Lightforce BEAST Switch for Toyota 300 Series, Prado 250, Prado 150 & more

Ideally suited for some Toyota 300 Series, Prado 250, Prado 150 & more switch locations.

These include:

• Toyota Prado 250 (2025 - current)
• Toyota Prado 150 (2018 - 2024)
• Toyota Landcruiser 300 Series (09/2021- current)
• Toyota Landcruiser 70 Series (2024 - current)
• Toyota Highlander/Kluger (12/2019 - current)
• Toyota Tundra (2024 - current)
• Toyota Tacoma (2024 - current)
• Toyota RAV4 (06/2019 - current)

• Toyota Camry (2018 - current)
• Toyota HiAce (2019 - current)

Wiring Instructions

10-16V input, 3A output (use with relays).

Connect Red & Blue wire with connector to the power switch, White & Green wire with connector to the Mode Switch.

Switch (S) Cut Out Size

22mmx 22mm

Specifications

Ideally suited for some Toyota 300 Series & Prado 150 models & more factory switch locations.

Instructions:

Mode Select - Short press A quick press of the mode button will switch the BEAST lights between SPOT and FLOOD mode.

Mode Select - Long press A long press will activate BEAST mode. Note: while in BEAST mode, a short press will return you back to SPOT mode.
Resync Process – Long press For BEAST driving light installations where more than one light is installed, it is possible for lights to be out of sync / ie. different modes. To resync driving lights, long press the mode select button
