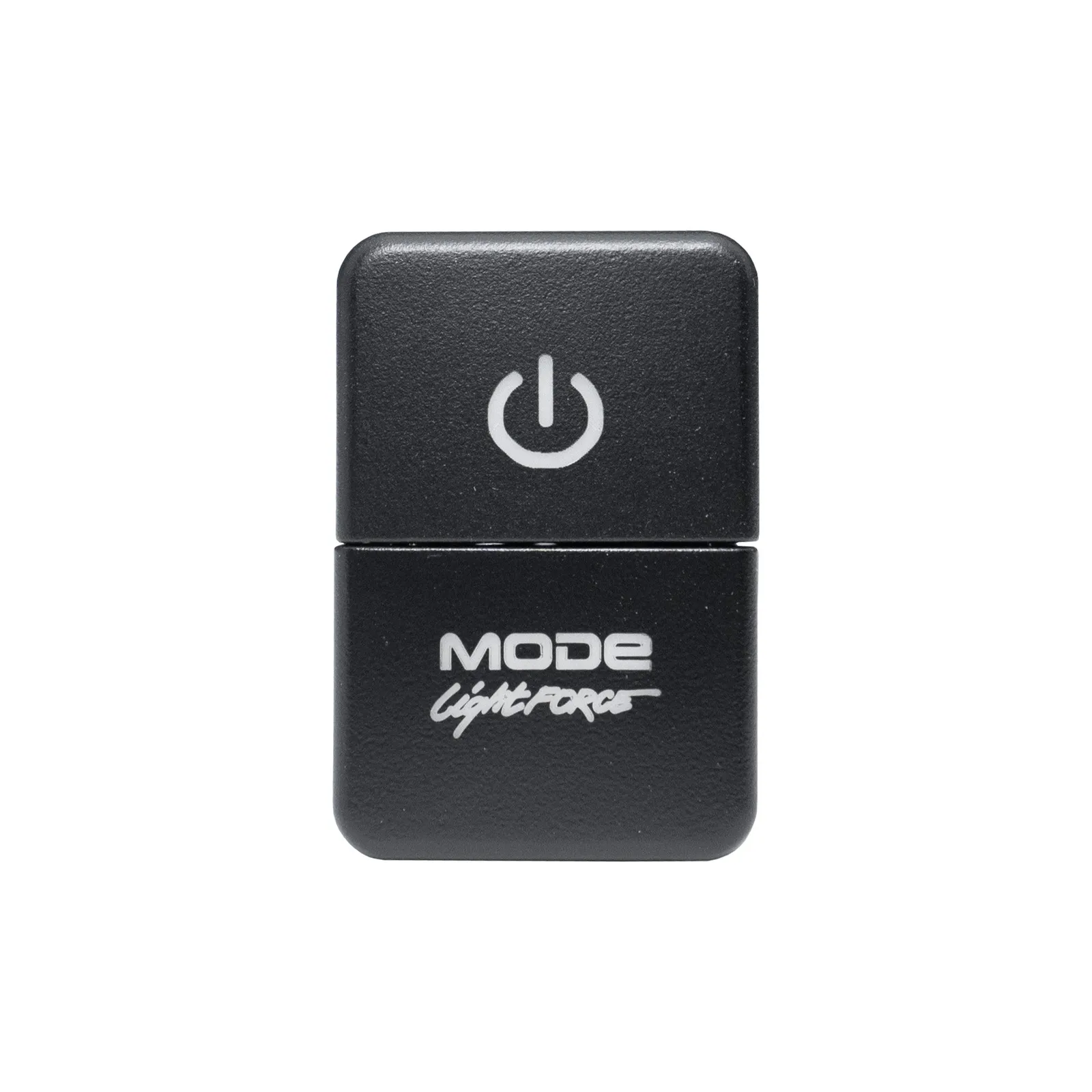

Lightforce BEAST Switch / M2D Fitment - Suitable for MQ & MR Mitsubishi Tritons & some Mitsubishi Pajero’s

Ideally suited for some Mitsubishi Tritons and Pajero switch locations.

These include:

• Mitsubishi Triton MQ (2015 - 2018)
• Mitsubishi Triton MR (2019 - 2023)
• Mitsubishi Pajero Sport KR/KS/QE (2015 - 2022)
• Mitsubishi Outlander ZK (2001 - 2021)

Wiring Instructions

10-16V input, 3A output (use with relays).

Switch Cut Out Size

18mm x 28mm

Specifications

Ideally suited for some Mitsubishi Tritons and Pajero switch locations.

Instructions:

Mode Select - Short press A quick press of the mode button will switch the BEAST lights between SPOT and FLOOD mode.

Mode Select - Long press A long press will activate BEAST mode. Note: while in BEAST mode, a short press will return you back to SPOT mode.
Resync Process – Long press For BEAST driving light installations where more than one light is installed, it is possible for lights to be out of sync / ie. different modes. To resync driving lights, long press the mode select button
