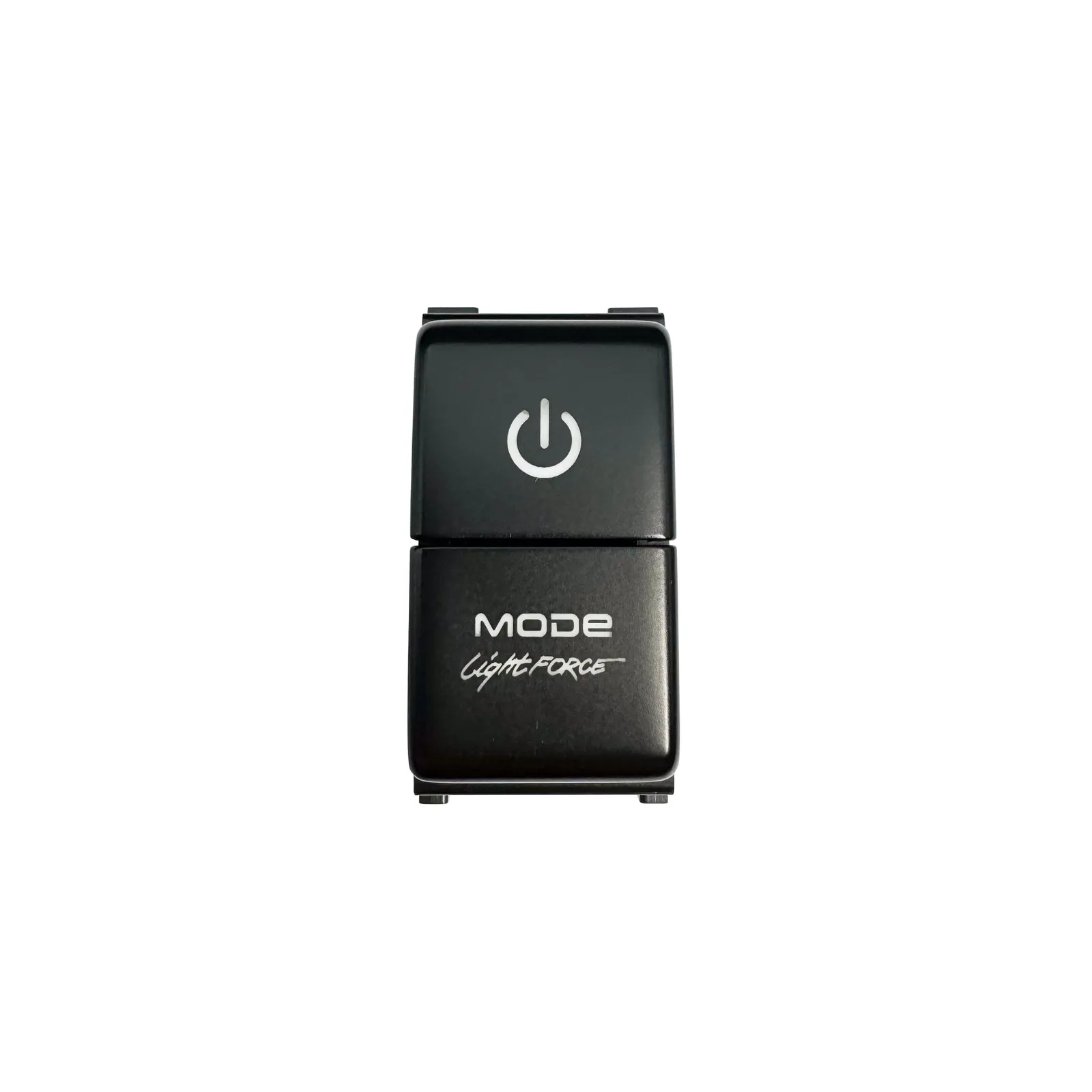

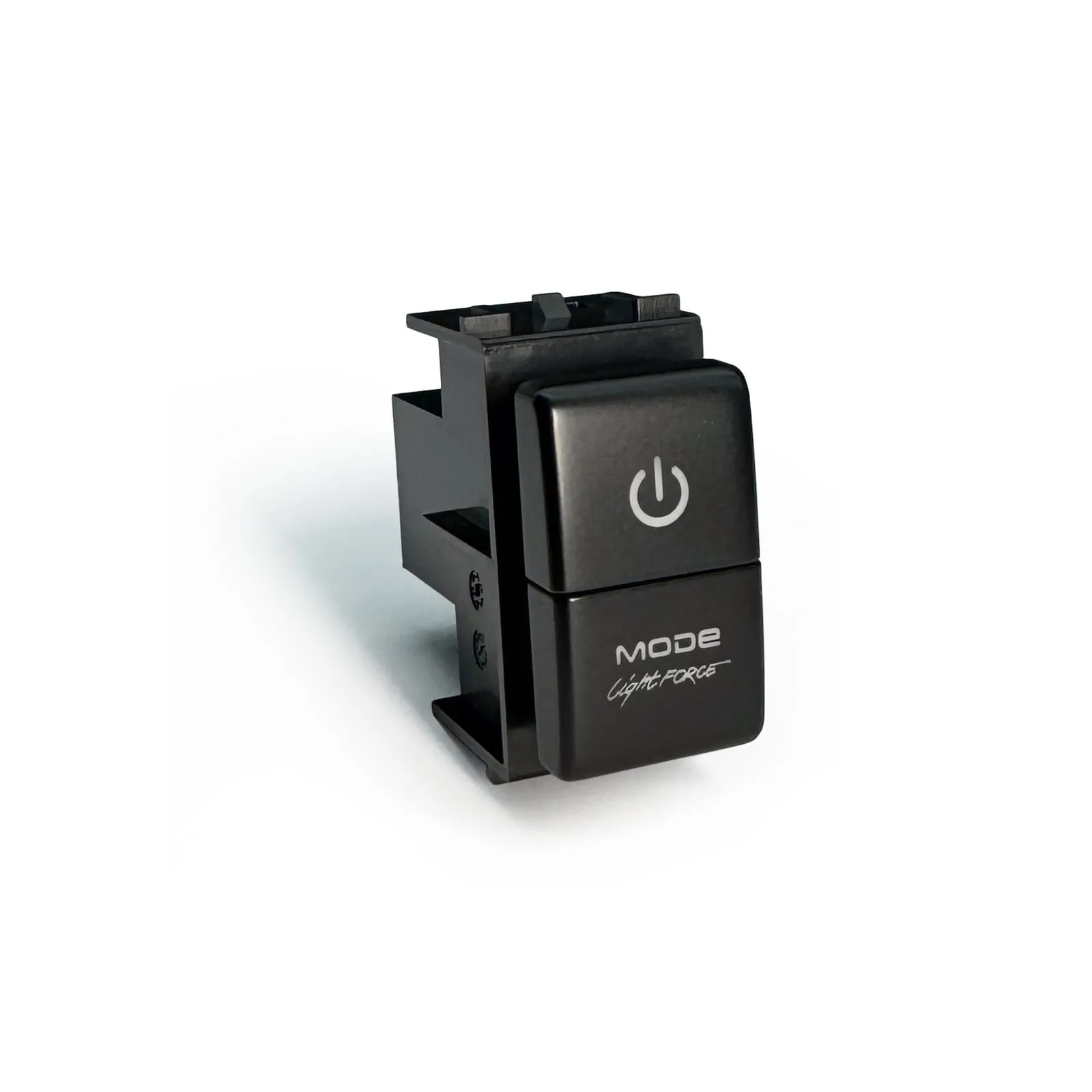

Lightforce BEAST Switch / ND Fitment - Suitable for Nissan Patrol Y62 & More

Ideally suited for some Nissan Patrol & more switch locations.

These include:

• Nissan Patrol Y62 (2016 - current)
• Nissan Patrol GU Series 4 (2004 - 2016)
• Nissan X-Trail T31 (2007 - 2014)
• Nissan Pathfinder R51 (2005 - 2012)
• Nissan Navara D40 (2008 - 2014)
• Nissan Navara NP300 (2016 - Current).


Wiring Instructions

10-16V input, 3A output (use with relays).

Switch Cut Out Size

20mmx 35mm

Specifications

Ideally suited for some Nissan Patrol & more factory switch locations.

Instructions:

Mode Select - Short press A quick press of the mode button will switch the BEAST lights between SPOT and FLOOD mode.

Mode Select - Long press A long press will activate BEAST mode. Note: while in BEAST mode, a short press will return you back to SPOT mode.
Resync Process – Long press For BEAST driving light installations where more than one light is installed, it is possible for lights to be out of sync / ie. different modes. To resync driving lights, long press the mode select button
