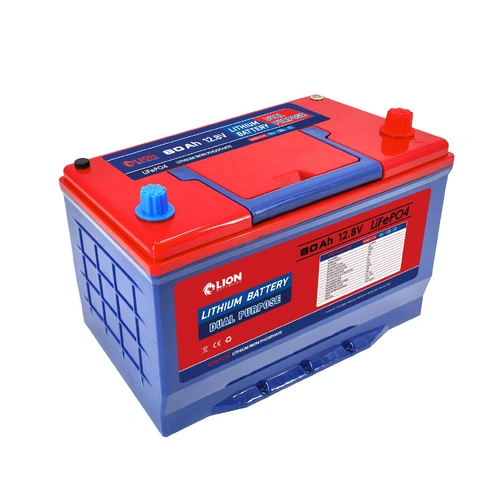

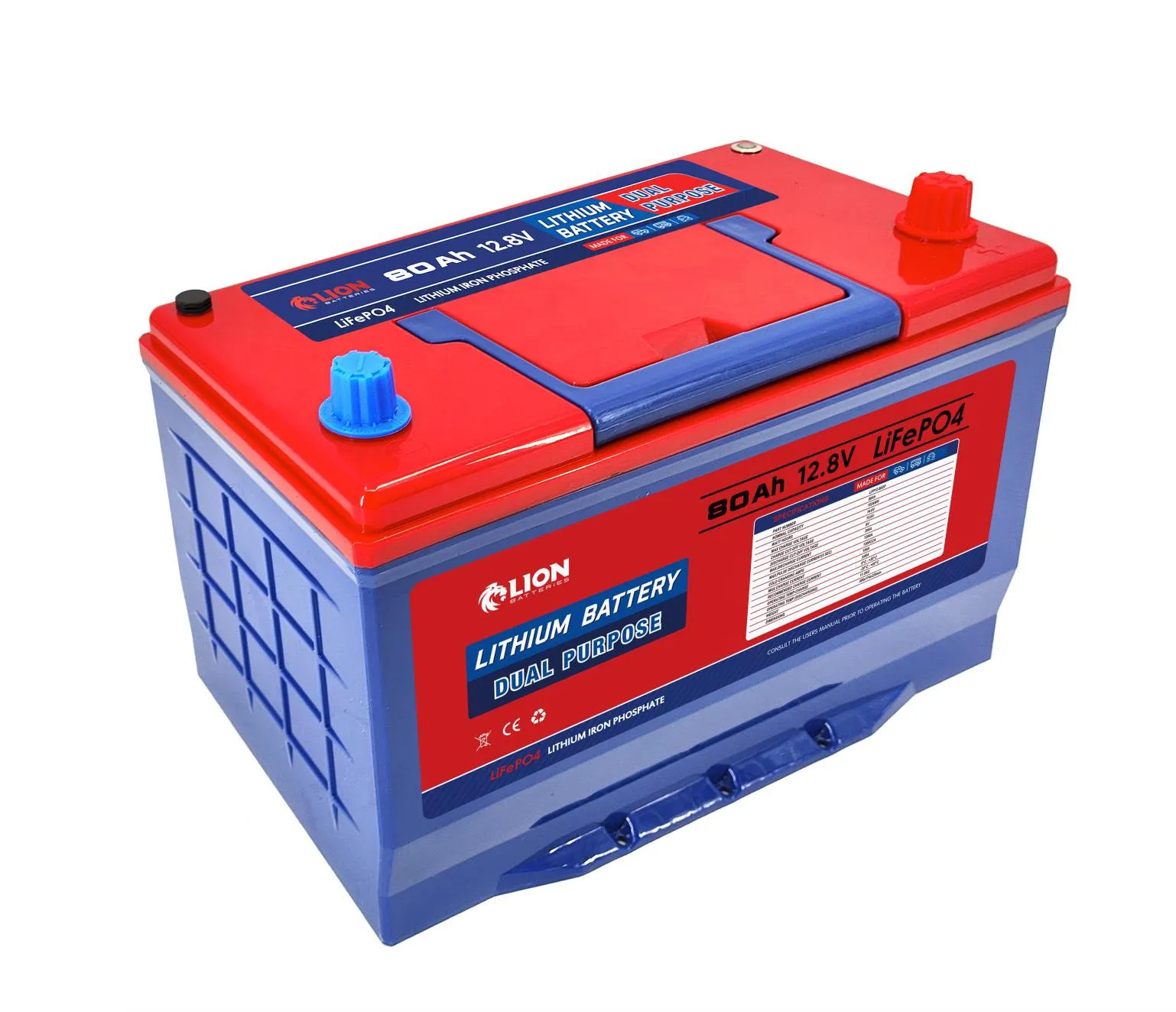

Lion Batteries Dual Purpose Under Bonnet 80Ah 1200CCA Lithium Battery

Lion 80ah Dual Purpose Under Bonnet Battery

Features:

• 1. Fast charging: Fully charged in about 1 hour.
• 2. Lightweight: Original lead-acid battery 1/2.
• 3. Built-in BMS with self-balancing function.
• 4. Reserve 30% SOC for emergency start-up.
• 5. Safety: overcurrent, overtemperature, overvoltage, undervoltage protection.
• 6. 3 Year Warranty

Electrical Parameters:

• Nominal Voltage: 12.8V
• Rated Capacity: 80Ah
• Energy: 1024Wh
• Resistance: ≤5mΩ
• Efficiency: ≥98%
• Cycle Life: ＞8000 cycles, 70% SOH (25℃, 1C/1C, 100%DOD)
• Self Discharge: ＜5% per Month
• Cell in Series/Parallel: 4S/4P

Discharge Paramaters:

• Continuous Discharge Current: 200A
• Pulse Discharge Current: 1200A (<3S)
• CCA: 1200CCA (Tested by DY-2015)
• BMS Discharge Cut-off Voltage: 8.8V
• Reconnect Voltage: 10V

Charge Parameters:

• Charge Method: CC-CV
• Charge Voltage: 14.4~14.6V
• Recommended Float Voltage: 13.5~13.8V
• Recommended Charge Current: 80A
• Maximum Charge Current: 200A
• BMS Charge Cut-off Voltage: 15.6V

Temperature Parameters:

• Discharge Temperature: -40℃ to 85℃ (-40℃，0.2C)
• Charge Temperature: -30℃ to 85℃ (-30℃，0.1C）
• Storage Temperature: -20℃ to 25℃ (1 year)
• BMS High Temperature Cut-off: 85℃

Mechanical Parameters:

• Dimension (L×W×H): 306mm x 174mm x 200/220mm
• 12.05" x 6.85" x 7.87"/8.66"
• Weight: 11.9kg
• Terminal Type: Post
• Battery Housing: ABS
• Housing Protection: IP65
• Cell Type-Chemistry: LiFePO4 Cell
