MSA 4X4 Storage Drawer System
$1,790.00
RRP $1,970.00
SAVE $180.00 (9%)
In Stock

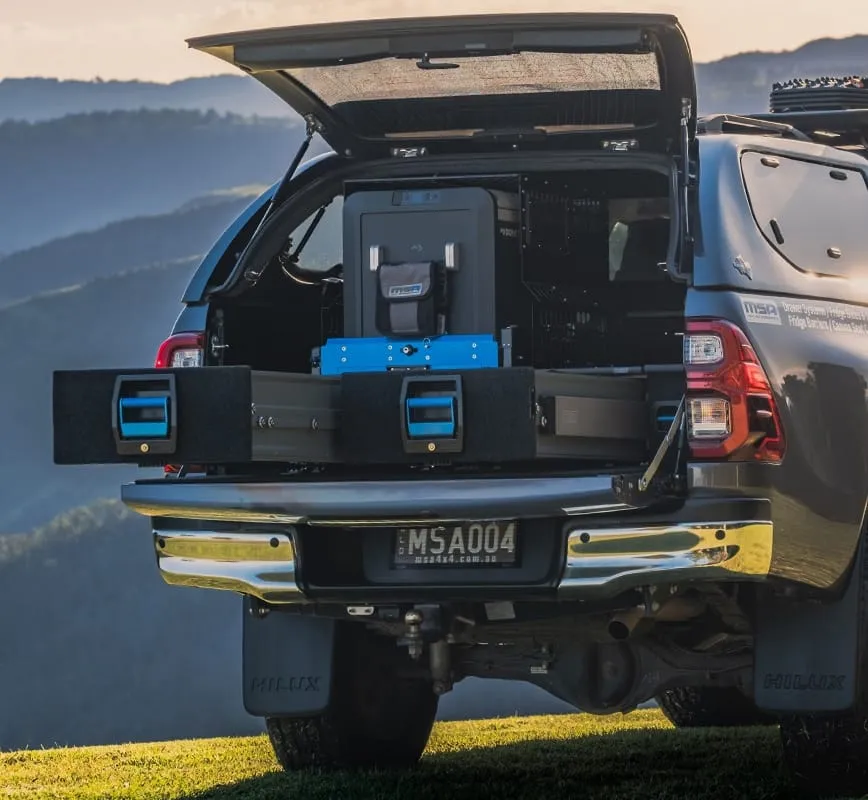

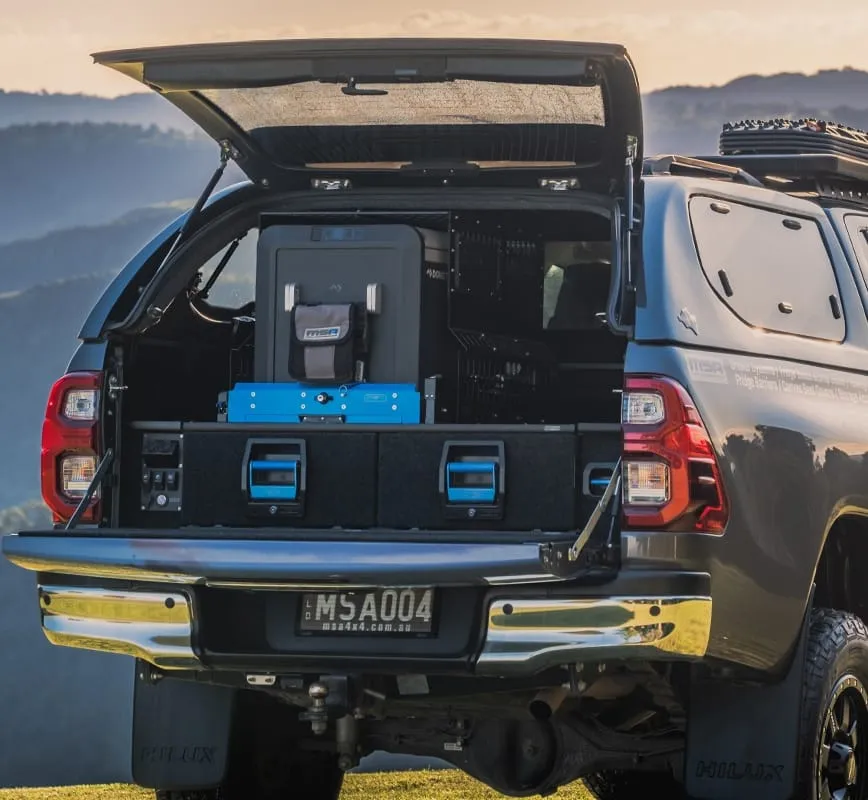

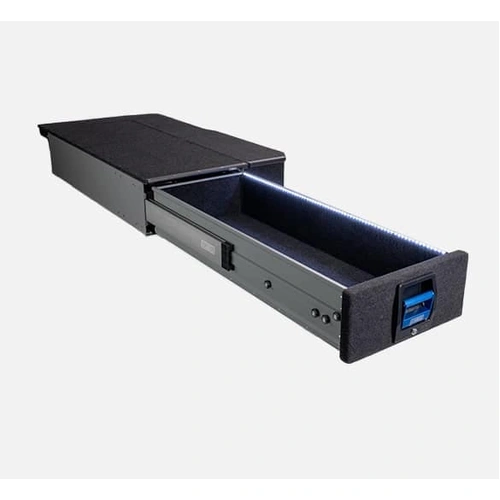

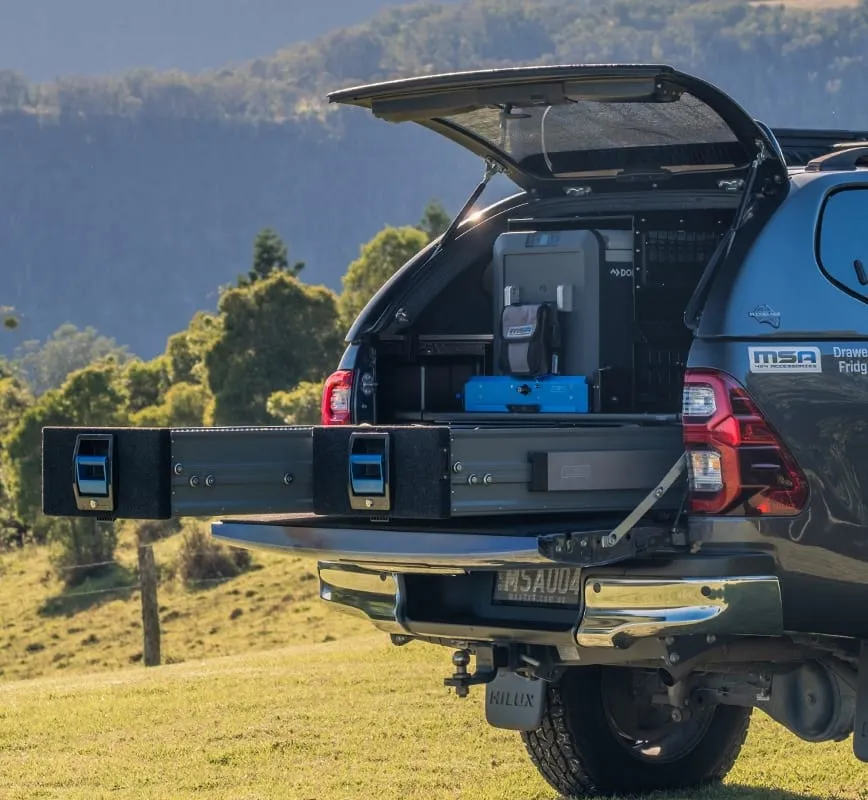

The MSA 4X4 Storage Drawer System is a right-side single drawer module intended for direct installation into a vehicle tub body. It offers full extension access, an internal LED light strip and a secure lock system. Tub liners must be removed before installation.
Features:

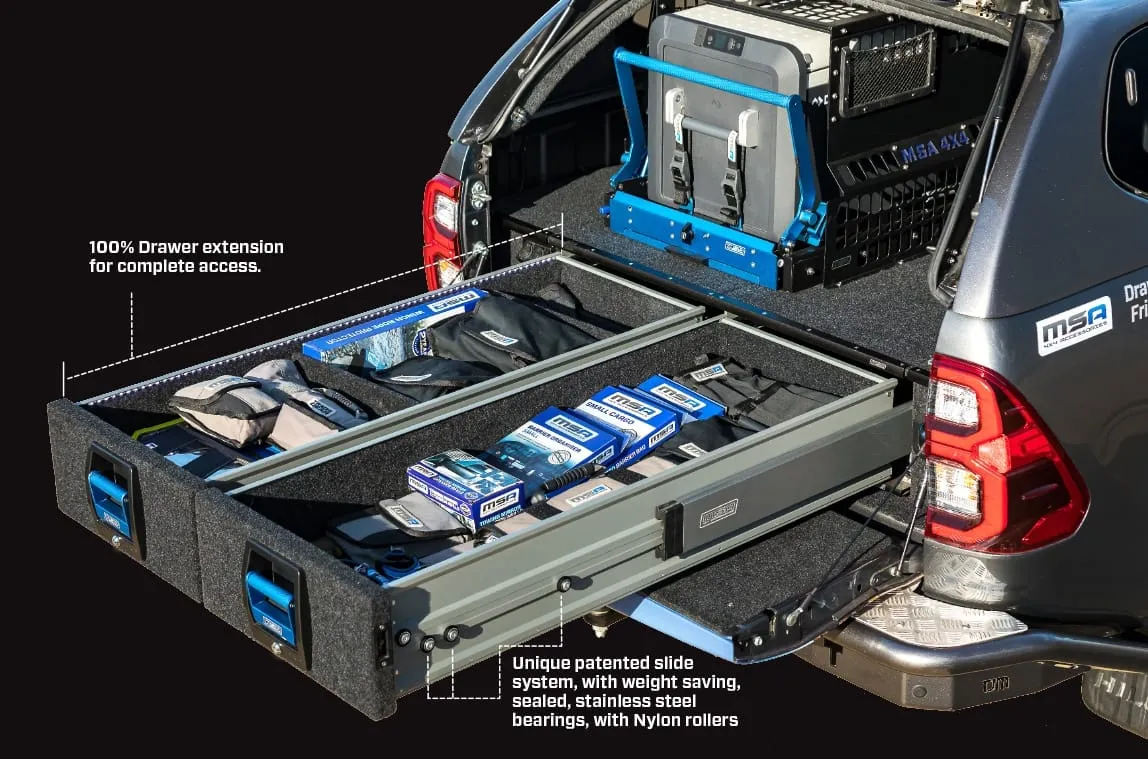

- 100% drawer extension for complete access
- Patented "Stay-Open Block"
- Rust resistant sealed bearings with nylon rollers

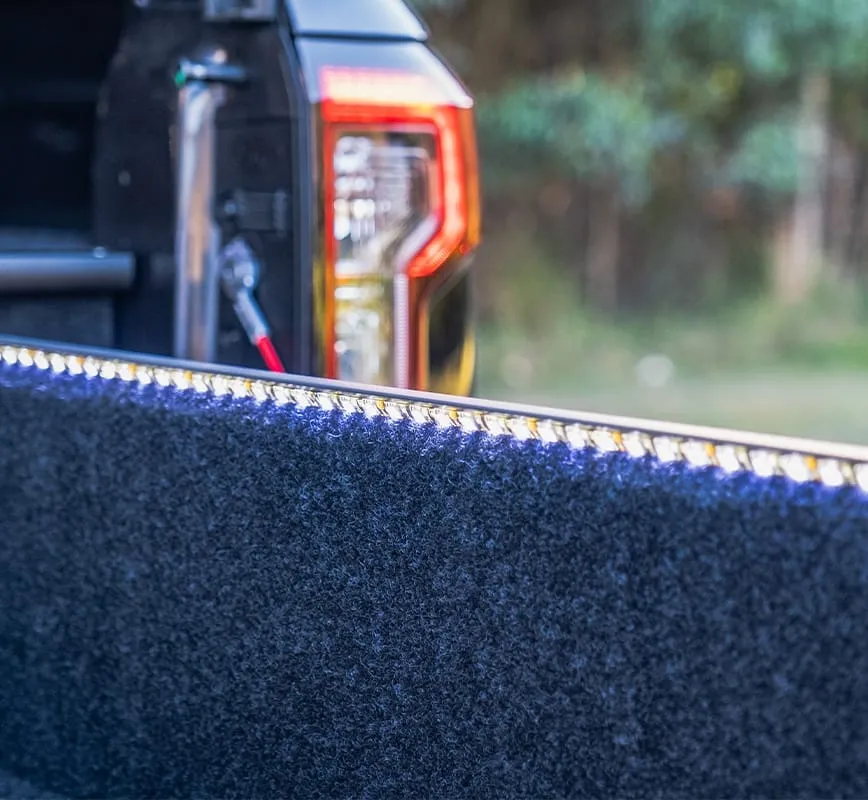

- Internal LED light strip

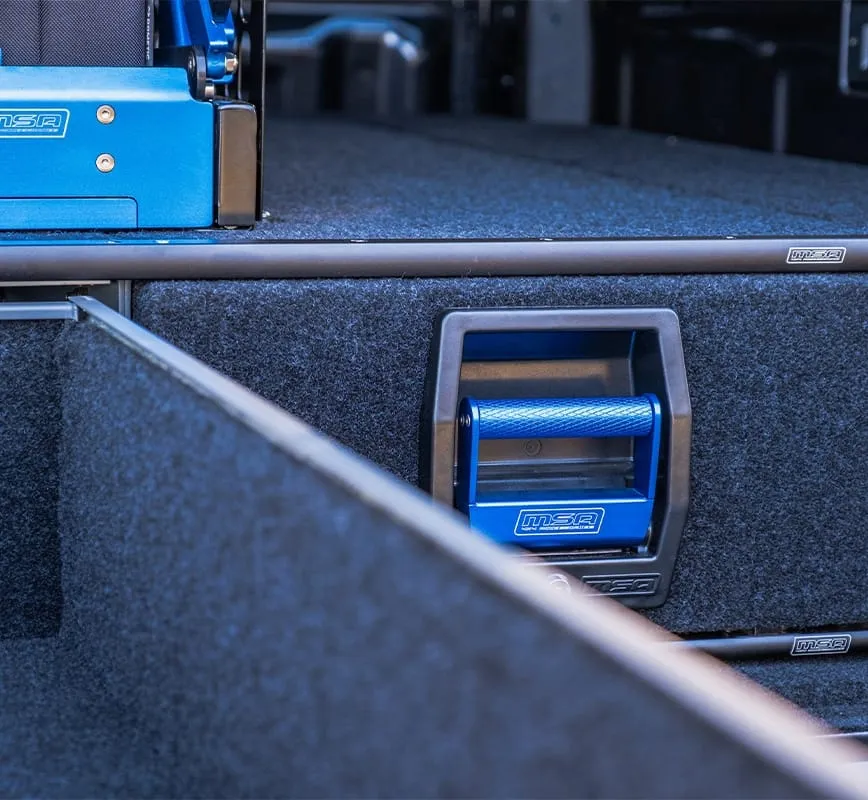

- Safe and secure lock system
- Dust resistant seal
- Stainless steel fasteners
- Removable wing and face panels
Kit Includes:
- right drawer module
- right fit kit (includes floor extension)
- right wing kit
- single width trim
- drawer accessories: 40001 - drawer stacking kit
- eddiv - drawer divider
- epp-right - right power panel
- 40053 - right pre-cut panel
- 40018 - battery box large
- 40019 - battery box slimline
- 20013 - explorer storage bag bundle
- 20012 - explorer storage bag large
- 20011 - explorer storage bag medium
- 20010 - explorer storage bag small
- 45042 - deluxe coffee kit black
- 45043 - deluxe coffee kit cream
(41024)
| Overall drawer length | 1530 mm (including handle lock) |
|---|---|
| Overall drawer height | 275 mm |
| Overall single drawer width | 600 mm (no wings) |
| External allowance | +10 mm for rear anchor bolts |
| Usable drawer height | 215 mm (up to underside of the top deck) |
| Drawer height | 211 mm |
| Internal drawer length | 1429 mm |
| Internal drawer width | 525 mm |
| Weight | 56.2 kg |
| SKU | 41024 |
| Brand | MSA 4X4 |
