MSA Fridge Drop Slide DS45


In Stock

Add The Following To Your Order:

Calculate Shipping

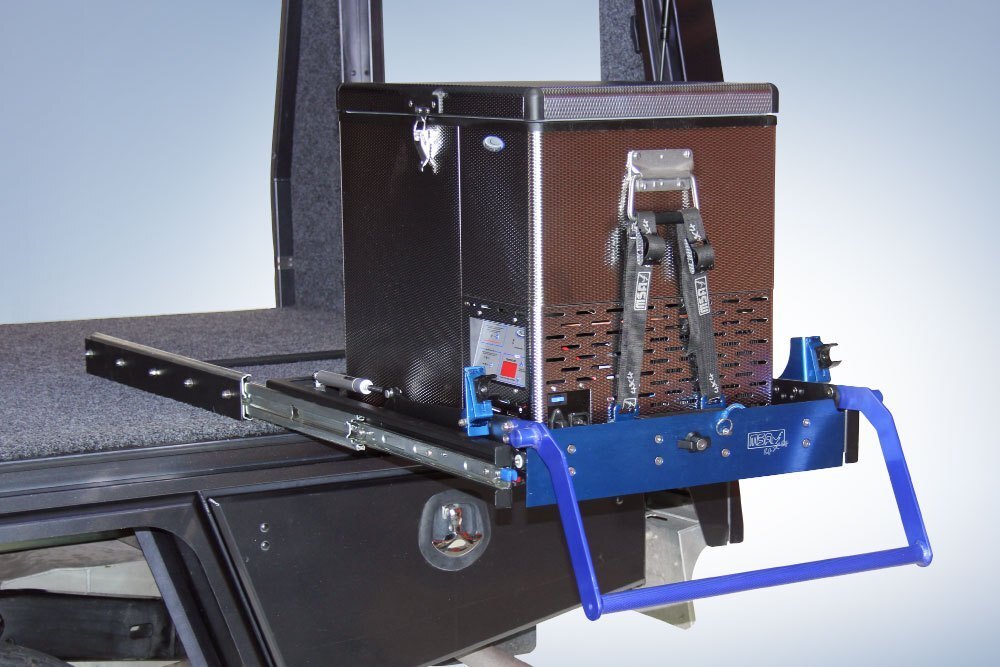

MSA 4X4's Fridge Drop Slide is an innovative, patented design which allows you to safely lower your fridge, providing easy, convenient access to its contents.

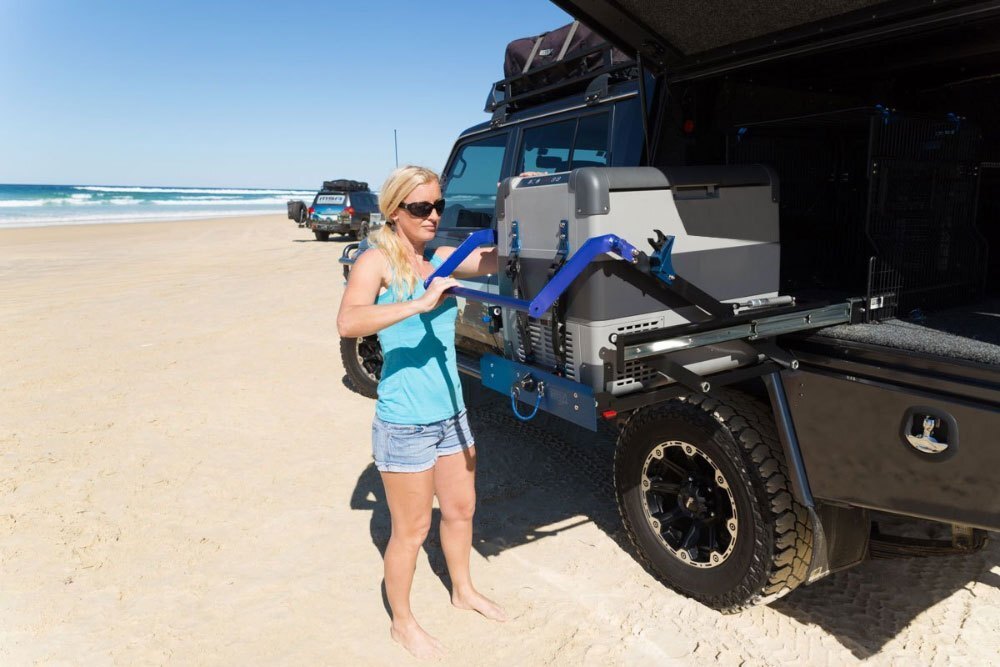

The Drop Slide is designed to slide smoothly out from its stowed position, before lowering 30cm in a safe and easy motion. This allows for the tray to remain in a horizontal position through the entire motion. The unique design of the MSA drop slide allows for complete access to the front and side of your fridge. It also offers a compact design which will not decrease storage space in your vehicle.

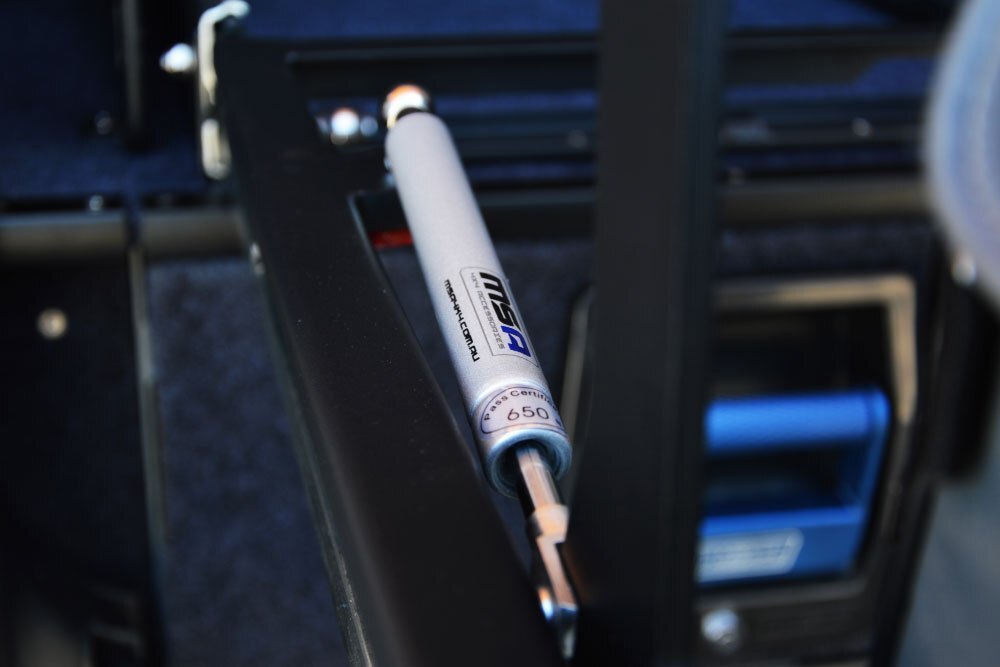

The refined, patented design of our Drop Slides features 670N - 1200N quality gas struts, providing safe, easy lifting and lowering for loads up to an incredible 200kg. Now you can fill your fridge and access it with ease!


  • Compact size won't decrease storage space in your vehicle.
  • No drawer disassembly required to install the slide.

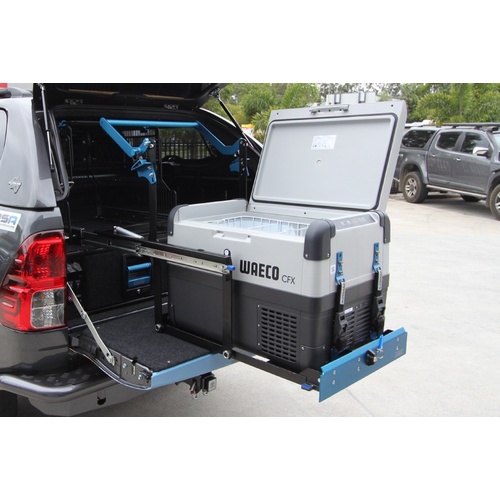

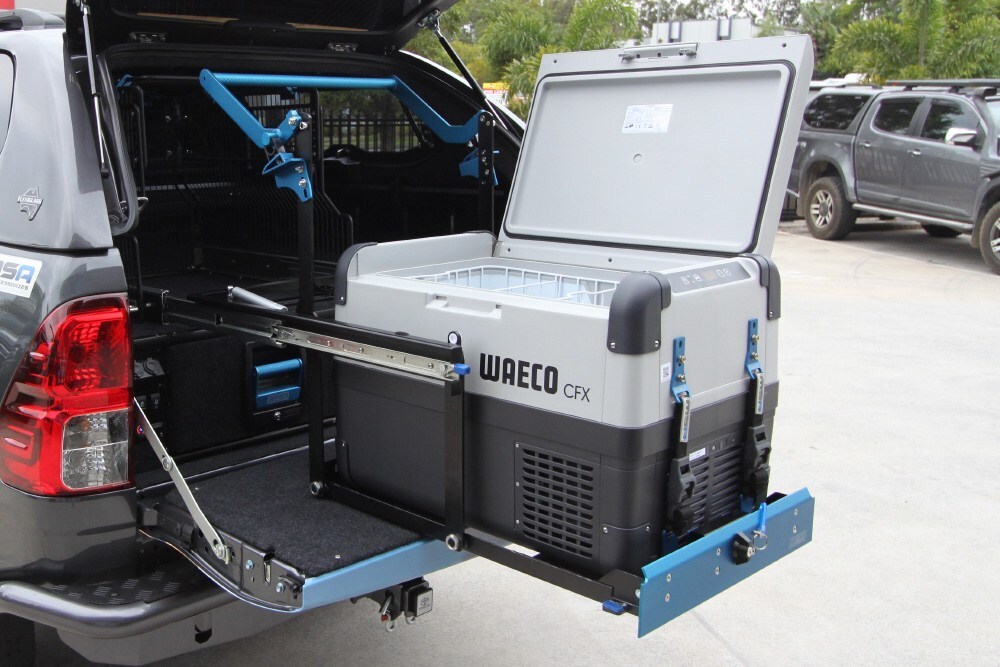

  • Designed to swing smoothly out further past the vehicle tailgate, providing easy and convenient access to the contents of your fridge from its complete front and side.

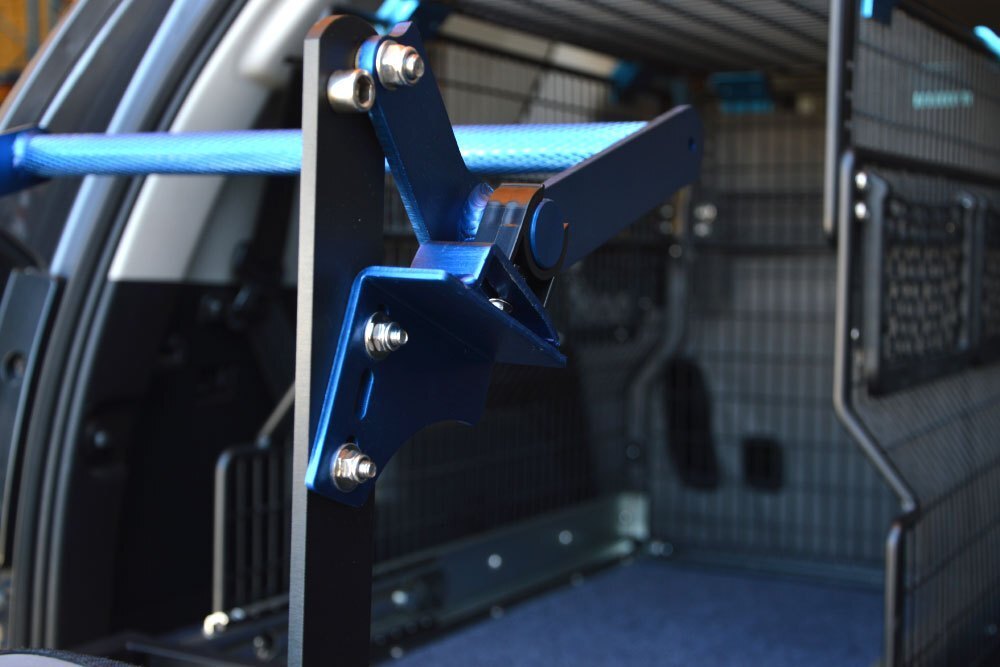

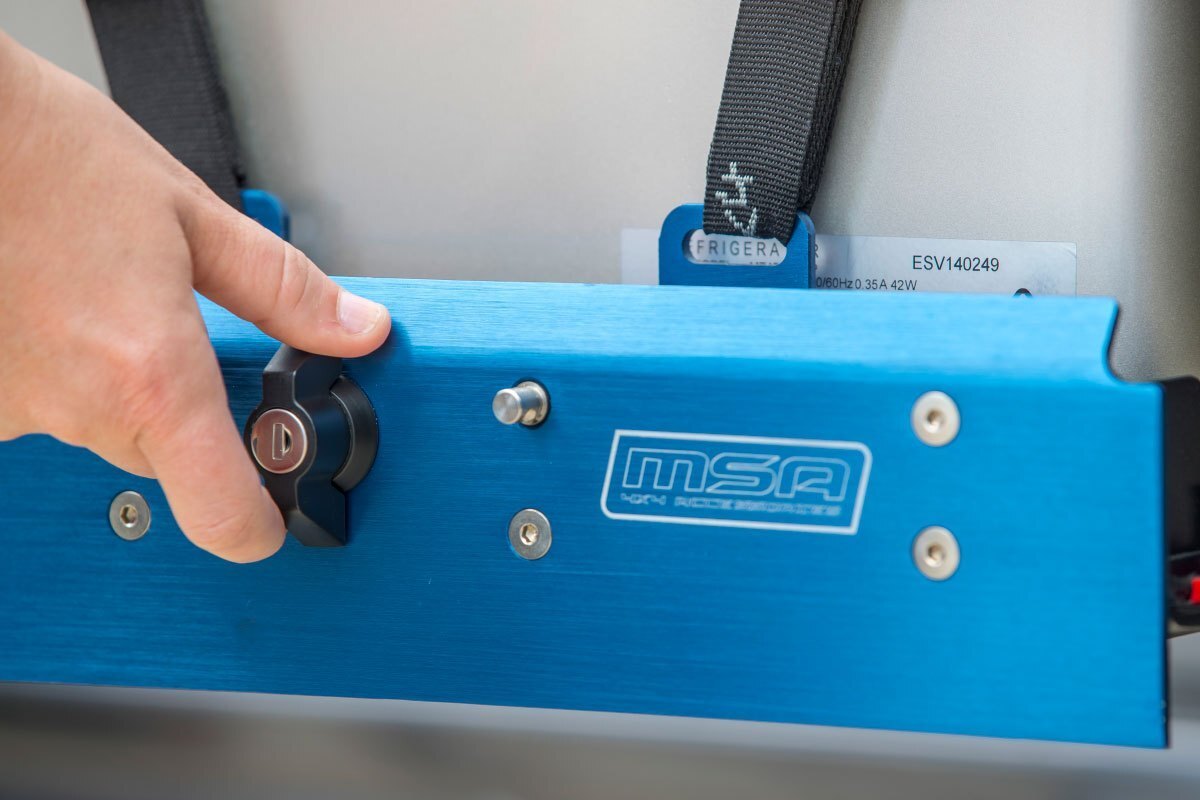

  • Unique lock-in lock-out safety feature.
  • Heavy duty 200kg slide runner rating.

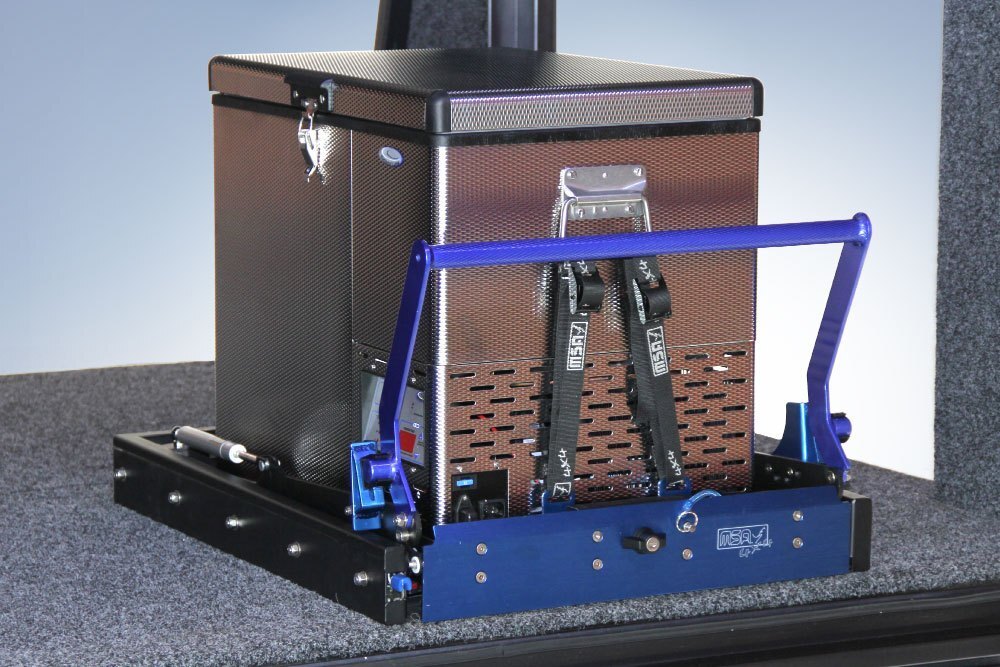

  • Tie down straps & all fixings included as standard.
  • Stainless steel & blue anodised handle and face plate.
  • Fridge Barriers available to suit for extra fridge protection & increased storage possibilities.
  • Pre-drilled holes in the tray provide convenience in accommodating most popular fridges.

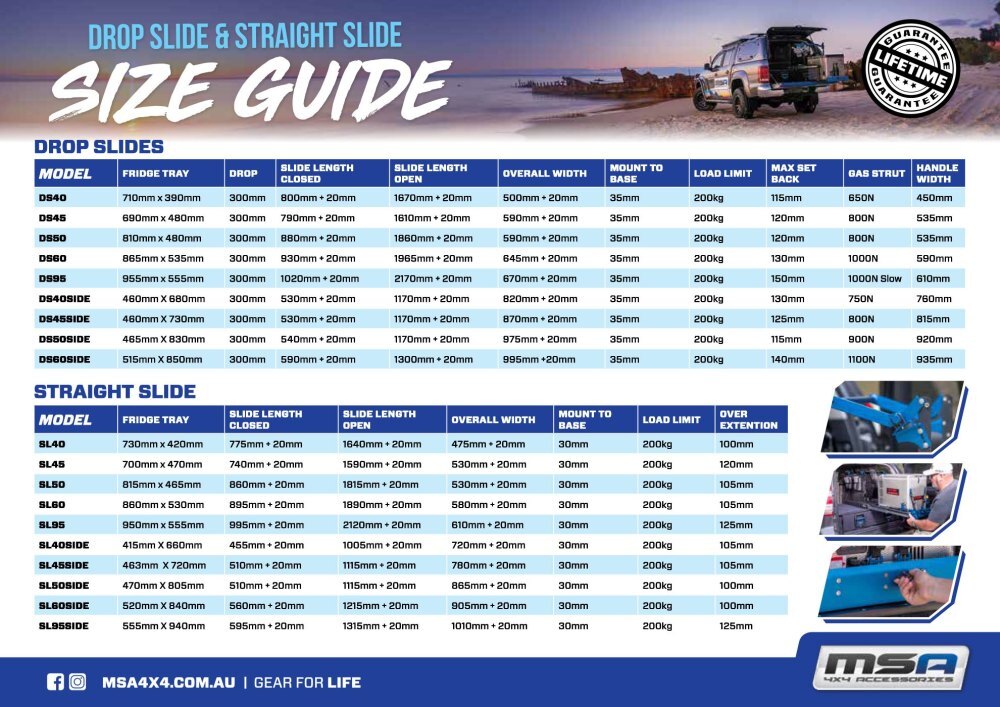

Application Guide (also attached as PDF near listing picture)

Brand DS40 DS45 DS50 DS60 DS95
ARB 35L, 47L   60L, 78L Elements S/S 60L
Bushman   Bushman 35L, Bushman 42L, Bushman 45L, Bushman 52L
Companion       Xero 60 Xero 75
Dometic   CFX35, CFX40, CFX50, CFX65   CFX75 Dual CFX95, CFX100 Single
Engel 32L, Eclipse 38L, 40L,      57L, 60L, 75L, 80L
Evakool IB31, IB40, IB50, RV25, RV35, ED40 TMX35, TMX45, TMX50, TMX55, TMX65, G45, G55, SK45, SK55, SK65 RF40, RF47  RF60, IB70DC, RV62, RV82, GFM95, FM55, FM95, G75, G80, G89, G100 RF85, RF110, RF150, GFM70, FM60, FM70
Giant Power       GP60LF, GL60L, GP80L GP80LD
Ironman 30L, 40L, 50L     65L, 74L
National Luna   40/42 50/52 74, 80, 90, 95, 125
Opposite Lock 50L 40L OP40SS 72L OP80DSS
Primus 40L, 50L, 45L, 60L,  40L (Red Lid) 60L (Red Lid) 65L Dual, 74L, 92L Dual, 100L
Snomaster 42L 40L 56L, 60L 66L, 75L, 85L, 95L
Techniice 42L 60L
Trailblaza     40L (New Model), 50L (New Model) Albie Slider 65, Albie Slider 75, Albie slider 85, 50 (75 insul), 60 (75 insul), 70 (75 insul), 80 (75 insul), 30 (125 insul), 40 (125 insul), 40 Compact, 60 Compact, 70 Compact,
Waeco CF40, CF50, CF60 CFX35, CFX40, CFX50, CFX65   CF80, CF110, CFX75 Dual CFX95, CFX100 Single

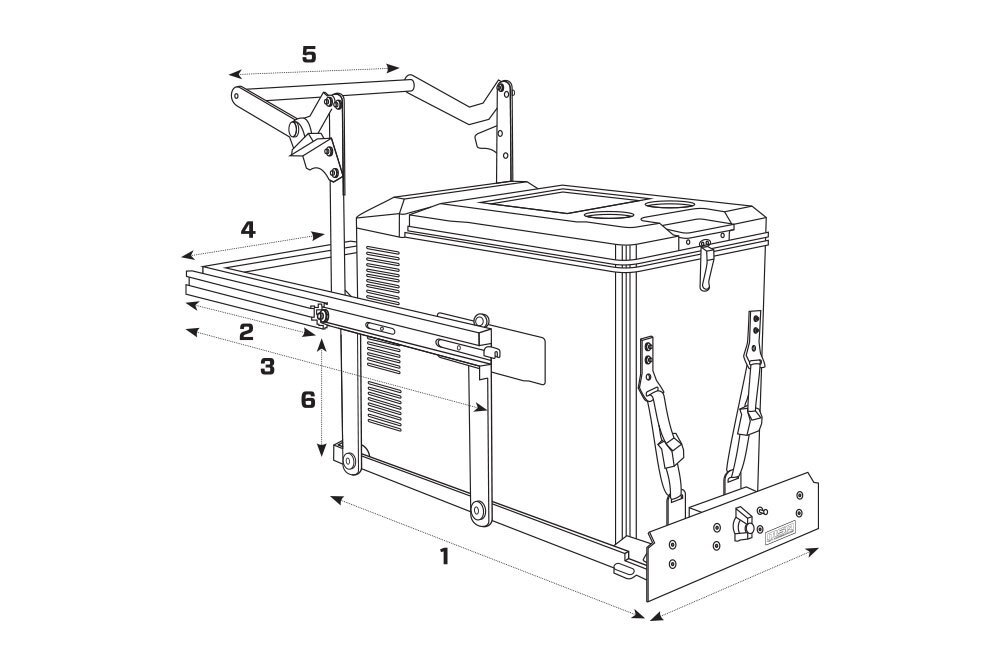

Model DS45
Drop (1) 300
Fridge Tray (2) 692 x 478
Slide Length Closed (3) 753 (+20 for lock)
Overall Width (4) 592 (+20 for  nyloc  nuts)
Runner Length Closed 735
Slide Length Open 1585 + 20
Mounting Floor to Base of Fridge 35
Load Rating 200kg
Weigh 37kg



Brand MSA4X4
