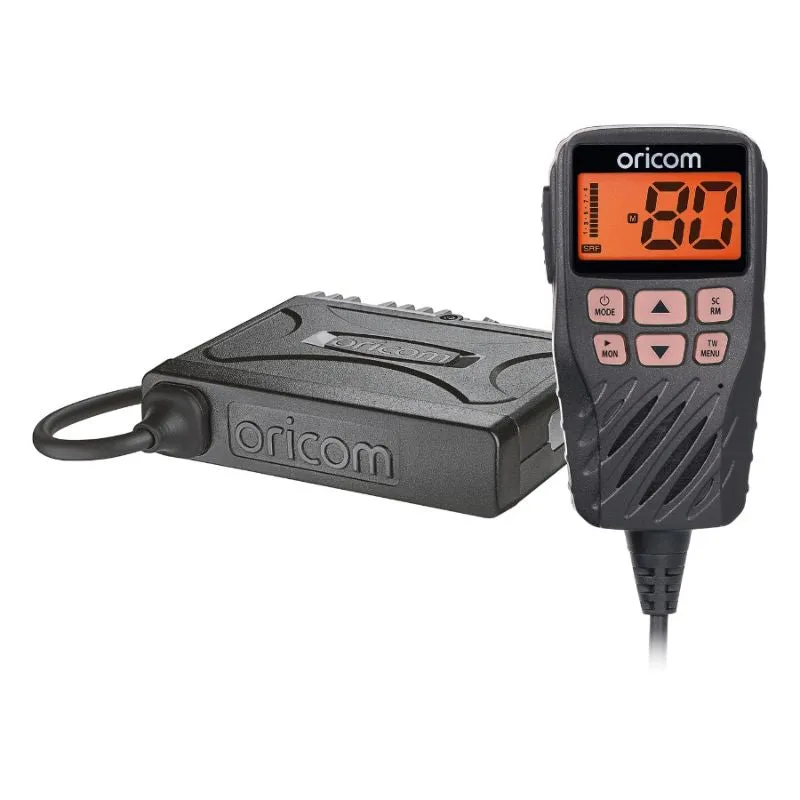

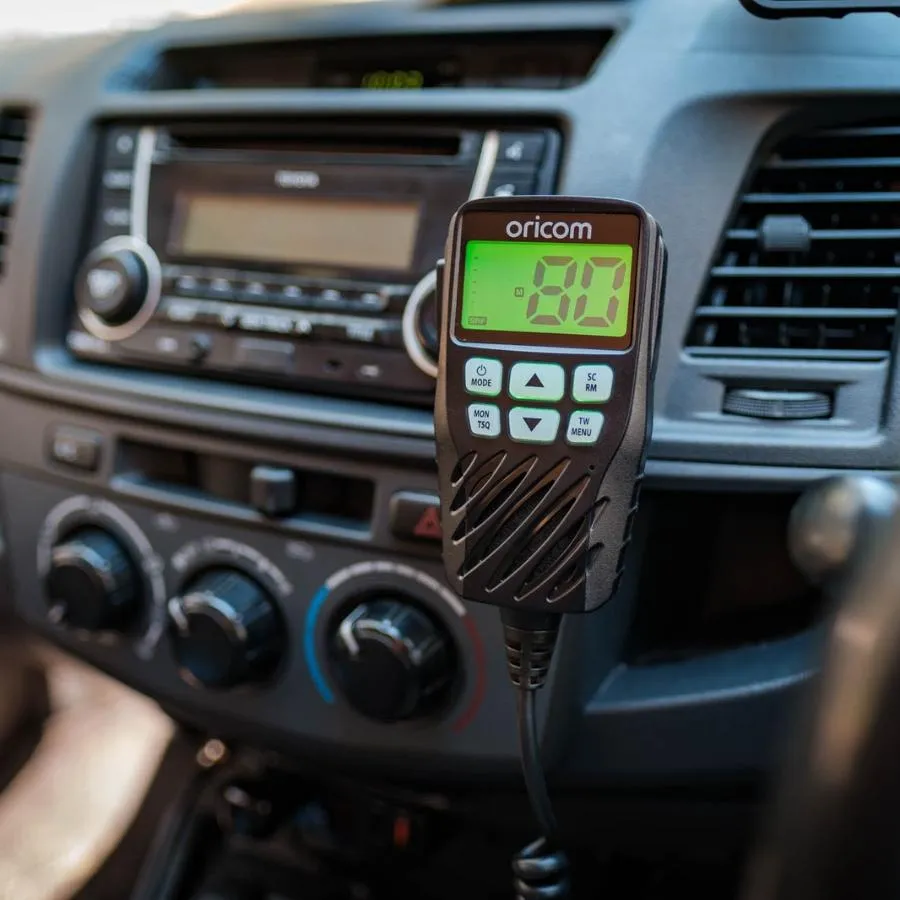

The Oricom UHF CB Radio Bundle Pack combines the UHF360R compact transceiver, UHF2200 handheld radio and ANU316 antenna into a ready-to-install communications solution for on- and off-road use. The bundle includes instant replay recording on the transceiver and a rugged controller speaker microphone for convenient control.
Features:
- UHF360R instant replay records up to 10 minutes of incoming audio in files up to 60 seconds each
- Tri-colour backlit LCD display (amber, green, red) for improved visibility
- Voice Enhancer equaliser with 10 settings from bass to treble for clearer speech
- Duplex range extender and open/priority scan with priority channel support

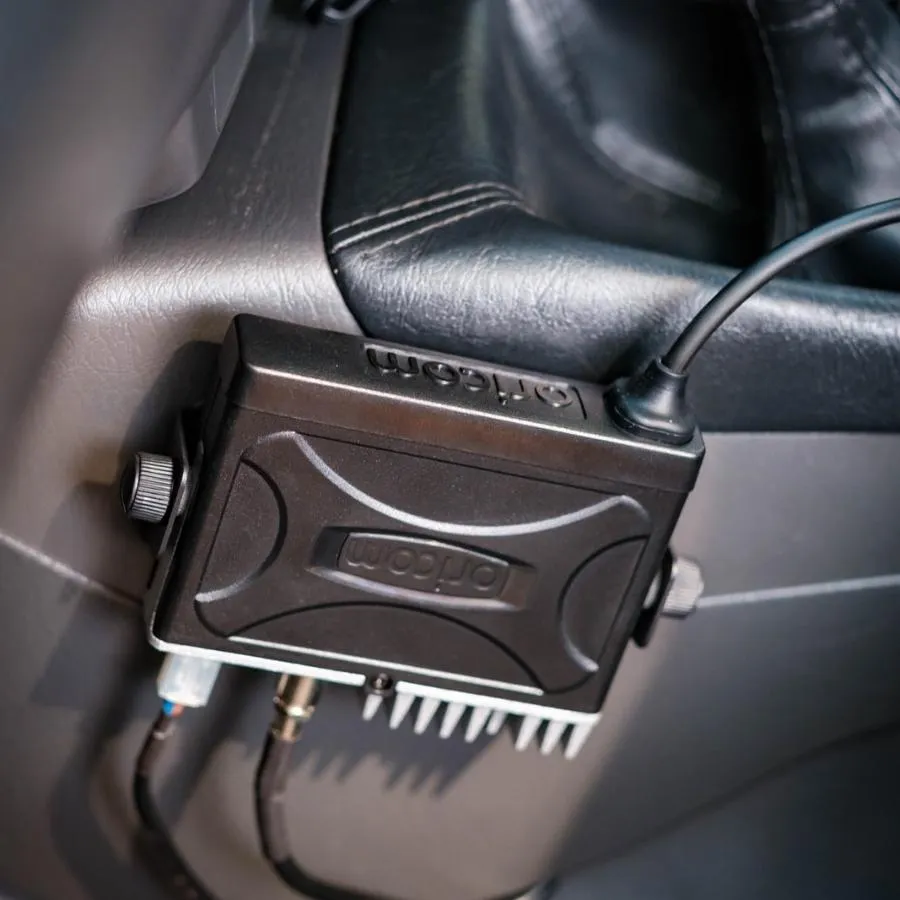

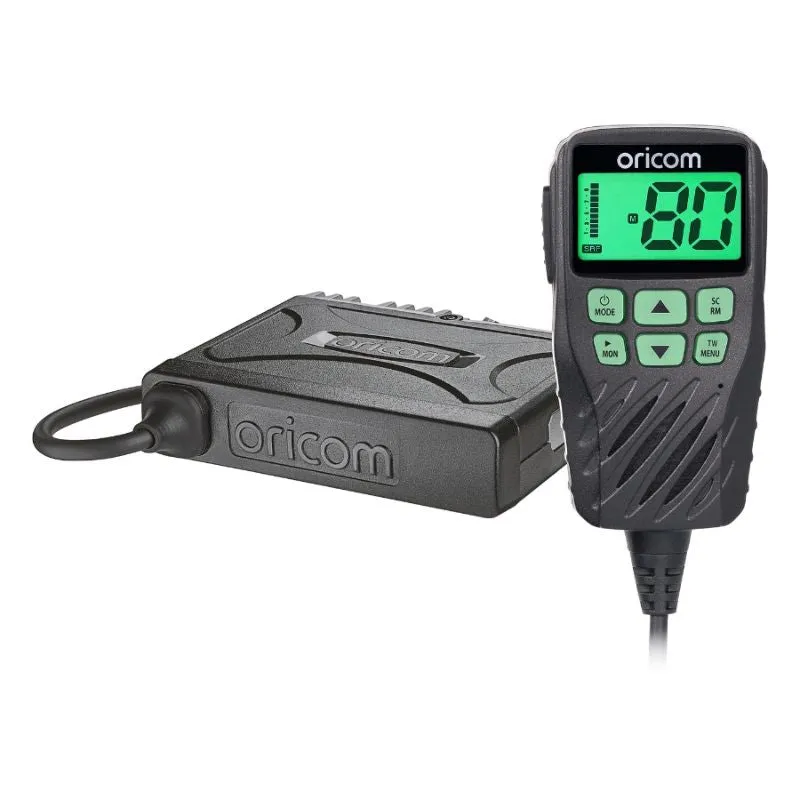

- Rugged micro transceiver designed for discreet mounting

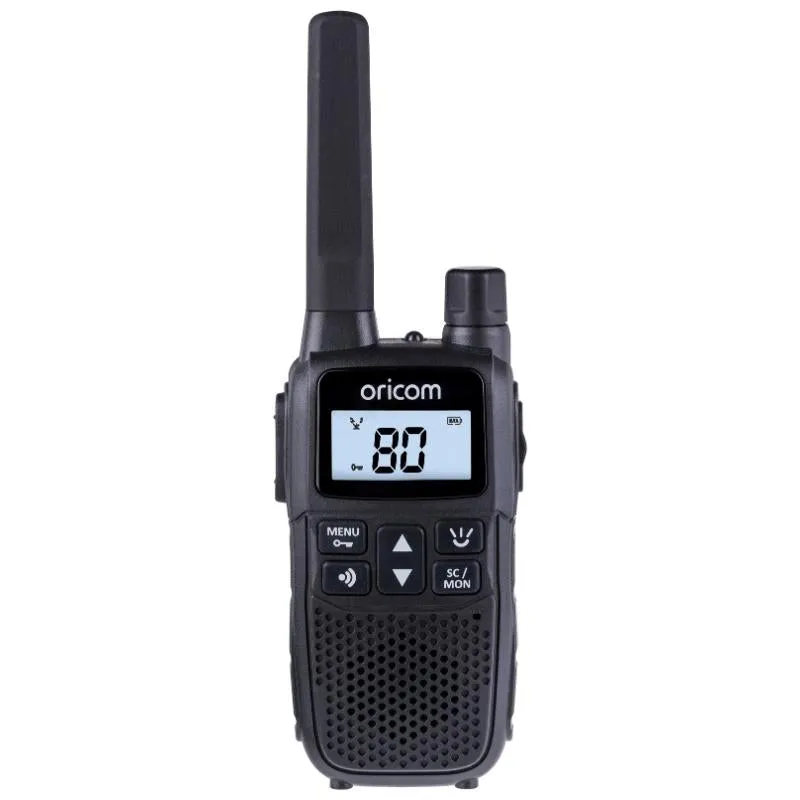

- UHF2200 handheld includes LED torch, dual watch, automatic squelch and VOX hands-free capability

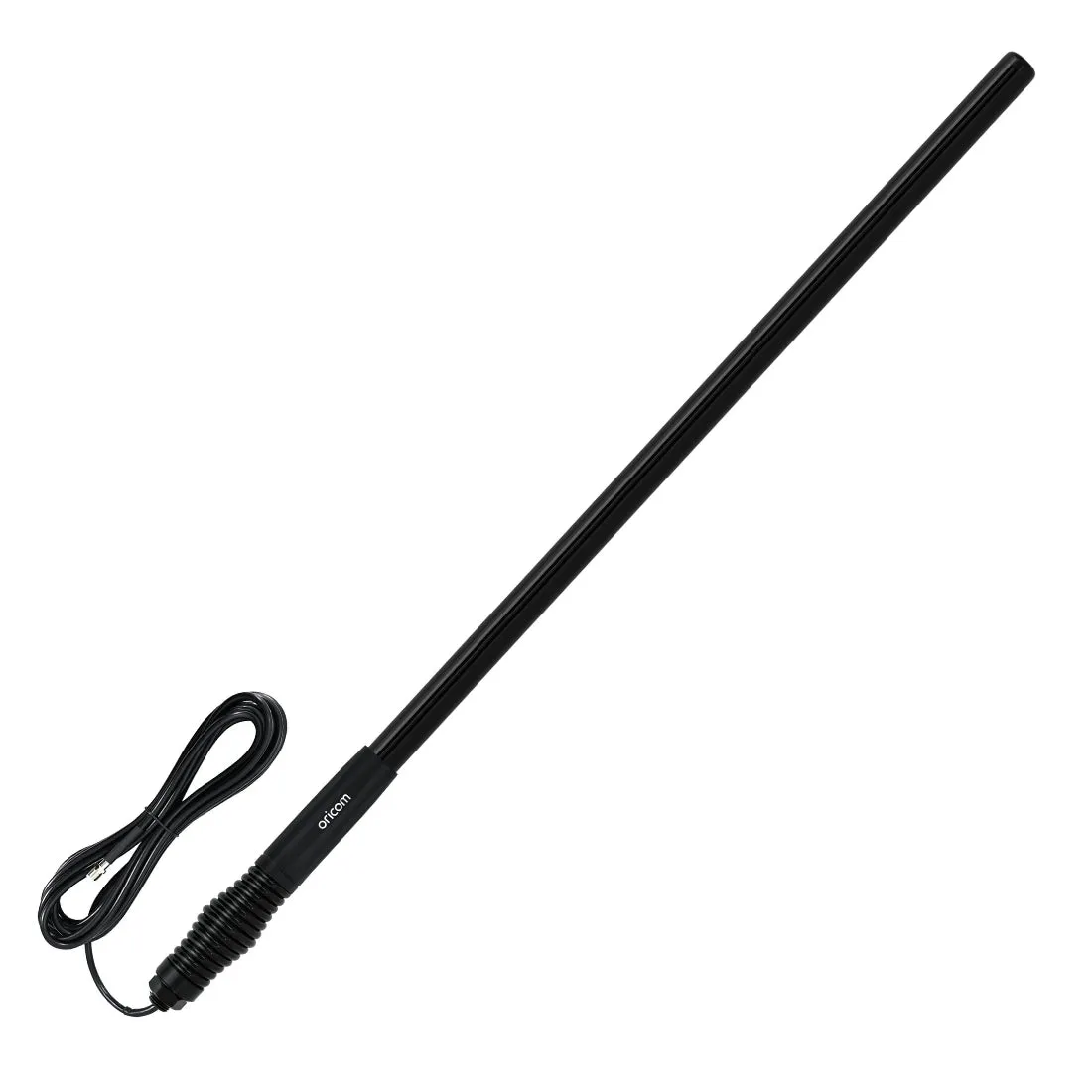

- ANU316 antenna includes low-loss coaxial cable and pre-terminated connectors for straightforward installation

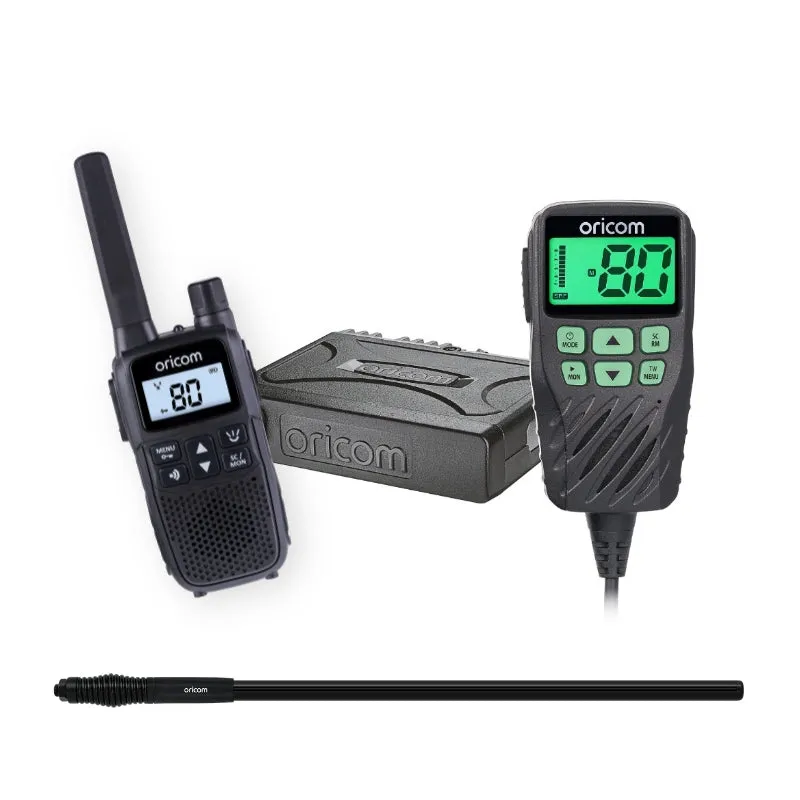

Kit Includes:
- UHF360R
- UHF2200 handheld radio
- ANU316 antenna
- 2 microphone extension cables
(UHF360RAH)
| UHF360R transmit power | 5 Watt (max TX power) |
|---|---|
| Instant replay | Up to 10 minutes recording (files up to 60 seconds) |
| CTCSS/DCS codes (UHF360R) | 38 CTCSS and 104 DCS codes |
| Display | 3 colour backlit LCD (Amber/Green/Red) |
| External speaker jack | 3.5mm |
| UHF360R dimensions | 27 (h) x 102 (w) x 85 (d) mm |
| UHF2200 transmit power | 2 watt |
| UHF2200 range | Up to 10km* |
| UHF2200 channels | 80 Channels |
| UHF2200 CTCSS/DCS codes | 38 CTCSS & 83 DCS codes |
| ANU316 antenna length | 620mm |
| ANU316 coaxial cable | Low-loss coaxial cable included (4.5m) |
| ANU316 connectors | Pre-terminated FME connector and PL259 adaptor |
| Included cables | 2 microphone extension cables (one for use with pass through connector, pass through connector not supplied) |
| Audio | Voice Enhancer equaliser with 10 settings |
| Made | Designed for Australian conditions. Made in Korea. |
| Warranties | UHF360R 5 Year warranty (radio); UHF2200 3 Year warranty; ANU316 3 Year warranty |
| SKU | UHF360RAH |
| Brand | Oricom |
