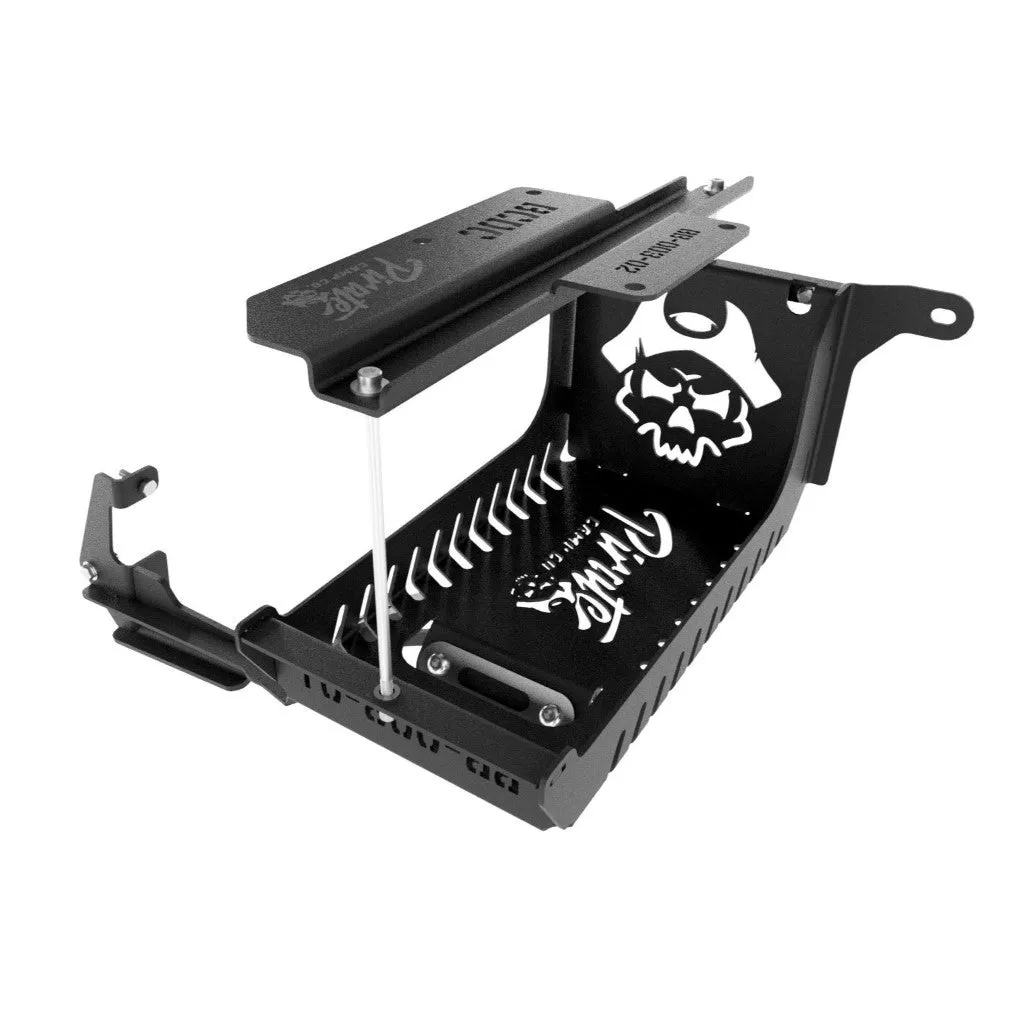

Pirate Camp Co Under Bonnet Auxiliary Battery Mount - Ford Ranger/Everest 2022+/Volkswagen Amarok 2023+

p class="p1">This is our solution to fill the space allocated for a second battery under the bonnet of the Next-Gen Ranger & Everest. Designed for an easy install & purpose built. We used a Delkor HDC27 100 A/H Max dimensions 330L x 180W x 200H to the top in the middle, posts can be higher as they sit off the the side, the washer bottle interferes with the middle which creates this height restriction. see link below. This tray also suits other batteries including lithium, which have a max height of 190mm.

Please note, any battery higher than 190mm will raise the washer bottle filler and slow down the filling process. The filler will sit on an angle and rest on the battery but this won't impede its function.

• Suits itech world 120 amp hour lithium
• Suits up to Delkor HDC27 100 A/H Battery
• Internal tray dimensions - 330mm long x 180mm wide
• Mounts a Redarc 25/40A BCDC
• Suits Next-Gen Ranger & Everest models
• Max 25kg weight rating
• Stainless steel 304 grade
• Powder coated texture black
• 100% Australian made & Owned
