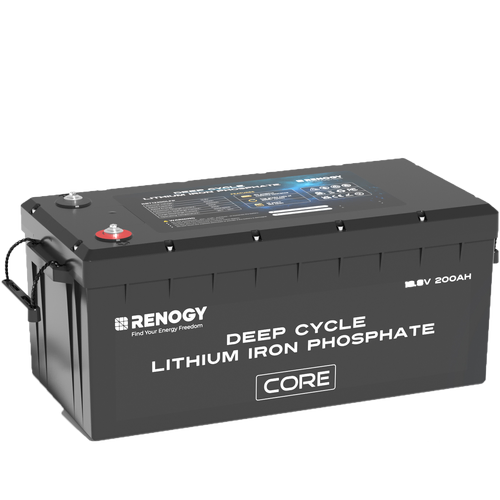

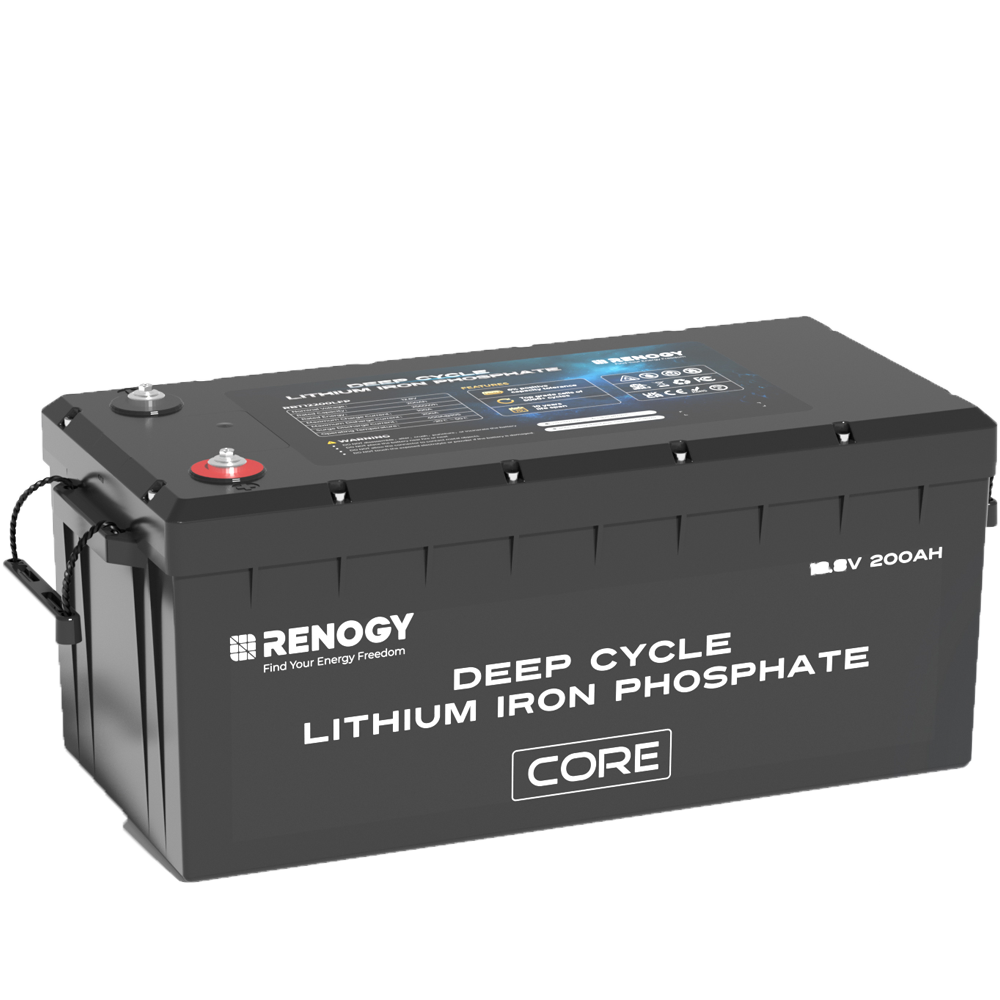

Renogy CORE Series 12Volt 200Ah Lithium Iron Phosphate Battery

Dive into Off Grid Travel

Embarking on an overland adventure is no easy feat, but the Renogy 12V 200Ah Core LiFePO4 Battery ensures that you have reliable, safe power for the journey.

IP65 Rating means it’s built to withstand water splashes, heat, vibrations, and more, it lets you reach your destination with reliable power.

Package Includes:

• 1x Core - 12V 200Ah Lithium Iron Phosphate Battery
• 2x Terminal Bolts (M8 x 1.25 x 12 mm)
• 2x Long Terminal Bolts (M8 x 1.25 x 16 mm)
• 1x User Manual

Features:

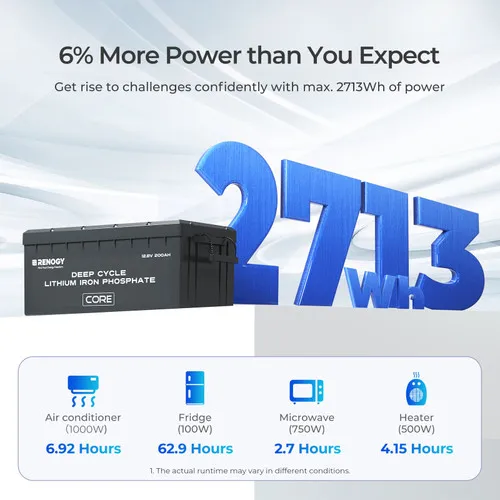

• Provides up to 6% more power than rated capacity for better performance.

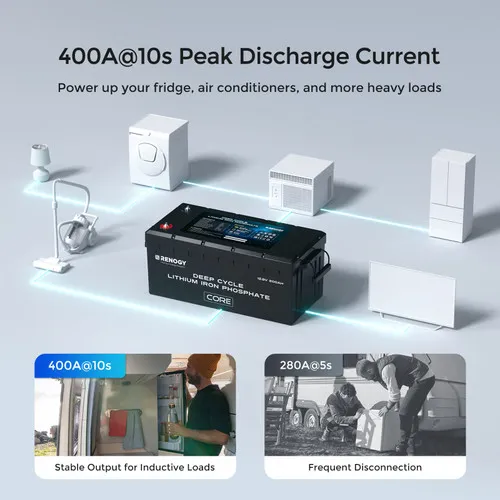

• Delivers 400A for 10 seconds, starting heavy loads with ease.

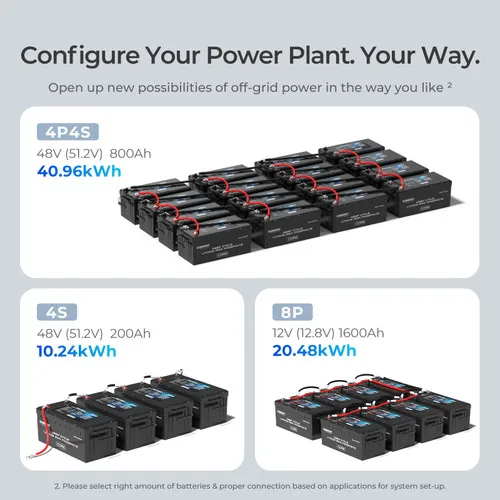

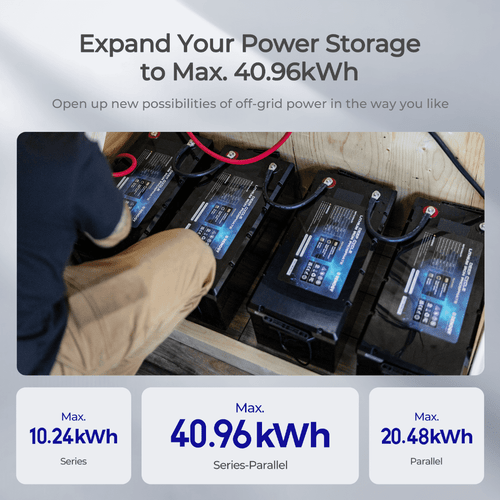

• Supports series, parallel, or both connections for flexibility.

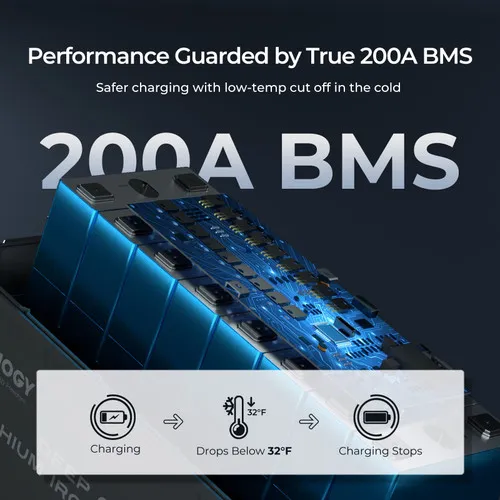

• Features a 200A BMS with low-temp cut-off for safety

Electrical Data:

• Rated Capacity (0.5C, 25℃): 200Ah
• Nominal Voltage: 12.8V
• Energy: 2560Wh
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Temperature Parameters:

• Operation Temperature Range: Charge: 0°C to 55°C/ 32°F to 131°F
• Operation Temperature Range: Discharge: -20°C to 60°C/ (-4°F to 140°F)
• Storage Temperature Range: -25°C to 65°C/ -13°F to 149°F
• Operation Relative Humidity: 10% to 95%

Charging Parameters:

• Charge Voltage 14.4V
• Maximum Continuous Charge Current: 100A

Mechanical Specifications:

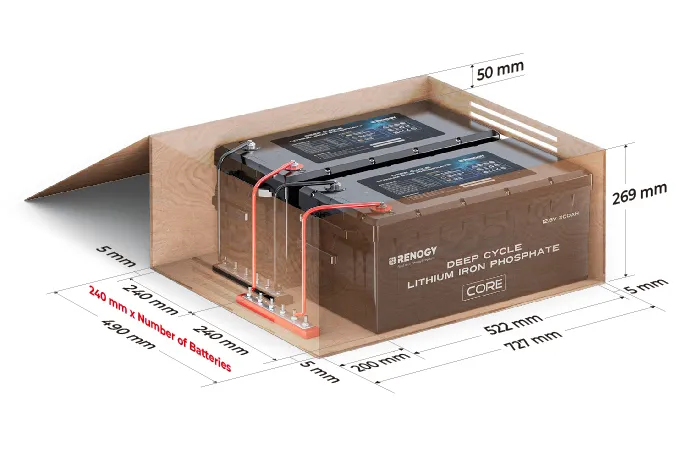

• Dimension (L x W x H): 522 x 240 x 219 mm / 20.55 x 9.45 x 8.62 in
• Weight: 21.45 kg / 47.3 lbs.
• Terminal Bolt Size: 2 x M8 x 1.25 x 15 mm
• Protection Rating: IP65

Discharging Parameters:

• Maximum Continuous Discharge Current: 200A
• Peak Discharge Current: 400A@10s

Certifications:

• MSDS, UN38.3, FCC, CE, PSE, and UKCA

Warranty:

• 5-year material warranty
