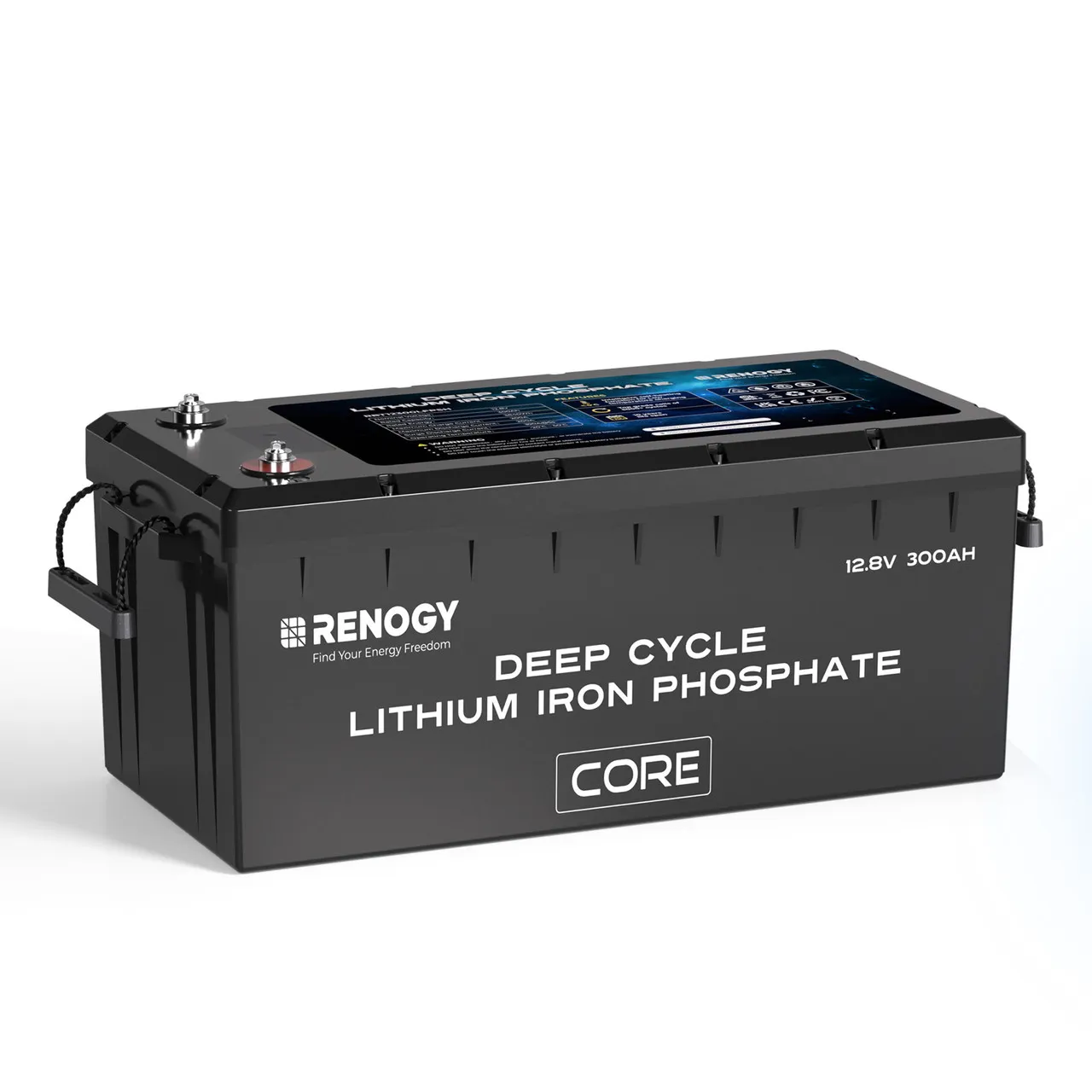

Renogy Core Series 12Volt 300Ah LiFePO4 Battery

Dive into Off Grid Travel

Embarking on an overland adventure is no easy feat, but the Renogy 12V 300Ah Core LiFePO4 Battery ensures that you have reliable, safe power for the journey.

IP65 Rating means it’s built to withstand water splashes, heat, vibrations, and more, it lets you reach your destination with reliable power.

Package Includes:

• 1x Core - 12V 200Ah Lithium Iron Phosphate Battery
• 2x Terminal Bolts (M8 x 1.25 x 12 mm)
• 2x Long Terminal Bolts (M8 x 1.25 x 16 mm)
• 1x User Manual

Features:

• Provides 59% more power than a 200Ah LiFePO4 for superior performance.
• Includes BMS protection with low-temp cut-off for cold conditions.
• Supports series, parallel, or both connections for flexibility.
• Features 2x faster self-heating that activates at 32℉ for optimal use.

Electrical Data:

• Rated Capacity (0.5C, 25℃): 200Ah
• Nominal Voltage: 12.8V
• Energy: 2560Wh
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Temperature Parameters:

• Operation Temperature Range: Charge: -20°C to 55°C/ -4°F to 131°F
• Operation Temperature Range: Discharge: -20°C to 60°C/ (-4°F to 140°F)
• Storage Temperature Range: -25°C to 65°C/ -13°F to 149°F
• Operation Relative Humidity: 10% to 95%

Charging Parameters:

• Charge Voltage 14.4V
• Maximum Continuous Charge Current: 200A

Mechanical Specifications:

• Dimension (L x W x H): 522 x 240 x 219 mm / 20.55 x 9.45 x 8.62 in
• Weight: 31.3 kg / 47.3 lbs.
• Terminal Bolt Size: 2 x M8 x 1.25 x 15 mm
• Protection Rating: IP65
