ROK HARNESS

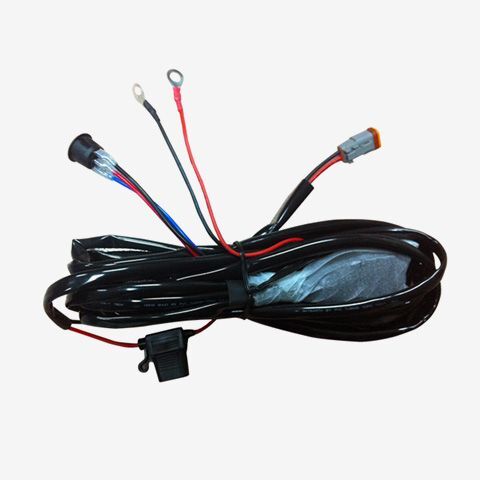

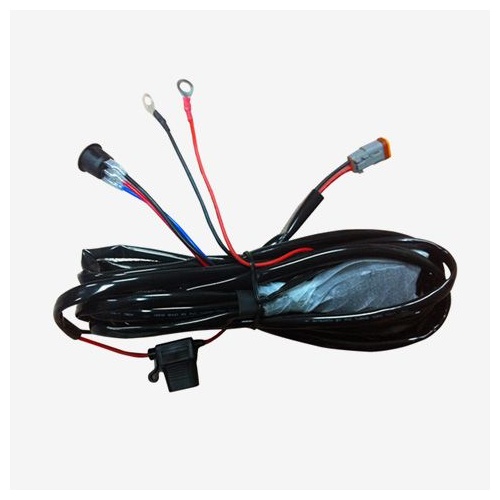

This 12 volt wiring harness is suitable for use with the ROK 10, 20 and 40 series LED work lights.

Harness incorporates a 40 amp relay, fully terminated two pin waterproof Deutsch connector and illuminated switch, with an inline fuse rated at 5 amps.



Cable lengths:

• Relay to Deutsch 2 pin connector - 2.3 meters
• Relay to battery ring terminals - 1.2 meters
• Relay to switch - 1.3 meters



Switch connections:

• Pin 1: Blue - power out
• Pin 2: Red - power in
• Pin 3: Black - ground (for LED illumination)
