Stedi 14" ST4K 24 LED Double Row LED Light Bar

$149.99
RRP $199.99
SAVE $50.00 (25%)
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock.



Calculate Shipping

Our all new ST4K™ 14 Inch is the culmination of years of our proven experience in delivering market leading LED auxiliary lighting. Fitted with 12 of OSRAM’s® finest OSLON® LED for a combination of 4 Flood + 16 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 514m

The ST4K™ range feature our all new 3-part beam adopted from our flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x our price and a massive +165% increase in lux performance in comparison to the outgoing ST4000!

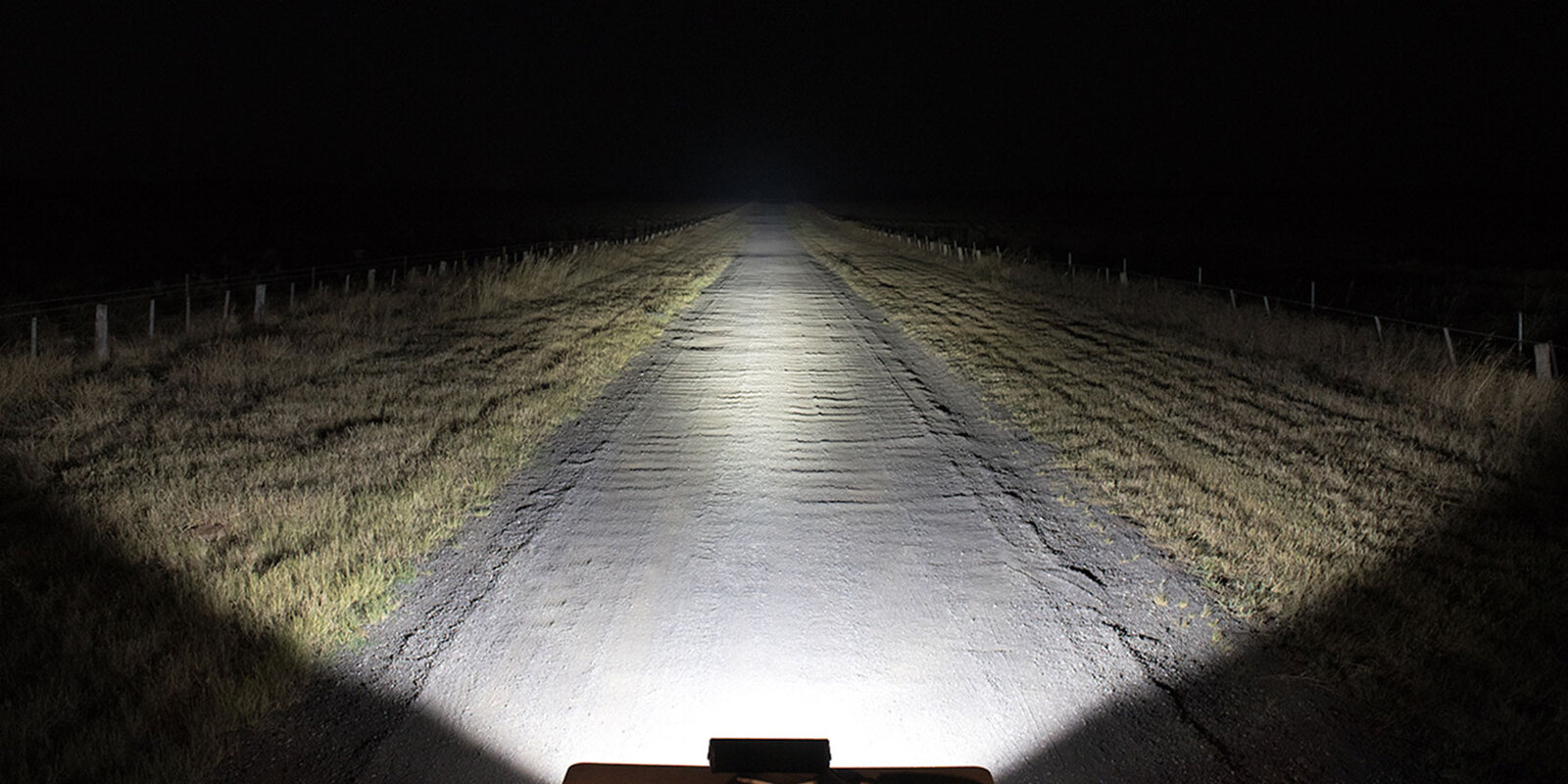

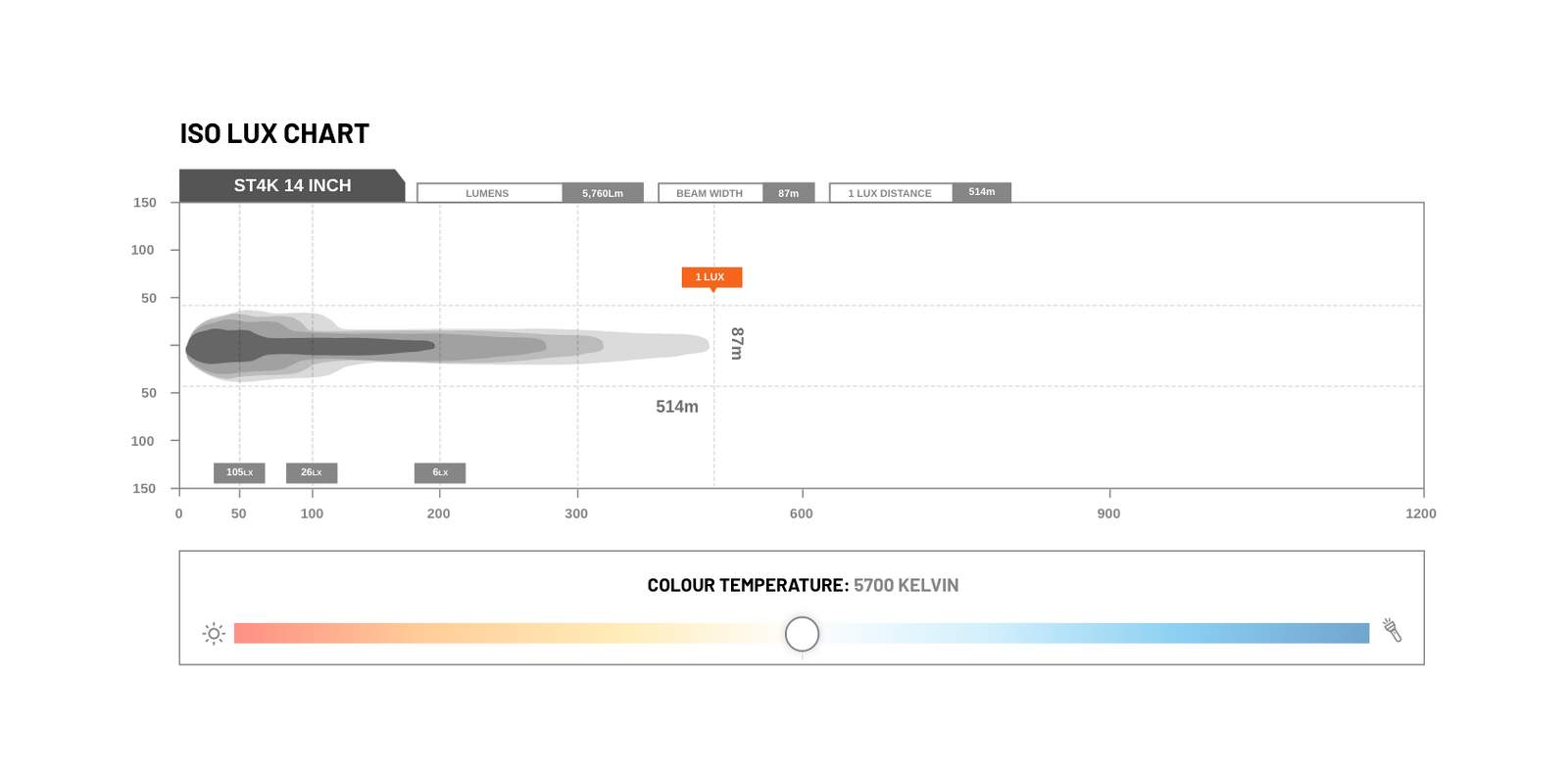

514M METRES 1 LUX BEAM THROW

MARKET LEADING BEAM DISTANCE!

Night

Lux

Dimensions

Temp

DETAILS

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

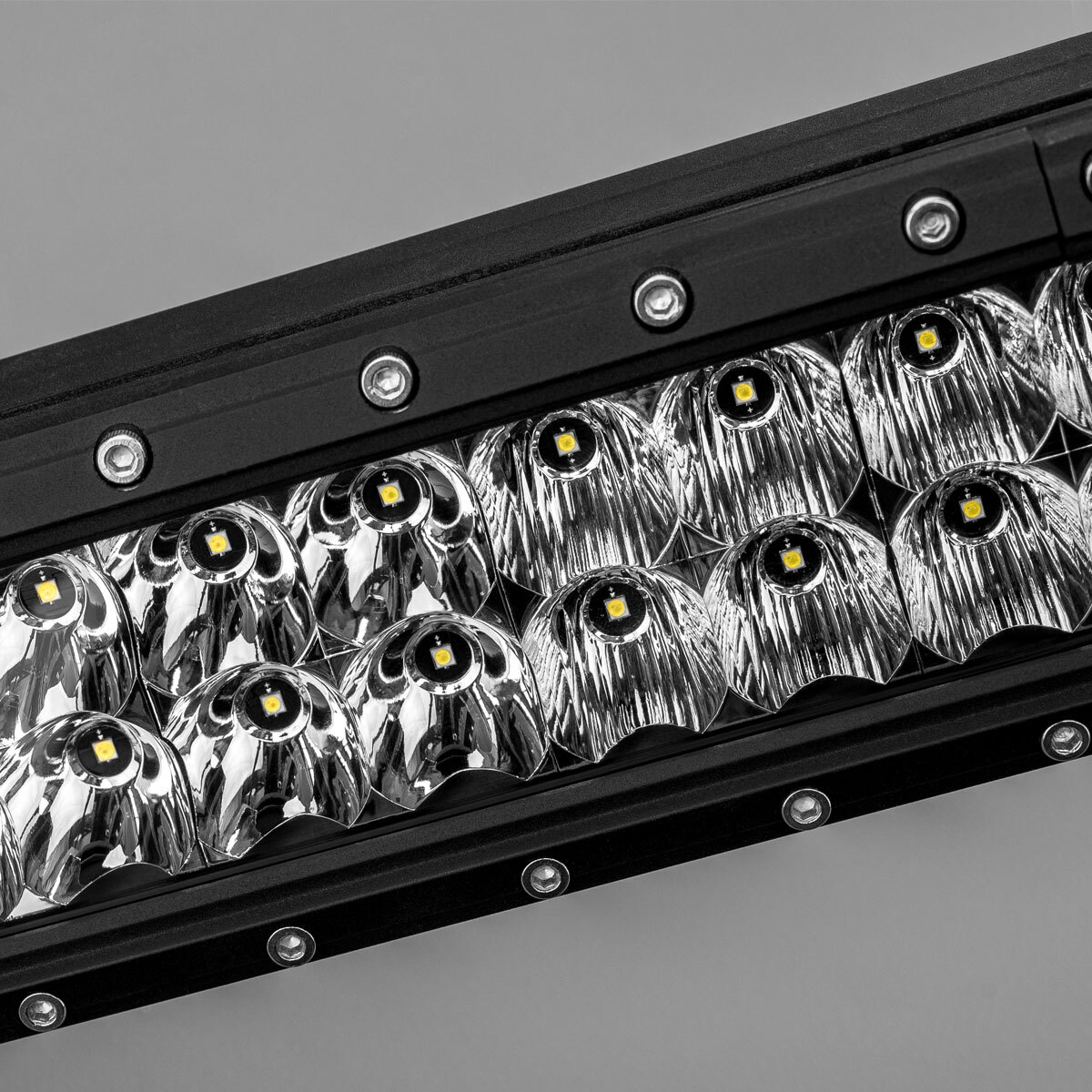

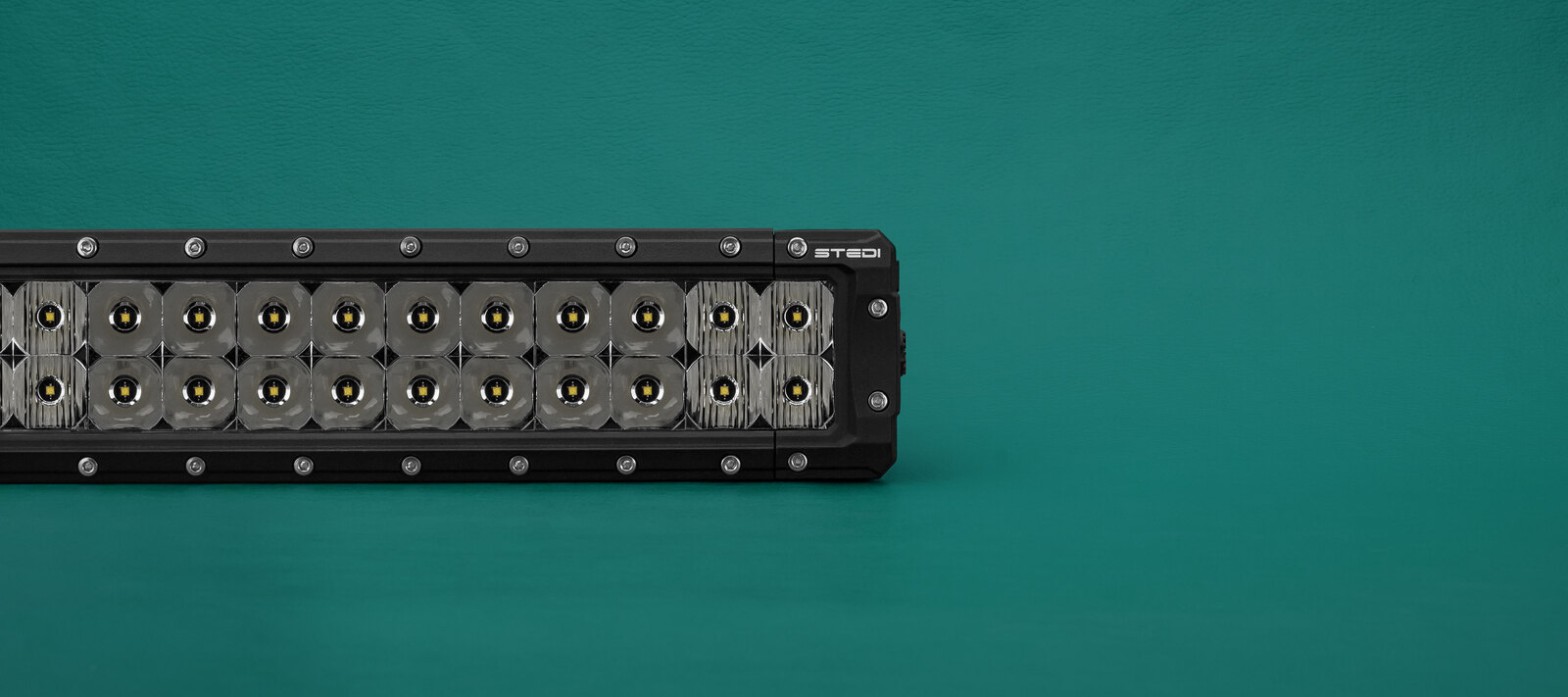

  • STEDI ST4K-24 features 24 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

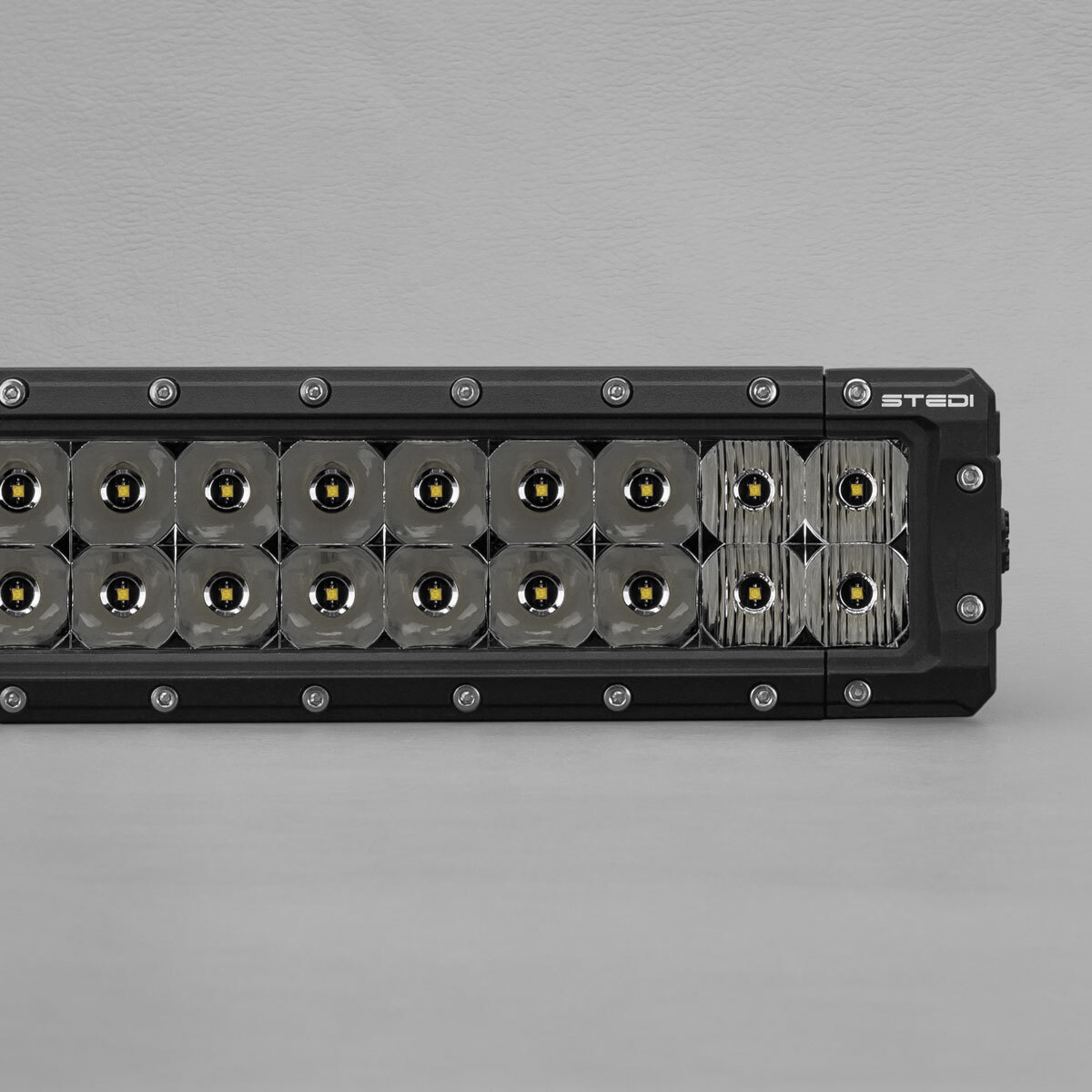

  • 4 Flood + 16 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 514m
  • Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
  • Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

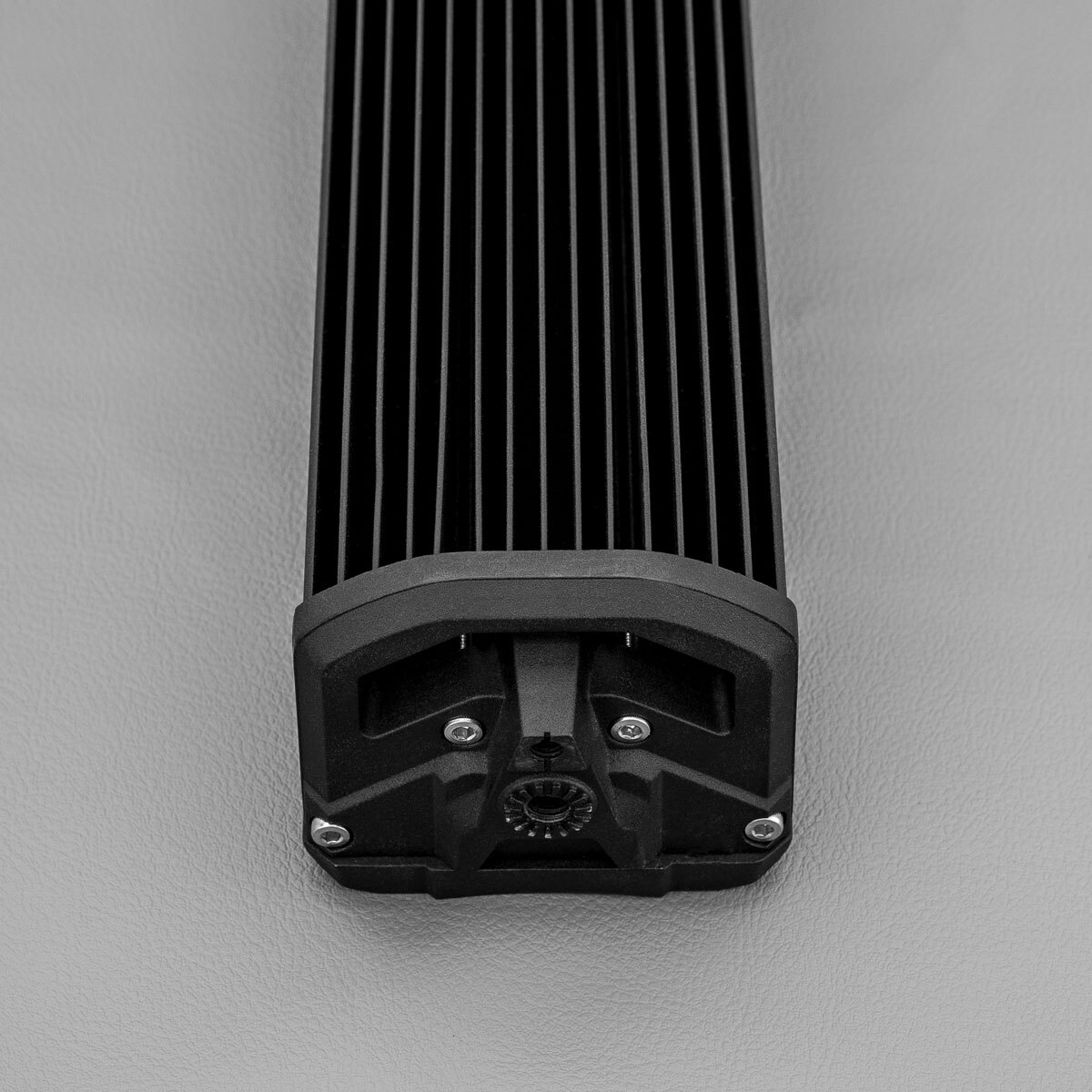

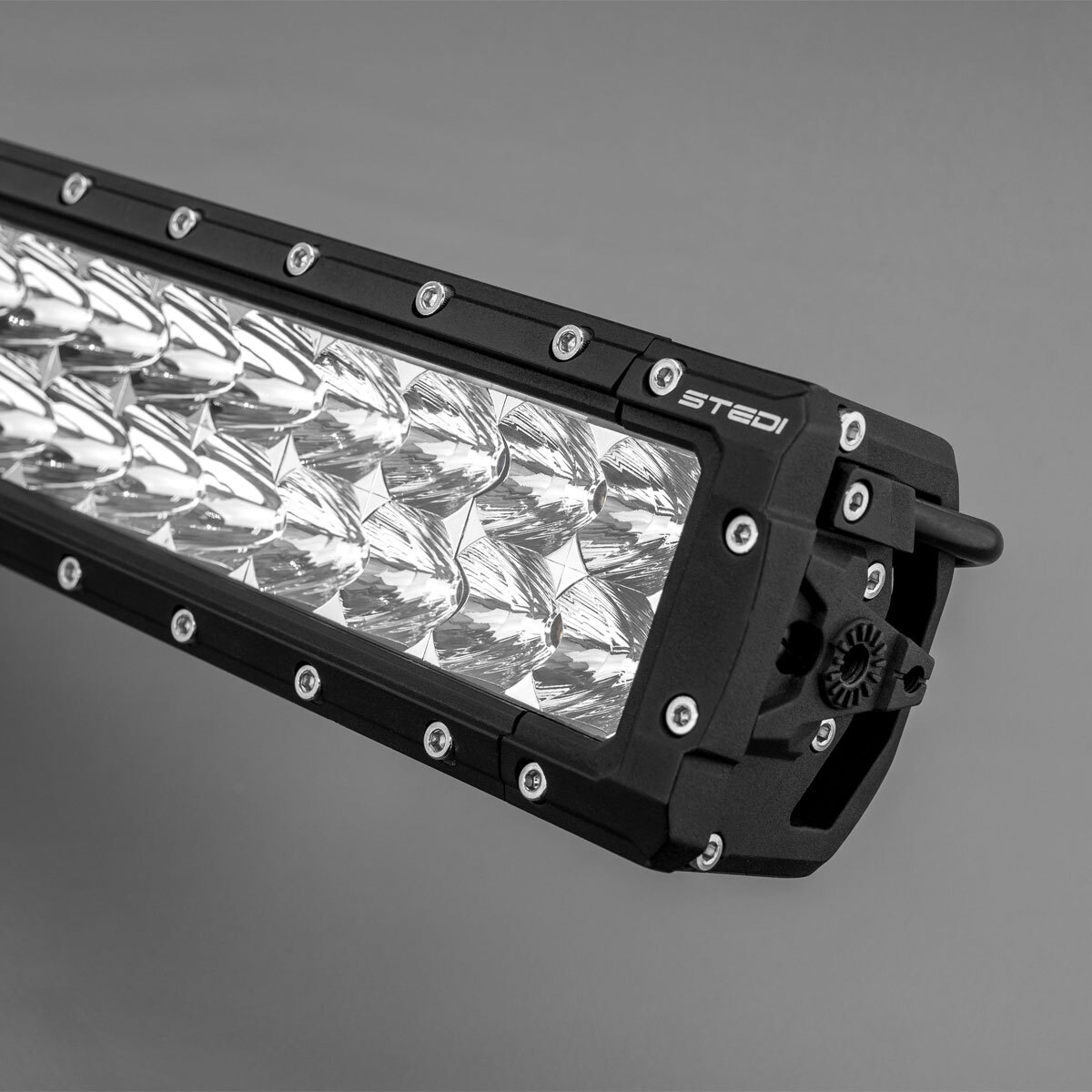

  • A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
  • Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

  • IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!

  • Environmentally sealed Deutsch ® DT connector.

Backed by our no nonsense 5-year replacement warranty.

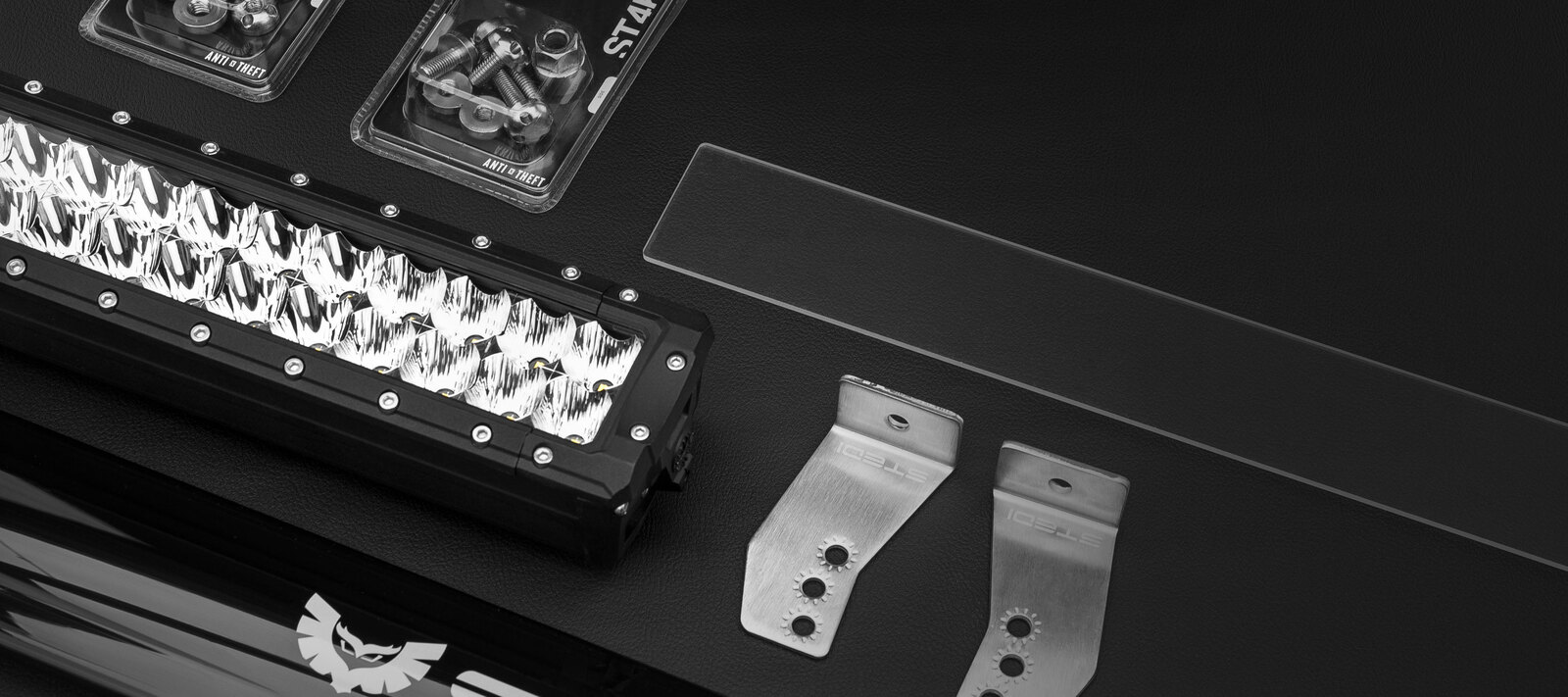

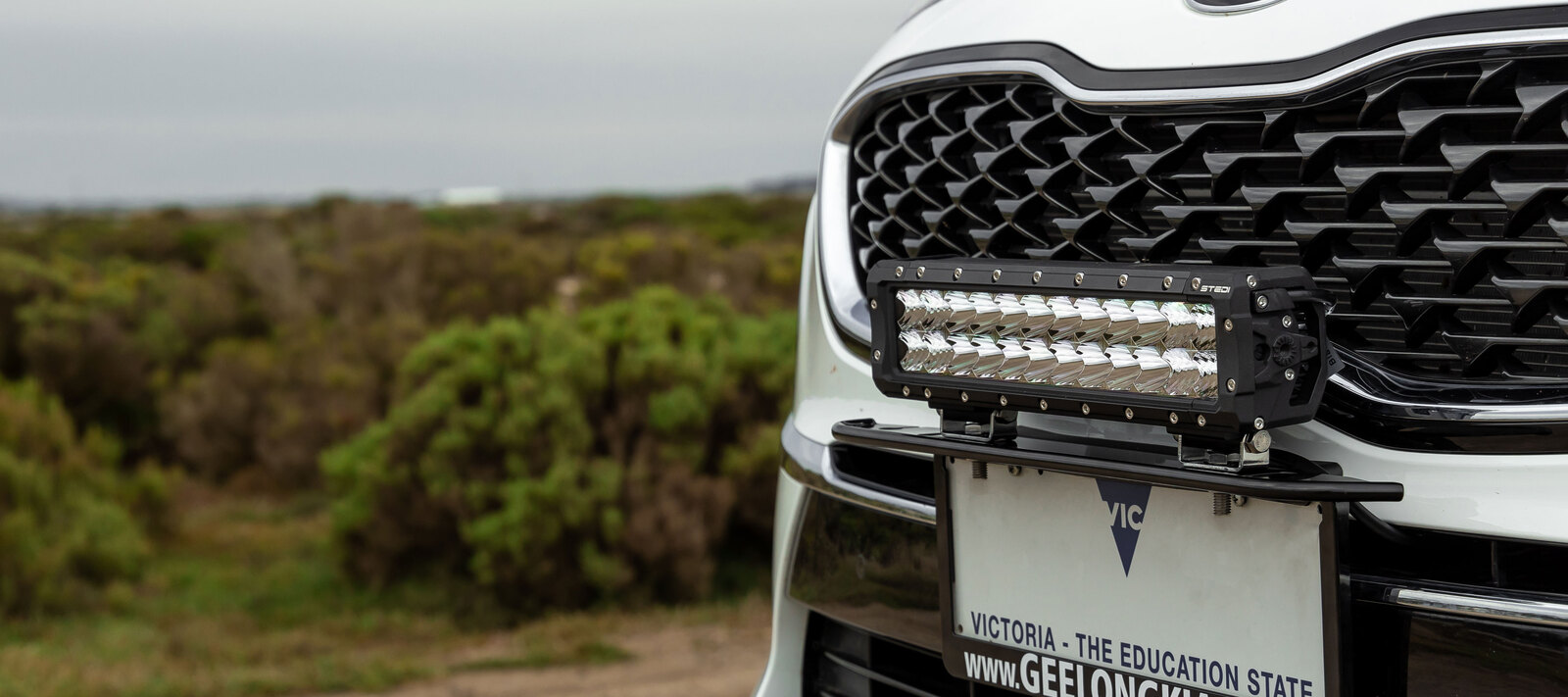

MOUNT IT YOUR WAY

We know you want flexible mounting options, which is why we’ve included two separate mounting options.

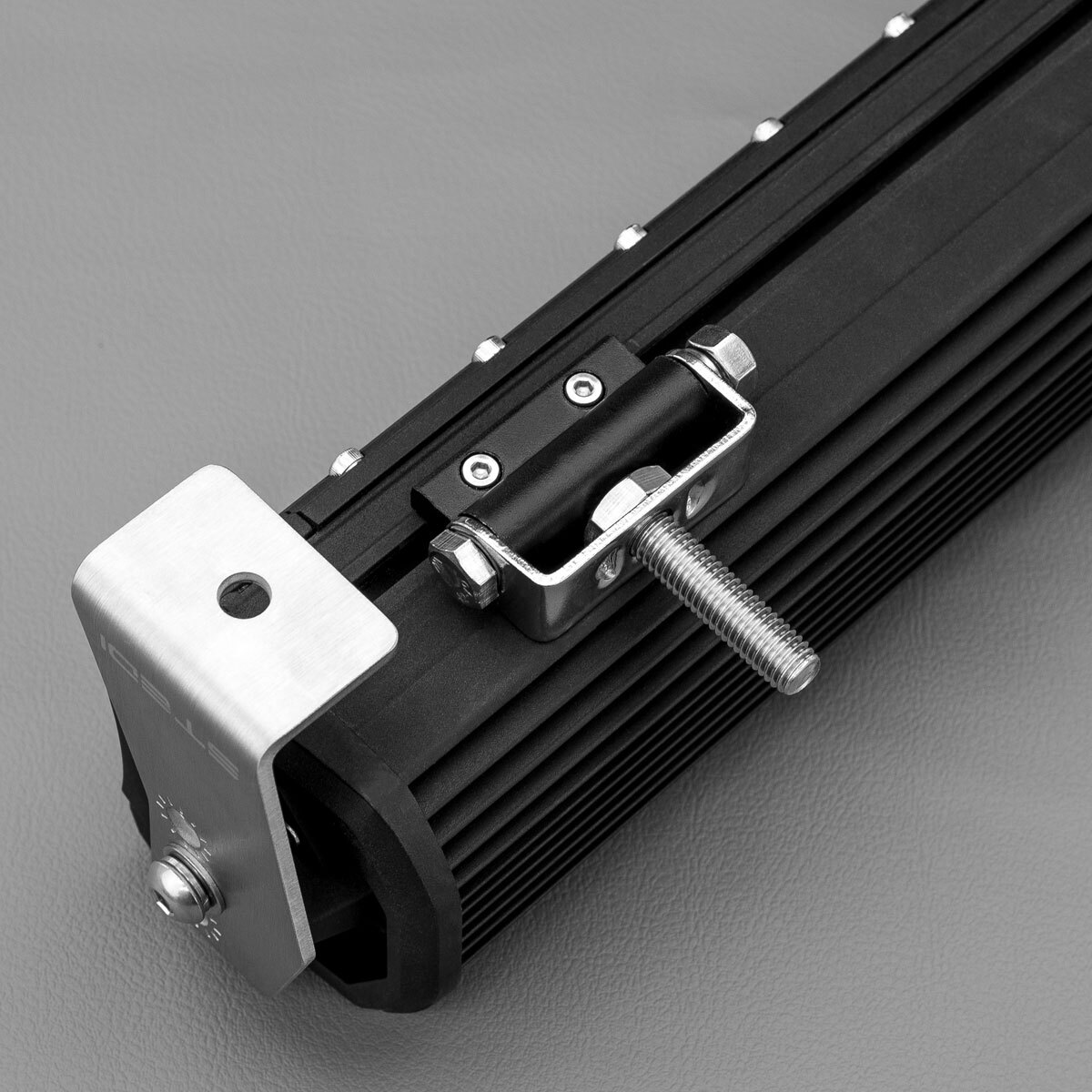

  • The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar deck very straight forward.
  • Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

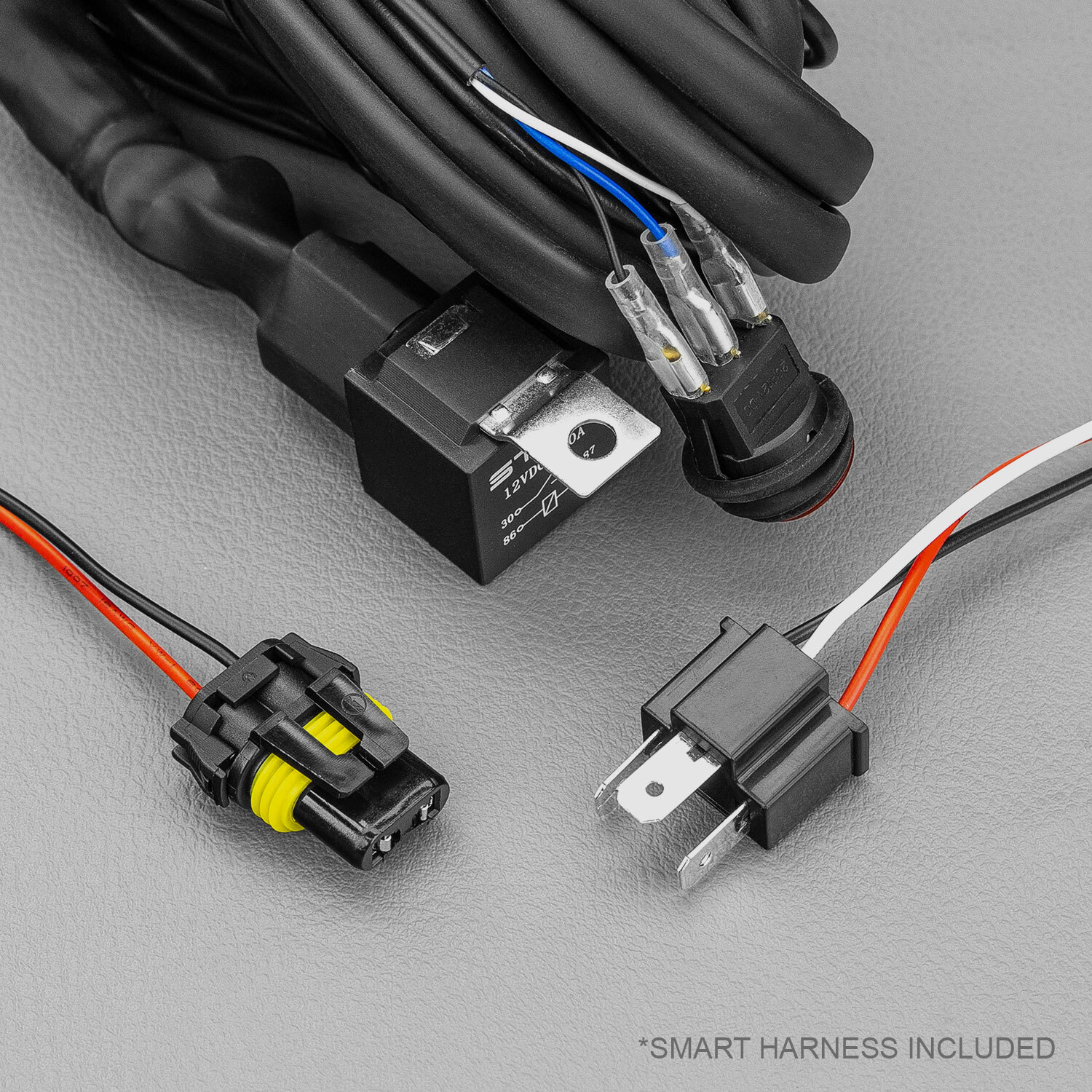

EASY-FIT Plug & Play High Beam Wiring Harness included.

Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsoever.

 No nonsense 5 Year Replacement Warranty backed by an Australian company with a bricks & mortar presence.

View

SPECIFICATIONS

LED MANUFACTURER  OSRAM (Oslon) ®
LED COUNT 24
VOLTAGE  12V & 24V
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
LUMENS 5,760 LUMENS
PEAK INTENSITY (CANDELA) 264960cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
AMPERES 4.9A @ 13.6v
LIFESPAN 50,000
FLOOD BEAM 50°
SPOT BEAM 5.8°
INGRESS PROTECTION IP69K
OPERATING TEMP -40°C to 60°C
WEIGHT 1.875kg

(LEDST4K-14-24L)

SKU LEDST4K-14-24L
Brand Stedi
