STEDI 4x Connector DT4 Plug & Play Smart Harness
$119.00
RRP $131.00
SAVE $12.00 (9%)
In Stock

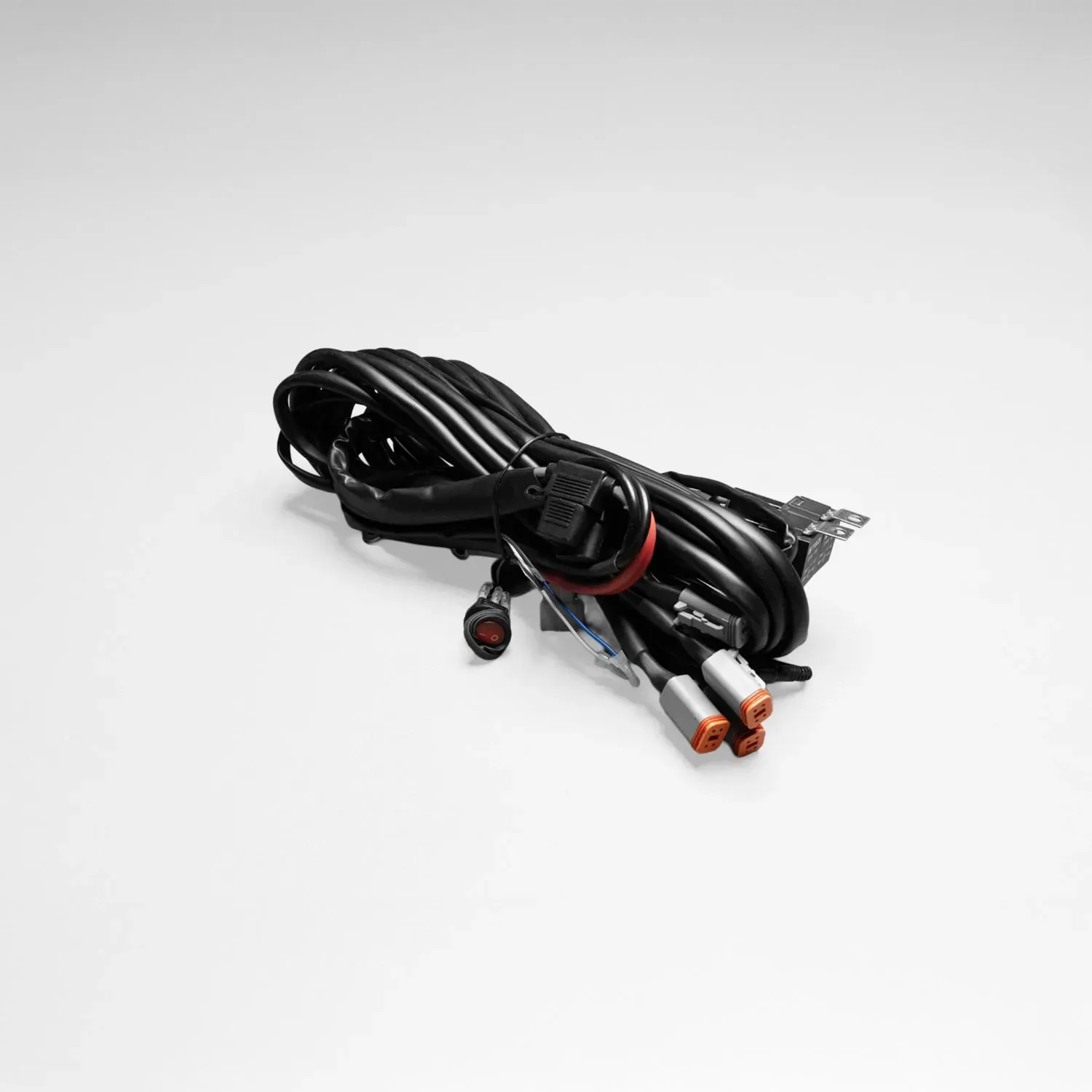

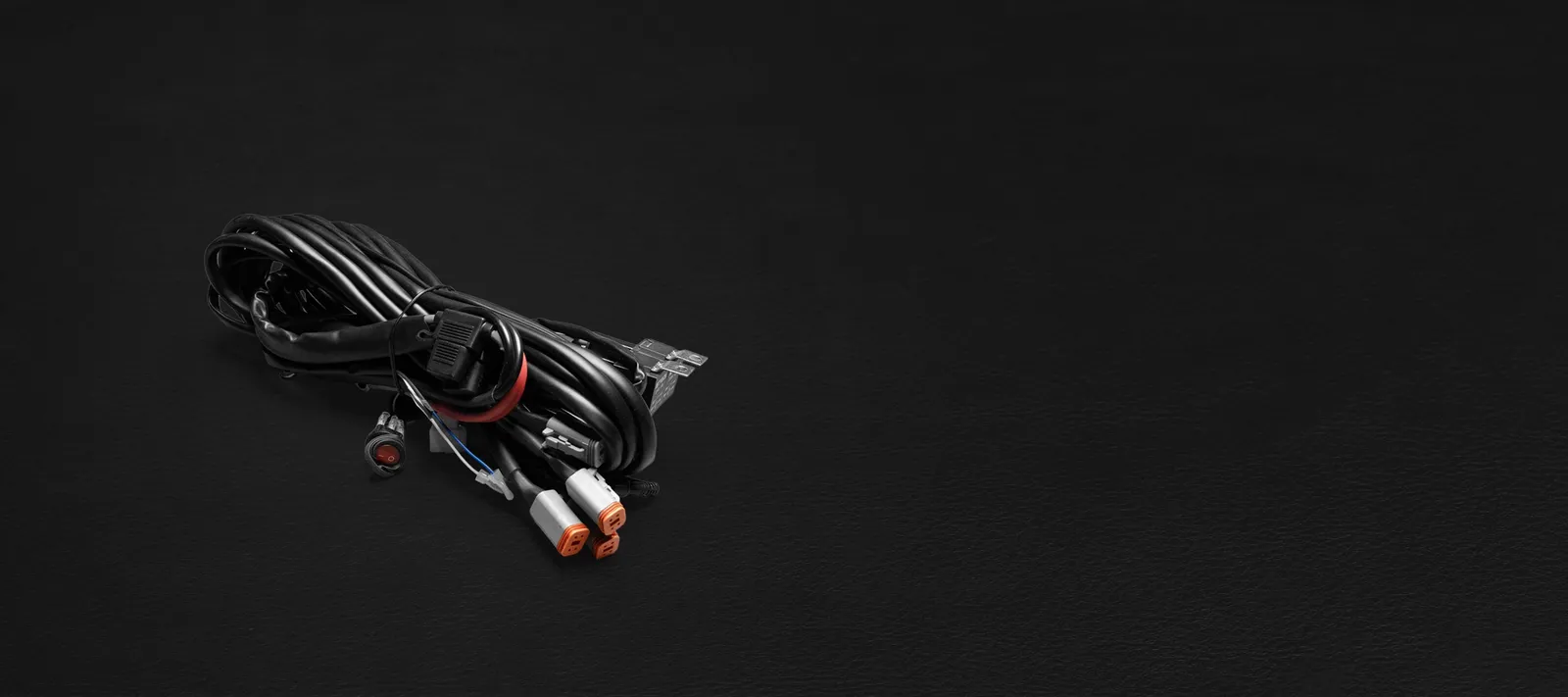

The STEDI 4x Connector DT4 Plug & Play Smart Harness is engineered for high-current dual-relay driving light applications. It uses heavy-duty 10 AWG cabling, includes two 80 A relays and provides automatic positive and negative switch detection for plug-and-play installation with DRL compatibility. The harness supports up to four lights using four 4-pin DT4 Deutsch connectors and includes 2.0 m of cable from the relays to the connectors.
Features:

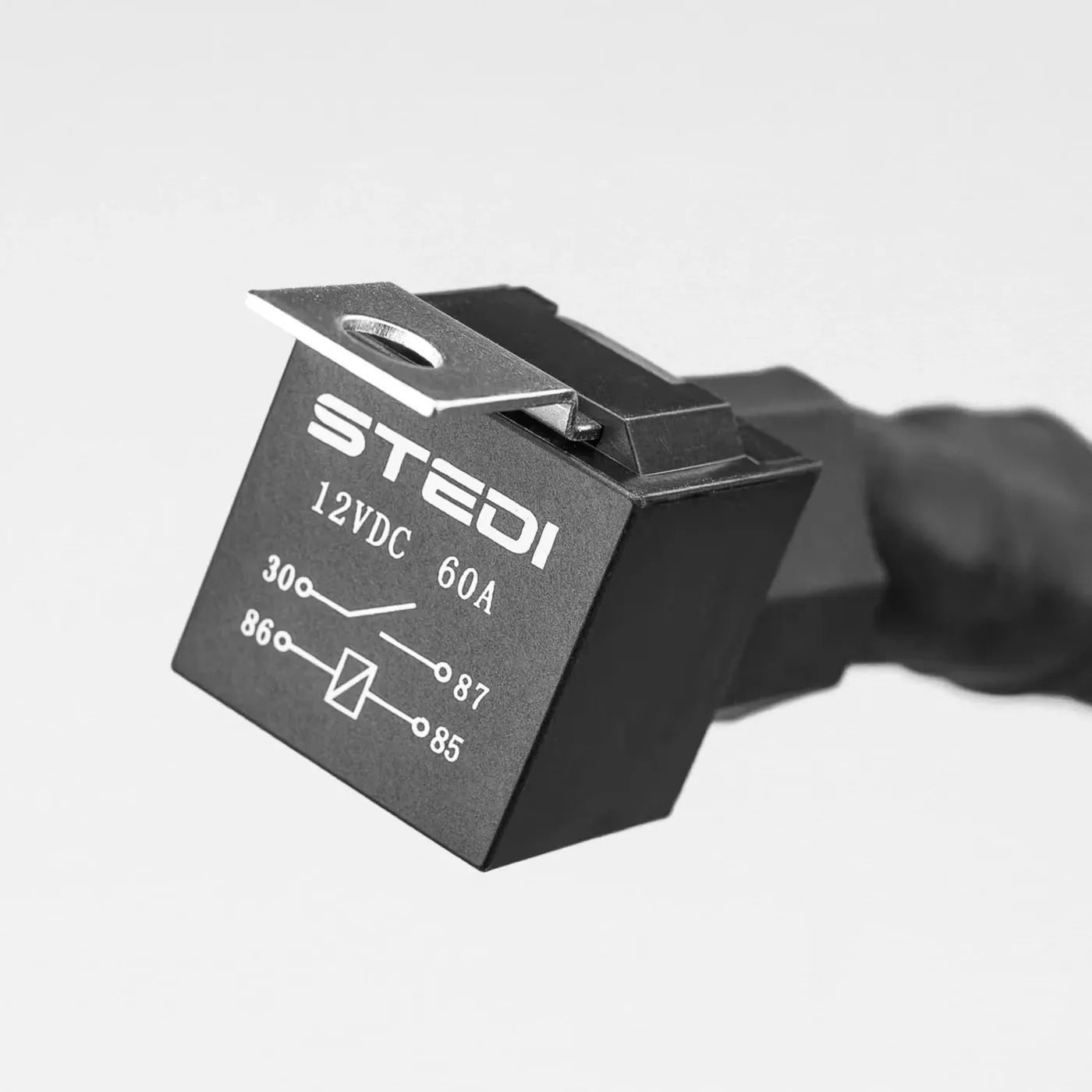

- 2 x 80 A relays

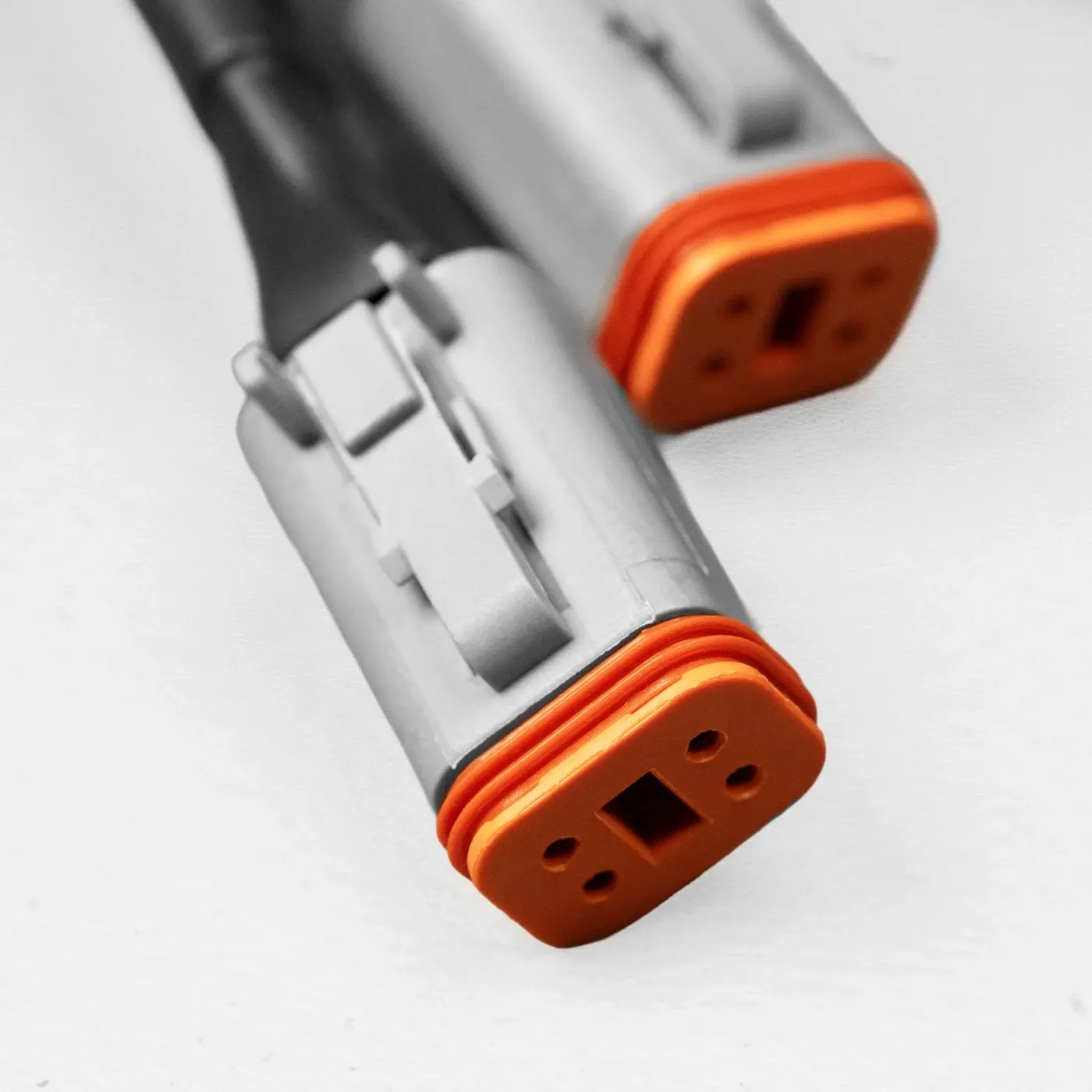

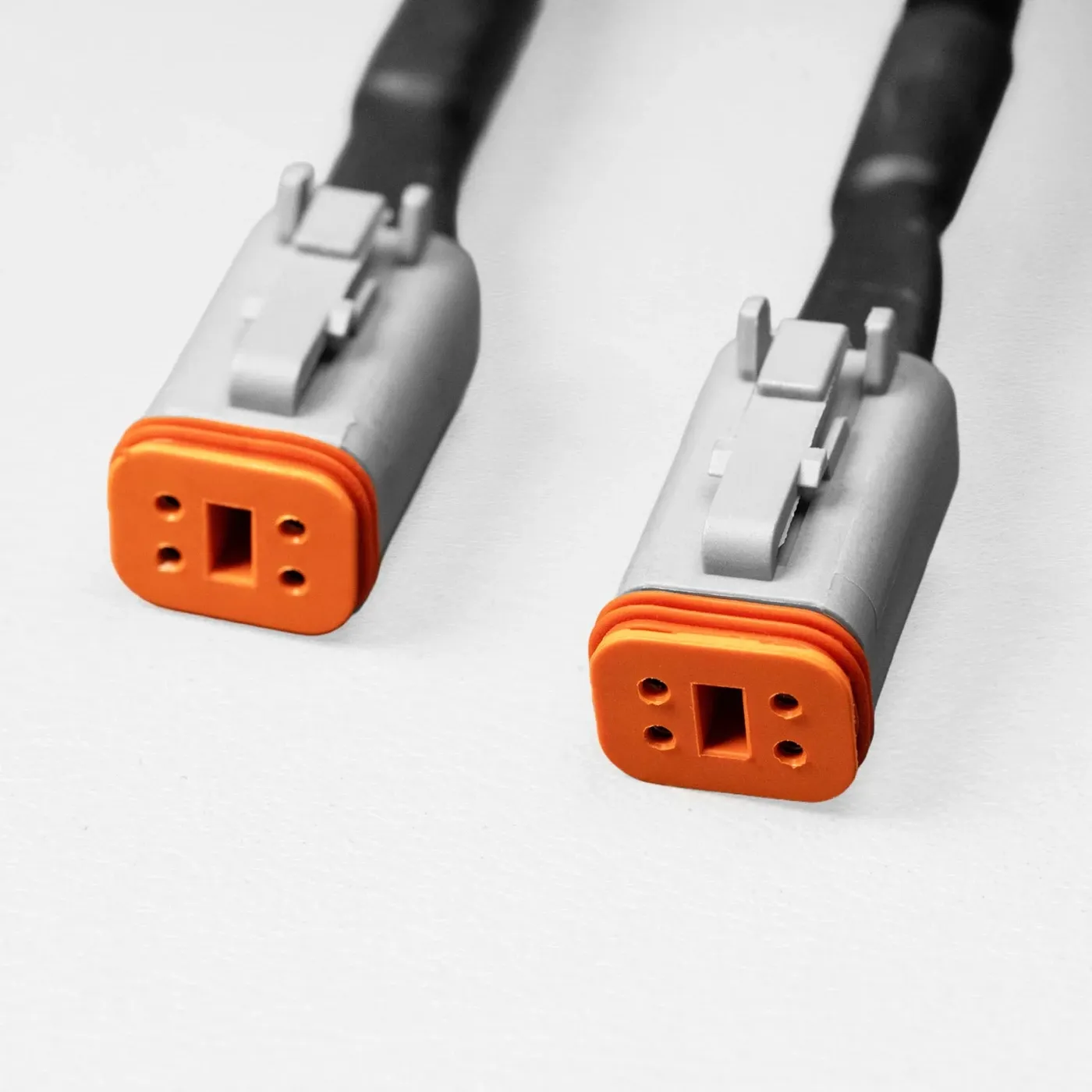

- 4 x 4-pin DT4 Deutsch connectors (20 A) — DRL compatible
- 2.0 m cable from relay to connectors
- 10 AWG heavy-duty cabling
- Harness capacity: 75 A

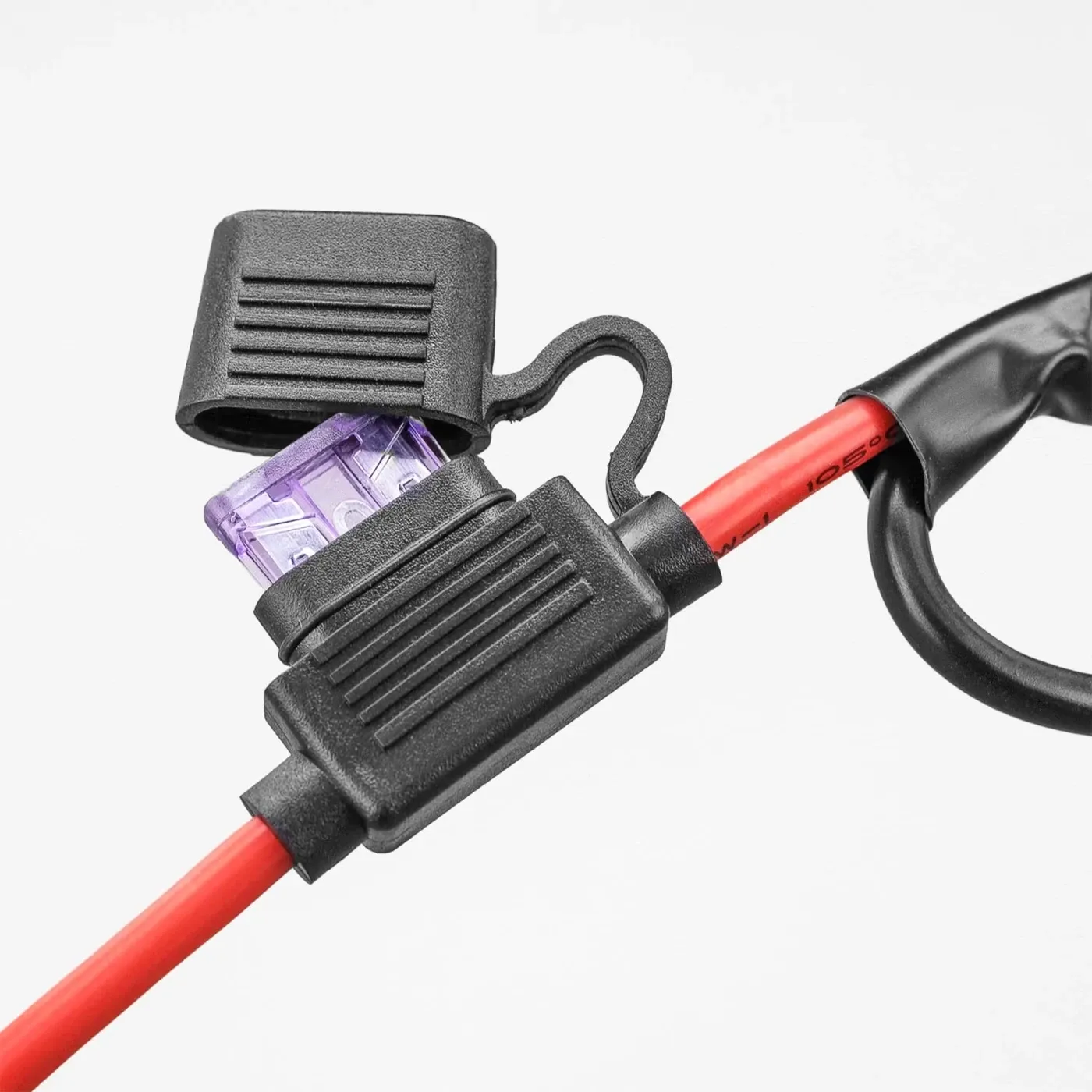

- Dual 45 A fuse protection

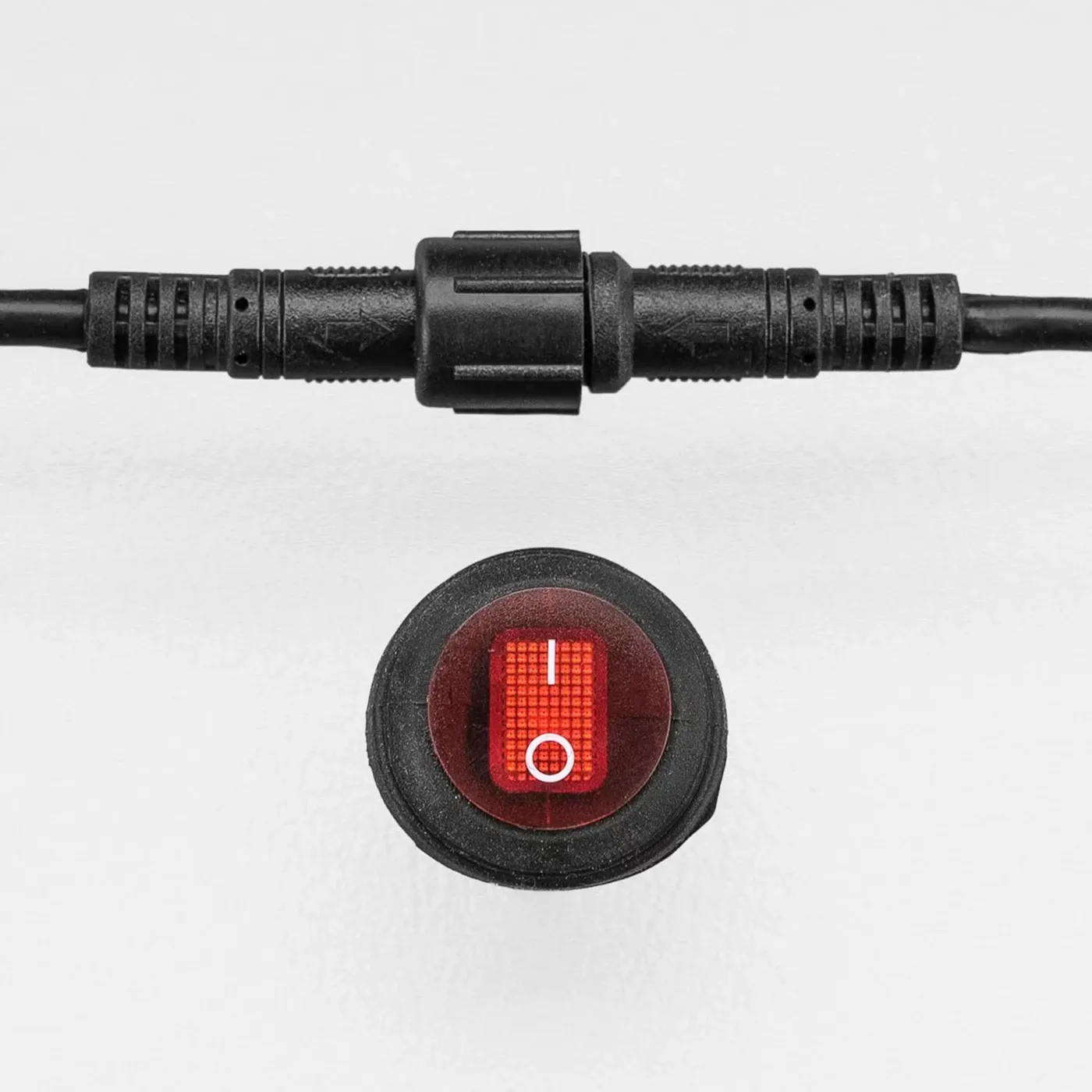

- Smart Harness™ for automatic positive and negative switch detection
- Quick connect compatible for plug-and-play installation
Specifications:
- Relay rating: 12 V DC, 80 A
- Fuse: 45 A
- Connectors: DT & DT-4
- Insulation: UV rated
- Max load: 70 A @ 12 V DC
Kit Includes:
- 2 x 80A Relay
- 4 x 4-pin DT4 Deutsch Connectors (20A) – DRL compatible
- 2.0m cable from Relay to connectors
- 10AWG heavy-duty cabling
- Dual 45A Fuse protection
- Smart Harness™ for automatic positive & negative switch detection
(ST-31-DT4-004)
| SKU | ST-31-DT4-004 |
| Brand | Stedi |
