STEDI 7 INCH CARBON Black LED Headlight

WAS $199.00
RRP $199.00
NOW $189.05
SAVE 5%!
Sale Ends in
23:59 pm, 4 December 2024
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

Add H4 CANBUS Module




Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

FINALLY, A WORTHY 7" LED HEADLAMP.

You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a half halo park light, the CARBON is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs 7" headlights (list of known compatible models in the description).



PERFORMANCE THAT SURPASSES THE VERY BEST.

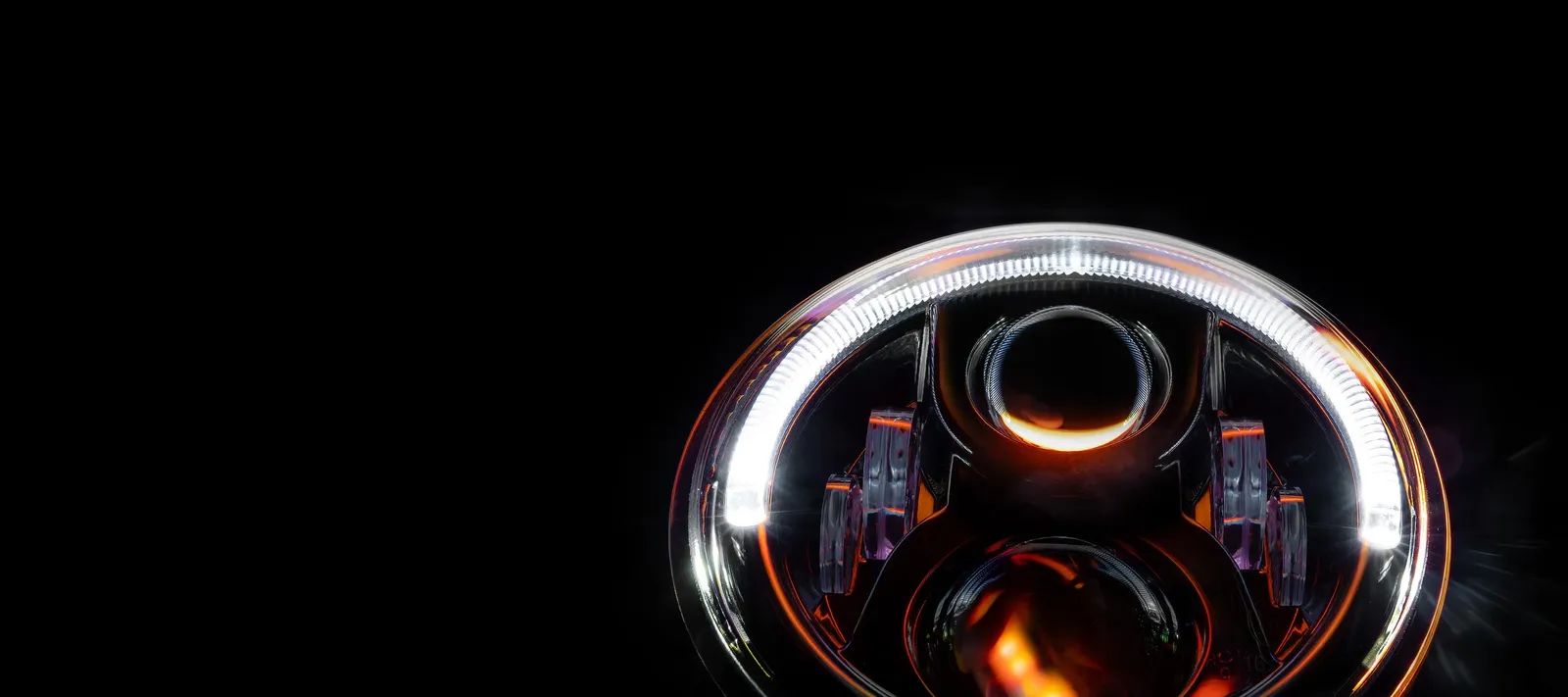

The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.



ADR COMPLIANT.

The CARBON falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.







The Nitty Gritty.

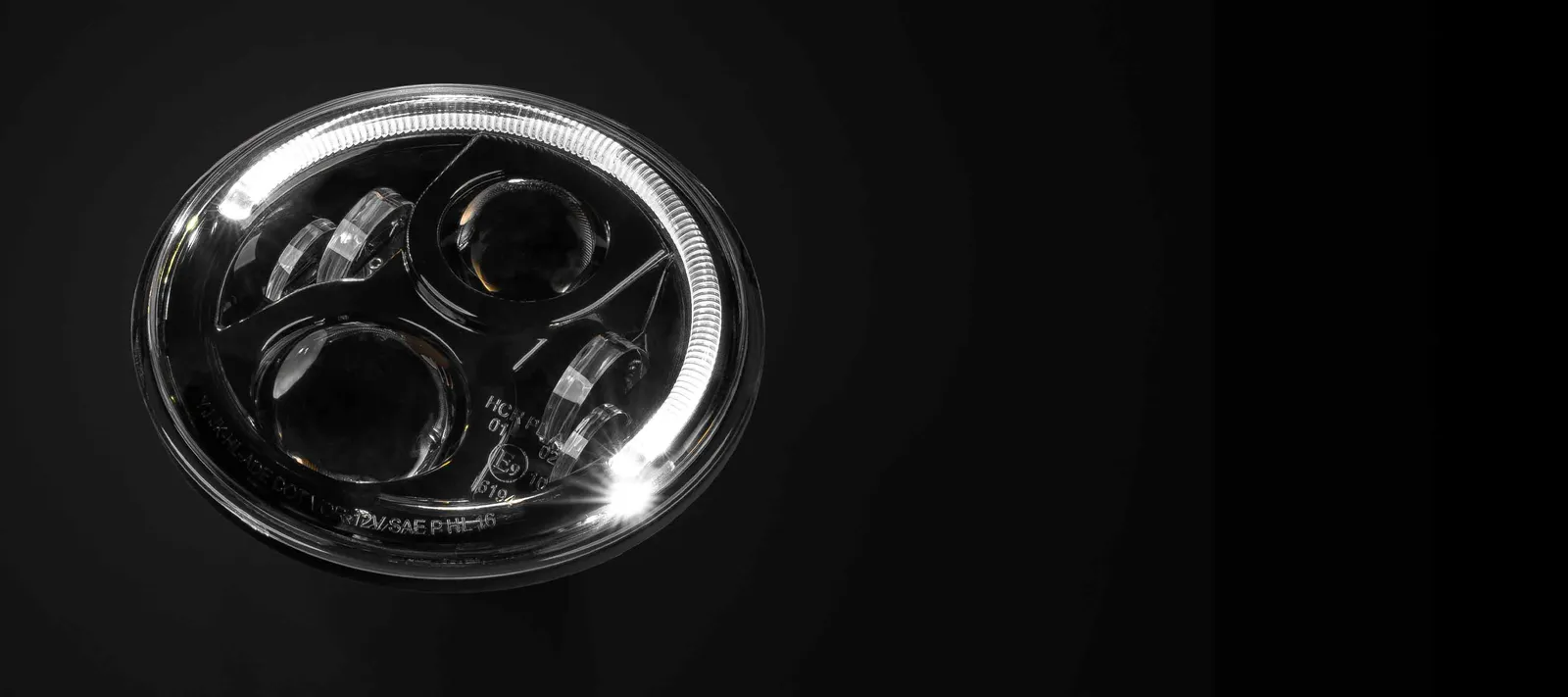

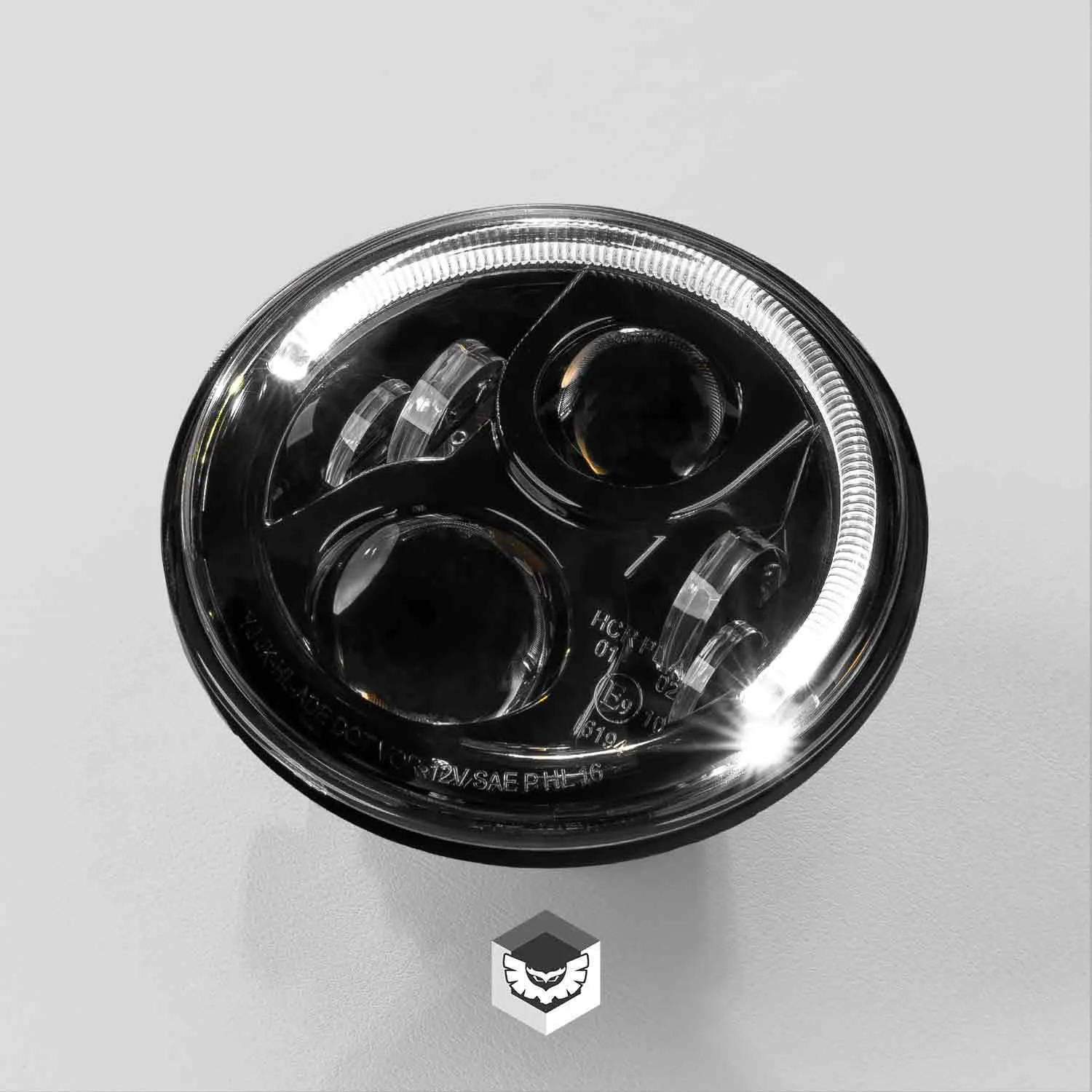

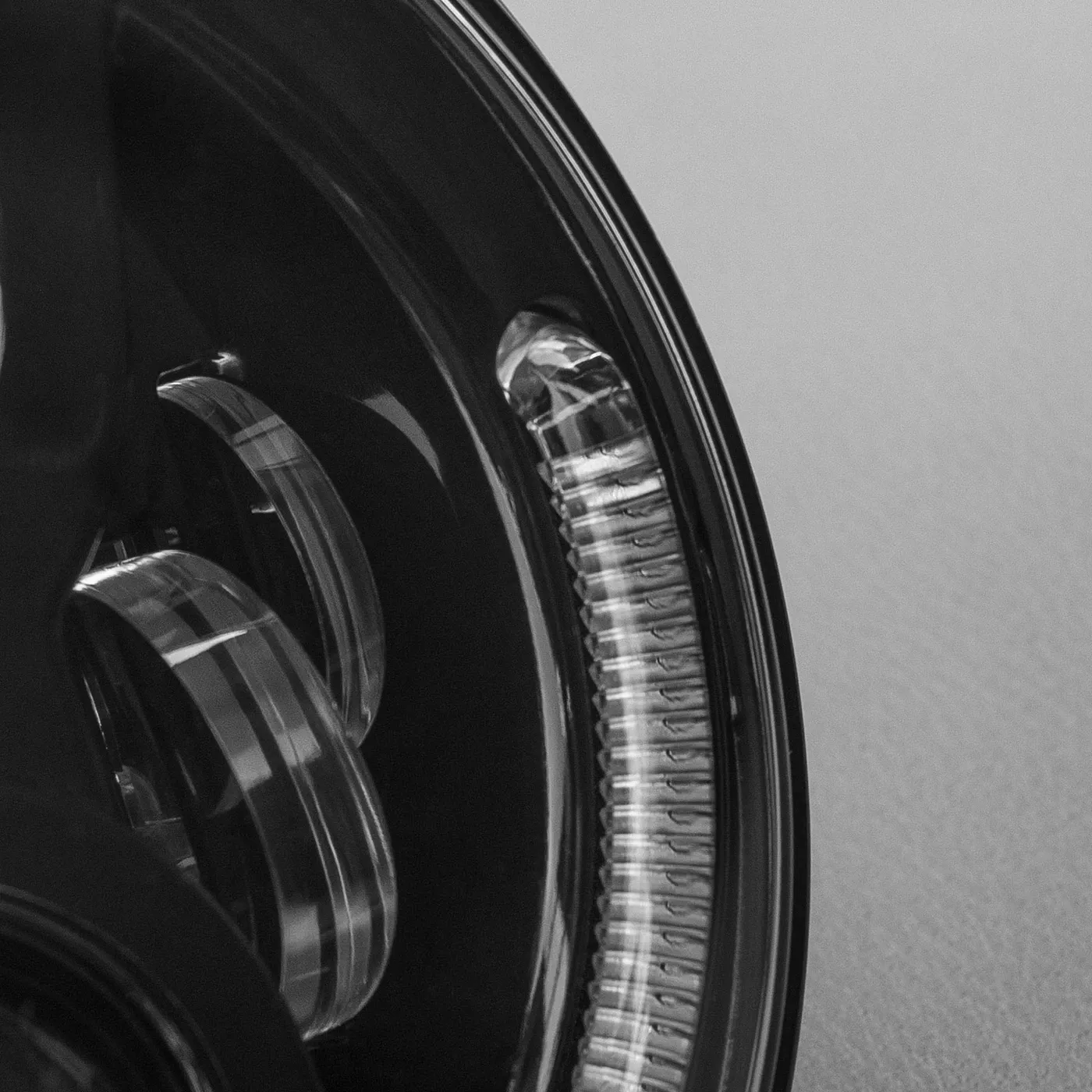

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light, the CARBON 7" is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

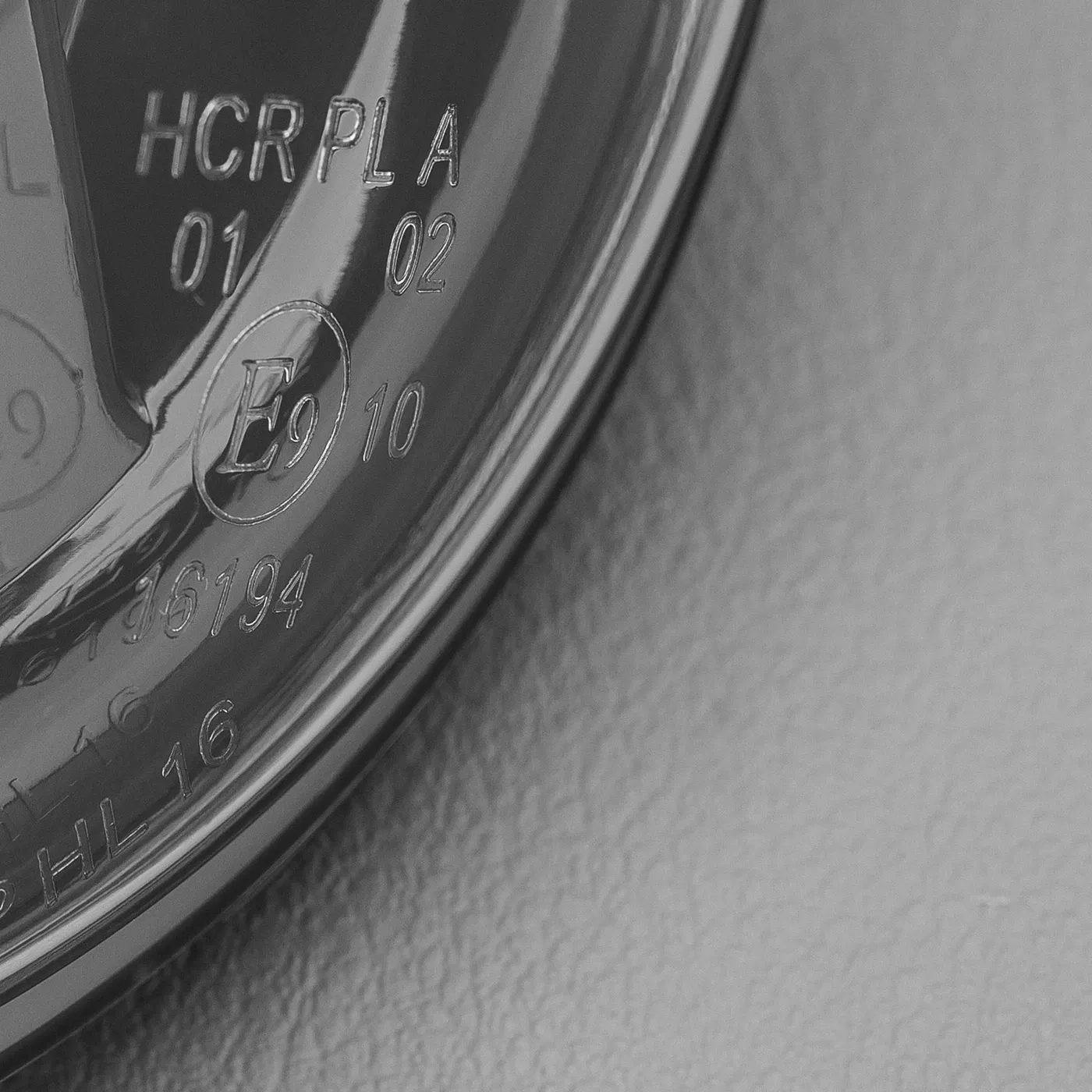

  • ADR Approved E-Mark CE
  • Proper Right Hand Drive Beam Geometry

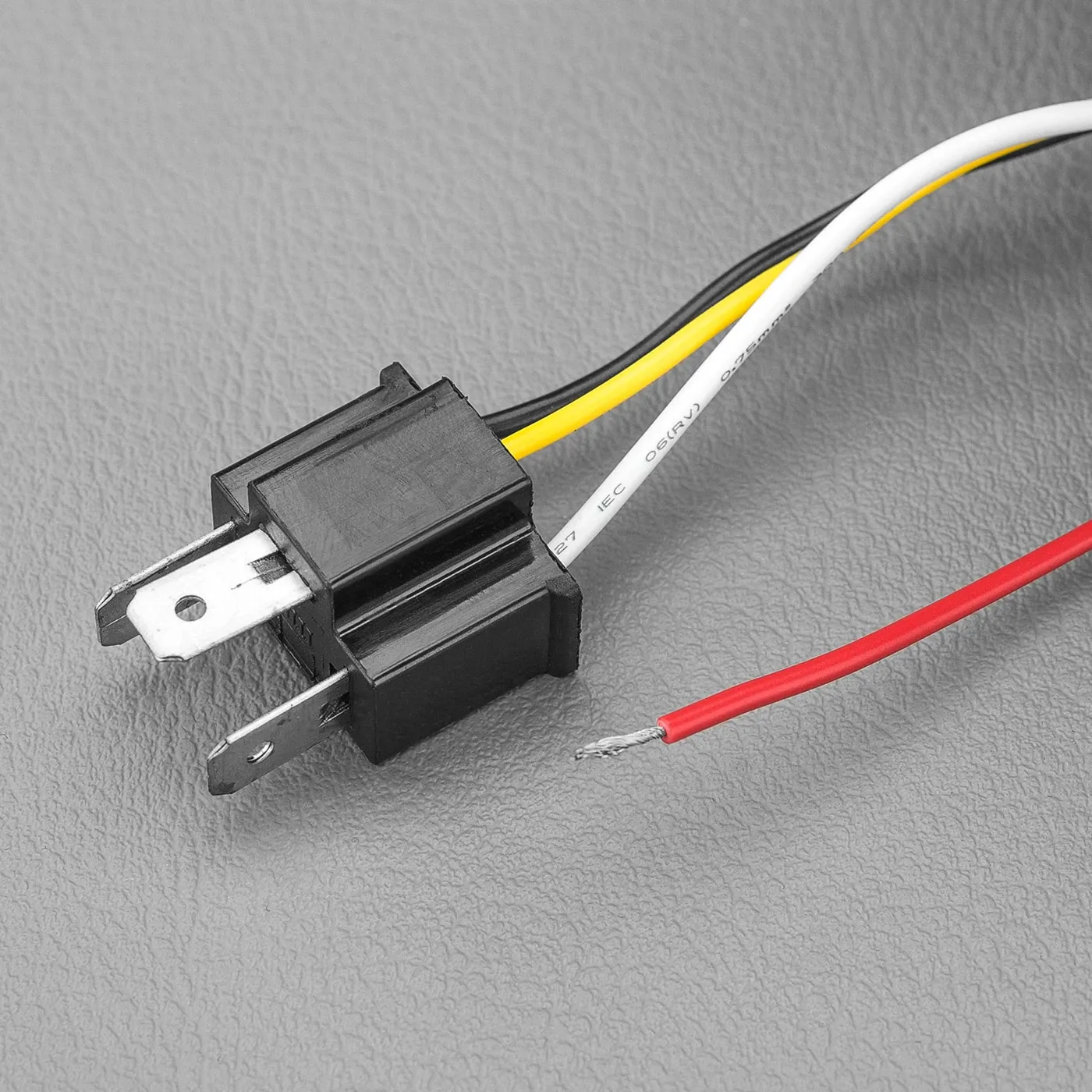

  • H4 Adaptor
  • High Beam 1 Lux @ 235m
  • Low Beam 1 Lux @ 141m

PERFORMANCE BUILD QUALITY

  • Anodized Polyester Powdercoat

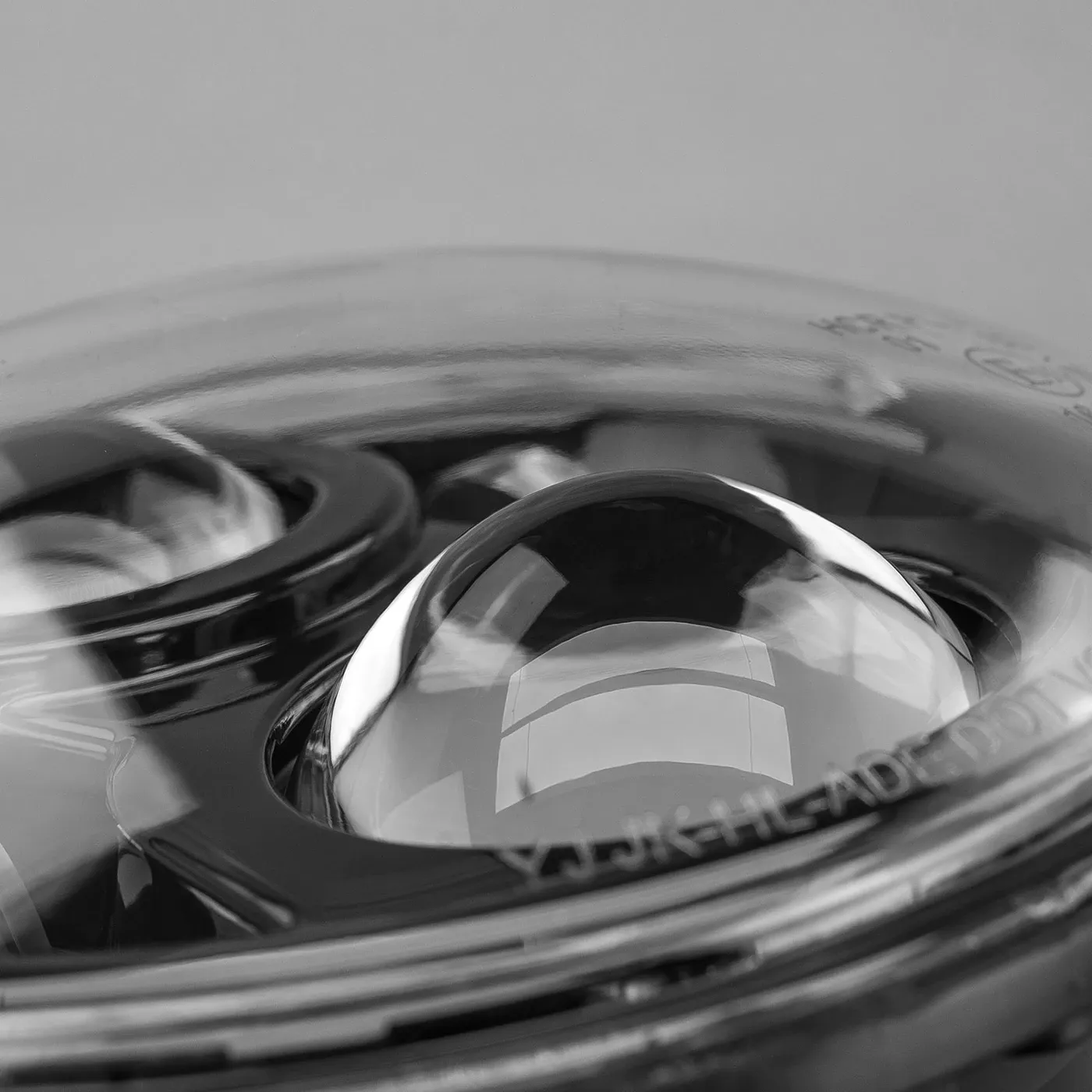

  • Lexan Polycarbonate (PC) Lens refractor

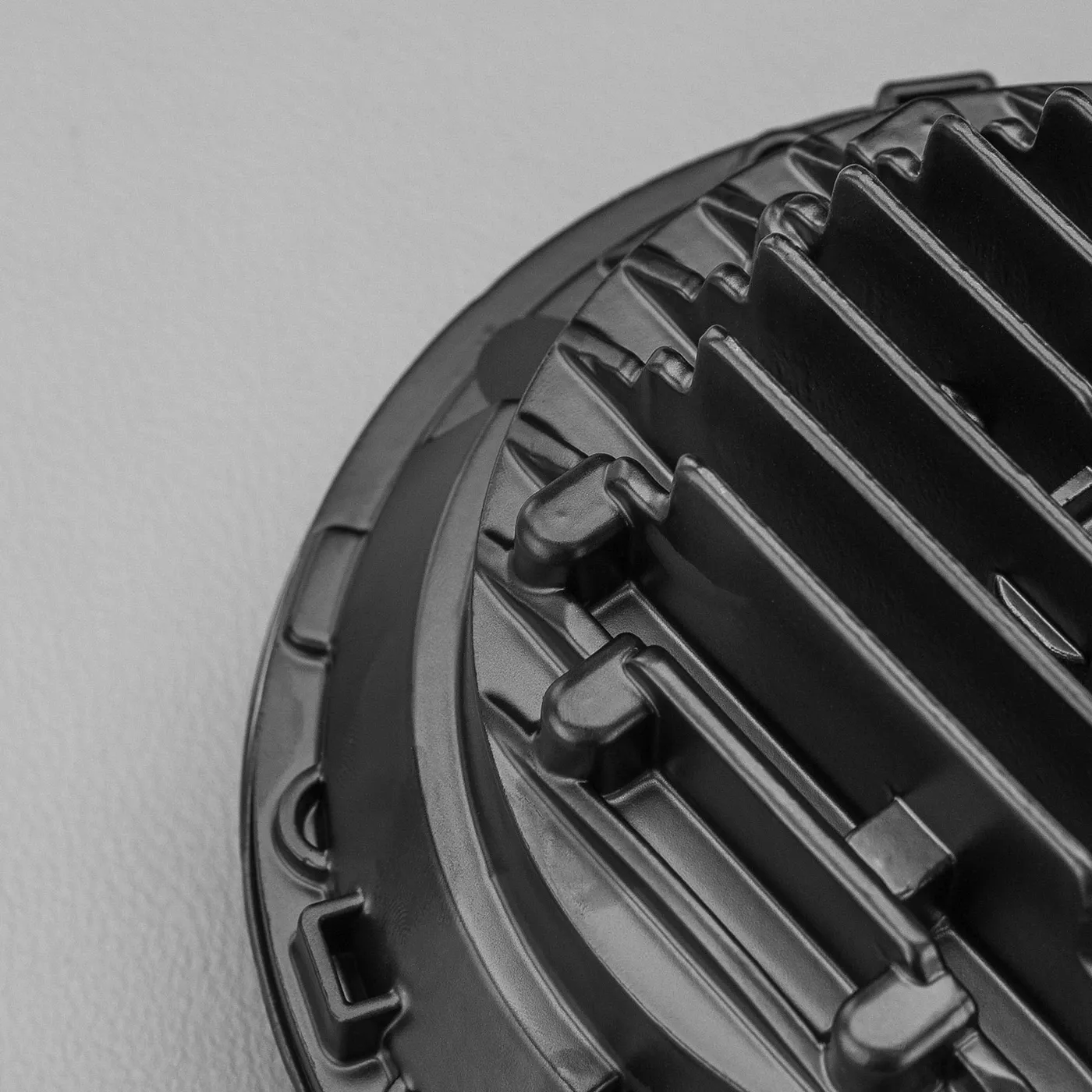

  • Die-cast aluminium alloy (ADC12) Heat-Sink
  • IP67 | Ingress Protection
  • Shock Proof, Waterproof and UV Shielded
  • Protected against Reverse Polarity and Voltage / Current surges
  • Warranty | 2 Years

COMPATIBLE MODELS:

  • 1955-1983 Jeep CJ-5
  • 1976-1986 Jeep CJ-7
  • 1981-1985 Jeep CJ-8
  • 1997-2006 Jeep Wrangler (TJ)
  • 2007-2015 Jeep Wrangler 2-Door (JK)
  • 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
  • 1982 - 1991 Mitsubishi Pajero (L040)
  • Land Rover Defender
  • 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
  • Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
  • GQ Patrol
  • Harley Davidson Motorcycles
  • Mercedes Benz G Wagon
  • Kenworth Trucks with 7 inch round headlight

Tech Specs

LED High Beam: 2 x 10w XML-2 LED
Low Beam: 2 x 15w LED
Park Light: 2 x 1.5w Osram
RAW LUMENS High Beam: 1800Lm
Low Beam: 1250Lm
Park Light: 150Lm
AMP DRAW High Beam: 2.4a @ 13.6v
Low Beam: 1.6a @ 13.6v
Park Light: 0.2a @ 13.6v
LIFESPAN 50,000 Hours
INGRESS PROTECTION IP67
OPERATING TEMPERATURE -30?C~+60?C
LENS MATERIAL LEXAN Polycarbonate
COLOUR TEMP 5700K
VOLTAGE COMPATIBILITY 12v & 24v
PEAK BEAM DISTANCE @ 1 LUX High Beam: 235m
Low Beam: 141m
Park Light: 8m

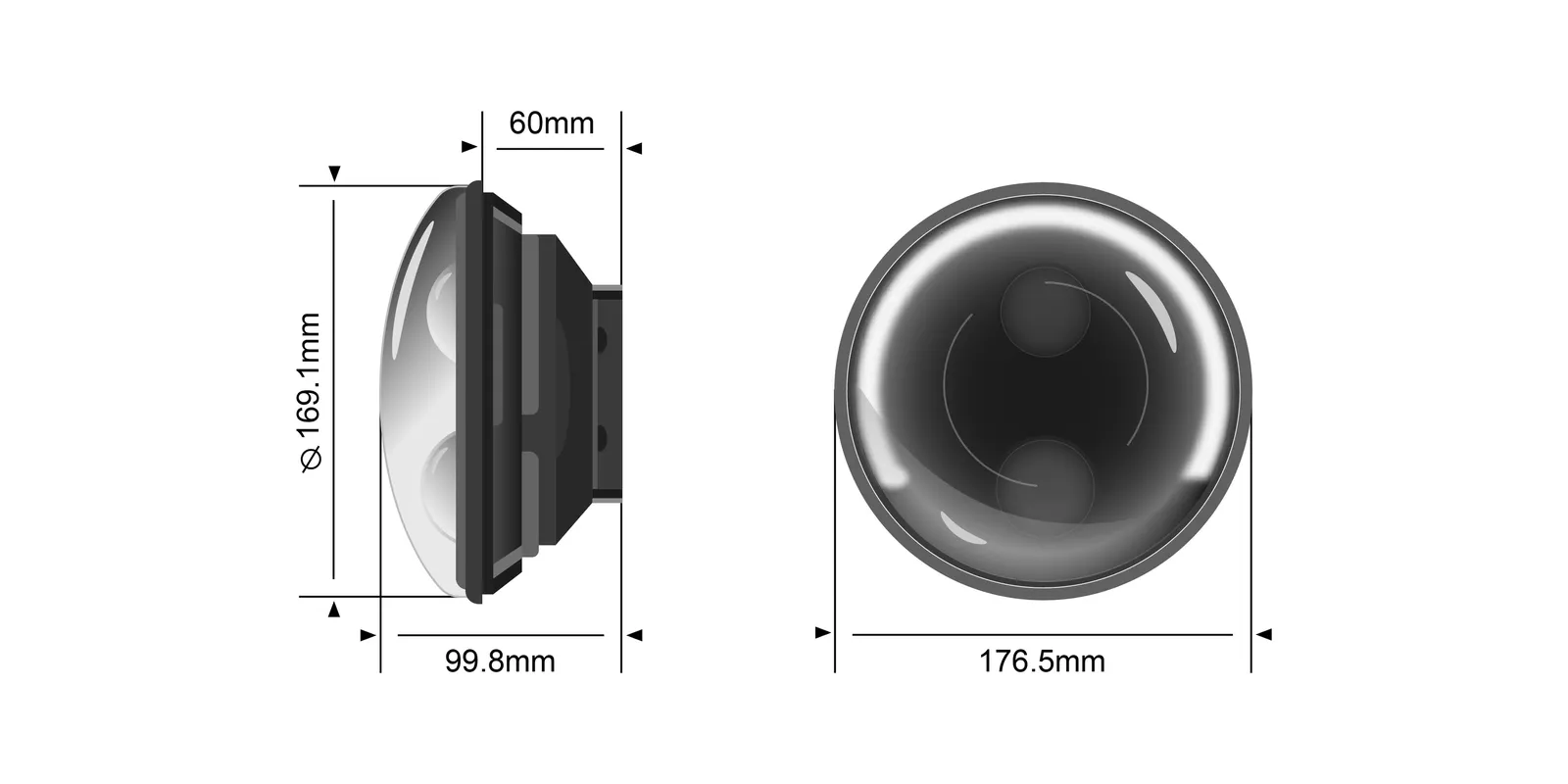

WEIGHT (each) 1.140kg each
DROP IN REPLACEMENT FOR

#6014, 6015, 6016, H6024 and Par 56 headlamp designs

ADR COMPLIANCE

ADR 46/00

ADR 49/00



(LEDMOTO-CARBON-7BLK)

SKU LEDMOTO-CARBON-7BLK
Barcode # 935357000-1315-C
Brand Stedi
Shipping Weight 1.2500kg
