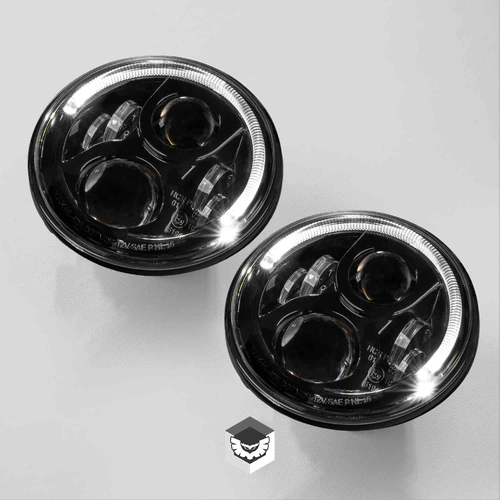

LedMoto Carbon 7 Inch LED Headlight (Pair)
$398.00
RRP $438.00
SAVE $40.00 (9%)
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

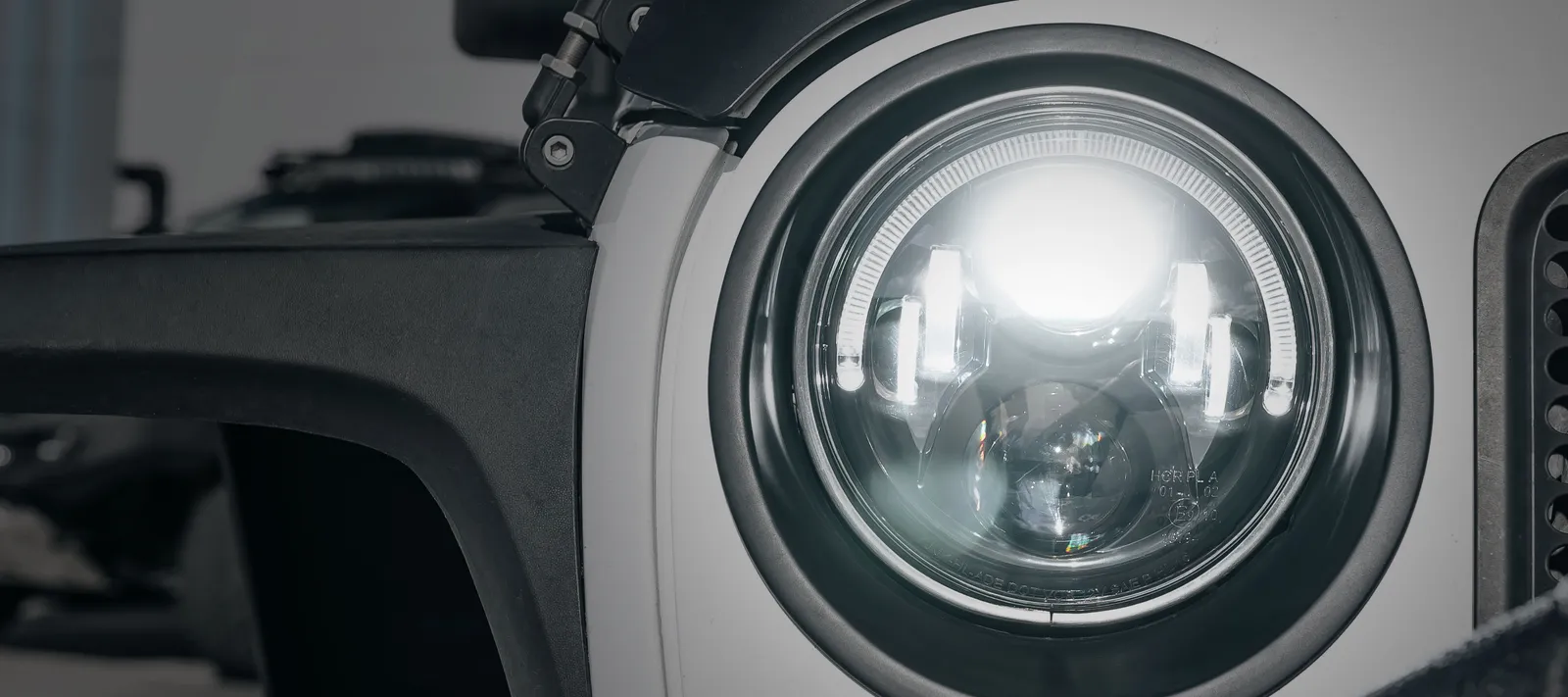

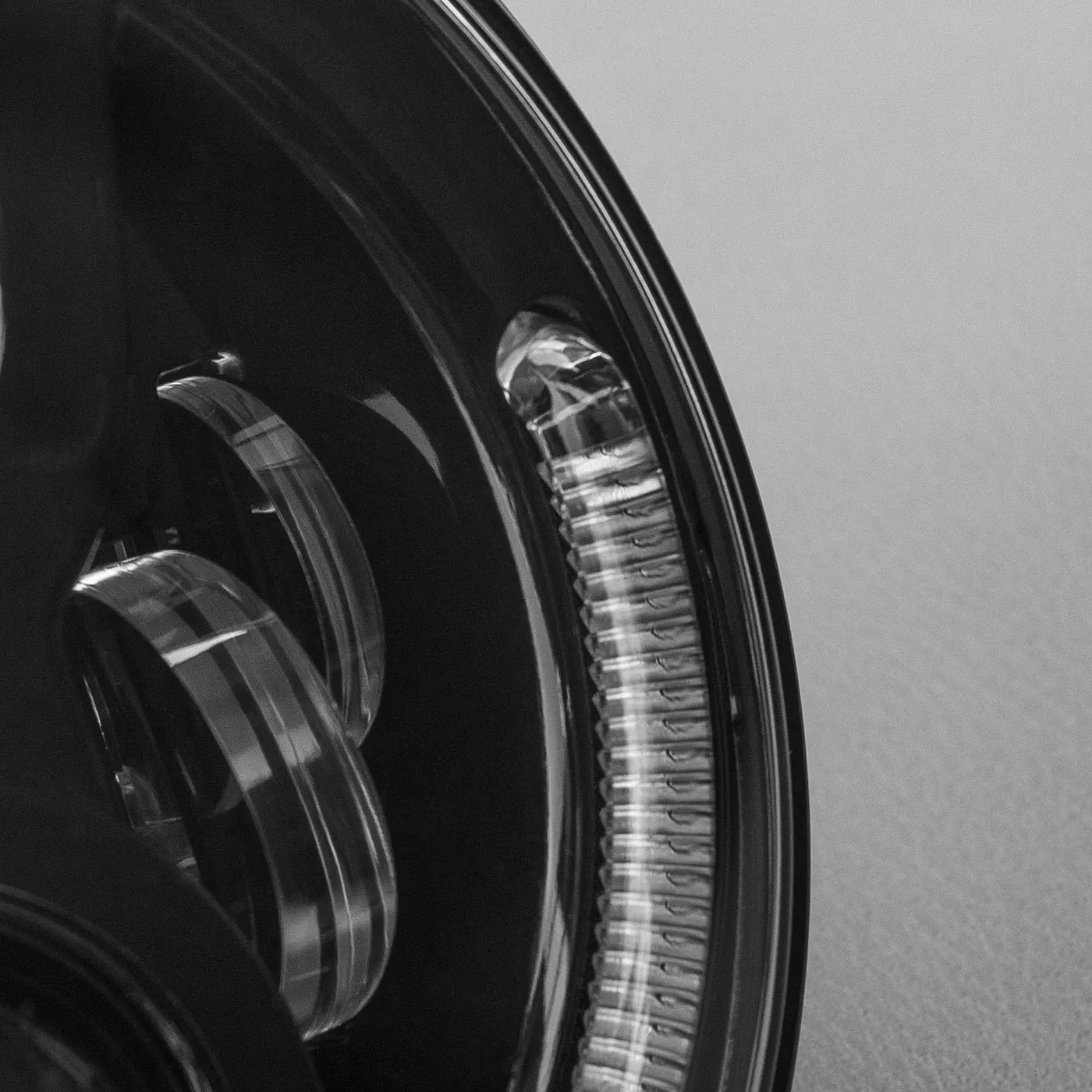

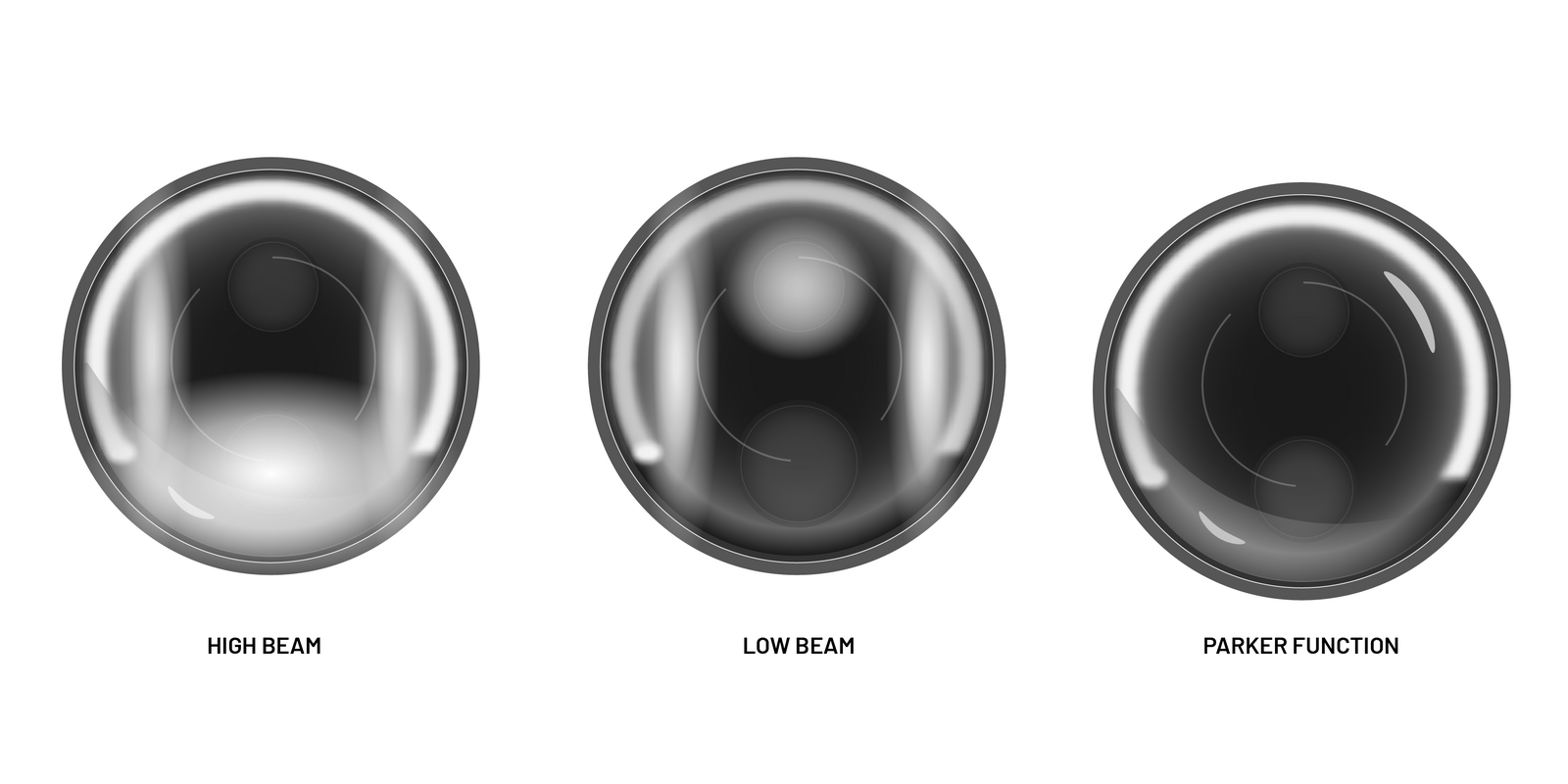

The LedMoto Carbon 7 Inch LED Headlight is a direct replacement 7" headlamp designed to upgrade light output for motorcycles, 4x4s and other vehicles that use 7" round headlights. Each unit combines separate high and low beams with a half LED halo park light and is built to ADR-compliant standards.
Features:

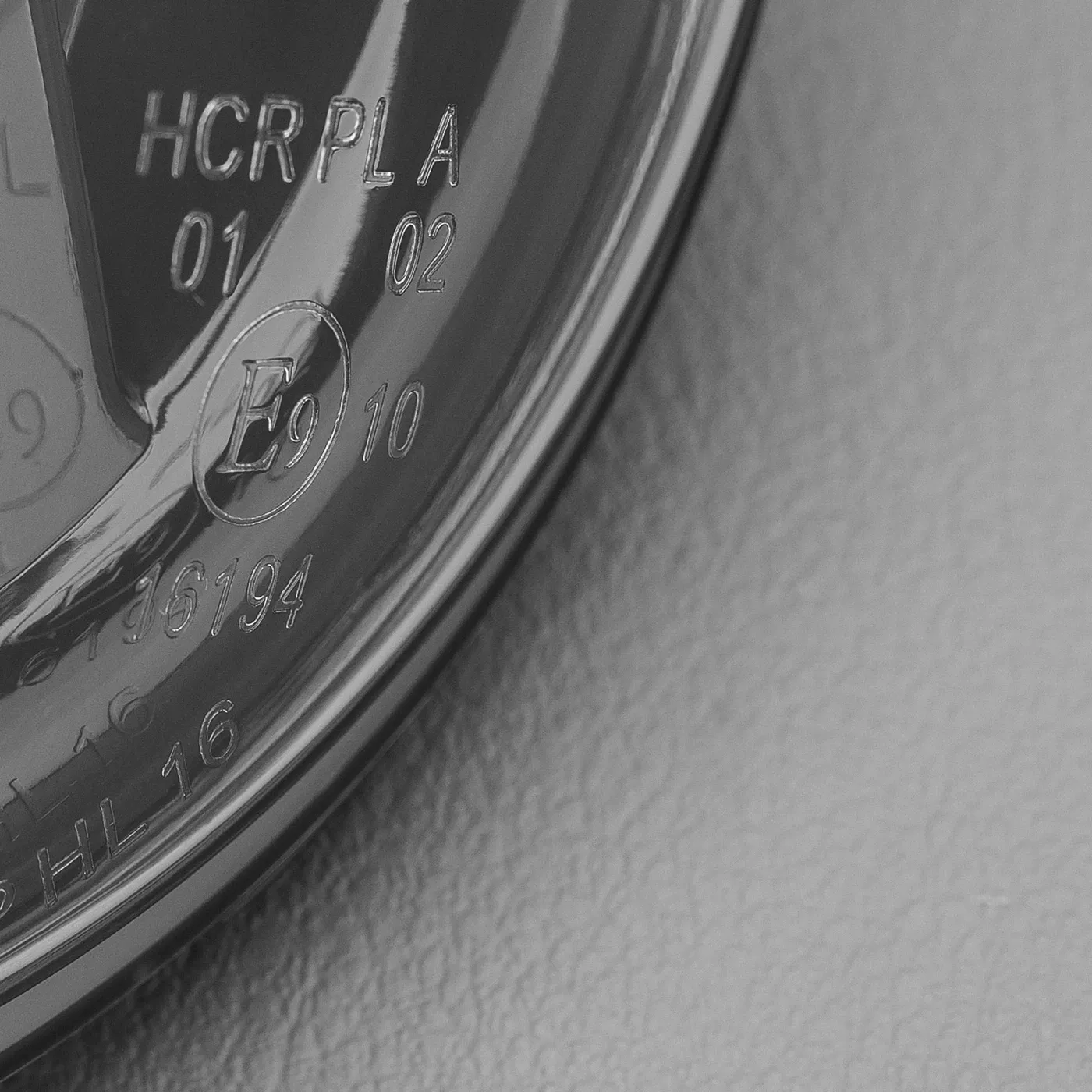

- ADR approved with E-Mark and CE certification
- Proper right-hand drive beam geometry

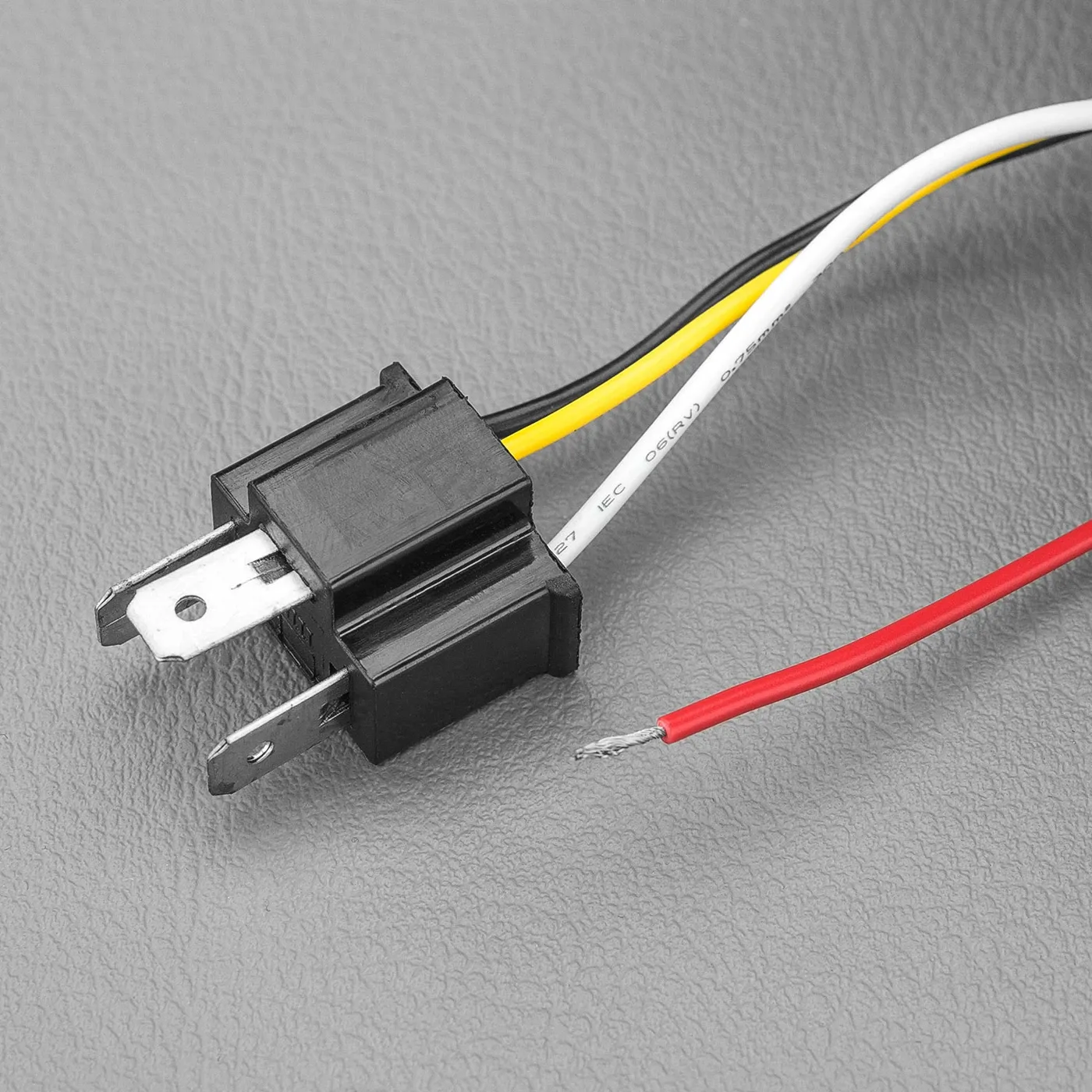

- Includes H4 adaptor for fitting to H4 sockets
- High beam 1 Lux at 235 m; low beam 1 Lux at 141 m
- Anti-flicker electronics and protection against reverse polarity and voltage/current surges

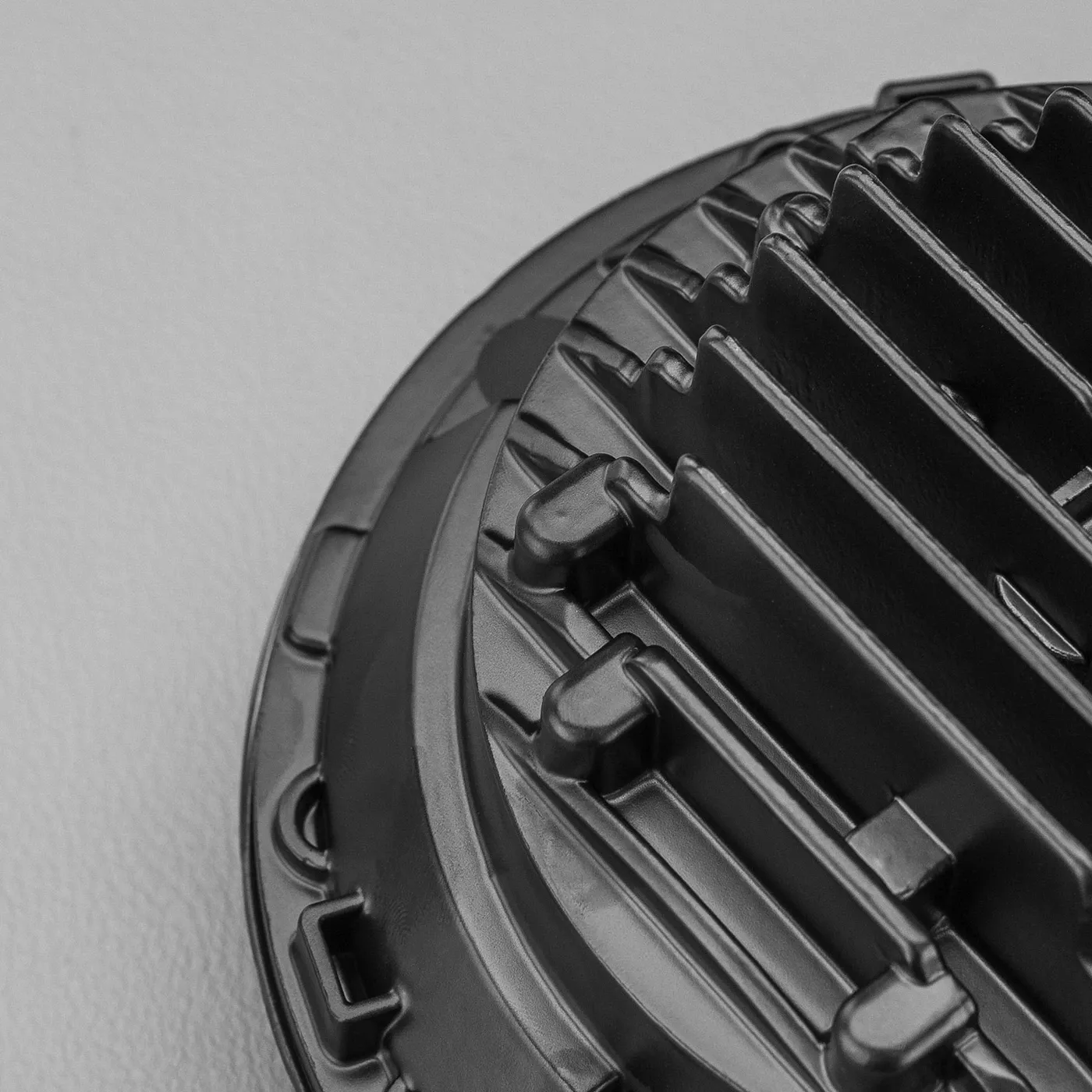

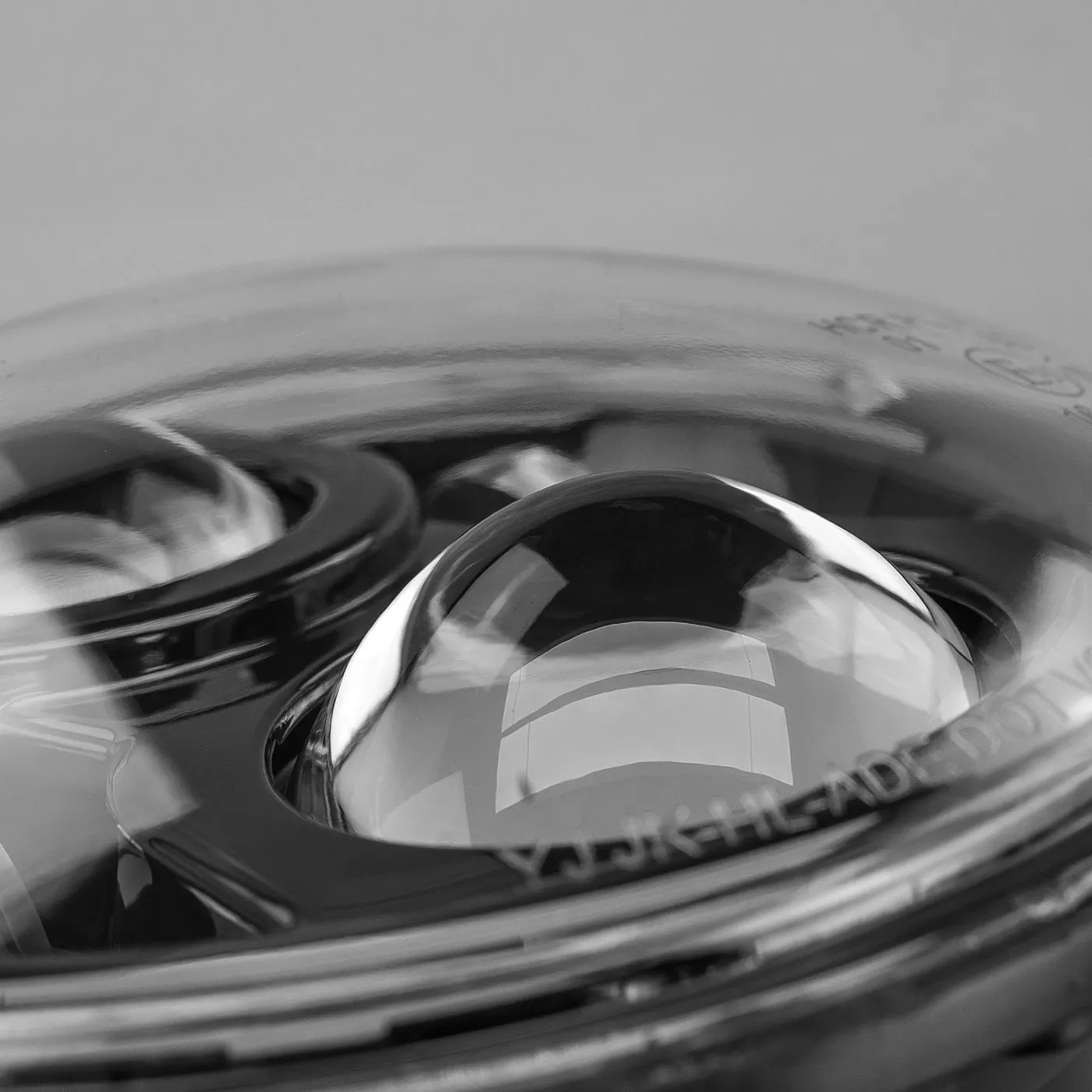

- Die-cast aluminium alloy (ADC12) heat-sink, Lexan polycarbonate lens and anodised polyester powdercoat finish
- IP67 ingress protection; shock proof, waterproof and UV shielded
- 2 year warranty
Kit Includes:

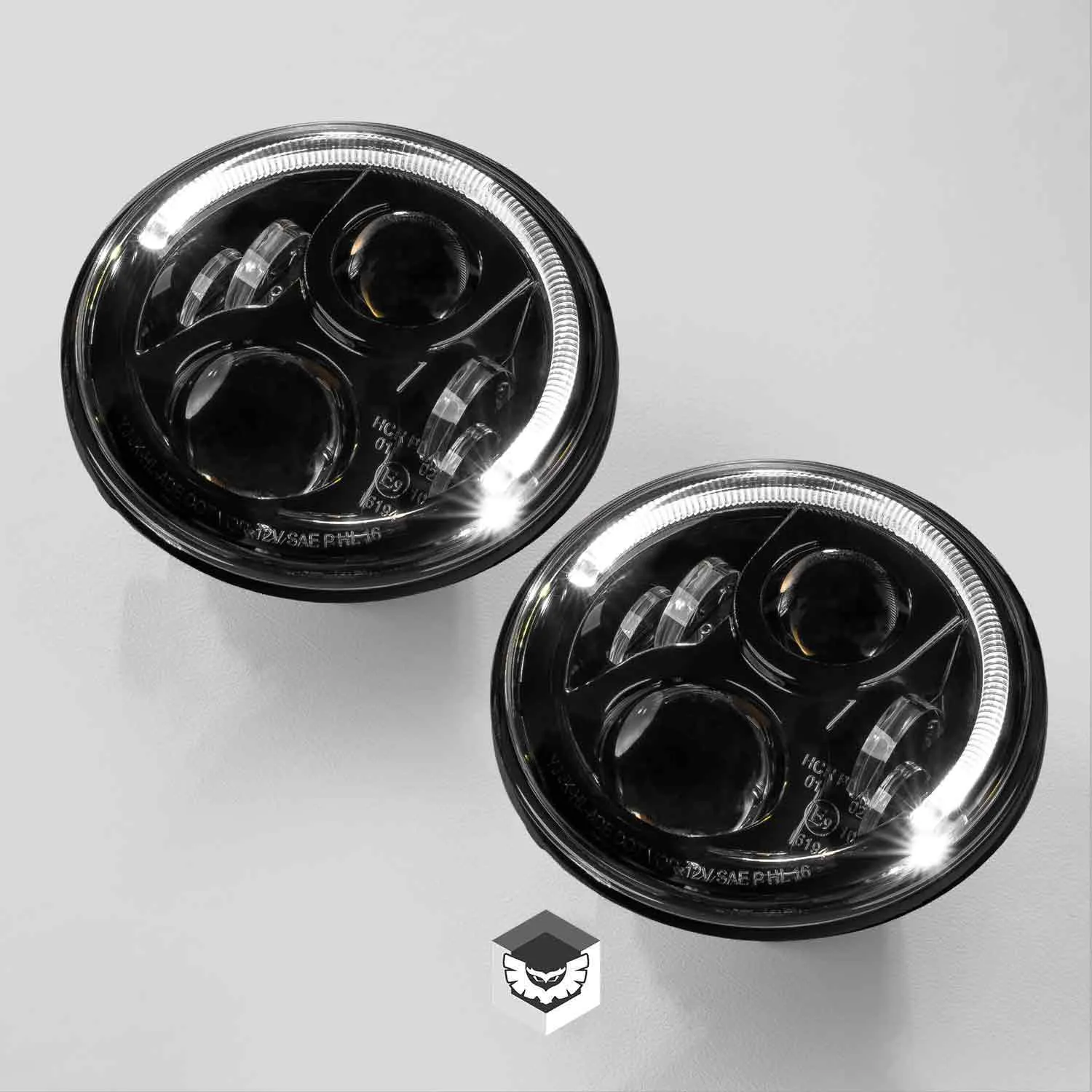

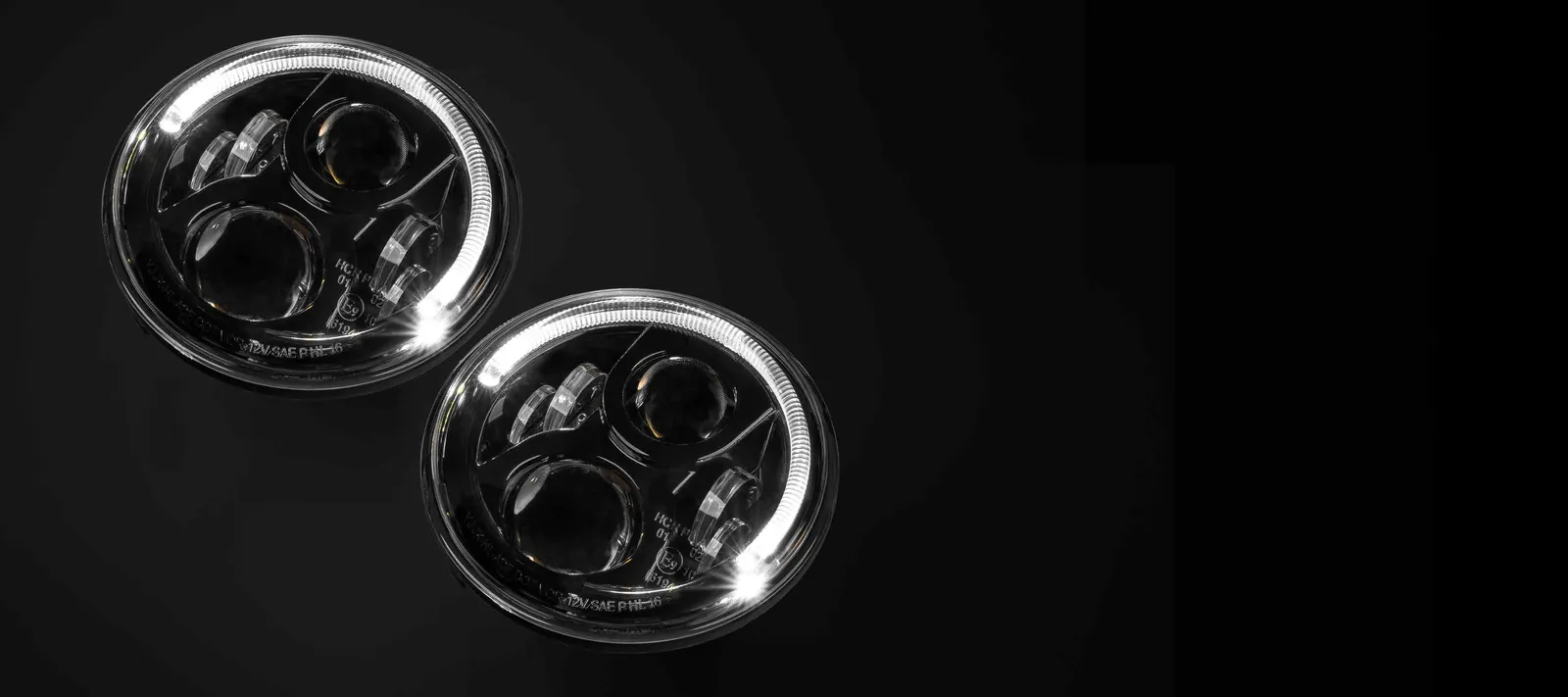

- 2 x Carbon 7 Inch LED Headlight - Black (5700k) (LEDMOTO-CARBON-7BLK)
Suits:
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8

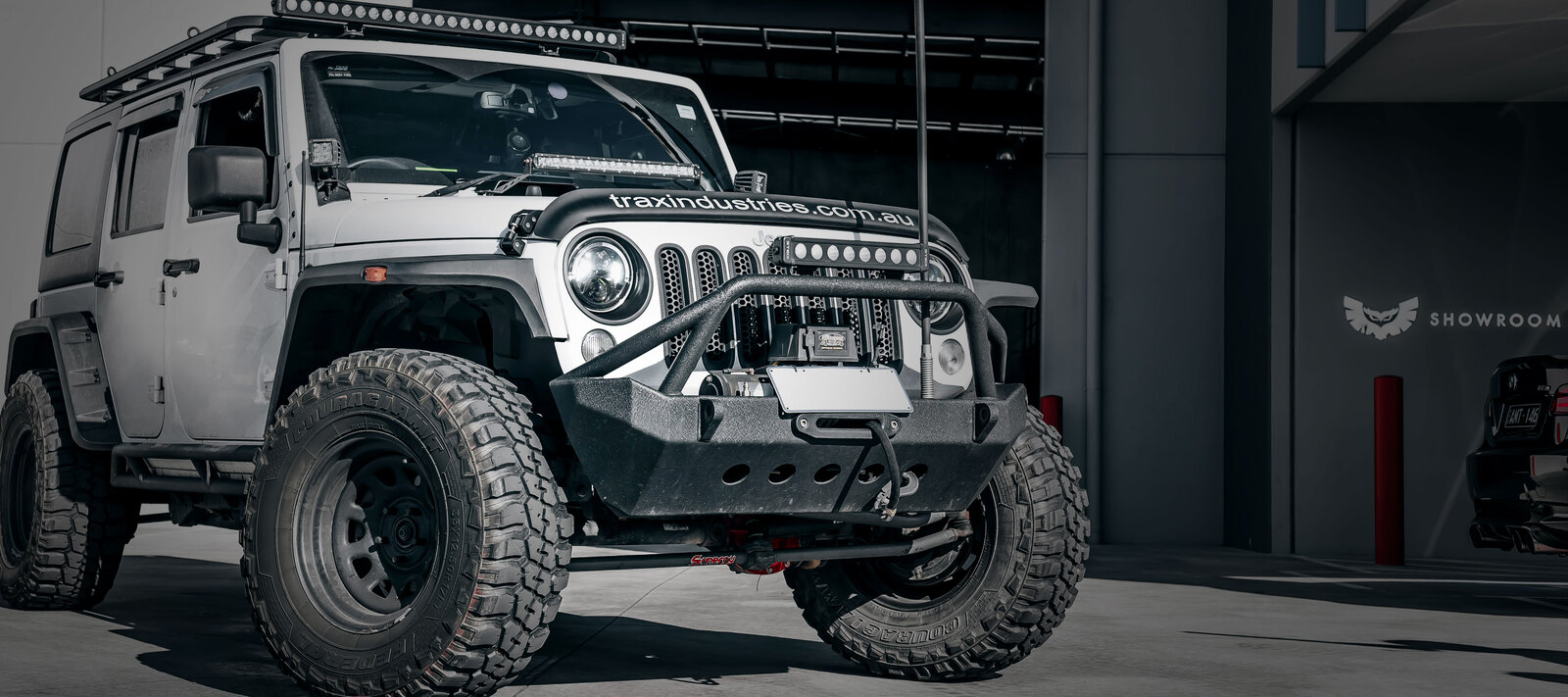

- 1997-2006 Jeep Wrangler (TJ)
- 2007-2015 Jeep Wrangler 2-Door (JK)
- 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
- 1982 - 1991 Mitsubishi Pajero (L040)
- Land Rover Defender

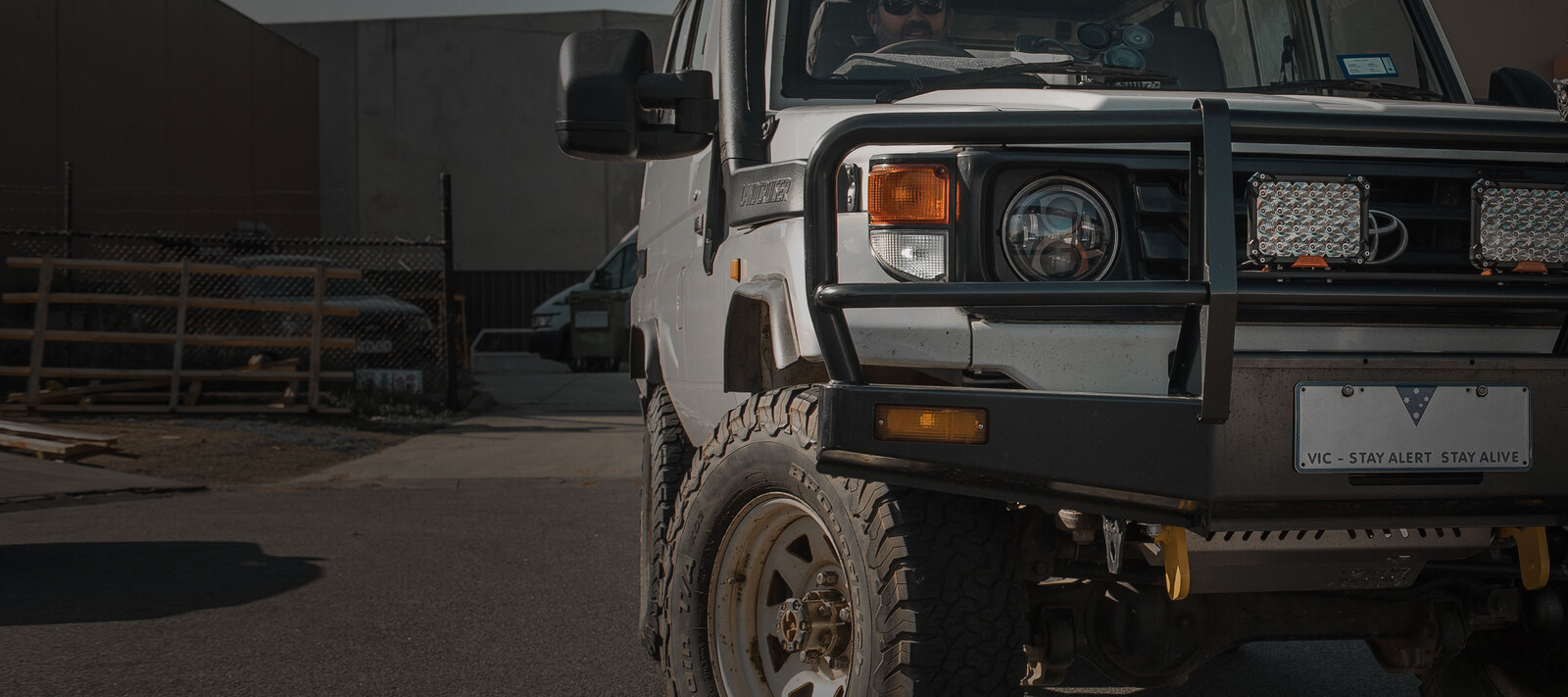

- 70 Series Toyota Landcruiser with round headlamp
- Needs additional H4 CANBUS to resolve negative switching
- 60 Series Toyota Landcruiser with round headlamp
- Needs additional H4 CANBUS to resolve negative switching
- Toyota FJ-40/45/47
- Needs additional H4 CANBUS to resolve negative switching
- GQ Patrol
- Harley Davidson Motorcycles
- Mercedes Benz G Wagon
- Kenworth Trucks with 7 inch round headlight
(LEDMOTO-CARBON-7-PAIR)
| Lifespan | 50,000 hours |
|---|---|
| Ingress protection | IP67 |
| Operating temperature | -30 °C to +60 °C |
| Lens material | Lexan polycarbonate |
| Colour temperature | 5700 K |
| Voltage compatibility | 12 V & 24 V |
| Weight (each) | 1.140 kg |
| Drop-in replacement for | #6014, 6015, 6016, H6024 and Par 56 headlamp designs |
| ADR compliance | ADR 46/00; ADR 49/00 |
| Park light output | 150 Lm |
| Low beam output | 1250 Lm |
| High beam output | 1800 Lm |
| Beam range (1 Lux) | High: 235 m; Low: 141 m |
| Adaptor | H4 adaptor included |
| SKU | LEDMOTO-CARBON-7-PAIR |
| Brand | LedMoto |
