Stedi Dual Connector DT-4 Plug & Play Smart Harness High Beam Driving Light Wiring
$69.00
RRP $76.00
SAVE $7.00 (9%)
In Stock

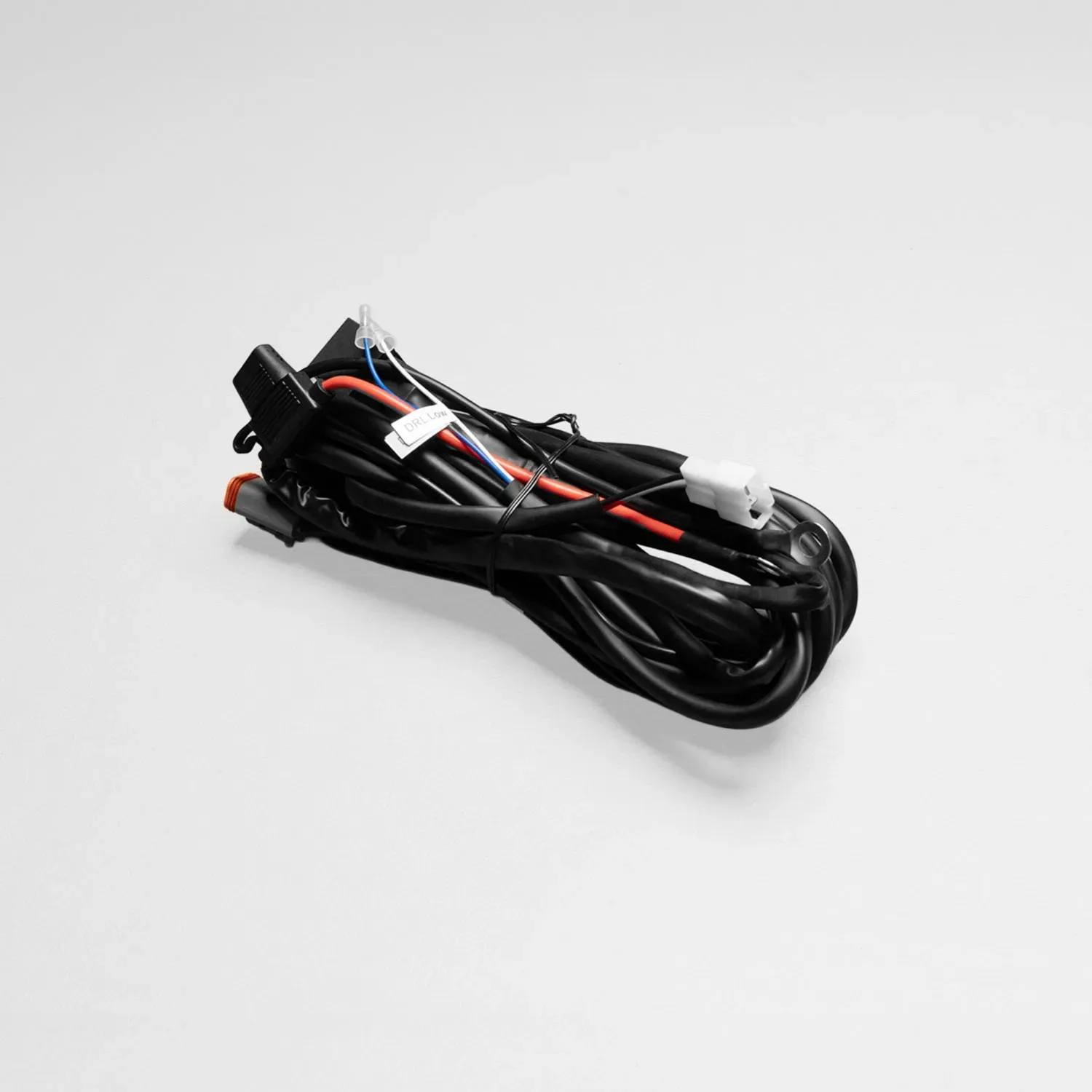

The Stedi Dual Connector DT-4 Plug & Play Smart Harness is a high-current wiring loom designed to run up to two high-beam driving lights with built-in Daytime Running Light functionality. It detects switch polarity automatically and is compatible with positive and negative switching systems for straightforward installation.
Features:
- Automatic positive and negative switch detection for out-of-the-box operation
- Designed for high-current single-relay operation to run up to two lights simultaneously
- Built-in Daytime Running Light (DRL) functionality for DRL-enabled driving lights
- Quick connect compatible for plug-and-play installation
- Waterproof, durable connections for reliable outdoor use
Kit Includes:
- 1 x 80A Relay

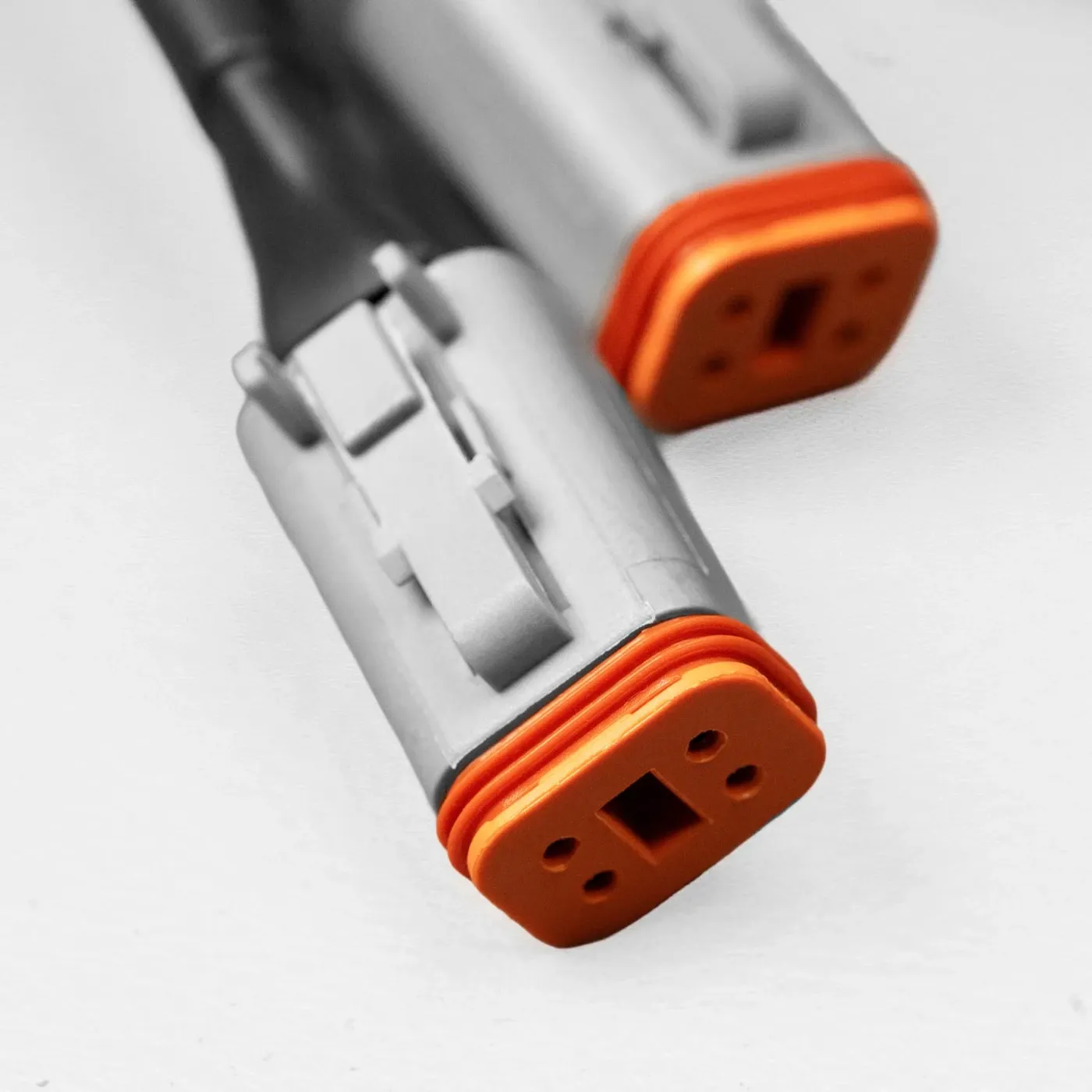

- 2 x 4-pin DT4 Deutsch Connectors (20A) – DRL compatible
- 2.0m cable from relay to connectors
- Heavy-duty 10AWG cabling

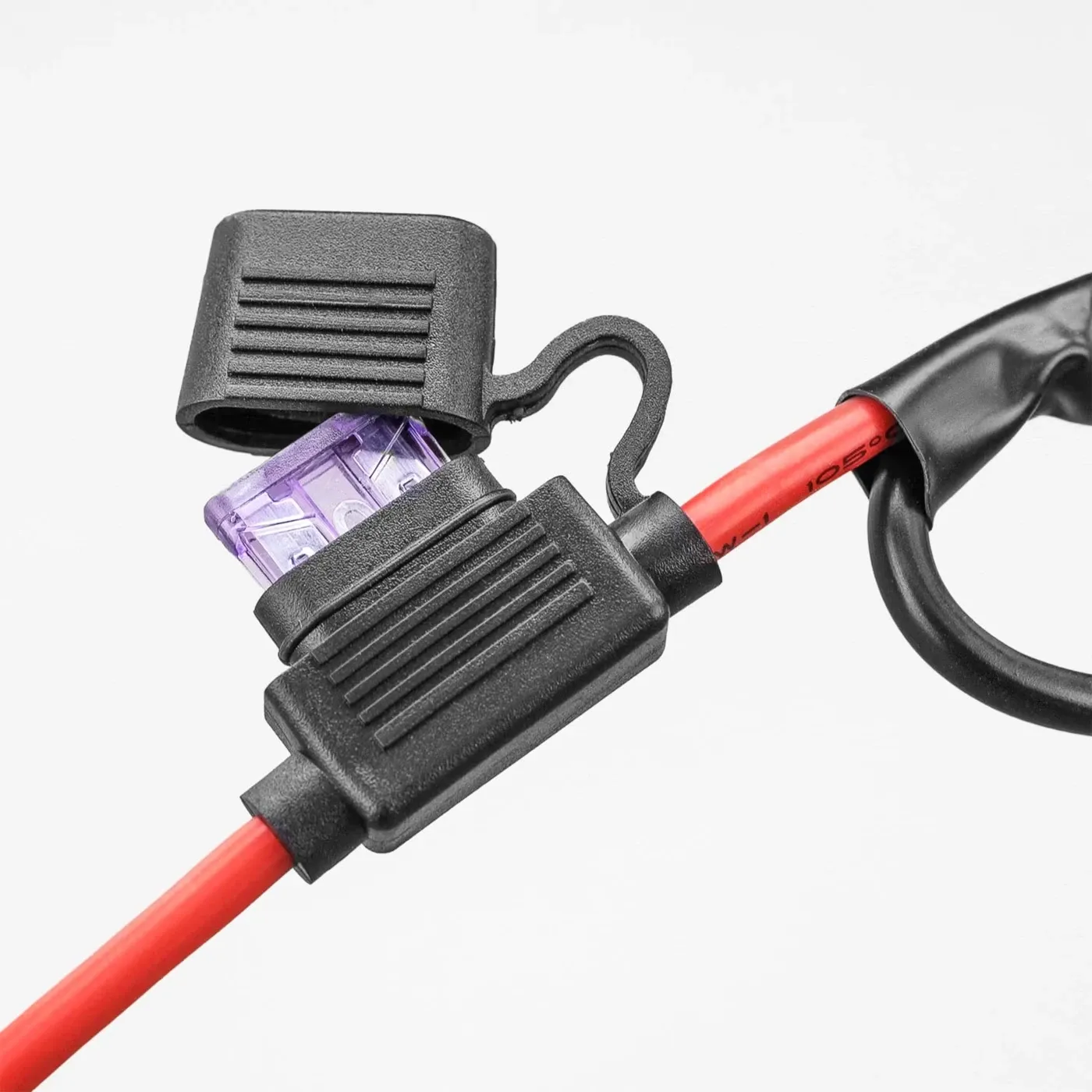

- 1 x 50A Fuse protection
Compatible with:
- Quick connect systems and DRL-enabled driving lights
(ST-31-DT4-002)
| Relay rating | 80A |
|---|---|
| Supplied fuse | 50A |
| Max load | 40A @ 12V DC |
| Output length | 2050 mm |
| Cable gauge | 10AWG |
| Insulation | UV rated |
| Connectors | DT-4 |
| SKU | ST-31-DT4-002 |
| Brand | Stedi |
