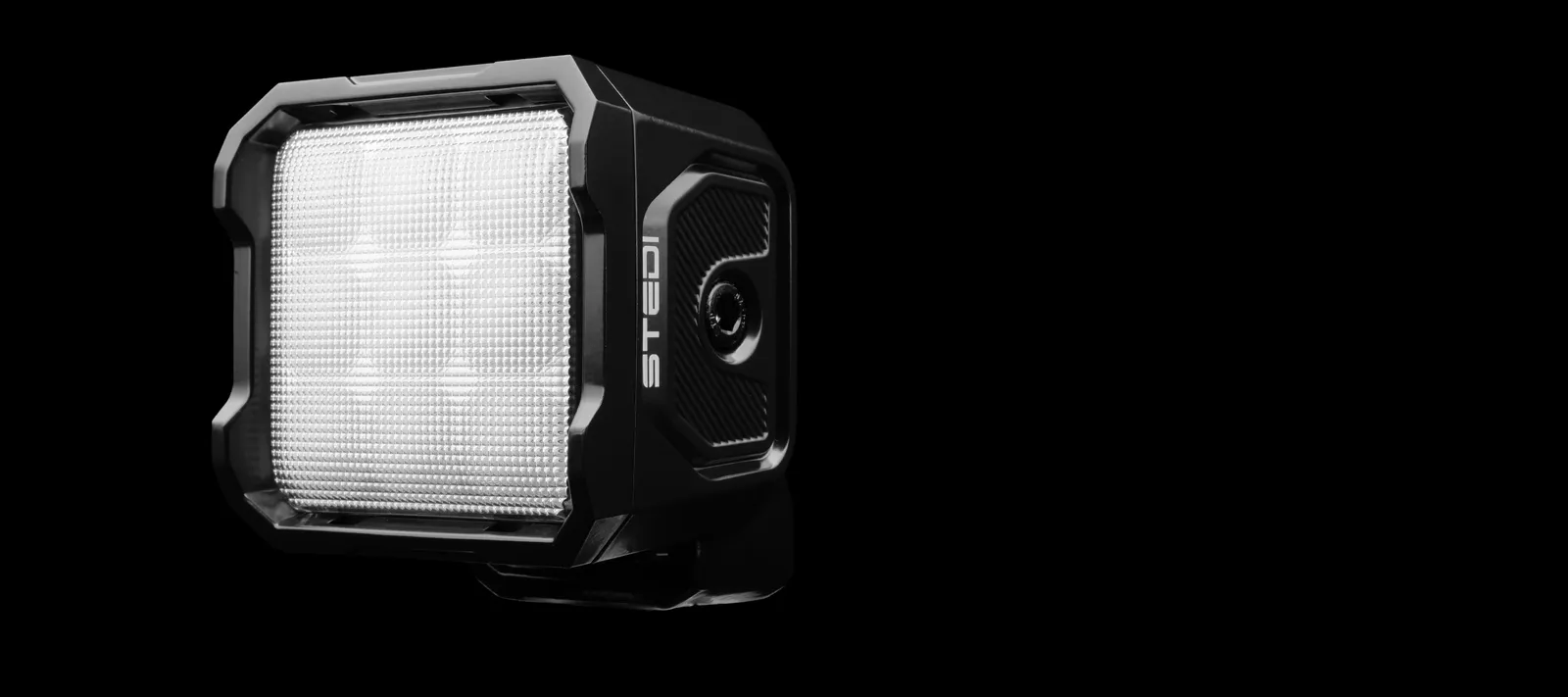

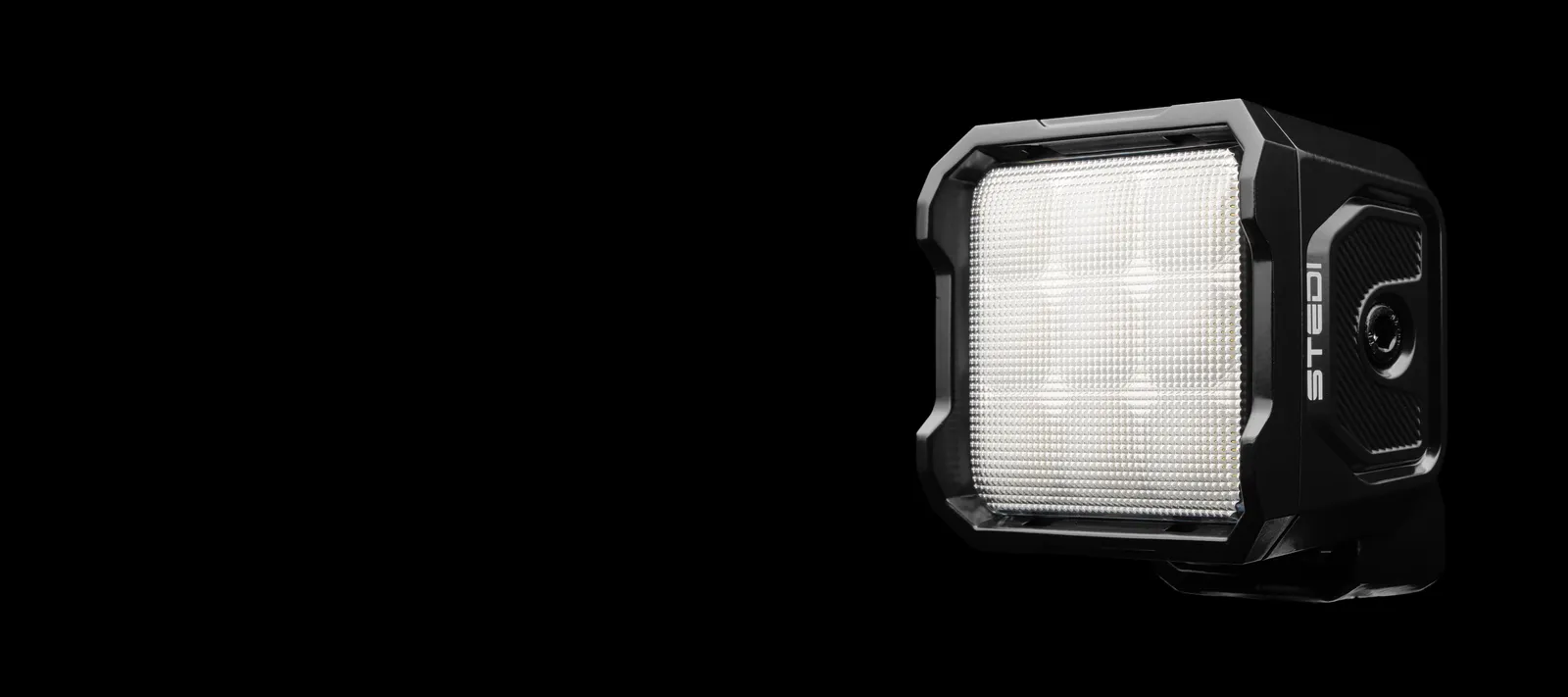

The AMP DRAW G9 Black Ultra Flood Work Light delivers a wide, ultra-diffused 80° beam designed to illuminate a broad work area with a clean 5700K white light. Built for demanding conditions, it combines high ingress protection with electromagnetic interference suppression and robust mechanical testing.
Features
- 9 x CREE XP-L2 LEDs
- 80° ultra-diffused flood beam
- IP68 & IP69K rated
- CISPR 25 C3 certified

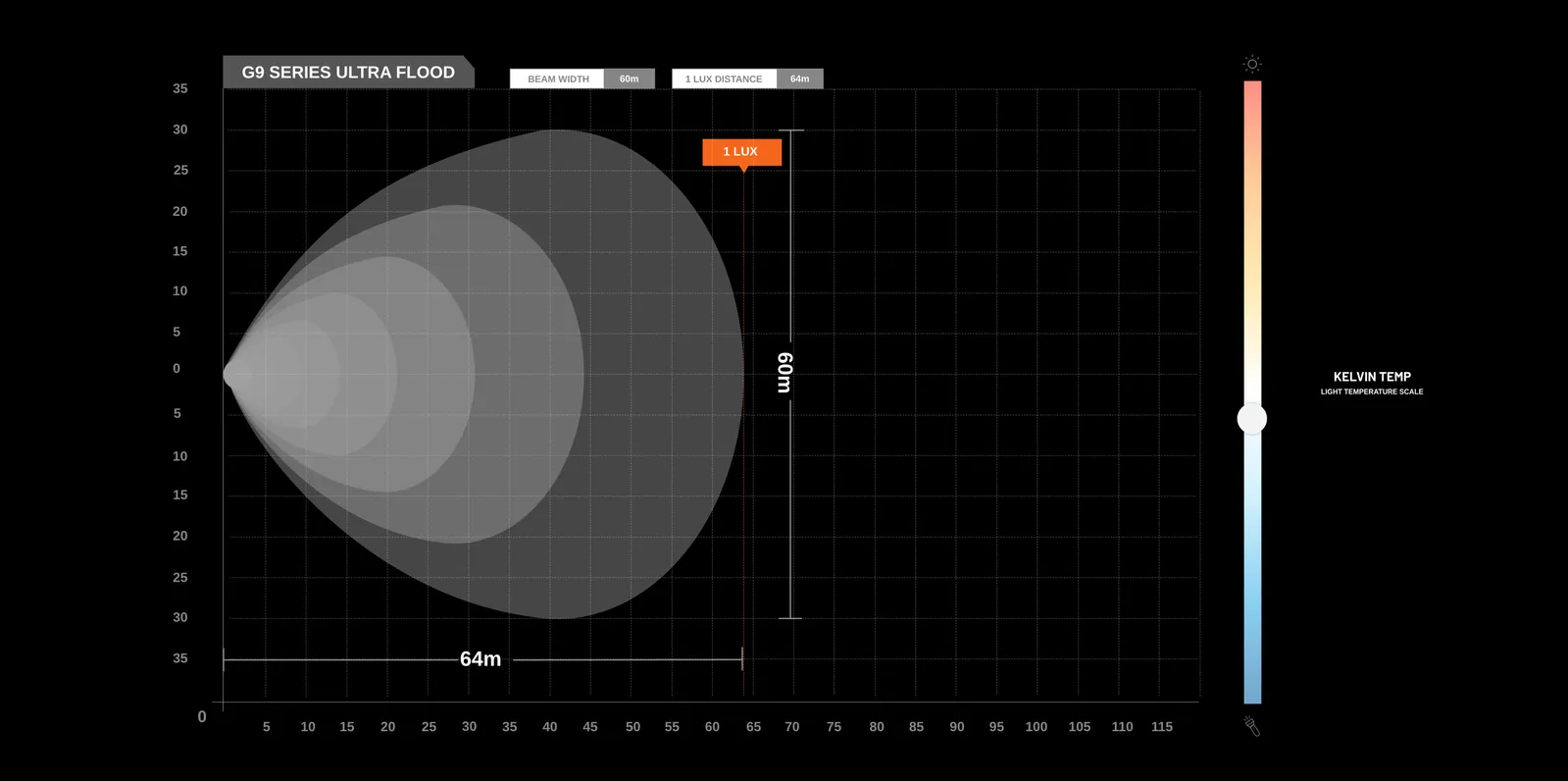

- 1 LUX at 64 m (length) and 60 m (width)
- Shock tested to 30g and vibration tested to 5g
- Protective cover included
- Stainless steel bracket and hardware included
- Tinned cabling with isolated earth
- Heavy-duty marine-grade powder coating
Specifications
- SKU: ST-04-G9-002
- LED power: 9 x 10W
- Raw lumens: 9000 lm
- Tested lumens: 6900 lm
- Operating voltage: 12V and 24V compatibility
- IP rating: IP68 & IP69K
- CISPR rating: CISPR 25 C3
- LED: CREE XP-L2
- Beam type: Flood (80° pattern)
- 1 LUX: 64 m (length), 60 m (width)
- Colour temperature: 5700 K
- Housing: Die-cast aluminium

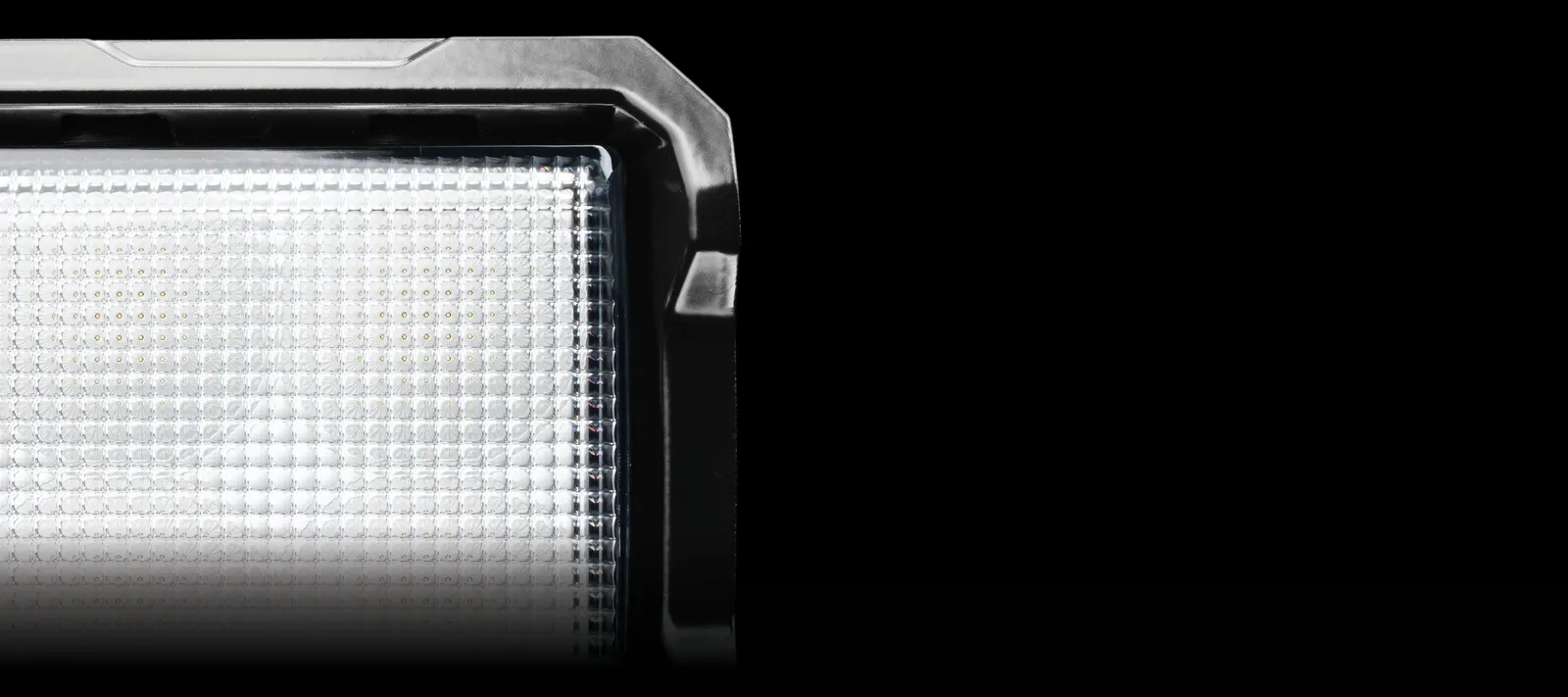

- Lens: Polycarbonate
- Amp draw: 7.2 A @ 13.5 V
- Life span: 50,000 hours
- Weight: 1.91 kg
- Warranty: 24 month
(ST-04-G9-002)
| SKU | ST-04-G9-002 |
