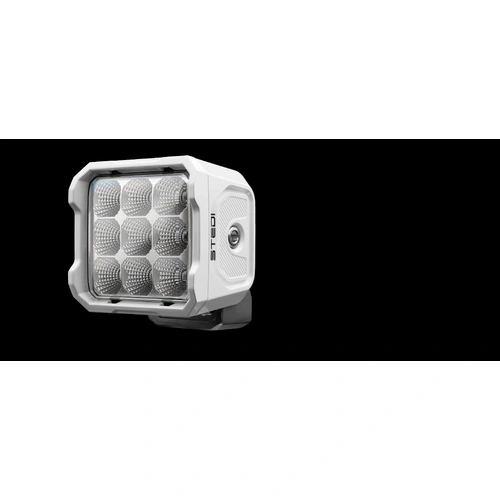

STEDI G9 Marine Flood Work Light

The STEDI G9 Marine Flood Work Light is a purpose-built auxiliary marine light delivering a wide, bright 5700K flood beam. It uses 9x CREE XP-L2 LEDs to produce a near-field flood zone and long-range illumination while meeting high ingress protection and electromagnetic interference standards.

Construction focuses on marine durability with stainless steel hardware, tinned cabling and heavy-duty powder coating.

Features

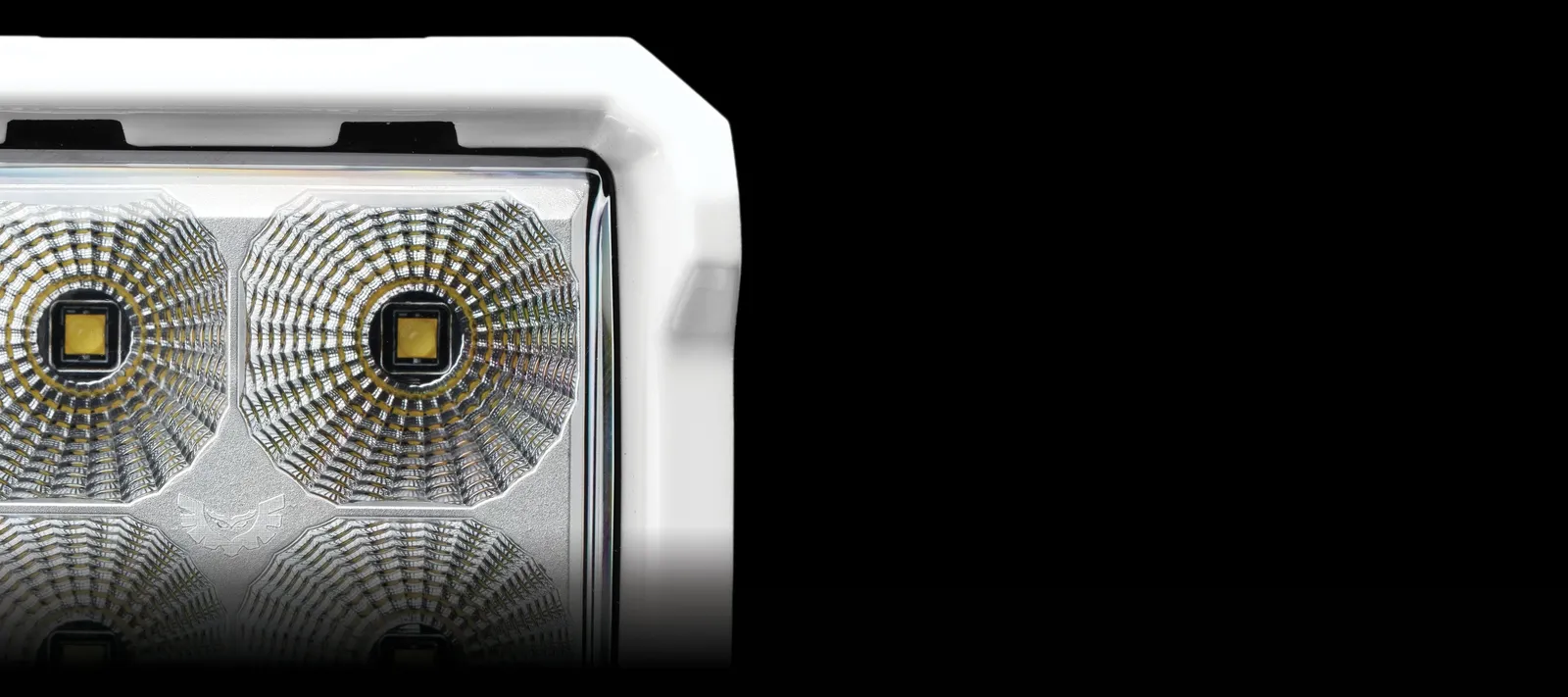

• 9x CREE XP-L2 LEDs
• IP68 & IP69K rated
• CISPR 25 C3 certified
• Shock tested at 30Gs & vibration tested at 5Gs
• 1 lux at 90 m length & 65 m width
• STEDI™ cover included
• Stainless steel hardware & bracket included
• Tinned cabling
• Isolated earth
• Heavy duty marine-grade AkzoNoble™ powder coating

Specifications

• LED power output: 9 x 10W LEDs
• Raw lumens: 9000LM
• Tested lumens: 6900LM
• Operating voltage: 12 V & 24 V compatibility
• IP rating: IP68 & IP69K
• CISPR rating: CISPR 25 C3
• LED: CREE XP-L2

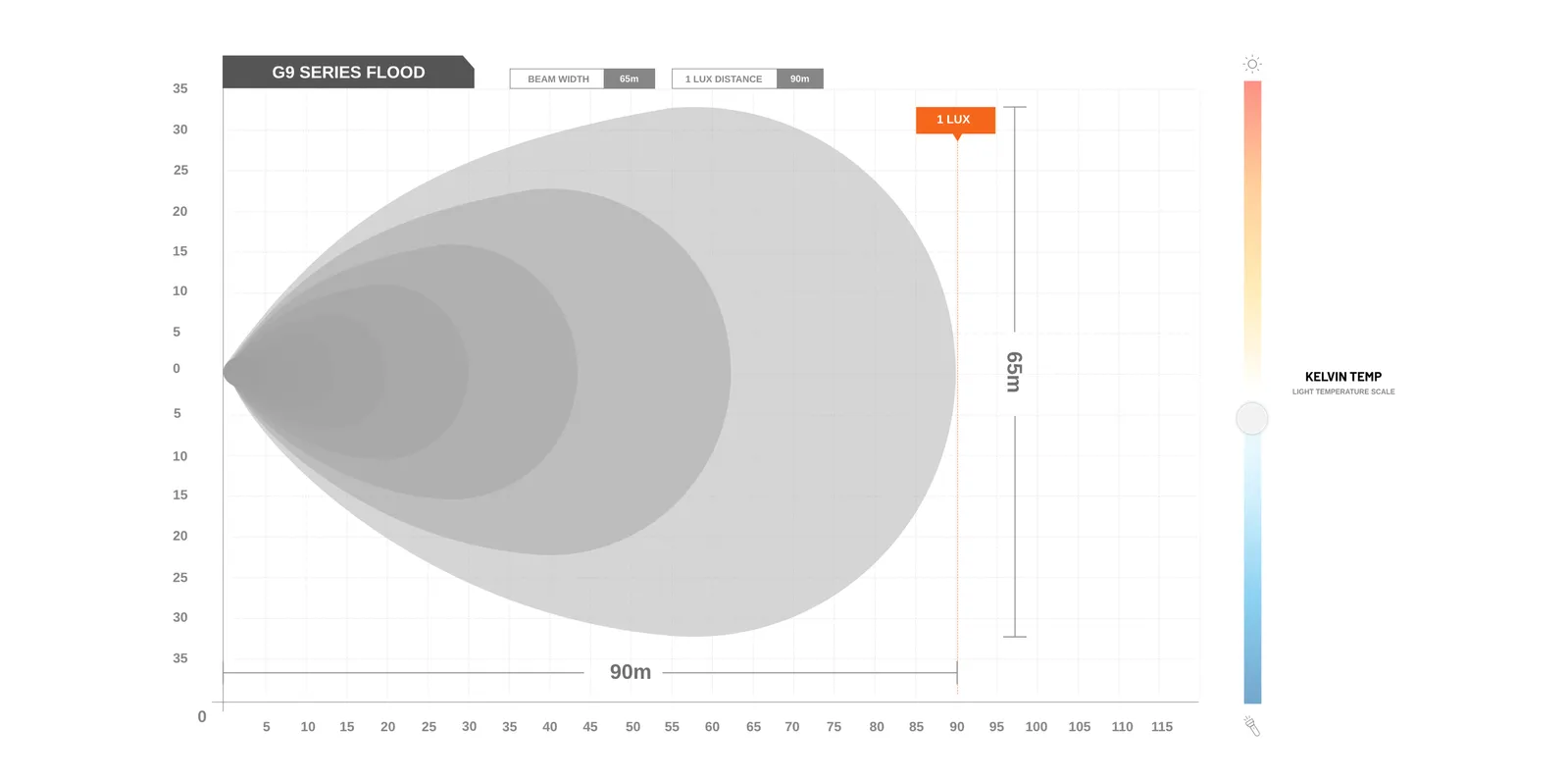

• Beam reach (1 lux): 90 m length / 65 m width
• Colour temperature (CCT): 5700K
• Material: Die cast aluminium housing
• Lens: Polycarbonate
• Beam type: Flood
• Life span: 50,000 hours
• Amp draw: 7.2A @ 13.5V
• Weight: 1.91 kg
• Warranty option: 24 month

Kit Includes

• 1 x STEDI™ G9 Marine Flood Light
• 1 x STEDI™ White Cover
• 1 x Stainless Steel Hardware
• 1 x Stainless Steel Bracket
• 1 x 2 Pin Male Connector
