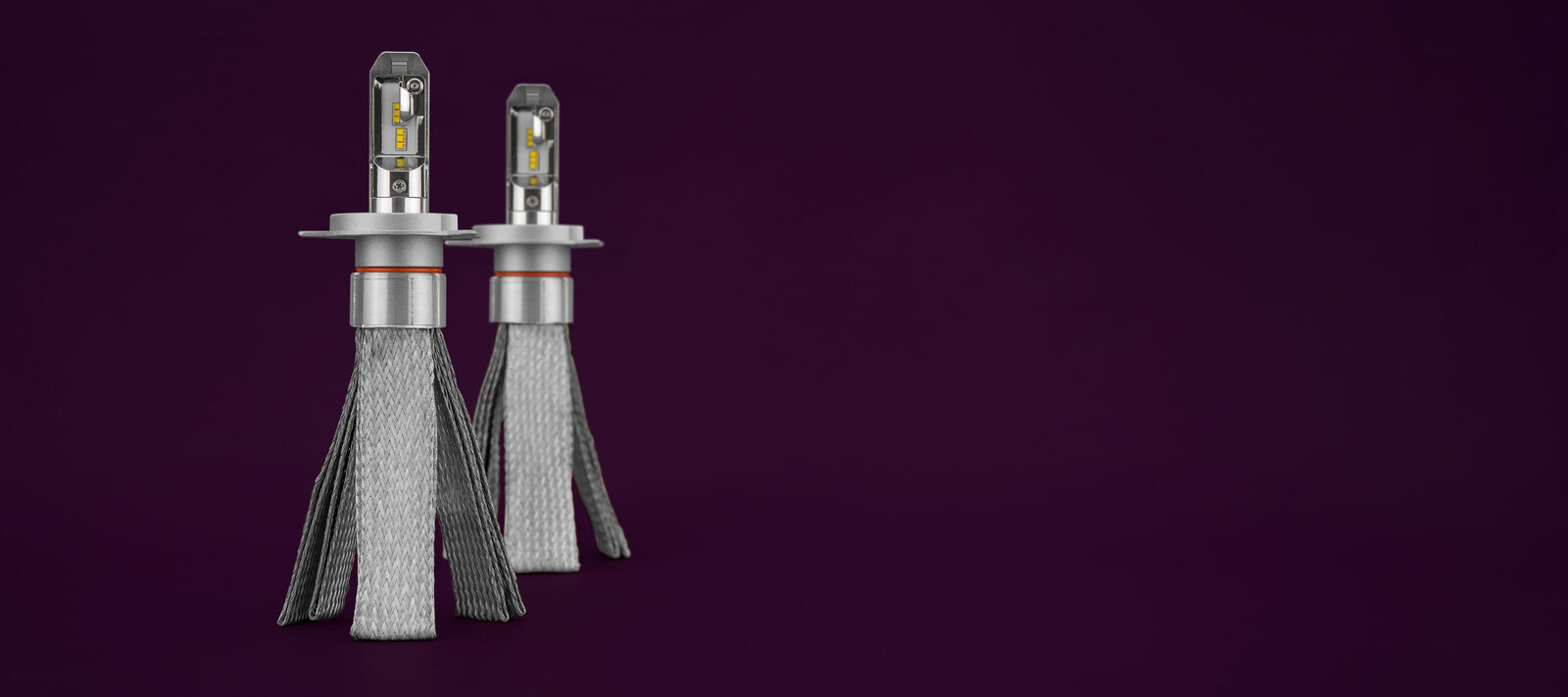

Stedi H4 LED Copper Head Light Conversion Kit
Copper Head LED Headlight Conversion Kit H4 Replacement for factory Halogen bulb. H4 Fan-less Globe
OVERVIEW
When looking for an easy option for better performing headlights for your vehicle our STEDI Copper Head conversion kits are a simple Plug & Play upgrade that is as simple as changing over a factory globe.


PERFORMANCE
Performing equal to and in some cases better than our Night Pilot V2's the advantage to the Copper Heads is the ability to retain the use of the factory dust cover maintaining the water resistance to the headlight housing. Also with its lower profile than that of a fan cooled headlight its application is much wider being able to fit into engine bays running dual batteries or low on space behind the headlight.
BEAM CHARACTERISTICS

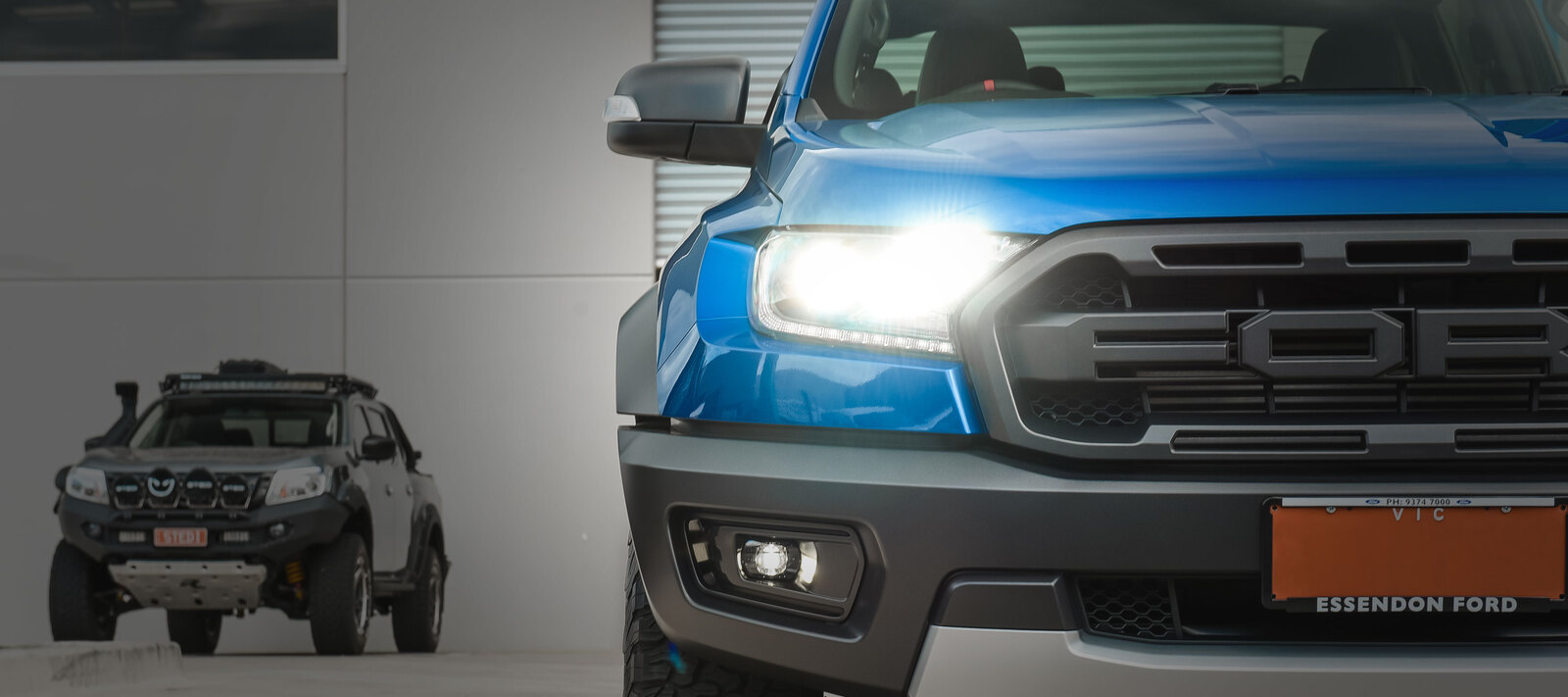

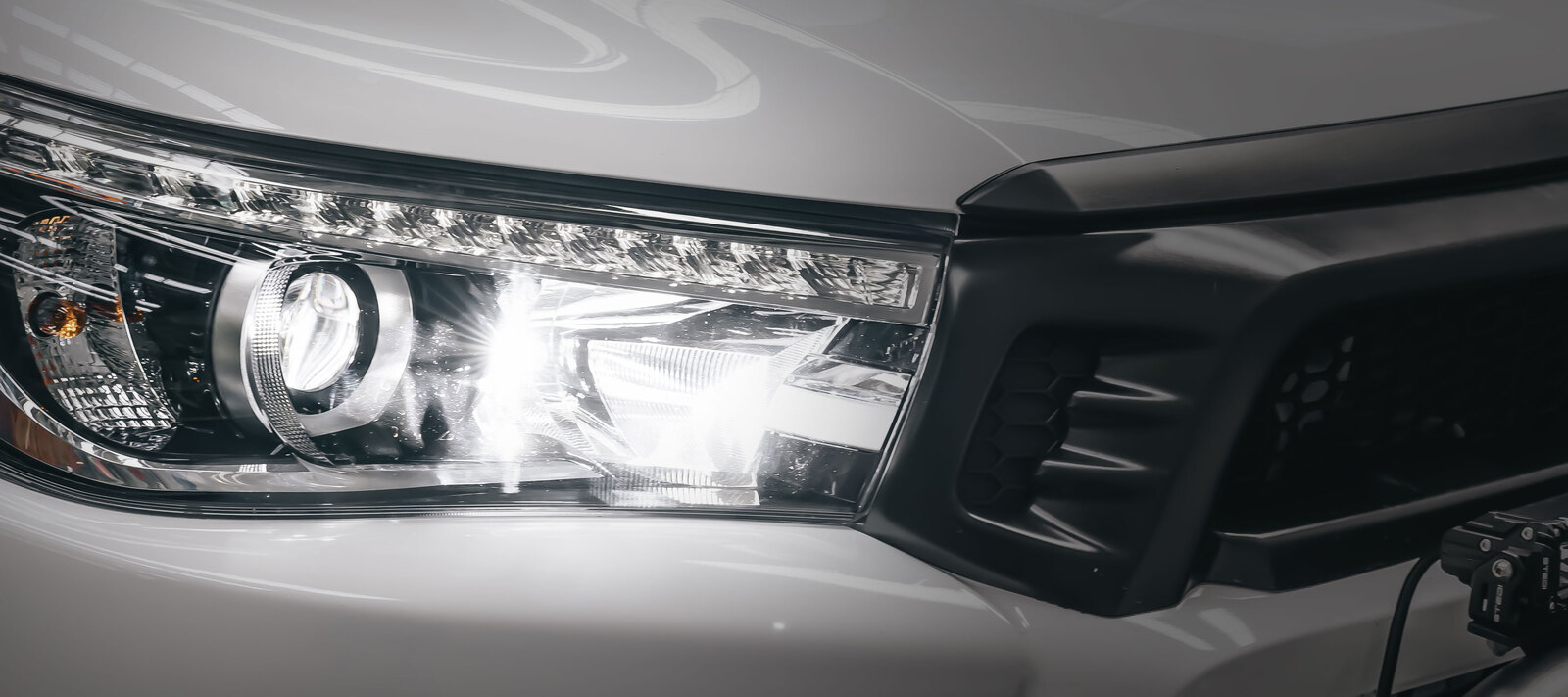

The Copper Heads provide a sharper and brighter beam over your standard halogen globe brightening up street signs from a further reach and bringing brighter over-all visible area.

DETAILS
Our all-new H4 Copper-Head™ LED Headlight kit is designed for vehicles which have the enclosed headlight bulbs that prevent our fanned Night Pilot kit from being installed. We’ve tested a nauseating amount of different “no fan” LEDs, and ultimately rested on our Copper Heads™ for its excellent light distribution, brightness & durability.
MATERIAL & THERMAL MANAGEMENT - Staying cool is the end all and be all in the world of LED. Well executed thermal management means higher drive current leading to higher light volume.

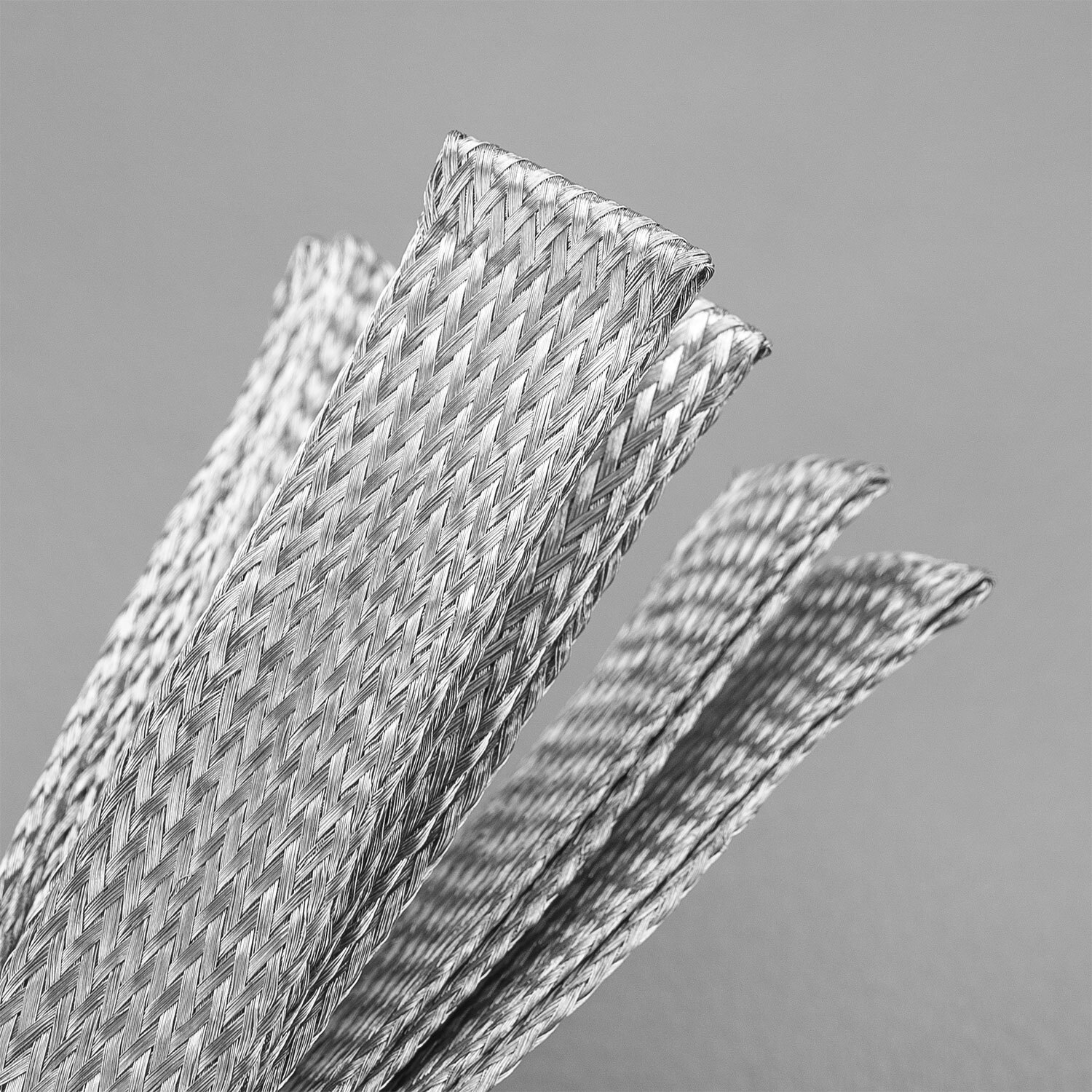

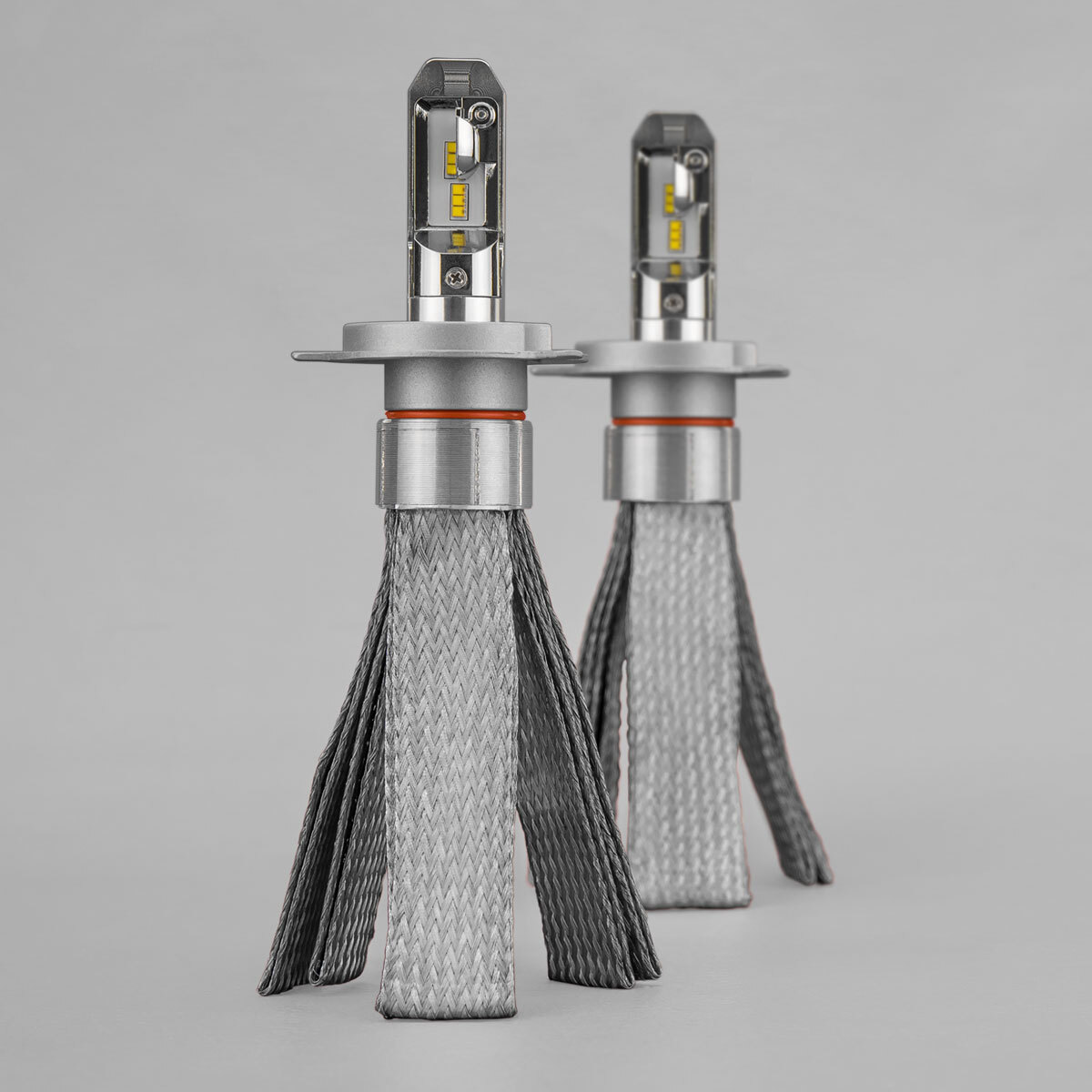

- Six 100% Pure Copper(Cu) belts allow maximum thermal conductivity. The thermoelectrically separated copper substrates allow heat to transfer to the substrate efficiently and quickly.
- American made Down Corning® thermal paste to increase conductivity to 6063 aluminium tower.
- No fan means modern vehicles which have rigid dust-covers or fully enclosed headlights bulbs can upgrade to LED without modifying the dust cap or worse leaving them off altogether.

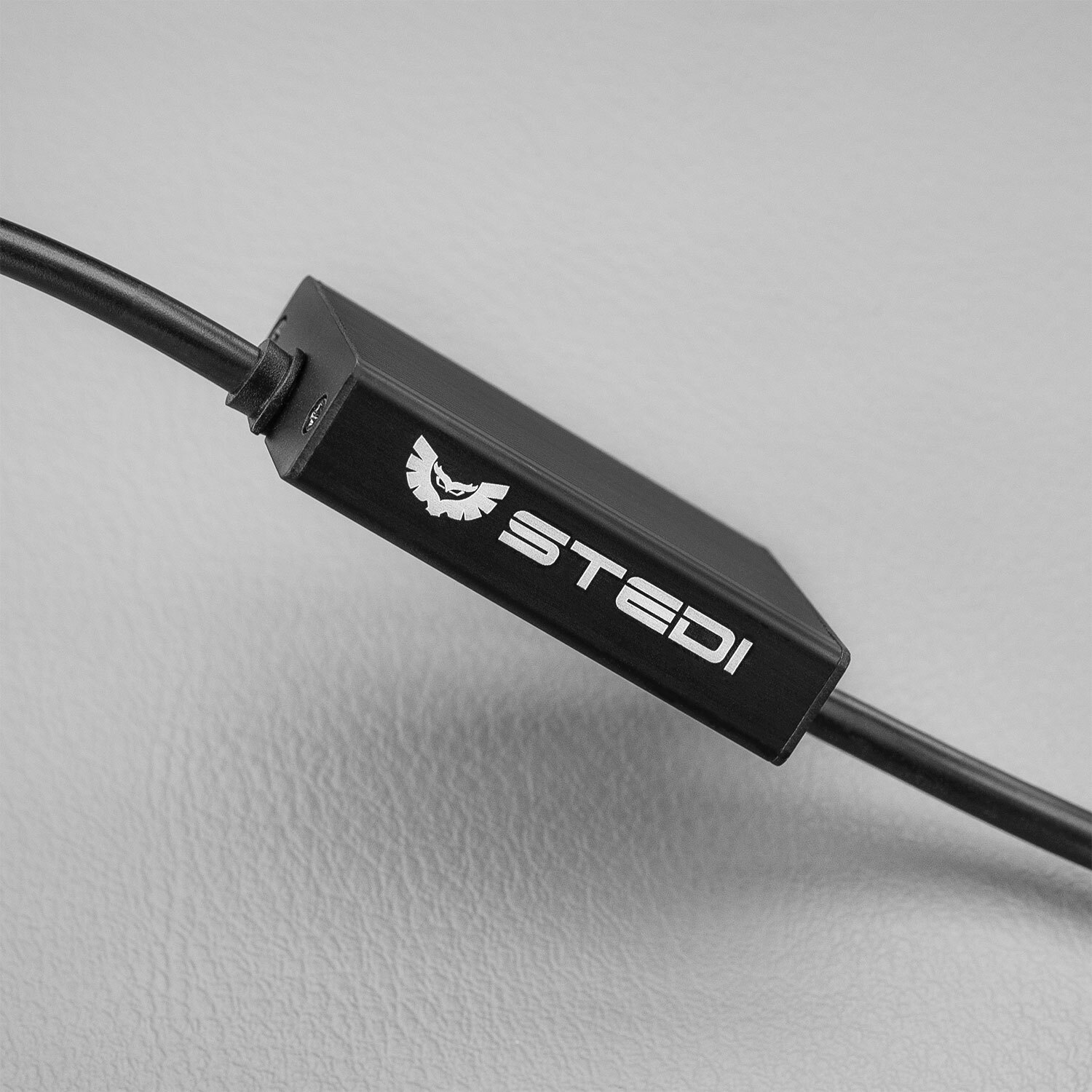

- Smaller driver footprint for tight applications.

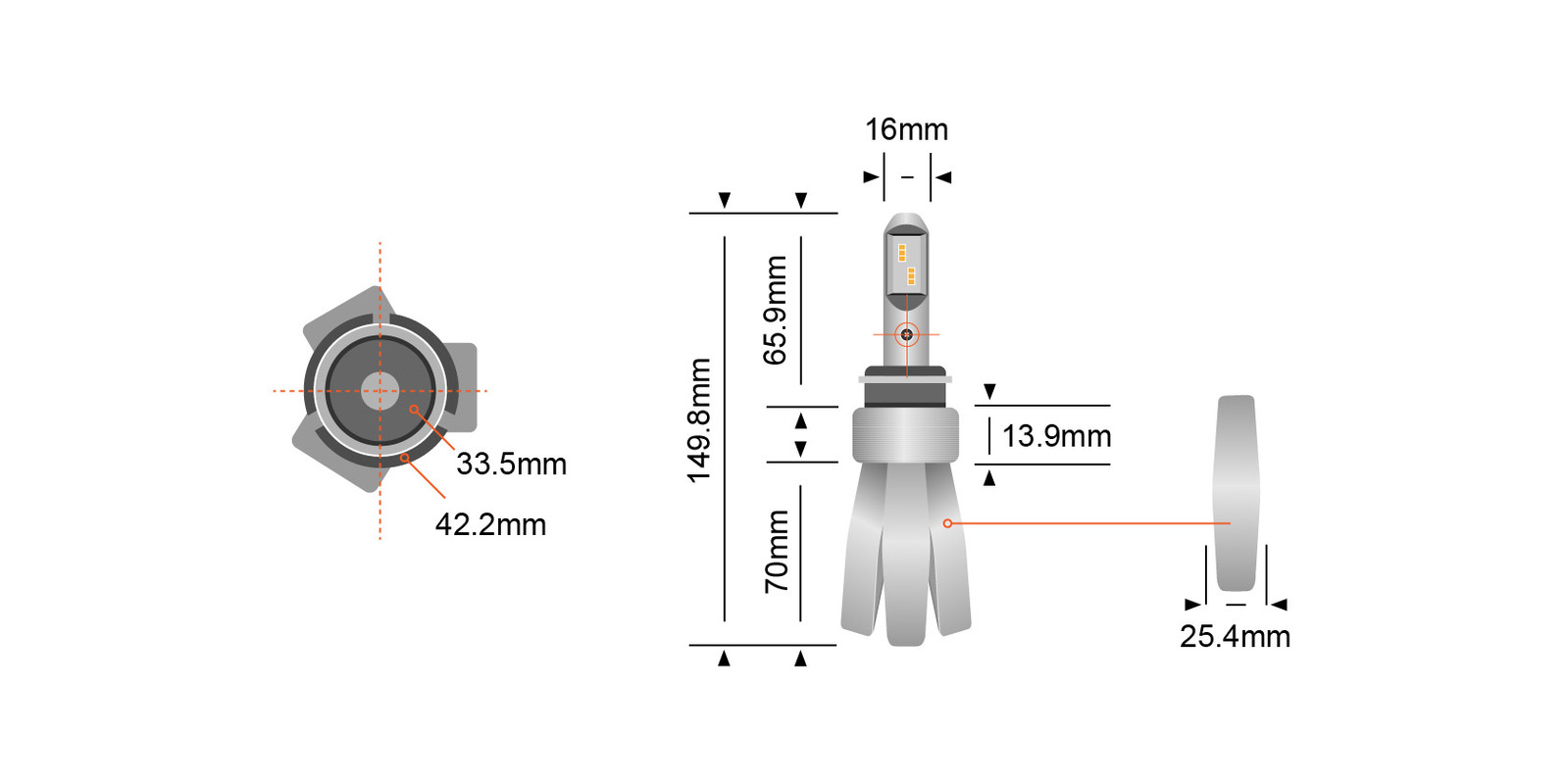

- Near identical footprint to stand halogen bulb ensure 100 compatibility.
KEY LIGHTING BENEFITS

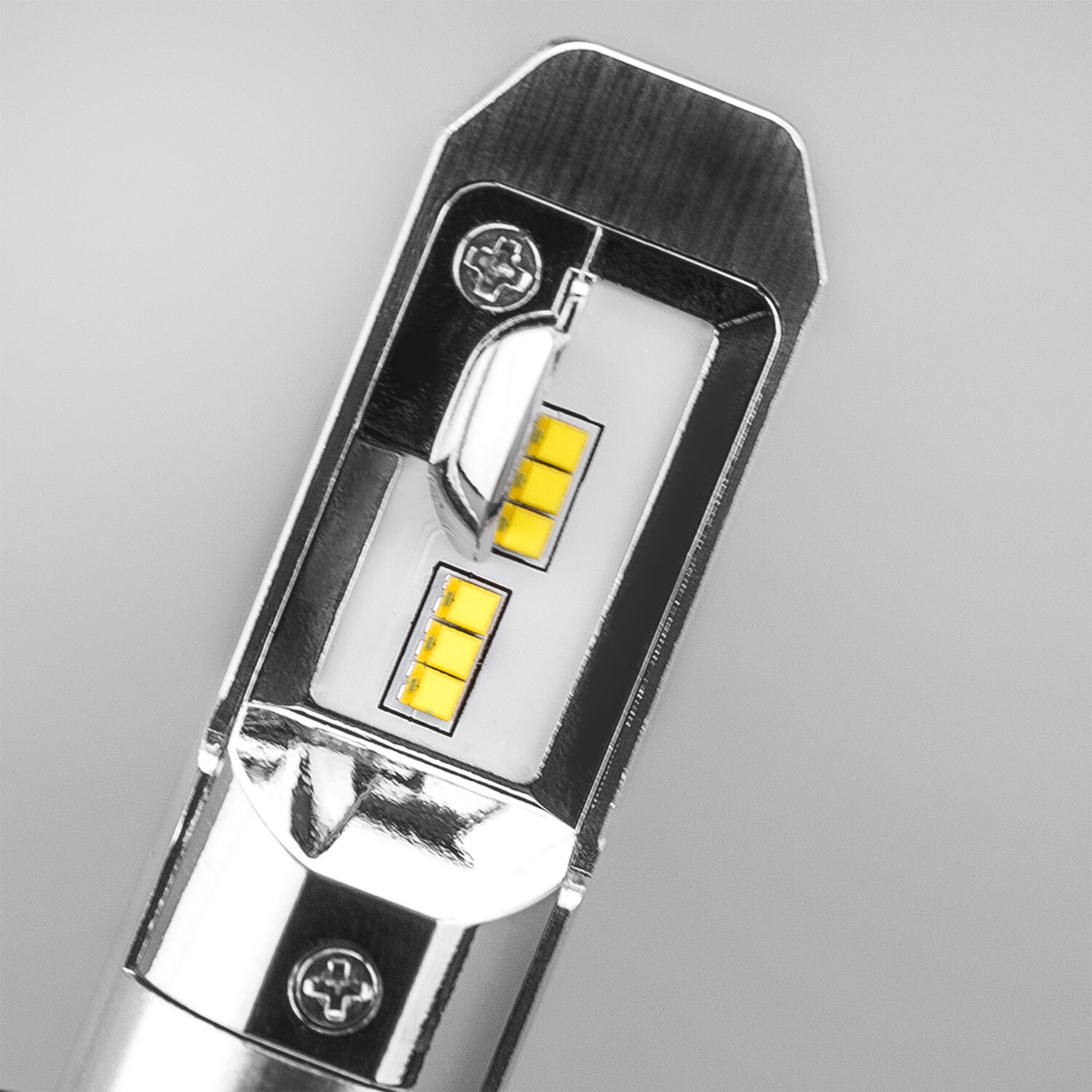

- Top Bin Philips© Lumileds Luxeon ZES® LED | We’ve independently verified the authenticity of the Philips© Lumileds used. The undomed nature of the ZES® provide better optical control with minimal scatter.
- CCT 5700K means colours sync with our auxiliary LED driving lights.

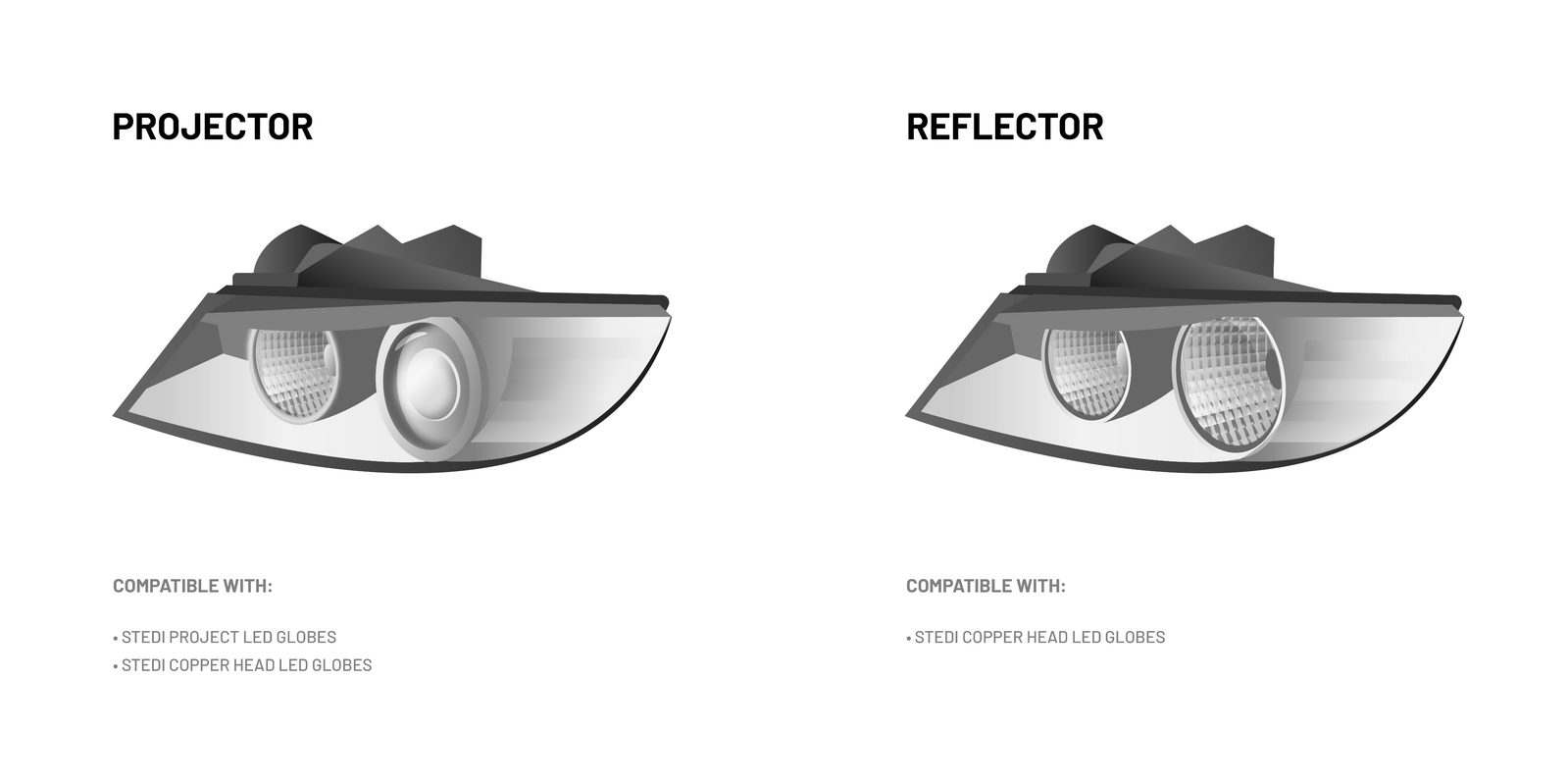

- OEM matching light distribution through exact positioning of the LED emitters to optimise the vehicles reflector design as the OEM intended.
- Instant Full Beam without any warm up time.
TECHNOLOGY
- CAN-Bus cancellation built in
- Unlike other platforms on the market, our Copper Heads LED Kit will not discolour or tarnish your vehicles headlamp reflector or lenses.
- Electrically Protected again RFI and EM Interference
- Over and Under Voltage Protection
- Waterproof connectors

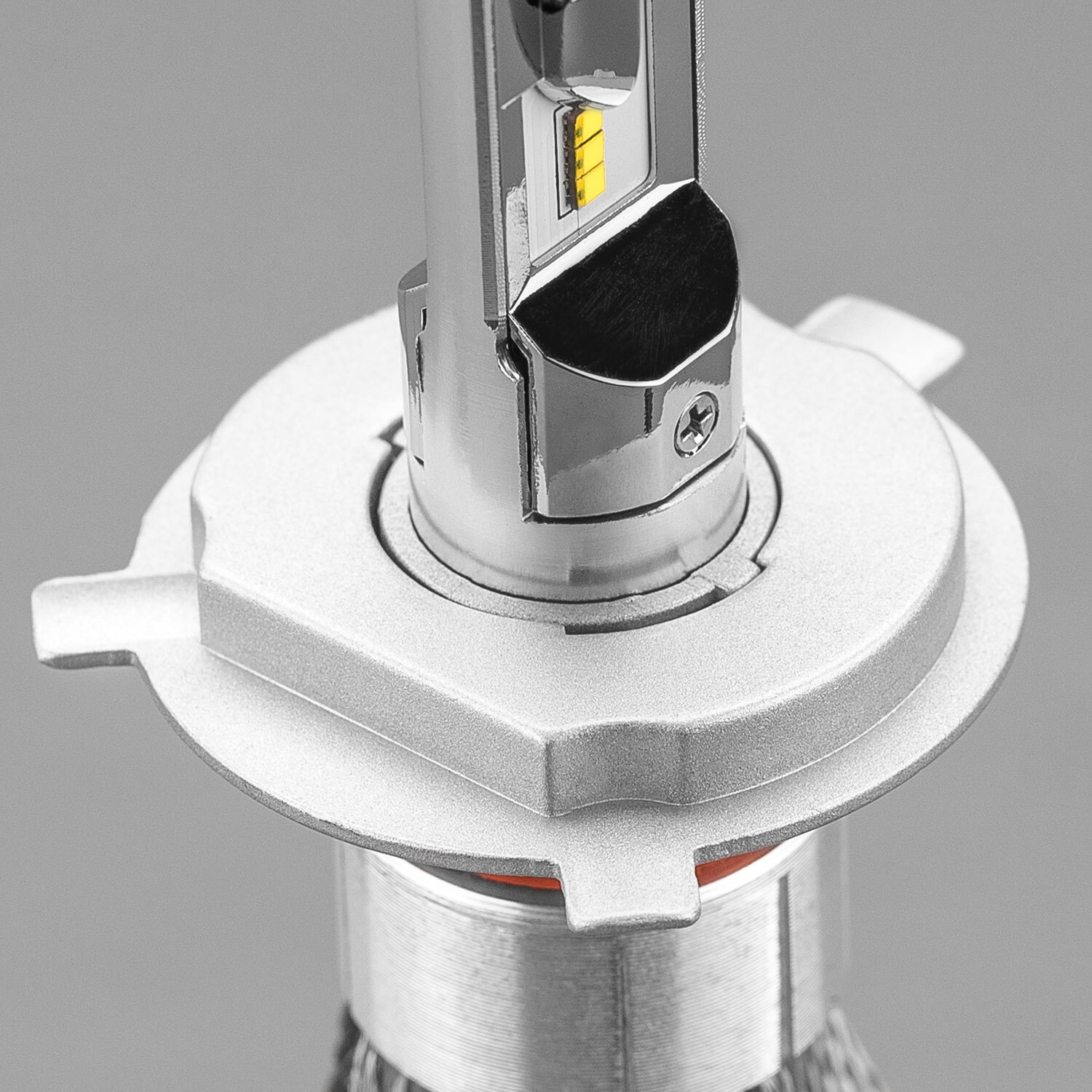

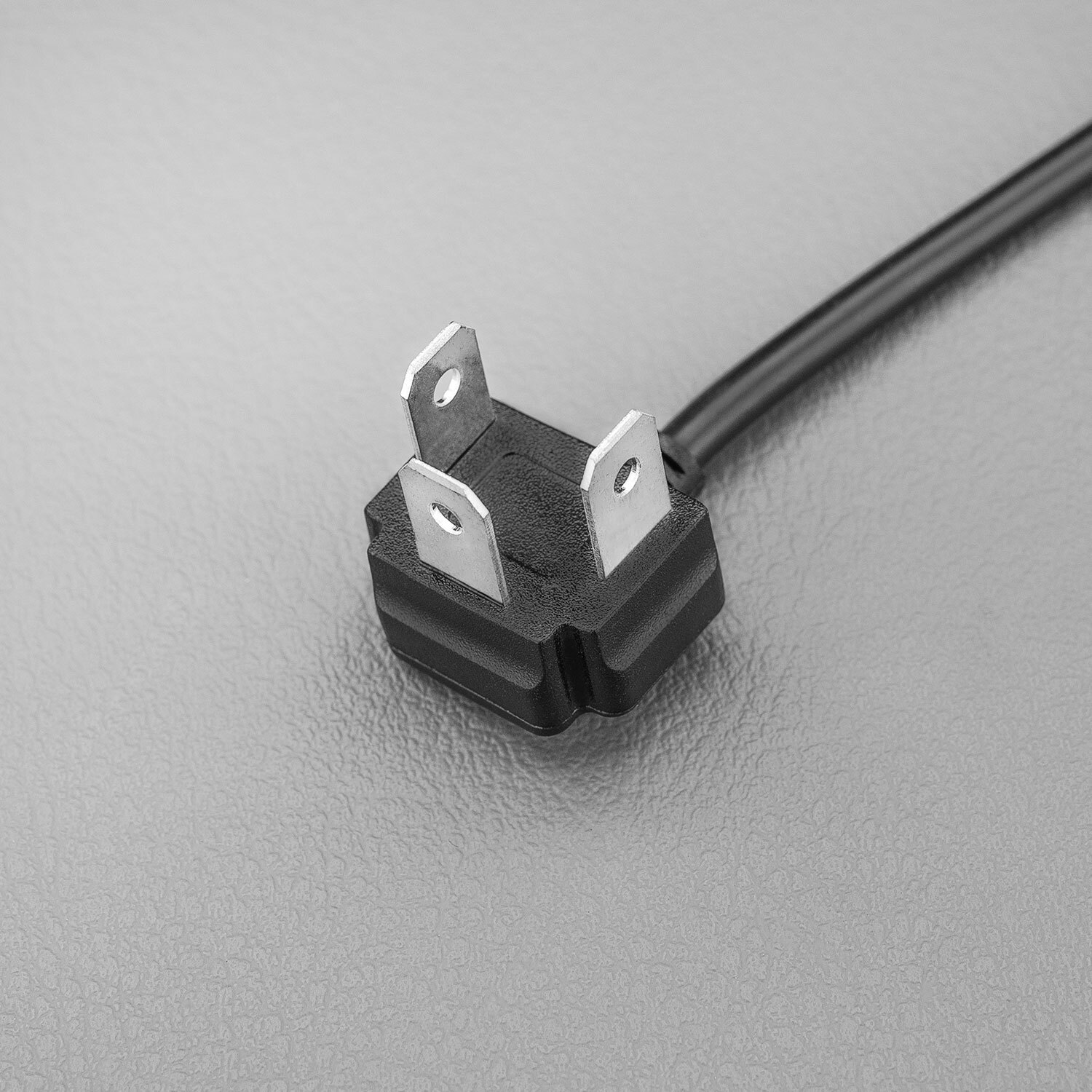

- Plug and Play H4 Connector | No cutting or professional installation required, as easy as changing OEM bulb
- Ingress Protection IP65 | means our kits will not fail at the first sign of water.
- True White 5700Kelvin
MONEY BACK GUARANTEE: Our LED Conversion Kits come with a 100% money back guarantee within 30 days. You're welcome to install and use our conversion kit, and if you're not 100% satisfied send them back to us for a no questions asked refund.
SPECIFICATIONS
HOUSING MATERIAL | 6063 Aviation Aluminium |
LED CHIP TYPE | 12 x Philip™ ZES (Each Lamp) |
POWER | 1.6a @ 13.6v High/Low (Each Lamp) |
RAW LUMENS | 6,000lm pair |
COMPATIBLE VOLTAGE | DC 12v and 24v |
LIFESPAN | 30,000 hours |
CANBUS | Built in |
CONNECTOR TYPE | H4 |
INGRESS PROTECTION | IP65 |
OPERATING TEMP | -40°c to + 80°c |
WHAT’S IN THE BOX
- 2 x H4 STEDI Copper Head Headlight LED Conversion Headlights
- 2 x Drivers
- User Instruction Manual
(LEDCONV-H4-CH)
SKU | LEDCONV-H4-CH |
Brand | Stedi |
Shipping Weight | 0.6000kg |
