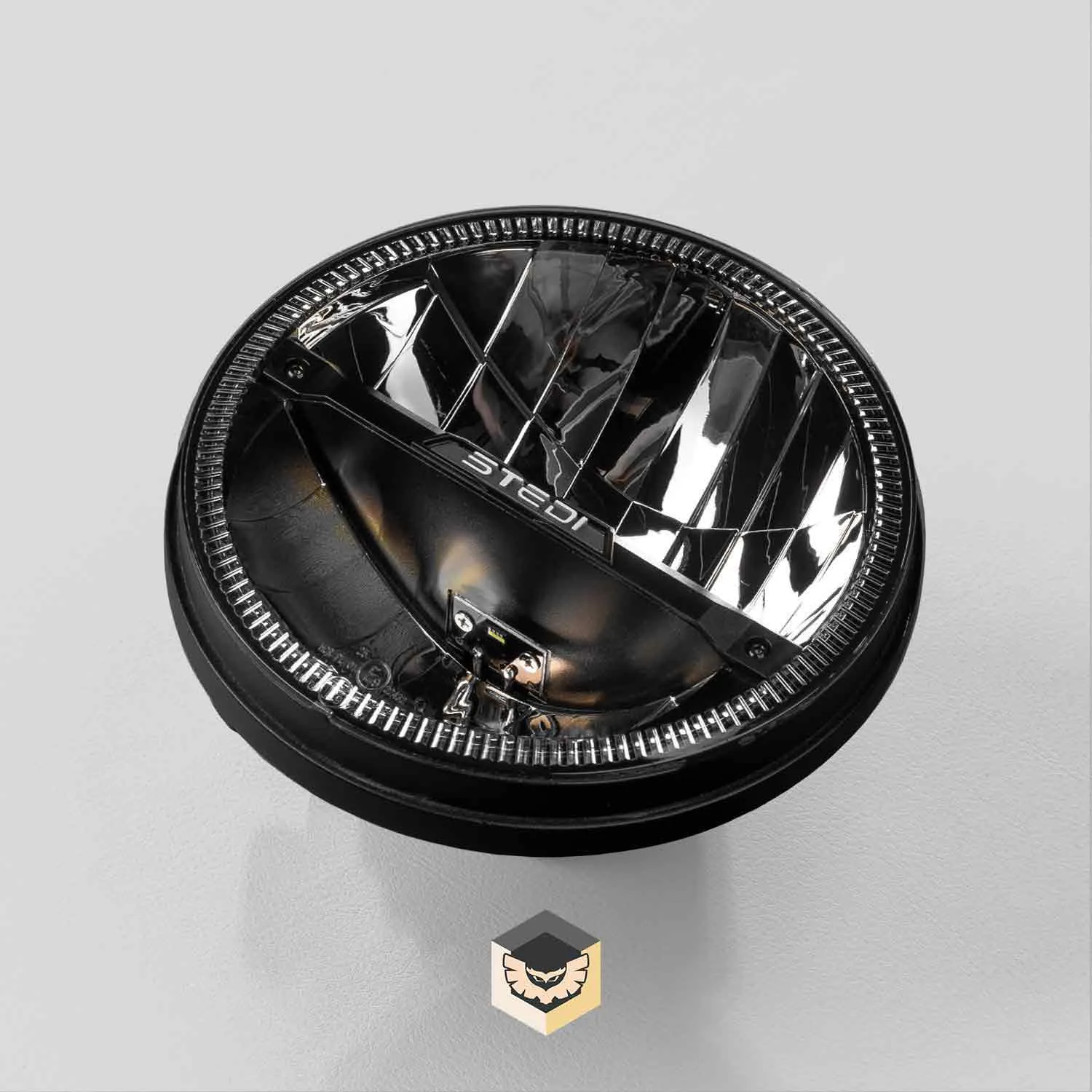

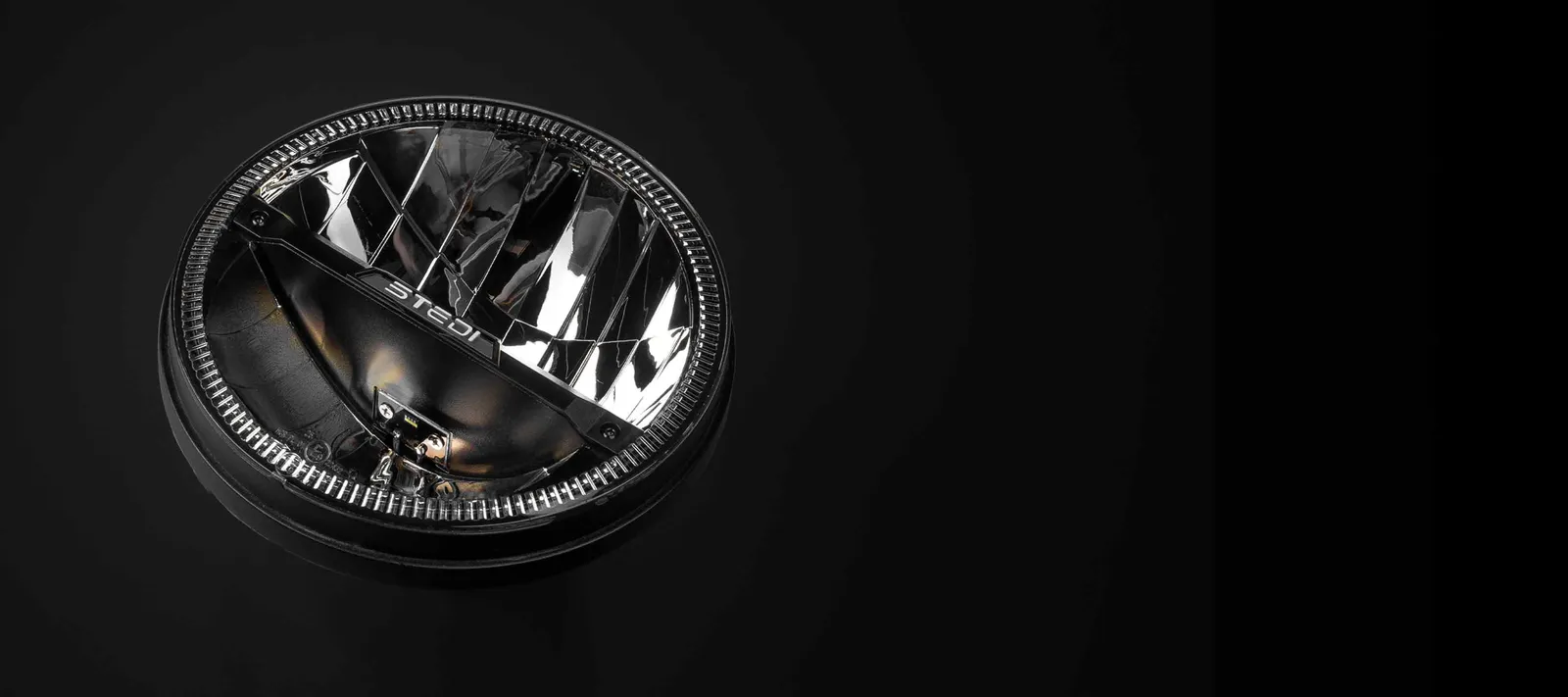

STEDI Homage 7 Inch LED Headlight

The STEDI Homage 7 Inch LED Headlight in black provides a warm 3000K light output with Osram LEDs and is 100% ADR compliant for road use in right-hand drive markets. It is designed as a 7 inch round headlight solution for vehicles and equipment that use that lamp format.

Features:

• 100% ADR compliant and legal for road use in right-hand drive markets
• 3000K colour temperature for warm white light
• IP68 ingress protection
• Hardened polycarbonate lens
• Rated lifespan 30,000 hours
• Uses 2 x 12W Osram KW H4L531.TE LEDs

Specifications:

• LED: 2 x 12W Osram KW H4L531.TE
• Raw lumens: 2400Lm
• Amp draw: 1A@24V 2A@12V
• Lifespan: 30,000 Hours
• Ingress protection: IP68
• Operating temperature: -40°C ~ +60°C
• Lens material: Hardened Polycarbonate Lens
• Colour temperature: 3000K
• Voltage compatibility: DC 10V - 28V
• Weight (each): 0.95kg each
• Drop in replacement: #6014, 6015, 6016, H6024 and Par 56 headlamp designs
• ADR compliance: E922432 E922327
• Certification: CISPR25 Class 3

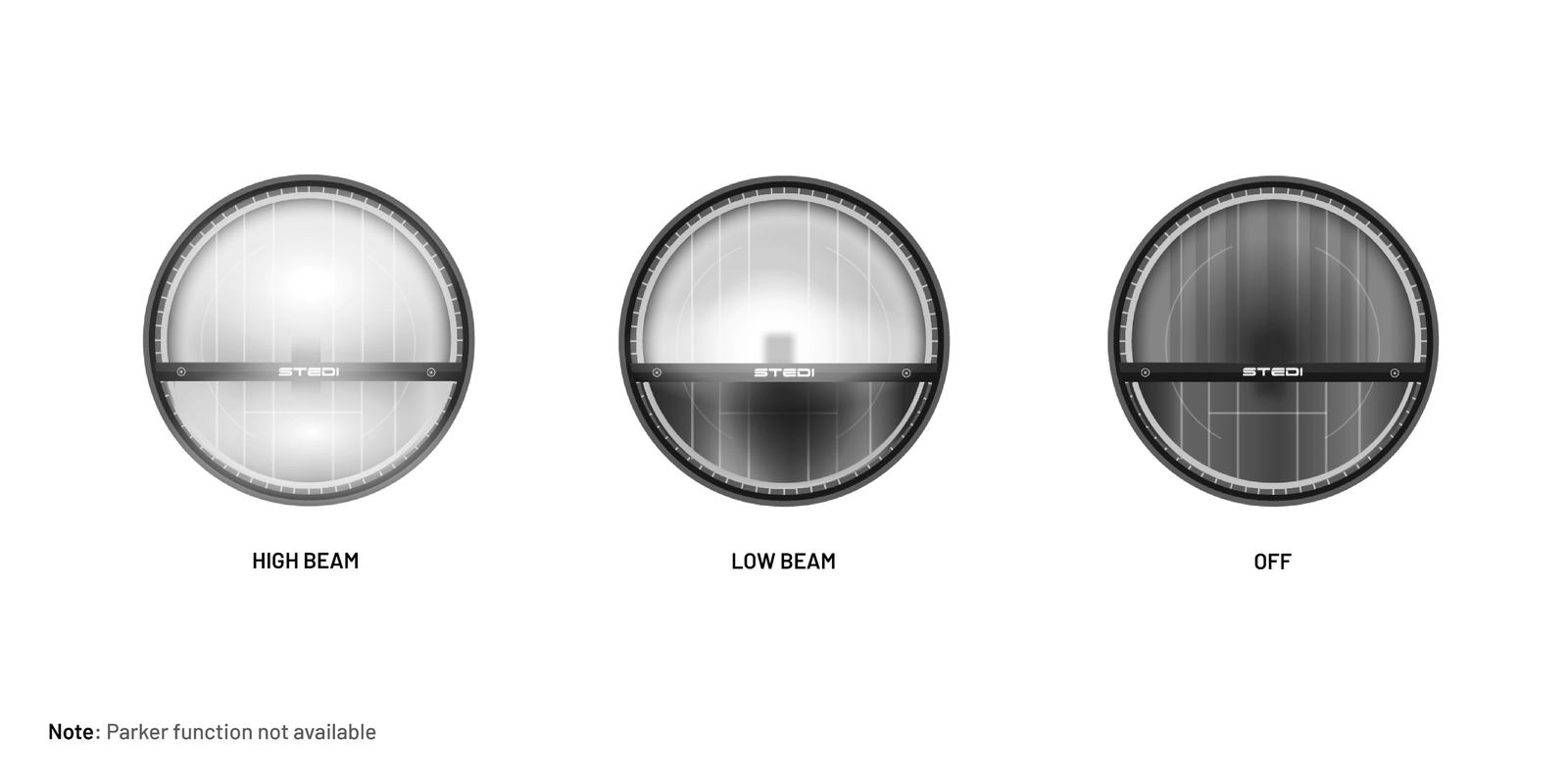

• High beam: 390m; Low beam: 212m

Suits:

• 1955-1983 Jeep CJ-5
• 1976-1986 Jeep CJ-7
• 1981-1985 Jeep CJ-8
• 1997-2006 Jeep Wrangler (TJ)
• 2007-2018 Jeep Wrangler 2-Door (JK)
• 2007-2018 Jeep Wrangler Unlimited 4-Door (JK)
• Land Rover Defender
• 1982 - 1991 Mitsubishi Pajero (L040)
• GQ Patrol
• Harley Davidson Motorcycles
• Mercedes Benz G Wagon
• Kenworth Trucks with 7 inch round headlight
• compatible with Positive-Switched Vehicles ONLY
