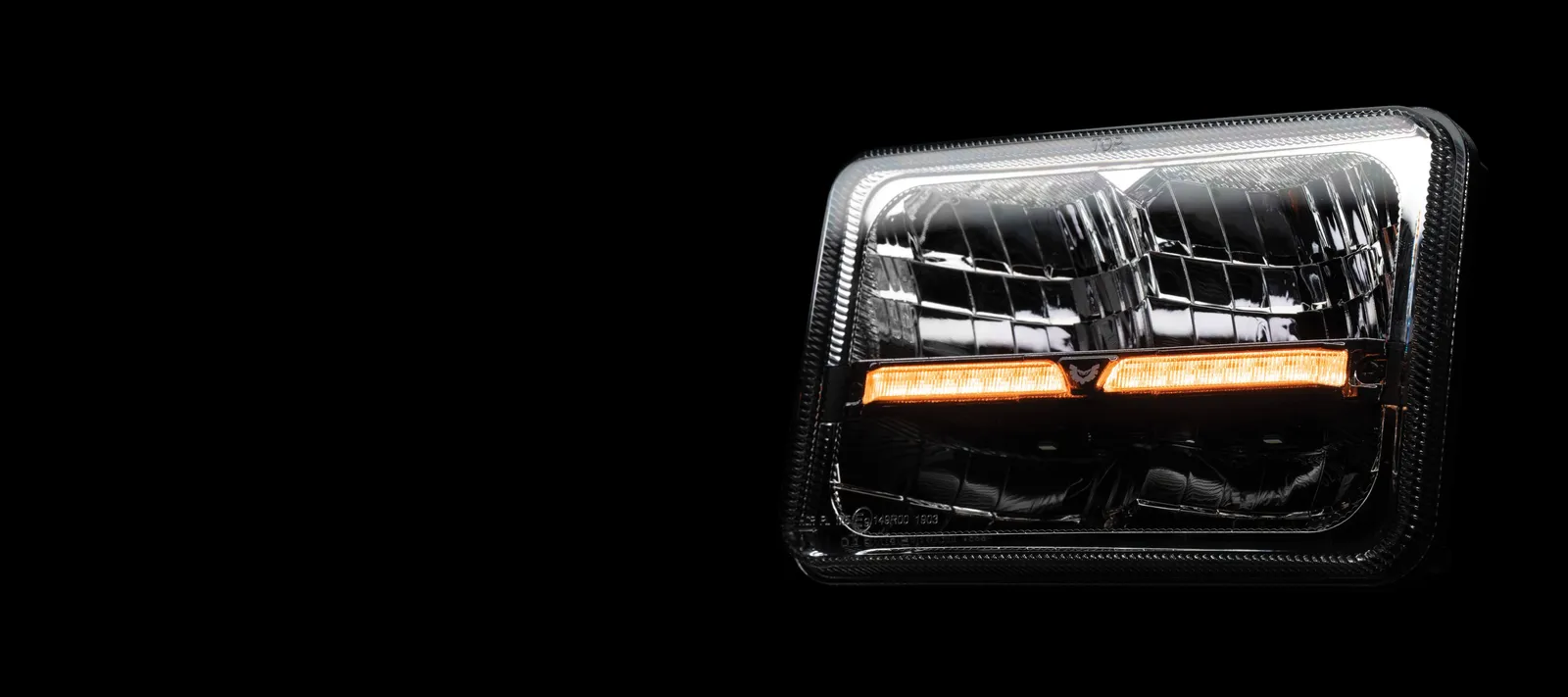

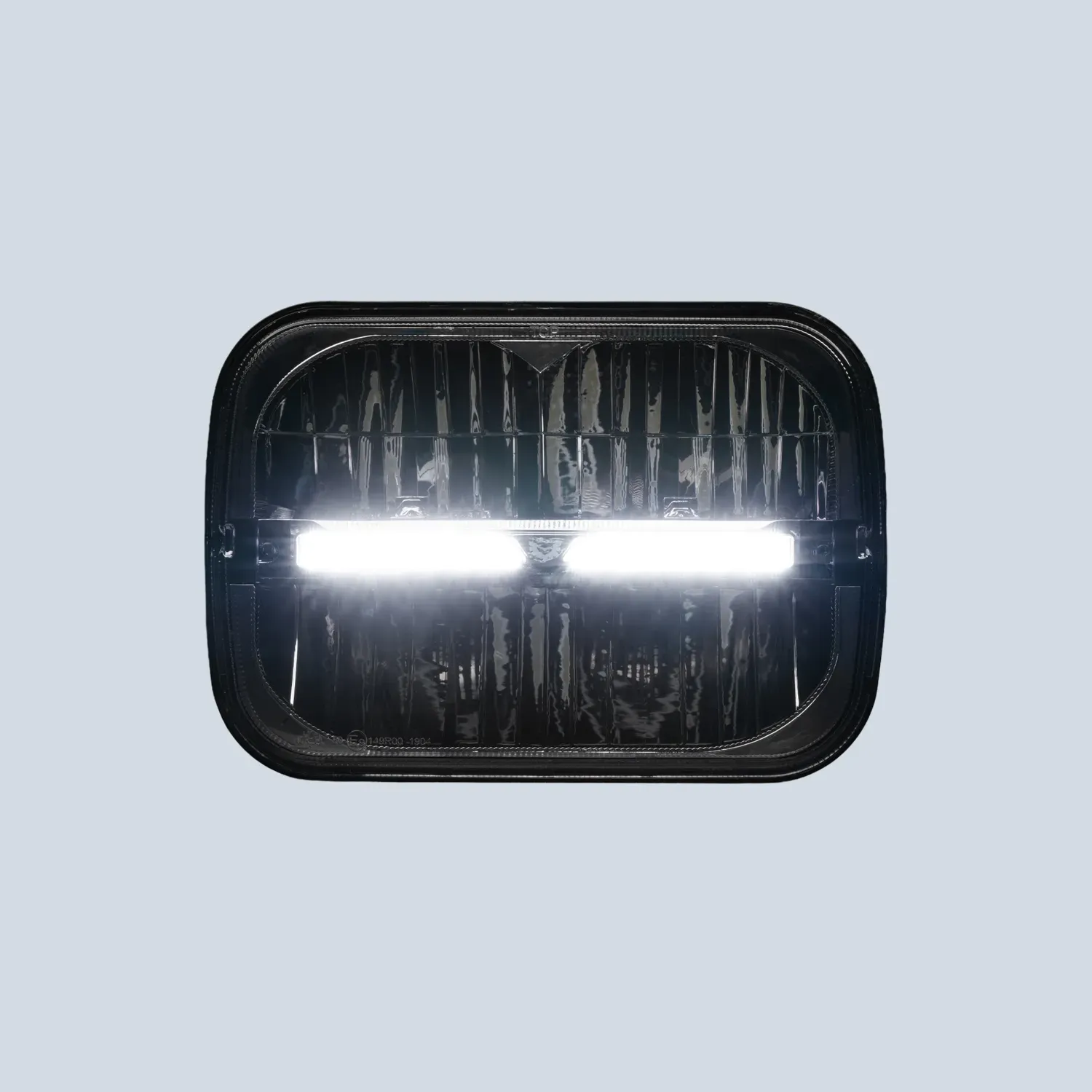

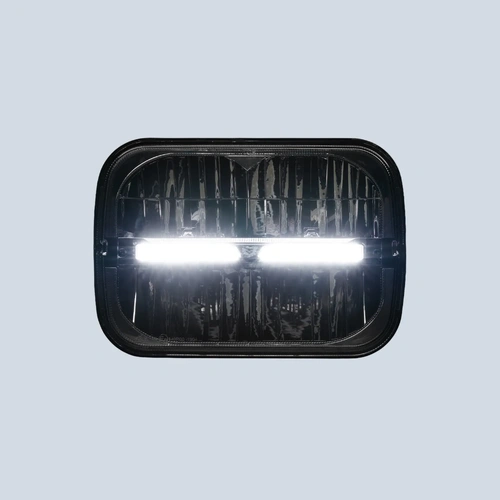

STEDI Rectangle 7 x 5 Inch Headlight with DRL & Integrated Indicator
$239.00
RRP $263.00
SAVE $24.00 (9%)
In Stock
The STEDI Rectangle 7 x 5 Inch Headlight is a homage-style LED upgrade that combines classic looks with modern LED performance. It delivers a cool 5700K light output, an LED high beam that reaches 425 m at 1 lux, and a rugged black housing with a hardened polycarbonate lens for long-lasting use. The headlight is ADR compliant and supported by STEDI’s Australian-based customer service and two year warranty.
Compatible with:
- Positive switched vehicles
- Negative switched vehicles
- Integrated park light
- Daytime running light (DRL)
- Integrated indicator
Please use our vehicle selector above to check fit compatibility.
(ST-45-HBI-751)
| Weight | 1.2 kg |
|---|---|
| Voltage | 10-30V |
| Ingress protection | IP68 (submersible up to 3 m) |
| Beam pattern | Driving beam |
| Colour temperature | 5700K |
| Lumen maintenance | 50,000 hours |
| Operating temperature | -40°C to 60°C |
| Power draw (low beam) | 17W |
| Power draw (high beam) | 33W |
| Current draw (low beam) | 12V @ 1.42A |
| Current draw (high beam) | 12V @ 2.75A |
| Current draw (DRL) | 0.5A @ 12V |
| Current draw (indicator) | 0.5A @ 12V |
| Current draw (parker) | 0.5A @ 12V |
| Raw lumens | 3600 Lm |
| Tested lumens (high beam) | 2360 Lm |
| Tested lumens (low beam) | 1150 Lm |
| SKU | ST-45-HBI-751 |
| Brand | Stedi |
