Stedi LED Light Bar Bracket to suit Rhino Rack Platform V2.0

$119.99
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

Add Stedi Stubby Holder?




Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

ADVENTURE DRIVEN.

We may be a little biased, but we think this is the sleekest Rhino RackLED Light Bar mounting solution on the market. Designed by STEDI specifically to suit the Rhino RackPioneer Platform. This is a 100% bolt-on solution that supports a very wide application of light bars.



THOUGHTFULLY DESIGNED.

The STEDI Rhino RackLED Light Bar mounting bracket is designed to fit both old and new variants of the Rhino platform. Whether you have the four or five plank variant, we carefully thought about the bracket geometry to suit every application.



The STEDI Way.

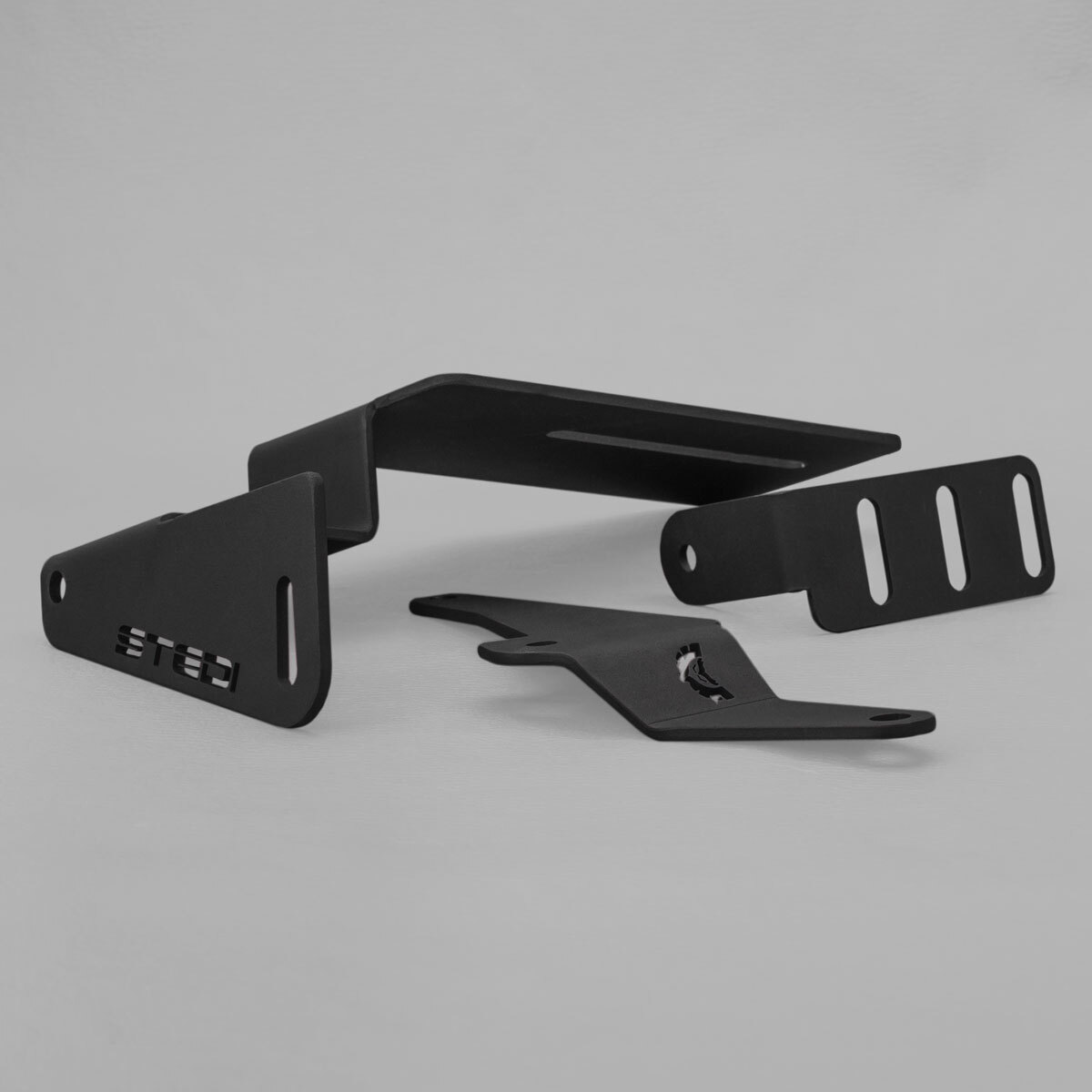

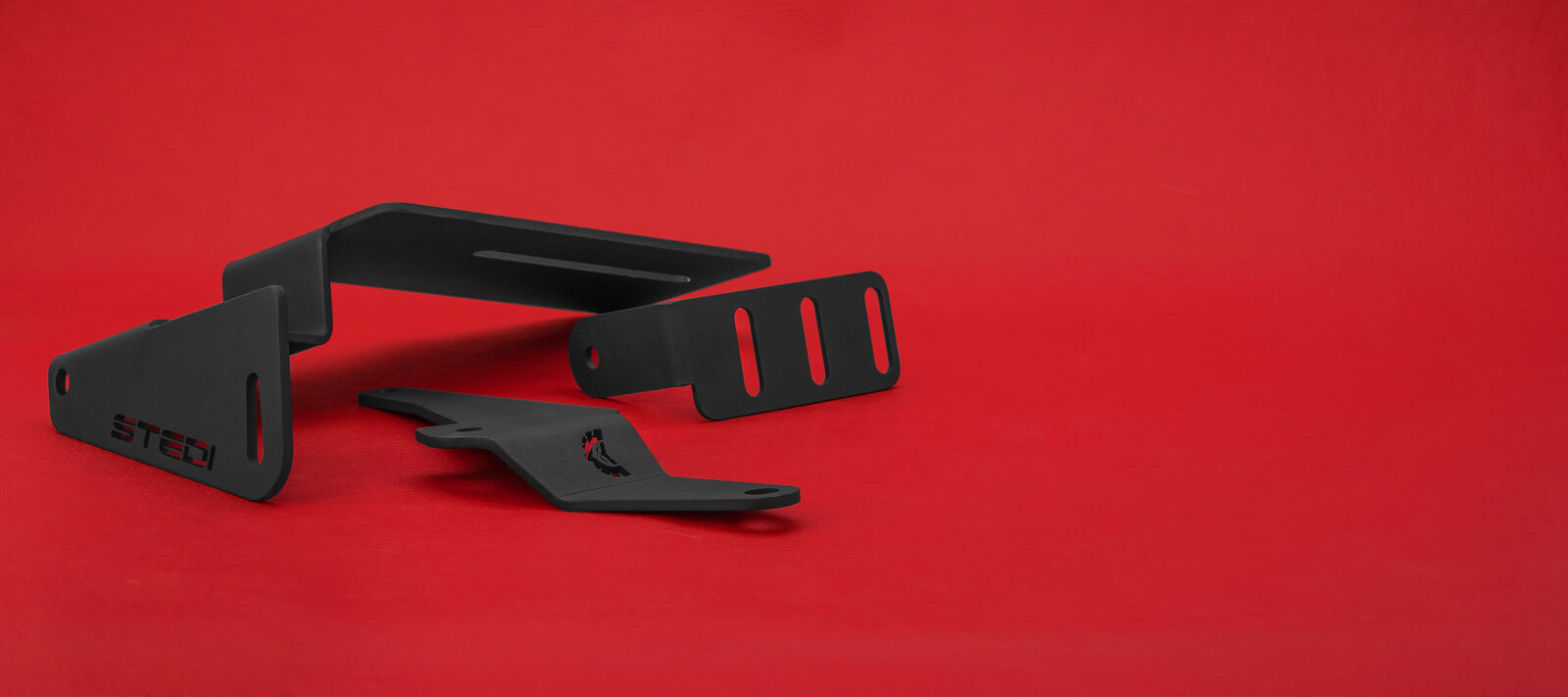

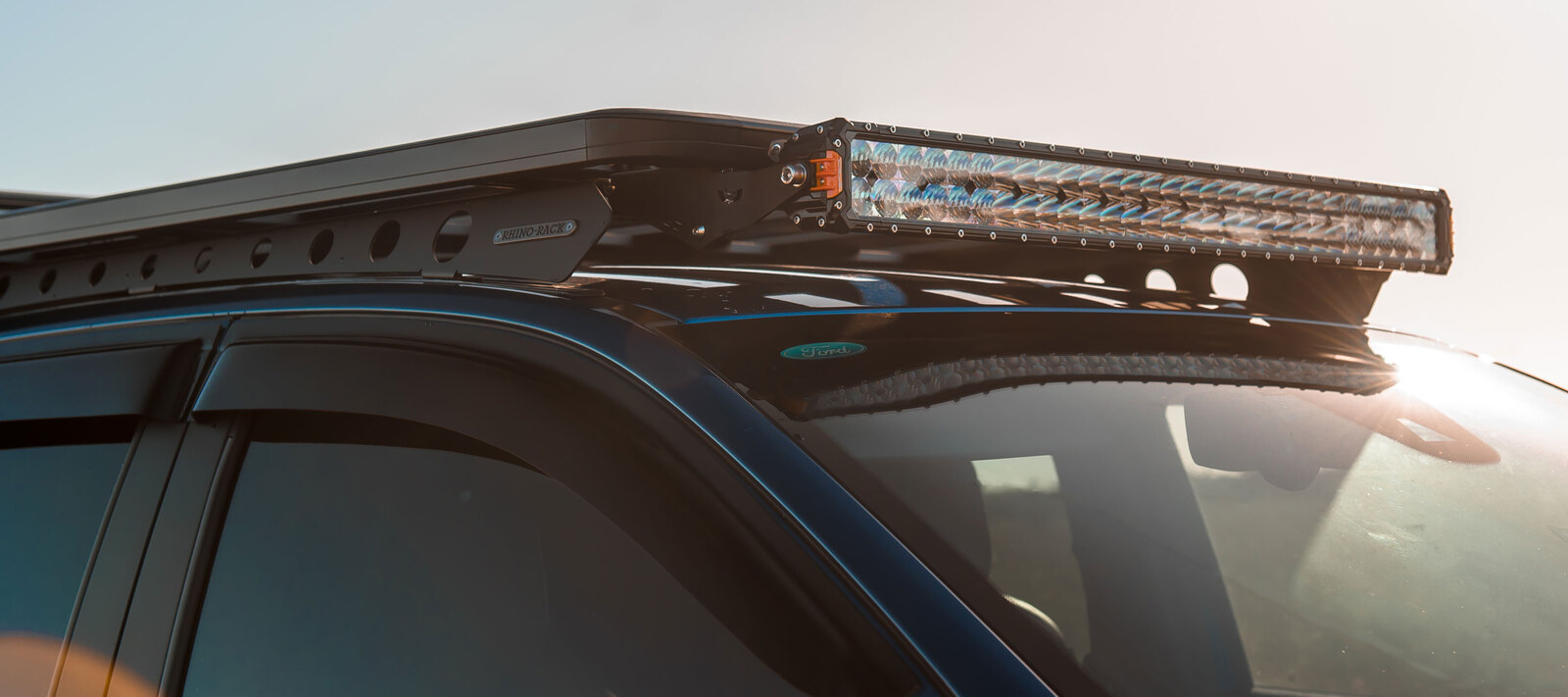

The STEDI Rhino RackLED Light Bar mounting bracket epitomises the STEDI design language. The two-piece design of our bracket allows you to mount your light bar either directly underneath or directly in front of the platform.









The Nitty Gritty.

New 2020 Version 2 Design: Our new May 2020 release bracket fits Rhino-Rack Platform's both new and old variants.

We may be a little biased, but we think this is the sleekest Rhino RackLED Light Bar mounting solution on the market. Designed by STEDI specifically to suit the Rhino RackPioneer Platform. This is the only solution on the market that is 100% bolt-on.

KEY PRODUCT FEATURES

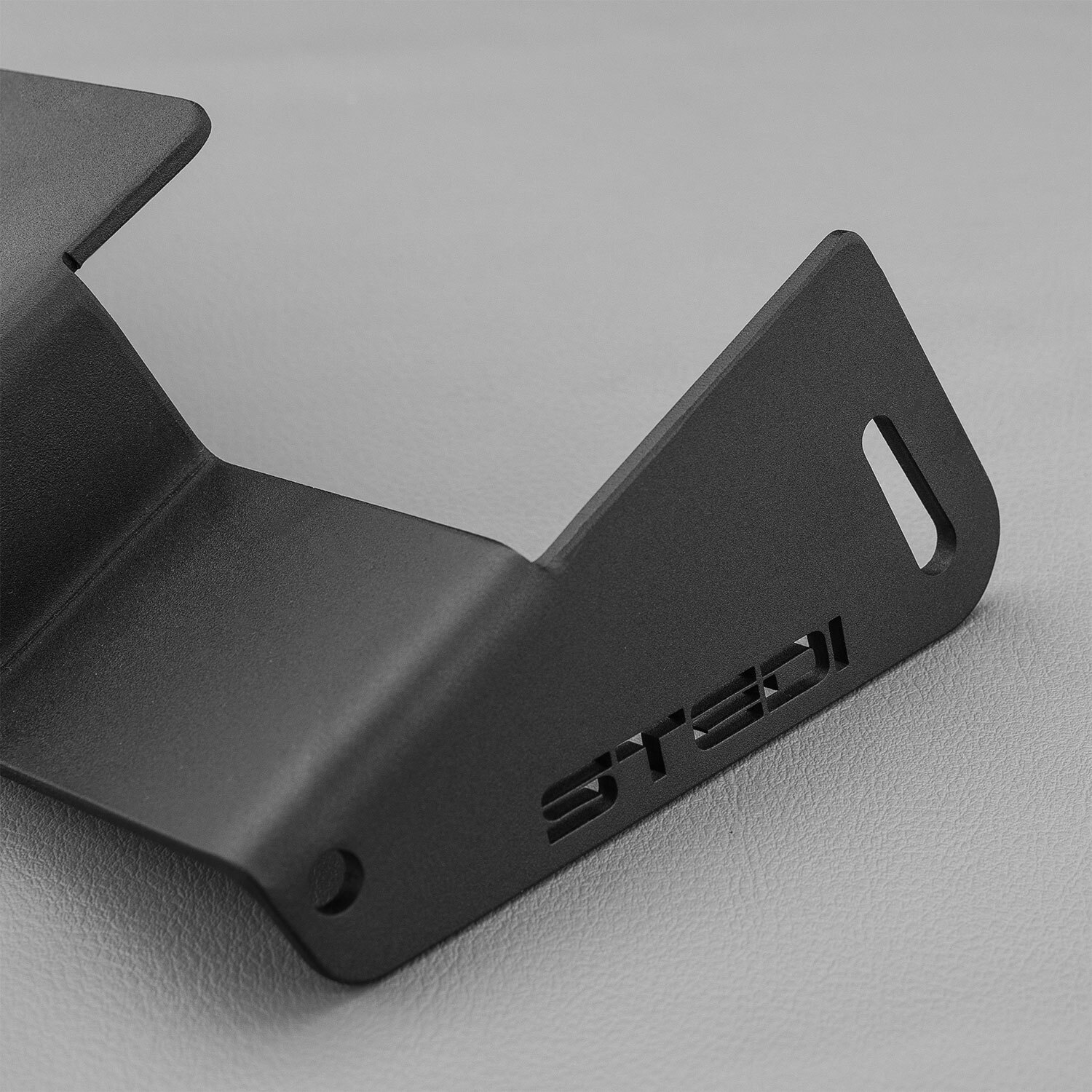

  • Manufactured using 4mm thick stainless steel.
  • The powder-coat is a textured finish that precisely matches the tone and texture of the Rhino Rack?
  • The light bar mounting points are slotted allowing height optimization of the light bar.

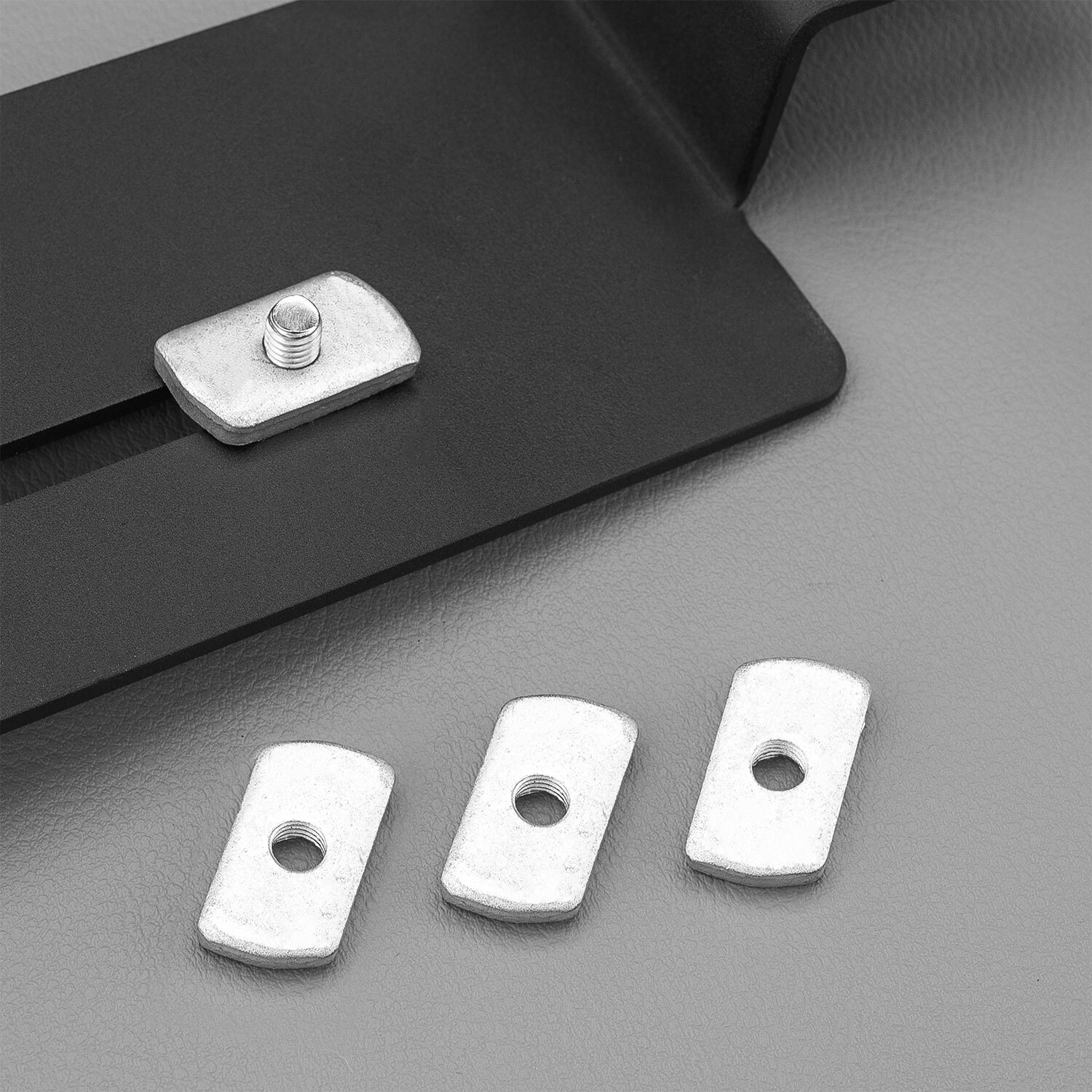

  • Ability to slide the mounts backward and forward along the platform channel.

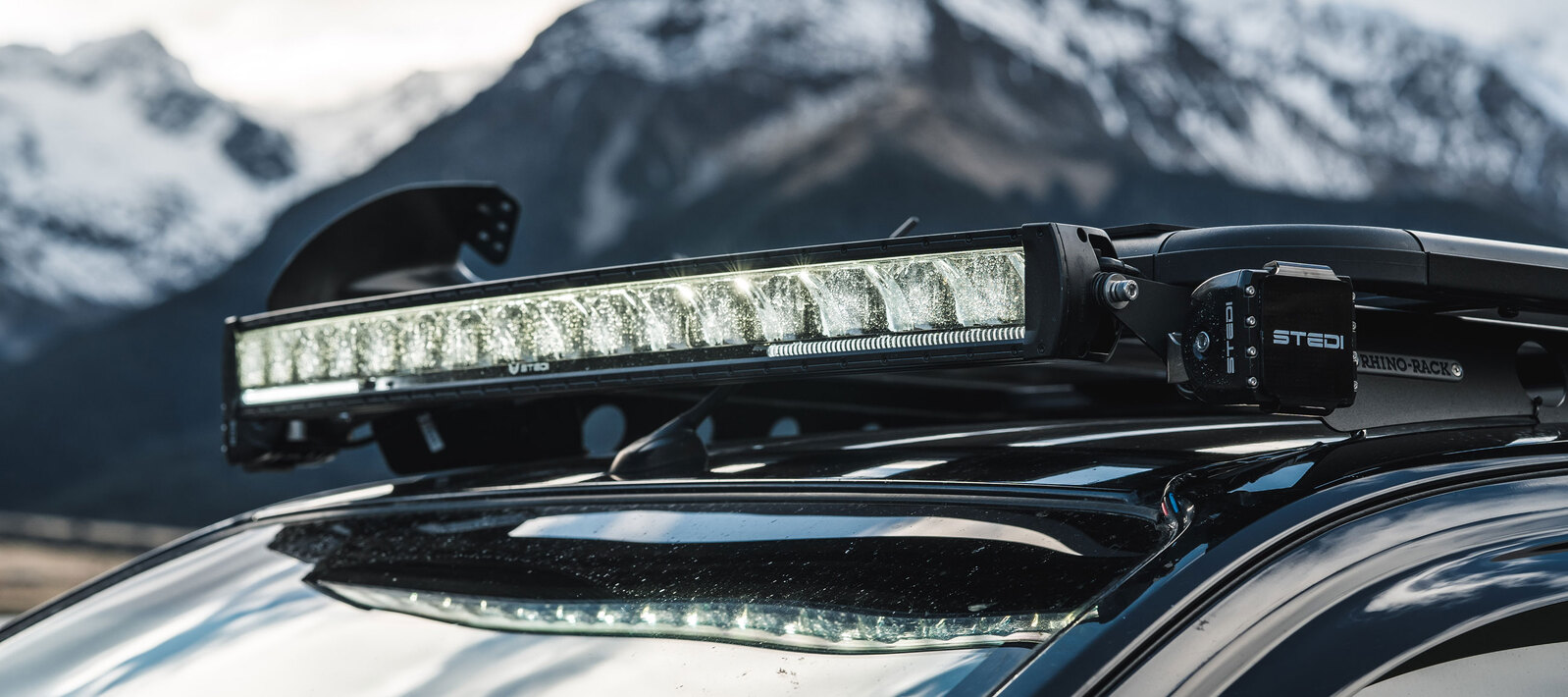

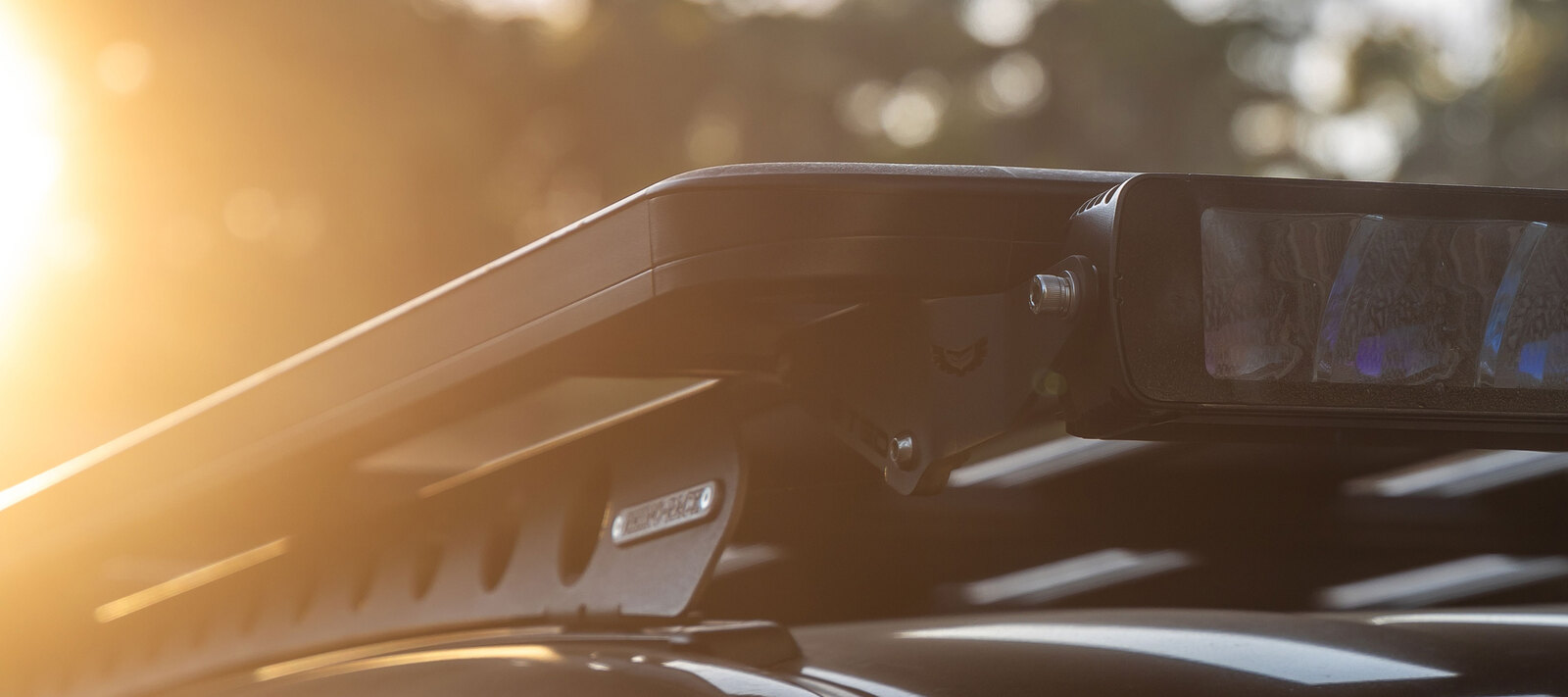

  • Mounts lights directly below the Rhino platform

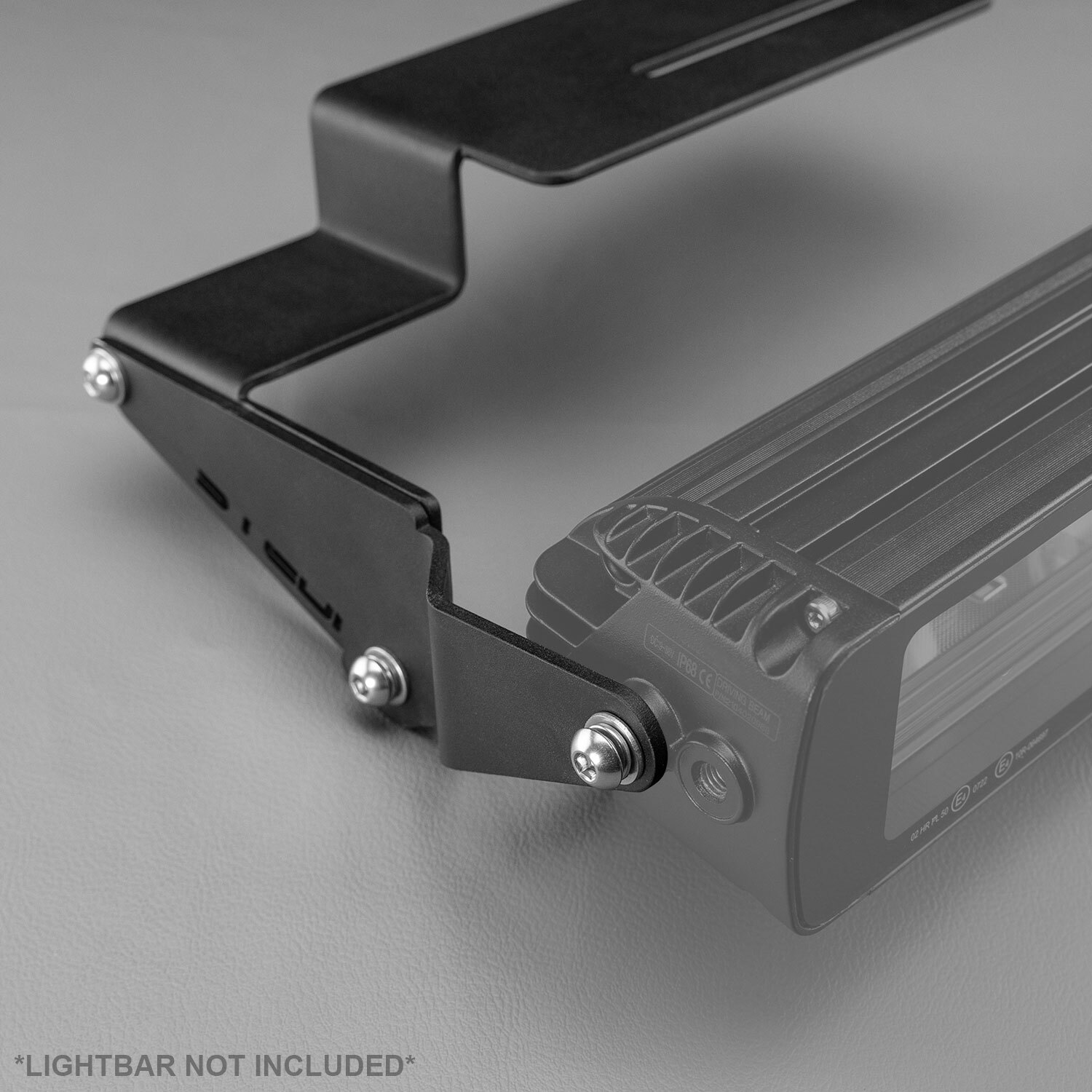

  • Add-on front mount plate allows the light bar to sit in front of the Rhino Rack?

SUITS THE FOLLOWING RHINO RACK?

  • Pioneer Platform 4 & 5 plank
  • Pioneer Tray 4 & 5 plank
  • Pioneer Tradie 4 & 5 plank

4 PLANK (OLD) - Up to October 2019

A) Stand Alone: MIN 1016mm / MAX 1212mm | ST2K 16L, ST3K 40L, ST3301 28L, ST4K 80L, ST-X 16L

B) Extensions Inwards: MIN 988mm / MAX 1174mm | ST2K 16L, ST3K 40L, ST3301 28L, ST3303 PRO 60L, ST4K 80L

C) Extensions Outwards: MIN 1062mm / MAX 1250mm | ST4K 80L

5 PLANK (OLD) - Up to October 2019

A) Stand Alone: MIN 1248mm / MAX 1340mm | ST2K 20L, ST3K 50L, ST4K 96L, ST4K 100L, ST-X 20L

B) Extensions Inwards: MIN 1220mm / MAX 1312mm | ST2K 20L, ST3K 50L*, ST4K 96L, ST4K 100L, ST-X 20L

C) Extensions Outwards: MIN 1294mm / MAX 1388mm | ST2K 20L, ST3K 50L*, ST4K 96L, ST4K 100L, ST-X 20L

4 PLANK (NEW) - 2020+

A) Stand Alone: MIN 1016mm / MAX 1212mm | ST2K 16L, ST3K 40L, ST3301 28L, ST4K 80L, ST-X 16L

B) Extensions Inwards: MIN 984mm / MAX 1148mm | ST2K 16L, ST3K 40L, ST3301 28L, ST3303 PRO 60L, ST4K 80L, ST-X 16L

C) Extensions Outwards: MIN 1064mm / MAX 1228mm | ST4K 80L

5 PLANK (NEW) - 2020+

A) Stand Alone: MIN 1246mm / MAX 1320mm | ST2K 20L, ST3K 50L*, ST4K 96L, ST4K 100L, ST-X 20L

B) Extensions Inwards: MIN 1214mm / MAX 1284mm | ST4K 96L, ST-X 20L

C) Extensions Outwards: MIN 1294mm / MAX 1366mm | ST2K 20L, ST3K 50L*, ST4K 96L, ST4K 100L, ST-X 20L

*NOTE: Large washer should be used when fitting ST3K 50L to the outer extension of Rhino Rack (larger washer not included).

GOOD TO KNOW

Keep in mind that the distance between the underside of the Rhino Rackand your vehicle roof will vary from make and model. Before committing to purchase we recommend you cross-check the dimensions of the light bar against the clearance available on your specific vehicle.

STEDI Designed & Manufactured: This product is not endorsed by, directly affiliated with Rhino Rack?. All product and company names are the registered trademarks of their original owners. The use of any trade name or trademark is for compatibility and reference purposes only and does not imply any association with the trademark holder of their product brand.

Tech Specs

MATERIAL Stainless Steel
FINISH Textured UV Stable Powder Coat
SUITS All Rhino Rack Platforms



(BRKRHINO-RACK)

SKU BRKRHINO-RACK
Barcode # 935357000-1021-C
Brand Stedi
Shipping Weight 3.1000kg
