Stedi Quad EVO LED Driving Light (Centre Module)
$359.00
RRP $395.00
SAVE $36.00 (9%)
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

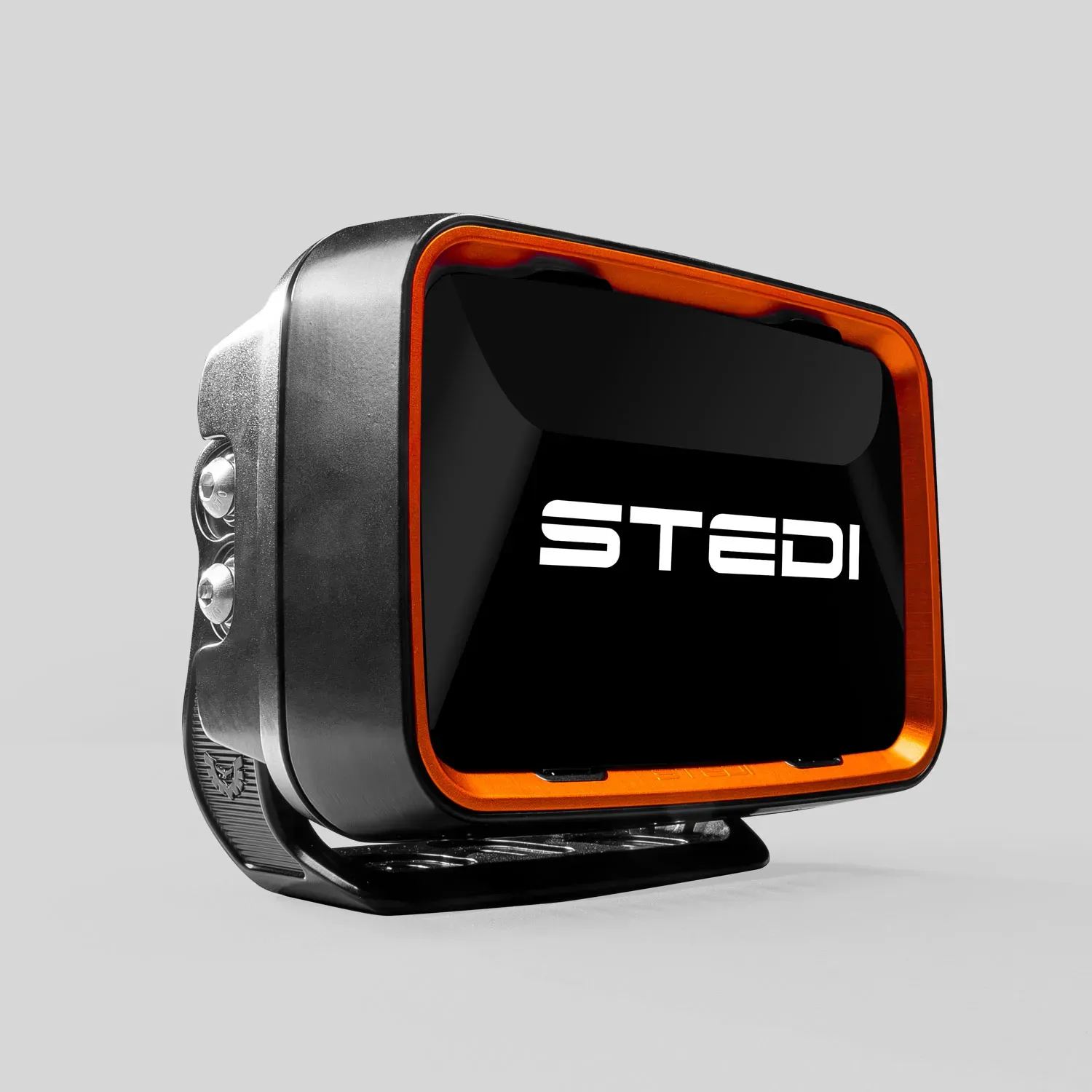

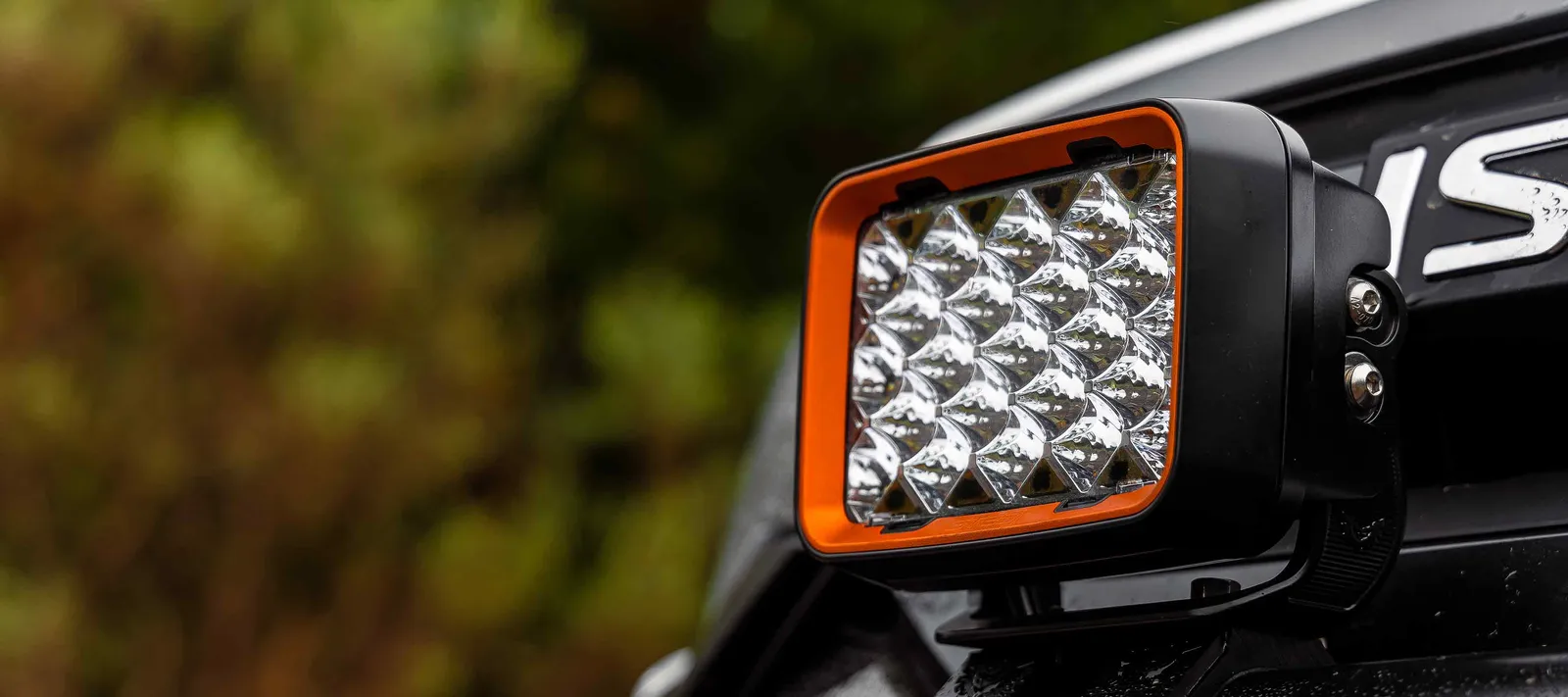

The Stedi Quad EVO Centre Module is the central element of the QUAD EVO modular driving light family. It delivers a balanced combo beam using spot and flood reflectors and is designed for a low profile fit on modern bull bars and roof racks while offering IP68 protection and extended operating temperature range.
Features:
- Modular centre module designed to combine with QUAD EVO side modules for extended coverage and reach.
- Engineered optics combining spot and flood reflectors to provide focused throw and usable peripheral illumination.
- Low profile, organic housing and refined bracket geometry for mounting in tight clearances.
- ADC12 aluminium housing with purpose-designed fins to aid heat dissipation and improve LED longevity.
- Polycarbonate lens for impact resistance and durability in off-road conditions.
- IP68 ingress protection, submersible to 3 m, and rated for operation from -40°C to 60°C.
- 5000 K colour temperature for consistent, low-glare illumination suited to driving applications.
- When used in a full QUAD EVO array (two centre and two side modules) the system can achieve long range and a wide illumination spread as documented by the manufacturer.
Compatible with:
- STEDI Rally Bar
Kit Includes:
- STEDI Black Out Cover
- Colour Fascia Grey
- Colour Fascia Orange
- STEDI custom key (removes fascia; doubles as bottle opener)
- STEDI branded patch
- Rubber dampener
- Stainless-steel mounting bracket
- Mounting hardware and wiring for initial installation
(ST-01-QDE-002)
| LEDs | 23 CREE XP20 |
|---|---|
| Beam pattern | Combo beam |
| Colour temperature | 5000K |
| Lumen maintenance (LM-80) | 30,000 |
| Lifespan | Up to 30,000 hours |
| Voltage compatibility | 12 V - 24 V |
| Ingress protection | IP68 (submersible up to 3 m) |
| Operating temperature | -40°C to 60°C |
| Lux (pair) | 928 m (pair) |
| Candela (pair) | 856,695 (pair) |
| Power draw (pair) | 143.5W (pair) |
| Tested lumens | 6,159 lm (single) | 12,049 lm (pair) |
| Housing material | Aluminium ADC12 |
| Lens material | Polycarbonate |
| Mounting bracket material | Stainless steel |
| SKU | ST-01-QDE-002 |
| Barcode # | 935357000-1953-C |
| Brand | Stedi |
| Shipping Weight | 2.1100kg |
