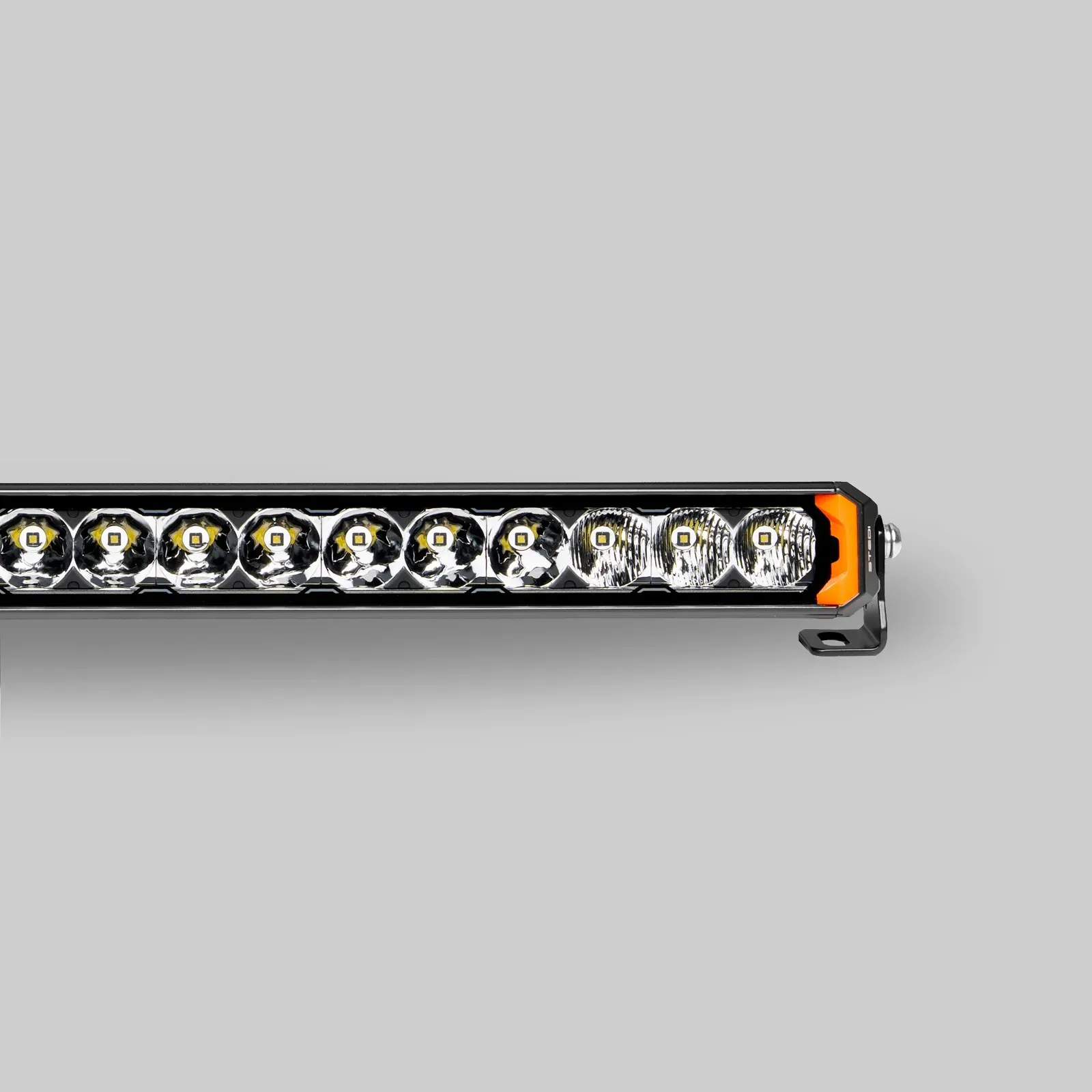

Stedi Sport Plus Single Row 21.5 Inch 16 LED Light Bar
$249.00
RRP $274.00
SAVE $25.00 (9%)
In Stock

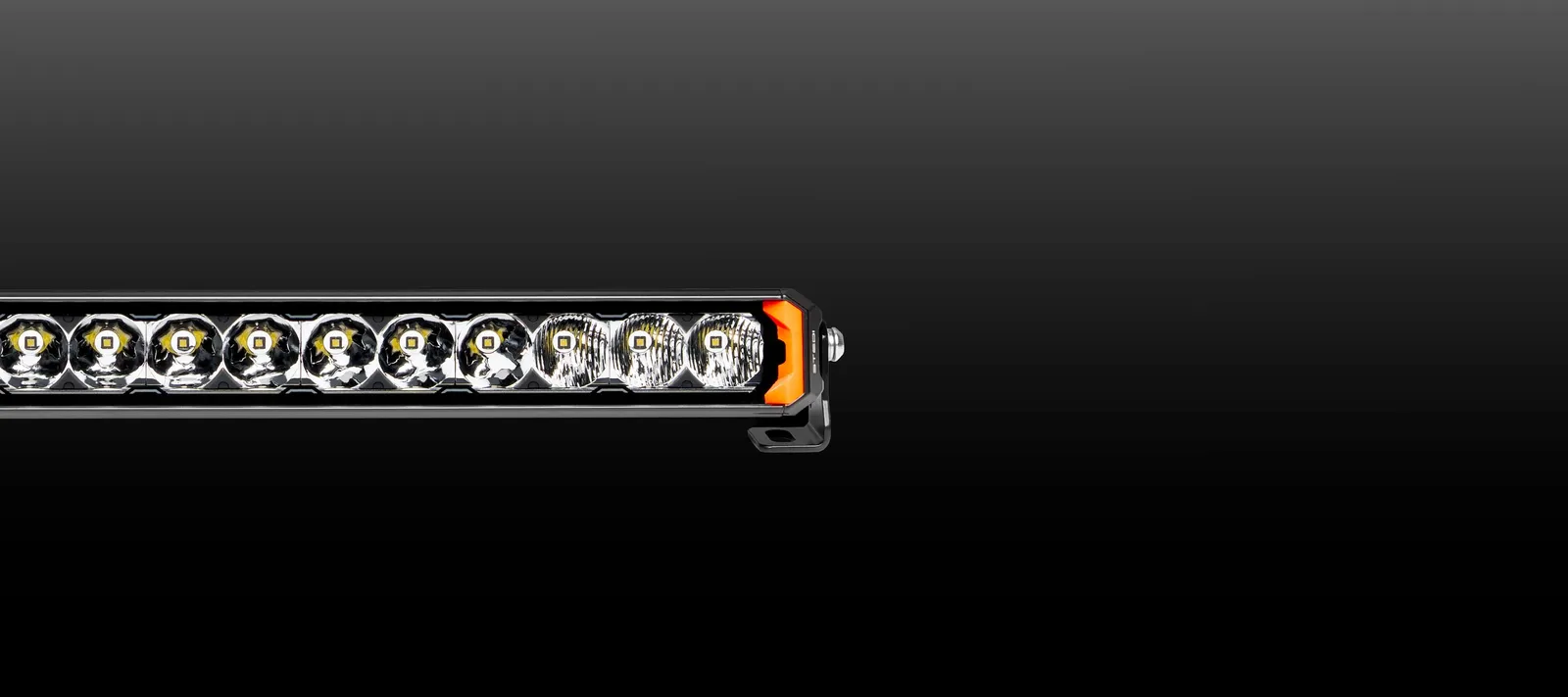

The Stedi Sport Plus single-row 21.5 inch light bar is a compact combination LED bar built for 4x4 and touring use. It uses OSRAM GW LEDs and a calibrated 5000K colour temperature to deliver improved contrast and longer, wider illumination for demanding driving conditions.
Features:
- Engineered with OSRAM GW LEDs
- Produces over 20% more lumen output than previous generations
- 5000K colour temperature

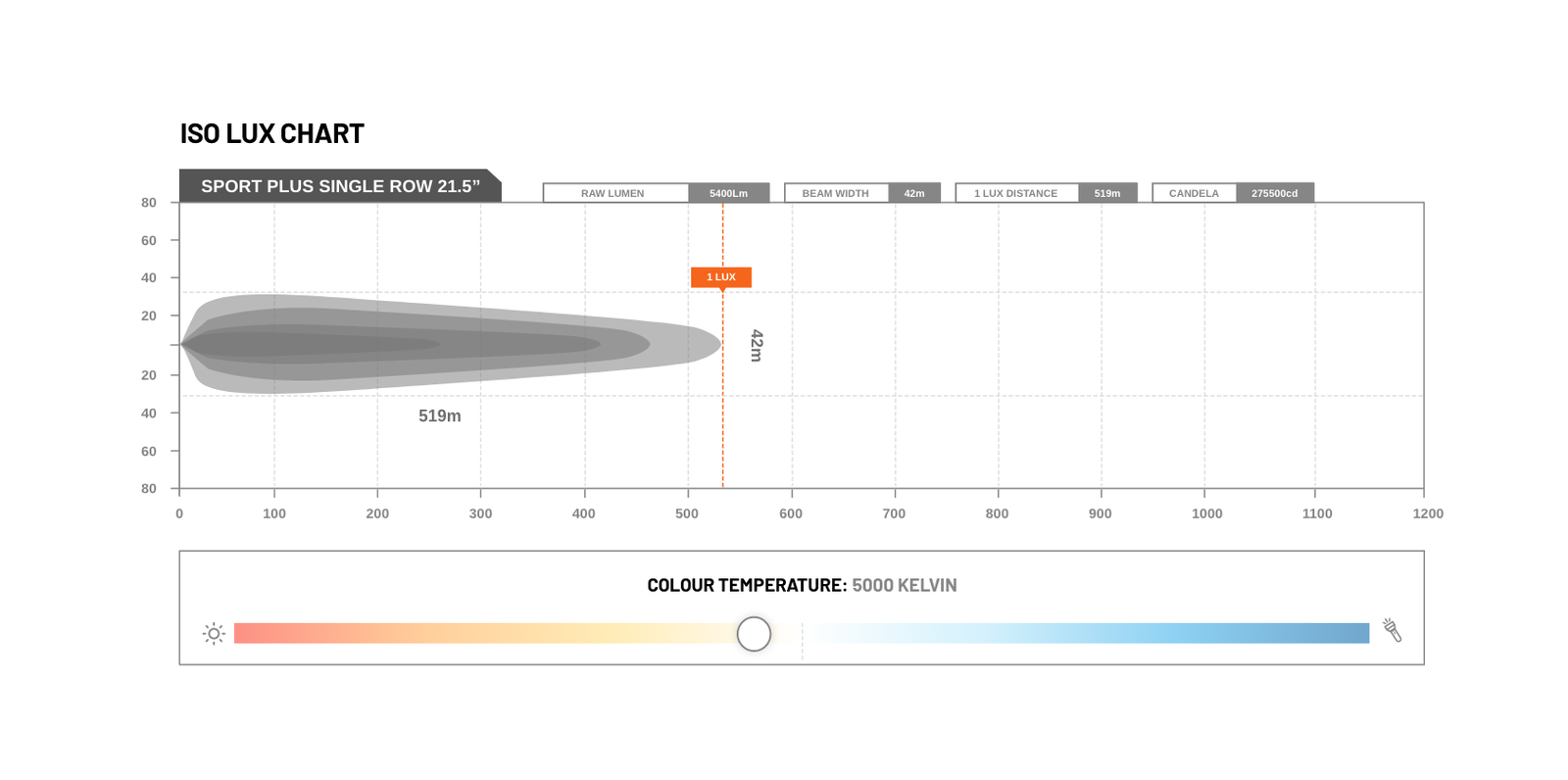

- Lights 519 metres at 1 Lux
- IP68 rated waterproof
- Hardened polycarbonate lens for impact resistance
- Extruded aluminium housing with jet black powdercoat finish

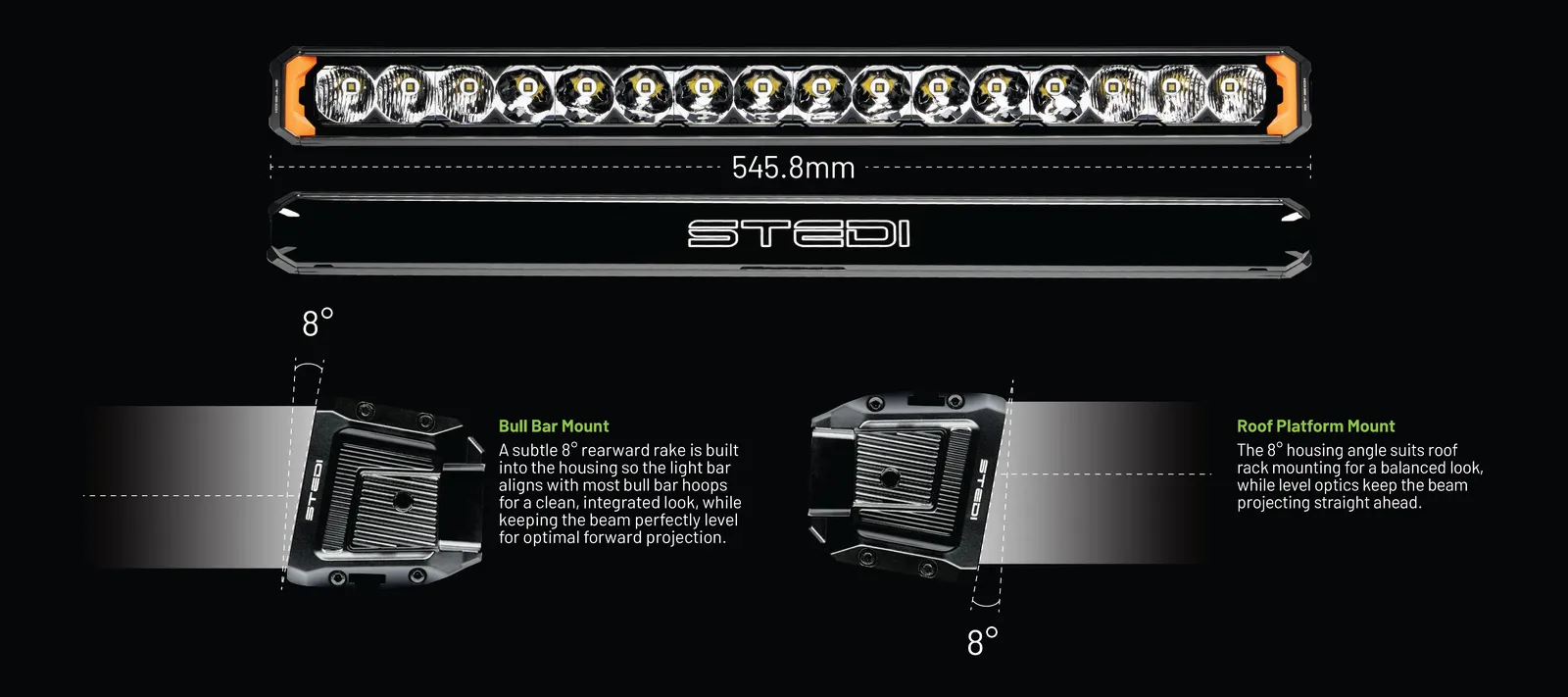

- 8° angled housing for alignment to bull bars or roof platforms
- Snap-on blackout cover and interchangeable trims for a customised look
- Sliding mounting bracket and stainless side brackets for easy adjustment
- 50,000 Hours life span
- 5 Years warranty
- Registered designs: 202615237 / 202615238
Kit Includes:
- 1x Sport Plus single row light bar (Combo)
- 1x Protective Stedi blackout cover
- 1x Powder coated 304 stainless steel side bracket (Set)
- 1x Mounting hardware (Set)
- 1x Stedi cover key tool
- 1x Orange trims (Set)
- 1x Grey trims (Set)
- 1x Stedi high beam wiring harness with H4&HB3 adaptor
- 5x Cable Ties
- 2x Channel mounts + hardware
(ST-02-SRT-116)
| Registered designs | 202615237 / 202615238 |
|---|---|
| LED type | OSRAM GW LEDs |
| Lumens (raw) | 5400 |
| Lumens (tested) | 3664 |
| 1 lux (metres) | 519 |
| LED count | 16 |
| Beam pattern | Combination (3 Flood + 10 Spot + 3 Flood) |
| IP rating | IP68 |
| Colour temp (CCT) | 5000K |
| Voltage compatability | 10-30V |
| Power draw (each) | 48W |
| Amp draw | 4.0A@12V 2.0A@24V |
| Operating temperature | -40°C to 60C |
| Material | Extruded Aluminium housing |
| Finish type | Powdercoat |
| Lens type | Clear |
| Mounting brackets detail | Stainless Bracket |
| Bolts & fitting detail | Included |
| Life span | 50,000 Hours |
| Warranty | 5 Years |
| SKU | ST-02-SRT-116 |
| Brand | Stedi |
