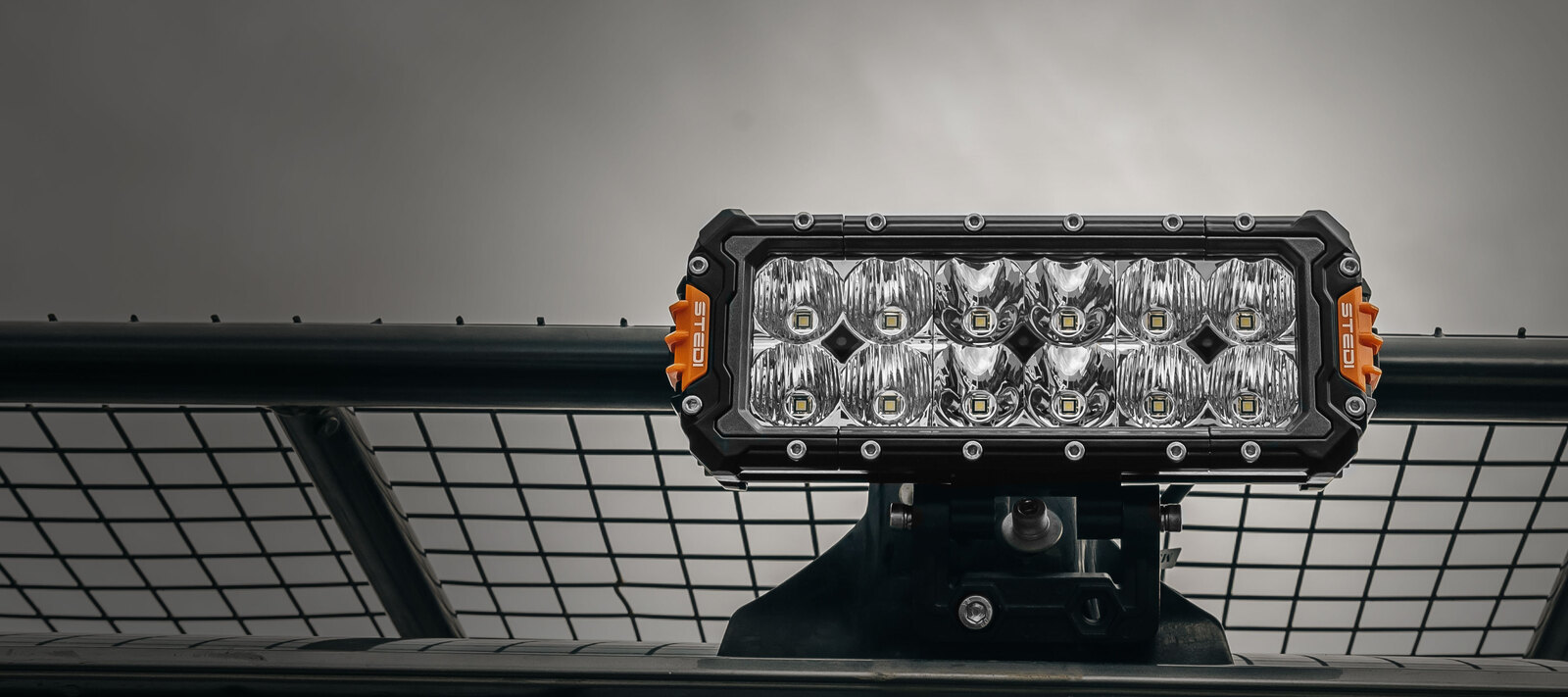

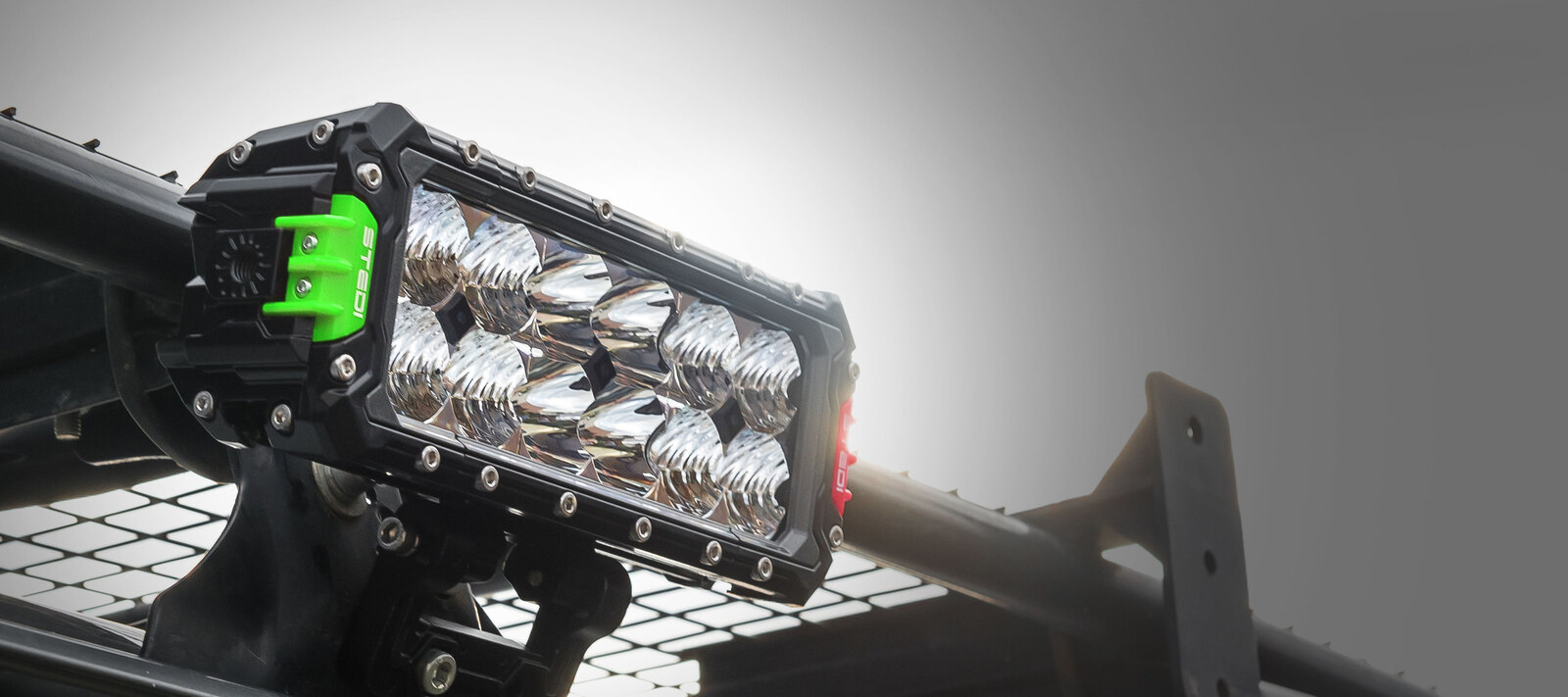

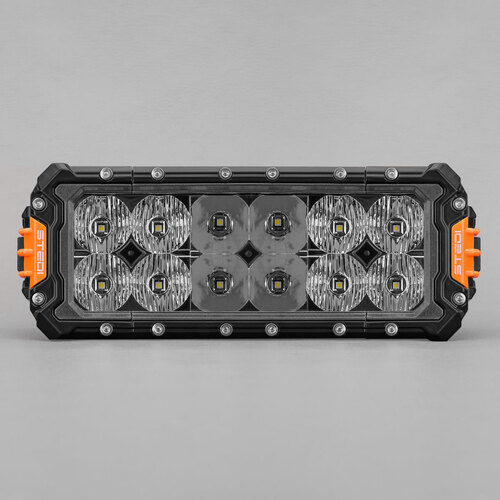

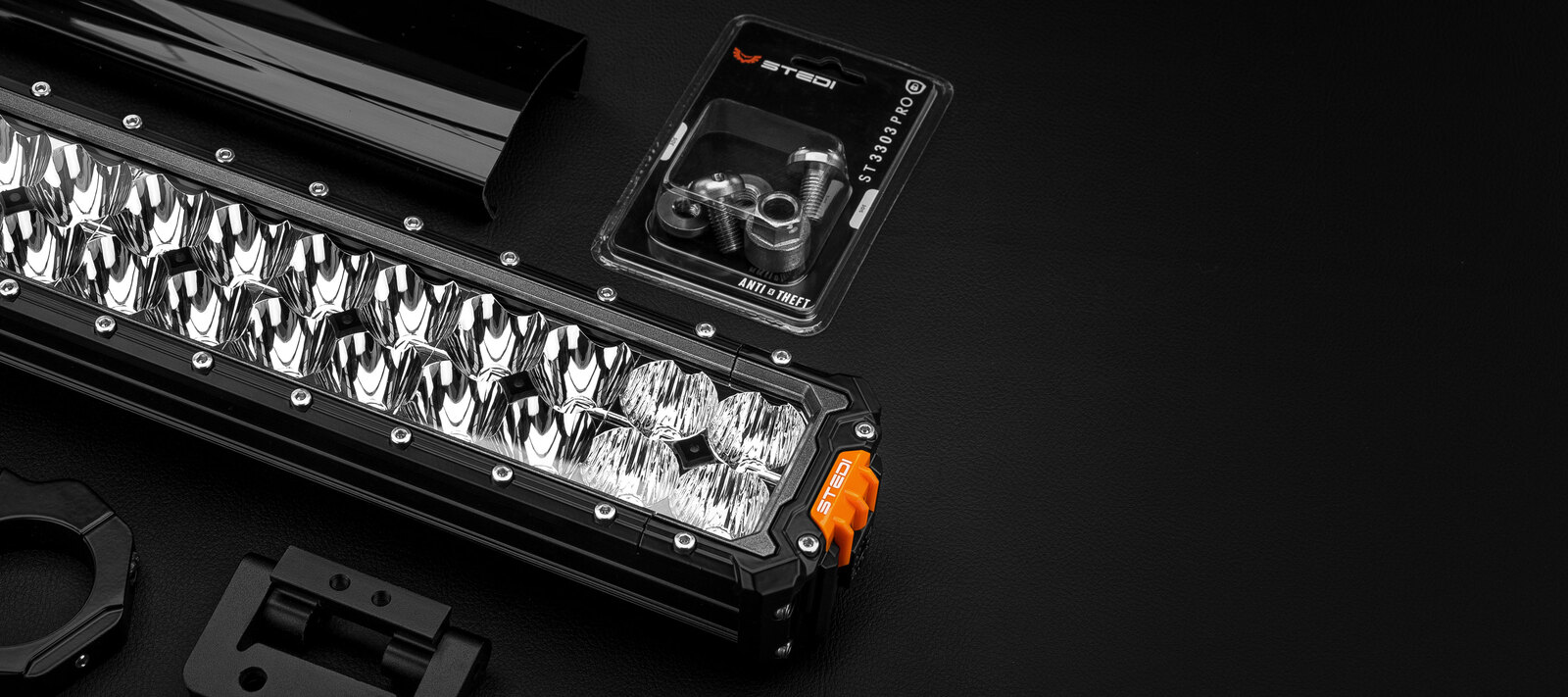

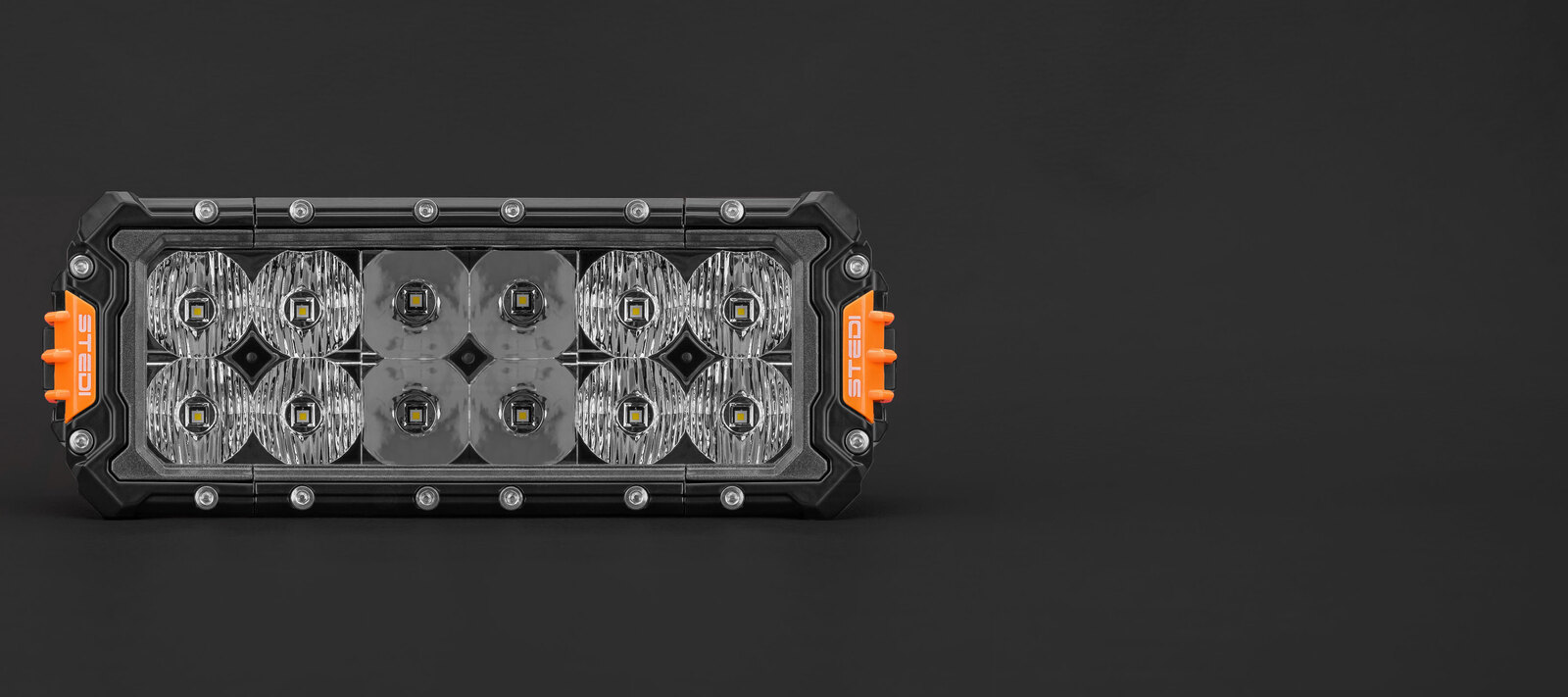

Stedi ST3303 PRO 11 INCH Double Row Ultra High Output LED Bar

WAS $259.99
RRP $259.99
NOW $246.99
SAVE 5%!
Sale Ends in
23:59 pm, 1 April 2024
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

Add The Following To Your Order:




Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

THE ULTIMATE LIGHT BAR.

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.



A NEW REALM OF PERFORMANCE.

Every good story starts with CREE LEDs. So, we commissioned CREE?s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn?t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship ? We?ve effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.



NOW, ARE YOU SITTING DOWN?

Where others stop, we get started. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Have we got your attention yet? Now, you must, without any exception, we repeat, you must use the heavy-duty, dual relay (yes dual relay!), dual fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.



BAR NONE.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.





The Nitty Gritty.

  • Registered Design: 201915829.
  • CREE XLamp XP-L HI undomed LEDs using CREE?s breakthrough SC5 Technology?
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m
  • Deutsch DT 15A connector
  • 32mm diameter parabolic reflectors
  • Spread and Spot beam pattern

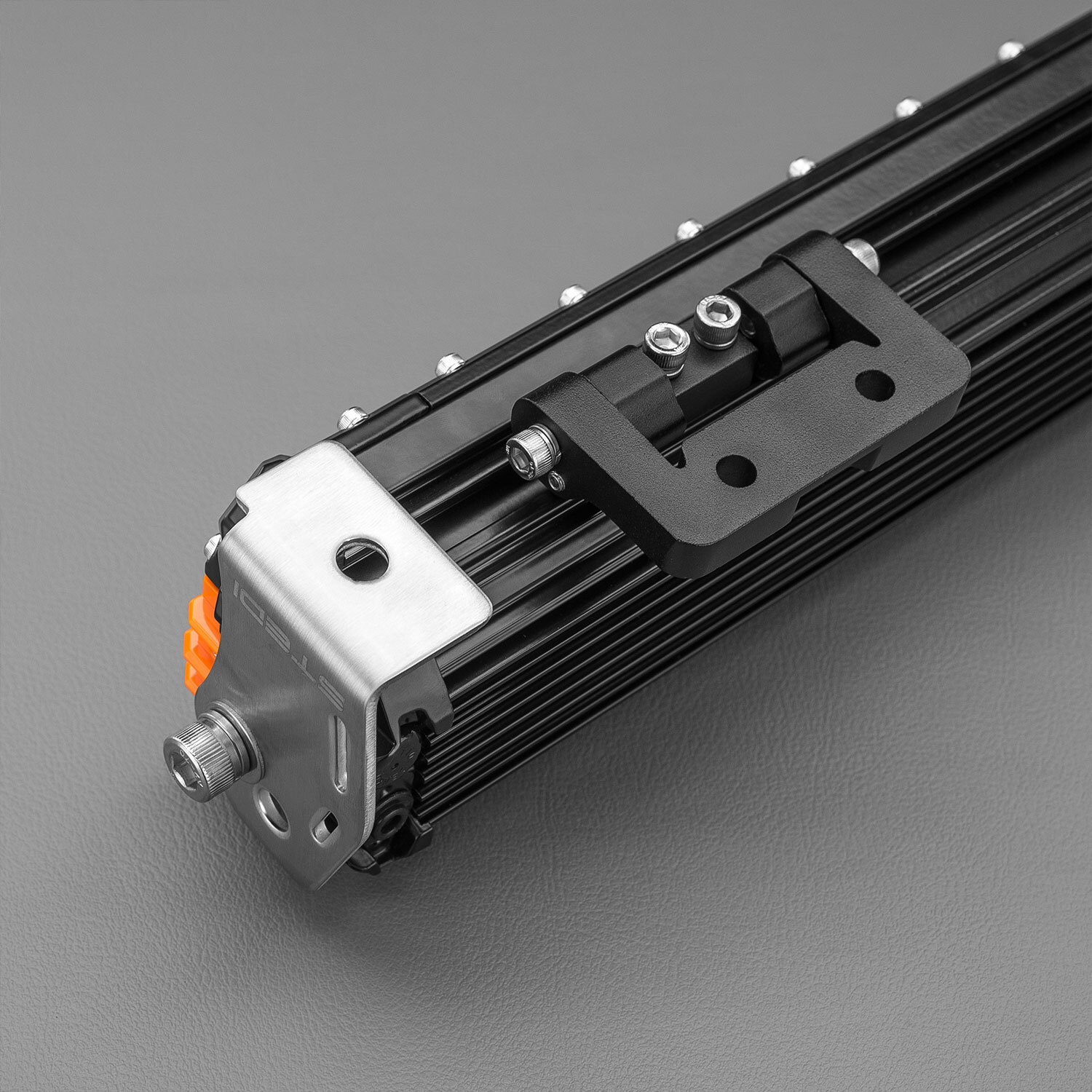

  • 4mm thick 304 stainless steel side brackets included.
  • Cast Alloy adjustable sliding bracket included.
  • Nitto DenkoBreather with PTFE microporous membrane

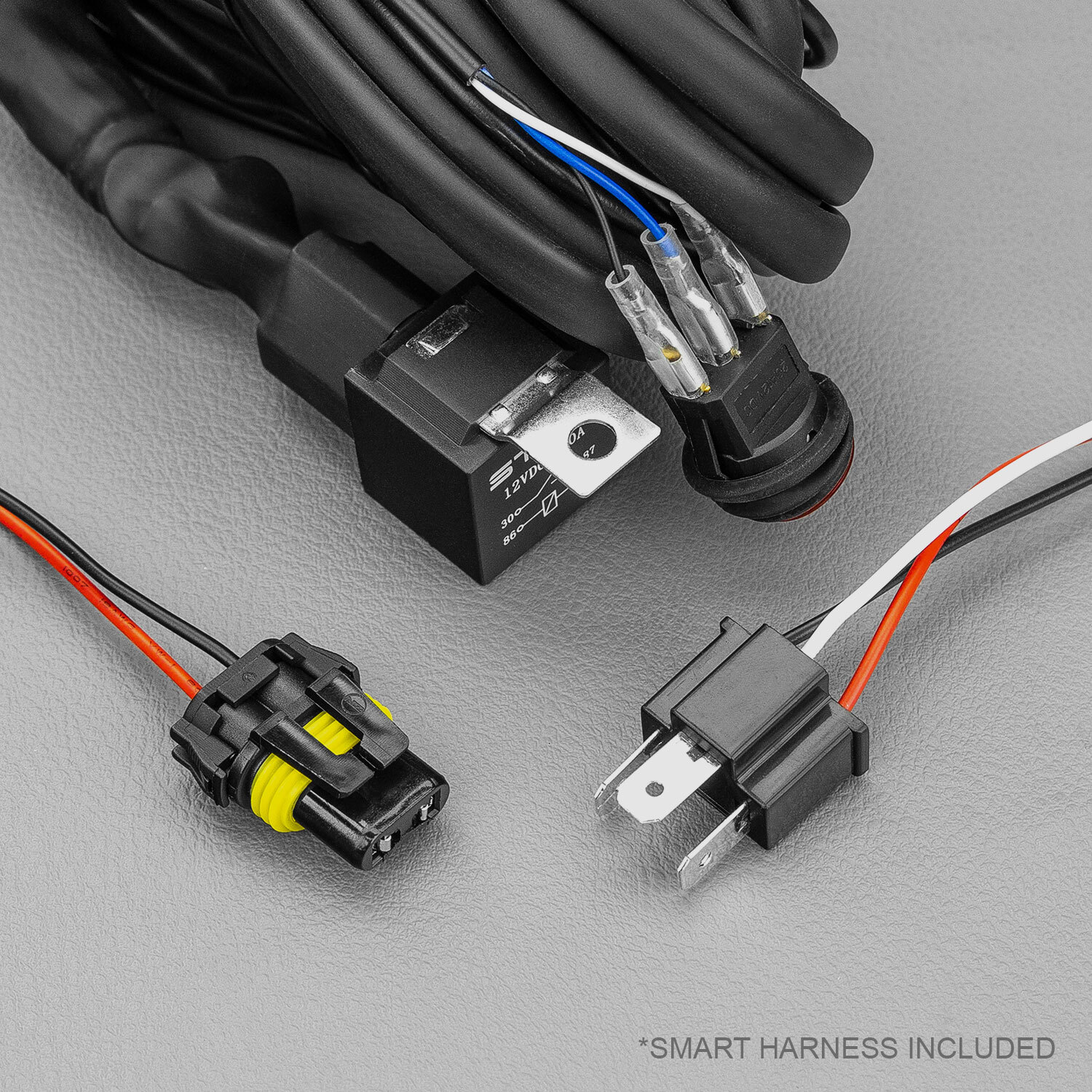

  • Heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Fuse, Relay and HB3 and H4 Piggyback Adaptors) include

Registered Design: 201915829

Tech Specs

LED 12 x CREE XPL Hi-Intensity LED
VOLTAGE 9V - 32V
CURRENT DRAW (AMPERES) 5.9a @ 13.6v
RAW LUMENS 13,140Lm
EFFECTIVE LUMENS 6,720Lm

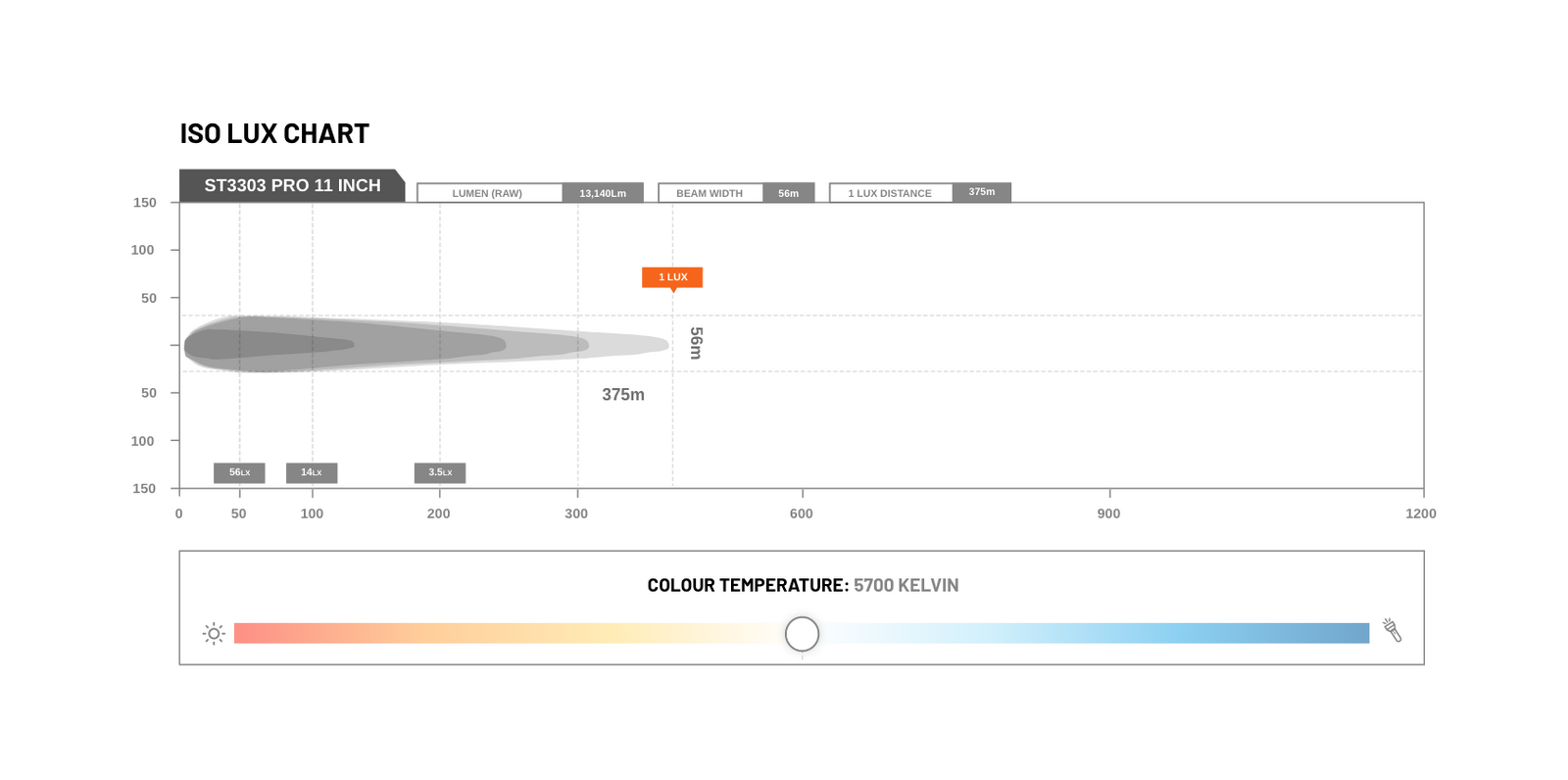

PEAK INTENSITY (CANDELA) 360,800cd
COLOUR TEMP (CCT) 5700K
LENS MATERIAL Optical Grade, Hard-Coated Lexan
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
INGRESS PROTECTION IP68
FLOOD BEAM 50?
SPOT BEAM 9?
LIFESPAN 50,000hrs
OPERATING TEMP -40?C ~ +150?C
WEIGHT 1,295kg



(LED3303-PRO-12L)

SKU LED3303-PRO-12L
Barcode # 935357000-1492-C
Brand Stedi
