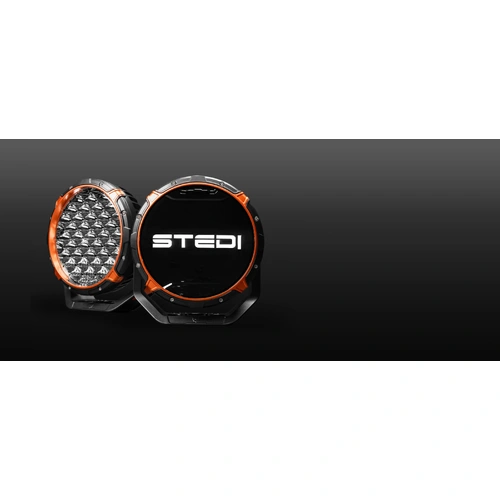

Stedi Type-X Pro Plus 8.5" Non-DRL Assembled Kit
$799.00
RRP $879.00
SAVE $80.00 (9%)
In Stock
The Type-X Pro Plus 8.5" Non-DRL Assembled Kit in the Rugged style pairs classic Type-X aesthetics with modern performance. This product is supplied pre assembled in the box and features rugged bezel, fascia (available in up to 9 colourways), rugged covers and optional shoulder trim accents for customisation.
Features:
- Non-DRL variant throws light over 1.6 km (pair).
- 12 dedicated flood reflectors for smooth driving beam and defined flood zones.
- Rendering a 5000K colour temperature for clarity and contrast.
- Registered designs: 202514300 / 202514301 / 202514302.
- Patent pending.
Kit Includes:
- 2 x Type-X Pro Plus Rugged Non-DRL LED Driving Light Kits
- 2 x Type-X Pro Plus Fascia Rugged Orange Rings
- 2 x Type-X Pro Plus Fascia Rugged Grey Rings
- 2 x Type-X Pro Plus Rugged Non-DRL Stedi Covers
- 2 x Type-X Pro Plus Rugged Orange Shoulder Trim
- 2 x Type-X Pro Plus Rugged Grey Shoulder Trim
- 1 x Evo Fascia Key
- 1 x High Beam Triggered Wiring Harness
(ST-01-PRP-804)
| Optical beam (Non-DRL) | Combo Beam (36x Spot | 9x Flood) |
|---|---|
| Tested lumens (Non-DRL) | 30,922lm (Pair) |

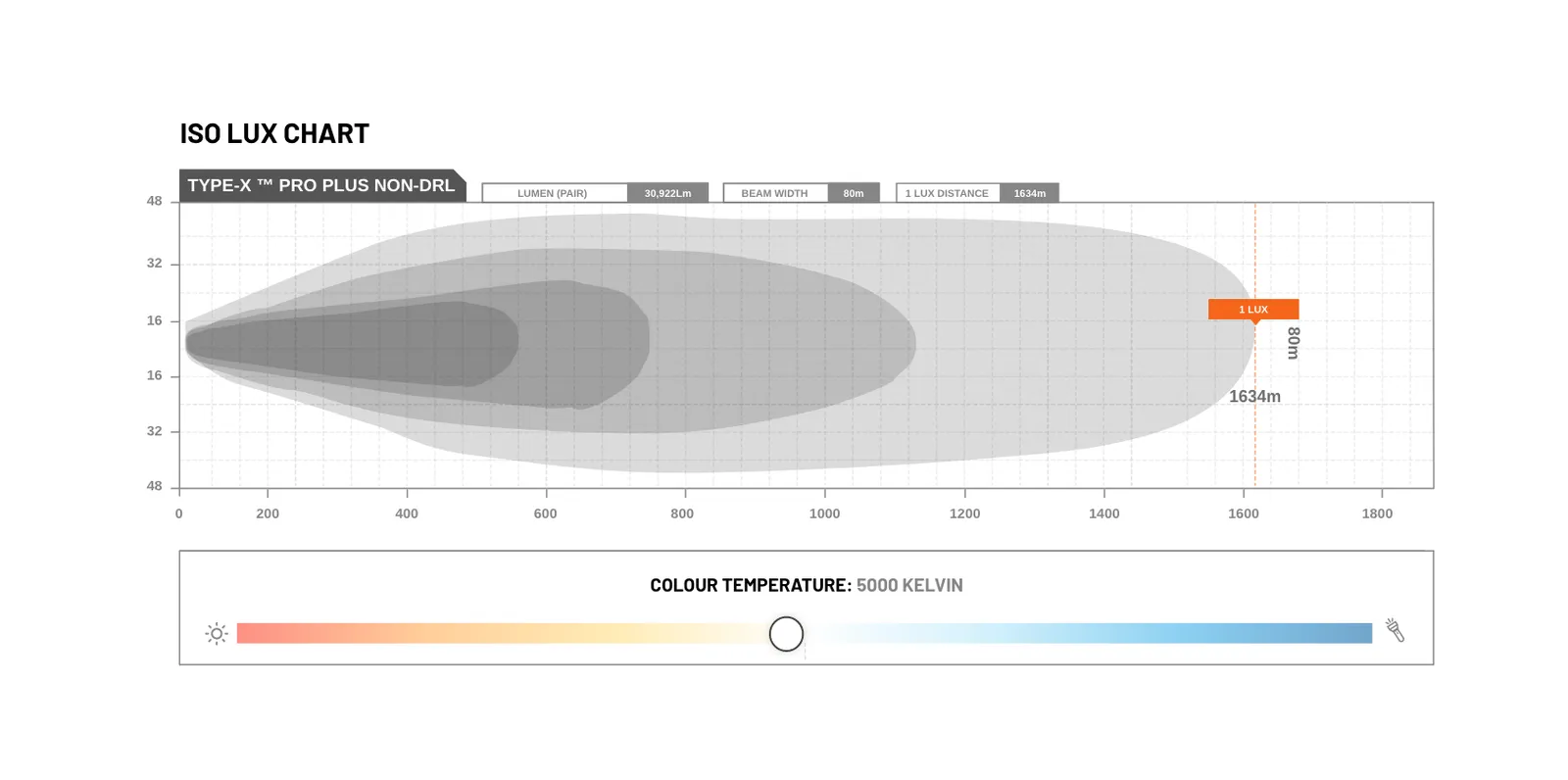

| 1 lux @ (Non-DRL) | 1634 Metres (Pair) |
| Candela (Non-DRL) | 1,952,000cd (Pair) |
| Amp draw (Non-DRL) | 15.9 @ 12V |
| Ingress protection | IP68 | Submersible up to 3m |
| Colour temp (CCT) | 5000 Kelvin |
| Voltage compatibility | 10 - 30V DC |
| Weight (each - Non-DRL) | 2.84kg (Each) |
| Operating voltage | -40°C to 60°C |
| SKU | ST-01-PRP-804 |
| Brand | Stedi |
