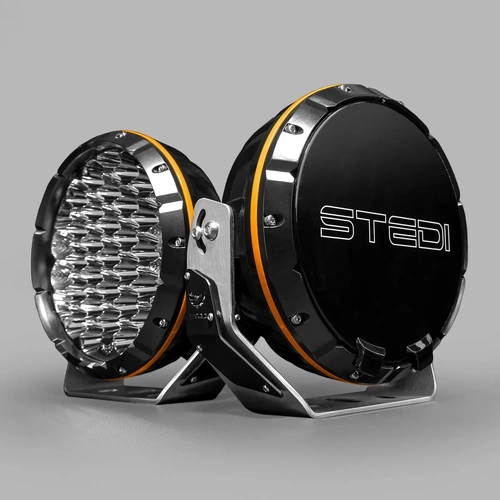

Stedi Type-X Sport 8.5" Driving Lights (Pair)
$479.00
RRP $527.00
SAVE $48.00 (9%)
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

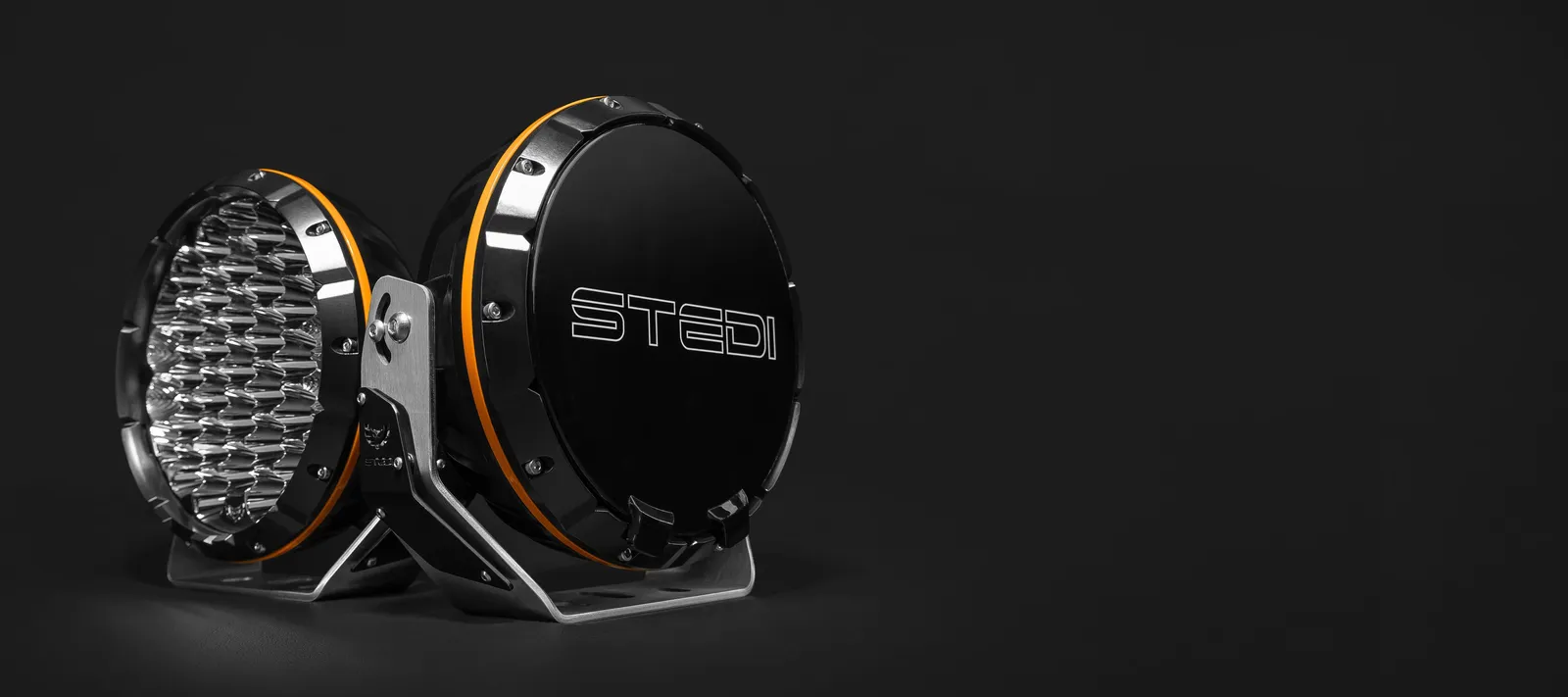

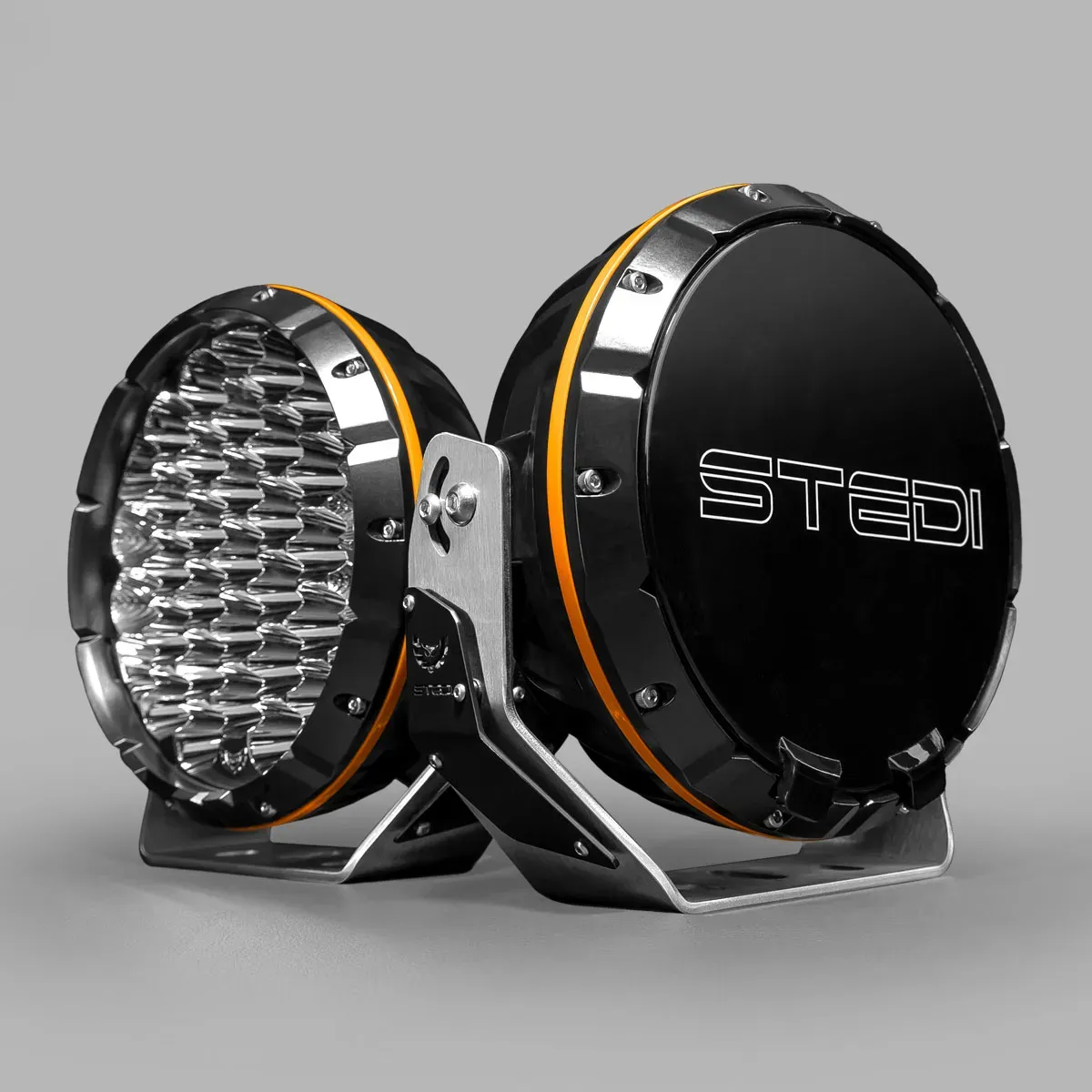

The Stedi Type-X Sport 8.5" driving lights are a high-performance, value-focused pair designed for long-range and nearfield illumination. Each light uses 36 OSRAM OSLON LEDs, a cast housing and a tough GE Lexan lens to deliver a balanced beam that reaches out to 1,050m.
Features:

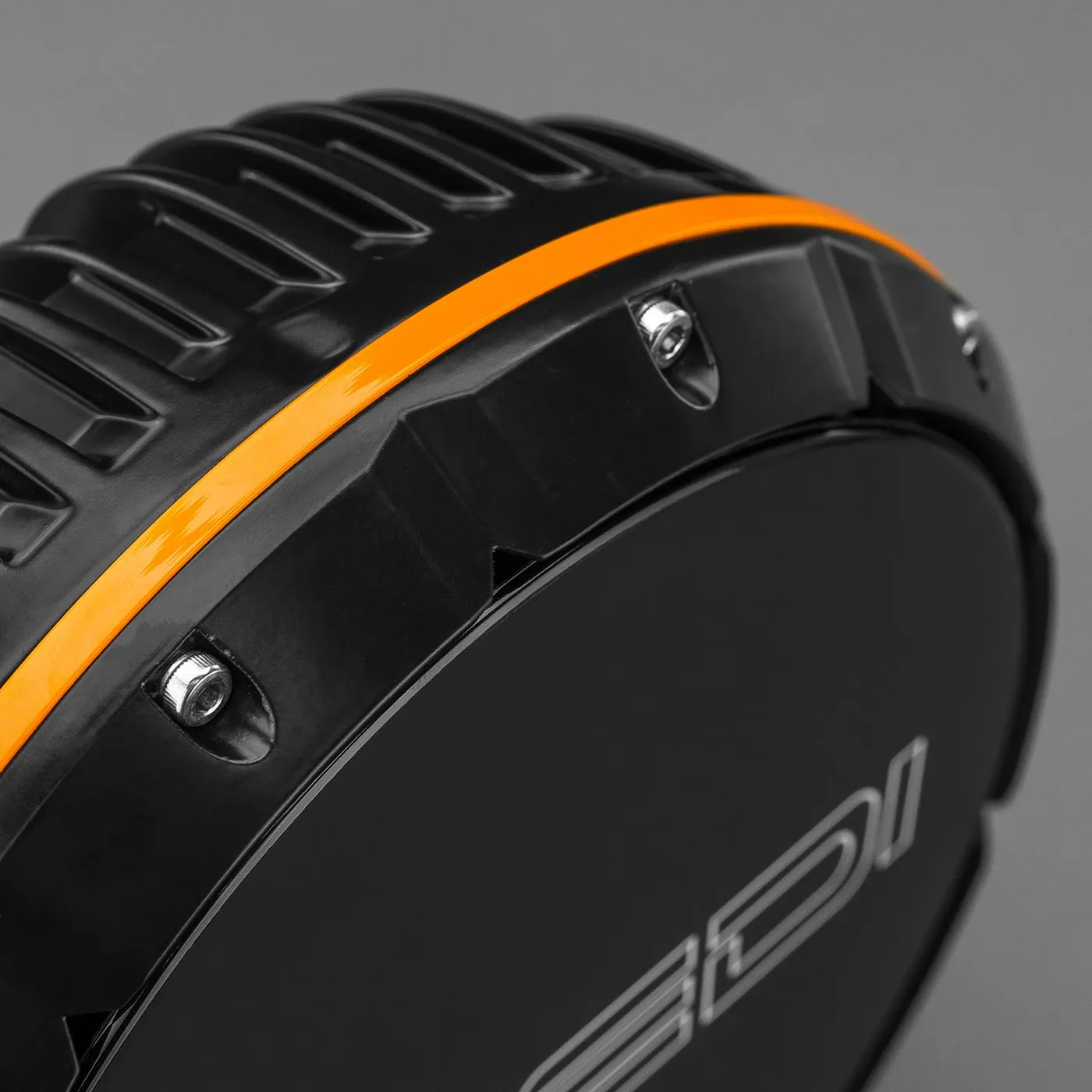

- A360.0 cast housing for strength and corrosion resistance
- 3mm GE Lexan lens with hard coating for scratch resistance

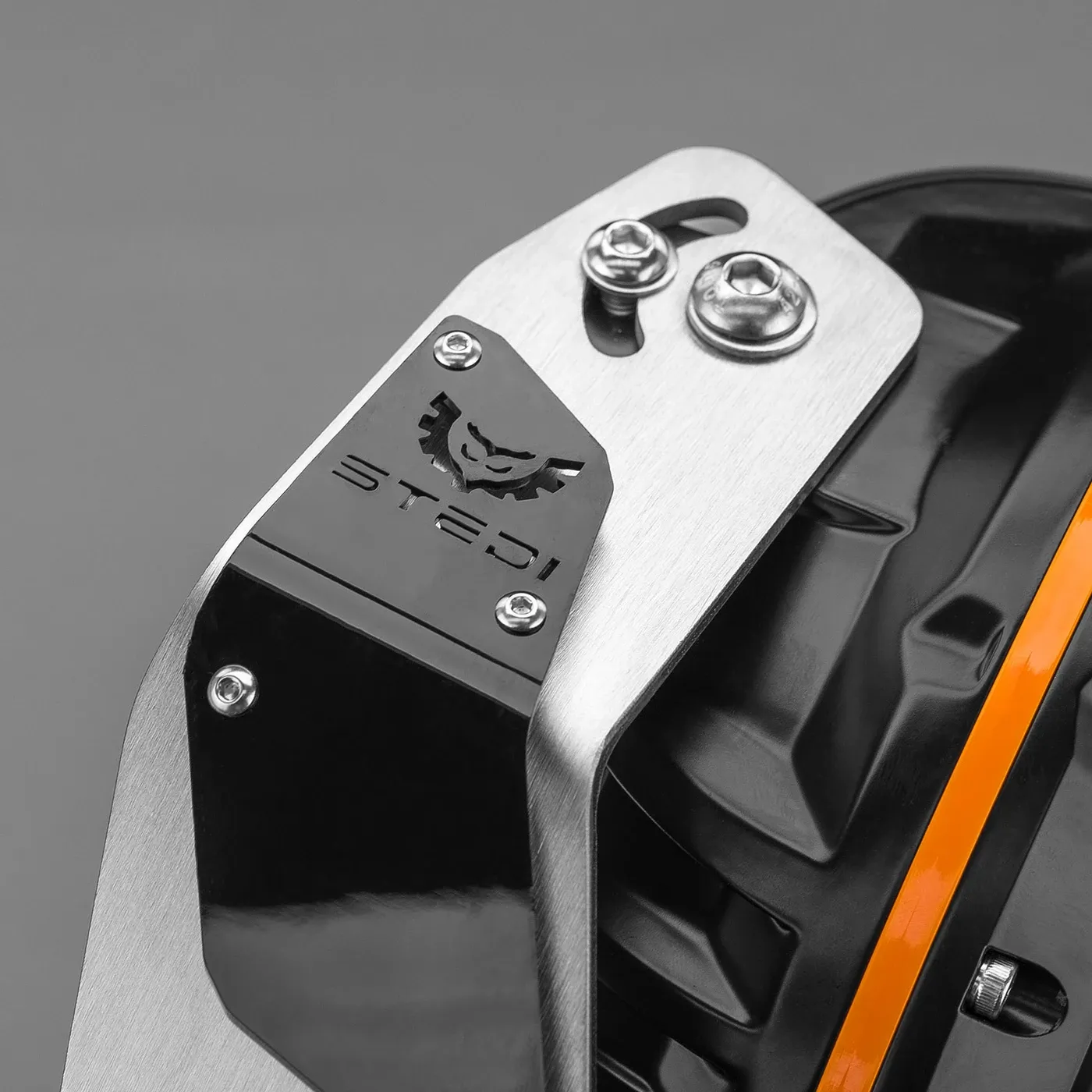

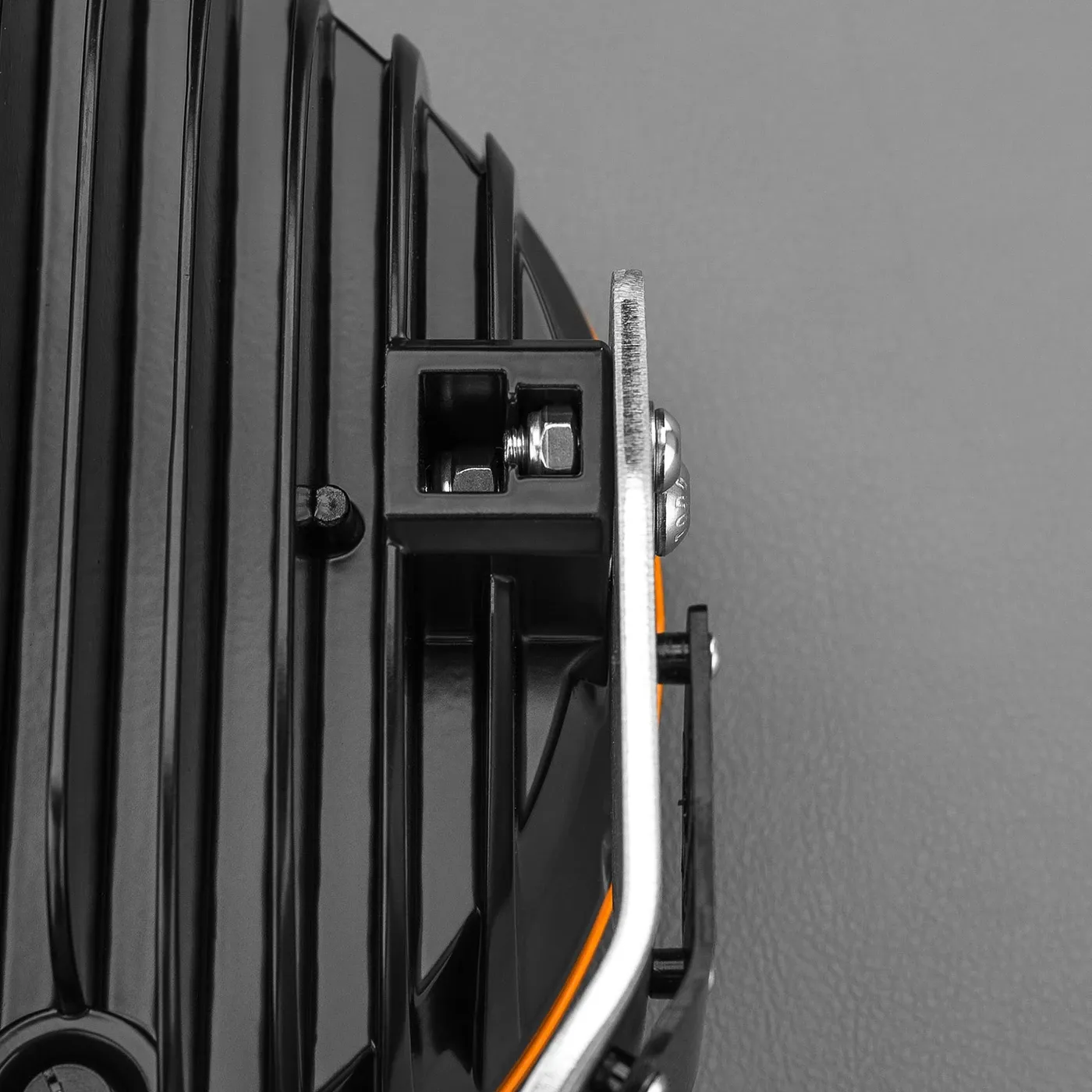

- 4mm 304 stainless mounting bracket with rubber dampener and additional 3mm upper plate
- 100% polyester UV and abrasion-resistant powder coat finish
- IP68 ingress protection, submersible up to 3 metres
- Nitto Denko pressure equalisation vent with membrane to protect against water and contaminants
- Environmentally sealed Deutsch DTP-2 connector
- EMI and RFI suppression circuitry

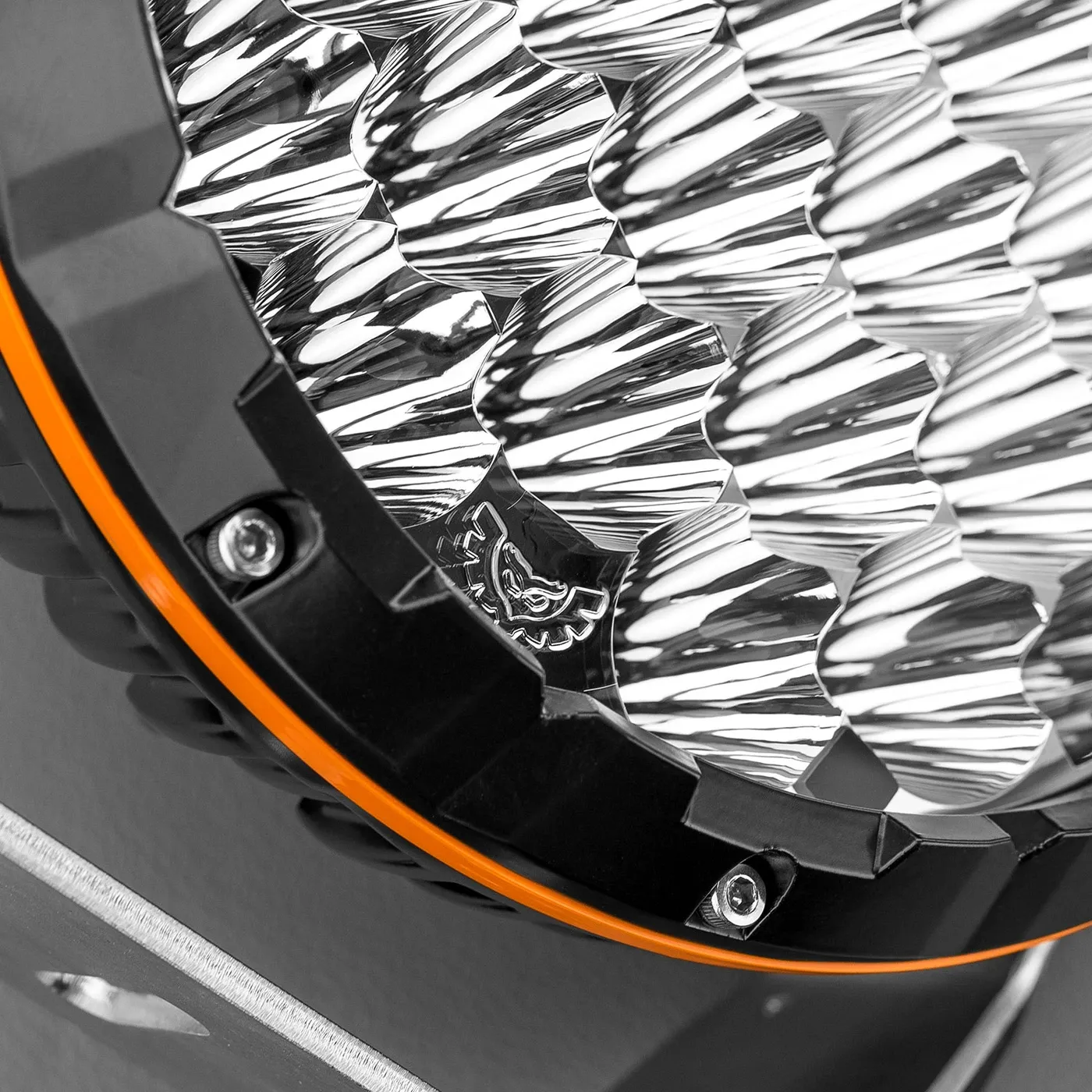

- Four built-in wide-beam reflectors to provide lateral flood coverage that transitions with the spot beam
- 5700K correlated colour temperature for clear definition and high colour rendering
(LEDTYPE-X-SRT)
| LEDs | 36 OSRAM OSLON LEDs (per light) |
|---|---|
| Colour temperature (CCT) | 5700K |
| Voltage compatibility | 12V & 24V |
| Power draw | 129W |
| Amp draw | 9.8A @ 13.2V (each) |
| Ingress protection | IP68, submersible up to 3m |
| Beam pattern | 4 x spread, 32 x spot |
| Candela | 1,102,500 cd |
| Lumen maintenance | 50,000 LM-80 |

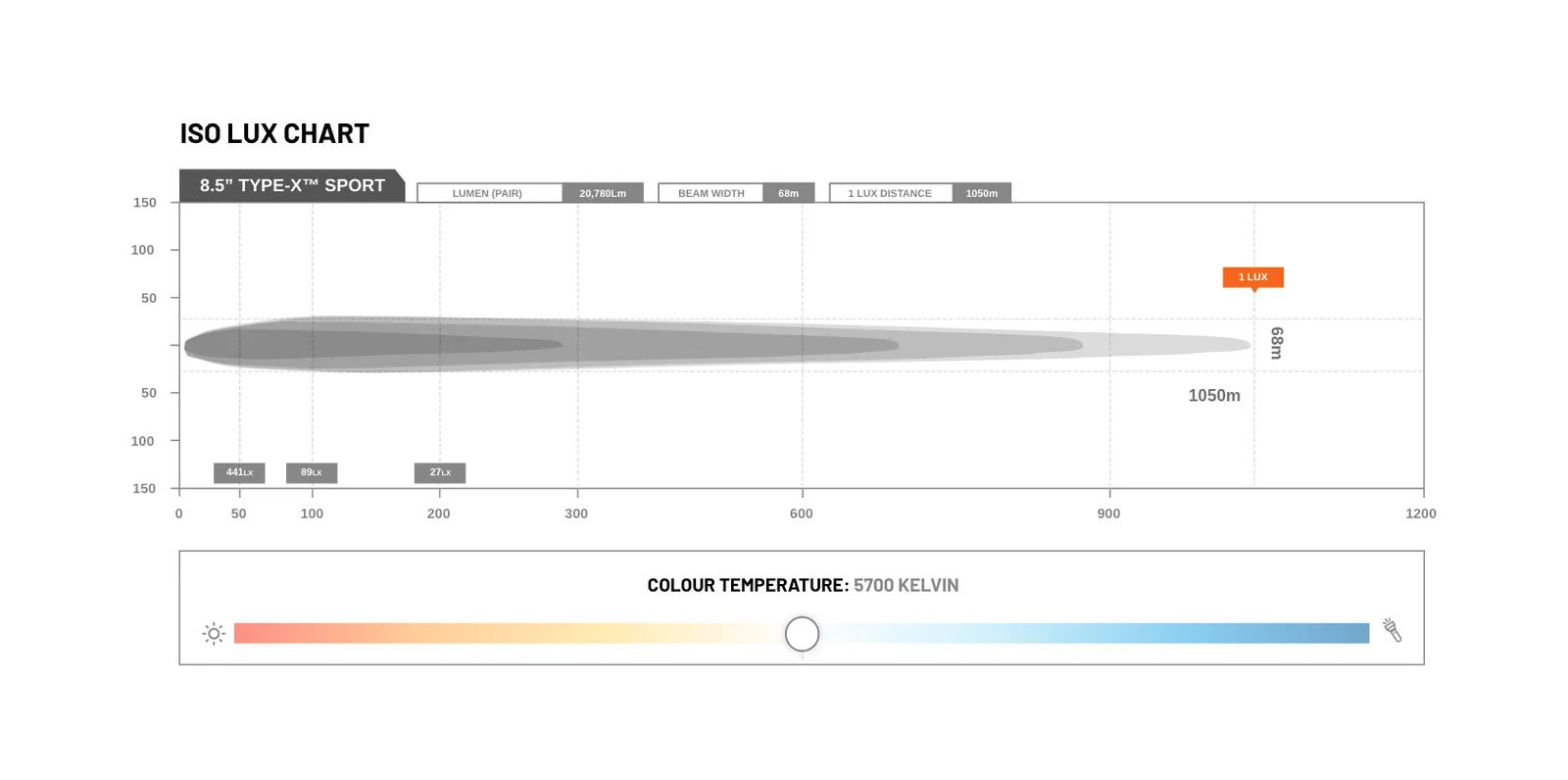

| Range | 1,050 m: 1 Lx; 1,000 m: 1.1 Lx |
| Operating temperature | -40°C to 60°C |
| Housing | A360.0 cast housing |
| Lens | 3mm GE Lexan with hard coating |
| Mounting bracket | 4mm 304 stainless with rubber dampener and 3mm upper plate |
| Finish | 100% polyester UV and abrasion-resistant powder coat |
| Connector | Deutsch DTP-2 |
| Vent | Nitto Denko pressure equalisation vent with membrane |
| SKU | LEDTYPE-X-SRT |
| Barcode # | 935357000-1477-C |
| Brand | Stedi |
| Shipping Weight | 3.3500kg |
| Shipping Width | 0.380m |
| Shipping Height | 0.155m |
| Shipping Length | 0.630m |
| Shipping Cubic | 0.037107000m3 |
Check our Warranty Page
