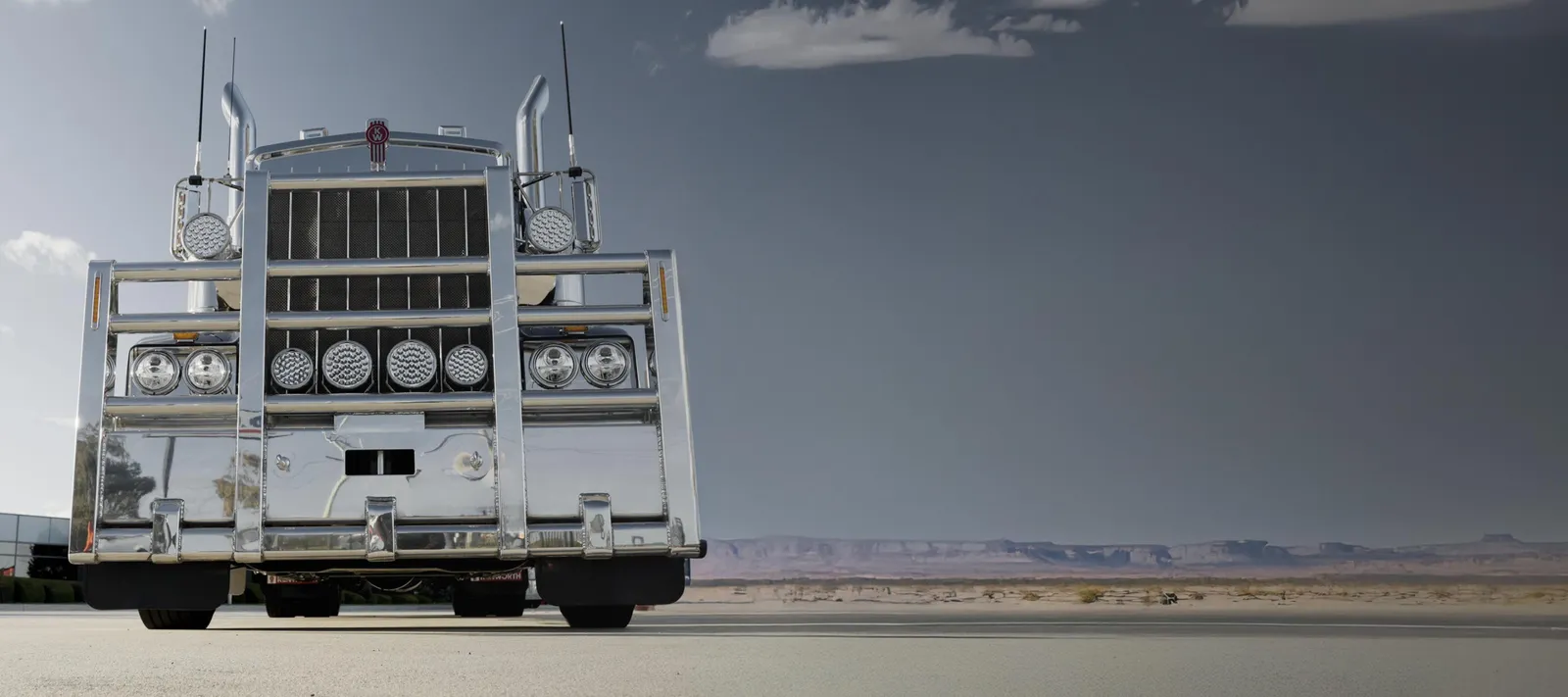

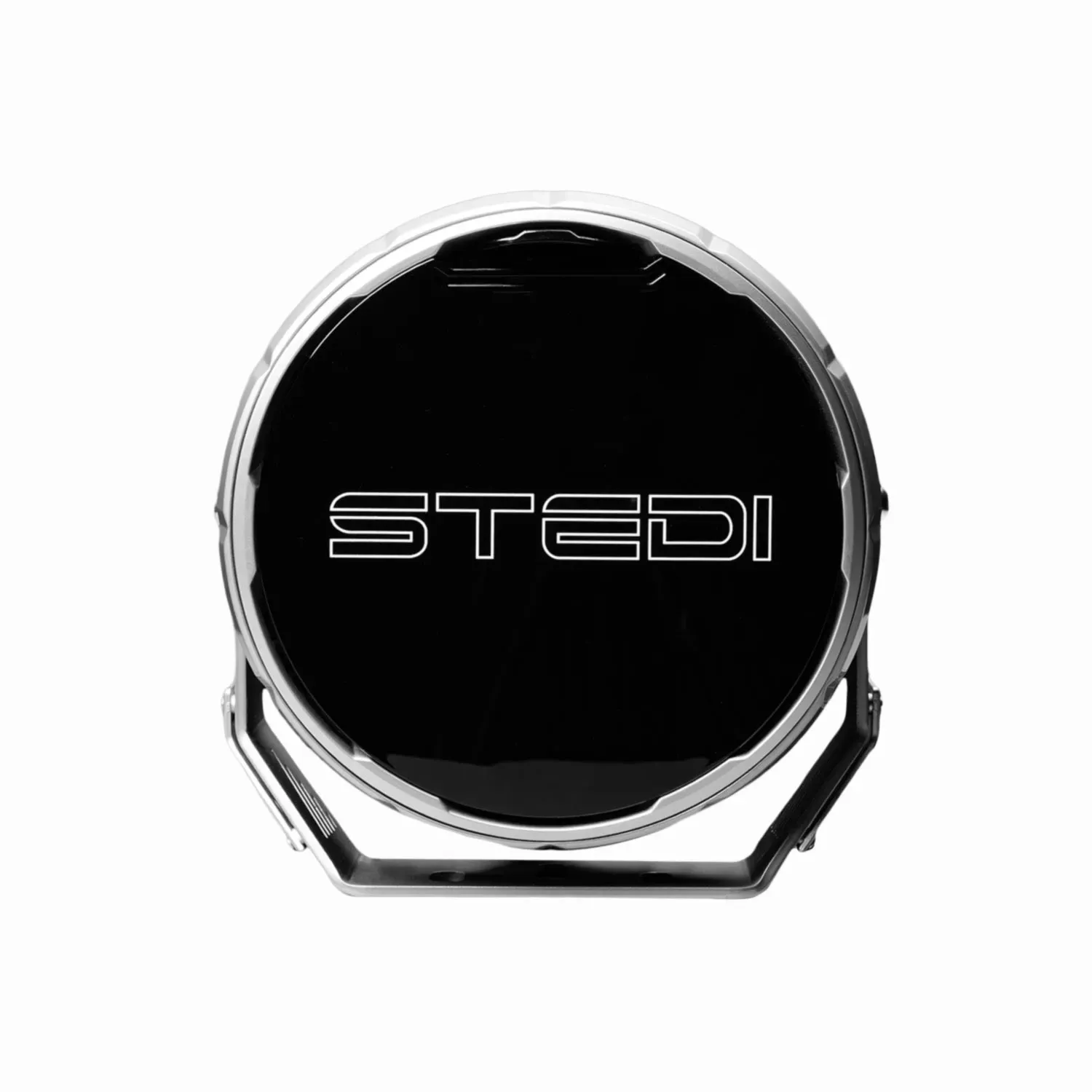

The Stedi Type-X Sport Plus 7" Silver Edition is a high-performance LED driving light built for truck and heavy vehicle industries. It pairs a cast aluminium body and GE Lexan lens with IP68 sealing and a liquid-silver DuPont powder coat finish for durable on-road and off-road use.
Features:

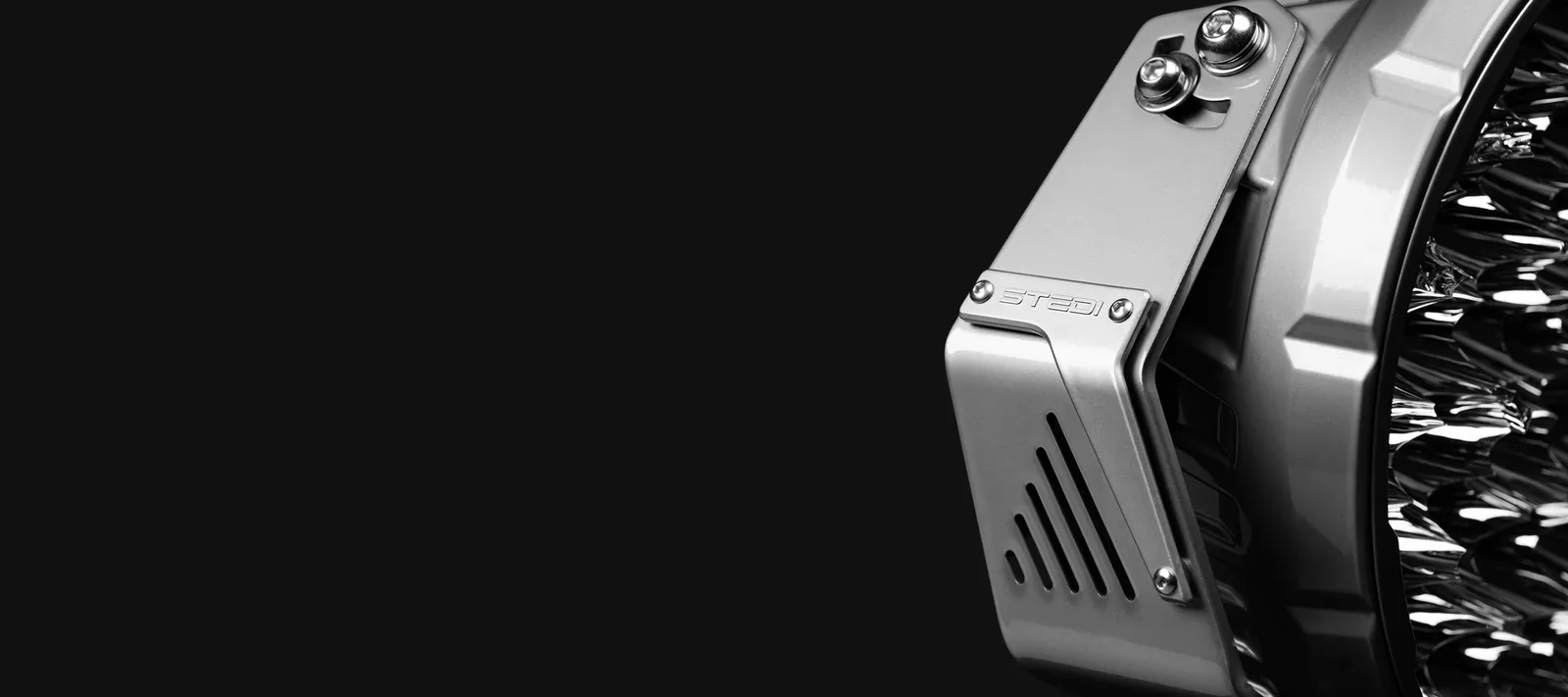

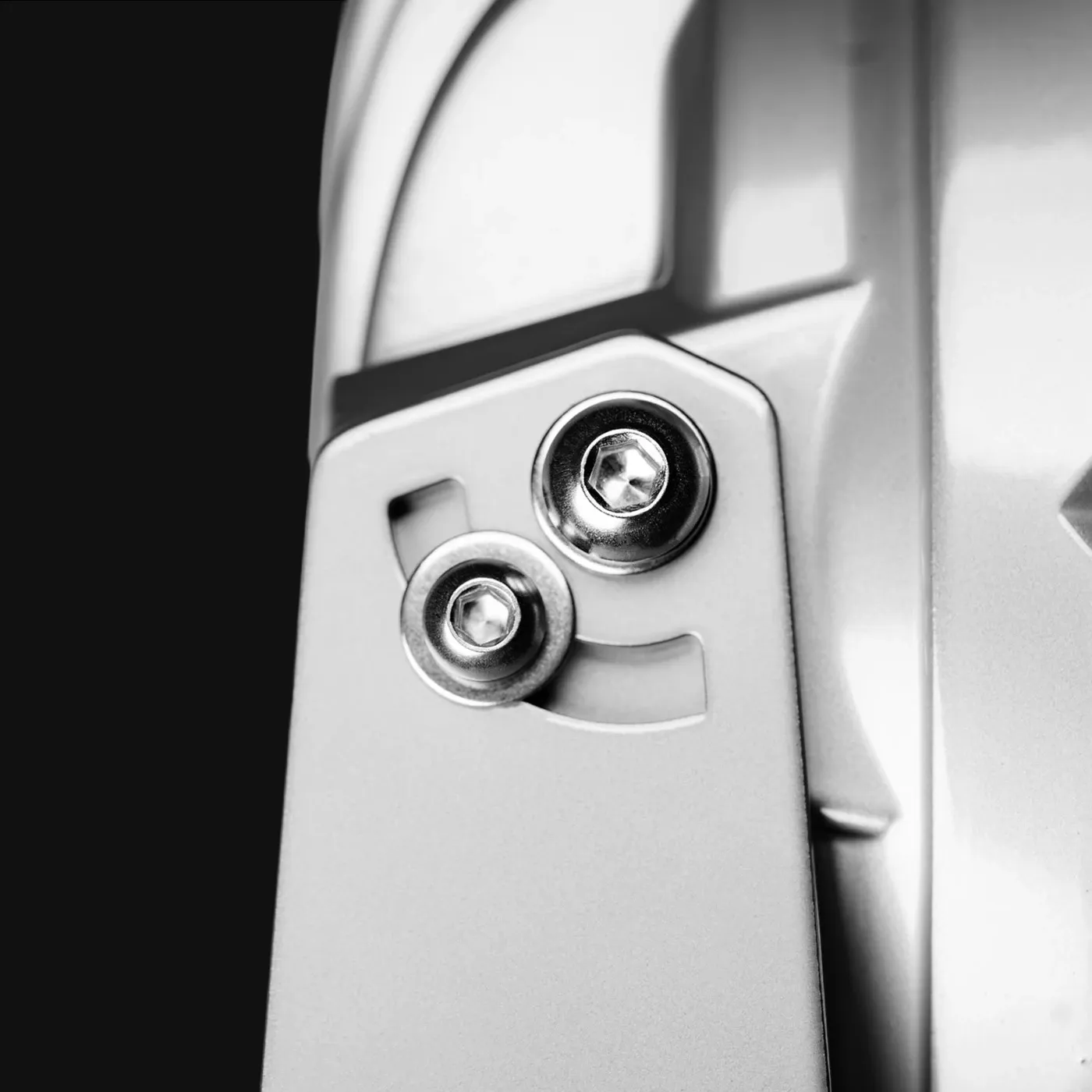

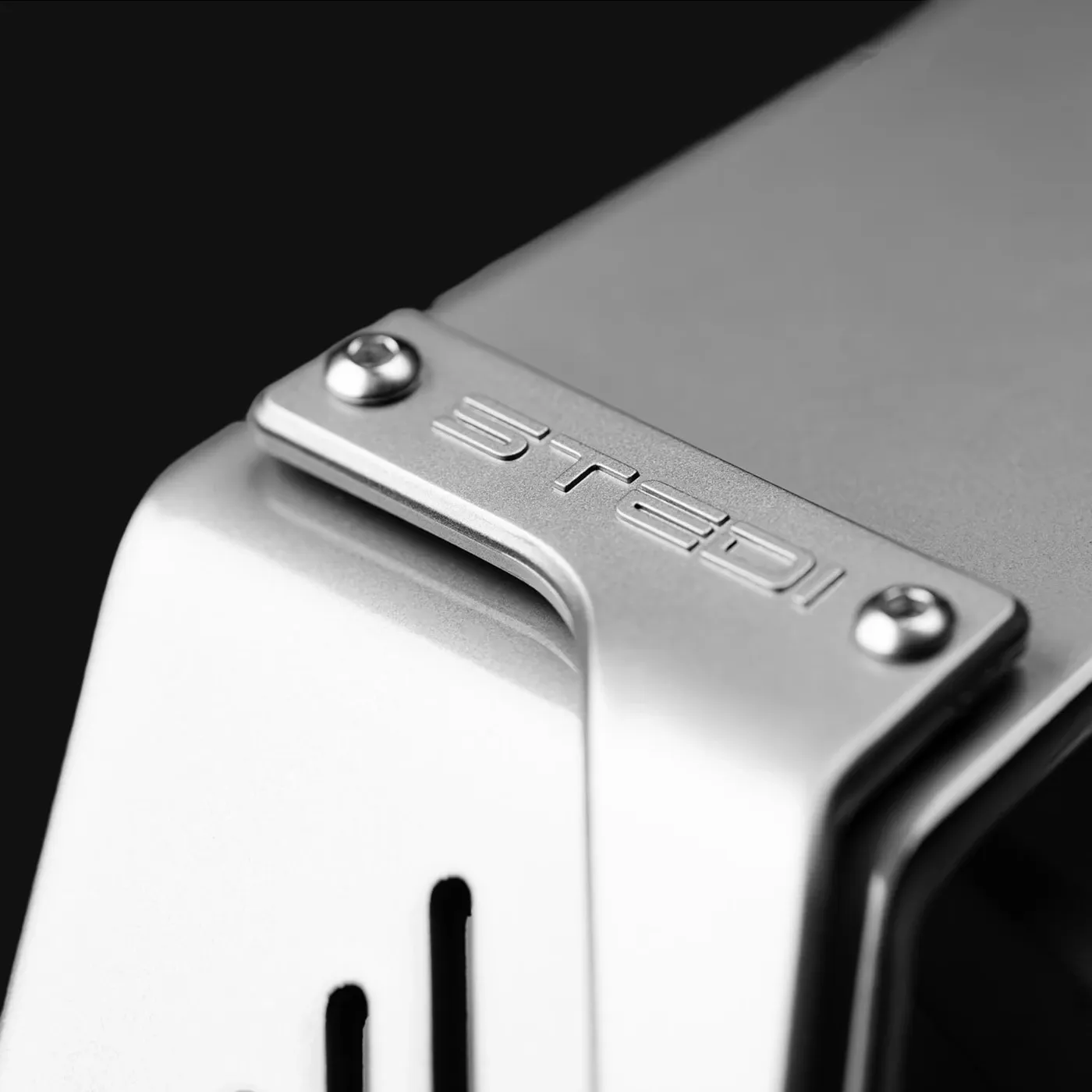

- 4mm thick 304 series stainless mounting bracket with rubber dampener and an additional 3mm upper plate

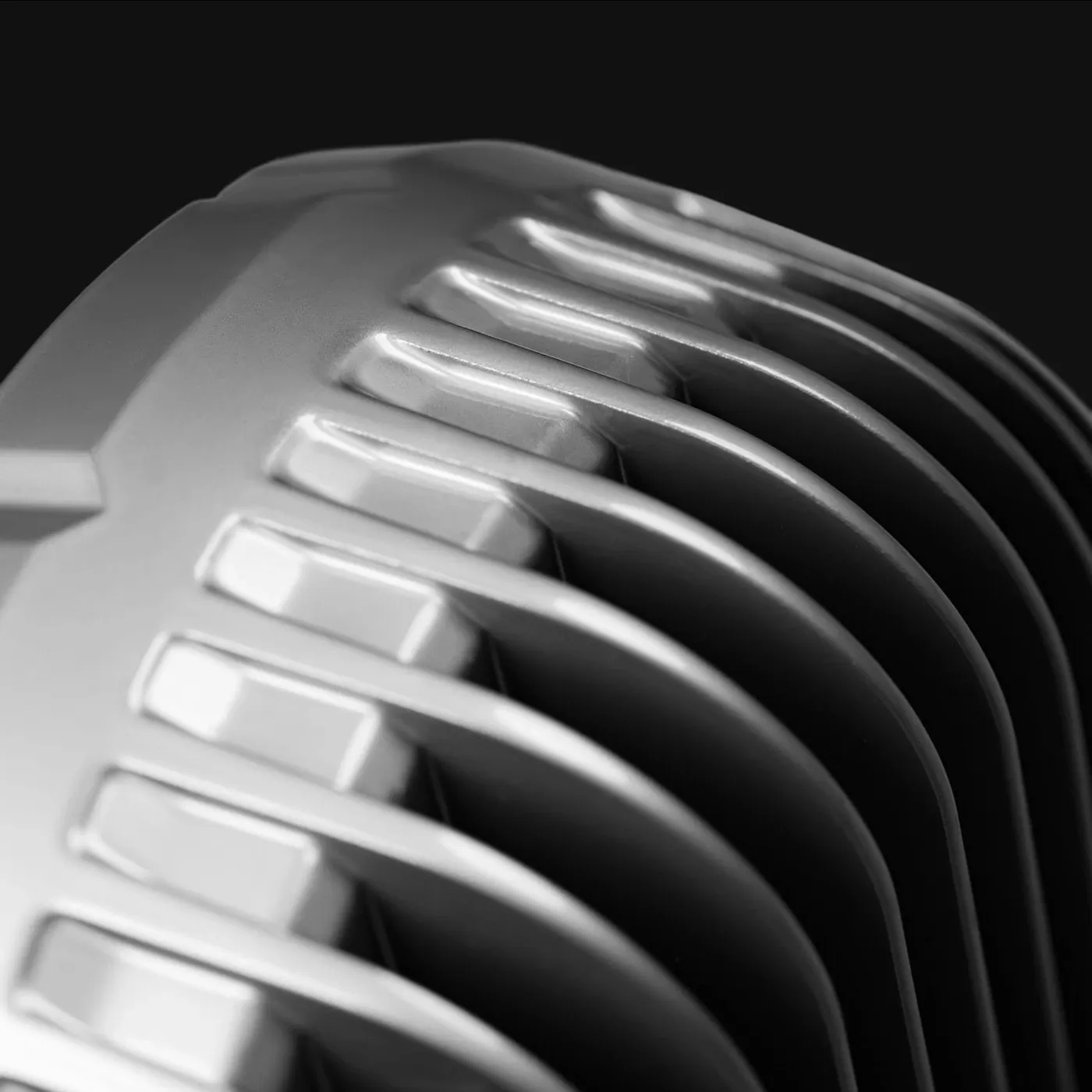

- Cast aluminium housing for strength and corrosion resistance
- GE Lexan lens with hard coating for virtually unbreakable scratch resistance
- DuPont UV and abrasion-resistant powder coat finish
- IP68 rated; dust and particle tight, waterproof up to 3 metres
- Nitto Denko pressure equalisation vent with membrane to protect against water ingress, dust and contaminants
- Environmentally sealed Deutsch DTP-2 connector
- EMI and RFI suppression circuitry
- Combination of OSRAM P8 and CREE XP20s LEDs for clarity

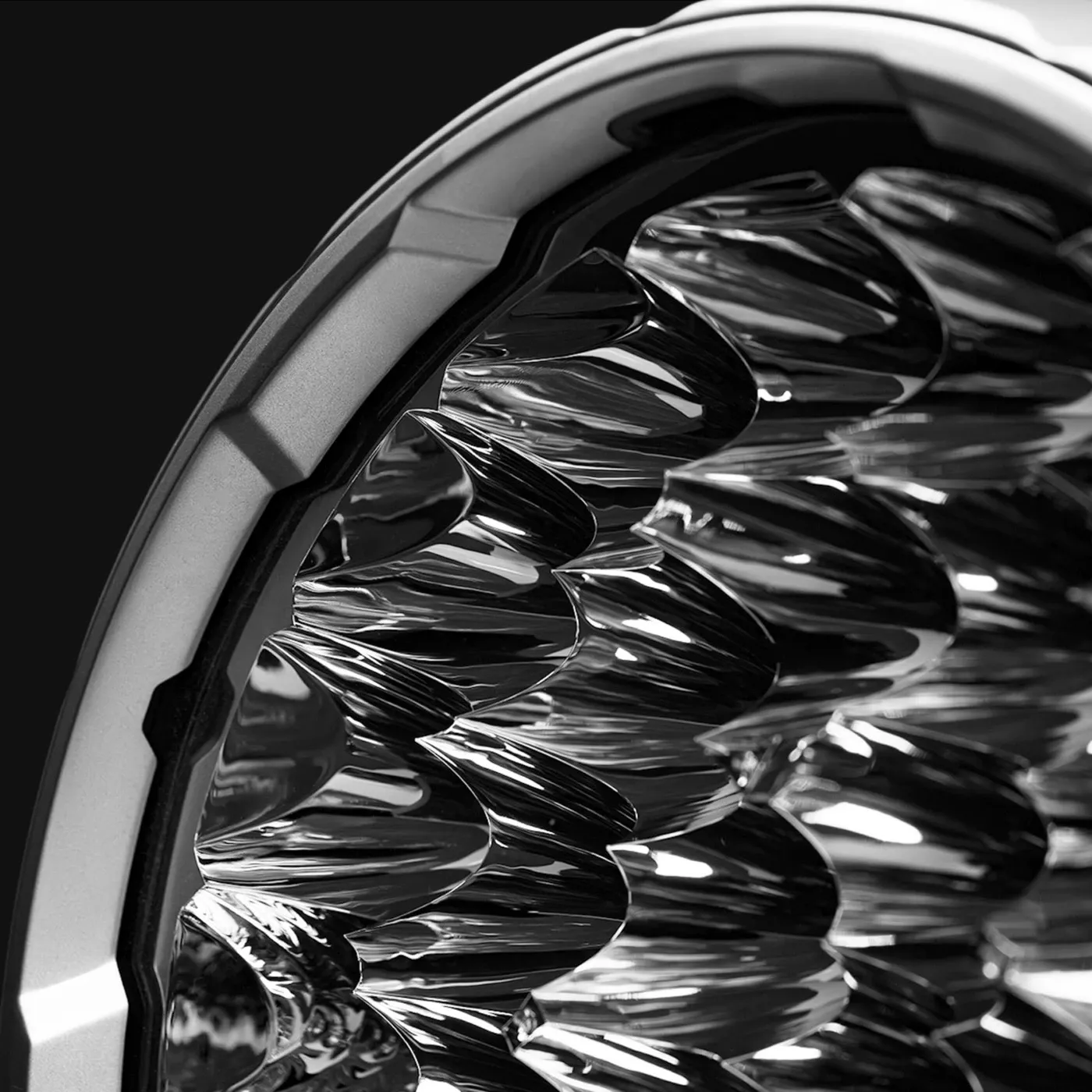

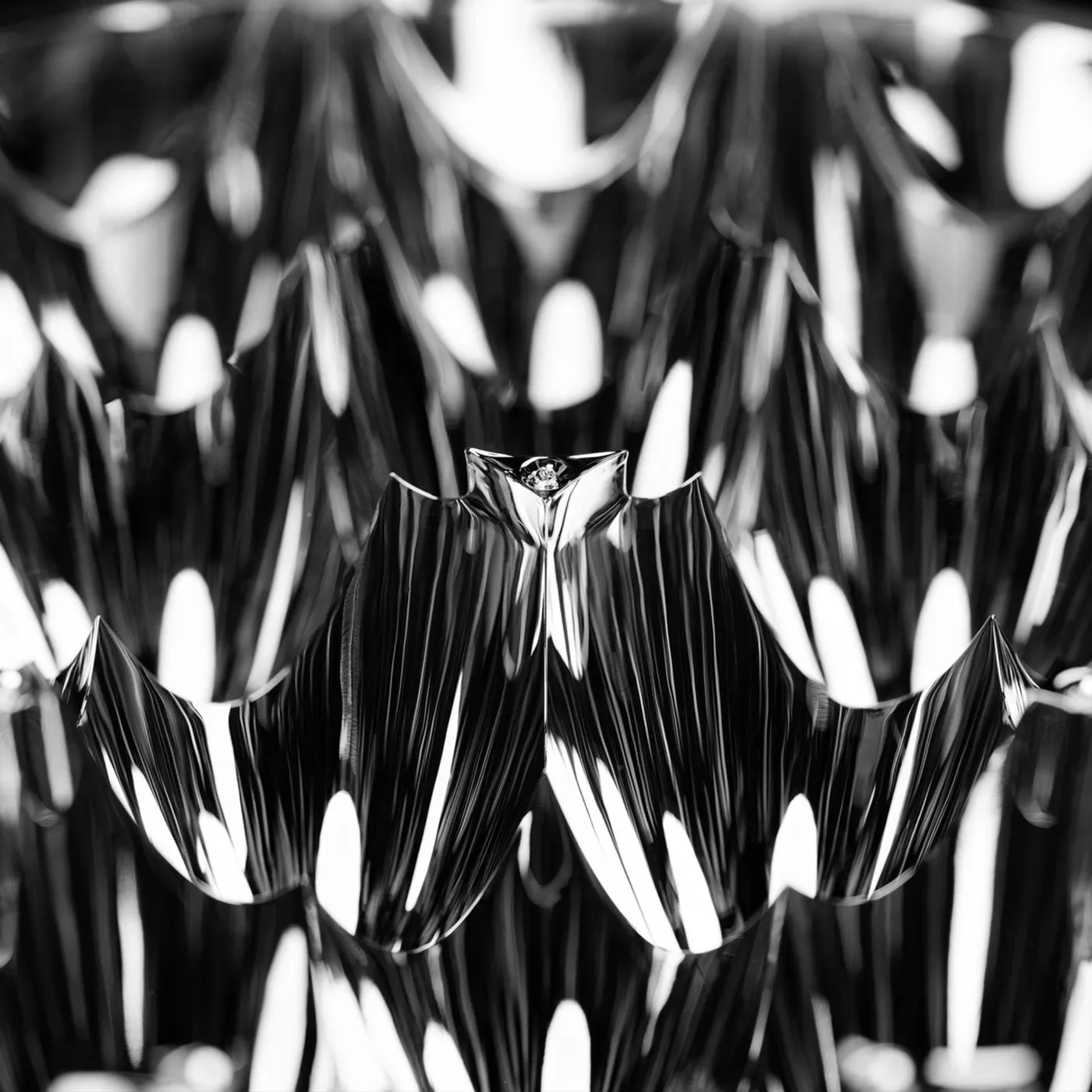

- Four wide-beam reflectors producing a lateral-shaped flood pattern
- 5000K CCT for clear colour rendering and definition

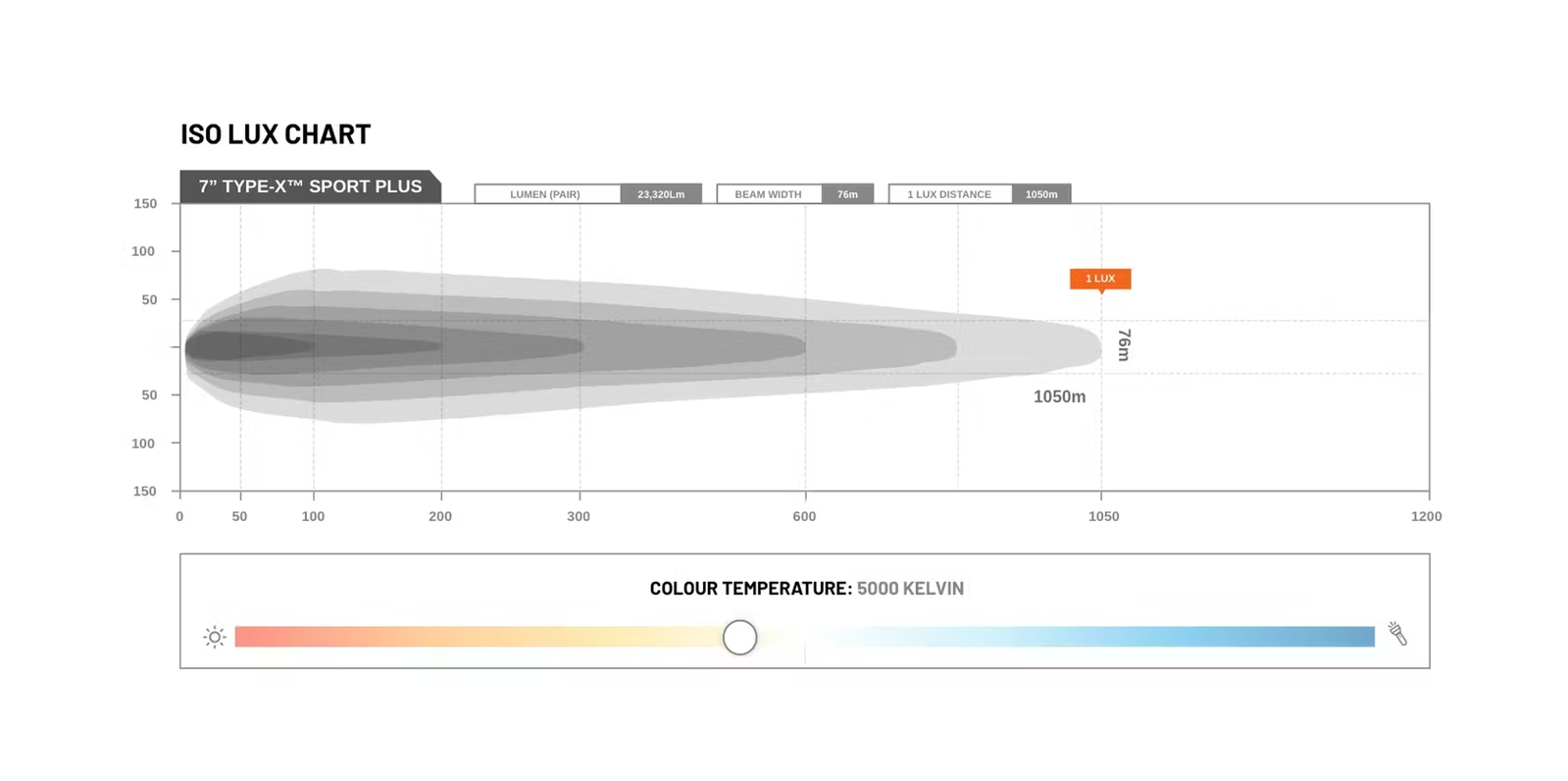

- Designed to deliver long-range illumination, with beam distance capable of exceeding 1 km
(ST-01-SRT-704)
| Material | Cast aluminium housing |
|---|---|
| Lens | GE Lexan with hard coating |
| Mounting bracket | 304 stainless steel, 4mm (plus 3mm upper plate) with rubber dampener |
| Finish | DuPont UV and abrasion-resistant powder coat |
| Connector | Deutsch DTP-2 |
| Vent | Nitto Denko pressure equalisation vent with membrane |
| LEDs | OSRAM P8 & CREE XP20s |
| Colour temperature | 5000K |
| Voltage compatibility | 10v & 30v |
| Lumen maintenance | 50,000 LM-80 |
| Operating temperature | -40°C - 60°C |
| Ingress protection | IP68; submersible up to 3m |
| Candela | 1,067,828cd (Pair) |
| SKU | ST-01-SRT-704 |
| Brand | Stedi |
| Shipping Weight | 2.2400kg |
