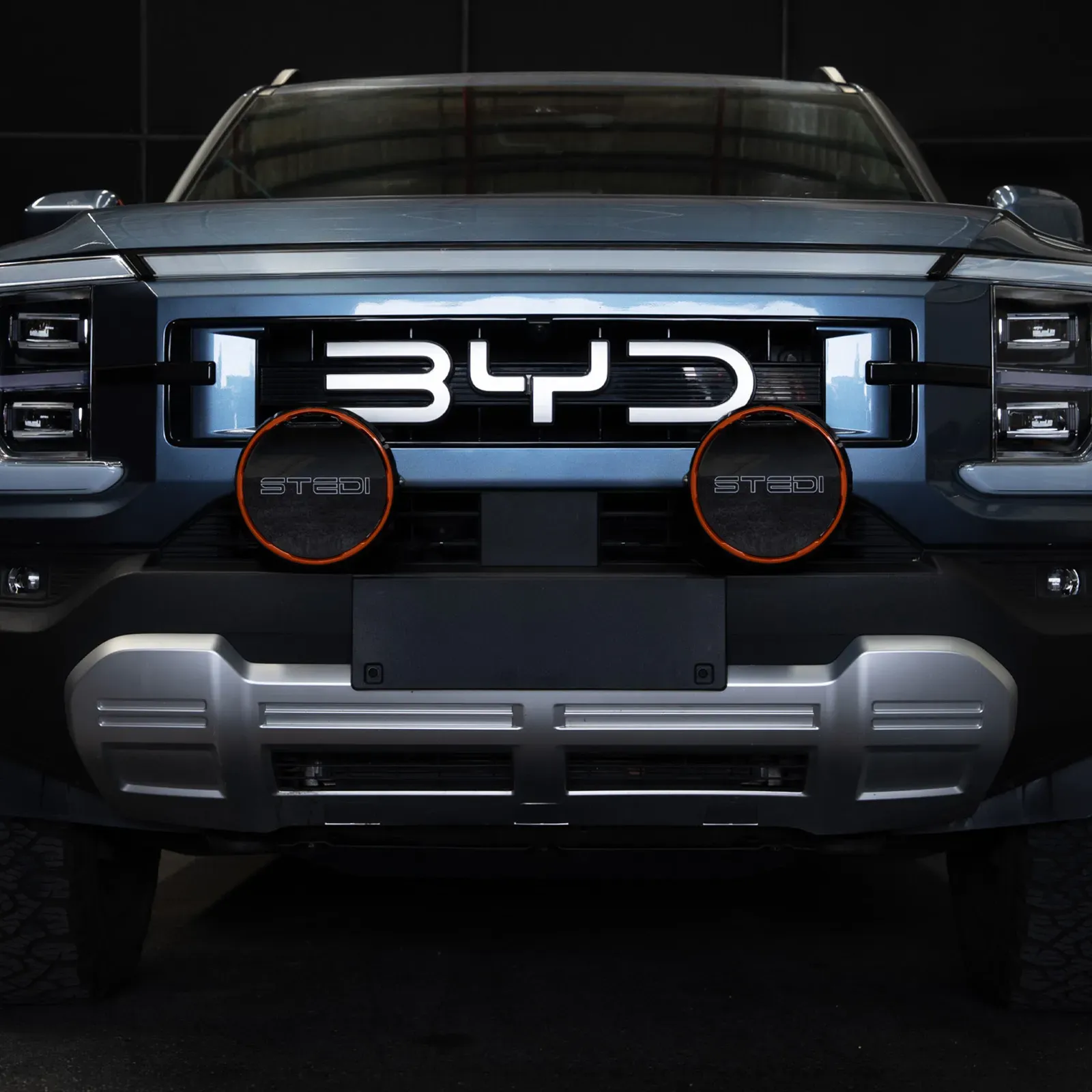

The STEDI Mounting Kit for the BYD Shark 6 is a purpose-built bracket kit that creates a factory-fit mounting point for STEDI Type-X Sport Plus 8.5" driving lights. It is design registered and produced from 304 stainless steel with a jet black powder coat finish.
Features:
- Custom engineered using advanced 3D scanning and modelling for a precise fit and finish
- Design registered bracket tailored to the BYD Shark 6
- Fabricated from 304 stainless steel for corrosion resistance
- Jet black powder coat finish for added durability

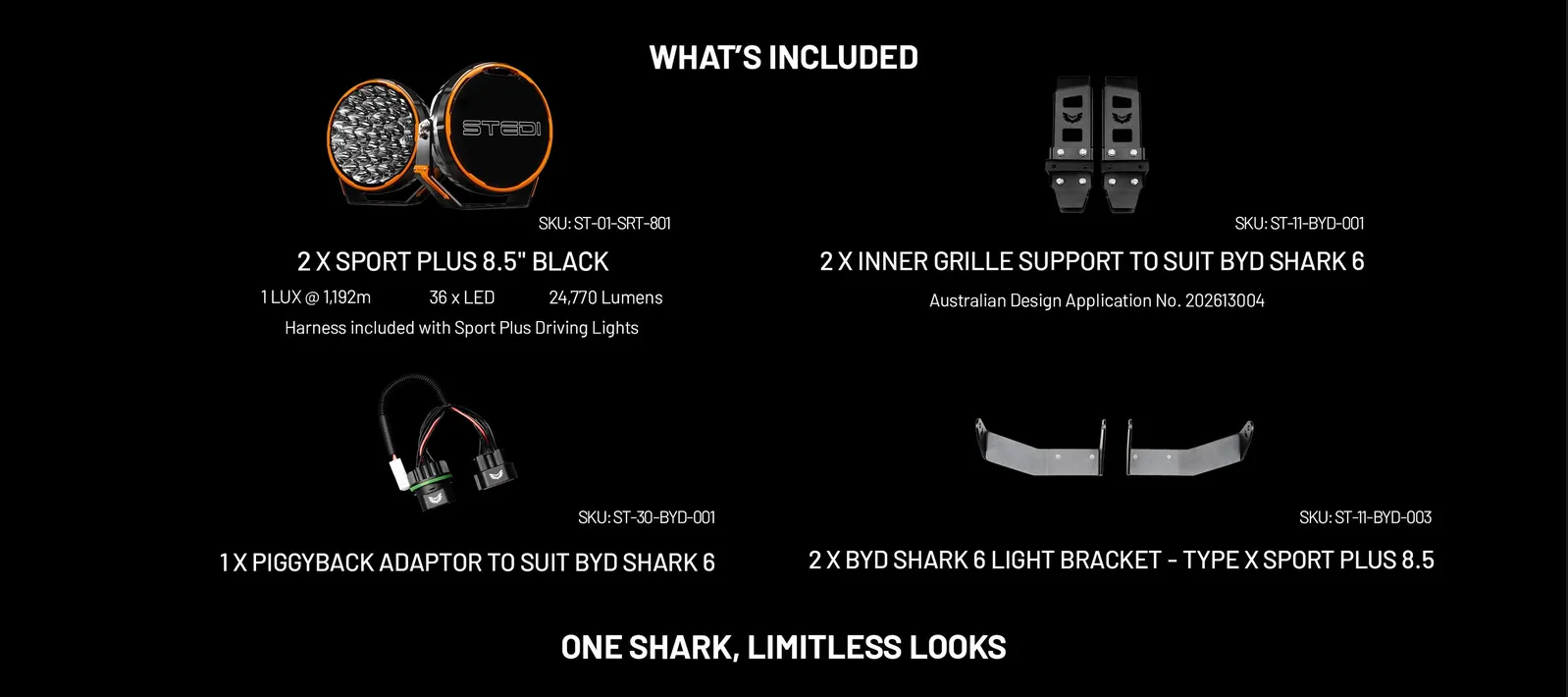

Kit Includes:

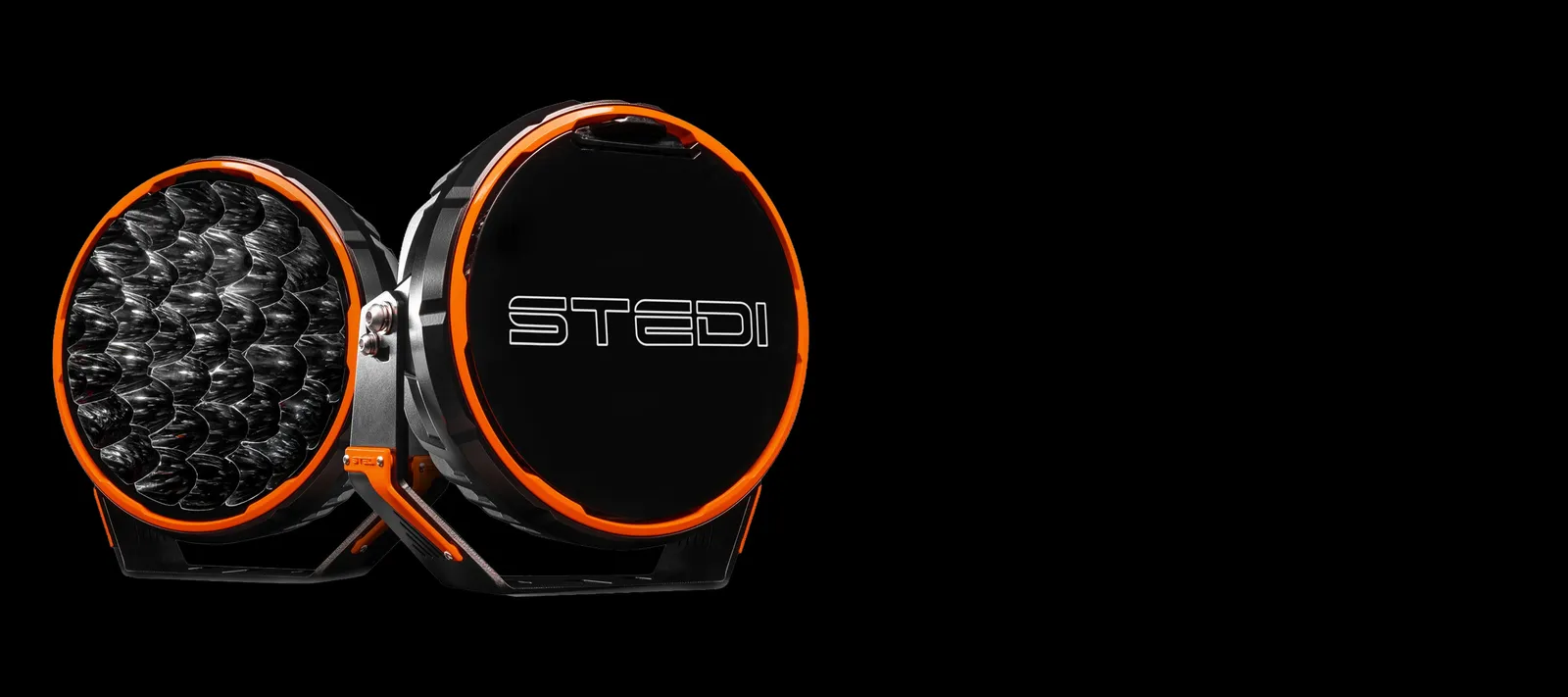

- 1 x Type-X™ Sport Plus 8.5" (ST-01-SRT-801)
- 1 x Inner Grille Support to suit BYD Shark 6 (ST-11-BYD-001)
- 1 x BYD Shark 6 Light Bracket - Type X Sport Plus 8.5" (ST-11-BYD-003)
- 1 x Piggyback Adapter to suit BYD Shark 6 (ST-30-BYD-001)
Suits:
- BYD Shark 6
- Only suited to the STEDI Type-X Sport Plus 8.5" LED Driving Lights
(ST-BYDS-SP)
| Material | 304 stainless steel |
|---|---|
| Finish | Jet black powder coat |
| LED | 30x OSRAM P8 + 6x CREE XP20 |
| Raw lumens | 19,020 Lm (each) |
| Tested lumens | 12,385 Lm (each) | 24,770 Lm (Pair) |
| Power draw | 108W (each) |
| Amp draw | 4.5A @ 24v | 9.0A @12v (each) |
| Candela | 601,464 (Single) / 1,202,928 (Pair) |
| Beam pattern | Combo (32 Spot + 4 Flood) |
| Ingress protection | IP68 | Submersible up to 3m |
| Colour temperature | 5000K |
| Voltage compatibility | 10v & 30v |
| Lumen maintenance | 50,000 LM-80 |
| Operating temperature | -40°C - 60°C |
| Range | 770 m: 1 Lx (Single); 1,192 m: 1 Lx (Pair) |
| SKU | ST-BYDS-SP |
| Brand | Stedi |
| Shipping Weight | 3.3500kg |
