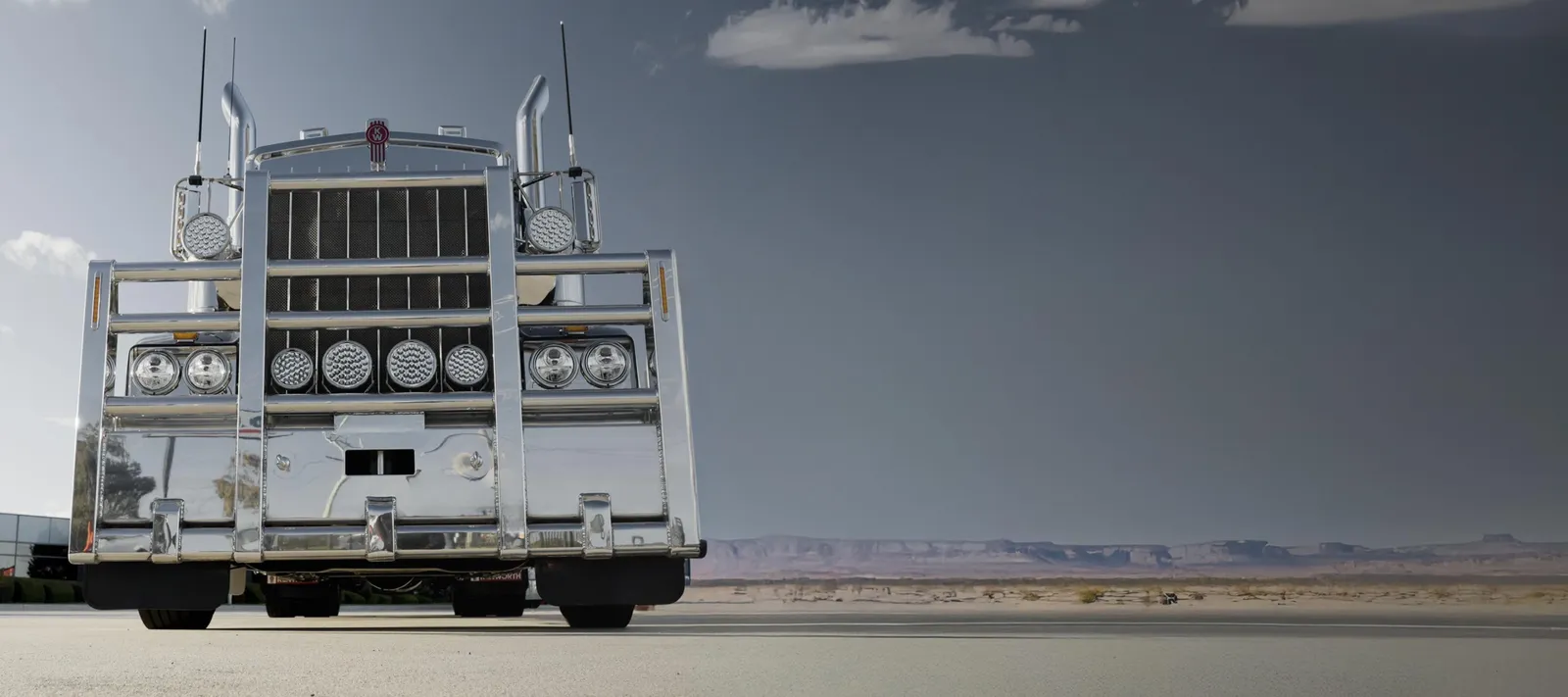

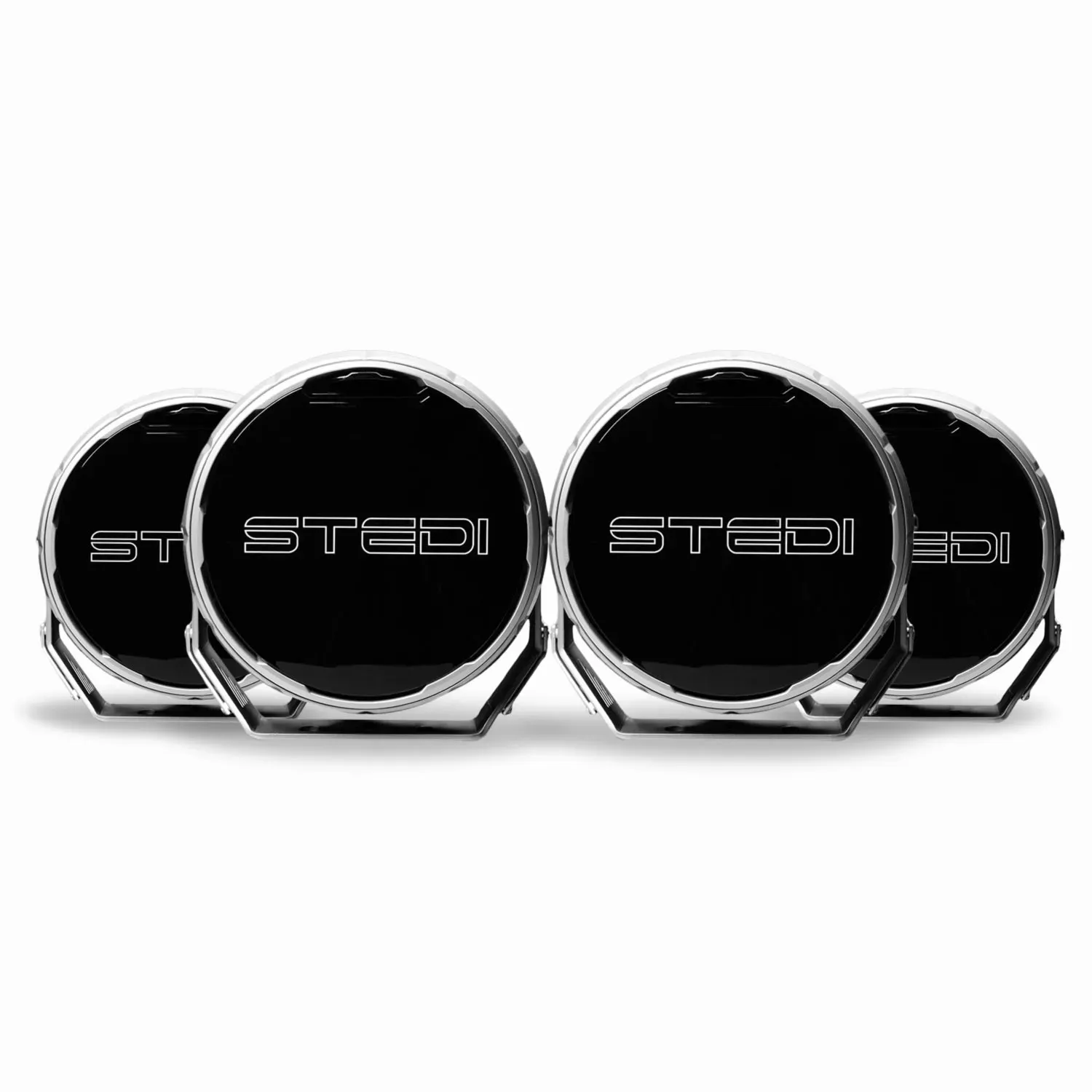

The Stedi Type-X Sport Plus Silver Rally Spec kit contains an 8.5" and a 7" Type-X Sport Plus Silver Edition LED driving light designed for truck and heavy vehicle applications. The Silver Edition pairs a cast aluminium body and DuPont silver powder coat with a GE Lexan lens and robust environmental sealing for heavy-duty use.
Features:

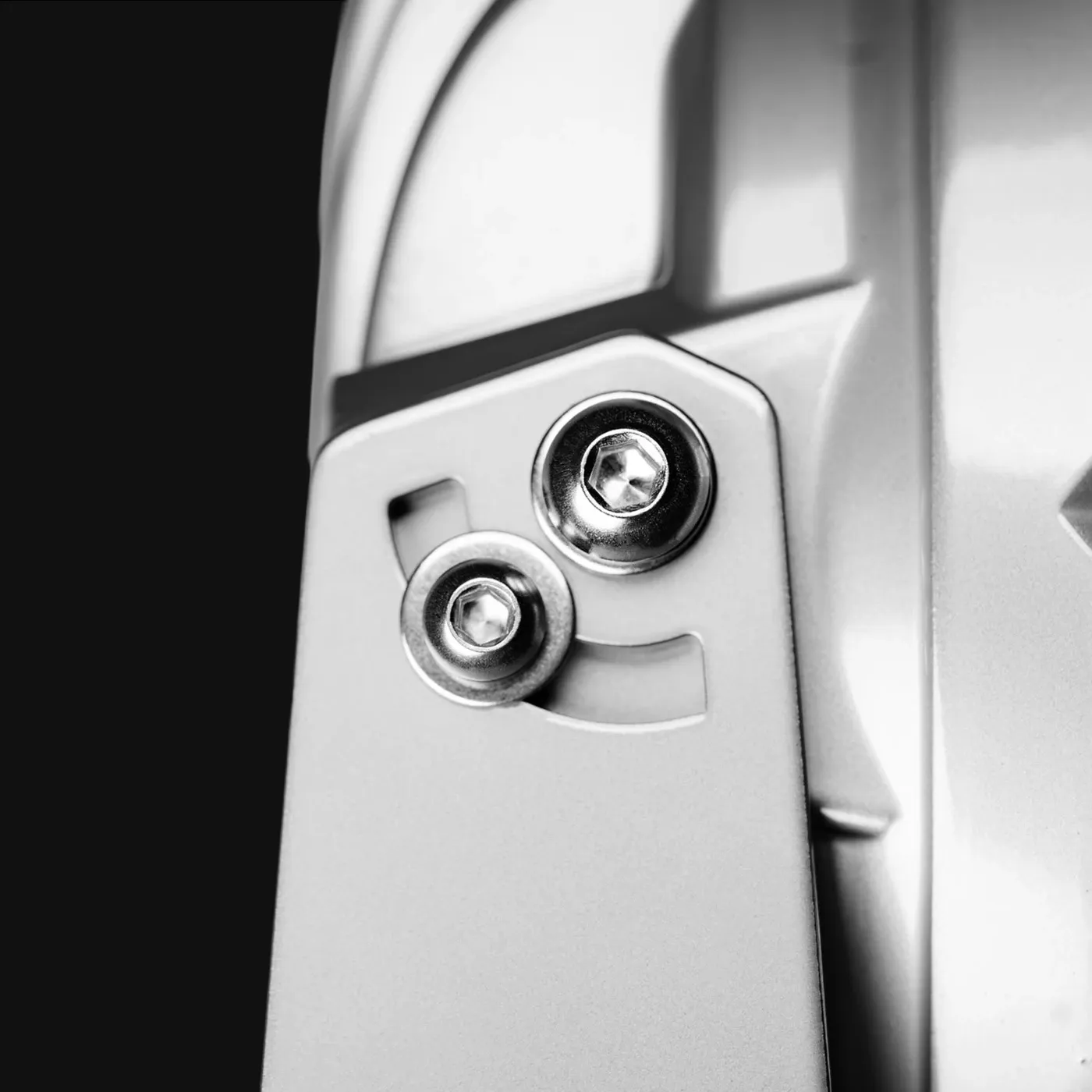

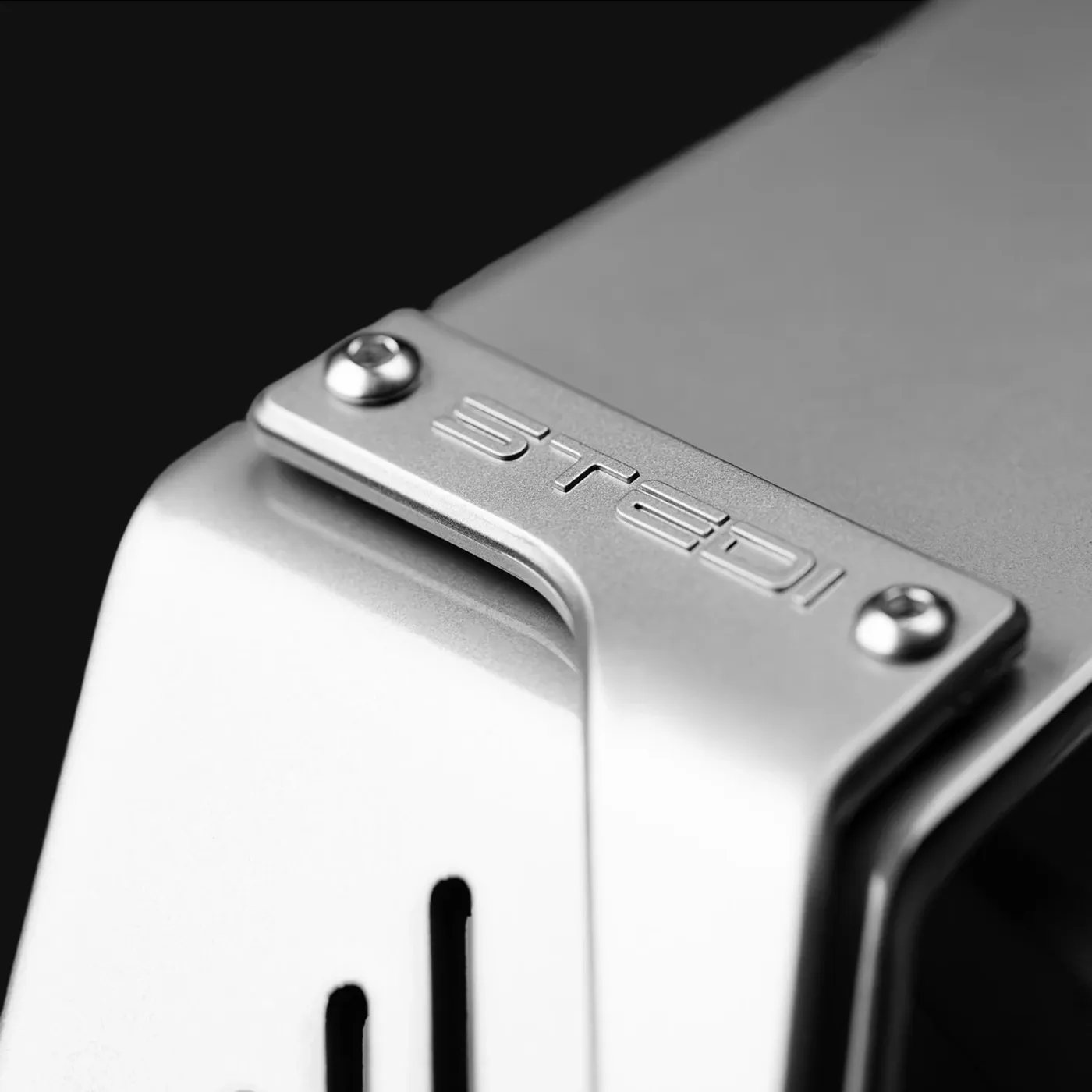

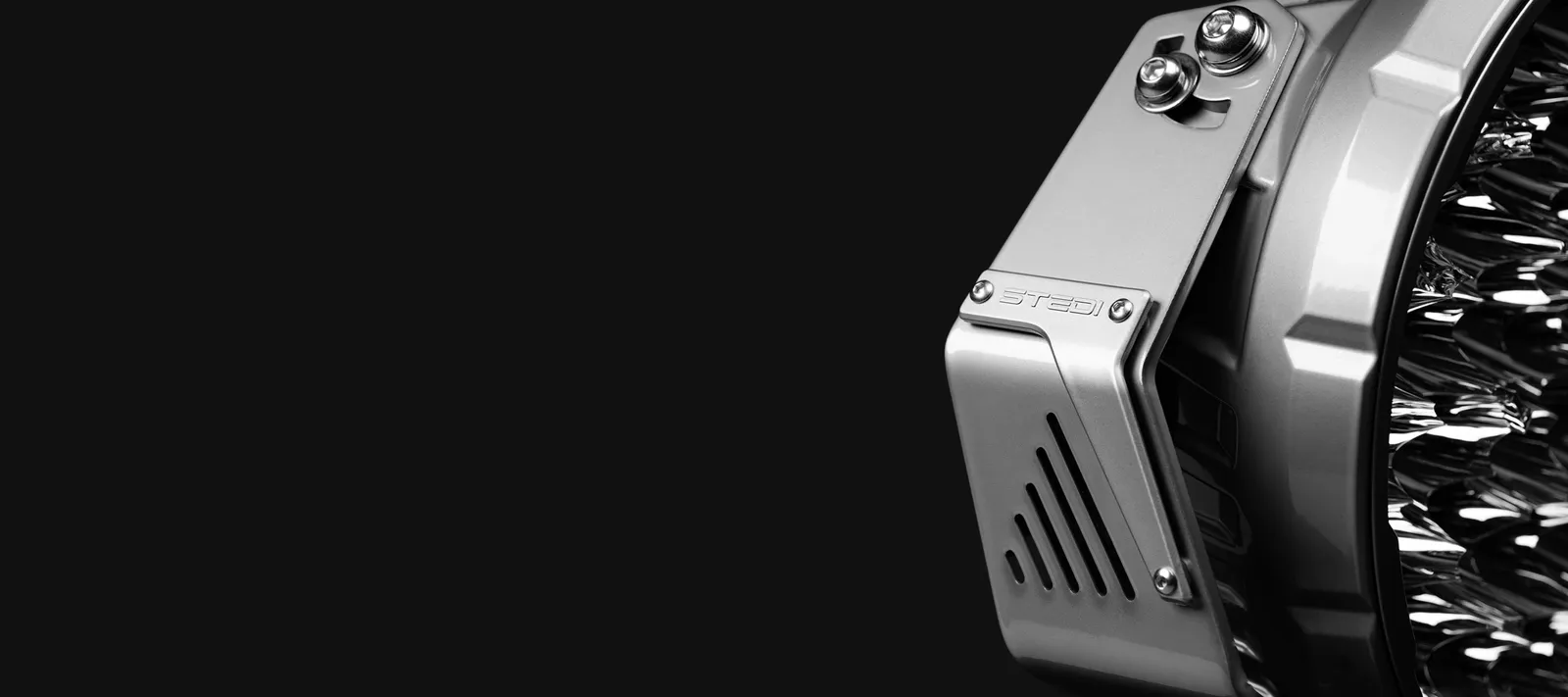

- 4mm thick 304 series stainless mounting bracket with rubber dampener and an additional 3mm upper plate

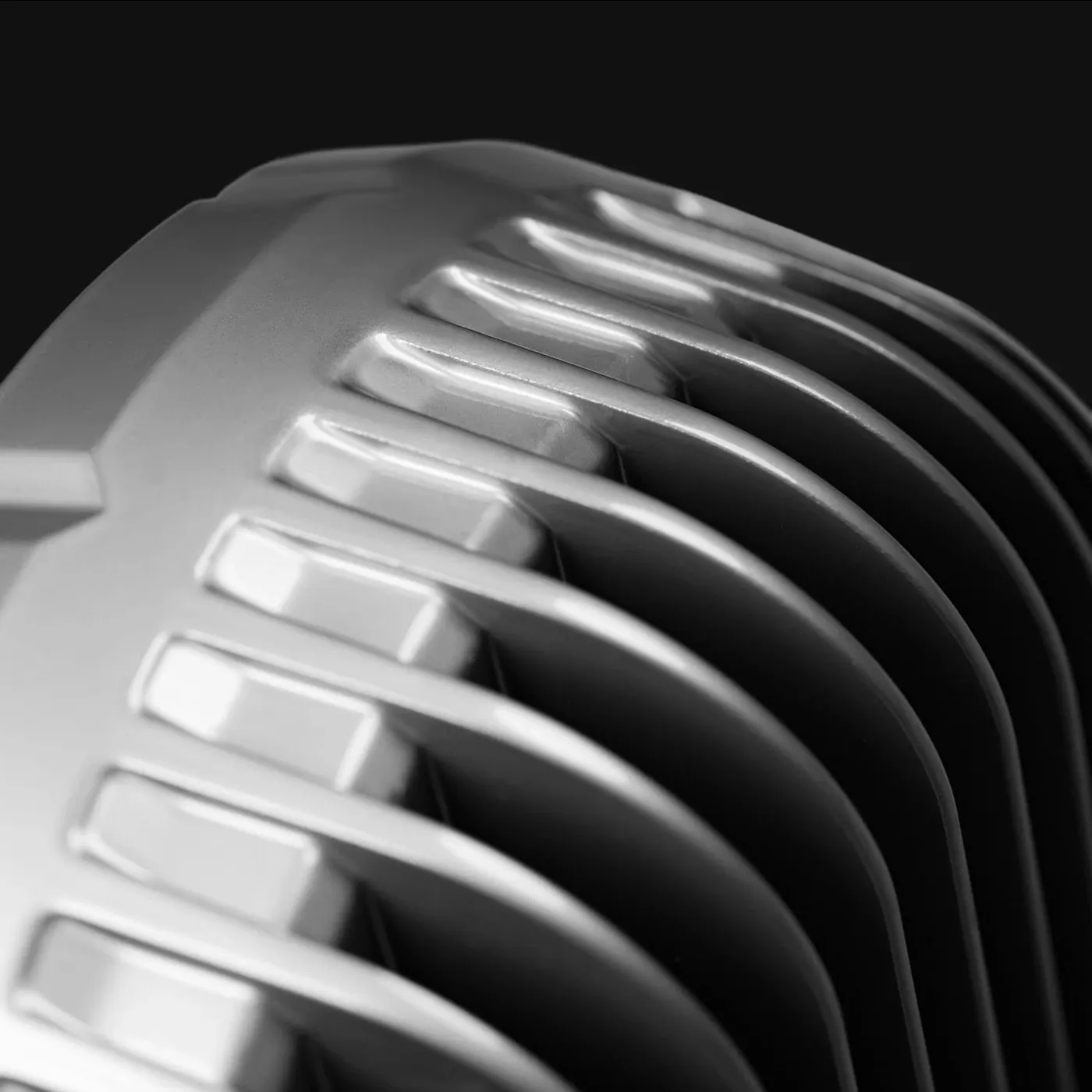

- Cast aluminium housing for strength and corrosion resistance
- GE Lexan lens with hard coating for scratch resistance
- DuPont UV and abrasion-resistant powder coat finish
- IP68 rated: dust tight and waterproof to 3 metres
- Nitto Denko pressure equalisation vent with membrane to protect against water ingress and contaminants
- Environmentally sealed Deutsch® DTP-2 connector
- EMI & RFI suppression circuitry
- Combination of OSRAM P8 & CREE XP20s LEDs for clarity

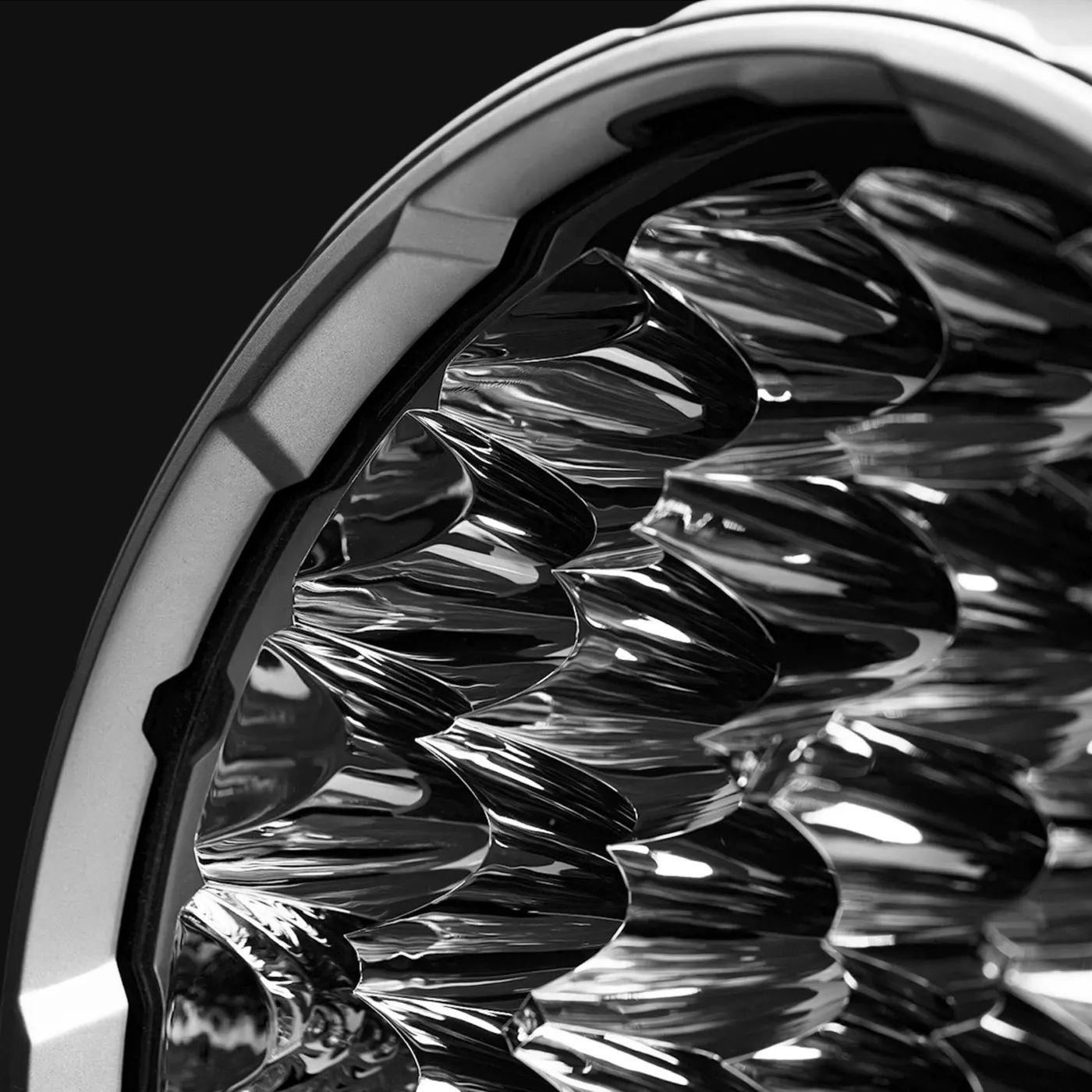

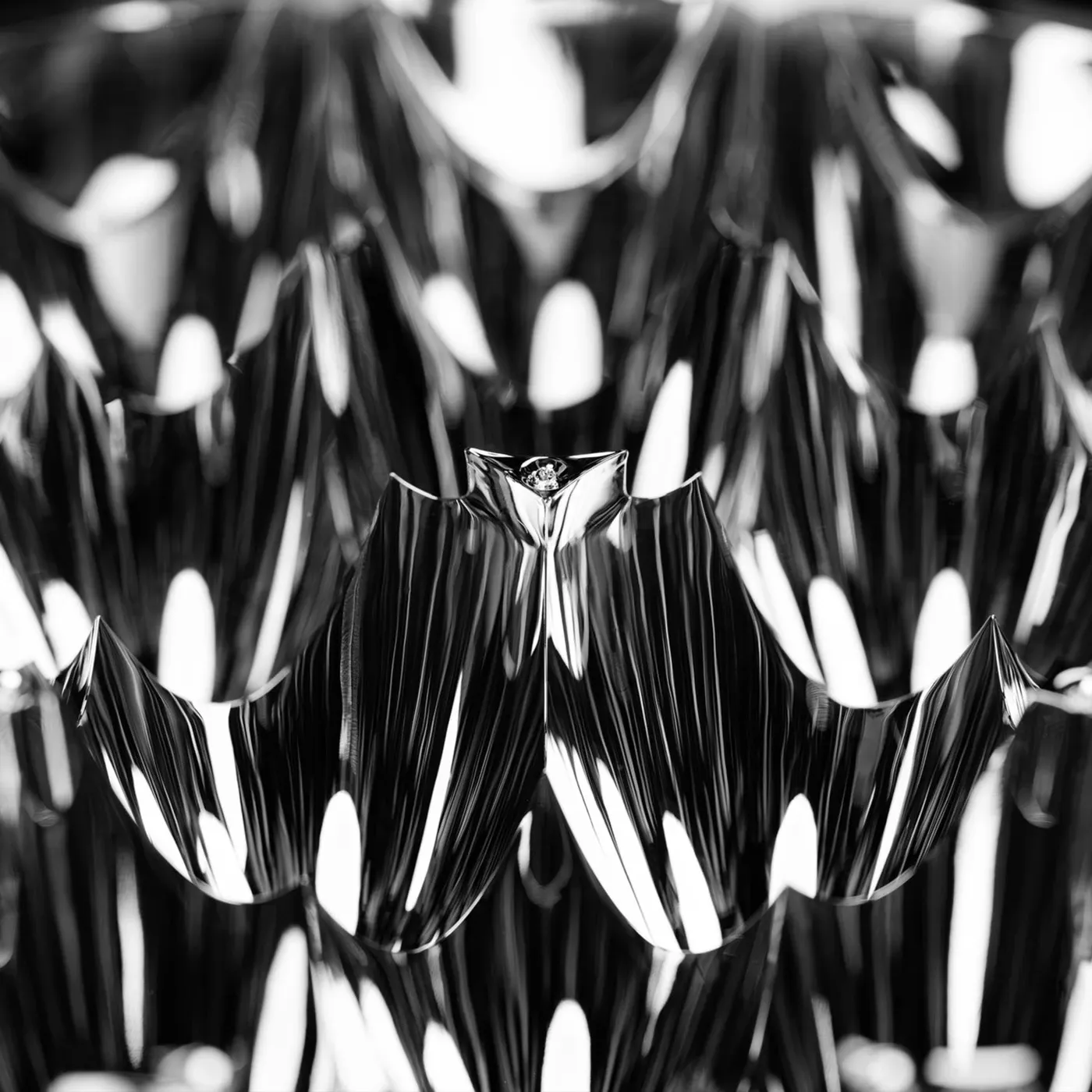

- Four wide-beam reflectors providing a lateral-shaped flood pattern
- 5000K CCT with a high Colour Rendering Index (CRI)

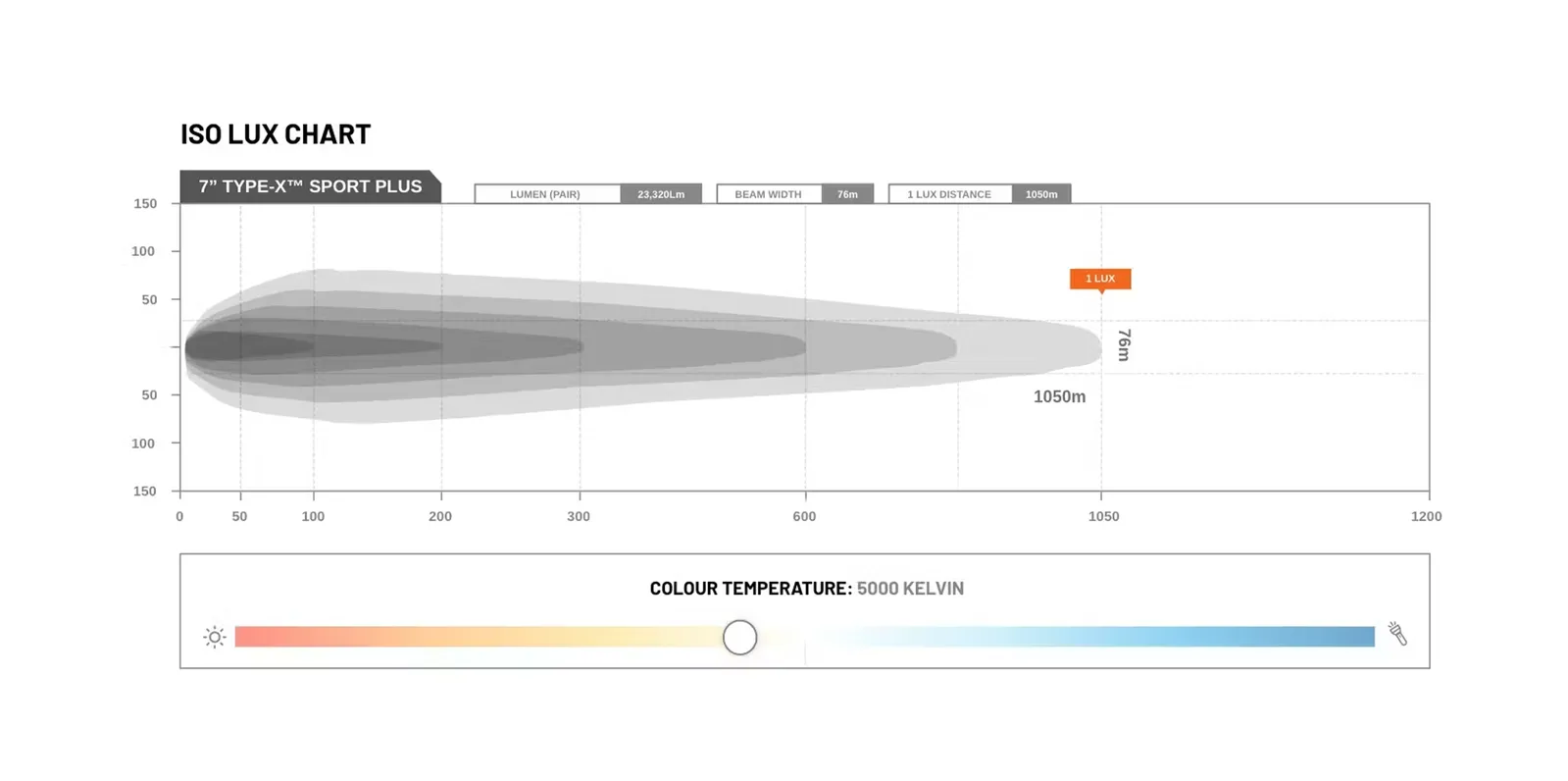

- Long-range and flood performance — both 7" and 8.5" sizes will throw light well over 1 km
Kit Includes:
- 1 x Type-X™ Sport Plus 8.5" Silver Edition (ST-01-SRT-802)
- 1 x Type-X™ Sport Plus 7" Silver Edition (ST-01-SRT-702)
(ST-02-SRT-RALLY)
| Included sizes | 8.5" and 7" Type-X Sport Plus Silver Edition |
|---|---|
| Mounting bracket | 4mm 304 series stainless steel with rubber dampener and 3mm upper plate |
| Housing | Cast aluminium |
| Lens | GE Lexan with hard coating |
| Finish | DuPont UV and abrasion-resistant powder coat (silver) |
| Ingress protection | IP68 |
| Waterproof depth | Up to 3 metres |
| Vent | Nitto Denko pressure equalisation vent with membrane |
| Connector | Environmentally sealed Deutsch® DTP-2 |
| EMI/RFI | EMI & RFI suppression circuitry |
| LEDs | OSRAM P8 & CREE XP20s |
| Reflectors | Four wide-beam reflectors for lateral-shaped flood pattern |
| Colour temperature | 5000K CCT |
| Beam range | Will throw light well over 1 km (manufacturer claim) |
| SKU | ST-02-SRT-RALLY |
| Brand | Stedi |
